  1. Machining Technologies

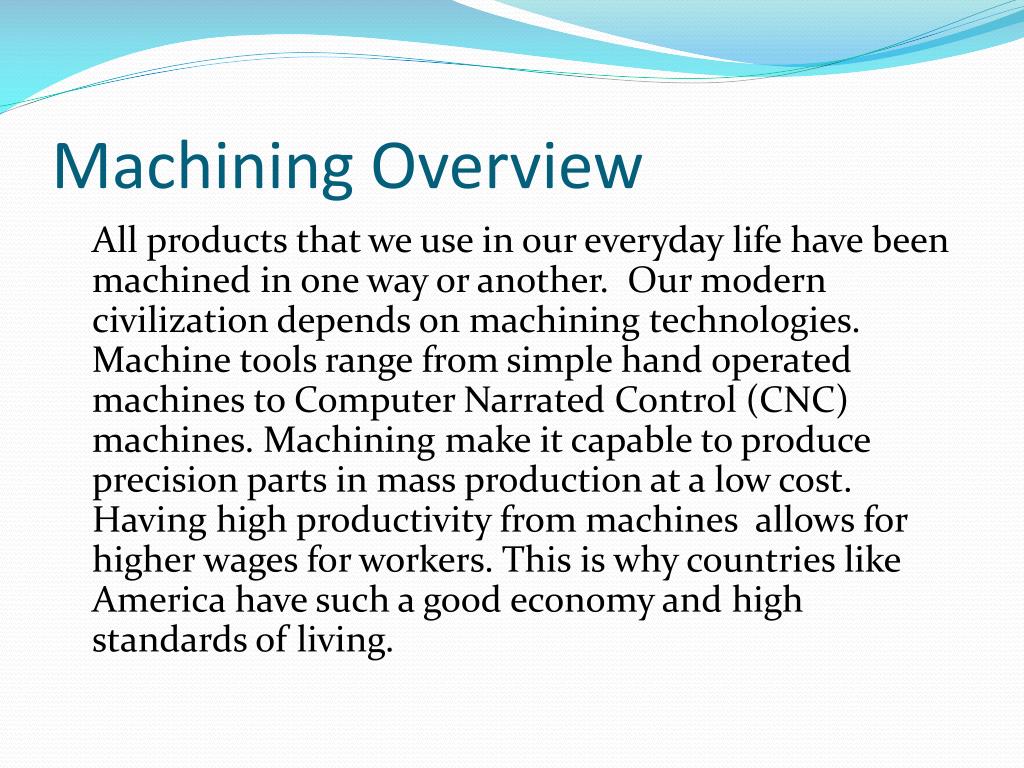

  2. Machining Overview All products that we use in our everyday life have been machined in one way or another. Our modern civilization depends on machining technologies. Machine tools range from simple hand operated machines to Computer Narrated Control (CNC) machines. Machining make it capable to produce precision parts in mass production at a low cost. Having high productivity from machines allows for higher wages for workers. This is why countries like America have such a good economy and high standards of living.

  3. Drill Press The drill press- consists of a rotating tool, this can be drilling, reaming, or tapping. These operation include making a hole, finishing, or threading a hole.

  4. Band saw Band saw- used for cutting stock.

  5. Vertical Band saw Vertical Band saw- Used for cutting smaller stock by hand

  6. Lathe The lathe- consists of a single-point cutting tool which removes metal as it moves along a revolving part.

  7. Trac Three Axis Mill The milling machine- consists of a revolving tool that moves around a stationary part.

  8. Surface Grinder The grinder-consist of abrasive particles cutting the part. These particles are bonded together to form wheels or stones.

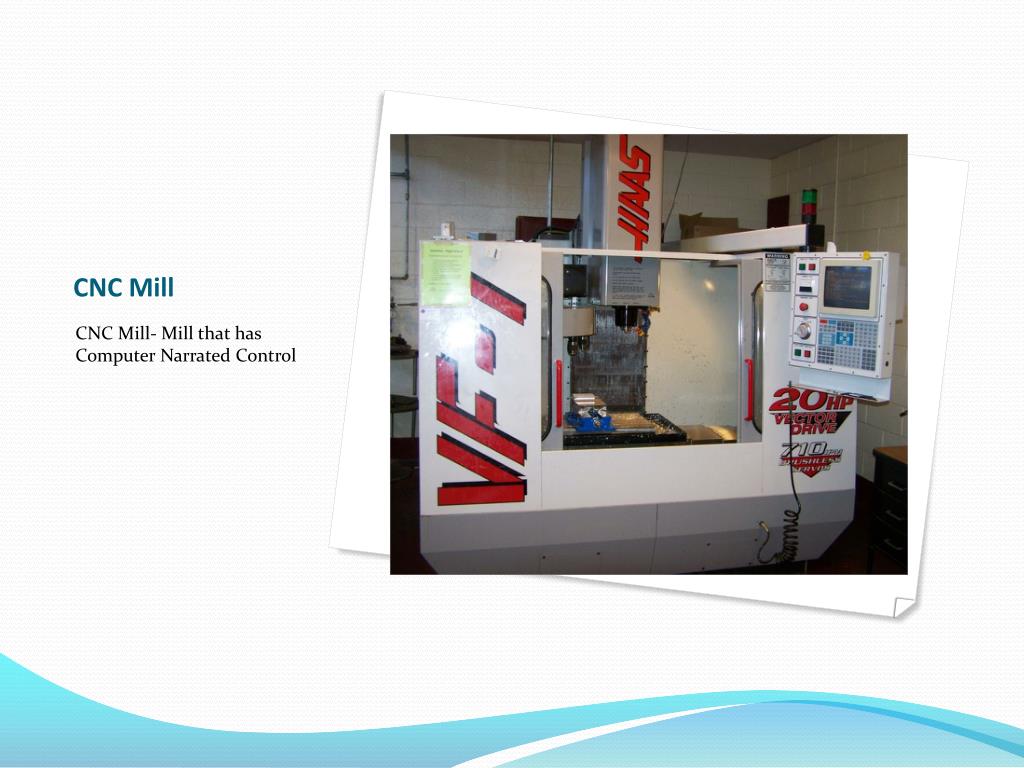

  9. CNC Mill CNC Mill- Mill that has Computer Narrated Control

  10. Computer Lab and CNC Mill

  11. BikeSprocket

  12. Milling Stem

  13. Milling Stem

  14. Milling Stem

  15. Milling Stem

  16. Seat-post Clamp

  17. Milling Circle Pocket of Seat-post Clamp

  18. Drilling Axle Nut on Lathe

  19. The End
