  1. ProgrammableGraphics Hardware David Luebke 111/18/2014

  2. Admin • Handout: Cg in two pages David Luebke 211/18/2014

  3. Acknowledgement & Aside • The bulk of this lecture comes from slides from Bill Mark’s SIGGRAPH 2002 course talk on NVIDIA’s programmable graphics technology • For this reason, and because the lab is outfitted with GeForce 3 cards, we will focus on NVIDIA tech David Luebke 311/18/2014

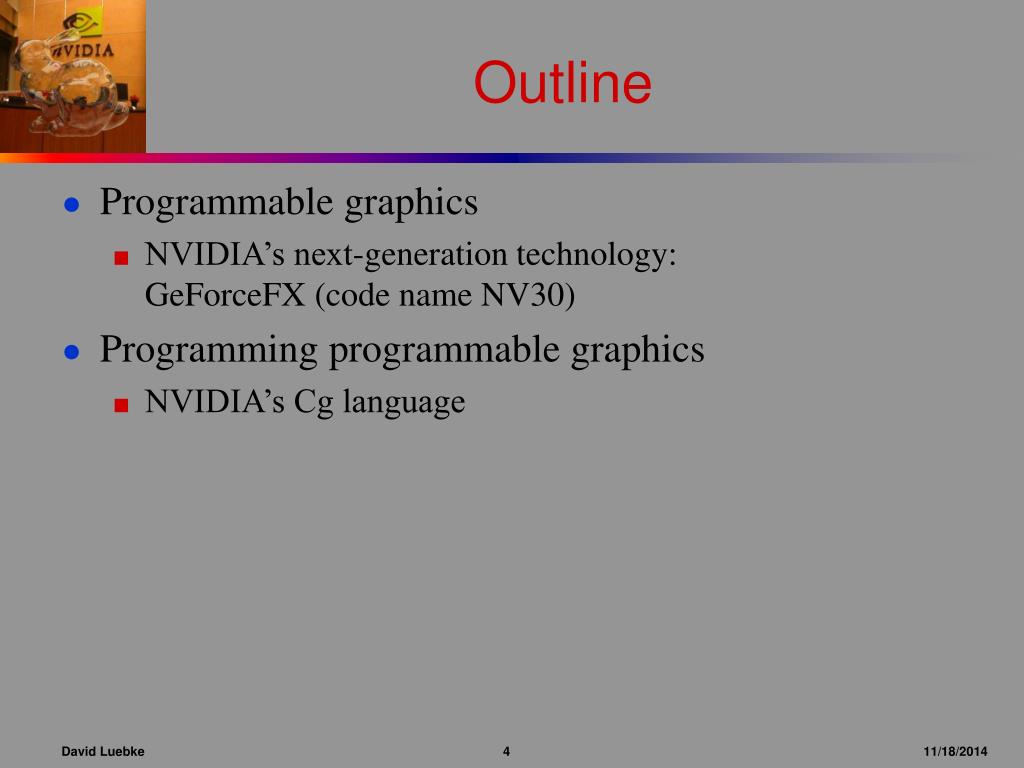

  4. Outline • Programmable graphics • NVIDIA’s next-generation technology: GeForceFX (code name NV30) • Programming programmable graphics • NVIDIA’s Cg language David Luebke 411/18/2014

  5. GPU Programming Model CPU GPU VertexProcessor FragmentProcessor FramebufferOperations Assembly &Rasterization Application Framebuffer Textures David Luebke 511/18/2014

  6. 32-bit IEEE floating-pointthroughout pipeline • Framebuffer • Textures • Fragment processor • Vertex processor • Interpolants David Luebke 611/18/2014

  7. Hardware supports several other data types • Fragment processor also supports: • 16-bit “half” floating point • 12-bit fixed point • These may be faster than 32-bit on some HW • Framebuffer/textures also support: • Large variety of fixed-point formats • E.g., classical 8-bit per component • These formats use less memory bandwidth than FP32 David Luebke 711/18/2014

  8. Vertex processor capabilities • 4-vector FP32 operations, as in GeForce3/4 • True data-dependent control flow • Conditional branch instruction • Subroutine calls, up to 4 deep • Jump table (for switch statements) • Condition codes • New arithmetic instructions (e.g. COS) • User clip-plane support David Luebke 811/18/2014

  9. Vertex processor has high resource limits • 256 instructions per program(effectively much higher w/branching) • 16 temporary 4-vector registers • 256 “uniform” parameter registers • 2 address registers (4-vector) • 6 clip-distance outputs David Luebke 911/18/2014

  10. Fragment processor has clean instruction set • General and orthogonal instructions • Much better than previous generation • Same syntax as vertex processor: MUL R0, R1.xyz, R2.yxw; • Full set of arithmetic instructions:RCP, RSQ, COS, EXP, … David Luebke 1011/18/2014

  11. Fragment processor hasflexible texture mapping • Texture reads are just another instruction(TEX, TXP, or TXD) • Allows computed texture coordinates,nested to arbitrary depth • Allows multiple uses of a singletexture unit • Optional LOD control – specify filter extent • Think of it as…A memory-read instruction,with optional user-controlled filtering David Luebke 1111/18/2014

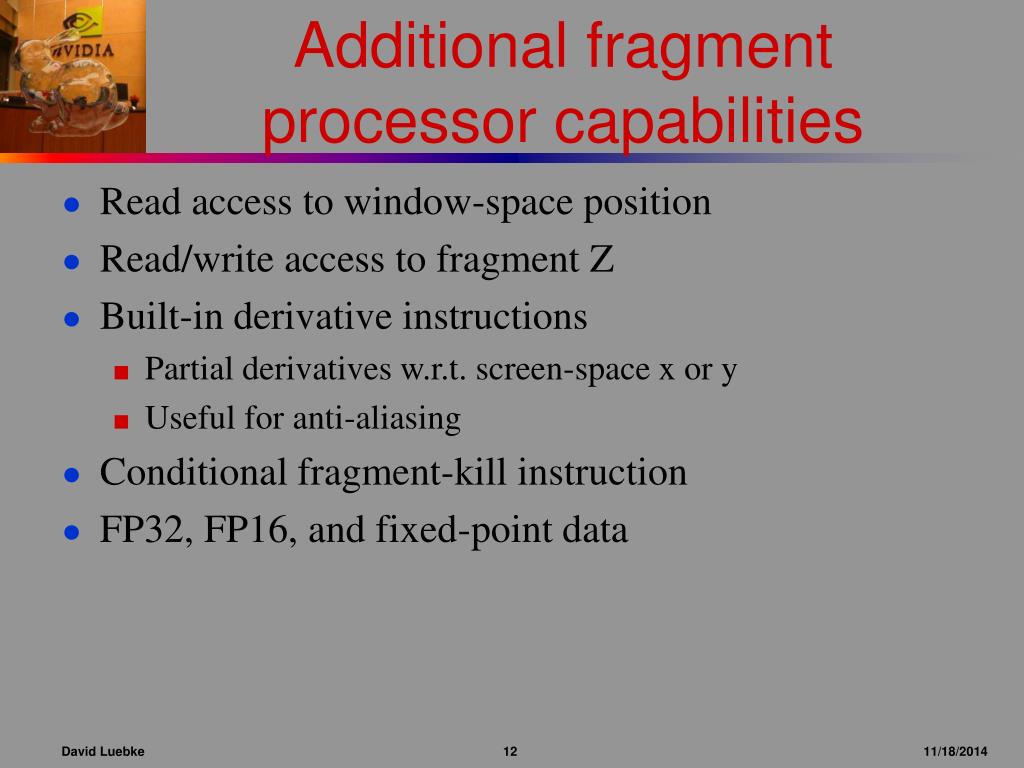

  12. Additional fragment processor capabilities • Read access to window-space position • Read/write access to fragment Z • Built-in derivative instructions • Partial derivatives w.r.t. screen-space x or y • Useful for anti-aliasing • Conditional fragment-kill instruction • FP32, FP16, and fixed-point data David Luebke 1211/18/2014

  13. Fragment processor limitations • No branching • But, can do a lot with condition codes • No indexed reads from registers • Use texture reads instead • No memory writes David Luebke 1311/18/2014

  14. Fragment processor has high resource limits • 1024 instructions • 512 constants or uniform parameters • Each constant counts as one instruction • 16 texture units • Reuse as many times as desired • 8 FP32 x 4 perspective-correct inputs • 128-bit framebuffer “color” output(use as 4 x FP32, 8 x FP16, etc…) David Luebke 1411/18/2014

  15. NV30 CineFX Technology Summary VertexProcessor FragmentProcessor FramebufferOperations Assembly &Rasterization Application Framebuffer Textures • FP32 throughout pipeline • Clean instruction sets • True branching in vertex processor • Dependent texture in fragment processor • High resource limits David Luebke 1511/18/2014

  16. Programming in assembly is painful Assembly …FRC R2.y, C11.w; ADD R3.x, C11.w, -R2.y; MOV H4.y, R2.y; ADD H4.x, -H4.y, C4.w; MUL R3.xy, R3.xyww, C11.xyww; ADD R3.xy, R3.xyww, C11.z; TEX H5, R3, TEX2, 2D; ADD R3.x, R3.x, C11.x; TEX H6, R3, TEX2, 2D;… … L2weight = timeval – floor(timeval); L1weight = 1.0 – L2weight; ocoord1 = floor(timeval)/64.0 + 1.0/128.0; ocoord2 = ocoord1 + 1.0/64.0; L1offset = f2tex2D(tex2, float2(ocoord1, 1.0/128.0)); L2offset = f2tex2D(tex2, float2(ocoord2, 1.0/128.0)); … • Easier to read and modify • Cross-platform • Combine pieces • etc. David Luebke 1611/18/2014

  17. Quick Demo David Luebke 1711/18/2014

  18. Cg – C for Graphics • Cg is a GPU programming language • Designed by NVIDIA and Microsoft • Compilers available in beta versions from both companies David Luebke 1811/18/2014

  19. Design goals for Cg • Enable algorithms to be expressed… • Clearly, and • Efficiently • Provide interface continuity • Focus on DX9-generation HW and beyond • But provide support for DX8-class HW too • Support both OpenGL and Direct3D • Allow easy, incremental adoption David Luebke 1911/18/2014

  20. Easy adoption for applications • Avoid owning the application’s data • No scene graph • No buffering of vertex data • Compiler sits on top of existing APIs • User can examine assembly-code output • Can compile either at run time, or at application-development time • Allow partial adoption e.g. Use Cg vertex program with assembly fragment program • Support current hardware David Luebke 2011/18/2014

  21. Some points inthe design space • CPU languages • C – close to the hardware; general purpose • C++, Java, lisp – require memory management • RenderMan – specialized for shading • Real-time shading languages • Stanford shading language • Creative Labs shading language David Luebke 2111/18/2014

  22. Design strategy • Start with C(and a bit of C++) • Minimizes number of decisions • Gives you known mistakes instead of unknown ones • Allow subsetting of the language • Add features desired for GPU’s • To support GPU programming model • To enable high performance • Tweak to make it fit together well David Luebke 2211/18/2014

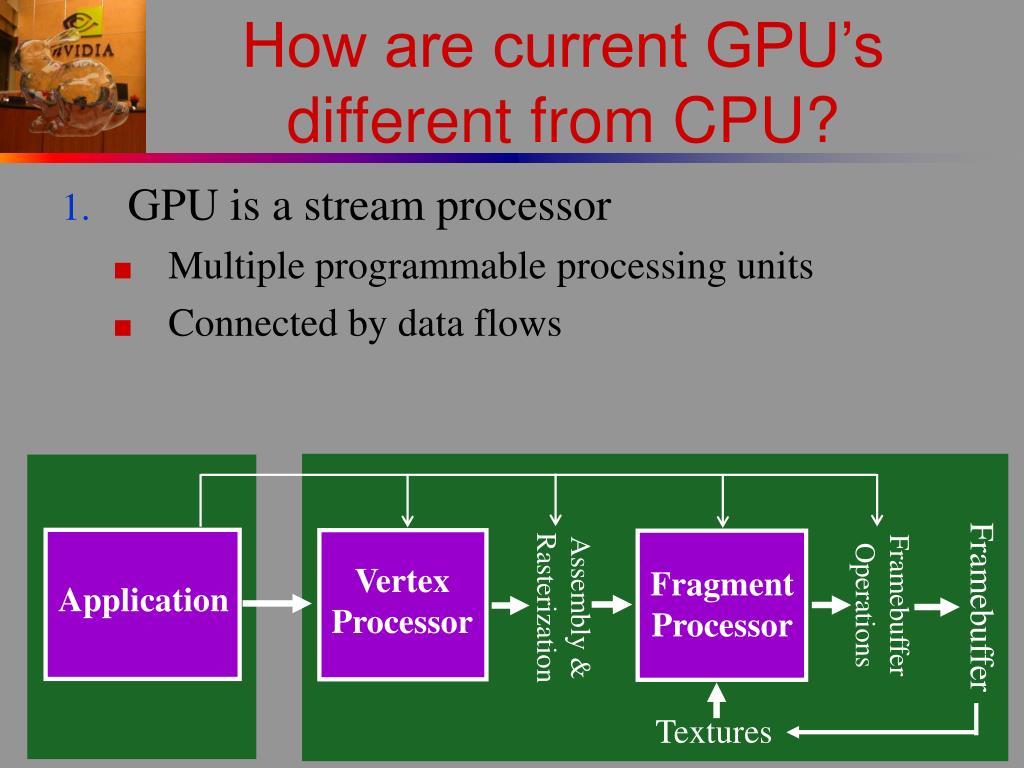

  23. How are current GPU’s different from CPU? • GPU is a stream processor • Multiple programmable processing units • Connected by data flows VertexProcessor FragmentProcessor FramebufferOperations Assembly &Rasterization Application Framebuffer Textures David Luebke 2311/18/2014
