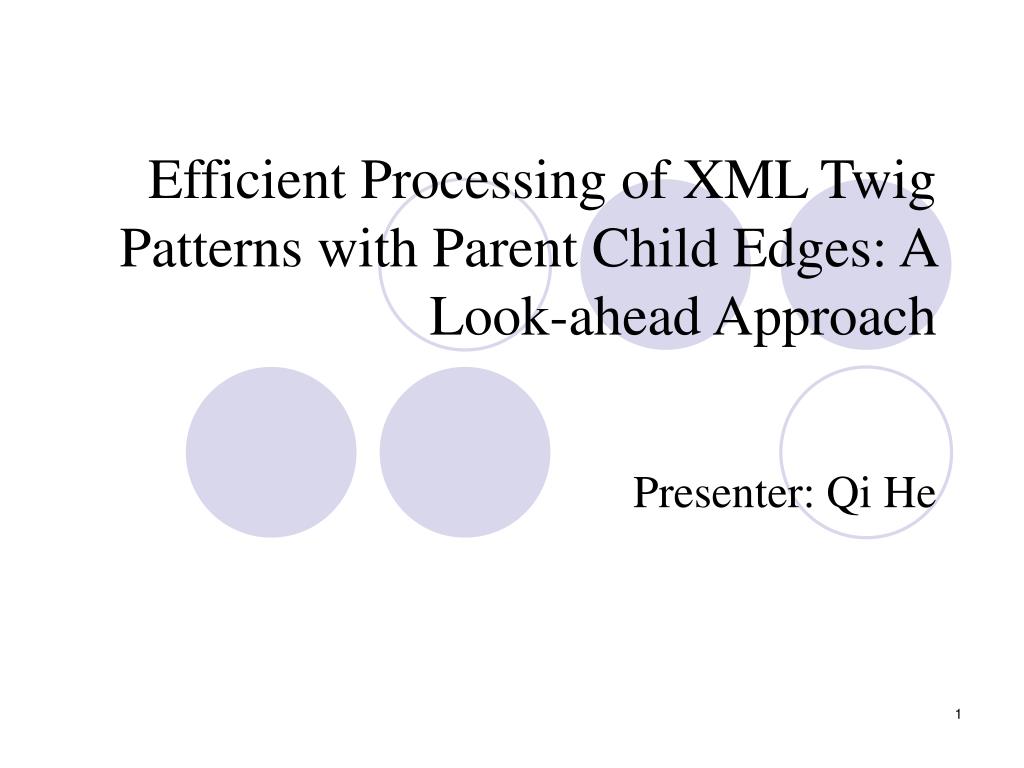

  1. Efficient Processing of XML Twig Patterns with Parent Child Edges: A Look-ahead Approach Presenter: Qi He

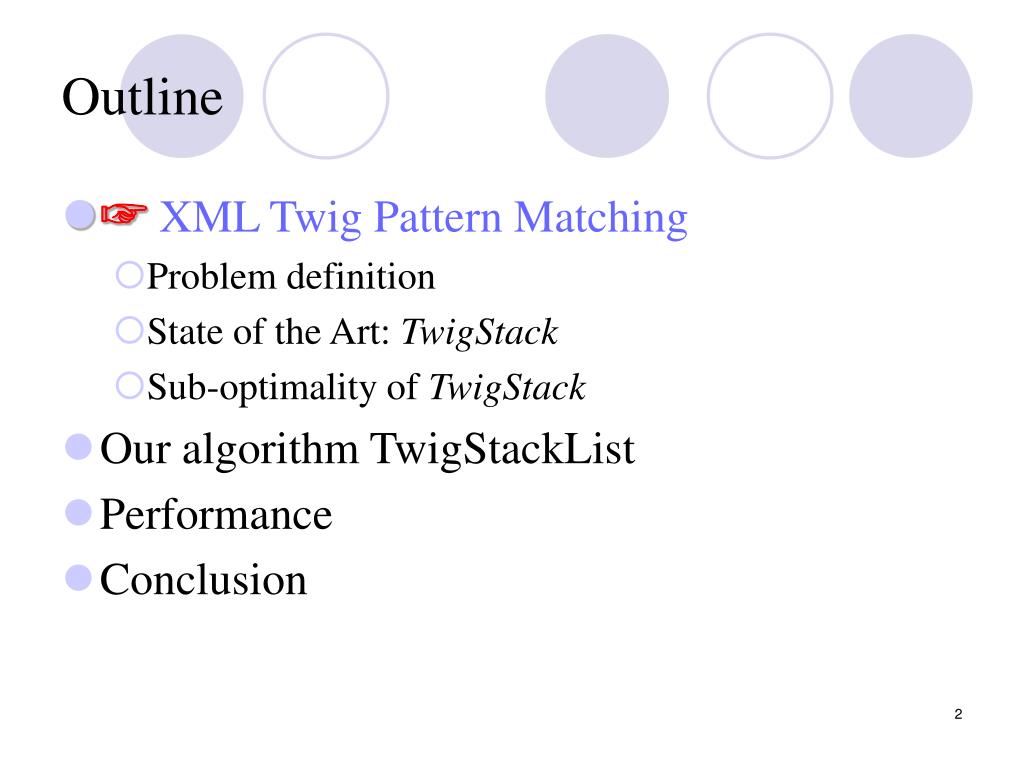

  2. Outline • ☞XML Twig Pattern Matching • Problem definition • State of the Art: TwigStack • Sub-optimality of TwigStack • Our algorithm TwigStackList • Performance • Conclusion

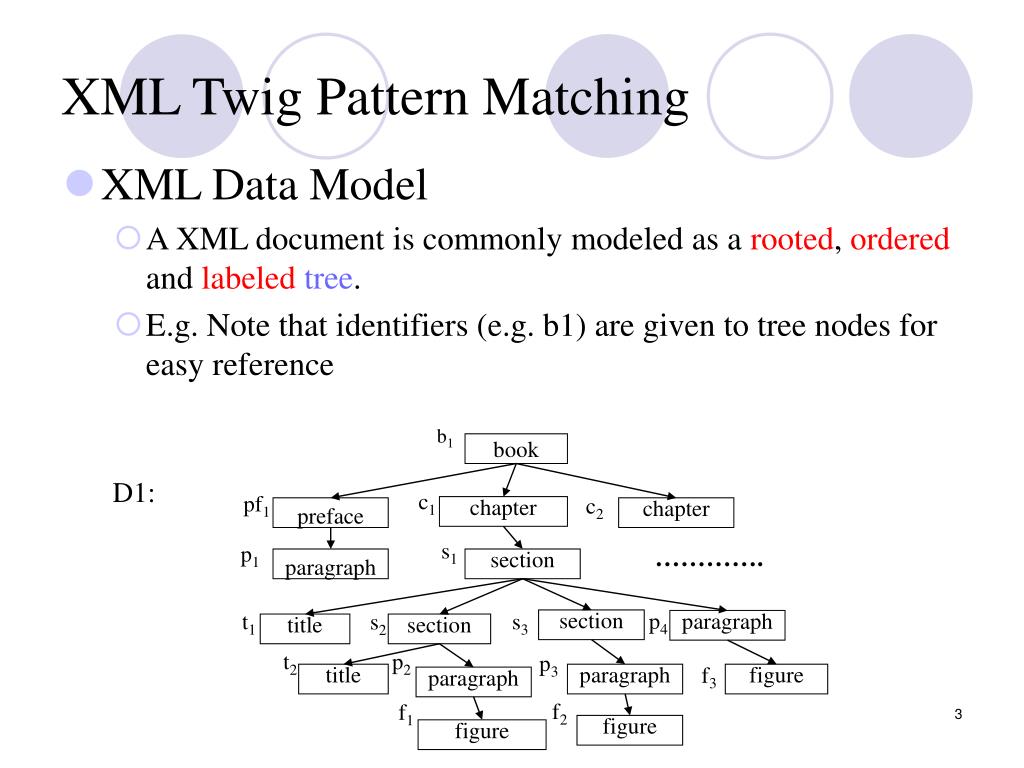

  3. XML Twig Pattern Matching • XML Data Model • A XML document is commonly modeled as a rooted, ordered and labeledtree. • E.g. Note that identifiers (e.g. b1) are given to tree nodes for easy reference b1 book D1: c1 pf1 c2 chapter preface chapter s1 p1 …………. paragraph section p4 t1 s3 s2 section paragraph title section t2 p2 p3 f3 title paragraph figure paragraph f2 f1 figure figure

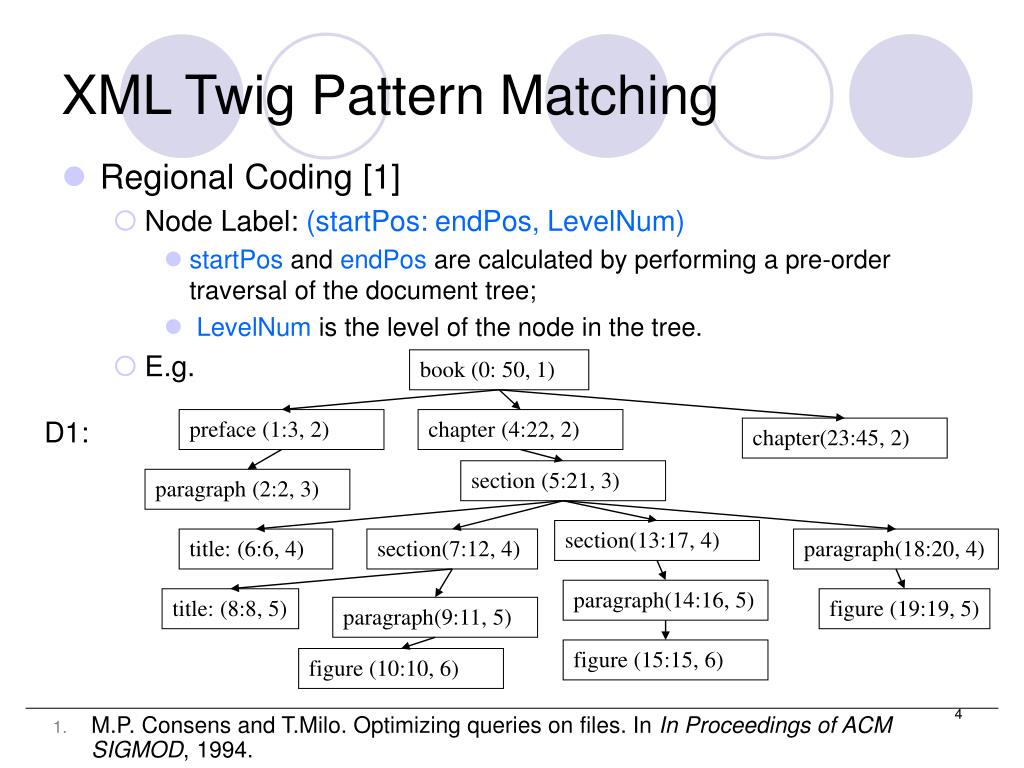

  4. XML Twig Pattern Matching • Regional Coding [1] • Node Label: (startPos: endPos, LevelNum) • startPos and endPos are calculated by performing a pre-order traversal of the document tree; • LevelNum is the level of the node in the tree. • E.g. book (0: 50, 1) D1: preface (1:3, 2) chapter (4:22, 2) chapter(23:45, 2) section (5:21, 3) paragraph (2:2, 3) section(13:17, 4) title: (6:6, 4) section(7:12, 4) paragraph(18:20, 4) paragraph(14:16, 5) title: (8:8, 5) figure (19:19, 5) paragraph(9:11, 5) figure (15:15, 6) figure (10:10, 6) M.P. Consens and T.Milo. Optimizing queries on files. In In Proceedings of ACM SIGMOD, 1994.

  5. XML Twig Pattern Matching • What is a Twig Pattern? • A twig pattern is a small tree whose nodes are predicates (e.g. element type test) and edges are either Parent-Child (P-C) edges or Ancestor-Descendant (A-D) edges. • E.g. An XPath query Q1 selects Figure elements which are descendants of some Paragraph elements which in turn are children of Section elements having at least one child element Title Q1: Section[Title]/Paragraph//Figure Section Paragraph Title Figure

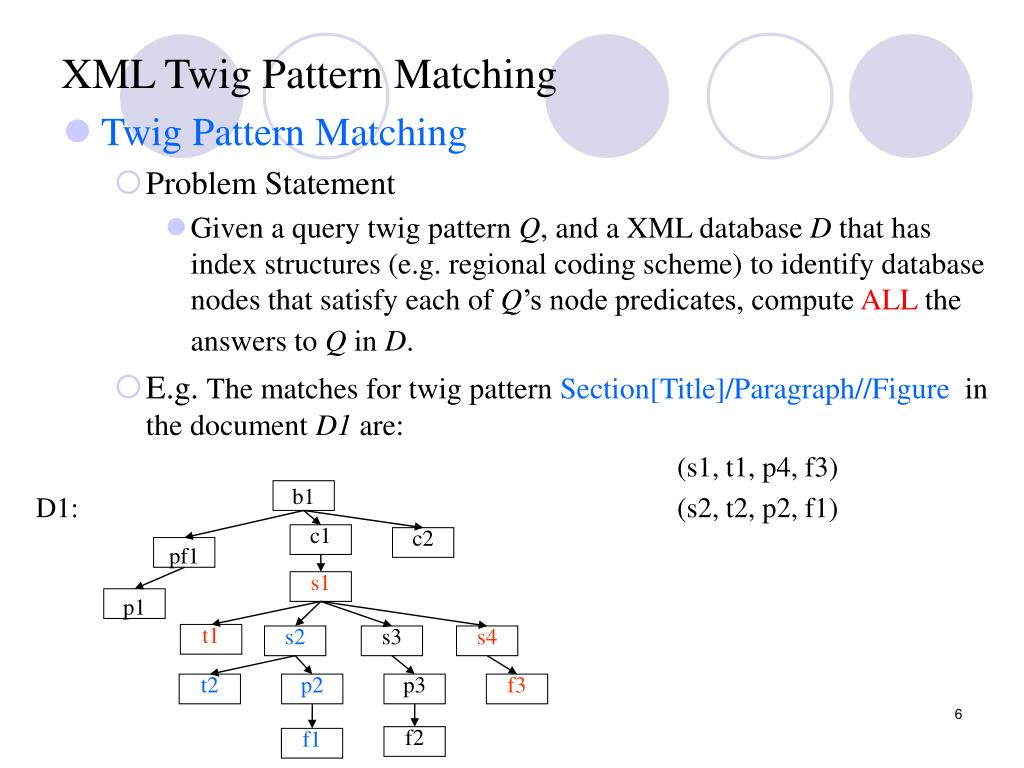

  6. XML Twig Pattern Matching • Twig Pattern Matching • Problem Statement • Given a query twig pattern Q, and a XML database D that has index structures (e.g. regional coding scheme) to identify database nodes that satisfy each of Q’s node predicates, compute ALL the answers to Q in D. • E.g. The matches for twig pattern Section[Title]/Paragraph//Figure in the document D1 are: (s1, t1, p4, f3) (s2, t2, p2, f1) b1 D1: c1 c2 pf1 s1 p1 t1 s2 s3 s4 t2 p2 p3 f3 f2 f1

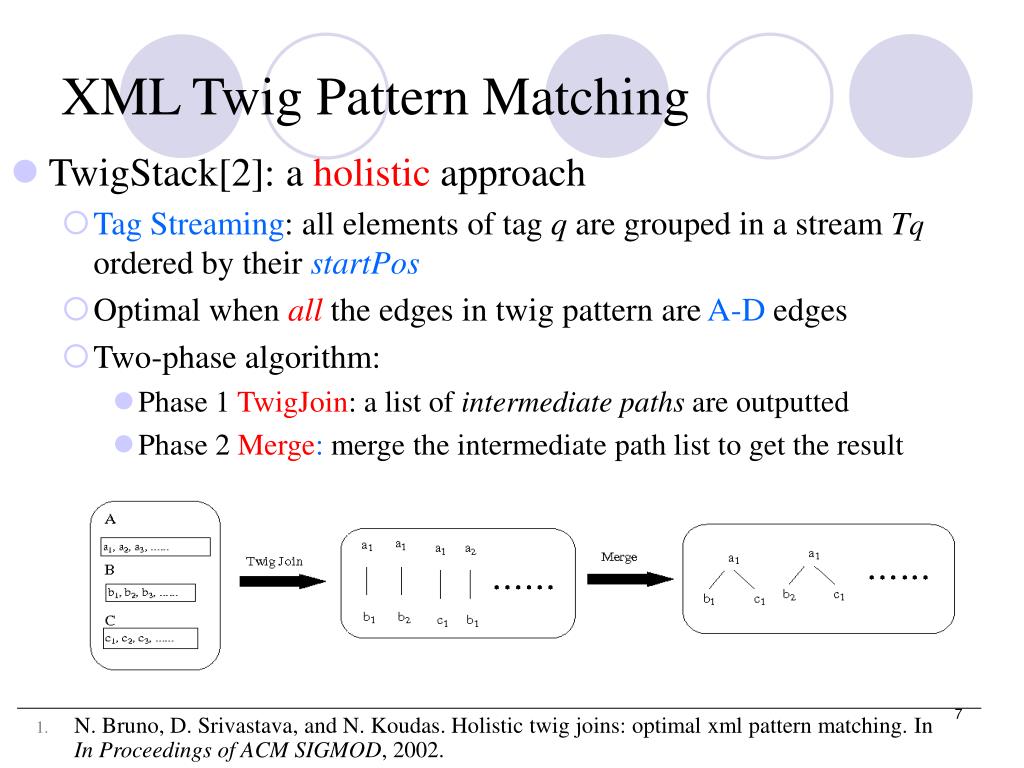

  7. XML Twig Pattern Matching • TwigStack[2]: a holistic approach • Tag Streaming: all elements of tag q are grouped in a stream Tq ordered by their startPos • Optimal when allthe edges in twig pattern are A-D edges • Two-phase algorithm: • Phase 1 TwigJoin: a list of intermediate paths are outputted • Phase 2 Merge: merge the intermediate path list to get the result N. Bruno, D. Srivastava, and N. Koudas. Holistic twig joins: optimal xml pattern matching. In In Proceedings of ACM SIGMOD, 2002.

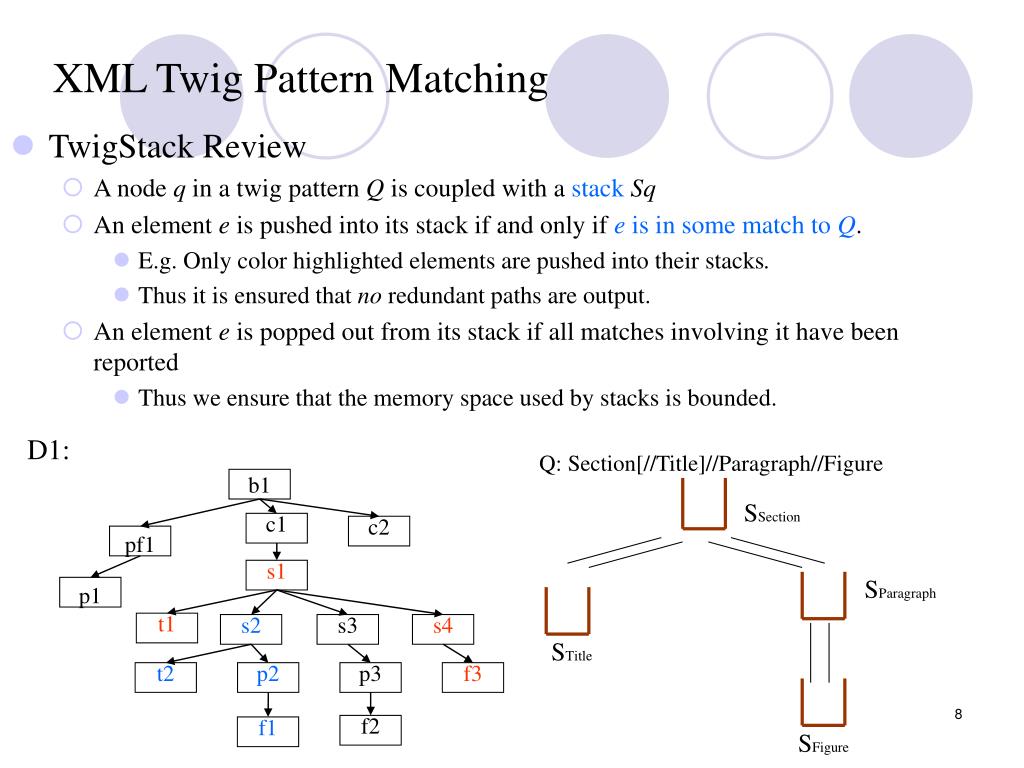

  8. XML Twig Pattern Matching • TwigStack Review • A node q in a twig pattern Q is coupled with a stack Sq • An element e is pushed into its stack if and only if e is in some match to Q. • E.g.Only color highlighted elements are pushed into their stacks. • Thus it is ensured that no redundant paths are output. • An element e is popped out from its stack if all matches involving it have been reported • Thus we ensure that the memory space used by stacks is bounded. D1: Q: Section[//Title]//Paragraph//Figure b1 SSection c1 c2 pf1 s1 SParagraph p1 t1 s2 s3 s4 STitle t2 p2 p3 f3 f2 SFigure f1

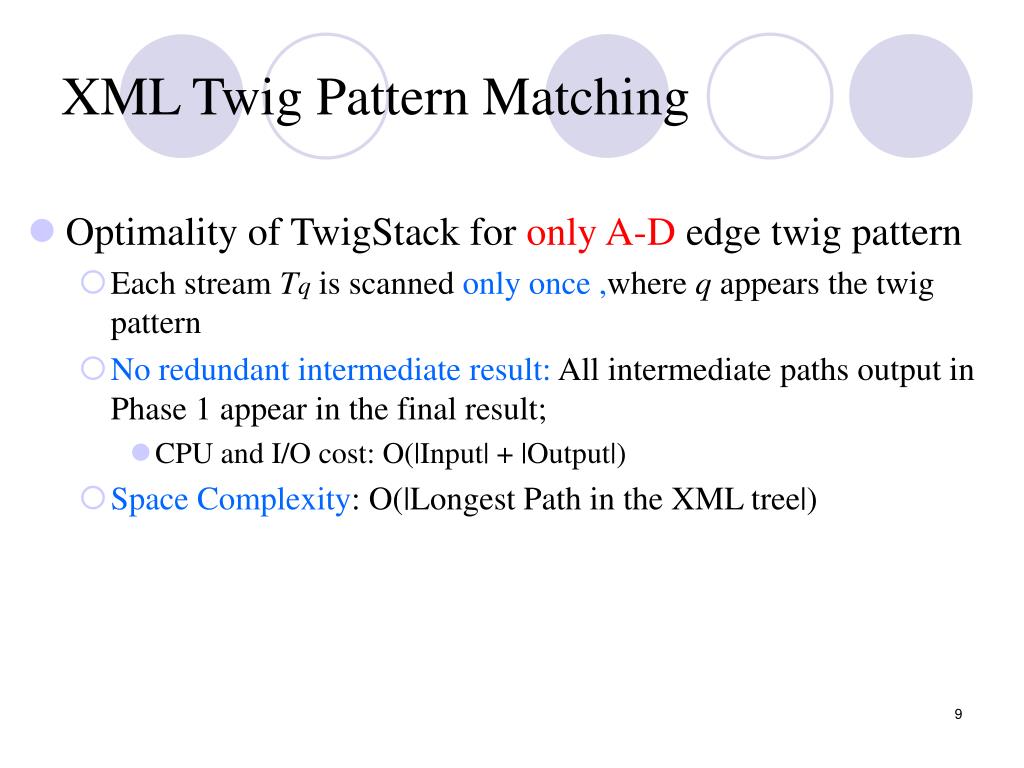

  9. XML Twig Pattern Matching • Optimality of TwigStack for onlyA-D edge twig pattern • Each stream Tq is scanned only once ,where q appears the twig pattern • No redundant intermediate result: All intermediate paths output in Phase 1 appear in the final result; • CPU and I/O cost: O(|Input| + |Output|) • Space Complexity: O(|Longest Path in the XML tree|)

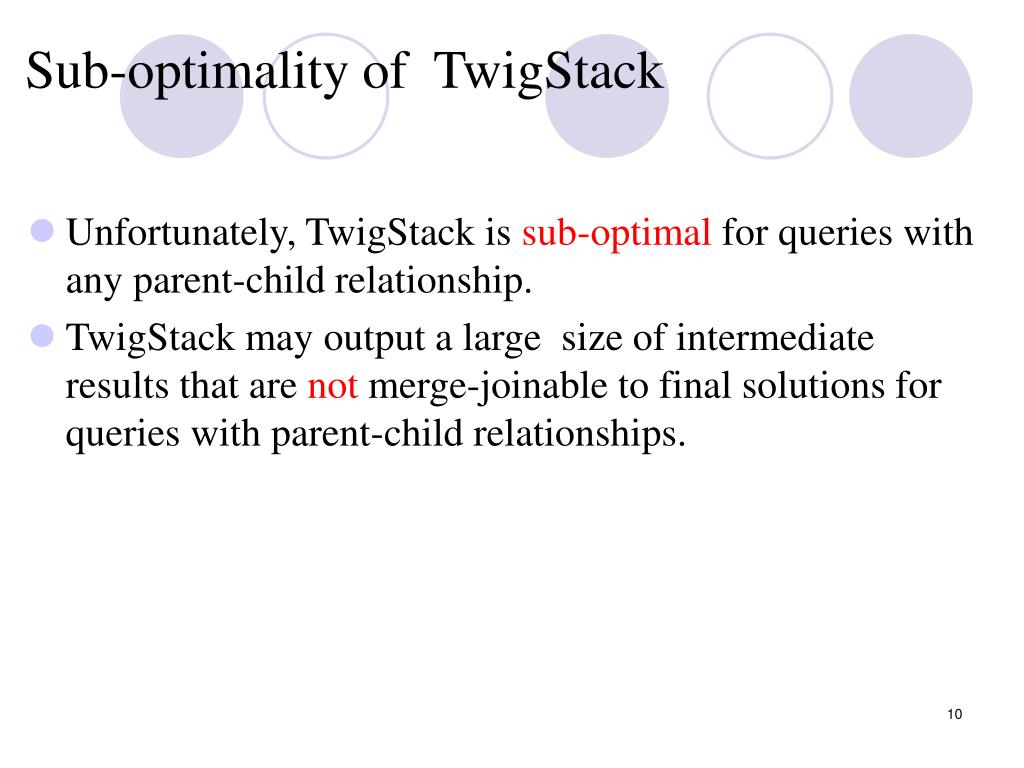

  10. Sub-optimality of TwigStack • Unfortunately, TwigStack is sub-optimal for queries with any parent-child relationship. • TwigStack may output a large size of intermediate results that are not merge-joinable to final solutions for queries with parent-child relationships.

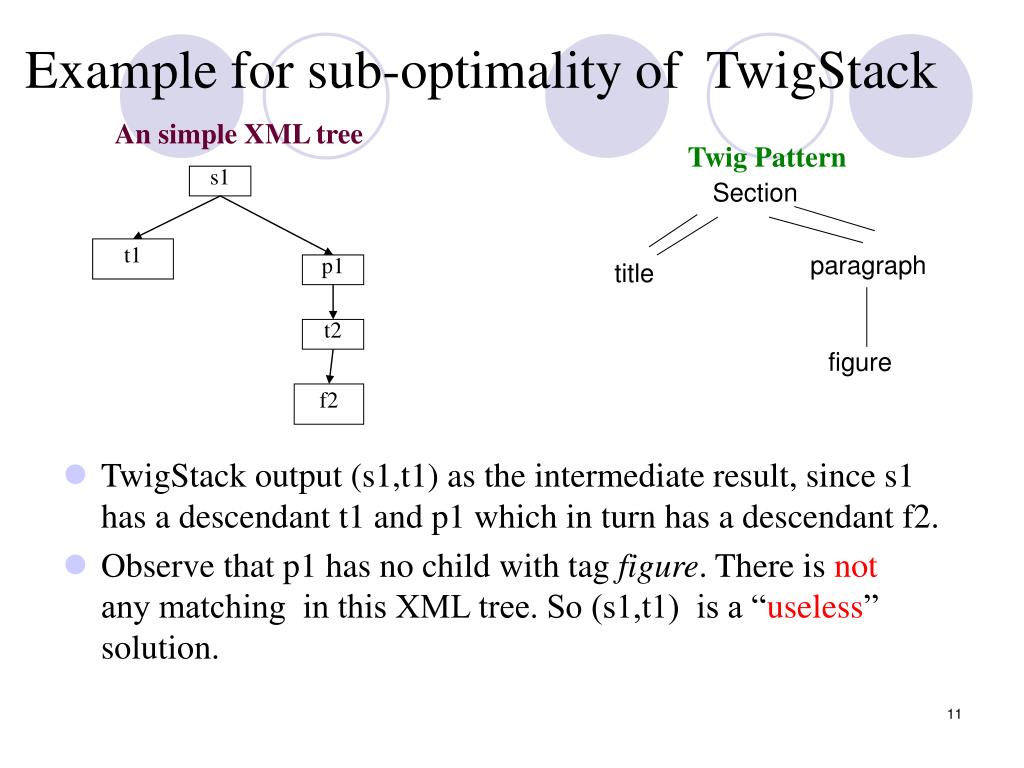

  11. Example for sub-optimality of TwigStack An simple XML tree Twig Pattern s1 Section t1 paragraph title p1 t2 figure f2 • TwigStack output (s1,t1) as the intermediate result, since s1 has a descendant t1 and p1 which in turn has a descendant f2. • Observe that p1 has no childwith tag figure. There is not any matching in this XML tree. So (s1,t1) is a “useless” solution.

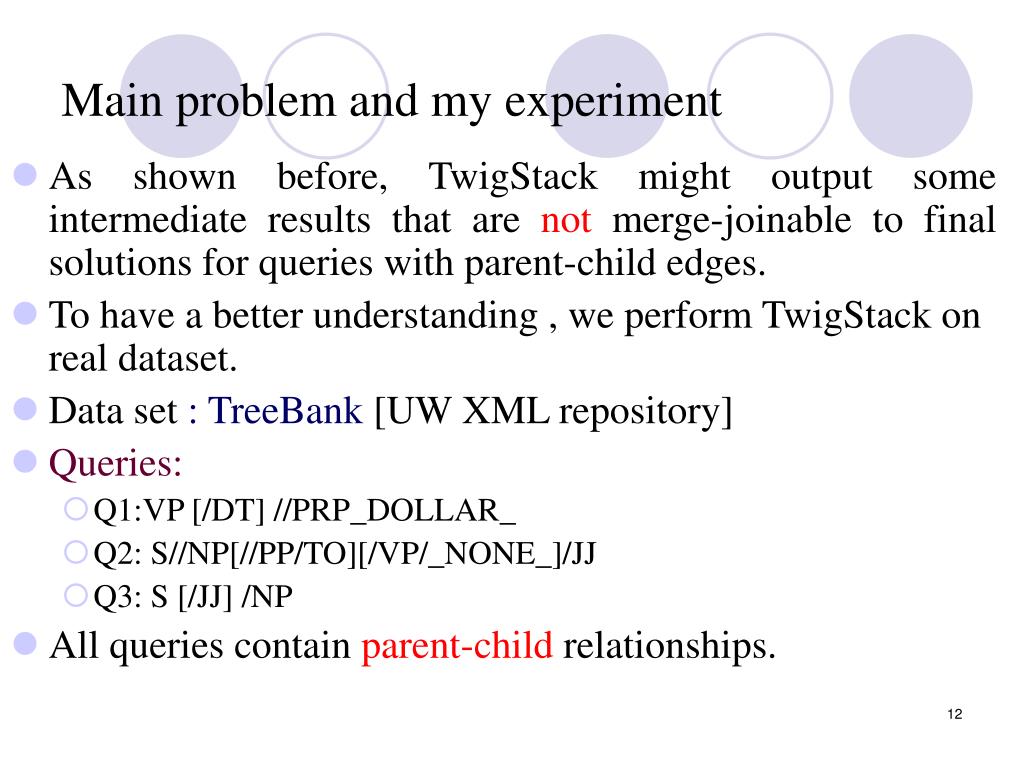

  12. Main problem and my experiment • As shown before, TwigStack might output some intermediate results that are not merge-joinable to final solutions for queries with parent-child edges. • To have a better understanding , we perform TwigStack on real dataset. • Data set : TreeBank [UW XML repository] • Queries: • Q1:VP [/DT] //PRP_DOLLAR_ • Q2: S//NP[//PP/TO][/VP/_NONE_]/JJ • Q3: S [/JJ] /NP • All queries contain parent-child relationships.

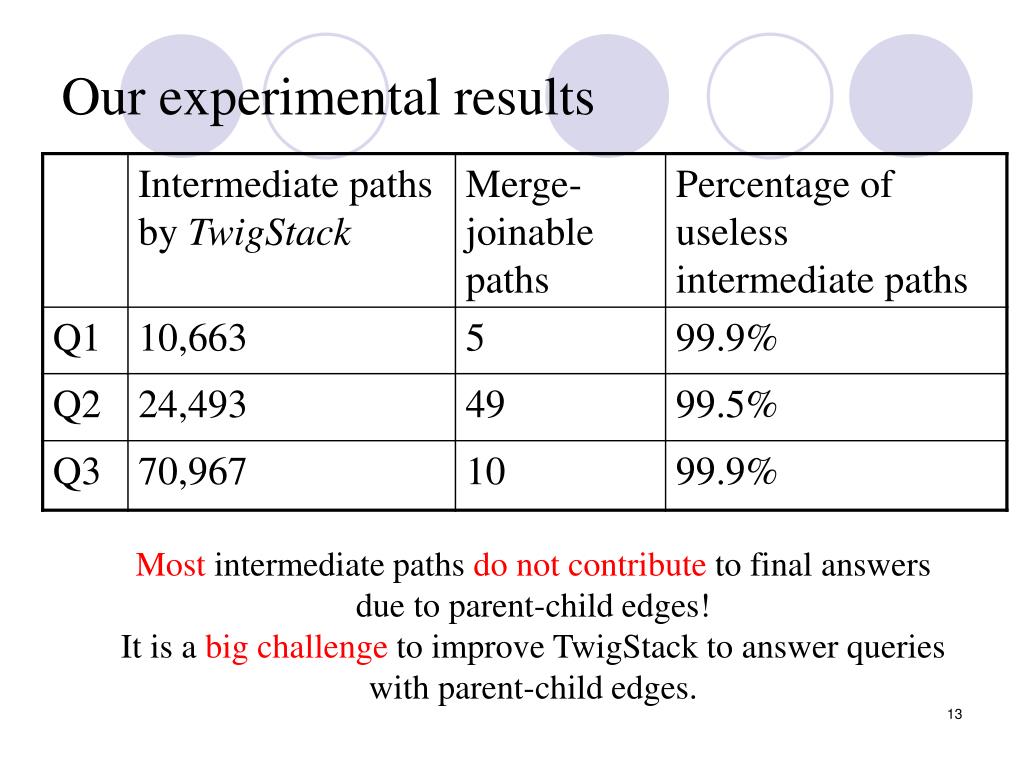

  13. Our experimental results Most intermediate paths do not contribute to final answers due to parent-child edges! It is a big challenge to improve TwigStack to answer queries with parent-child edges.

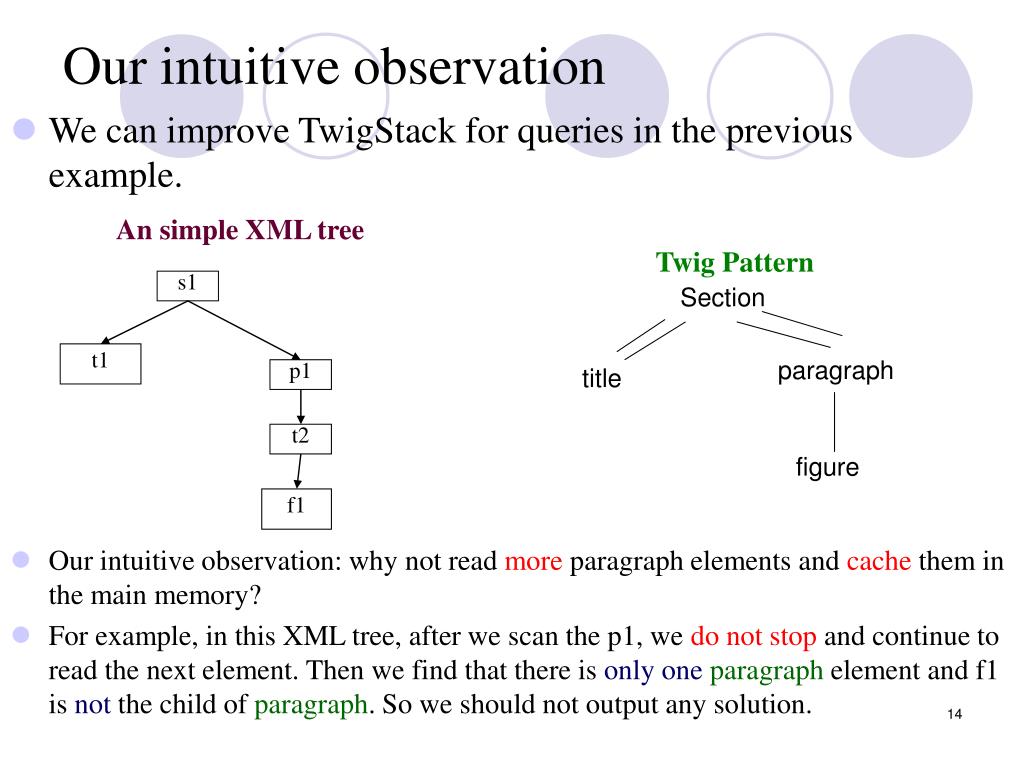

  14. Our intuitive observation • We can improve TwigStack for queries in the previous example. An simple XML tree Twig Pattern s1 Section t1 paragraph title p1 t2 figure f1 • Our intuitive observation: why not read more paragraph elements and cache them in the main memory? • For example, in this XML tree, after we scan the p1, we do not stop and continue to read the next element. Then we find that there is only oneparagraph element and f1 is notthe child of paragraph. So we should not output any solution.

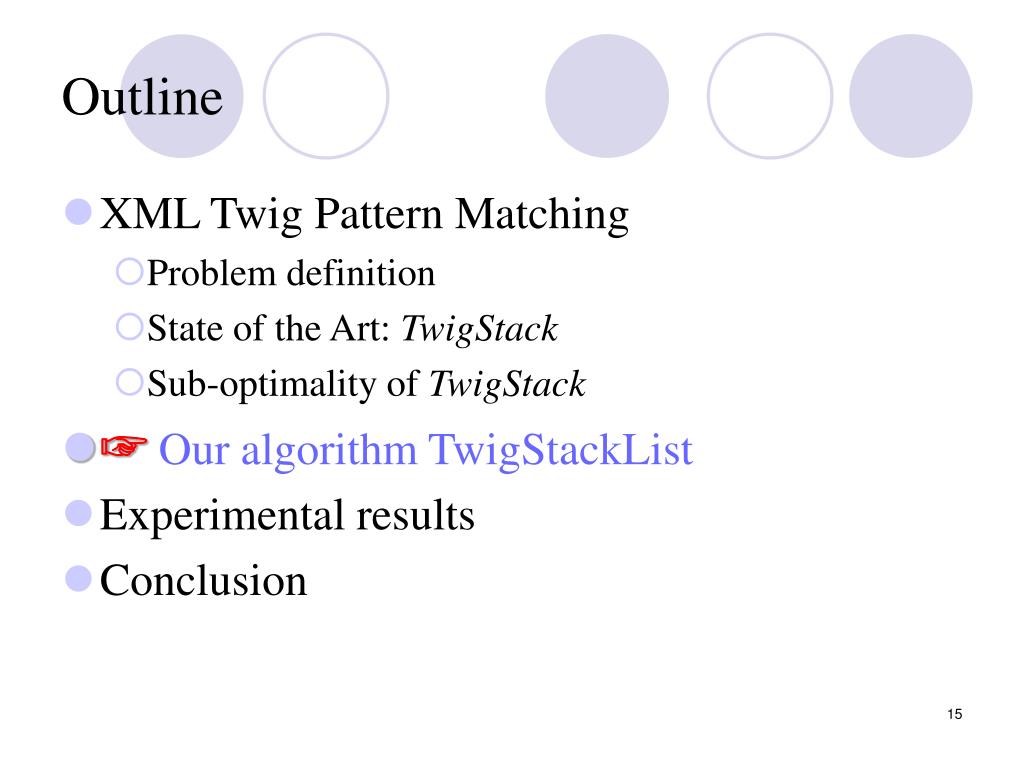

  15. Outline • XML Twig Pattern Matching • Problem definition • State of the Art: TwigStack • Sub-optimality of TwigStack • ☞Our algorithm TwigStackList • Experimental results • Conclusion

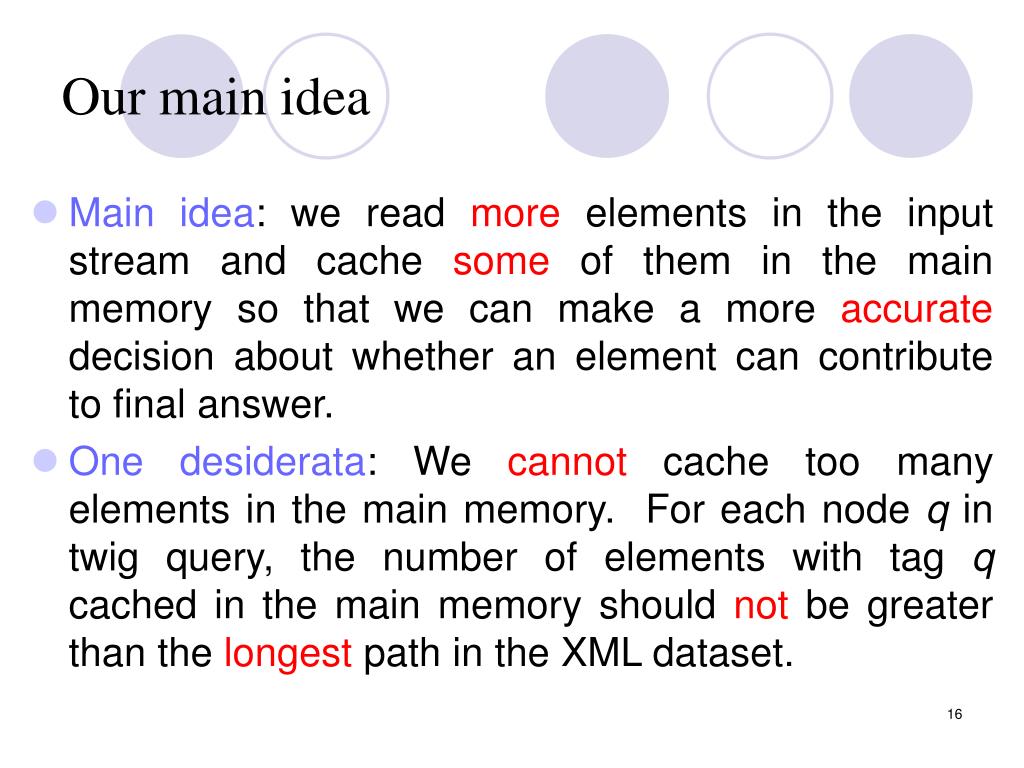

  16. Our main idea • Main idea: we read more elements in the input stream and cache some of them in the main memory so that we can make a more accurate decision about whether an element can contribute to final answer. • One desiderata: We cannot cache too many elements in the main memory. For each node q in twig query, the number of elements with tag q cached in the main memory should not be greater than thelongest path in the XML dataset.

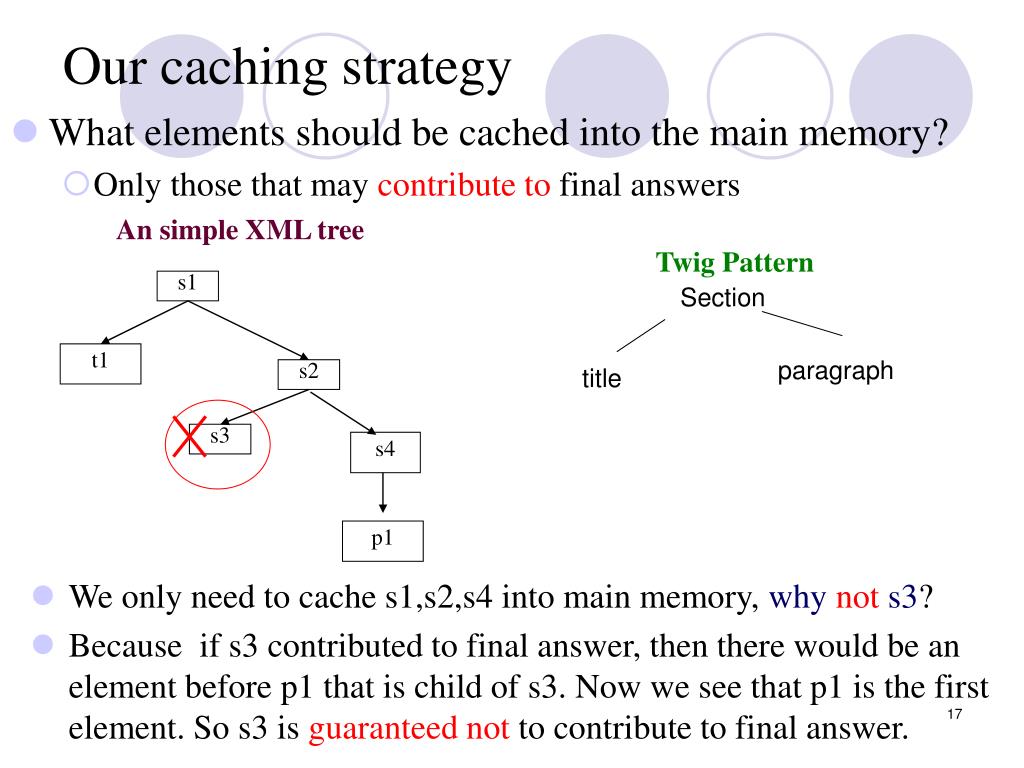

  17. Our caching strategy • What elements should be cached into the main memory? • Only those that may contribute to final answers An simple XML tree Twig Pattern s1 Section t1 paragraph title s2 s3 s4 p1 • We only need to cache s1,s2,s4 into main memory, why not s3? • Because if s3 contributed to final answer, then there would be an element before p1 that is child of s3. Now we see that p1 is the first element. So s3 is guaranteed not to contribute to final answer.

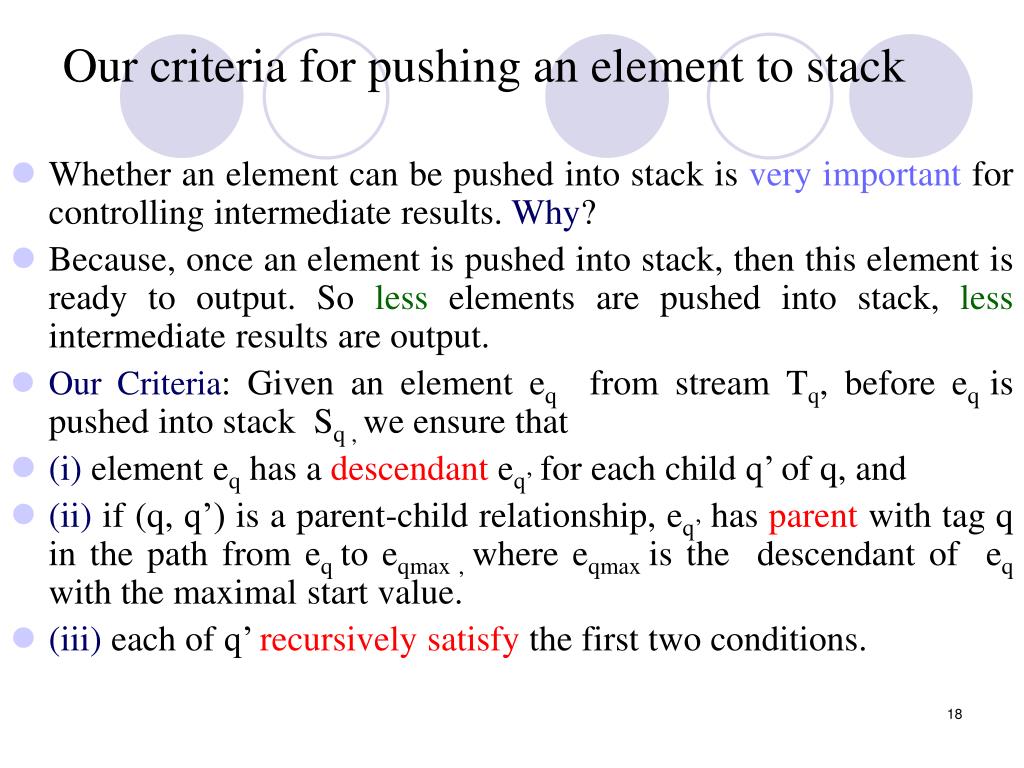

  18. Our criteria for pushing an element to stack • Whether an element can be pushed into stack is very important for controlling intermediate results. Why? • Because, once an element is pushed into stack, then this element is ready to output. Soless elements are pushed into stack, lessintermediate results are output. • Our Criteria: Given an element eq from stream Tq, before eq is pushed into stack Sq , we ensure that • (i) element eq has a descendant eq’ for each child q’ of q, and • (ii) if (q, q’) is a parent-child relationship, eq’ has parent with tag q in the path from eq to eqmax , where eqmax is the descendant of eq with the maximal start value. • (iii) each of q’ recursively satisfy the first two conditions.

  19. Examples • Let us see two examples to understand the criteria. An simple XML tree Twig Pattern s1 Section t1 title s2 paragraph figure p1 s3 f1 • Element s1 can be pushed into stack , but s2, s3 cannot. • Note that s1 can be pushed into stack, not just because t1,p1 and f1 are descendants, more importantly, because in the path from s1 to f1, element t1 , p1 and f1 can find their parents with tag section.

  20. Examples An simple XML tree Twig Pattern Section s1 title o1 paragraph figure t1 p1 s2 f1 • In this example, s1 cannot be pushed into stack. Because although elements t1,p1 and f1 are still descendants of s1, now in the path from s1 to f1, element p1 cannot find the parent with tag section. Observe that the parent of p1 is o1 (i. e. o1 means other element ). • In this example, we cache s1 and s2 to main memory, for they might involve in query answers in the future.

  21. TwigStackList • We propose a novel holistic twig algorithm TwigStacklist to evaluate a twig query. • Unlike previous TwigStack, TwigStackList has the unique features: • It considers the parent-child edge in the query and enhance the criteria for elements to be pushed into stack. • It use data structure: list to cache some elements that likely participate in final solutions. The number of elements in any list is strictly bounded by the longest path in the dataset. • It has a broader class of optimal queries. TwigStackList can guarantee each output intermediate solution contributes to final answers when queries contain only ancestor-descendant edges below branching nodes.

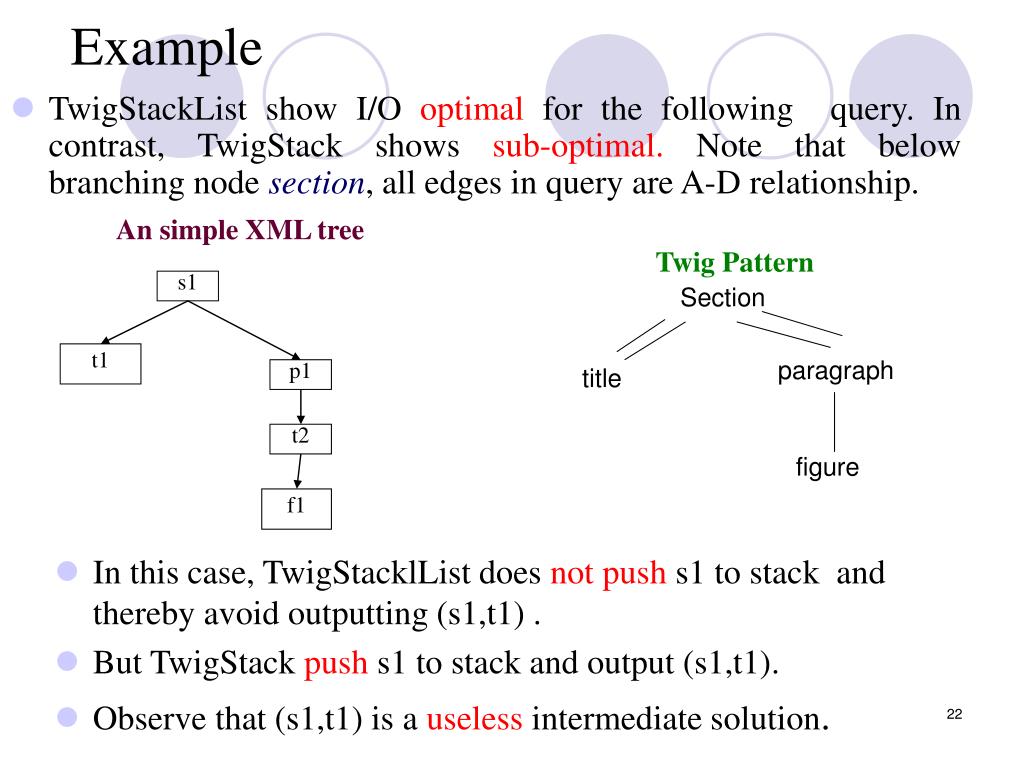

  22. Example • TwigStackList show I/O optimal for the following query. In contrast, TwigStack shows sub-optimal. Note that below branching node section, all edges in query are A-D relationship. An simple XML tree Twig Pattern s1 Section t1 paragraph title p1 t2 figure f1 • In this case, TwigStacklList does not push s1 to stack and thereby avoid outputting (s1,t1) . • But TwigStack push s1 to stack and output (s1,t1). • Observe that (s1,t1) is a useless intermediate solution.

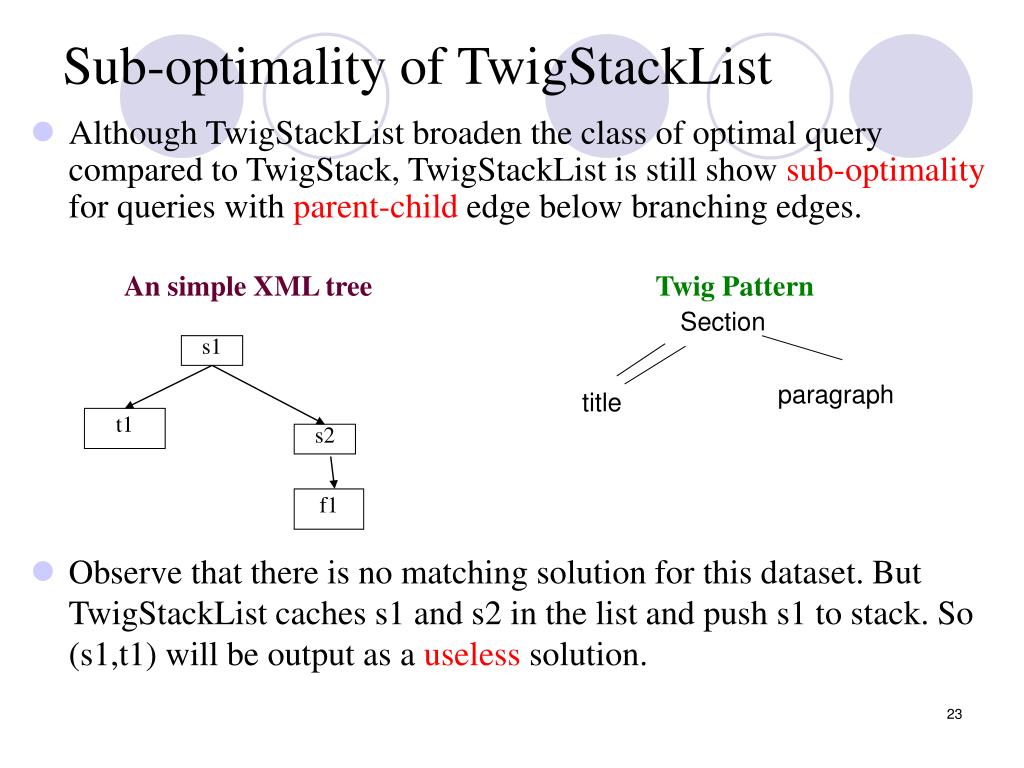

  23. Sub-optimality of TwigStackList • Although TwigStackList broaden the class of optimal query compared to TwigStack, TwigStackList is still show sub-optimality for queries with parent-child edge below branching edges. An simple XML tree Twig Pattern Section s1 paragraph title t1 s2 f1 • Observe that there is no matching solution for this dataset. But TwigStackList caches s1 and s2 in the list and push s1 to stack. So (s1,t1) will be output as a useless solution.

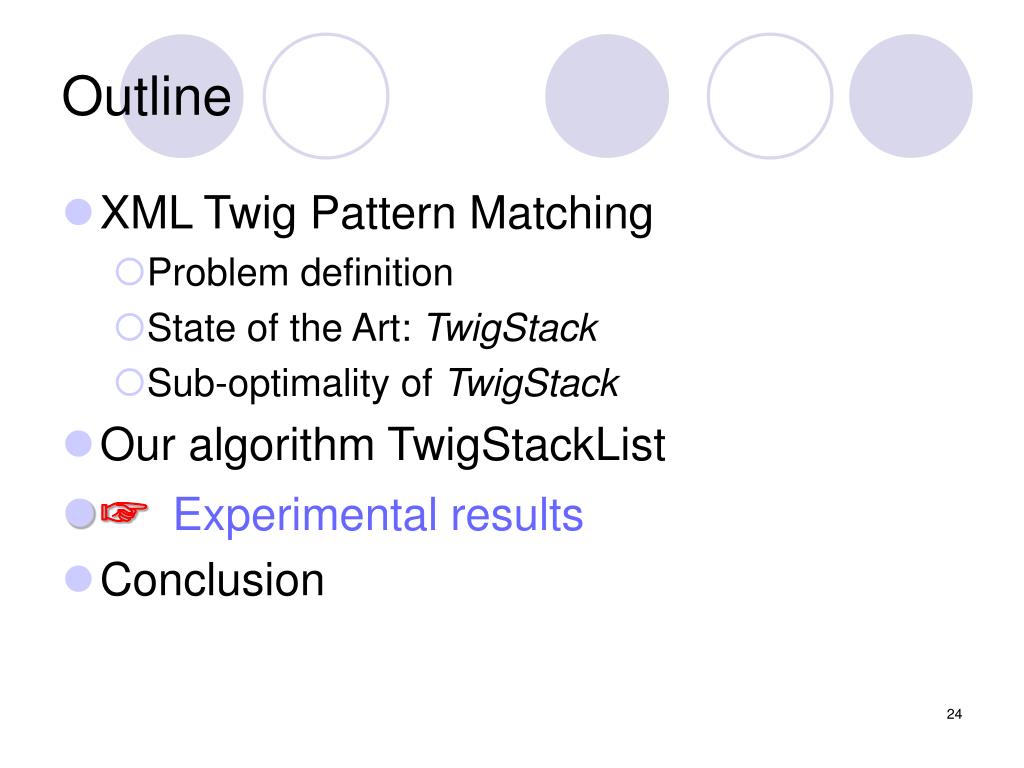

  24. Outline • XML Twig Pattern Matching • Problem definition • State of the Art: TwigStack • Sub-optimality of TwigStack • Our algorithm TwigStackList • ☞Experimental results • Conclusion

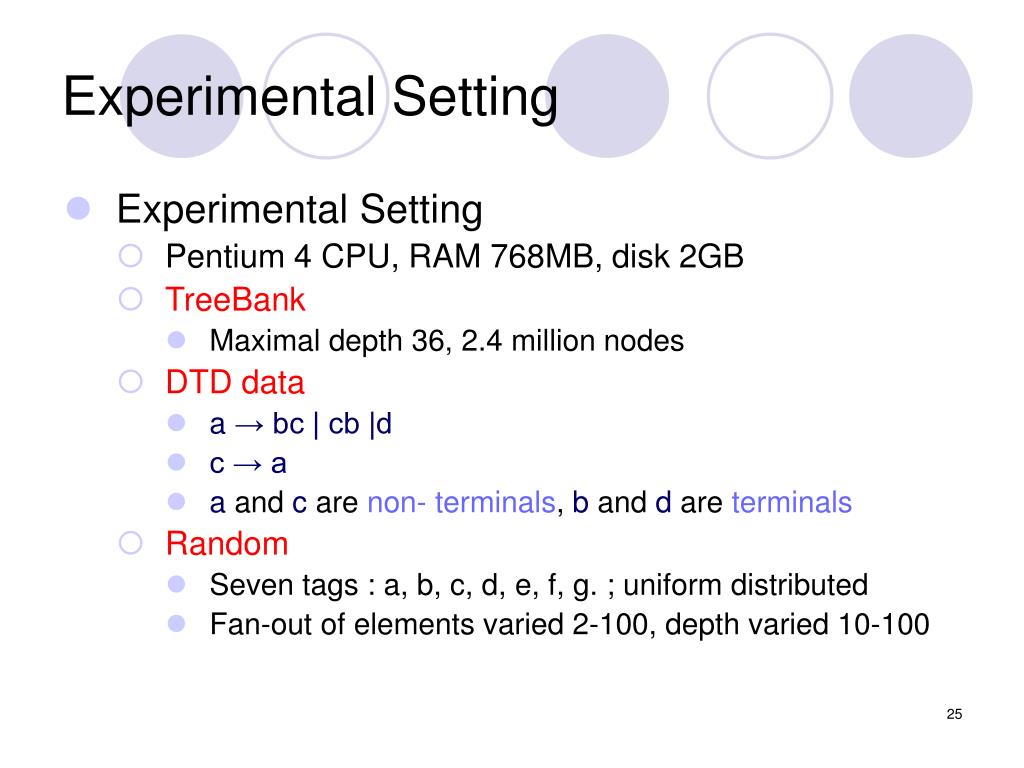

  25. Experimental Setting • Experimental Setting • Pentium 4CPU, RAM 768MB, disk 2GB • TreeBank • Maximal depth 36, 2.4 million nodes • DTD data • a → bc | cb |d • c → a • a and care non- terminals, b and d are terminals • Random • Seven tags : a, b, c, d, e, f, g. ; uniform distributed • Fan-out of elements varied 2-100, depth varied 10-100

  26. Performance against TreeBank • Queries with XPath expression: • Number of intermediate path solutions for TwigStackList V.s. TwigStack

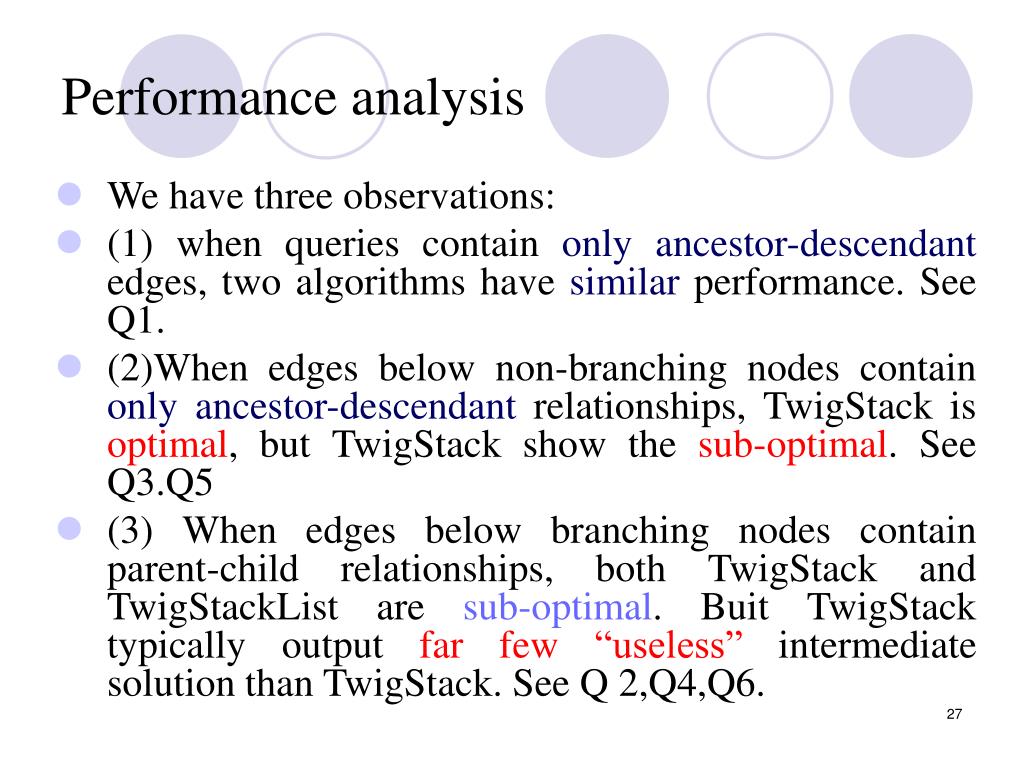

  27. Performance analysis • We have three observations: • (1) when queries contain only ancestor-descendant edges, two algorithms havesimilar performance. See Q1. • (2)When edges below non-branching nodes contain only ancestor-descendant relationships, TwigStack is optimal, but TwigStack show the sub-optimal. See Q3.Q5 • (3) When edges below branching nodes contain parent-child relationships, both TwigStack and TwigStackList are sub-optimal. Buit TwigStack typically output far few “useless” intermediate solution than TwigStack. See Q 2,Q4,Q6.

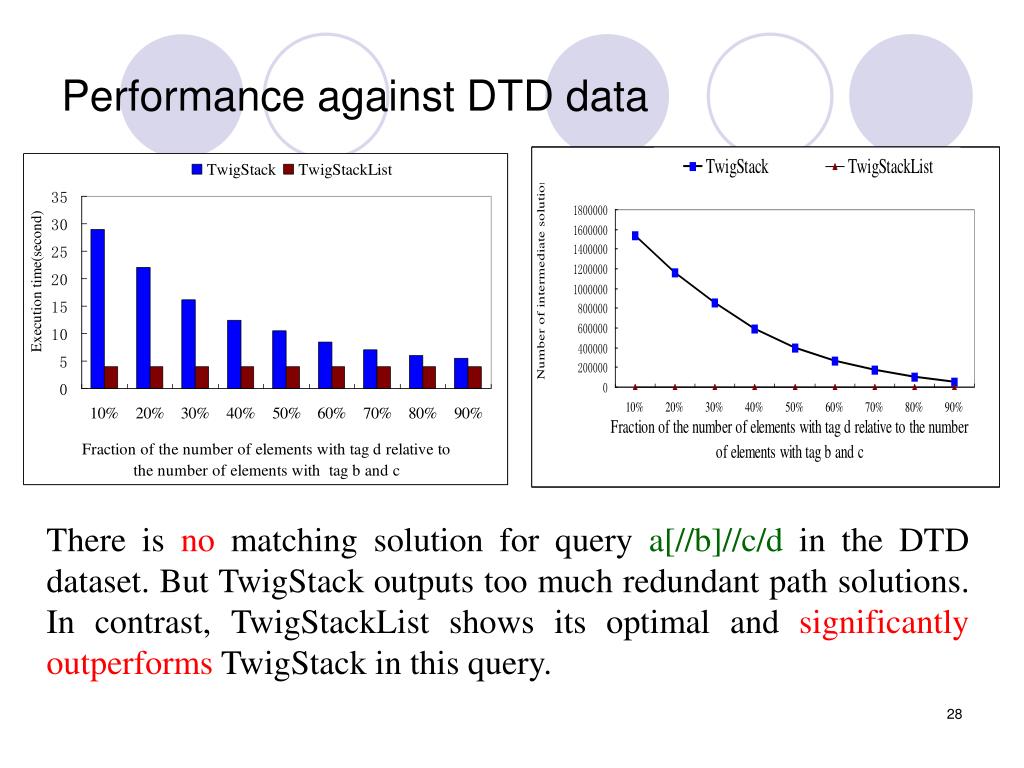

  28. Performance against DTD data There is no matching solution for query a[//b]//c/d in the DTD dataset. But TwigStack outputs too much redundant path solutions. In contrast, TwigStackList shows its optimal and significantly outperforms TwigStack in this query.

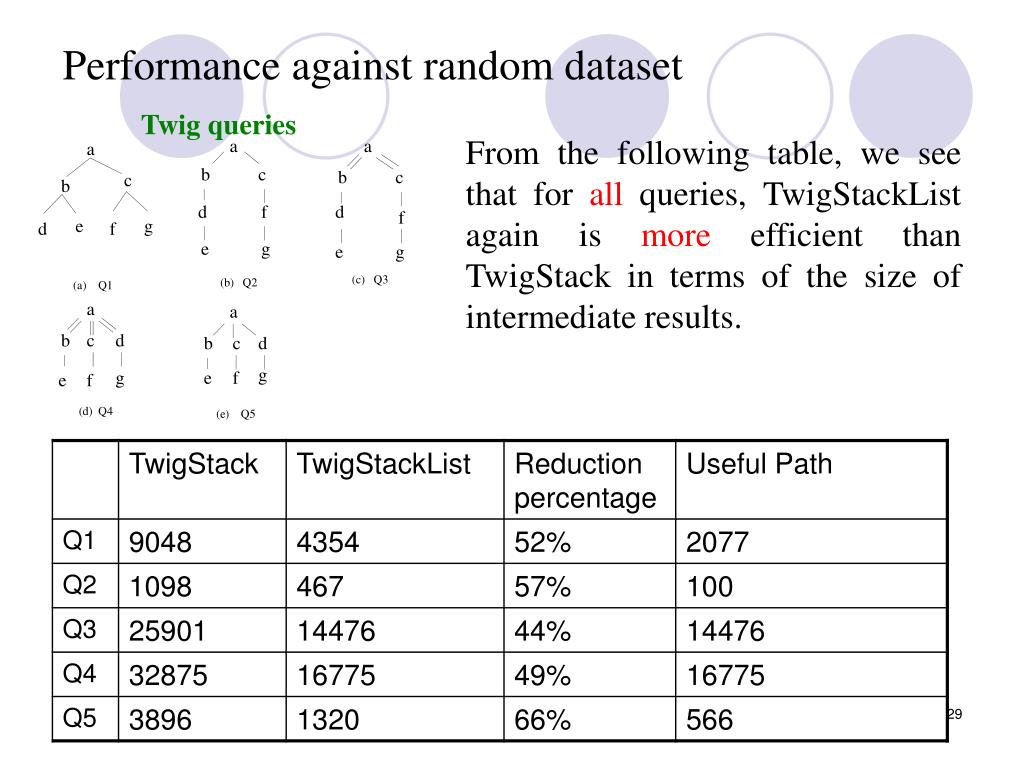

  29. Performance against random dataset Twig queries From the following table, we see that for all queries, TwigStackList again is more efficient than TwigStack in terms of the size of intermediate results.

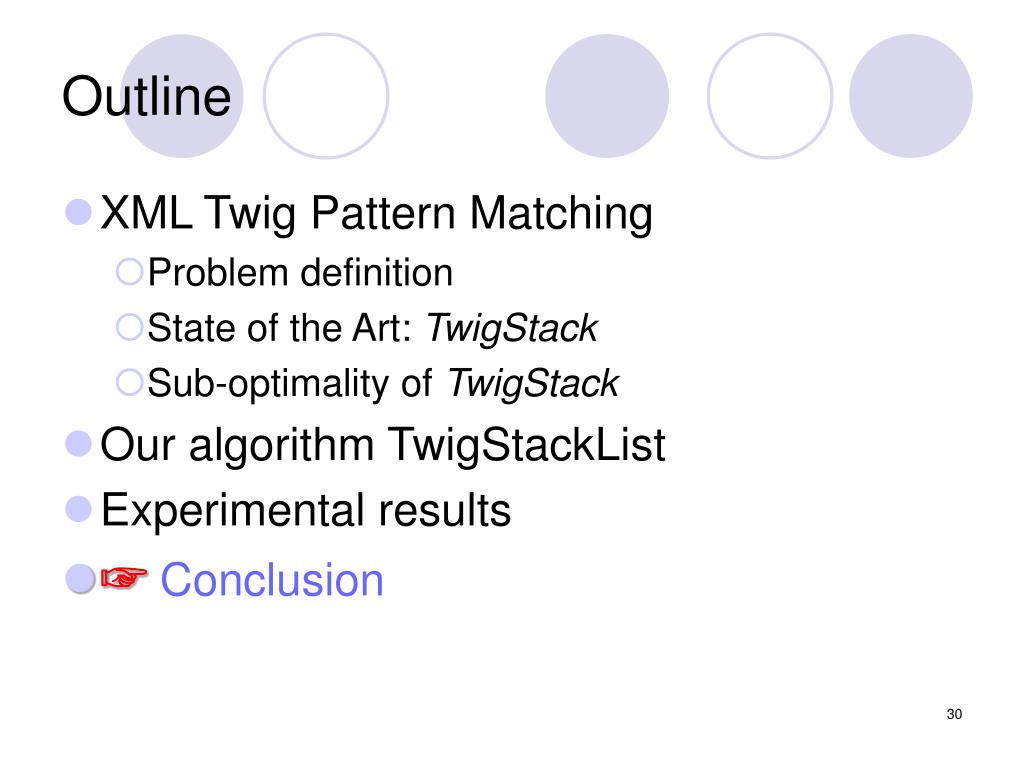

  30. Outline • XML Twig Pattern Matching • Problem definition • State of the Art: TwigStack • Sub-optimality of TwigStack • Our algorithm TwigStackList • Experimental results • ☞Conclusion

  31. Conclusion • Previous algorithm TwigStack show the sub-optimality for queries with parent-child edges. • We propose new algorithm TwigStackList to address this problem. • TwigStackList broadens the class of query with I/O optimality. • Experiments show that TwigStackList typically output much fewer useless intermediate result as far as the query contains parent-child relationships. • We commend to use TwigStackList to evaluate a query with parent-child relationships.

  32. Backup questions: • 1. Turn back to the slide about “Performance against DTD data”. In two figures , what is the X-axis? • X-axis shows that the ratio of the number of elements with tag d relative to that with b and c. This ratio is important. Because according to the DTD: a → bc | cb |d , c → a, for query a[//b]//c/d, while the ratio decreases, the “useless” intermediate results output by TwigStack increase. In contrast, TwigStackList is optimal in this case. So it does not affected by the variety of the ratio. Therefore, we show the superiority of TwigStackList over TwigStack by varying the ratio.

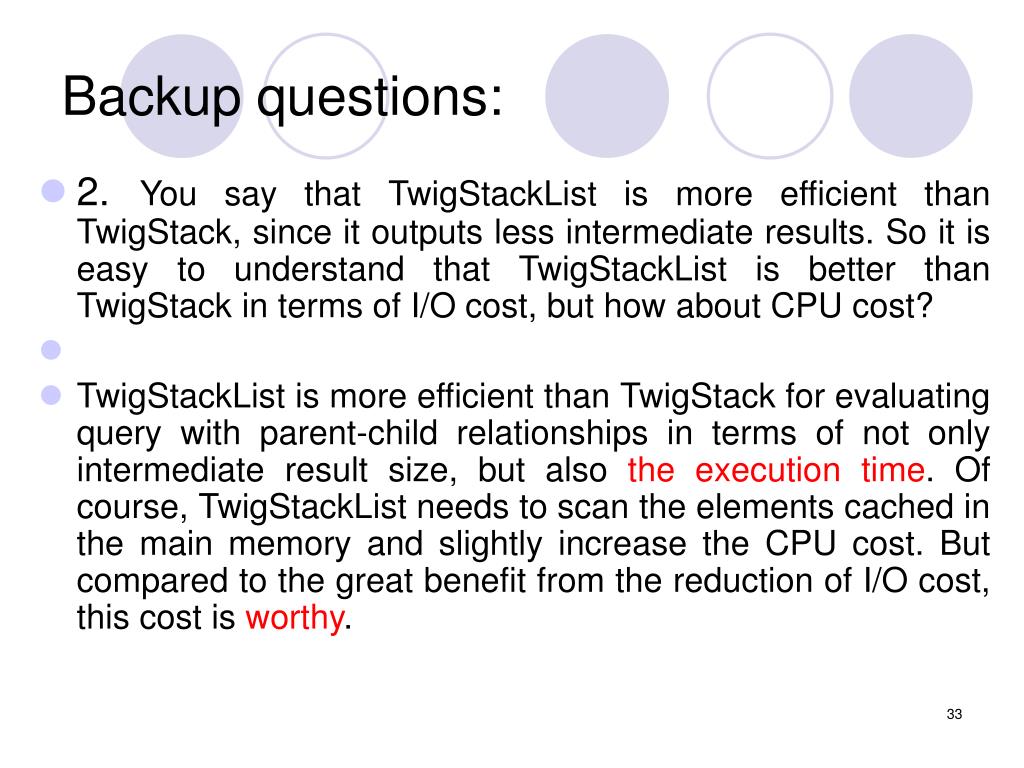

  33. Backup questions: • 2. You say that TwigStackList is more efficient than TwigStack, since it outputs less intermediate results. So it is easy to understand that TwigStackList is better than TwigStack in terms of I/O cost, but how about CPU cost? • TwigStackList is more efficient than TwigStack for evaluating query with parent-child relationships in terms of not only intermediate result size, but also the execution time. Of course, TwigStackList needs to scan the elements cached in the main memory and slightly increase the CPU cost. But compared to the great benefit from the reduction of I/O cost, this cost is worthy.
