  1. Cscape 9 Horner APG

  2. New Look And Feel – Project Toolbox Horner APG

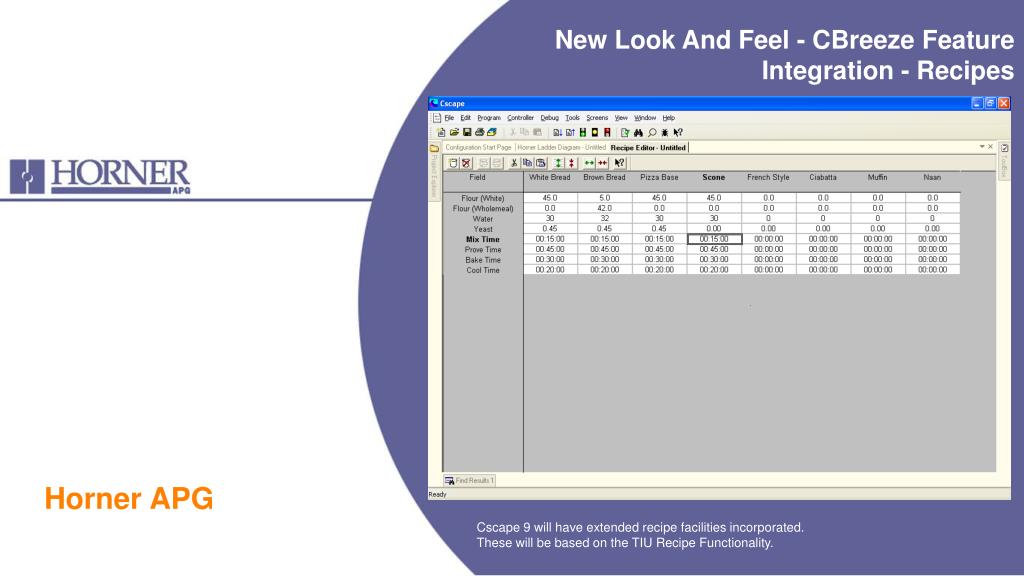

  3. New Look And Feel - CBreeze Feature Integration - Recipes Horner APG Cscape 9 will have extended recipe facilities incorporated. These will be based on the TIU Recipe Functionality.

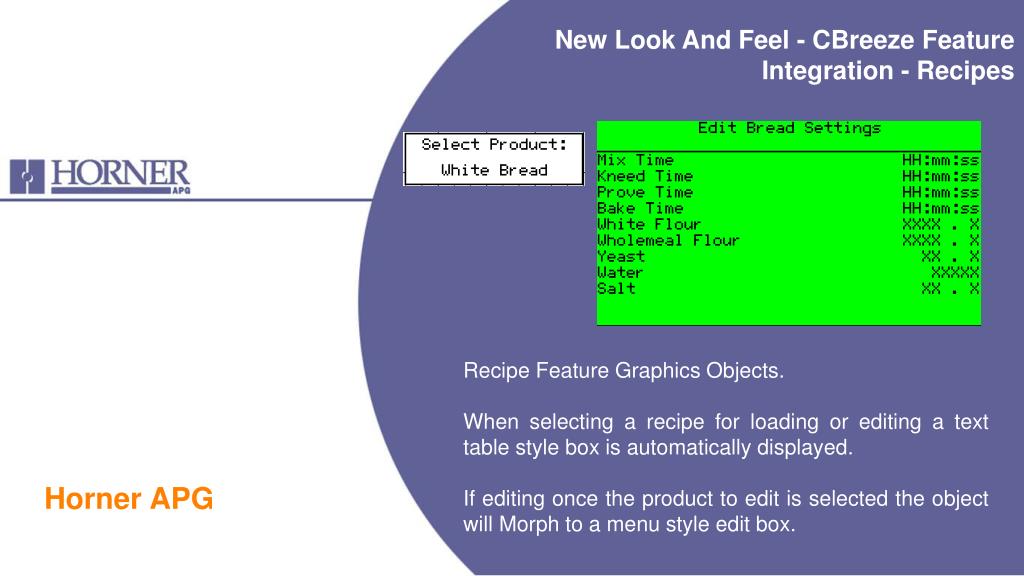

  4. New Look And Feel - CBreeze Feature Integration - Recipes Recipe Feature Graphics Objects. When selecting a recipe for loading or editing a text table style box is automatically displayed. If editing once the product to edit is selected the object will Morph to a menu style edit box. Horner APG

  5. New Look And Feel - CBreeze Feature Integration - Reports Cscape 9 will have printing facilities incorporated. These will be available either from a serial port, from the inbuilt Centronics interface where the port is available, or as a text file to removable media file. Initially the printouts will support only text printing, confined to the ASCII character set, with embedded data from PLC registers, but will subsequently be expanded to support printing of OCS graphic pages to Epson and Hewlett Packard compatible printers. Horner APG

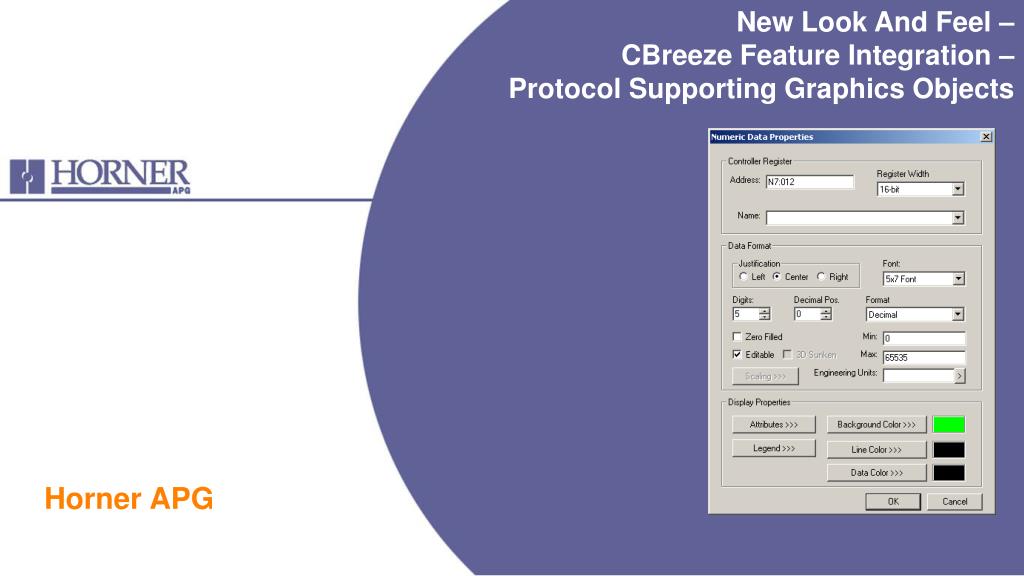

  6. New Look And Feel – CBreeze Feature Integration – Protocol Supporting Graphics Objects Horner APG

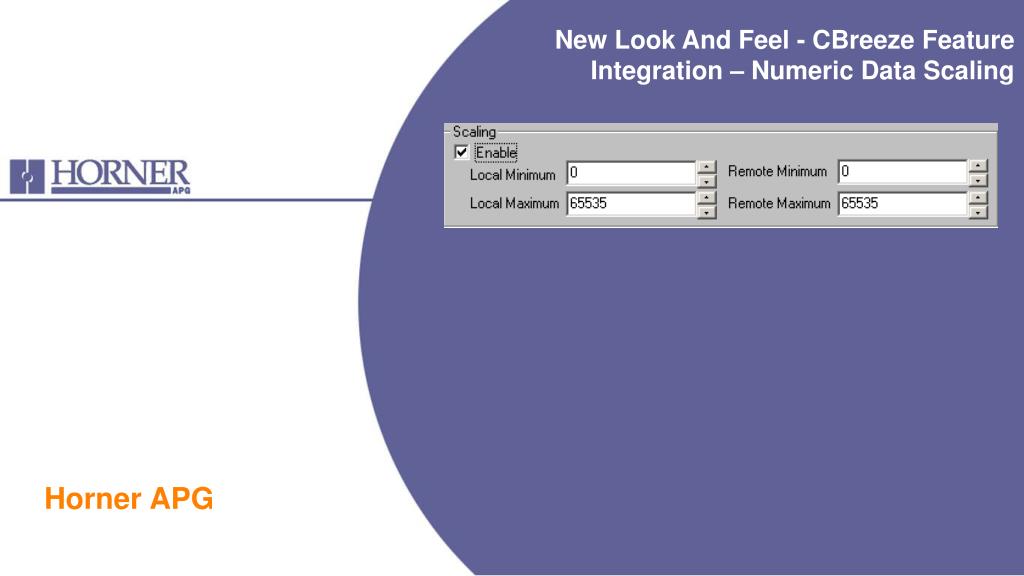

  7. New Look And Feel - CBreeze Feature Integration – Numeric Data Scaling Horner APG

  8. New Logic Functions - Open Port Based on Register Settings Horner APG

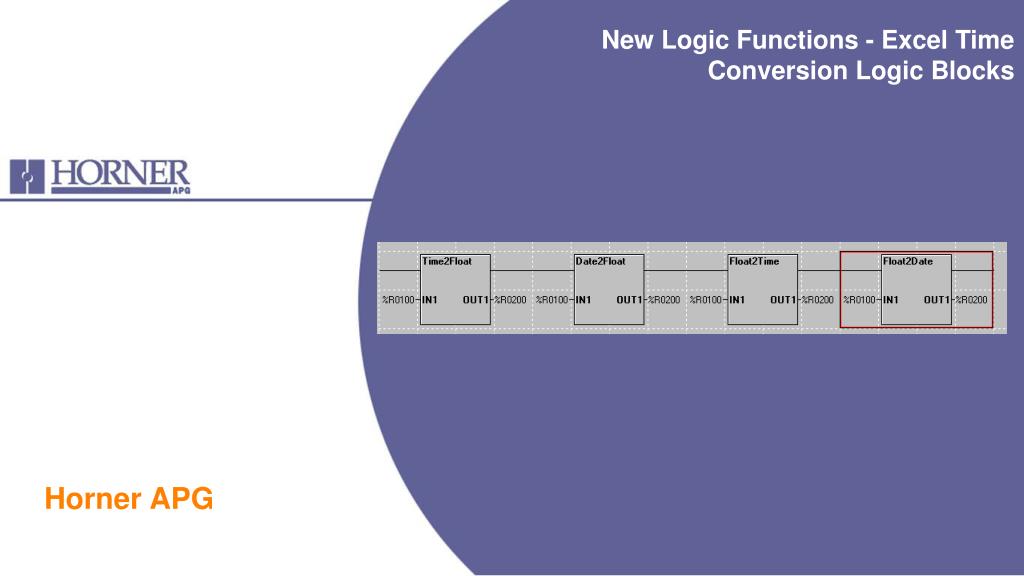

  9. New Logic Functions - Excel Time Conversion Logic Blocks Horner APG

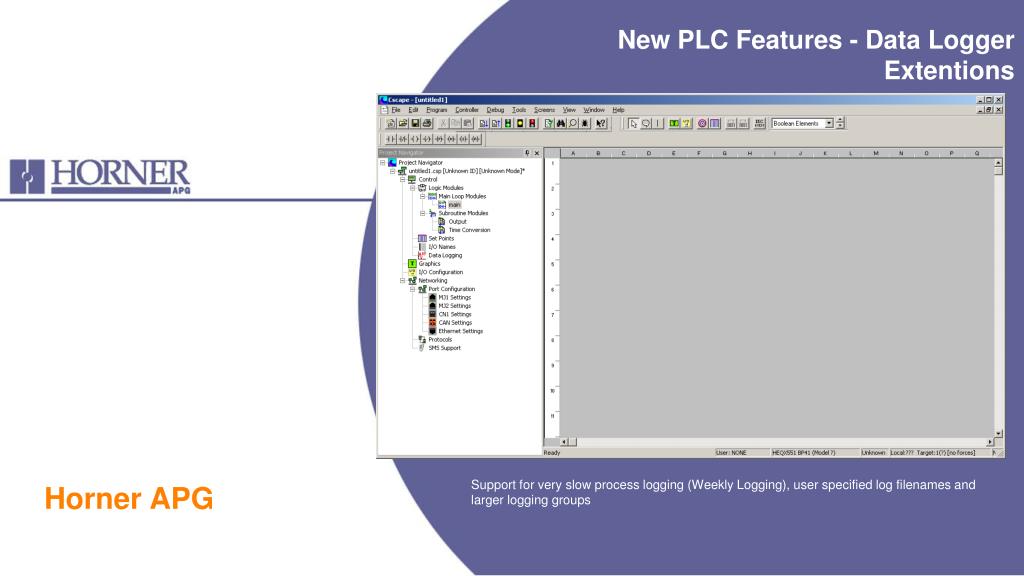

  10. New PLC Features - Data Logger Extentions Horner APG Support for very slow process logging (Weekly Logging), user specified log filenames and larger logging groups

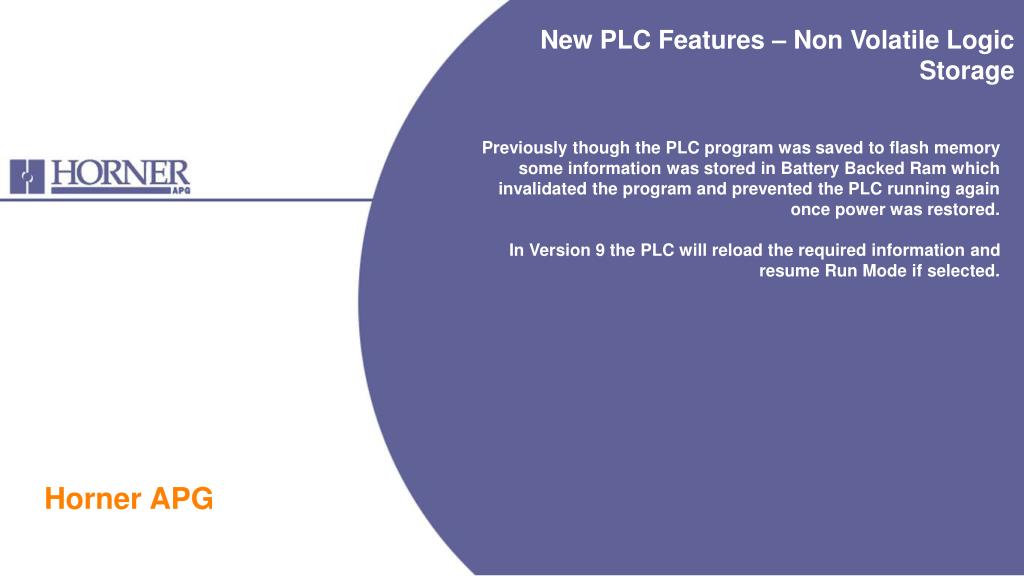

  11. New PLC Features – Non Volatile Logic Storage Previously though the PLC program was saved to flash memory some information was stored in Battery Backed Ram which invalidated the program and prevented the PLC running again once power was restored. In Version 9 the PLC will reload the required information and resume Run Mode if selected. Horner APG
