Computer graphic -- Programming with OpenGL I

1. Computer graphic -- Programming with OpenGL I

2. What is new • Website: http://www.ee.oulu.fi/~jiechen/Course.htm • Lecture slides for 3rd are online now

3. A Good news about VS2008

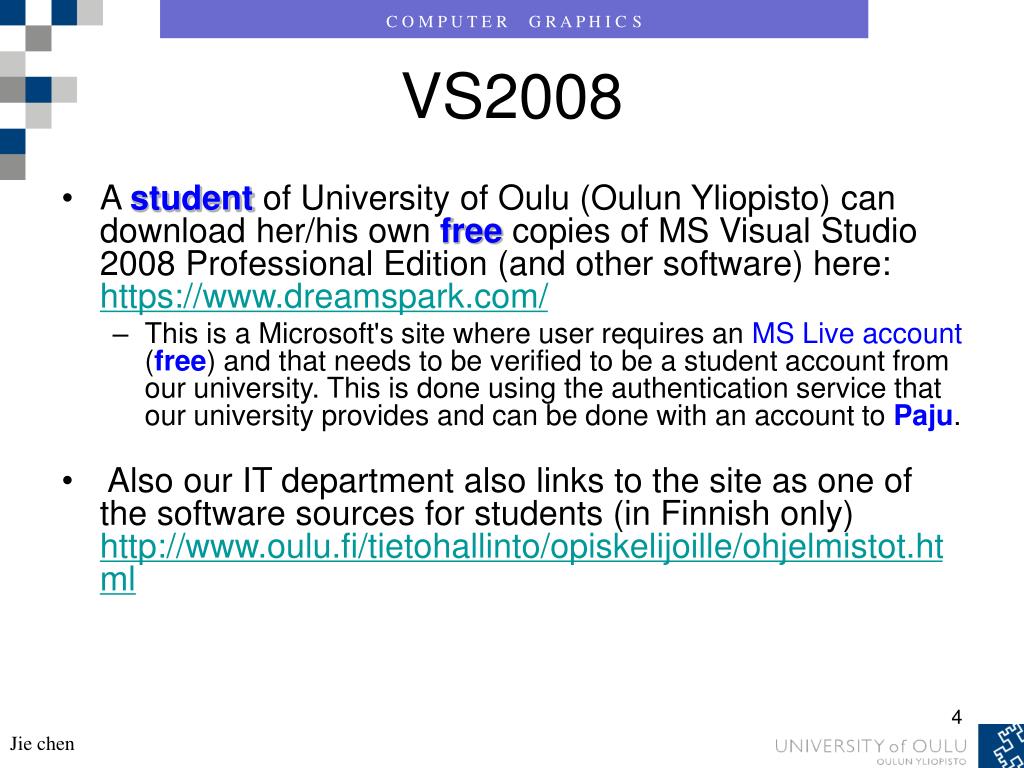

4. VS2008 • A student of University of Oulu (Oulun Yliopisto) can download her/his own free copies of MS Visual Studio 2008 Professional Edition (and other software) here: https://www.dreamspark.com/ • This is a Microsoft's site where user requires an MS Live account (free) and that needs to be verified to be a student account from our university. This is done using the authentication service that our university provides and can be done with an account to Paju. • Also our IT department also links to the site as one of the software sources for students (in Finnish only) http://www.oulu.fi/tietohallinto/opiskelijoille/ohjelmistot.html

5. Setup for VS2008 • Run Visual C++ 2008. Go to Tools -> Options, then Projects and Solutions -> VC++ Directories ->"Show directories for". • adding "include files” for the folder where you installed GLUT lib and include folder. • adding “library files” for the folder where you installed gult32.lib.

6. Setup for VS2008 • Go to Project -> Properties. Click on Configuration Properties. Click the "Configuration Manager" button in the upper-right corner. Change the "Active solution configuration" from "Debug" to "Release". Click close, then click OK. • In Project -> Properties, go to Configuration Properties -> General. Where it shows the output directory as "Release", backspace the word "Release", and click OK. • This makes Visual C++ put the executable in the same directory as the source code, so when our program needs to open a file, it looks for it in that directory. • In this case, the program will have to load in an image file called "vtr.bmp". • Go to Build -> Build project_name to build your project. • Run the program by going to Debug -> Start Without Debugging. If all goes well, the test program should run.

7. A simple example using OpenGL

8. A simple example using OpenGL • Download the "basic shapes" program, and compile and run it (details on how to do that can be found in Lecture 3). • Take a look at it, and hit ESC when you're done. • It should look like the following image:

9. Overview of How the Program Works • How does the program work? • The basic idea is that we tell OpenGL the 3D coordinates of all of the vertices of our shapes. • OpenGL uses the standard x and y axes, with the positive x direction pointing toward the right and the positive y direction pointing upward. • However, in 3D we need another dimension, the z dimension. The positive z direction points out of the screen.

10. Overview of How the Program Works • How does OpenGL use these 3D coordinates? • It simulates the way that our eyes work. 3D points eyes

11. Overview of How the Program Works • OpenGL converts all of the 3D points to pixel coordinates before it draws anything. • To do this, it draws a line from each point in the scene to your eye and takes the intersection of the lines and the screen rectangle, as in the above picture. • So, when OpenGL wants to draw a triangle, it converts the three vertices into pixel coordinates and draws a "2D" triangle using those coordinates. 3D points pixel coordinates

12. Overview of How the Program Works • The user's "eye" is always at the origin and looking in the negative z direction. • Of course, OpenGL doesn't draw anything that is behind the "eye". • After all, it isn't the all-seeing eye of Sauron. The eye of Sauron,The Lord of the Rings

13. Overview of How the Program Works • How far away is the screen rectangle from your eye? • It doesn't matter. • No matter how far away the screen rectangle is, a given 3D point will map to the same pixel coordinates. • All that matters is the angle that your eye can see.

14. Going Through the Source Code • All of this stuff about pixel coordinates is great and all, but as researcher or programmer, we want to see some code. • Take a look at main.cpp. • Let's go through the file and see if we can understand what it's doing.

15. Going Through the Source Code • First, we include our header files. • Pretty standard stuff for C++. • If we're using a Mac, we want our program to include GLUT/glut.h and OpenGL/OpenGL.h; • otherwise, we include GL/glut.h.

16. Going Through the Source Code • It just makes it so that we don't have to type std:: a lot; • for example, so we can use cout instead of std::cout.

17. Going Through the Source Code • This function handles any keys pressed by the user. • For now, all that it does is quit the program when the user presses ESC, by calling exit. • The function is passed the x and y coordinates of the mouse, but we don't need them.

18. Going Through the Source Code • The initRendering function initializes our rendering parameters. • The call makes sure that an object (O2) shows up behind an object (O1). • Note that glEnable, like every OpenGL function, begins with "gl".

19. Going Through the Source Code • The handleResize function is called whenever the window is resized.  • w and h are the new width and height of the window.

20. Going Through the Source Code • void gluPerspective(GLdouble fovy, GLdouble aspect,GLdouble near, GLdouble far);. • fovy=Θ=45.0: telling OpenGL the angle that user's eye can see. • Near=1.0: indicates not to draw anything with a z coordinate of smaller than 1. This is so that when something is right next to our eye, it doesn't fill up the whole screen. • Far= 200.0 tells OpenGL not to draw anything with a z coordinate larger than 200. We don't care very much about stuff that's really far away. viewing volume

21. Going Through the Source Code • So, why does gluPerspective begin with "glu" instead of "gl"? • gl: a OpenGL function • glu: a GLU (GL Utility) function • glut: a GLUT (GL Utility Toolkit) function • For examples: • glRectf(-25.0, -25.0, 25.0, 25.0); • gluOrtho2D (0.0, w, 0.0, h); • glutSwapBuffers(); • We won't really worry about the difference among OpenGL, GLU, and GLUT. • Just include “glut.h”, that is enough for Windows.

22. Going Through the Source Code • The drawScene function is where the 3D drawing actually occurs. • call glClear to clear information from the last time we drew. • In most every OpenGL program, you'll want to do this.

23. Going Through the Source Code • GL_COLOR_BUFFER_BIT:  Color Buffer • OpenGL defined constants begin with GL_, use all capital letters, and use underscores to separate words • The Color Buffer store the color for each pixels of the current frame. • The color is in RGBA mode i.e., Red, Green, Blue and Alpha. • The first 3 components (RGB) can be considered as color of a pixel. • Alpha value can be considered as the opacity or transparency of a pixel.

24. Going Through the Source Code • GL_DEPTH_BUFFER_BIT:  Depth Buffer • Depth Buffer holds the depth of each pixels of a frame. • It is also called z buffer. • Depth buffer is associated with Depth Test. • For each pixel drawn, Depth Test compare the current depth stored in the depth buffer with the depth of the new pixel to draw. • a pixel is drawn or not depending on result of depth test. • We usually use the depth buffer to draw nearest pixels (p1), pixels behind are not drawn (p2). p2 p1 viewing volume

25. Going Through the Source Code • More about Buffer? • http://jerome.jouvie.free.fr/OpenGl/Lessons/Lesson5.php

26. Going Through the Source Code • For now, we'll ignore this. • It'll make sense after the next lesson.

27. Going Through the Source Code • Draw the trapezoid (Begin the substance of our program). • Call glBegin(GL_QUADS) to tell OpenGL that we want to start drawing quadrilaterals. • Specify the four 3D coordinates of the vertices of the trapezoid, in order, using calls to glVertex3f. • After drawing quadrilaterals, call glEnd(). • Note that every call to glBegin must have a matching call to glEnd. (0.4f, -0.5f, -5.0f) (-0.4f, -0.5f, -5.0f) (-0.7f, -1.5f, -5.0f) (0.7f, -1.5f, -5.0f)

28. Going Through the Source Code • Draw the pentagon. • To draw it, we split it up into three triangles, which is pretty standard for OpenGL. • Calling glBegin(GL_TRIANGLES) to tell OpenGL that let us begin to draw triangles. • Specify coordinates of the vertices. • OpenGL automatically puts the coordinates together in groups of three. • Each group of three coordinates represents one triangle.

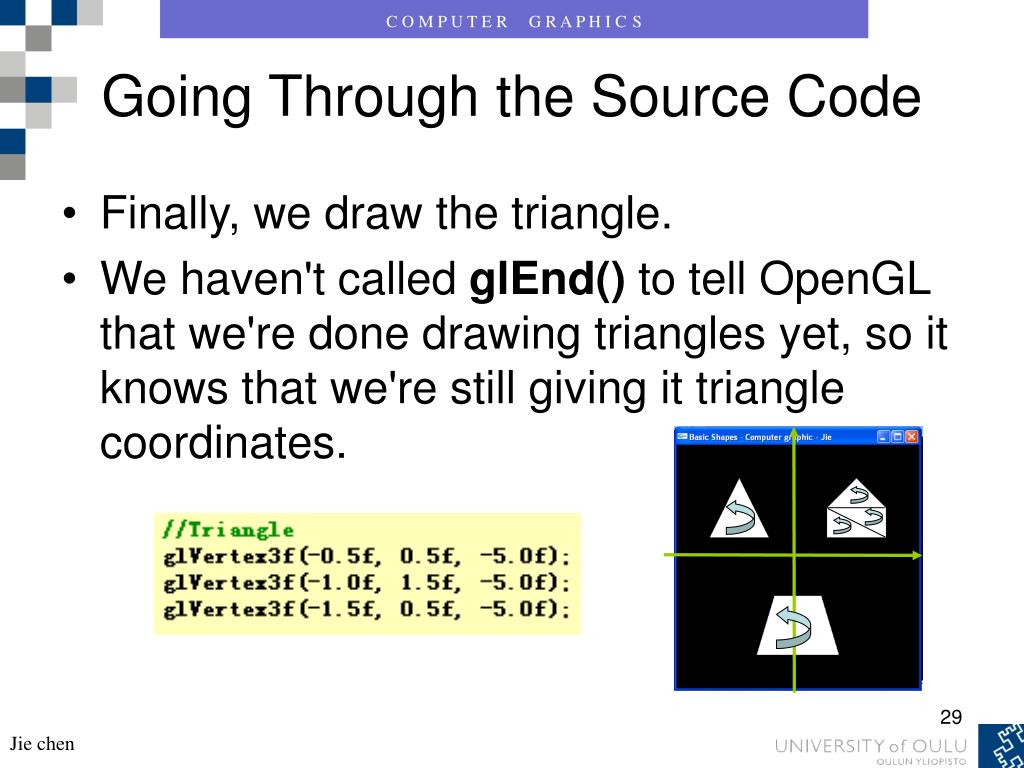

29. Going Through the Source Code • Finally, we draw the triangle. • We haven't called glEnd() to tell OpenGL that we're done drawing triangles yet, so it knows that we're still giving it triangle coordinates.

30. Going Through the Source Code • Finish drawing triangles -> call glEnd(). • Note that we could have drawn the four triangles using four calls to glBegin(GL_TRIANGLES) and four accompanying calls to glEnd(). However, this makes the program slower, and you shouldn't do it. • There are other things we can pass to glBegin in addition to GL_TRIANGLES and GL_QUADS, but triangles and quadrilaterals are the most common things to draw.

31. Going Through the Source Code • This line makes OpenGL actually move the scene to the window. • We'll call it whenever we're done drawing a scene.

32. Going Through the Source Code • main function. • start by initializing GLUT. • In the call to glutInitWindowSize and set the window to be 400x400. • Call glutCreateWindow to tell OpenGL what title we want for the window. • Call initRendering to initialize OpenGL rendering.

33. Going Through the Source Code • Point GLUT to the functions to handle keypresses and drawing and resizing the window. • One important thing: • we're not allowed to draw anything except inside the drawScene function that we explicitly give to GLUT

34. Going Through the Source Code • Call glutMainLoop, which tells GLUT to do its thing. • capture key and mouse input • draw the scene by calling our drawScene function • do some other stuff • glutMainLoop like a defective boomerang, never returns. • GLUT just takes care of the rest of our program's execution. • After the call, return 0 so that the compiler doesn't complain about the main function not returning anything, but the program will never get to that line. • And that's how our first OpenGL program works.

35. More details about this example

36. OpenGL function format function name dimensions glVertex4f(x,y,z,w) x,y,z,warefloats belongs to GL library • gl: a OpenGL function • glu: a GLU (GL Utility) function • glut: a GLUT (GL Utility Toolkit) function glVertex4fv(p) pis a pointer to an array

37. OpenGL function format glVertex4f(x,y,z,w) • x,y and z are coordinates and w is a factor, so the coordinates is equivalent to (x/w, y/w, z/w). • The default values of z and w are z =0and w=1. • For examples: • glVertex4f(1, 2, 3, 3) -> glVertex4f(1/3, 2/3, 1, 1) • glVertex2f(1, 2) -> glVertex4f(1, 2, 0, 1) • glVertex3f(1, 2, 3) -> glVertex4f(1, 2, 3, 1) i.e., z =0 and w=1 i.e., w=1

38. OpenGL function format glVertex3f(x,y,z)

39. OpenGL Primitives GL_POINTS GL_LINES GL_LINE_LOOP GL_LINE_STRIP

40. OpenGL Primitives GL_TRIANGLE_STRIP GL_TRIANGLE_FAN GL_TRIANGLES GL_QUAD_STRIP GL_POLYGON

41. Polygon Issues • OpenGL will only display polygons correctly that are • Simple: edges cannot cross • Convex: All points on line segment between two points in a polygon are also in the polygon • Flat: all vertices are in the same plane • User program can check if above true • OpenGL will produce output if these conditions are violated but it may not be what is desired • Triangles satisfy all conditions p2 p1 nonsimple polygon nonconvex polygon

42. Polygon Issues • How can we plot those polygons which do not satisfy these conditions? • nonsimple polygon: edges DO cross • nonconvex polygon : There are points on line segment between two points in a polygon areNOT in the polygon • Flat: all vertices areNOT in the same plane • Solution: divide them using Triangles because triangles satisfy all conditions or quadrangle nonsimple polygon nonconvex polygon

43. Polygon Issues • Subdividing • to Improve a Polygonal Approximation to a Surface using approximating triangles 80triangles 320triangles 20triangles

44. Polygon Issues • Do something huge! Demo

45. Polygon Issues • Do something huge!

46. Hints for polygonizing surfaces • Keep polygon orientations consistent • all clockwise or all counterclockwise • important for polygon culling and two-sided lighting • Watch out for any nontriangular polygons • three vertices of a triangle are always on a plane; any polygon with four or more vertices might not

47. Hints for polygonizing surfaces • There's a trade-off between the display speed and the image quality • few polygons render quickly but might have a jagged appearance; millions of tiny polygons probably look good but might take a long time to render • use large polygons where the surface is relatively flat, and small polygons in regions of high curvature • Avoid T-intersections in our models • there's no guarantee that the line segments AB and BC lie on exactly the same pixels as the segment AC • this can cause cracks to appear in the surface

48. Some terms • Rendering: the process by which a computer creates images from models. • model, or object: constructed from geometric primitives - points, lines, and polygons - that are specified by their vertices. • pixel: the smallest visible element that the display hardware can put on the screen. The final rendered image consists of pixels drawn on the screen. • Bitplane: an area of memory that holds one bit of information (for instance, what color it is supposed to be) for every pixel on the screen. • framebuffer: Organized by the bitplanes. It holds all the information that the graphics display needs to control the color and intensity of all the pixels on the screen. pixel

49. 24-bit true color Bitplane registers 8 Color Guns 0 1 0 0 1 0 1 1 8 bit DAC Blue 75 pixel 8 1 0 1 0 1 1 0 0 8 bit DAC Green 172 8 DAC: digital-to-analog converter 0 0 0 0 1 0 1 0 8 bit DAC Red 10 CRT Raster Frame Buffer

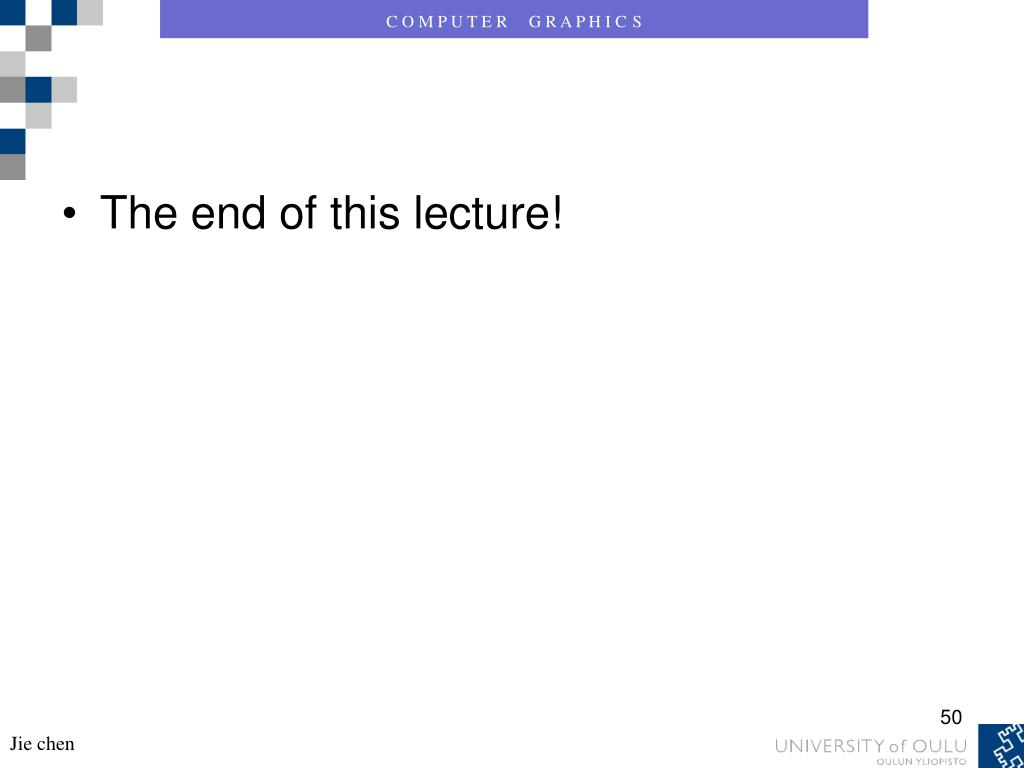

50. The end of this lecture!
