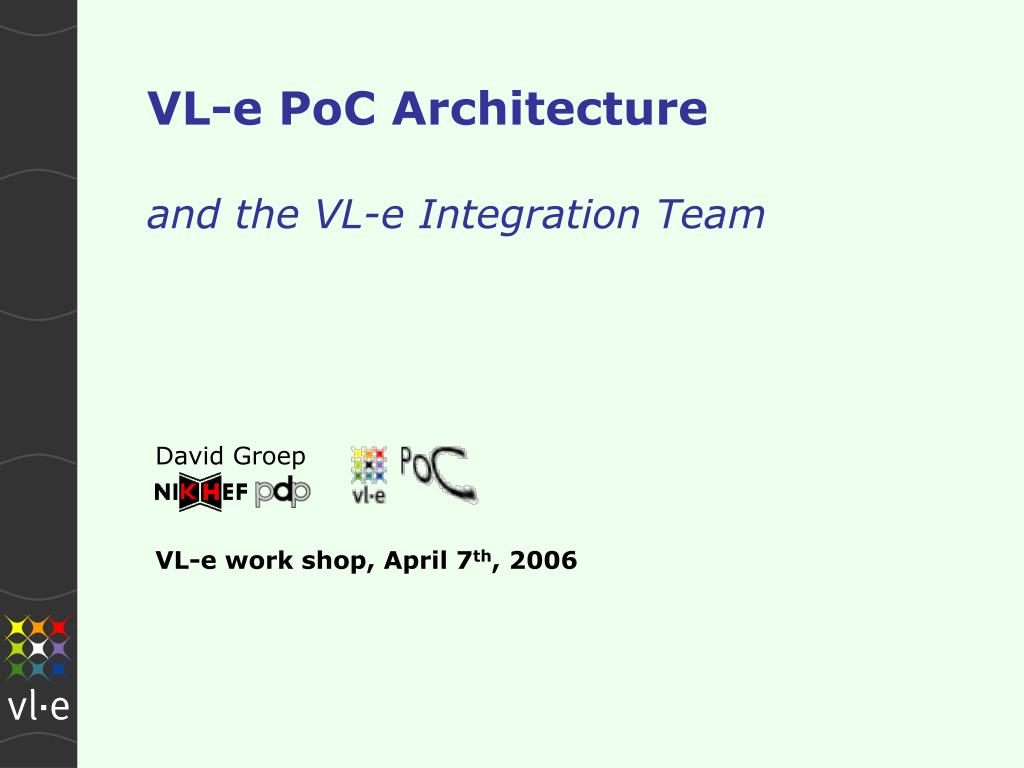

  1. VL-e PoC Architectureand the VL-e Integration Team David Groep VL-e work shop, April 7th, 2006

  2. The VL-e PoC: Proof-of-Concept What is the PoC Environment? • A shared, common environment, • where different tools and services are • both used and • provided by the VL-e community The basis for further application development

  3. PoC Position in the VL-e structure Application specific service App1 App 2 App 3 Application Potential Generic service & Virtual Lab. services Virtual Lab. rapid prototyping (interactive simulation) Virtual Laboratory Additional Grid Services (OGSA services) Grid Middleware Grid & Network Services Network Service (lambda networking) Networking VL-e Experimental Environment VL-e Proof of concept Environment

  4. PoC R1 Architectural Vision • Many different tools and services … • … from many different providers … • … tied together in a common framework: Service-Oriented Architecture (SOA) • Aim for re-useable software components • Integrated at the work-flow layer Needs commitment from everyone to work on and with the PoC and in this shared environment

  5. Service Orientation • All functions defined as services • All services are independent • Operate as "black boxes"; • external components neither know nor care how boxes are executed • merely that they return the expectedresult. • The interfaces are invocable At an architectural level, it is irrelevant whether • they are local or remote • what interconnect scheme or protocol is used to effect the invocation, &c • In the VL-e and Grid environment, these invocations are across different organisations and domains from: Adam Belloum, Introduction to Grid Computing 2005-2006, UvA Master of Grid Computing

  6. Service Orientation ‘non-SOA architecture’ ‘service oriented’ ‘Grid Services’ are services that operate on stateful resources from: Adam Belloum, Introduction to Grid Computing 2005-2006, UvA Master of Grid Computing

  7. Service composition • Services in the architecture represent basic (but not necessarily atomic) functionality • Services can also be ‘general purpose’ • ‘actors’ in work flow system run legacy applications • use such ‘general purpose’ services for high-through or high-performance tasks • don’t just ‘servicize’ everything you see Work flow should be the integrative layer of VL-e • means functionality should be invocable as a service • work flow (graphical) systems help in compositionbut are not the only way to interact with services

  8. PoC Environment The PoC distribution contains components to • enable service-oriented development • enable application development • provide access to computing, storage, and information systems • distributed geographically driven by the VL-e application scenarios (use cases) • stable base environment, with managed releases • today R1 is (still) mostly a ‘bag of components’

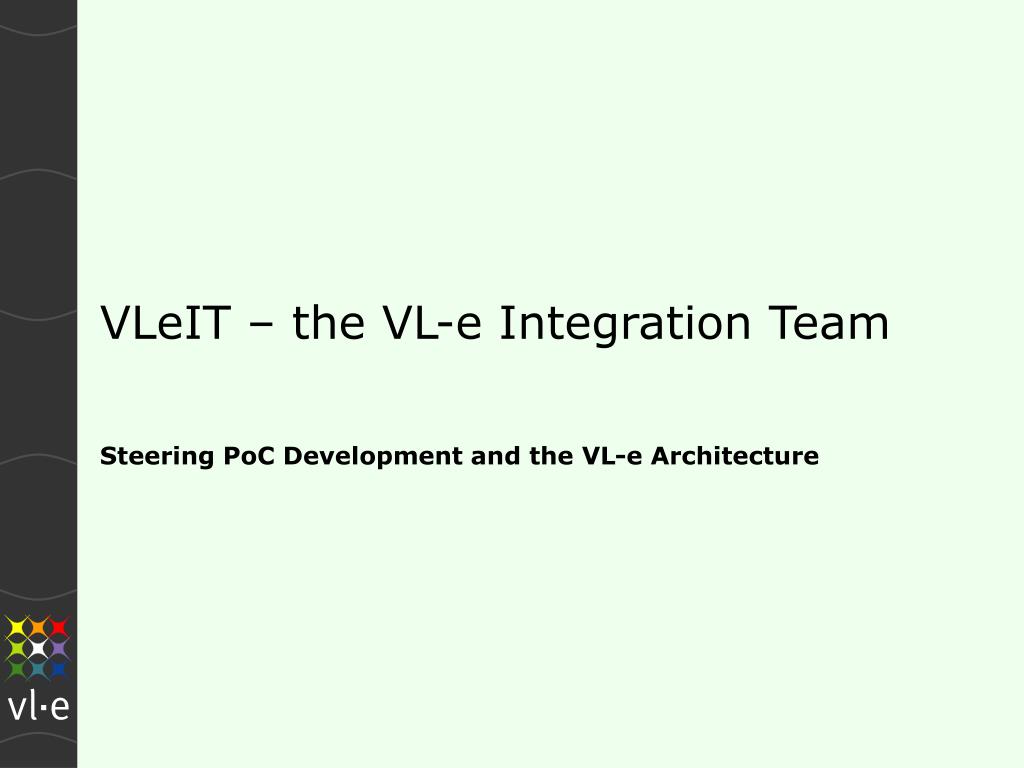

  9. VLeIT – the VL-e Integration Team Steering PoC Development and the VL-e Architecture

  10. VLeIT members

  11. VLeIT Activities • Application scenario (‘use case’) coordination • Collecting usage scenarios • Correlate across SP’s and identify common elements • Advising the application scenario groups • Define the content of the PoC Distribution • focus on tools that are shared between SP’s • incorporate tools that are the basis for our SOA model • Management of the scientific-programmer pool • prioritization of the development effort • driven by the application scenario groups Outputs are Recommendations to the Directorate

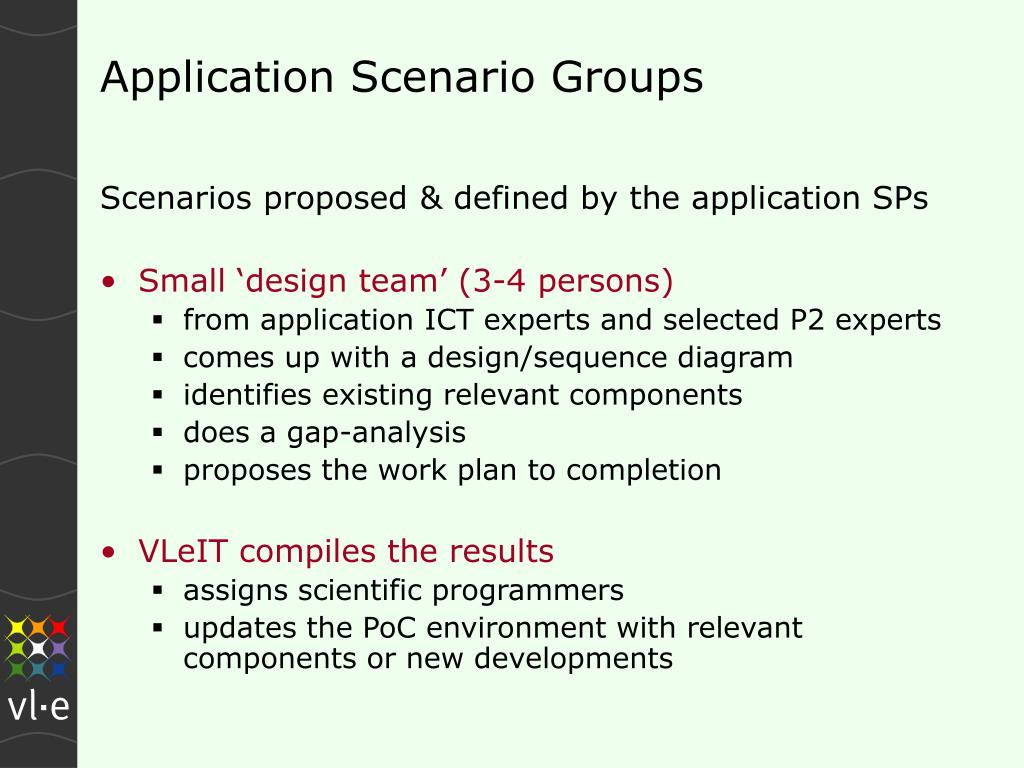

  12. Application Scenario Groups Scenarios proposed & defined by the application SPs • Small ‘design team’ (3-4 persons) • from application ICT experts and selected P2 experts • comes up with a design/sequence diagram • identifies existing relevant components • does a gap-analysis • proposes the work plan to completion • VLeIT compiles the results • assigns scientific programmers • updates the PoC environment with relevant components or new developments

  13. Application Scenario Status • ~ 20 scenarios submitted • Subset prioritized for the R1 timeframe • Prioritization based on resource availability • By VLeIT in consultation with the applications • Some have been completed • High-throughput & parallel processing of R • … • Several ongoing • Targeted at or intended for the PoC Environment … see Adam Belloum’s presentation this afternoon

  14. Stable, reliable, supported releases of the Grid MW & VL-software Flexible test environment ‘keywords’ Flexible, ‘unstable’ Virtual Lab. rapid prototyping Test & Cert. Grid MW & VL-software Compatibility Application development Typical usage Matrix clusters Central Storage (SRB, dCache/SRM)Distributed Clusters, SURFnet NL-Grid Fabric Research Cluster DAS-2, local resources Initial compute platform VL-e Rapid Prototyping Environment Environments VL-e Certification Environment VL-e Proof of Concept Environment Defining content of the PoC Distribution Tagged Release Candidates Download RepositoryPoC Installer Common repositoryIntegration tests stable, tested releases External software VLeIT Recommendation Point

  15. Elements in the PoC The PoC refers to three distinct elements PoC Software Distribution • set of software that is the basis for the applications • both grid middleware and virtual lab generic software PoC Environment • the ensemble of systems running the Distribution • including your own desktops or local clusters/storage PoC Central Facilities • those systems with the PoC Distribution centrally managed for the entire collaboration • computing, storage and hosting resources

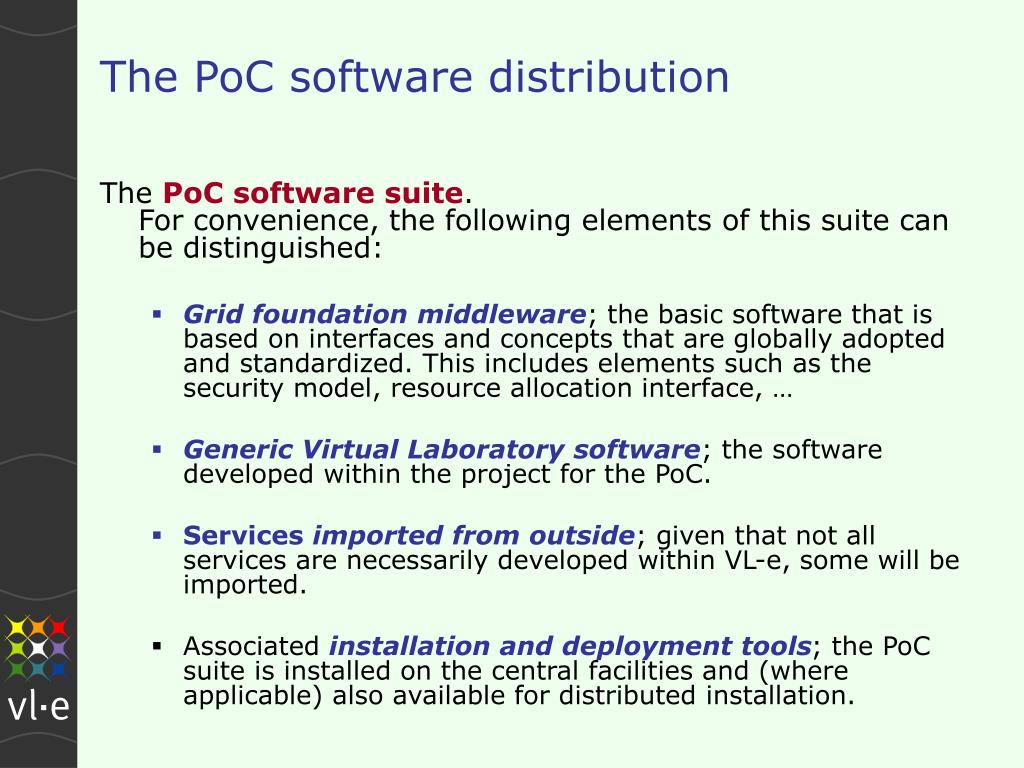

  16. The PoC software distribution The PoCsoftware suite. For convenience, the following elements of this suite can be distinguished: • Grid foundation middleware; the basic software that is based on interfaces and concepts that are globally adopted and standardized. This includes elements such as the security model, resource allocation interface, … • Generic Virtual Laboratory software; the software developed within the project for the PoC. • Services imported from outside; given that not all services are necessarily developed within VL-e, some will be imported. • Associated installation and deployment tools; the PoC suite is installed on the central facilities and (where applicable) also available for distributed installation.

  17. PoC R1: Questions and Support Each software component has an ‘expert’ on VLeIT • to work with you on its optimal use or deployment • coordinate enhancement requests see http://poc.vl-e.nl/ under “software” for a list Availability • Download: http://poc.vl-e.nl/distribution • On DVD • Via a trial run in a virtual machine (image on the DVD)

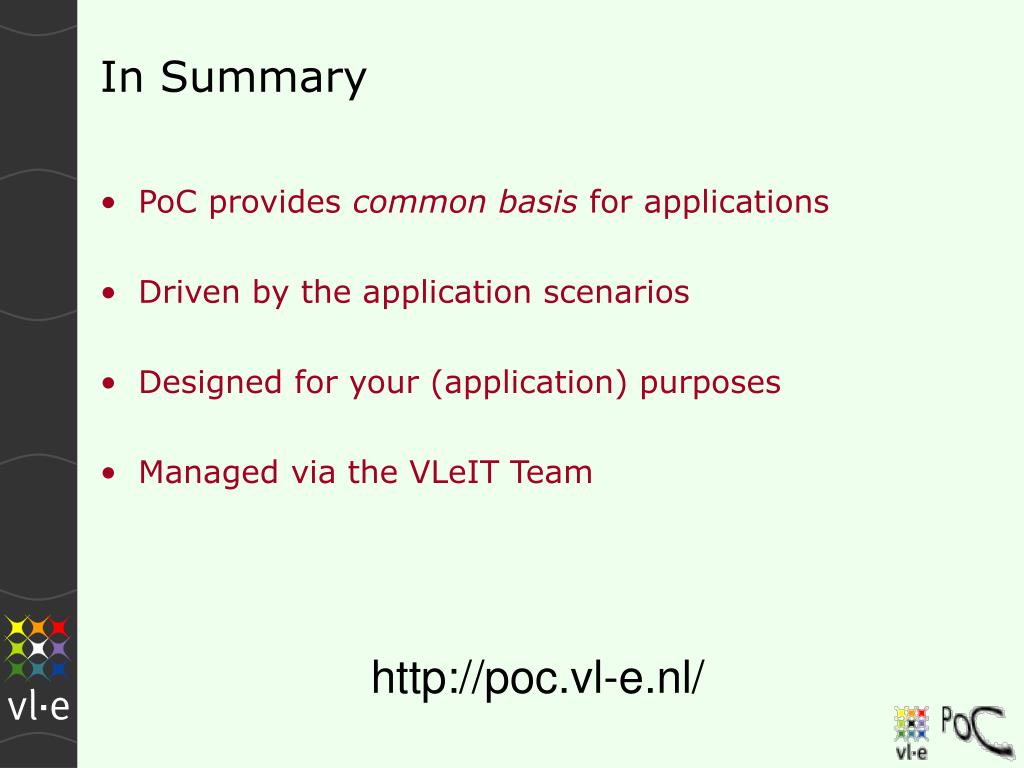

  18. In Summary • PoC provides common basis for applications • Driven by the application scenarios • Designed for your (application) purposes • Managed via the VLeIT Team http://poc.vl-e.nl/
