  1. Stack

  2. Stack ADT • A stack is an abstract data type based on the list data model • All operations are performed at one end of the list called the top of the stack (TOS) • “LIFO (for last-in first-out) list” is a synonym for stack • Common operations: • push(x) puts the element x on top of the stack • pop removes the topmost element from the stack.

  3. Java Stack Interface • public interface Stack { • public void push(Object x); • public Object pop(); • public Object peek(); • public boolean isEmpty(); • public void clear(); • }

  4. From interface to implementation • Given that we want to support some interface, the designer still faces a choice • What will be the best way to implement this interface for my expected type of use? • Choice of implementation can reflect many considerations • Major factors we think about • Speed for typical use case • Storage space required

  5. index 4 Array implementation of Stack class ArrayStack implements Stack { private Object[] array; //Array that holds the Stack private int index = 0; //First empty slot in Stack public ArrayStack(int maxSize) { array = new Object[maxSize]; } public void push(Object x) { array[index++] = x; } public Object pop() { return array[--index]; } public Object peek() { return array[index-1]; } public boolean isEmpty() { return index == 0; } public void clear() { index = 0; } } max-1 3 2 1 0 O(1) worst-case time for each operation Question: What can go wrong? …. What if maxSize is too small?

  6. head Linked List Implementation of Stack class ListStack implements Stack { private Node head = null; //Head of list that //holds the Stack public void push(Object x) { head = new Node(x, head); } public Object pop() { Node temp = head; head = head.next; return temp.data; } public Object peek() { return head.data; } public boolean isEmpty() { return head == null; } public void clear() { head = null; } } O(1) worst-case time for each operation (but constant is larger) Note that array implementation can overflow, but the linked list version cannot

  7. Use of Stack • Infix to postfix conversion • Postfix evaluation • Function calls • etc

  8. Infix to postfix • When an operand is read, output it • When ) is read, push it • When an operator is read: • If TOS item has higher or equal precedence, repeatedly pop until TOS has an element of lower precedence or stack empty, then push the operator • If the stack is empty or TOS item has lower precedence, just push it • When ) is found, pop until we find the matching ( • ( has the lowest precedence when in the stack but has the highest precedence when in the input • When we reach the end of input, pop until the stack is empty

  9. Example • Refer to the slides by Otávio Braga linked from the class website

  10. Postfix evaluation • Starting with an empty stack, we scan the postfix expression from left to right • Each time we encounter an argument, we push it onto the stack • When we encounter an operator, we pop the stack twice, remembering the operands popped • We then apply the operator to the two popped values (with the second as the left operand) and push the result onto the stack

  11. Example • Evaluating 3 4 + 2 *

  12. Postfix to Expression Tree A 2 * 2 A * B * - B 2 * + A B - / Push A Push 2 Pop 2 Pop A Create tree_1 Push tree_1 Push 2 Push A Pop A Pop 2 Create tree_2 Push tree_2 Push B Pop B Pop tree_2 Create tree_3 Push tree_3 Pop tree_3 Pop tree_1 Create tree_4 Push tree_4 Push B Push 2 Pop 2 Pop B Create tree_5 Push tree_5 Pop tree_5 Pop tree_4 Create tree_6 Push tree_6 Push A Push B Pop B Pop A Create tree_7 Push tree_7 Pop tree_7 Pop tree_6 Create tree_8 Push tree_8 tree_8 tree_6 tree_7 tree_4 tree_5 tree_1 tree_3 tree_2

  13. Evaluating expression tree • If at leaf node (operand node) return the operand’s value • Otherwise: • Evaluate the left sub-tree • Evaluate the right sub-tree • Combine the results from both sub-trees with the operator at root public static int eval(TreeCell root) { int left_result, right_result; if (root.datum is operand) return operand’s value; left_result = eval(root.left); right_result = eval(root.right); switch (root.datum) { case + : return left_result + right_result; case * : return left_result * right_result; : : } }

  14. Function calls • An important application of stacks is normally hidden from view • A stack is used to allocate space in the computer’s memory to the variables belonging to the various functions of a program • Example: a recursive factorial function • Has a parameter n and a return value • As fact calls itself recursively, different calls with different parameter are active at the same time • A frame for each call is created and place on TOS • When a given call return, its frame gets popped off

  15. public static int factorial(int 3) { int fact; if (n > 1) fact = factorial(2) * 3; else fact = 1; return fact; }

  16. public static int factorial(int 3) { int fact; if (n > 1) fact = factorial(2) * 3; else fact = 1; return fact; } public static int factorial(int 2) { int fact; if (n > 1) fact = factorial(1) * 2; else fact = 1; return fact; }

  17. public static int factorial(int 3) { int fact; if (n > 1) fact = factorial(2) * 3; else fact = 1; return fact; } public static int factorial(int 2) { int fact; if (n > 1) fact = factorial(1) * 2; else fact = 1; return fact; } public static int factorial(int 1) { int fact; if (n > 1) fact = factorial(n - 1) * n; else fact = 1; return fact; }

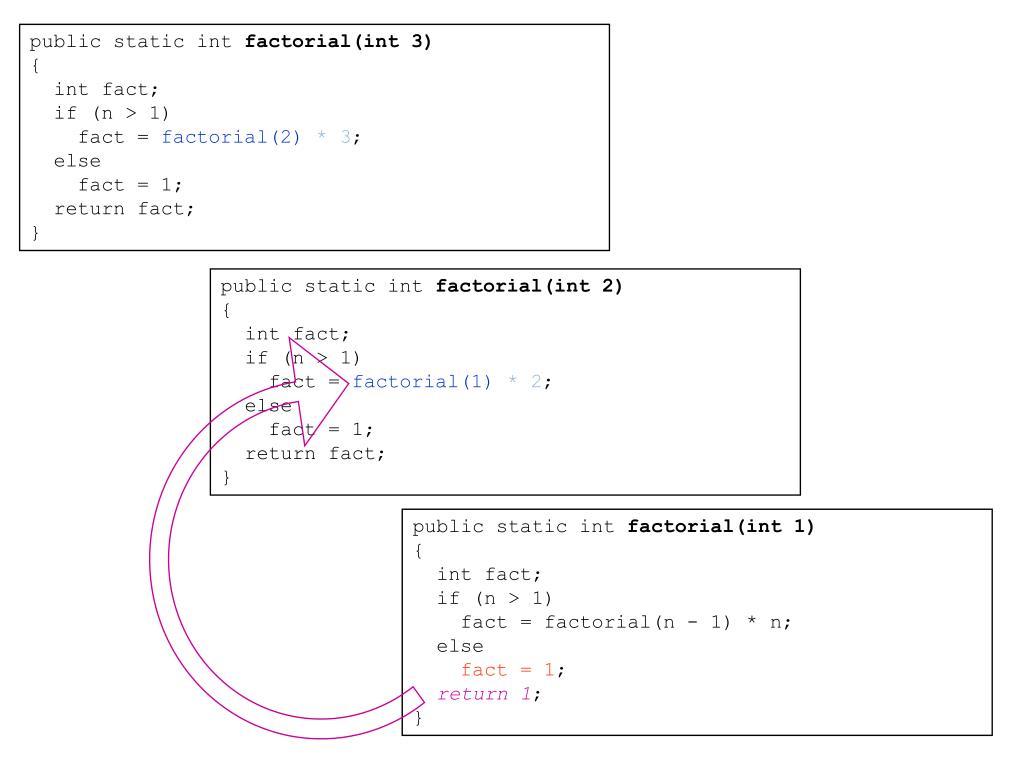

  18. public static int factorial(int 3) { int fact; if (n > 1) fact = factorial(2)* 3; else fact = 1; return fact; } public static int factorial(int 2) { int fact; if (n > 1) fact = factorial(1)* 2; else fact = 1; return fact; } public static int factorial(int 1) { int fact; if (n > 1) fact = factorial(n - 1) * n; else fact = 1; return 1; }

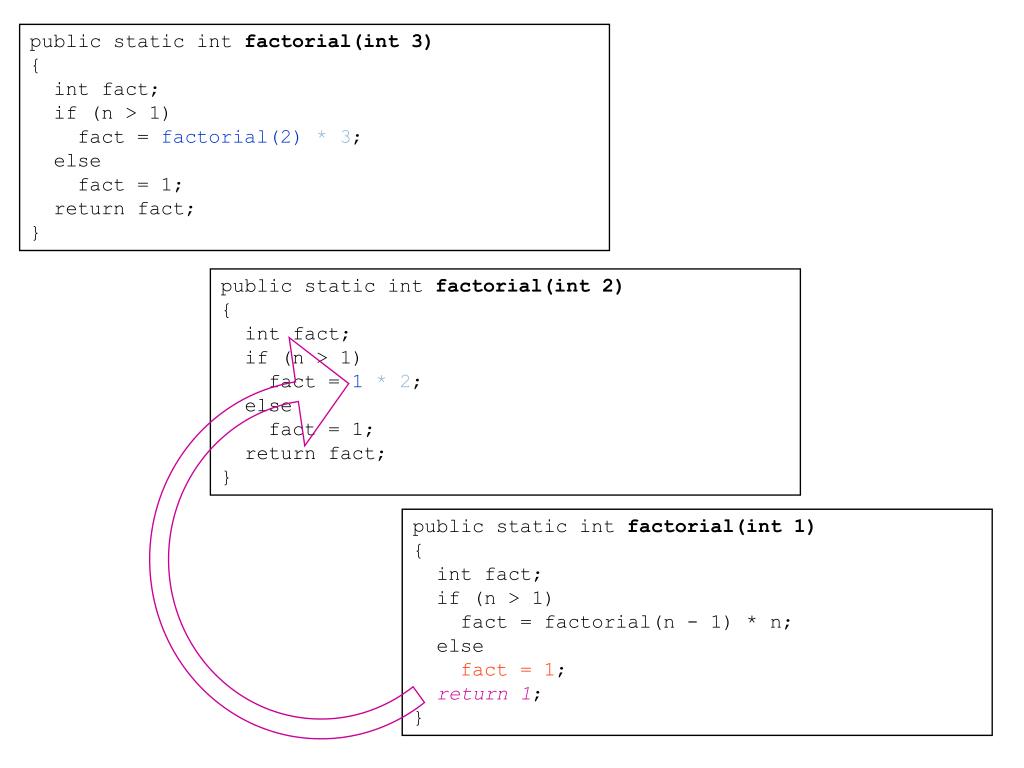

  19. public static int factorial(int 3) { int fact; if (n > 1) fact = factorial(2)* 3; else fact = 1; return fact; } public static int factorial(int 2) { int fact; if (n > 1) fact = 1* 2; else fact = 1; return fact; } public static int factorial(int 1) { int fact; if (n > 1) fact = factorial(n - 1) * n; else fact = 1; return 1; }

  20. public static int factorial(int 3) { int fact; if (n > 1) fact = factorial(2)* 3; else fact = 1; return fact; } public static int factorial(int 2) { int fact; if (n > 1) fact = 1* 2; else fact = 1; return 2; }

  21. public static int factorial(int 3) { int fact; if (n > 1) fact = 2* 3; else fact = 1; return fact; } public static int factorial(int 2) { int fact; if (n > 1) fact = 1* 2; else fact = 1; return 2; }

  22. public static int factorial(int 3) { int fact; if (n > 1) fact = 2*3; else fact = 1; return 6; }
