  2. Part I: Supporting The GDR User Learn how to help solve a site’s data problems using the GDR in just one hour!

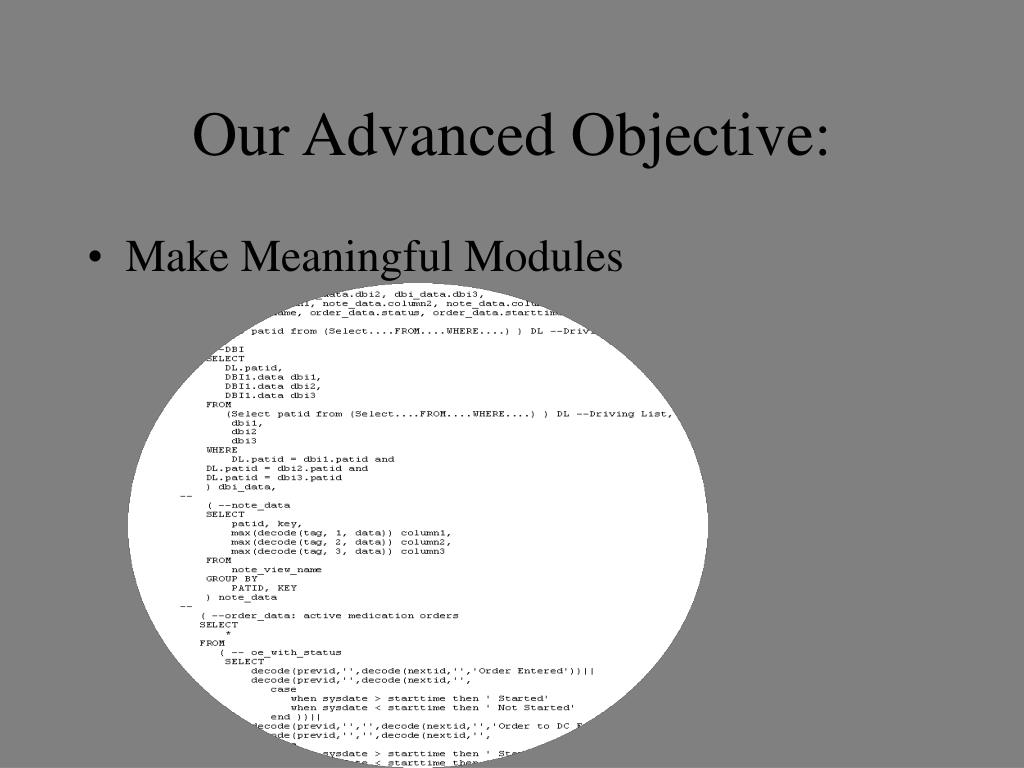

  3. Our Advanced Objective: • Make Meaningful Modules

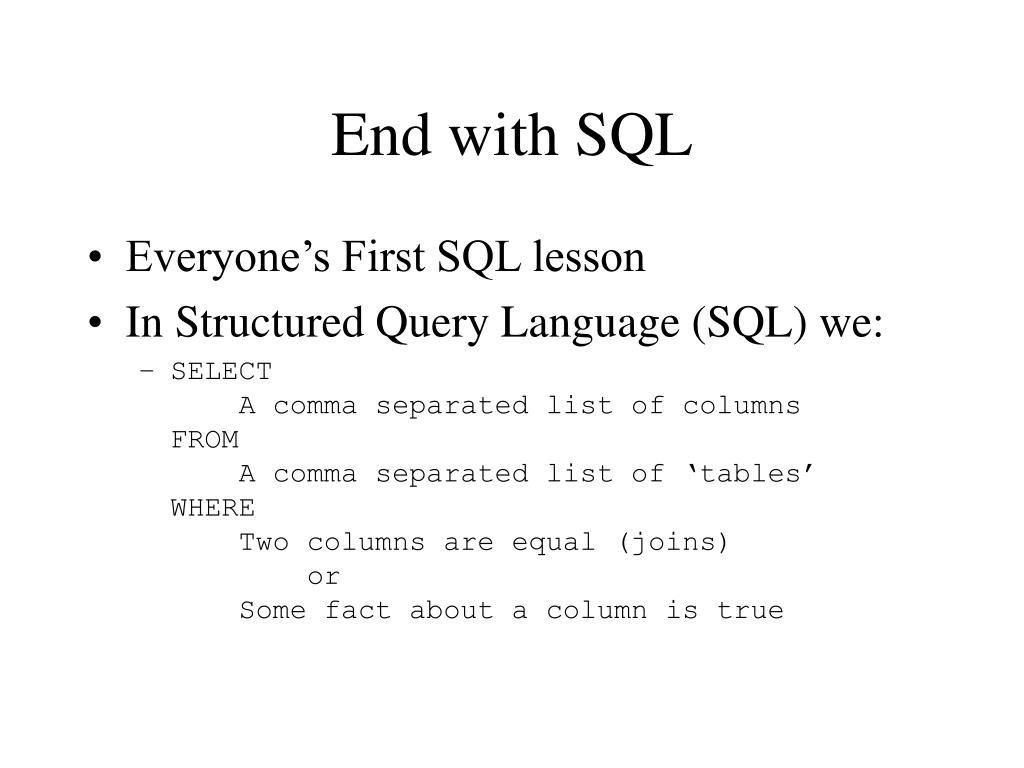

  4. End with SQL • Everyone’s First SQL lesson • In Structured Query Language (SQL) we: • SELECT A comma separated list of columnsFROM A comma separated list of ‘tables’WHERE Two columns are equal (joins) or Some fact about a column is true

  5. End with SQL: SELECT • Comma separated list of columns • Practical English: the columns of data which need to show in the report • Advanced: Columns, always including PATID, which make a useful module • Patid, name, mrn, dob • Patid, first fever time • Patid, delay code, case type (from peri-operative note)

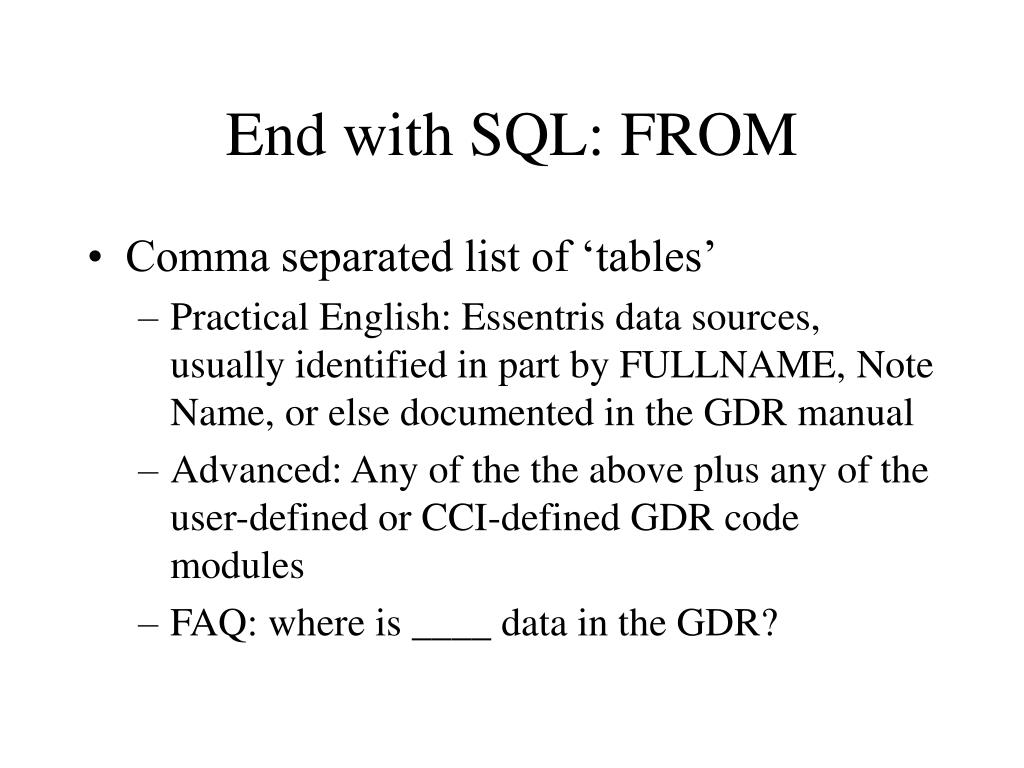

  6. End with SQL: FROM • Comma separated list of ‘tables’ • Practical English: Essentris data sources, usually identified in part by FULLNAME, Note Name, or else documented in the GDR manual • Advanced: Any of the the above plus any of the user-defined or CCI-defined GDR code modules • FAQ: where is ____ data in the GDR?

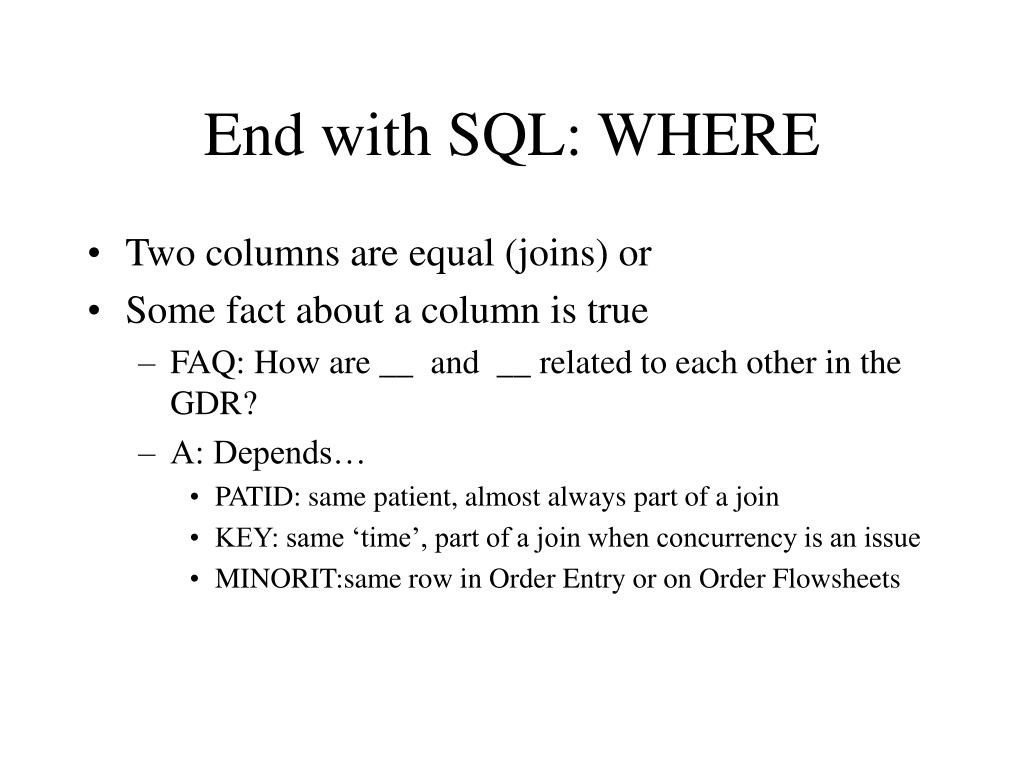

  7. End with SQL: WHERE • Two columns are equal (joins) or • Some fact about a column is true • FAQ: How are __ and __ related to each other in the GDR? • A: Depends… • PATID: same patient, almost always part of a join • KEY: same ‘time’, part of a join when concurrency is an issue • MINORIT:same row in Order Entry or on Order Flowsheets

  8. Start with Essentris • We already know our way around Essentris • Identify GDR related details in Essentris (look for “SELECT…FROM..WHERE…” patterns) • Admit Notes • Timed Notes • Vitals Flowsheets • Orders and Order Flowsheets • Admission/Discharge/Transfer functions

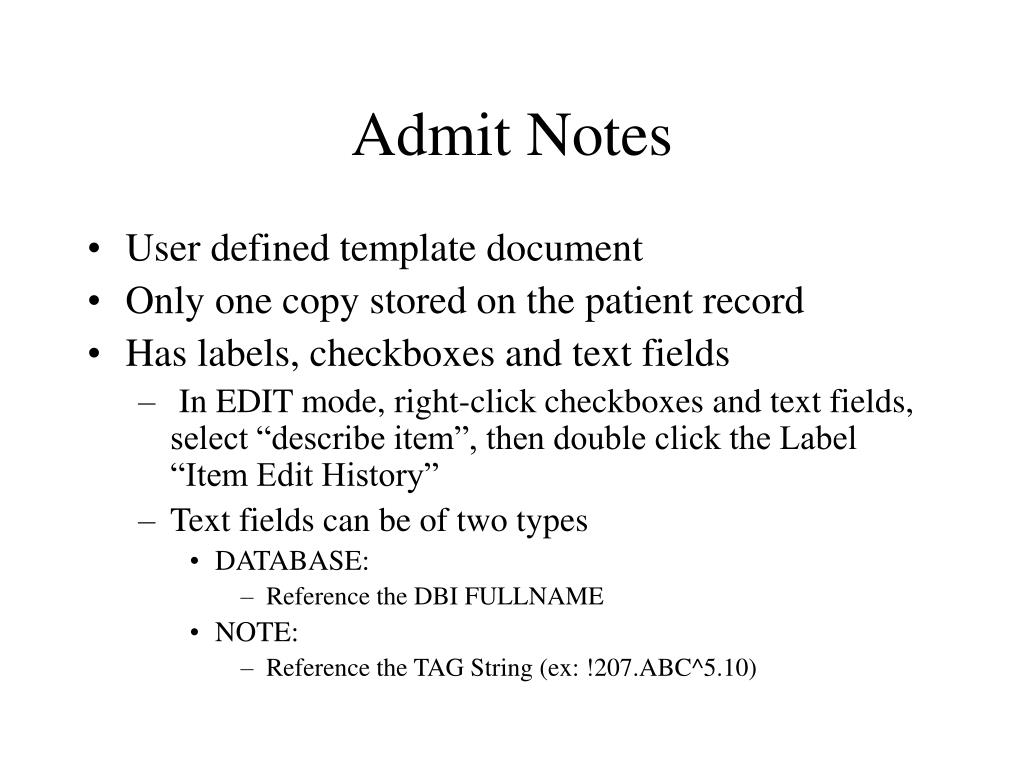

  9. Admit Notes • User defined template document • Only one copy stored on the patient record • Has labels, checkboxes and text fields • In EDIT mode, right-click checkboxes and text fields, select “describe item”, then double click the Label “Item Edit History” • Text fields can be of two types • DATABASE: • Reference the DBI FULLNAME • NOTE: • Reference the TAG String (ex: !207.ABC^5.10)

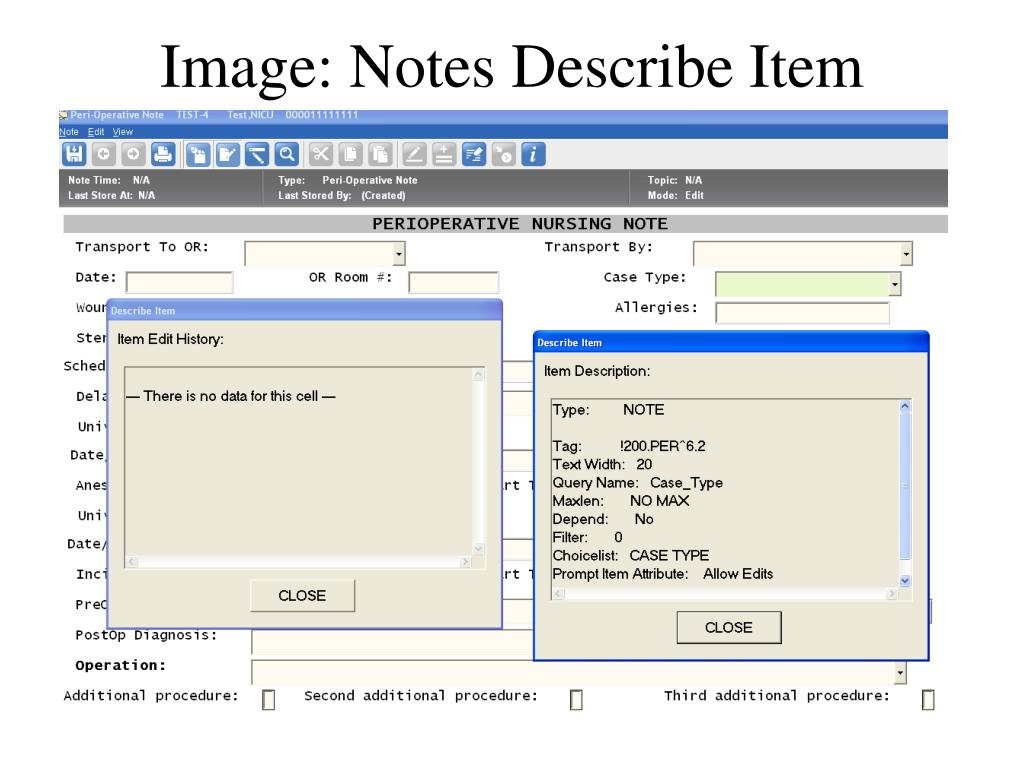

  10. Image: Notes Describe Item

  11. Image: Notes Describe Item

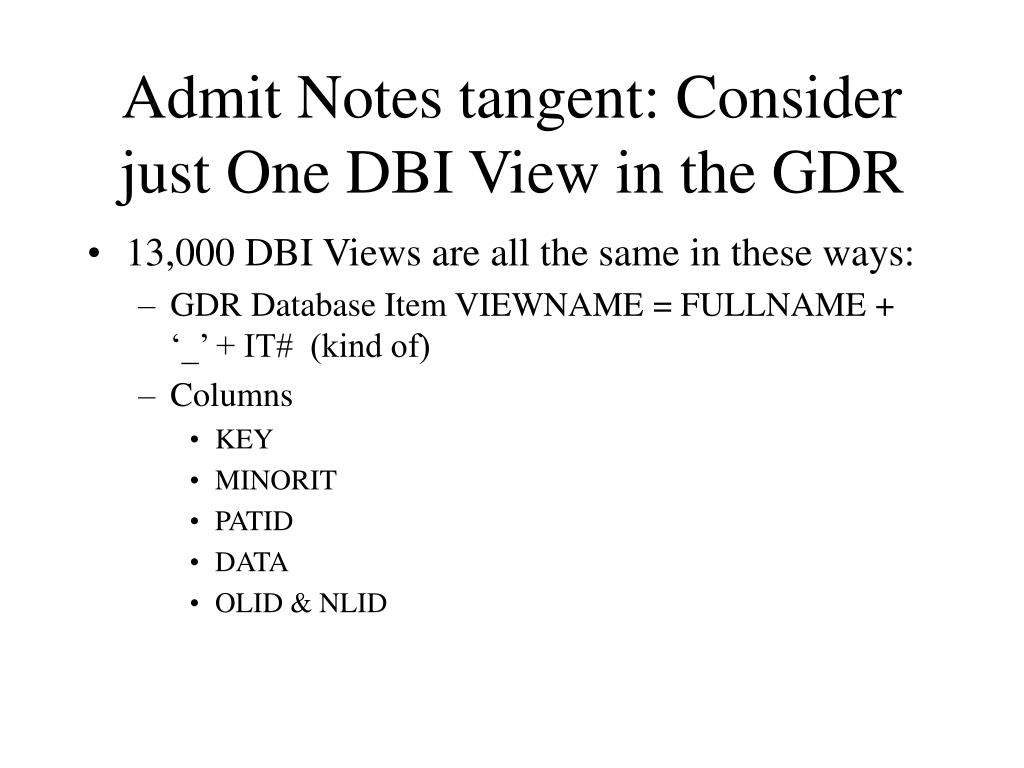

  12. Admit Notes tangent: Consider just One DBI View in the GDR • 13,000 DBI Views are all the same in these ways: • GDR Database Item VIEWNAME = FULLNAME + ‘_’ + IT# (kind of) • Columns • KEY • MINORIT • PATID • DATA • OLID & NLID

  13. Image: Single DBI Data

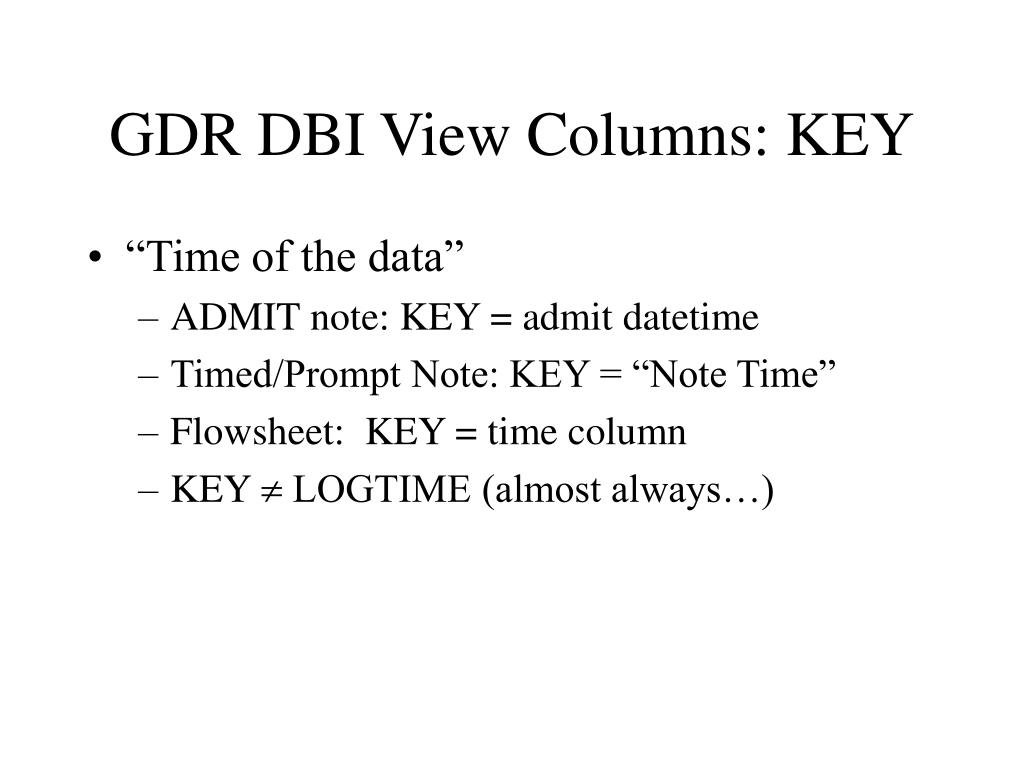

  14. GDR DBI View Columns: KEY • “Time of the data” • ADMIT note: KEY = admit datetime • Timed/Prompt Note: KEY = “Note Time” • Flowsheet: KEY = time column • KEY  LOGTIME (almost always…)

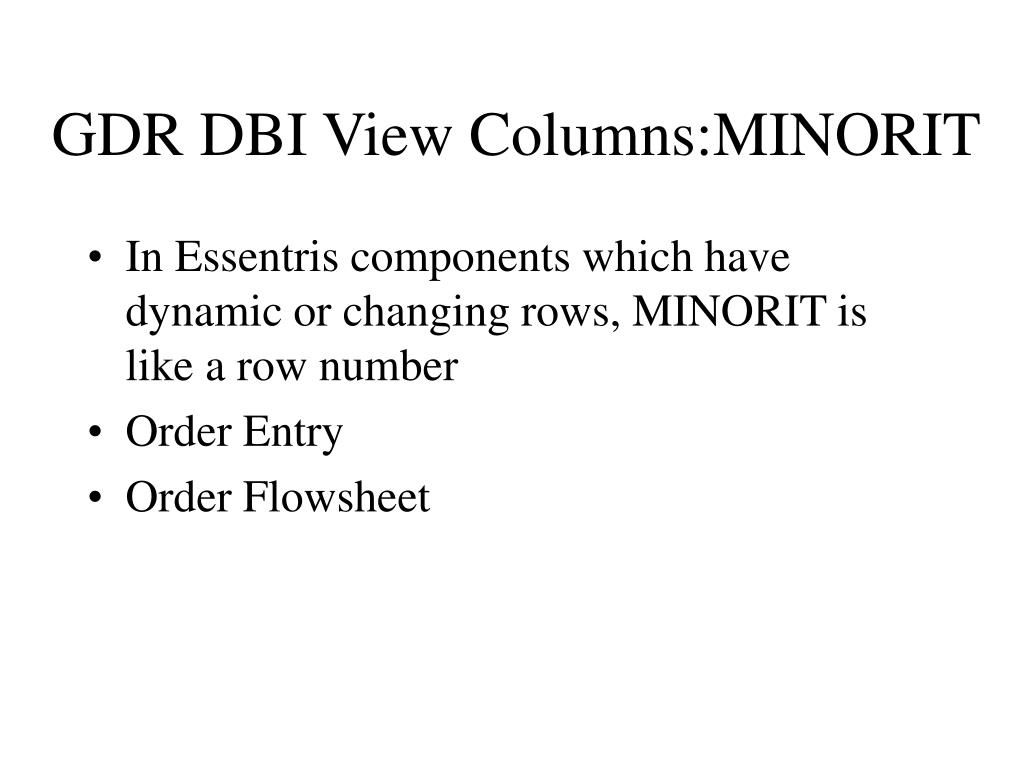

  15. GDR DBI View Columns:MINORIT • In Essentris components which have dynamic or changing rows, MINORIT is like a row number • Order Entry • Order Flowsheet

  16. GDR DBI View Columns:PATID • Internally generated encounter number • Unique across installations • Column that joins a single patient’s data • NOT visible in Essentris • Column that is almost never shown in Reports

  17. GDR DBI View Columns:DATA • DATA column shows the value that was stored in Essentris. • Almost always defined as varchar2(4000) • All dates and numbers have to go through a datatype conversion from text in order to perform any math on the data • Sometimes defined as Number datatype

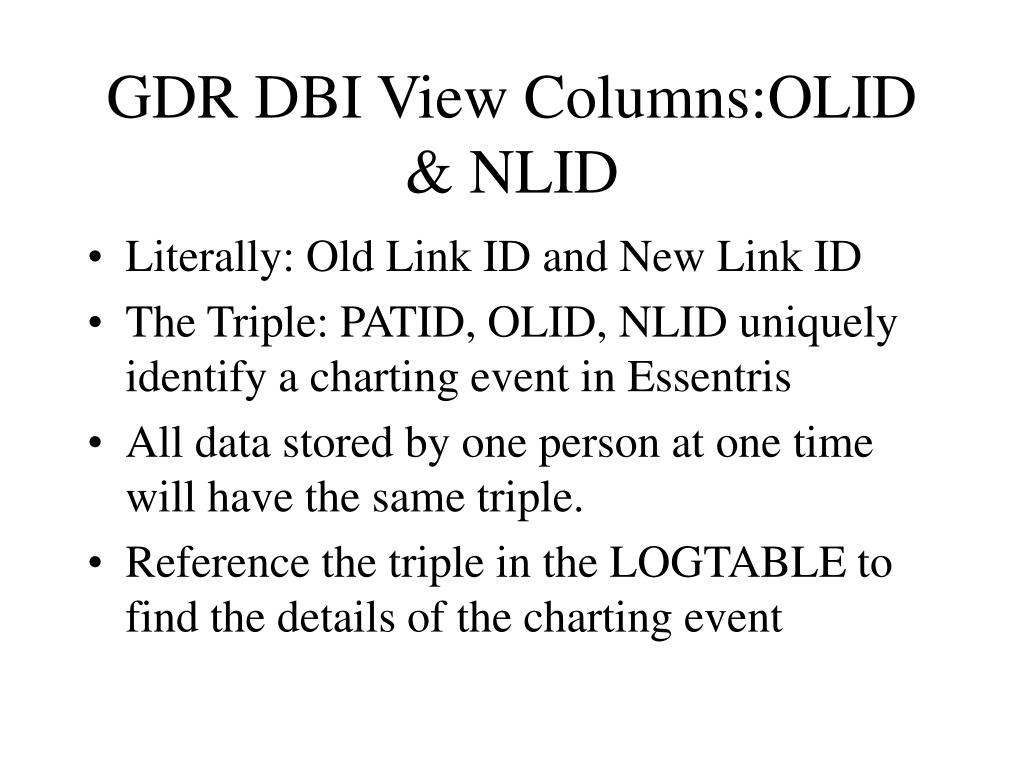

  18. GDR DBI View Columns:OLID & NLID • Literally: Old Link ID and New Link ID • The Triple: PATID, OLID, NLID uniquely identify a charting event in Essentris • All data stored by one person at one time will have the same triple. • Reference the triple in the LOGTABLE to find the details of the charting event

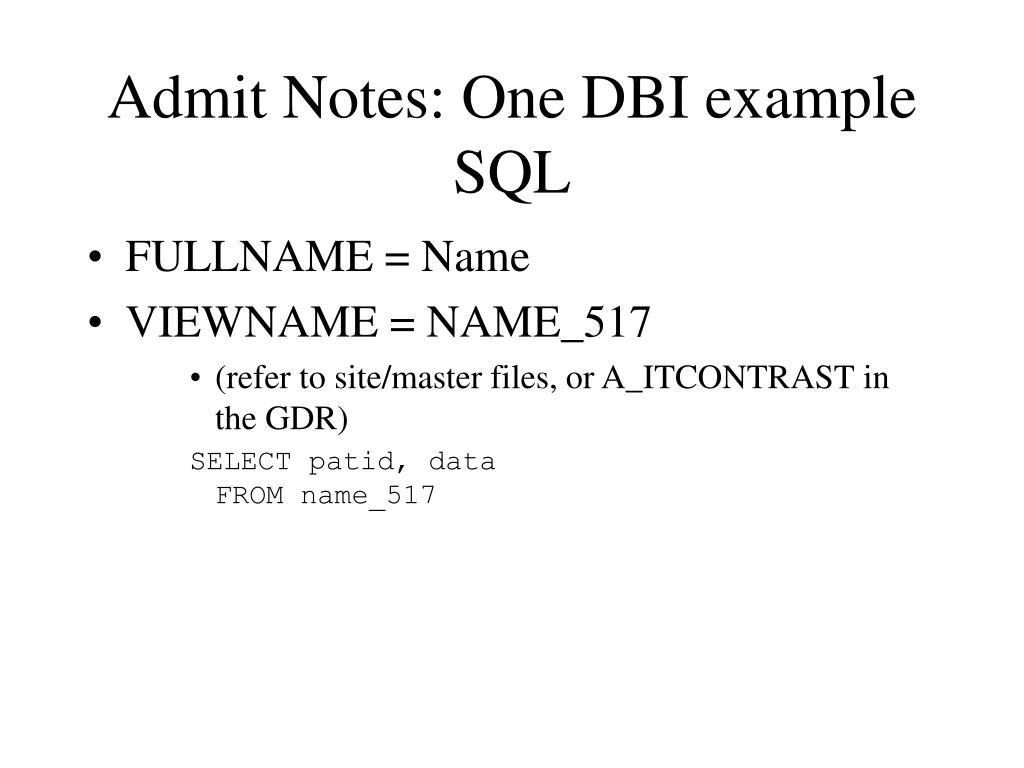

  19. Admit Notes: One DBI example SQL • FULLNAME = Name • VIEWNAME = NAME_517 • (refer to site/master files, or A_ITCONTRAST in the GDR) SELECT patid, dataFROM name_517

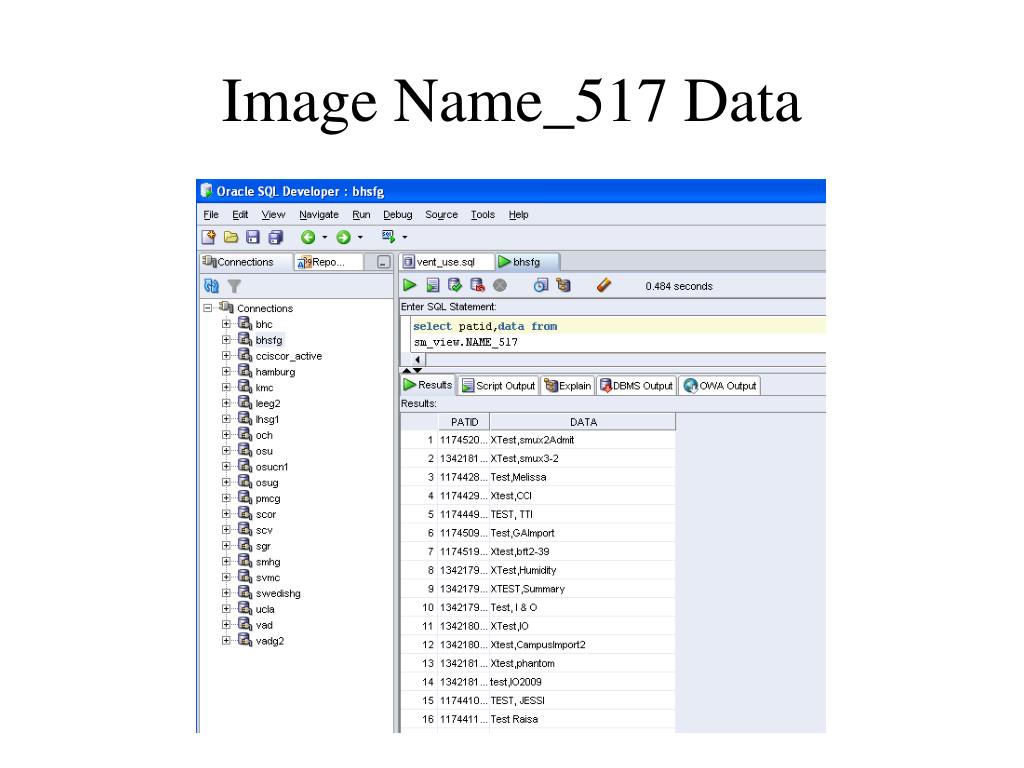

  20. Image Name_517 Data

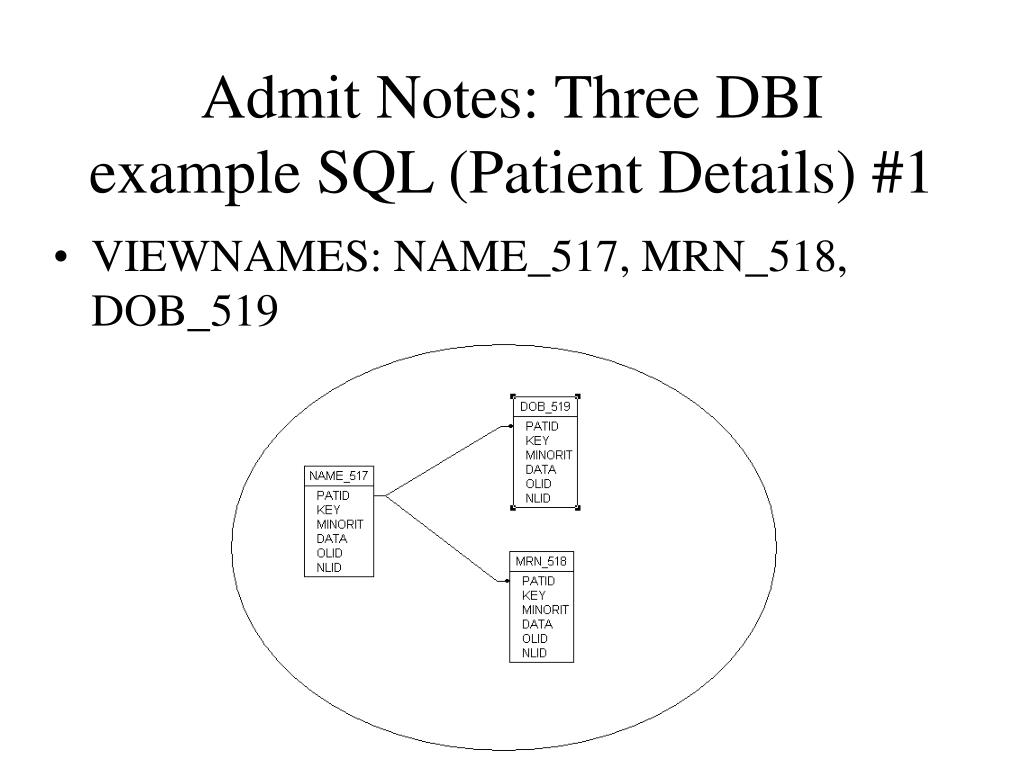

  21. Admit Notes: Three DBI example SQL (Patient Details) #1 • VIEWNAMES: NAME_517, MRN_518, DOB_519

  22. Admit Notes: Three DBI example SQL (Patient Details) #1 • VIEWNAMES: NAME_517, MRN_518, DOB_519 • SELECT NAME_517.patid, NAME_517.data, MRN_518.data, DOB_519.dataFROM NAME_517, MRN_518, DOB_519WHERE NAME_517.patid = MRN_518.patid and NAME_517.patid = DOB_519.patid

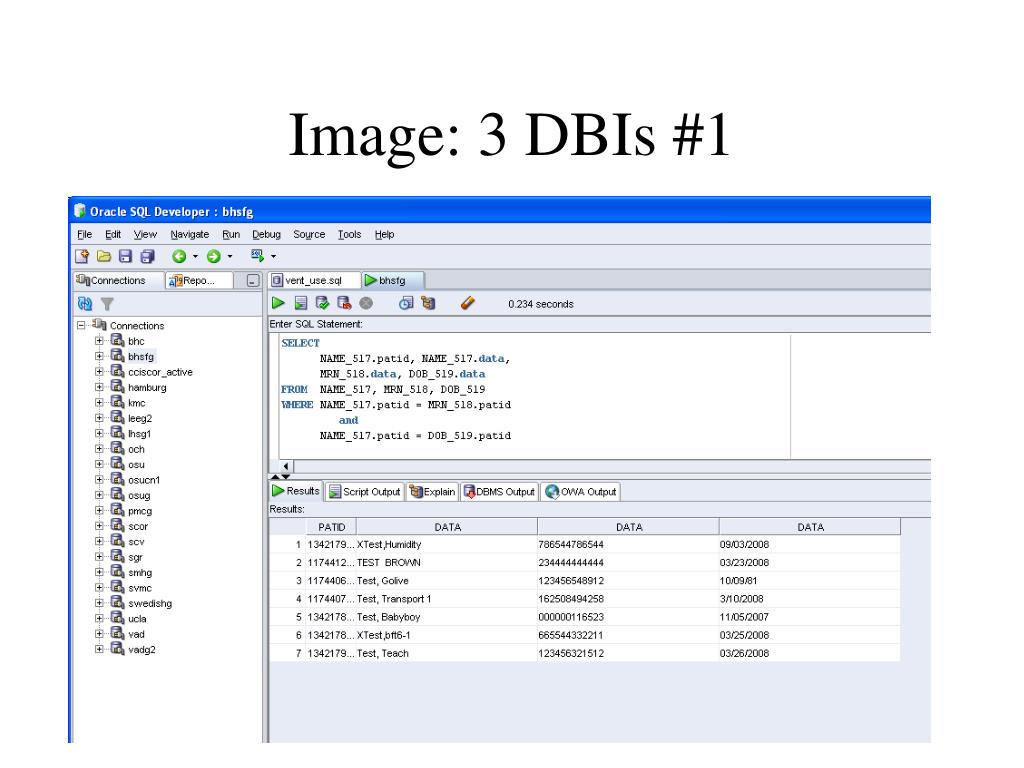

  23. Image: 3 DBIs #1

  24. Admit Notes: Three DBI example SQL (Patient Details) #2 • SELECT name.patid, name.data, mrn.data, dob.dataFROM NAME_517 name, MRN_518 mrn, DOB_519 dobWHERE name.patid = mrn.patid and name.patid = dob.patid

  25. Image: 3 DBIs #2

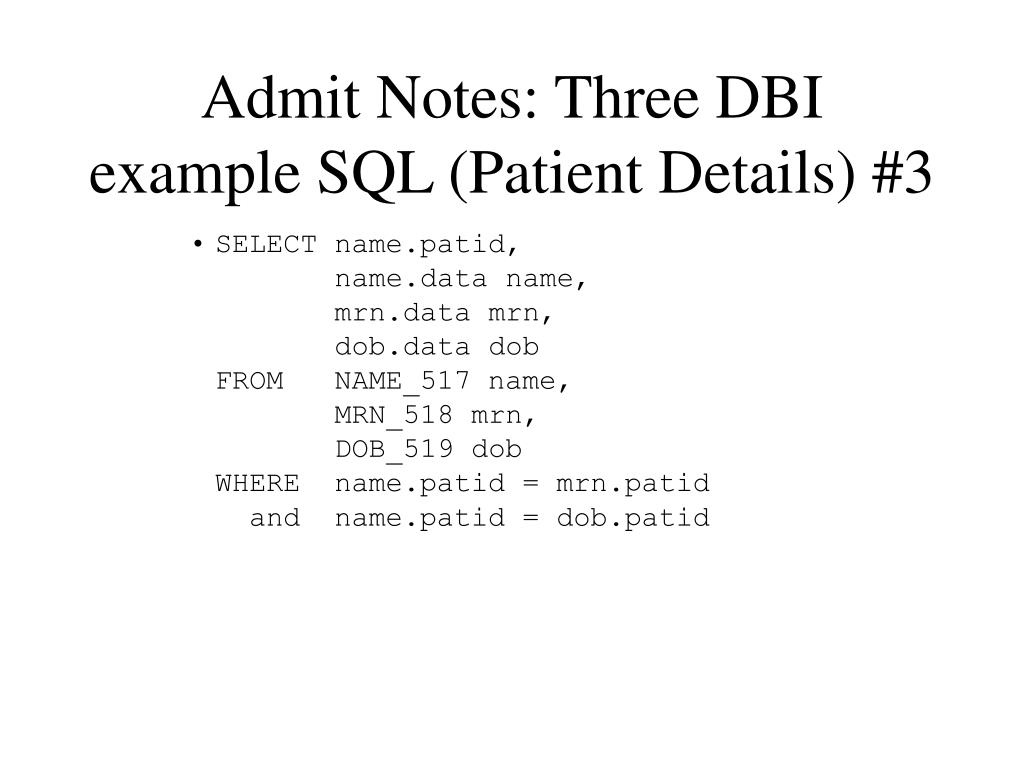

  26. Admit Notes: Three DBI example SQL (Patient Details) #3 • SELECT name.patid, name.data name, mrn.data mrn, dob.data dobFROM NAME_517 name, MRN_518 mrn, DOB_519 dobWHERE name.patid = mrn.patid and name.patid = dob.patid

  27. Image: 3 DBIs #3

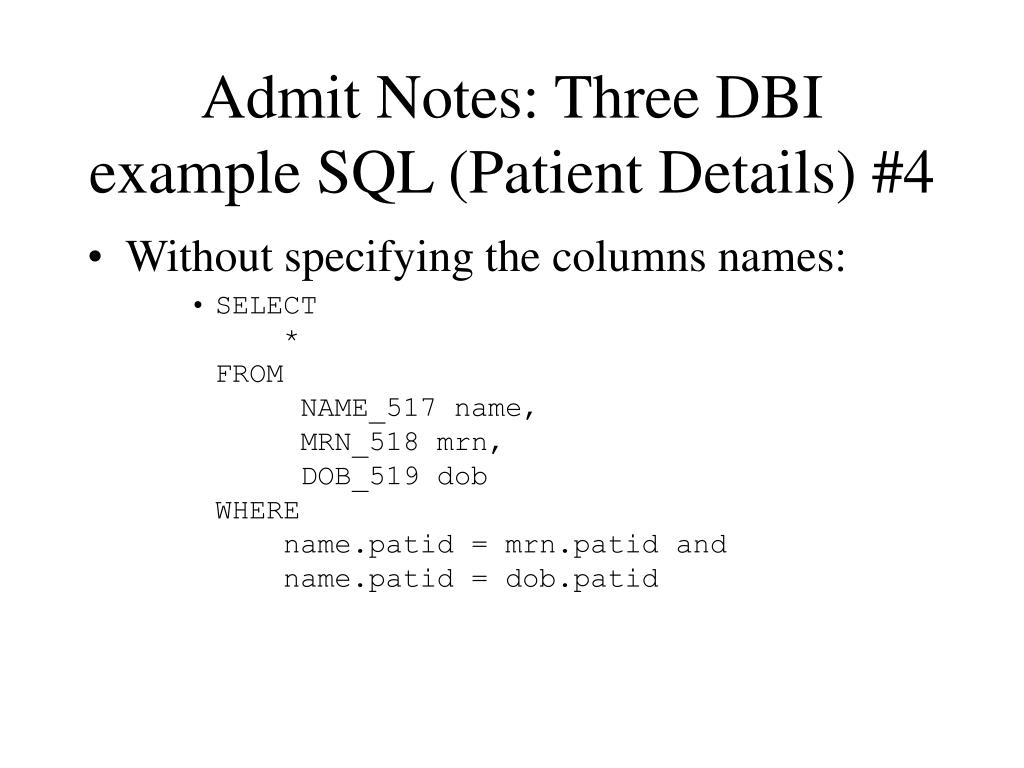

  28. Admit Notes: Three DBI example SQL (Patient Details) #4 • Without specifying the columns names: • SELECT *FROM NAME_517 name, MRN_518 mrn, DOB_519 dobWHERE name.patid = mrn.patid and name.patid = dob.patid

  29. Admit Notes: Note Items • Reference the TAG string for the Text Prompt (ex: !200.PER^6.2) • All sites use code like the following which comes from a template to get Note Item data from notes:

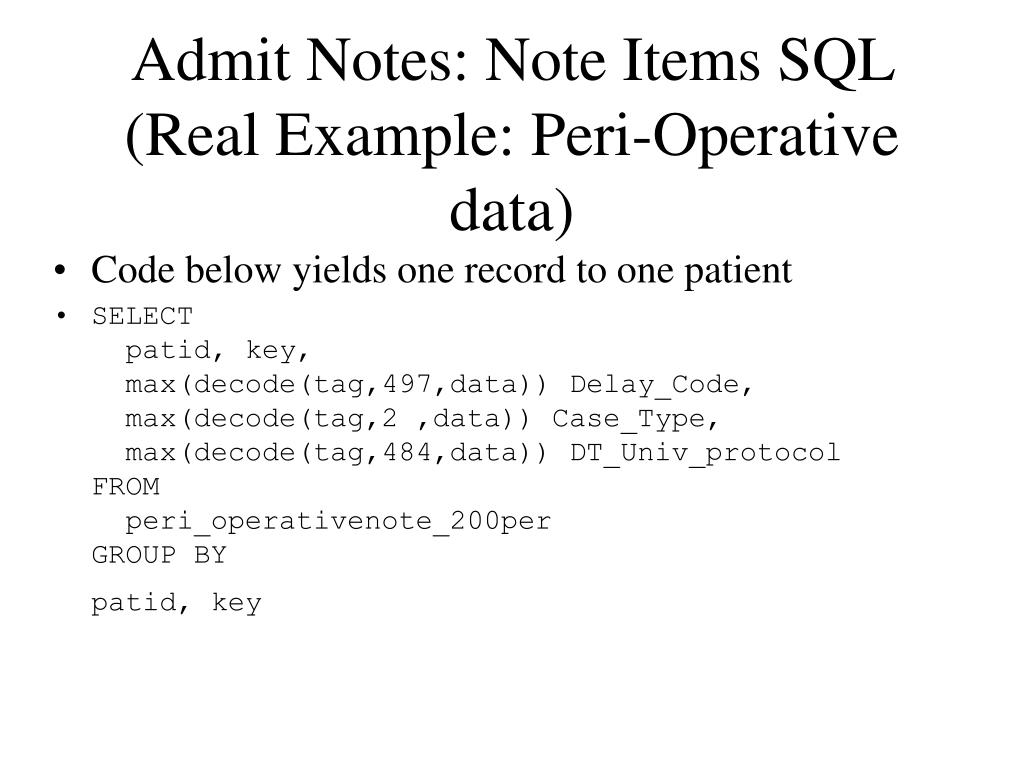

  30. Admit Notes: Note Items SQL (Real Example: Peri-Operative data) • Code below yields one record to one patient • SELECT patid, key, max(decode(tag,497,data)) Delay_Code, max(decode(tag,2 ,data)) Case_Type, max(decode(tag,484,data)) DT_Univ_protocolFROM peri_operativenote_200perGROUP BYpatid, key

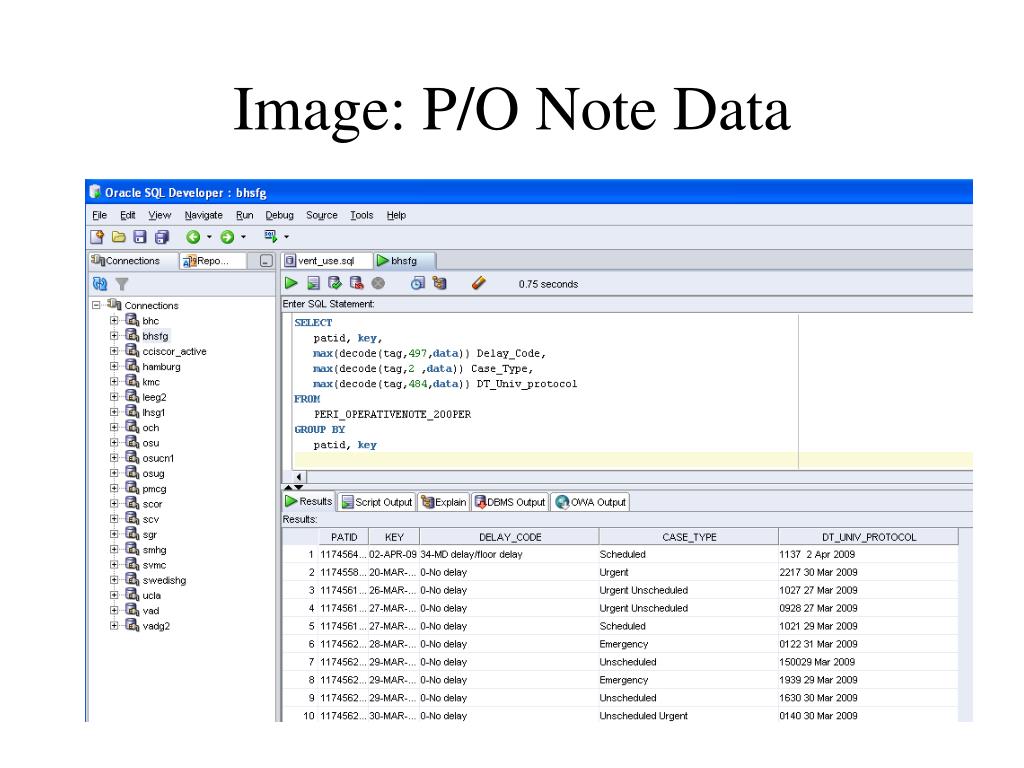

  31. Image: P/O Note Data

  32. Timed Notes: Note Items SQL (Generic Example) • Code is the same logically, but the result is many records to one patient • SELECT patid, key, max(decode(tag,1,data)) col_name_for_tag1, max(decode(tag,2,data)) col_name_for_tag2, max(decode(tag,3,data)) col_name_for_tag3FROM timed_note_viewGROUP BY patid, key

  33. Essentris Flowsheets

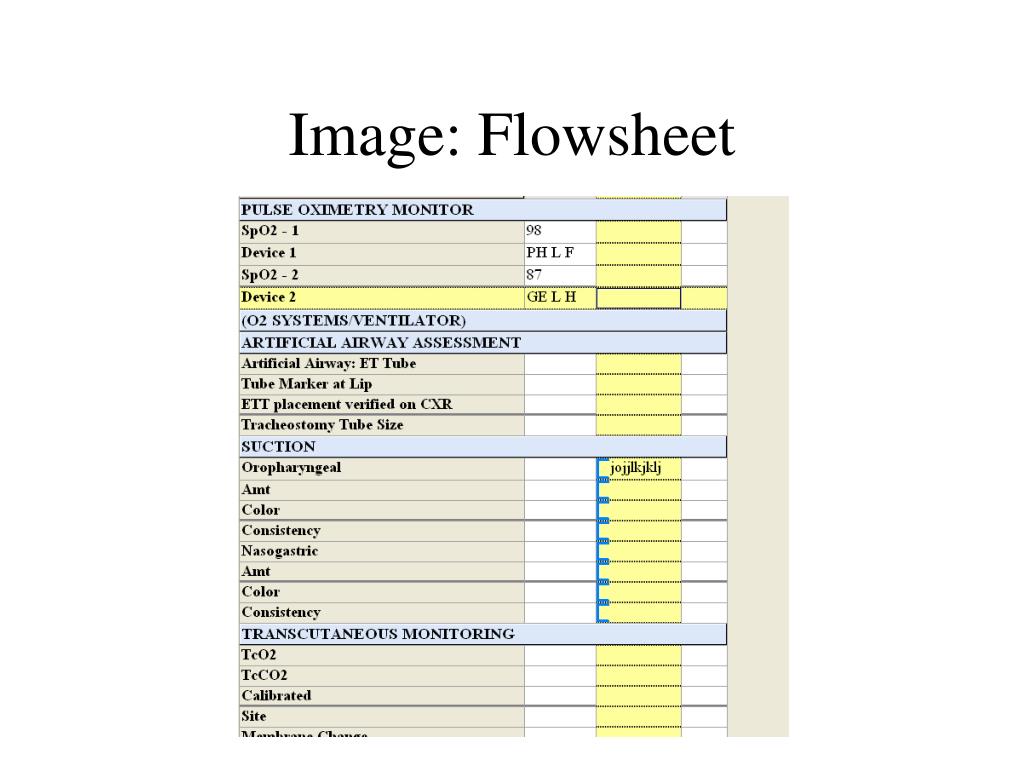

  34. Image: Flowsheet

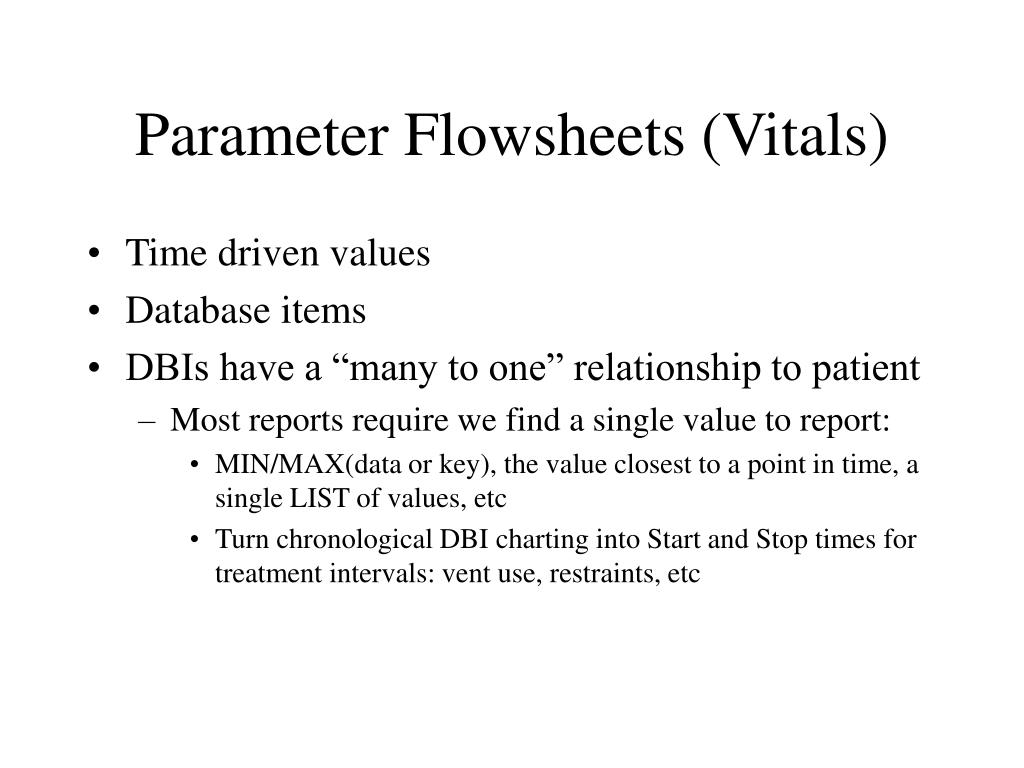

  35. Parameter Flowsheets (Vitals) • Time driven values • Database items • DBIs have a “many to one” relationship to patient • Most reports require we find a single value to report: • MIN/MAX(data or key), the value closest to a point in time, a single LIST of values, etc • Turn chronological DBI charting into Start and Stop times for treatment intervals: vent use, restraints, etc

  36. Vitals Flowsheet Database items • Right-click, select “Describe Item” to find the site-defined FULLNAME • FULLNAME is the prefix of the GDR VIEWNAME for that data

  37. Image: Flowsheet Describe Item

  38. GDR Database Items • VIEWNAME = FULLNAME + ‘_’ + IT# • Columns • KEY • MINORIT • PATID • DATA • OLID & NLID

  39. Flowsheet Database Item SQL example: TempF • FULLNAME: TempF(DegF) • VIEWNAME: TEMPF_DEGF__163 • SELECT patid, dataFROM tempf_degf__163WHERE data > 100

  40. Image: tempf #1

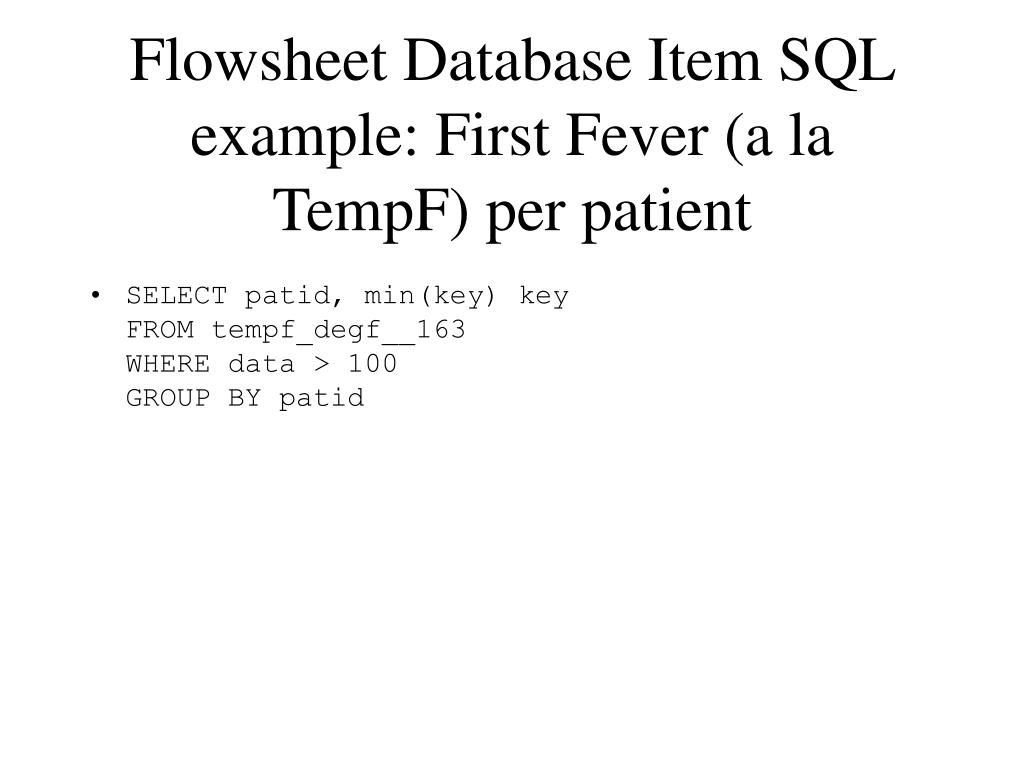

  41. Flowsheet Database Item SQL example: First Fever (a la TempF) per patient • SELECT patid, min(key) keyFROM tempf_degf__163WHERE data > 100GROUP BY patid

  42. Image: tempf #2

  43. - STOP - • We’ve already made three modules without even talking about what they are • GDR Modules are Reuseable Blocks of SQL code which accomplish a specific task • Module1: Patient Details • Module2: Peri Operative Data • Module3: Time of First Fever

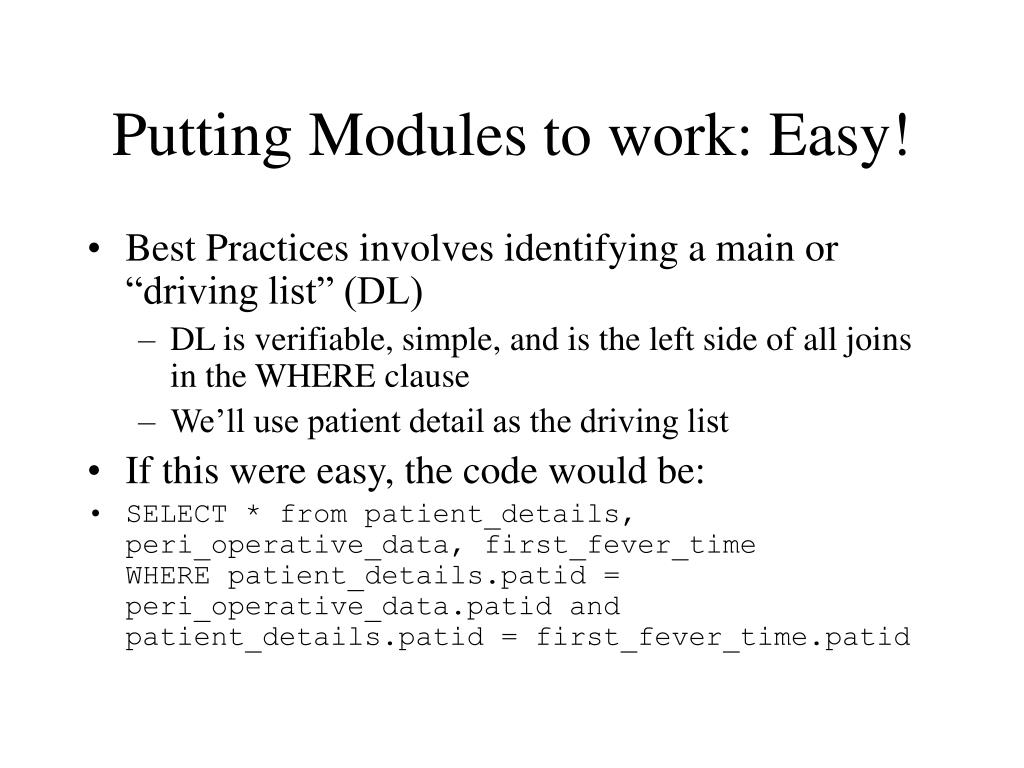

  44. Putting Modules to work: Easy! • Best Practices involves identifying a main or “driving list” (DL) • DL is verifiable, simple, and is the left side of all joins in the WHERE clause • We’ll use patient detail as the driving list • If this were easy, the code would be: • SELECT * from patient_details, peri_operative_data, first_fever_timeWHERE patient_details.patid = peri_operative_data.patid andpatient_details.patid = first_fever_time.patid

  45. Putting Modules to Work: Easy… • With formatting: • SELECT * -- this * means: all the columnsFROM patient_details, peri_operative_data, first_fever_timeWHERE patient_details.patid = peri_operative_data.patid and patient_details.patid = first_fever_time.patid

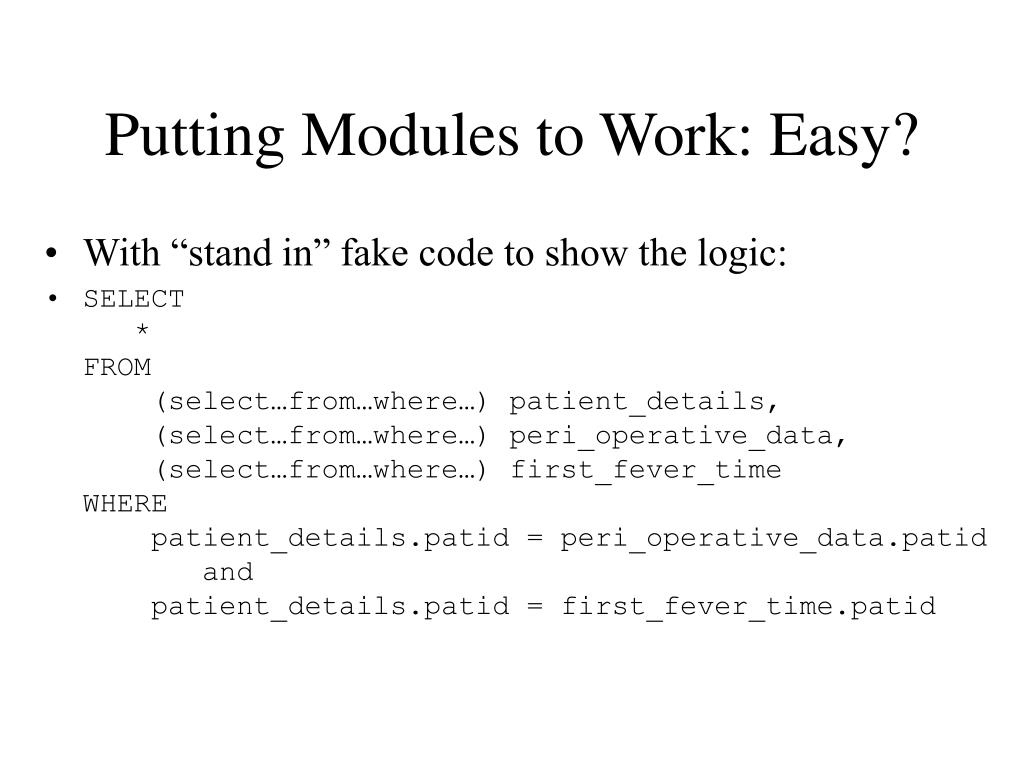

  46. Putting Modules to Work: Easy? • With “stand in” fake code to show the logic: • SELECT * FROM (select…from…where…) patient_details, (select…from…where…) peri_operative_data, (select…from…where…) first_fever_timeWHERE patient_details.patid = peri_operative_data.patid and patient_details.patid = first_fever_time.patid

  47. Putting Modules to Work: Not Easy To Read • With REAL code to show the final resulting code: SELECT * FROM -- (SELECT name.patid, name.data name, mrn.data mrn, dob.data dob FROM NAME_517 name, MRN_518 mrn, DOB_519 dob WHERE name.patid = mrn.patid and name.patid = dob.patid )patient_details,-- (SELECT patid, key, max(decode(tag,497,data)) Delay_Code, max(decode(tag,2 ,data)) Case_Type, max(decode(tag,484,data)) DT_Univ_protocolFROM peri_operativenote_200per GROUP BY patid, key)peri_operative_data, --- (SELECT patid, min(key) key FROM tempf_degf__163 WHERE data > 100 GROUP BY patid)first_fever_time -- WHERE patient_details.patid = peri_operative_data.patid and patient_details.patid = first_fever_time.patid

  48. Putting Modules to Work: Easy? • With “stand in” fake code to show the logic: • SELECT * FROM (select…from…where…) patient_details, (select…from…where…) peri_operative_data, (select…from…where…) first_fever_timeWHERE patient_details.patid = peri_operative_data.patid and patient_details.patid = first_fever_time.patid

  49. Flash Back Slide- Admit Notes: Three DBI example SQL (Patient Details) #4 • Without specifying the columns names: • SELECT *FROM NAME_517 name, MRN_518 mrn, DOB_519 dobWHERE name.patid = mrn.patid and name.patid = dob.patid
