Playground Design

This document provides detailed assembly instructions for creating a sub-platform with short and long poles on the XY plane. It includes steps for sketching on the front of the sub-platform, creating holes, and extruding poles. The assembly sequence starts with placing the short pole piece first, followed by inserting all poles into the top of the sub-platform. These guidelines are essential for students to effectively demonstrate their design and assembly skills. Remember to show your completed assembly to your teacher for feedback.

cleo
Télécharger la présentation

Playground Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Playground Design Problem 1.5.9 Sub Platform Assembly

  2. Short Pole Create on XY Plane Extrude

  3. Long Pole Create on XY Plane Extrude

  4. Sub Platform Create on XY Plane Extrude

  5. Sub Platform Create a sketch on the FRONT of the Sub Platform

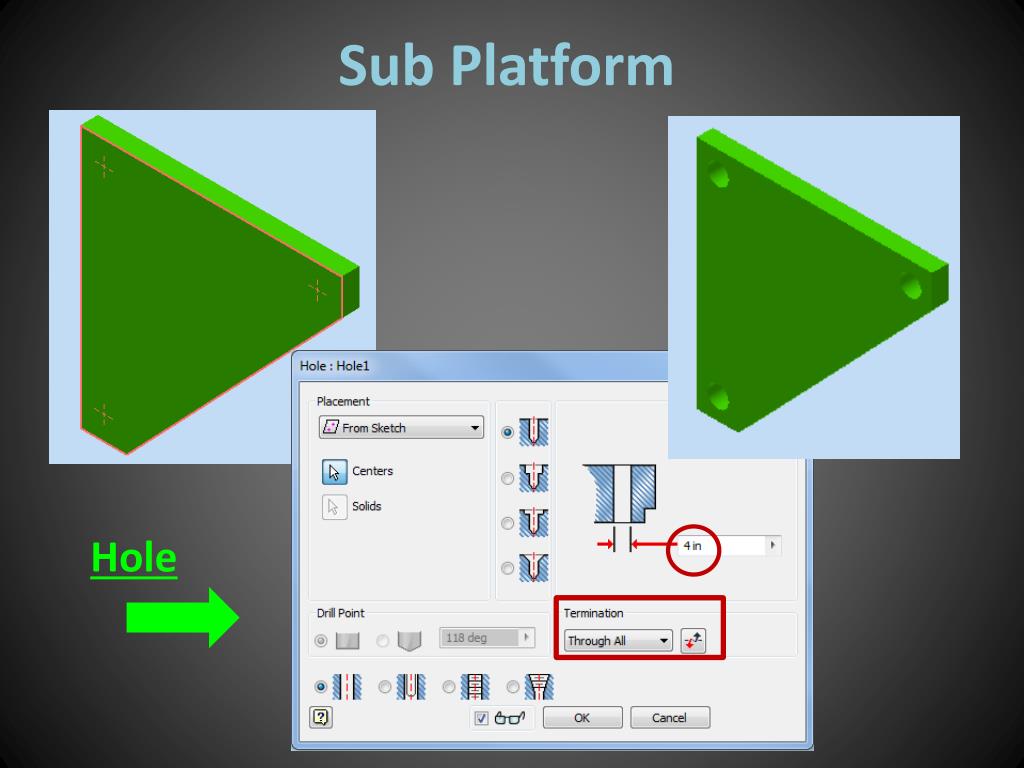

  6. Sub Platform Hole

  7. Sub Platform Assembly Insert all Poles to Top of Sub Platform Short Poles • Sub Platform • Place this piece first in your assembly Long Pole Show Your Teacher
