Lecture 6: Uranium Chemistry

Lecture 6: Uranium Chemistry. From: Chemistry of actinides Nuclear properties U purification Free atom and ion property Metallic state Compounds Chemical bonding Structure and coordination chemistry Solution chemistry Organometallic and biochemistry Analytical Chemistry.

clint
Télécharger la présentation

Lecture 6: Uranium Chemistry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

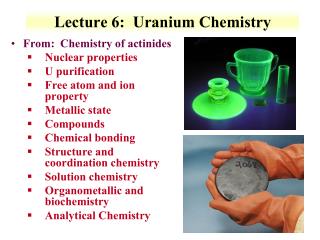

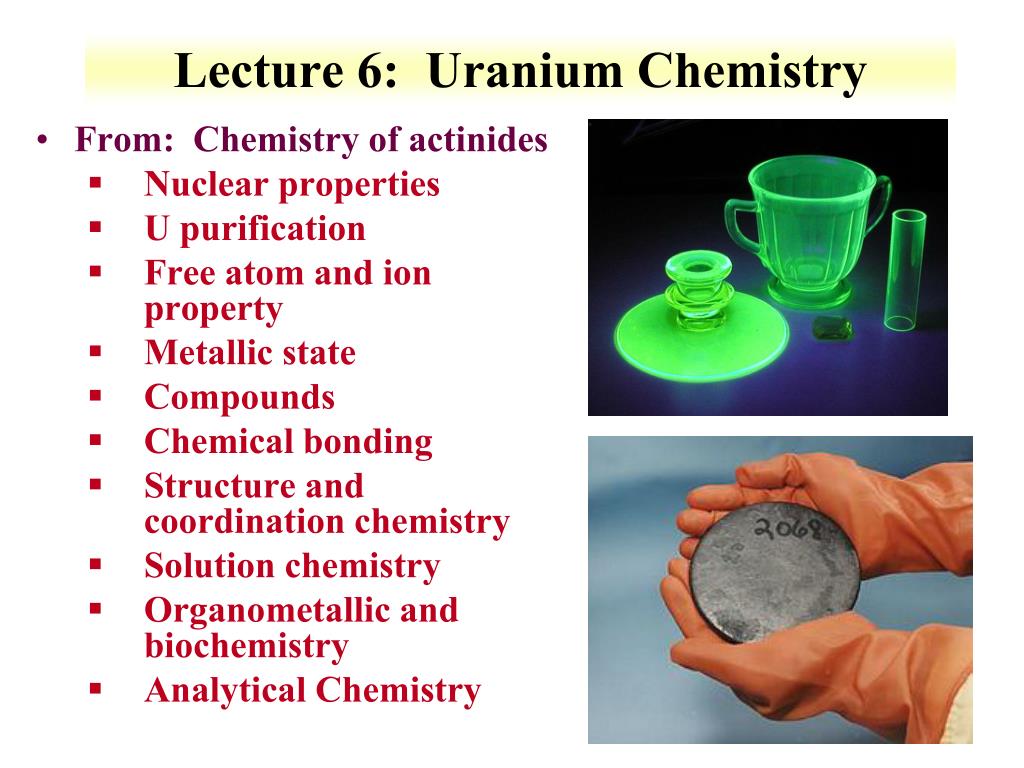

  1. Lecture 6: Uranium Chemistry • From: Chemistry of actinides • Nuclear properties • U purification • Free atom and ion property • Metallic state • Compounds • Chemical bonding • Structure and coordination chemistry • Solution chemistry • Organometallic and biochemistry • Analytical Chemistry

  2. Nuclear properties • Fission properties of uranium • Defined importance of element and future investigations • Identified by Hahn in 1937 • 200 MeV/fission • 2.5 neutrons • Natural isotopes • 234,235,238U • Ratios of isotopes established • 234: 0.005±0.001 • 235: 0.720±0.001 • 238: 99.275±0.002 • 233U from 232Th

  3. Uranium Minerals • 200 minerals contain uranium • Bulk are U(VI) minerals • U(IV) as oxides, phosphates, silicates • Classification based on polymerization of coordination polyhedra • Mineral deposits based on major anion • Secondary phases may be important for waste forms • Incorporation of higher actinides • Pyrochlore • A1-2B2O6X0-1 • A=Na, Ca, Mn, Fe2+, Sr,Sb, Cs, Ba, Ln, Bi, Th, U • B= Ti, Nb, Ta • U(V) may be present when synthesized under reducing conditions • XANES spectroscopy • Goes to B site

  4. Polyhedra classification U(VI) minerals • Linkage over equatorial position • Bipyramidalpolyhedra • Oxygens on uranyl forms peaks on pyramid • Different bond lengths for axial and equatorial O coordinated to U • Method for classification • Remove anions not bound by 2 cations, not equatorial anion on bipyramid • Associated cation removed • Connect anions to form polyhedra • Defines anion topology • Chains defined by shapes • P (pentagons), R (rhombs), H (hexagons), U (up arrowhead chain), D (down arrowhead chain)

  5. Uranium purification from ores • Leaching with acid or alkaline solutions • Acid solution methods • Addition of acid provides best results • Sulfuric or HCl (pH 1.5) • U(VI) soluble in sulfuric • Oxidizing conditions may be needed • MnO2 , chlorate, O2, chlorine • Generated in situ by bacteria • High pressure oxidation of sulfur, sulfides, and Fe(II) • sulfuric acid and Fe(III) • Carbonate leaching • Formation of soluble anionic carbonate species • Somewhat specific for uranium • Use of O2 as oxidant • Bicarbonate prevents precipitation of Na2U2O7 • OH-+HCO3-CO32- + H2O • Common steps • Preconcentration of ore • Based on density of ore • Leaching to extract uranium into aqueous phase • Calcination prior to leaching • Removal of carbonaceous or sulfur compounds • Destruction of hydrated species (clay minerals) • Removal or uranium from aqueous phase • Ion exchange • Solvent extraction • Precipitation

  6. Recovery of uranium from solutions • Ion exchange • U(VI) anions in sulfate and carbonate solution • UO2(CO3)34- • UO2(SO4)34- • Load onto anion exchange, elute with acid or NaCl • Solvent extraction • Continuous process • Not well suited for carbonate solutions • Extraction with alkyl phosphoric acid, secondary and tertiary alkylamines • Chemistry similar to ion exchange conditions • Chemical precipitation • Older method • Addition of base • Peroxide • Ultimate formation of (NH4)2U2O7 (ammonium diuranate), then heating to form U3O8 or UO3 • Contaminates depend upon mineral • V, Mo • TBP extraction • Based on formation of nitrate species • UO2(NO3)x2-x + (2-x)NO3- + 2TBP UO2(NO3)2(TBP)2

  7. Uranium atomic properties • Ground state electron configuration • [Rn]5f36d17s2 • Term symbol • 5L6

  8. cm-1

  9. Metallic Uranium • Three different phase • a, b, g phases • Dominate at different temperatures • Uranium is strongly electropositive • Cannot be prepared through H2 reduction • Metallic uranium preparation • UF4 or UCl4 with Ca or Mg • UO2 with Ca • Electrodeposition from molten salt baths

  10. Metallic Uranium phases • a-phase • Room temperature to 942 K • Orthorhombic • U-U distance 2.80 Å • Unique structure type • b-phase • Exists between 668 and 775 ºC • Tetragonal unit cell • g-phase • Formed above 775 ºC • bcc structure • Metal has plastic character • Gamma phase soft, difficult fabrication • Beta phase brittle and hard • Paramagnetic • Temperature dependence of resistivity a‐phase U-U distances in layer (2.80±0.05) Å and between layers 3.26 Å b-phase

  11. Resistivity–temperature curve for a-U along the [010] axis

  12. Intermetallic compounds • Wide range of intermetallic compounds and solid solutions in alpha and beta uranium • Hard and brittle transition metal compounds • U6X, X=Mn, Fe, Co, Ni • Noble metal compounds • Ru, Rh, Pd • Of interests for reprocessing • Solid solutions with: • Mo, Ti, Zr, Nb, and Pu

  13. Uranium-Titanium Phase Diagram. Uranium-Aluminum Phase Diagram.

  14. Chemical properties of uranium metal and alloys • Reacts with most elements on periodic table • Corrosion by O2, air, water vapor, CO, CO2 • Dissolves in HCl • Also forms hydrated UO2 during dissolution • Non-oxidizing acid results in slow dissolution • Sulfuric, phosphoric, HF • Exothermic reaction with powered U metal and nitric • Dissolves in base with addition of peroxide • peroxyuranates

  15. Uranium compounds • Uranium-hydrogen • b-UH3 from H2 at 250 ºC • a-UH3 prepared at -80 ºC from H2 at 250

  16. Uranium hydride compounds • Uranium borohydride • UF4 + 2Al(BH4)3U(BH4)4 + 2Al(BH4)F2 • U(BH)4 is tetragonal • U(BH4)3 forms during U(BH4)4 synthesis • Vapor pressure • log p (mmHg) =13.354-4265T-1 • UXAlHy compounds • UXAl absorbs hydrogen upon heating • X=Ni, Co, Mn • y = 2.5 to 2.74 • TGA analysis evaluates hydrogenation

  17. Uranium-oxygen • UO • Solid UO unstable, NaCl structure • From UO2 heated with U metal • Carbon promotes reaction, formation of UC • UO2 • Reduction of UO3 or U3O8 with H2 from 800 ºC to 1100 ºC • CO, C, CH4, or C2H5OH can be used as reductants • O2 presence responsible for UO2+x formation • Large scale preparation • UO4, (NH4)2U2O7, or (NH4)4UO2(CO3)3 • Calcination in air at 400-500 ºC • H2 at 650-800 ºC • UO2has high surface area

  18. Uranium-oxygen • U4O9 • UO2 and U3O8 • 5 UO2+ U3O82 U4O9 • Placed in evacuated ampoule • Heated to 1000 ºC for 2 weeks • Three phases • a-U4O9 up to 350 K • b-U4O9 350 K to 850 K • g-U4O9 above 850 K • Rearrangement of U4+ and U5+ forces disordering of O • U3O7 • Prepared by oxidizing UO2 below 160 ºC • 30 % of the oxygens change locations to new positions during oxidation • Three phases • b phase prepared by heating at 200 ºC • U2O5 • High pressure synthesis, three phases • a-phase • UO2 and U3O8 at 30 kbar and 400 ºC for 8 hours • Also prepared at 15 kbar and 500 ºC • b-phase forms at 40-50 kbar above 800 ºC • g-phase sometimes prepared above 800 ºC at 60 kbar

  19. Uranium-oxygen • U3O8 • From oxidation of UO2 in air at 800 ºC • a phase uranium coordinated to oxygen in pentagonal bipyrimid • b phase results from the heating of the a phase above 1350 ºC • Slow cooling

  20. Uranium-oxygen • UO3 • Seven phases can be prepared • A phase (amorphous) • Heating in air at 400 ºC • UO4.2H2O, UO2C2O4.3H2O, or (HN4)4UO2(CO3)3 • Prefer to use compounds without N or C • a-phase • Crystallization of A-phase at 485 ºC at 4 days • O-U-O-U-O chain with U surrounded by 6 O in a plane to the chain • Contains UO22+ • b-phase • Ammonium diuranate or uranyl nitrate heated rapidly in air at 400-500 ºC • g-phase prepared under O2 6-10 atmosphere at 400-500 ºC

  21. Uranium-oxygen • UO3 hydrates • 6 different hydrated UO3 compounds • UO3.2H2O • Anhydrous UO3 exposed to water from 25-70 ºC • Heating resulting compound in air to 100 ºC forms a-UO3.0.8 H2O • a-UO2(OH)2 [a-UO3.H2O] forms in hydrothermal experiments • b-UO3.H2O also forms

  22. Uranium-oxygen single crystals • UO2 to UO3system • Range of liquid and solid phases from O/U 1.2 to 3.5 • Hypostoichiometric UO2+x forms up to O/U 2.2 • Mixed with U3O8 at higher temperature • Large range of species from O/U 2.2 to 2.6 • UO2 from the melt of UO2 powder • Arc melter used • Vapor deposition • 2.0 ≤ U/O ≤ 2.375 • Fluorite structure • Uranium oxides show range of structures • Some variation due to existence of UO22+ in structure • Some layer structures

  23. UO2 Heat Capacity • High temperature heat capacity studied for nuclear fuel • Room temperature to 1000 K • Increase in heat capacity due to harmonic lattice vibrations • Small contribution to thermal excitation of U4+ localized electrons in crystal field • 1000-1500 K • Thermal expansion induces anharmonic lattice vibration • 1500-2670 K • Lattice and electronic defects

  24. Oxygen potential • Equilibrium oxygen partial pressure over uranium oxides • In 2 phase region of solid oxides • ΔG(O2)=RTln pO2 • Partial pressure related to O2 • Large increase above O/U = 2 • Increase in ΔG(O2) decreases with increasing ratio • Increase ΔG(O2) with increasing T • Entropy essentially independent of temperature • ΔS(O2)= -dΔG(O2)/dT • Enthalpy related to Gibbs and entropy through normal relationship • Large peak at UO2+x, x is very small

  25. Vaporization of UO2 • Above and below the melting point • Number of gaseous species observed • U, UO, UO2, UO3, O, and O2 • Use of mass spectrometer to determine partial pressure for each species • For hypostiochiometric UO2, partial pressure of UO increases to levels comparable to UO2 • O2 increases dramatically at O/U above 2

  26. Uranium-oxides: Oxygen diffusion • Vacancy based diffusion in hypostoichiometric UO2 • Based on diffusion into vacancy, vacancy concentration, migration enthalpy of vacancy • Enthalpy 52 kJ mol-1 • For stiochiometric UO2 diffusion temperature dependent • Thermal oxygen vacancies at lower T • Interstitial oxygen at higher T • Equal around 1400 ºC • For UO2+xdiffusion dominated by interstitial oxygen • Migration enthalpy 96 kJ mol-1

  27. Uranium-oxide: Electrical conductivity • UO2and UO2+x • Mobility of holes in lattice • 0.0015 to 0.021 cm2V-1s-1 • Semiconductor around 1 cm2V-1s-1 • Holes move in oxide structure along with local distortion within lattice • Holes and electrons localized on individual atoms • Holes U5+ and electrons form U3+ • From 500 to 1400 ºC for UO2+x • Decrease in conductivity with decrease in x when x<0.1 • U3O8-z • Similar to UO2+x • Phase transition at 723 K results in change of temperature dependence

  28. Uranium oxide chemical properties • Oxides dissolve in strong mineral acids • Valence does not change in HCl, H2SO4, and H3PO4 • Sintered pellets dissolve slowly in HNO3 • Rate increases with addition of NH4F, H2O2, or carbonates • H2O2 reaction • UO2+ at surface oxidized to UO22+

  29. Group 1 and 2 uranates • Wide series of compounds • M2UnO3n+1 for M+ • MUnO3n+1 for M2+ • Other compounds known • M4+UO5, M22+UO5, M32+UO6, and M22+U3O11 • Crystal structures • Layered structures and UO22+ in the crystals • Monouranates (n=1) • Layered planes, O atom coordinate to U on the plane • Some slight spacing around plane • Ba and Mg UO4 • Deformed ochahedron • Secondary O bridges adjacent U atoms • Shared corners • Shared edges • M4UO5 (M=Li, Na) • No uranyl group • 4 orthogonal planar U-O bonds • Preparation • Carbonates, nitrates or chlorides of group 1 or 2 elements mixed with U3O8 or UO3 • Heat in air 500-1000 ºC • Lower temperature for Cs and Rb • Different phases of some compounds

  30. Group 1 and 2 uranates • Physicochemical properties • Hydroscopic • Colored • Yellow to orange • Heavier group 1 species volatile • IR active • Asymmetric stretch of UO22+ • 600-900 cm-1 • Frequency varies based on other O coordinated to uranyl group • Diamagnetic compounds • Can be examined by U NMR • Some weak paramagnetism observed • Covalency in uranylgroup • Uranates (V) and (IV) • MUO3 (M=Li, Na, K, Rb) • M3UO4 (M=Li, Na) • MU2O6 (M=Mg, Ca, Sr, Ba) • MUO3 (M=Ca, Sr, Ba), tetravalent U • Synthesis • Pentavalenturanates • Tetravalent and hexavalent uranium species mixed in 1:1 ratio • Heated in evacuated sealed ampoule • UO2 + Li2UO42 LiUO3 • Hydrogen reduction of hexavalenturanates • at elevated temperatures tetravalent uranates form

  31. Group 1 and 2 uranates • Crystal structure • No uranyl present, lacks layered structure • Perovskite type structure is common • Physicochemical properties • Brown or black in color • Dissolves in mineral acids, nitric faster dissolution rates • Oxidize to hexavalent state when heated in air • Electronic spectra measured • Magnetic paramagnetic properties measured • 5f1 from U5+ • Oh crystal field • Some tetragonal distortions • Non-stoichiometry • Removal of oxide • Formation of xNa2O from Na2U2O7 forms Na2-2x+U2O7-x • Non-stoichiometric dissolution of metal in UO2 • NaxUO3(x≤0.14) • Oxygen non-stoichiometry • Na2U2O7-x (x≤0.5)

  32. Transition metal uranates • Wide range of compounds • Preparation method • heating oxides in air with UO3 or U3O8 • Changing stoichiometry can result in different compounds • U/M = 3, MU3O10(M=Mn, Co, Ni, Cu, Zn) • Uranyl nitrate as starting material • Metal nitrates, temperatures below 600 ºC • MxUO4 • Crystal structures • Chain of edge sharing of oxygen • Some influence of metal on uranyl oxygen bond length • Lanthanide oxides form solid solutions • Can form Ln6UO12

  33. Solid solutions with UO2 • Solid solutions formed with group 2 elements, lanthanides, actinides, and some transition elements (Mn, Zr, Nb, Cd) • Distribution of metals on UO2 fluorite-type cubic crystals based on stoichiometry • Prepared by heating oxide mixture under reducing conditions from 1000 ºC to 2000 ºC • Powders mixed by co-precipitation or mechanical mixing of powders • Written as MyU1-yO2+x • x is positive and negative

  34. Solid solutions with UO2 • Lattice parameter change in solid solution • Changes nearly linearly with increase in y and x • MyU1-yO2+x • Evaluate by change of lattice parameter with change in y • δa/δy • a is lattice parameter in Å • Can have both negative and positive values • δa/δy is large for metals with large ionic radii • δa/δx terms negative and between -0.11 to -0.3 • Varied if x is positive or negative

  35. Solid solutions of UO2 • Tetravalent MyU1-yO2+x • Zr solid solutions • Large range of systems • y=0.35 highest value • Metastable at lower temperature • Th solid solution • Continuous solid solutions for 0≤y≤1 and x=0 • For x>0, upper limit on solubility • y=0.45 at 1100 ºC to y=0.36 at 1500 ºC • Also has variation with O2 partial pressure • At 0.2 atm., y=0.383 at 700 ºC to y=0.068 at 1500 ºC

  36. Solid solutions of UO2 • Tri and tetravalent MyU1-yO2+x • Cerium solid solutions • Continuous for y=0 to y=1 • For x<0, solid solution restricted to y≤0.35 • Two phases (Ce,U)O2 and (Ce,U)O2-x • x<-0.04, y=0.1 to x<-0.24, y=0.7 • 0≤x≤0.18, solid solution y<0.5 • Air oxidized hyperstoichiometric • y 0.56 to 1 at 1100 ºC • y 0.26-1.0 1550 ºC • Tri and divalent • Reducing atmosphere • x is negative • fcc • Solid solution form when y is above 0 • Maximum values vary with metal ion • Oxidizing atmosphere • Solid solution can prevent formation of U3O8 • Some systematics in trends • For Nd, when y is between 0.3 and 0.5, x = 0.5-y

  37. Solid solution UO2 • Oxygen potential • Zr solid solution • Lower than the UO2+x system • x=0.05, y=0.3 • -270 kJ/mol for solid solution • -210 kJ/mol for UO2+x • Th solid solution • Increase in DG with increasing y • Compared to UO2 difference is small at y less than 0.1 • Ce solid solution • Wide changes over y range due to different oxidation states • Shape of the curve is similar to Pu system, but values differ • Higher DG for CeO2-x compared to PuO2-x

  38. Solid solution UO2 • Trivalent • Oxygen potential increases with increasing x • Inflection point at x=0 • For lanthanides La has highest DG due to larger ionic radius • Divalent • Higher oxygen potential than trivalent system • Configuration change • Formation of pentavalent U • At low O2 partial pressures cannot dissolve high levels of Mg

  39. Borides, carbides, silicides • UB2, UB4, UB12are known compounds • Prepared by mixing elements at high temperature • Other reactions • UCl4+2MgB2UB4 + 2MgCl2 • UB and UB4 form in gas phase • Inert species • Potential waste forms • UB12 more inert • Large amount of ternary systems • U5Mo10B24, UNi4B • Sheets with 6 and 8 member rings A view down the c‐axis of the structure of UB4

  40. Uranium carbides • Three known phases • UC, UC2, and U2C3 • UC and UC2 are completely miscible at higher temperature • At lower temperatures limited • Synthesized by mixture of elements at high temperature • U2C3 prepared by heating UC and UC2 in vacuo from 1250-1800 °C • Once formed stable at room temperature • Alkanes produced by arc-melting • Oxalic acid produced by carbide dissolution in nitric acid • Ternary carbides • Melting elements in carbon crucible • U2Al3C4 • UC2 reacts slowly in air • With N2 at 1100 °C to form UN

  41. Uranium-silicon • Compounds • U3Si, U3Si2, USi, U3Si5, USi1.88, and USi3 • Complicated phase diagram • Number of low temperature points • Forms ternary compounds with Al • U(Al, Si)3 • Formed in U in contact with Al • Cu, Nb, and Ru ternary phases • U2Nb3Si4 ferromagnetic below 35 K • URu2Si2 • Heavy fermion material • metallic materials having large electronic mass enhancement • antiferromagnetic interaction between conduction electrons and local magnetic moments (d- or f-electron)

  42. N, P, As, Sb, and Bi uranium • Monopnictides • UN, UP, UAs • Cubic NaCl structure • U-nitrides • UN, U2N3, UN2 • UN prepared by uranium metal with nitriding agents • N2, NH3 • Thermal decomposition of higher nitrides • Higher nitride unstable with respect to UN • Mixture of higher nitrides with uranium metal • Treat surface with HNO3 and washed with organics • Remove traces of oxides and carbides • UN easily oxidized by air, unstable in water

  43. P, As, Sb, Bi-uranium • UX, U3X4, and UX2 • X=P, As, Sb, Bi • UX is cubic except b-UBi • U3X4 is body centered cubic • UX2 is tetragonal • Preparation • Synthesis from the elements in an autoclave • 2U + P42UP2 • Uranium hydride with phosphine or arsine • UH3+PH3UP+3H2
