Type-A SAS Local Control Simulation (Current Status)

JGW-G1402200-v1. Type-A SAS Local Control Simulation (Current Status). T. Sekiguchi. 2014/01/22. Local Control Strategy. (based on Virgo control scheme). During interferometer operation: Resonances of pendulum modes are damped by IP control to reduce RMS.

clio
Télécharger la présentation

Type-A SAS Local Control Simulation (Current Status)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. JGW-G1402200-v1 Type-A SASLocal Control Simulation(Current Status) T. Sekiguchi 2014/01/22

  2. Local Control Strategy (based on Virgo control scheme) During interferometer operation: • Resonances of pendulum modes are damped by IP control to reduce RMS. • No longitudinal damping is applied at IM. • Pitch & yaw of TM are controlled by optical levers. For lock acquisition: • Resonances of internal modes are damped by using local sensors (OSEMs) at IM.

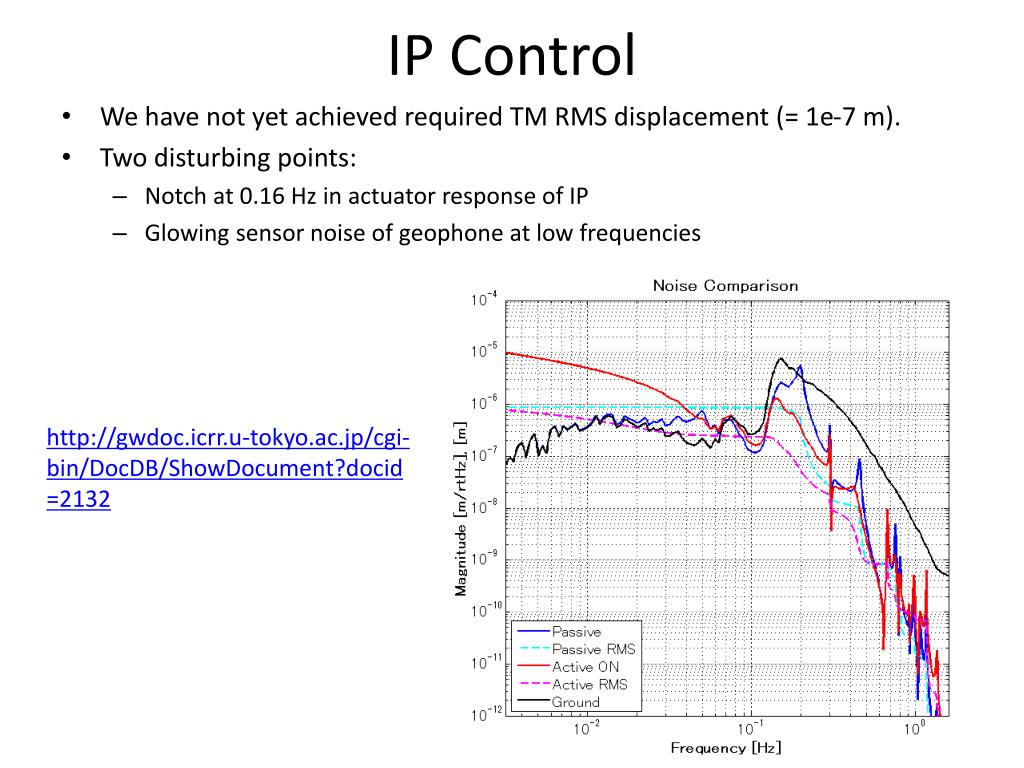

  3. IP Control • We have not yet achieved required TM RMS displacement (= 1e-7 m). • Two disturbing points: • Notch at 0.16 Hz in actuator response of IP • Glowing sensor noise of geophone at low frequencies http://gwdoc.icrr.u-tokyo.ac.jp/cgi-bin/DocDB/ShowDocument?docid=2132

  4. IP Control • Open loop gain Notch at 0.16 Hz

  5. IP Control • Sensor Blending

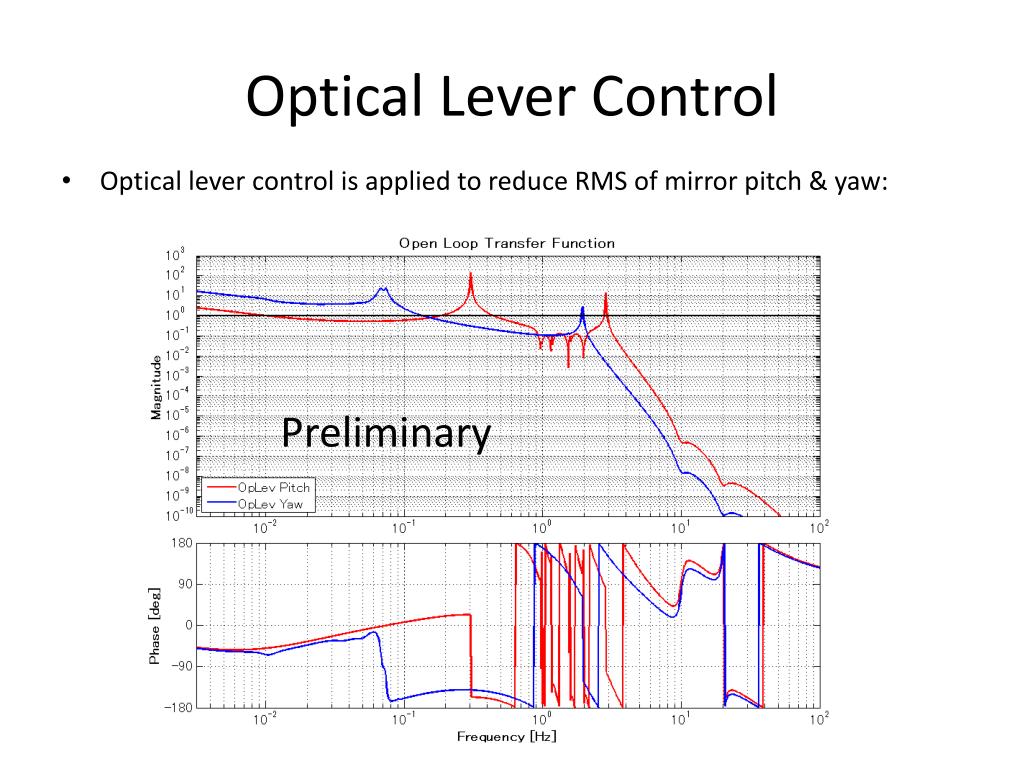

  6. Optical Lever Control • Optical lever control is applied to reduce RMS of mirror pitch & yaw: Preliminary

  7. OpLev Sensor Noise Contribution • Assuming optical lever sensing noise of 3e-11 rad/rtHz (at 10 Hz).(estimated from analogue electronics noise used in i-KAGRA) • Pitch and yaw: OK, but noise coupling to Z is large. • Large coupling from pitch actuation to zTM: can it be mitigated by actuator diagonalization?? 10 times larger than requirement

  8. OpLevSensor Noise Contribution • Pitch OK

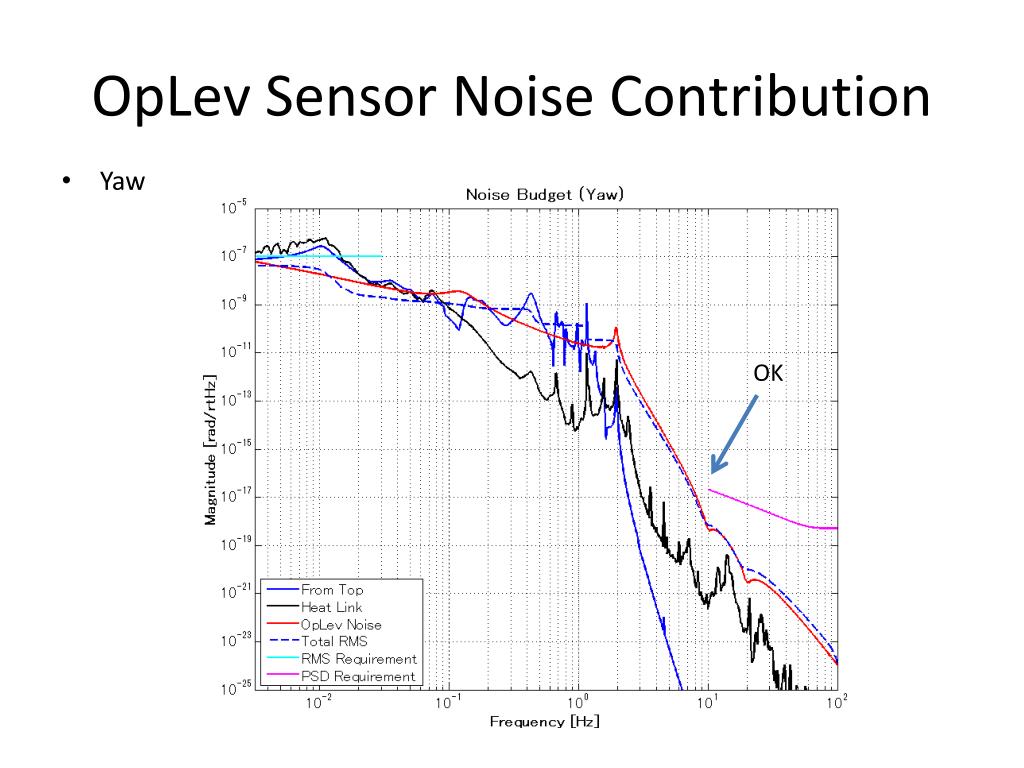

  9. OpLevSensor Noise Contribution • Yaw OK

  10. Local Damping with OSEM • Check damping time of resonances (Z and Pitch) GAS Filter Tilt Mode

  11. Displacement Noise During Damping • Assuming OSEM sensitivity of 2e-10 m/rtHz @10 Hz (measured in prototype at room temperature)

  12. Future Works TBD • Requirement for inertial sensor noise • Requirement for local sensor noise at IM (used for damping) • Requirement for actuator noise • Simulation about other DoFs (transversal, vertical, roll, yaw)
