  1. ETSI Project TIPHONSIP and H.323 In TIPHON Network http://www.etsi.org/tiphon

  2. ETSI Project TIPHON • Telecommunications and Internet Protocol Harmonization Over Networks • The objective of this project is to support a market for voice communication and related multimedia aspects between users in IP based networks and users in switched circuit network (SCN), as well as between users in an SCN using IP based networks for connection/trunking between involved SCN, by the production of appropriate ETSI deliverables.

  3. Domain 3 Domain 1 Border Elements VoIP Service Domain Border element VoIP Service Border Element Transport interface Elements Client InterConnect element Domain 2 Client InterConnect element InterConnect element Transport Network Transport Network Domains • TIPHON network can have multiple domains • each domain may have its own policies • and possibly protocols & transport.

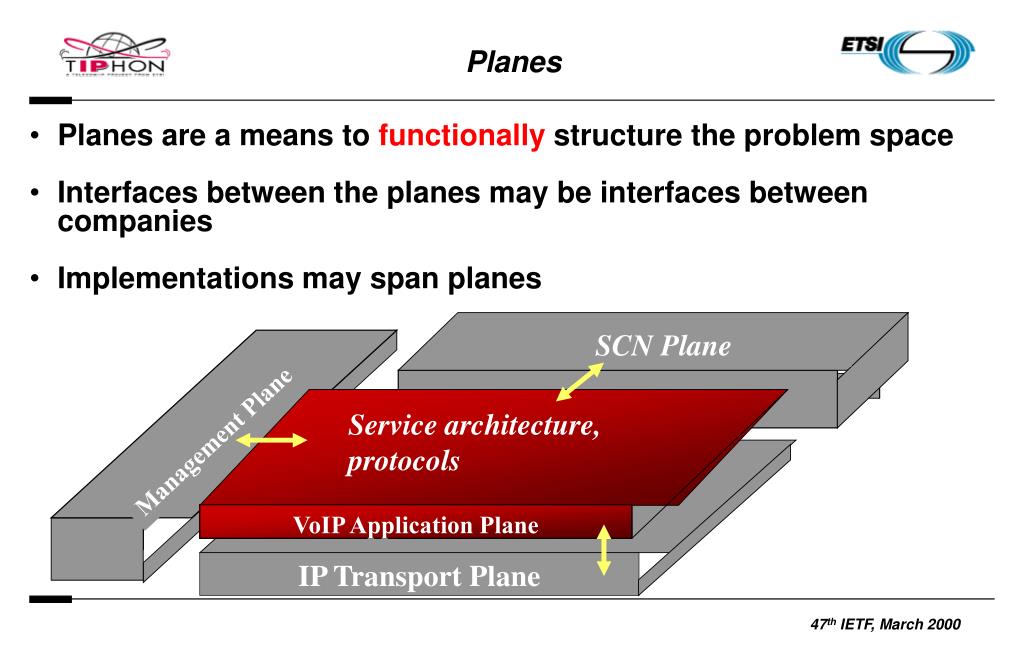

  4. SCN Plane Management Plane Transport plane Service architecture, protocols IP Transport Plane VoIP Application Plane Planes • Planes are a means to functionally structure the problem space • Interfaces between the planes may be interfaces between companies • Implementations may span planes

  5. Domain 1 Domain 2 Domain 3 Services SE SE SE 2 3 Service Control SC SC SC 2 3 Call control 7 1 CC CC CC 8 10 4 Bearer Control 7 BC 4 BC BC 5 Media Control MC MC 9 MC 6 Packet transport Layers

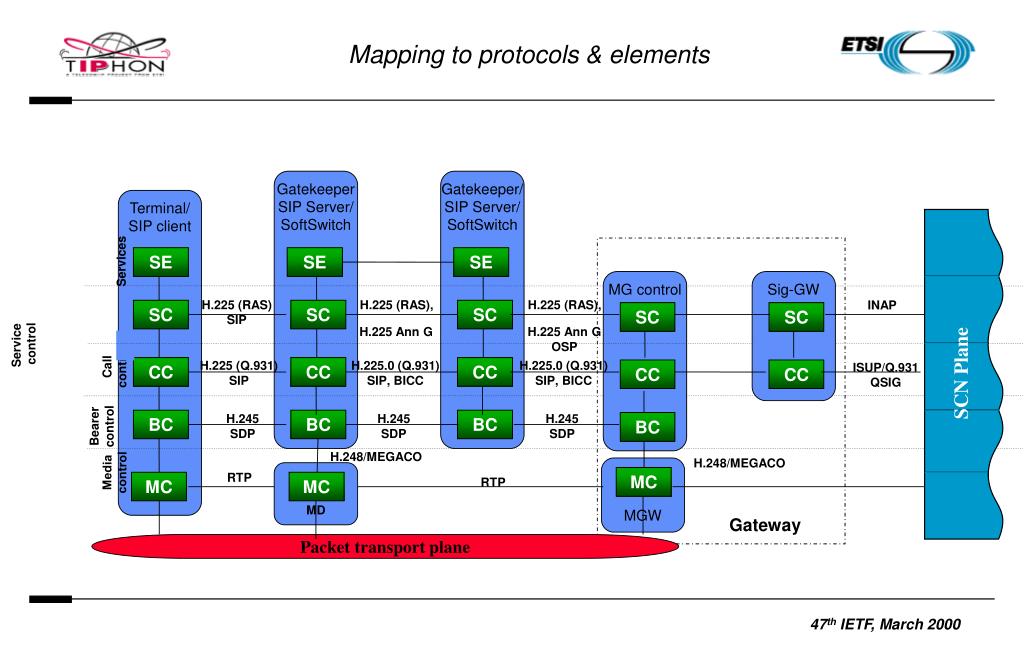

  6. Gatekeeper SIP Server/ SoftSwitch Gatekeeper/ SIP Server/ SoftSwitch Terminal/ SIP client Services SE SE SE MG control Sig-GW SCN Plane H.225 (RAS) SIP H.225 (RAS), H.225 (RAS), INAP SC SC SC SC SC H.225 Ann G H.225 Ann G OSP Call control H.225 (Q.931) SIP H.225.0 (Q.931) SIP, BICC H.225.0 (Q.931) SIP, BICC ISUP/Q.931 QSIG CC CC CC CC CC Bearer control H.245 SDP H.245 SDP H.245 SDP BC BC BC BC H.248/MEGACO Media control H.248/MEGACO MGW MD RTP MC RTP MC MC Gateway Packet transport plane Mapping to protocols & elements Service control
