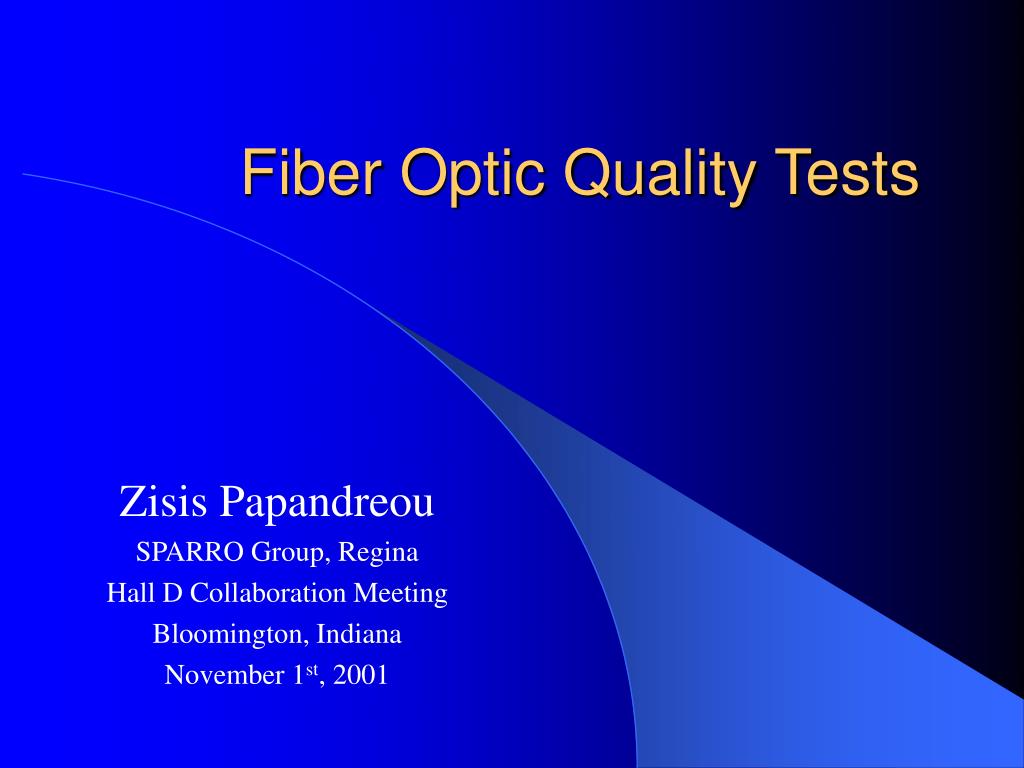

  1. Fiber Optic Quality Tests Zisis Papandreou SPARRO Group, Regina Hall D Collaboration Meeting Bloomington, Indiana November 1st, 2001

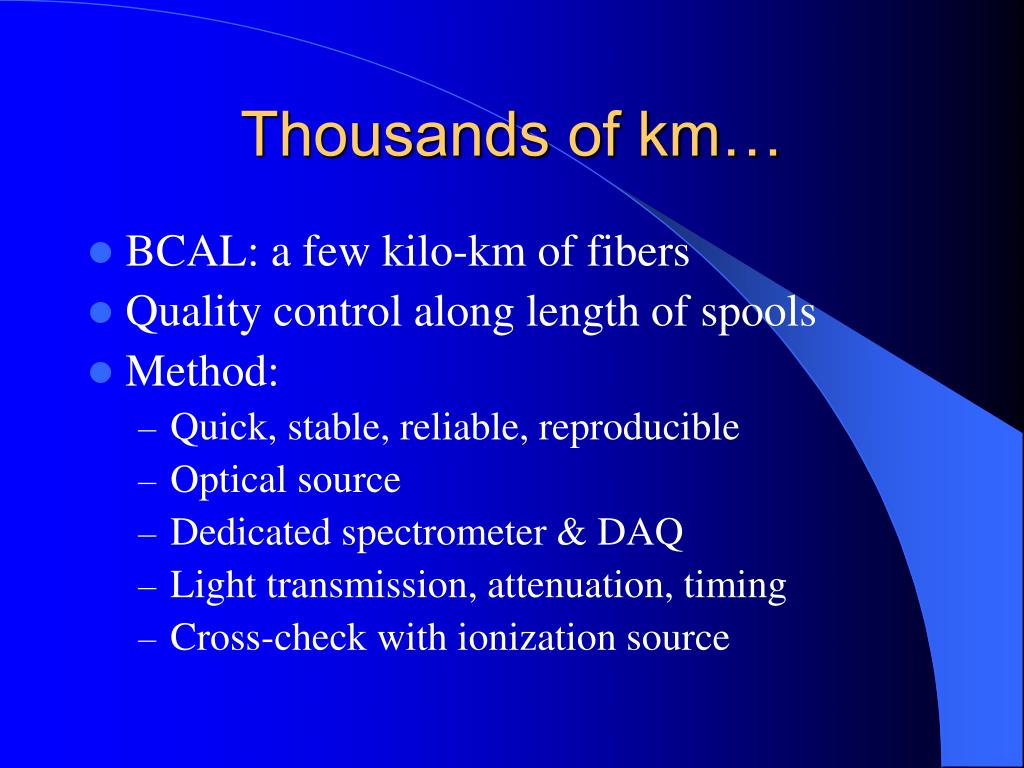

  2. Thousands of km… • BCAL: a few kilo-km of fibers • Quality control along length of spools • Method: • Quick, stable, reliable, reproducible • Optical source • Dedicated spectrometer & DAQ • Light transmission, attenuation, timing • Cross-check with ionization source

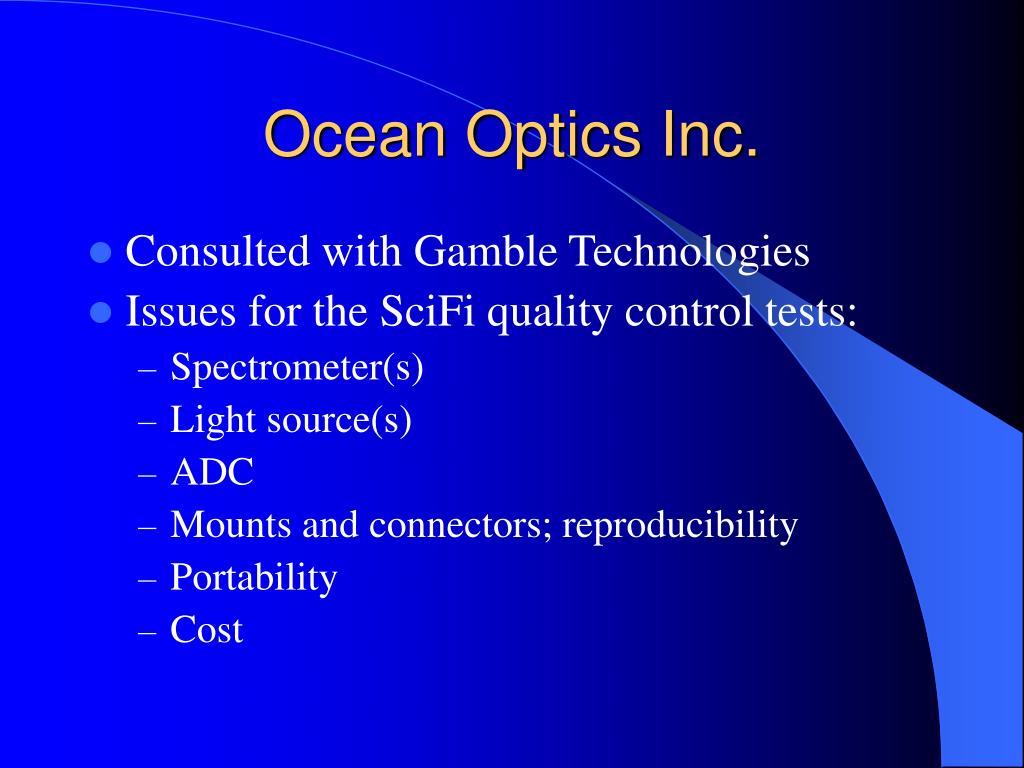

  3. Ocean Optics Inc. • Consulted with Gamble Technologies • Issues for the SciFi quality control tests: • Spectrometer(s) • Light source(s) • ADC • Mounts and connectors; reproducibility • Portability • Cost

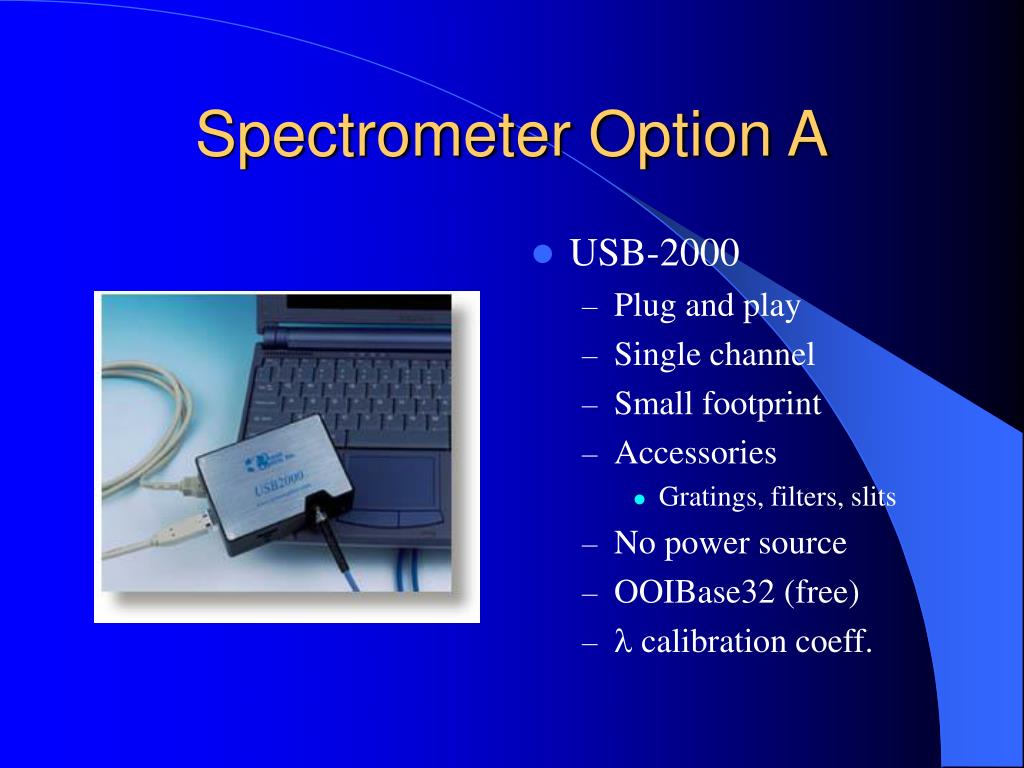

  4. Spectrometer Option A • USB-2000 • Plug and play • Single channel • Small footprint • Accessories • Gratings, filters, slits • No power source • OOIBase32 (free) •  calibration coeff.

  5. Spectrometer Option B • SD-1000 • Dual channel • Small footprint • Accessories • Gratings, filters, slits • No power source • 2048 CCD array • Uses ADC1000USB

  6. Light Source • LS450 • Stand alone or USB • White LED • 410-720 nm

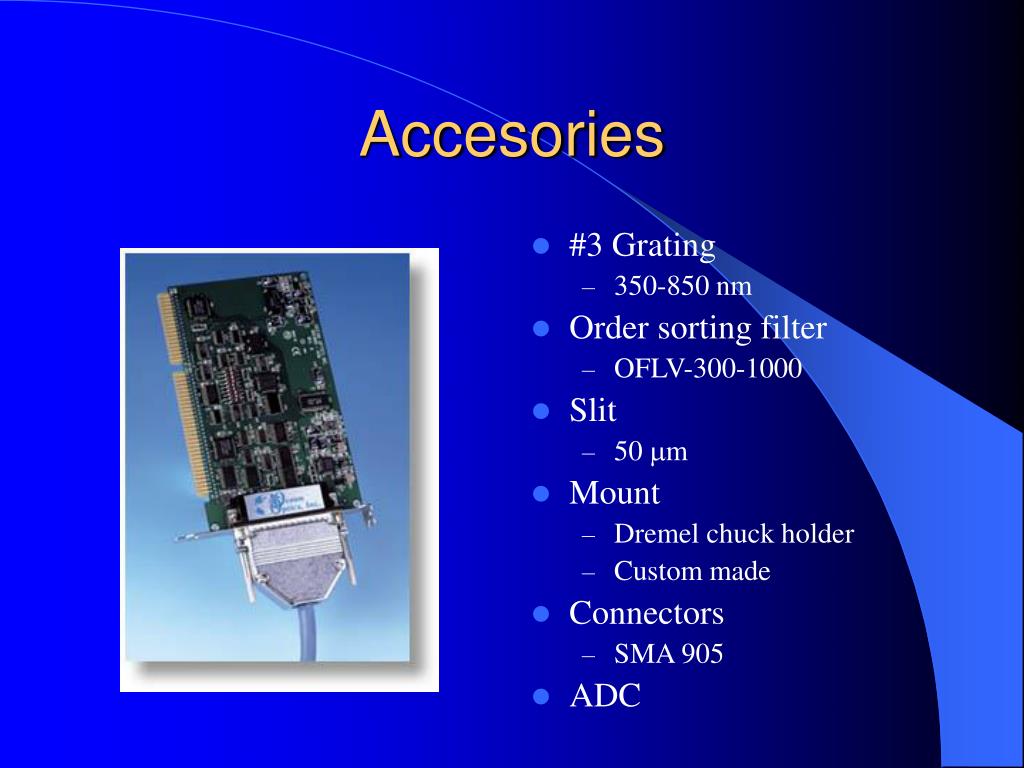

  7. Accesories • #3 Grating • 350-850 nm • Order sorting filter • OFLV-300-1000 • Slit • 50 m • Mount • Dremel chuck holder • Custom made • Connectors • SMA 905 • ADC

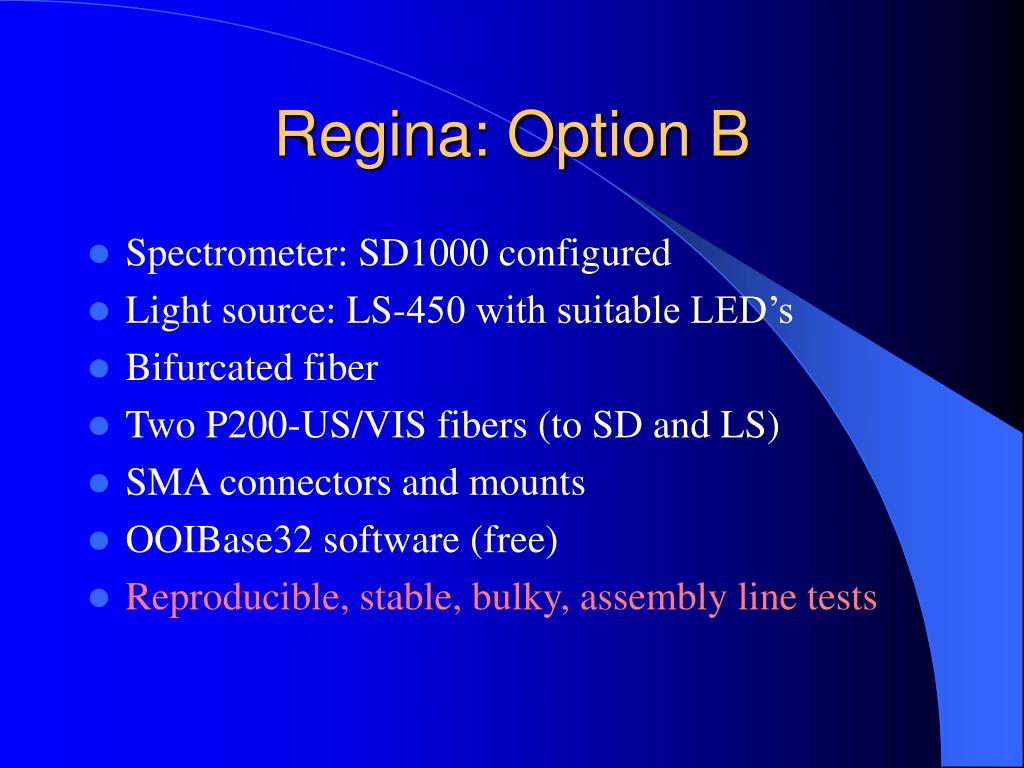

  8. Regina: Option B • Spectrometer: SD1000 configured • Light source: LS-450 with suitable LED’s • Bifurcated fiber • Two P200-US/VIS fibers (to SD and LS) • SMA connectors and mounts • OOIBase32 software (free) • Reproducible, stable, bulky, assembly line tests

  9. Option A • Spectrometer: USB1000 • Light source: LS-450 with suitable LED’s • Two P200-US/VIS fibers (to SD and LS) • SMA connectors and mounts • OOIBase32 software (free) • Reproducible ??, stable, portable, geared for smaller number of fibers

  10. Option B Cost
