  1. UI Patterns

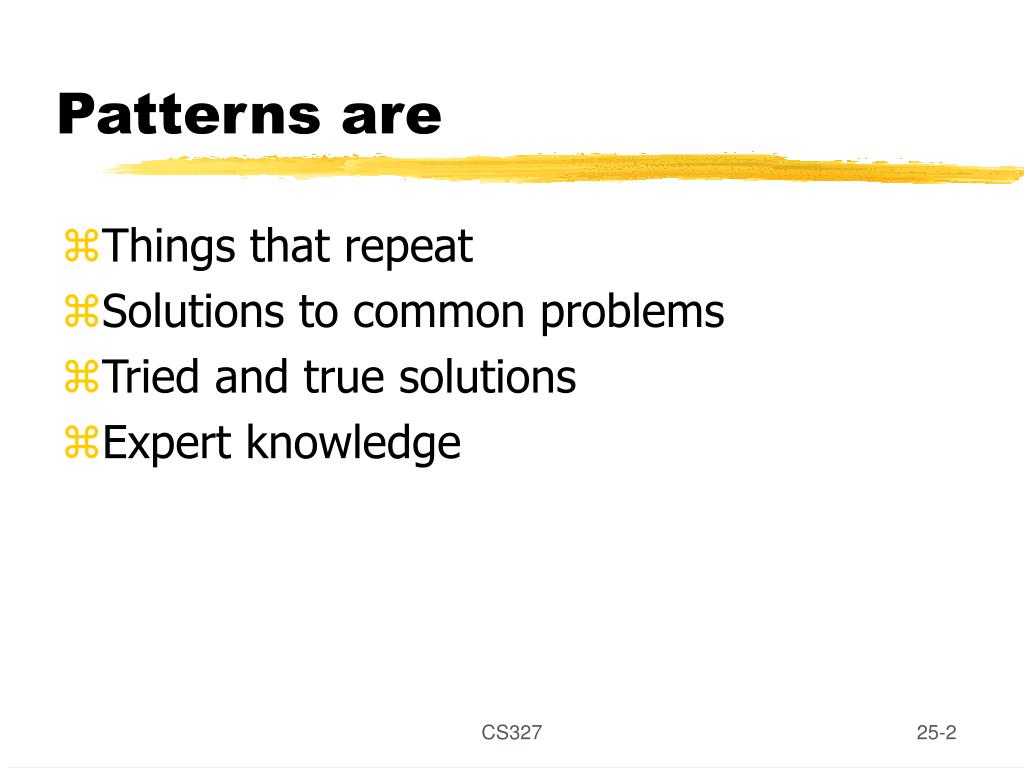

  2. Patterns are • Things that repeat • Solutions to common problems • Tried and true solutions • Expert knowledge CS327

  3. Good pattern description has • Name • Problem • Solution • Examples • Description of trade-offs and alternatives • Context CS327

  4. Context • When you should think about a pattern • One pattern might set the context for another • Some patterns are high-level, others low-level CS327

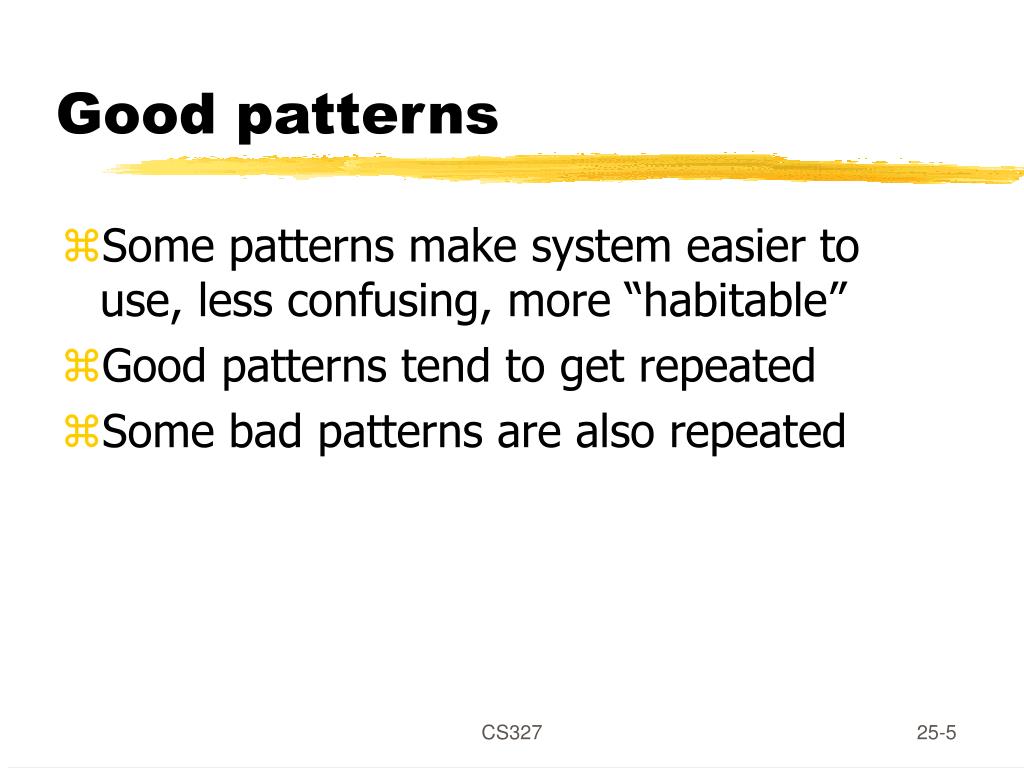

  5. Good patterns • Some patterns make system easier to use, less confusing, more “habitable” • Good patterns tend to get repeated • Some bad patterns are also repeated CS327

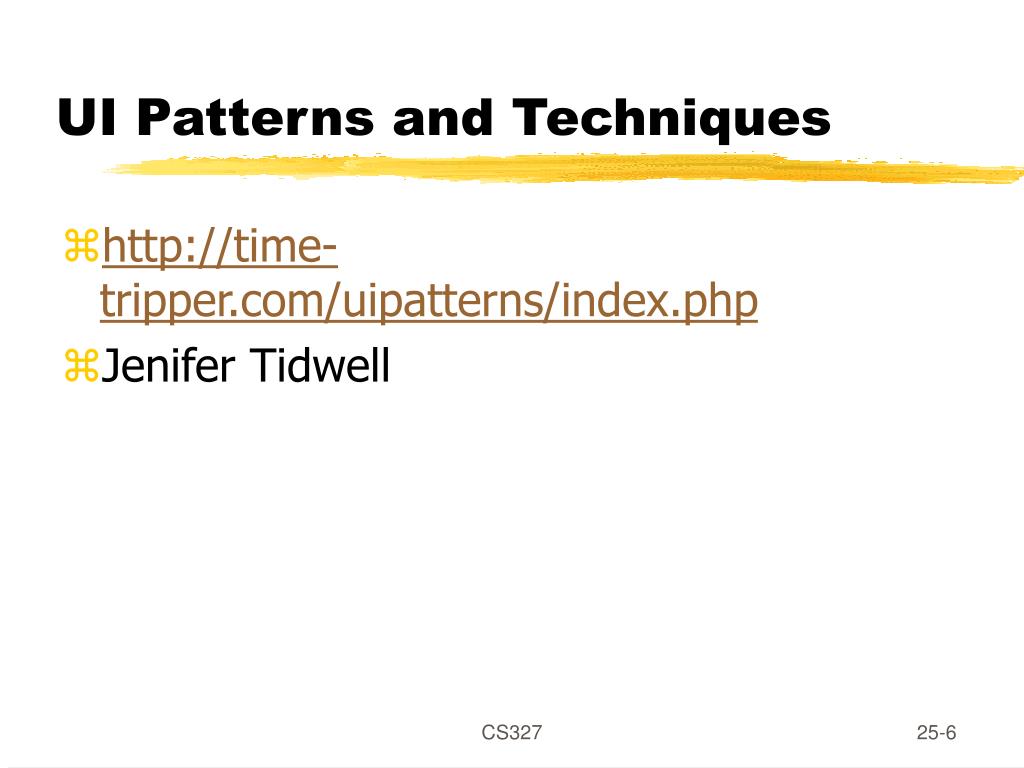

  6. UI Patterns and Techniques • http://time-tripper.com/uipatterns/index.php • Jenifer Tidwell CS327

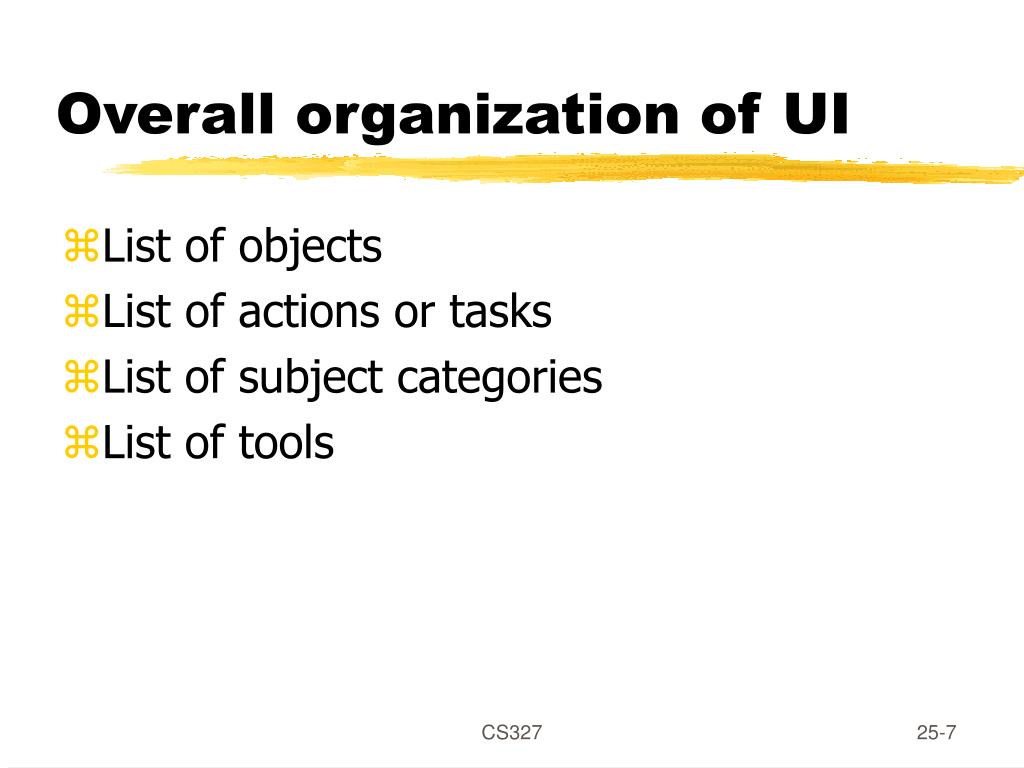

  7. Overall organization of UI • List of objects • List of actions or tasks • List of subject categories • List of tools CS327

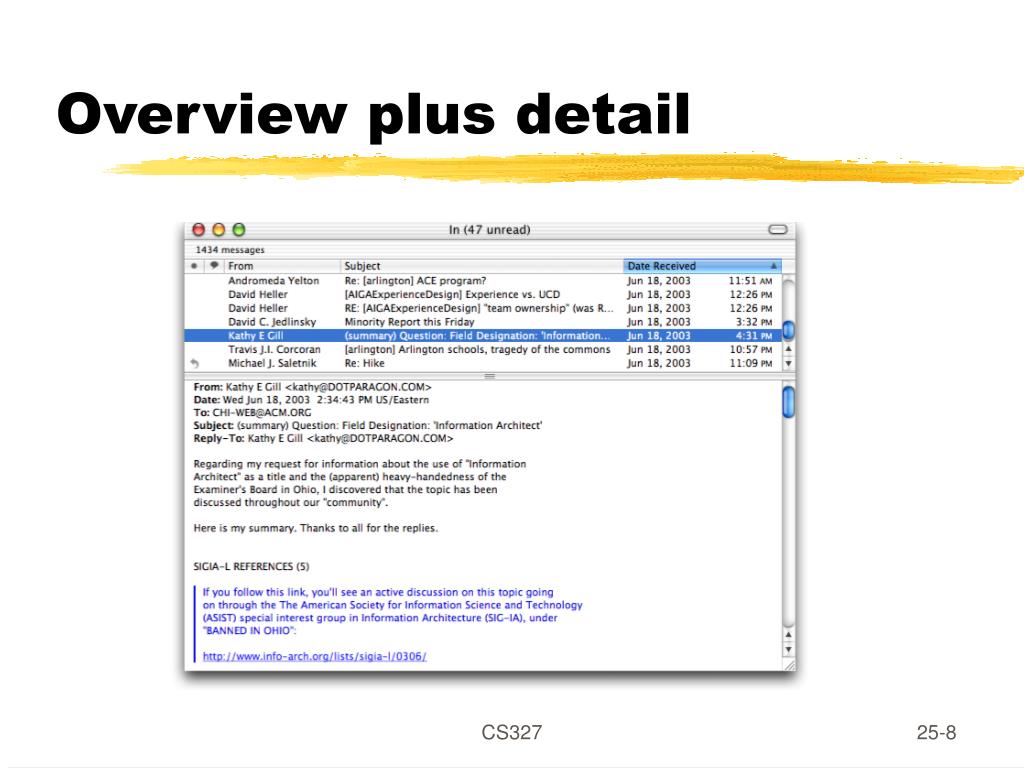

  8. Overview plus detail CS327

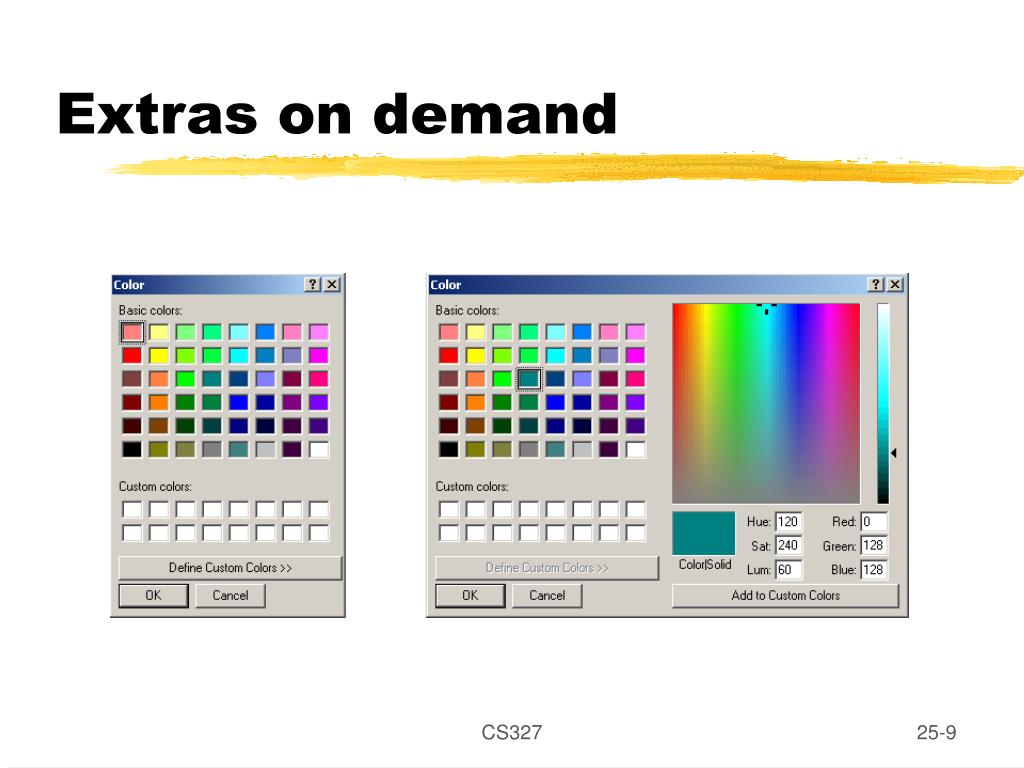

  9. Extras on demand CS327

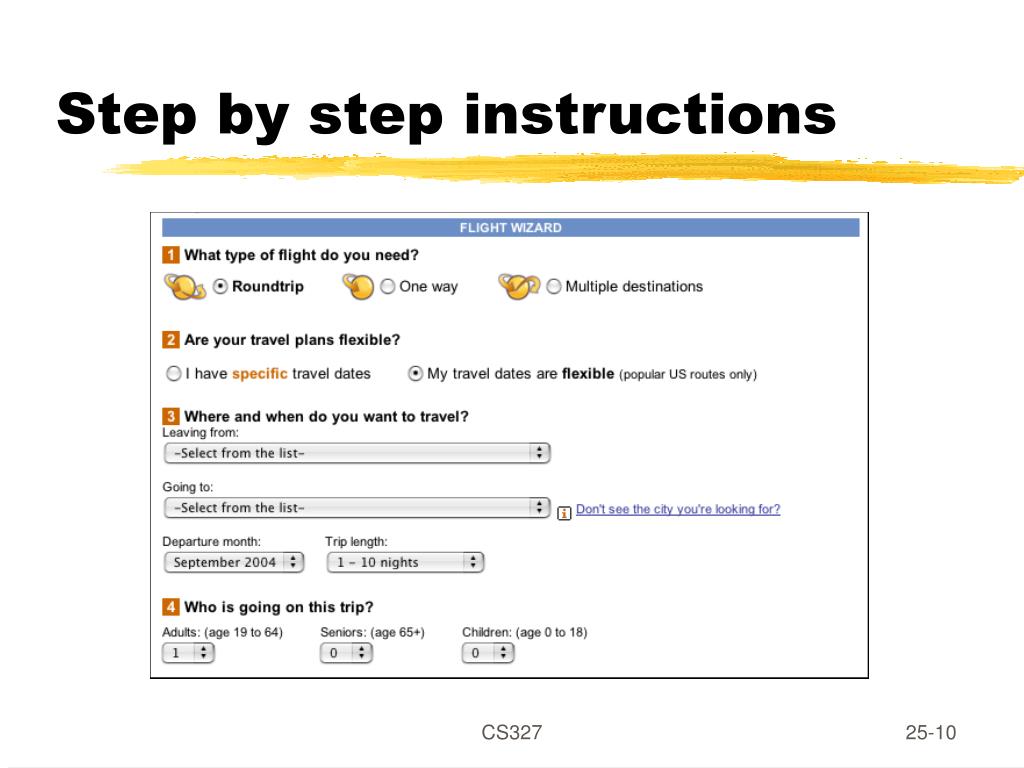

  10. Step by step instructions CS327

  11. One-window drill-down CS327

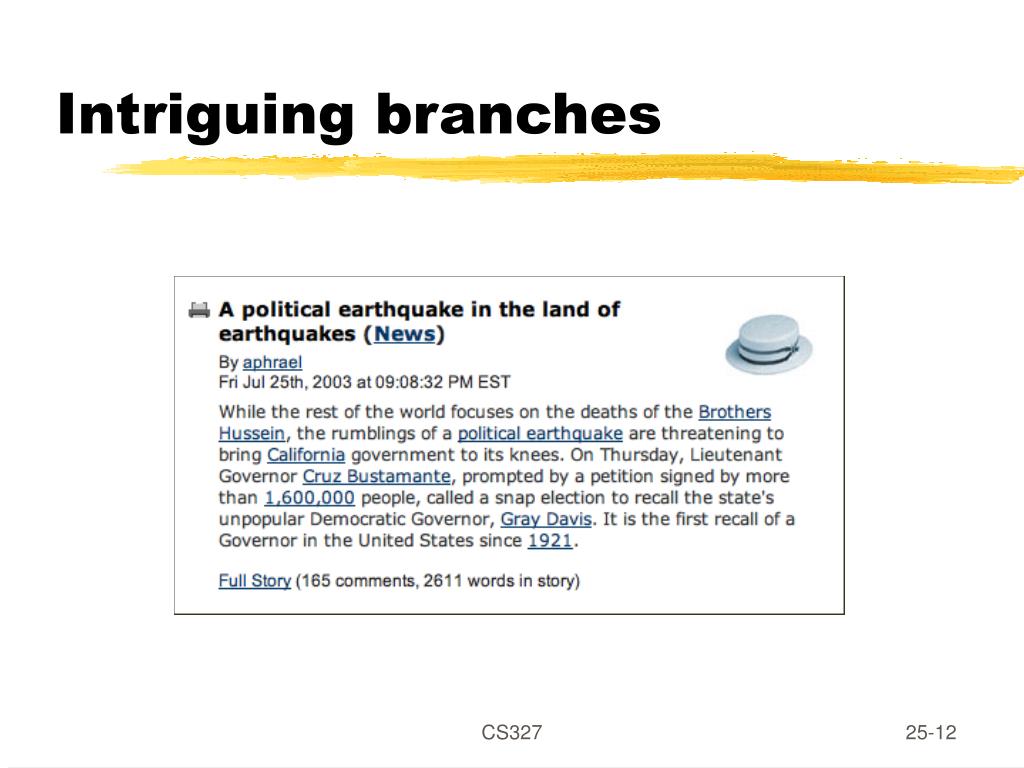

  12. Intriguing branches CS327

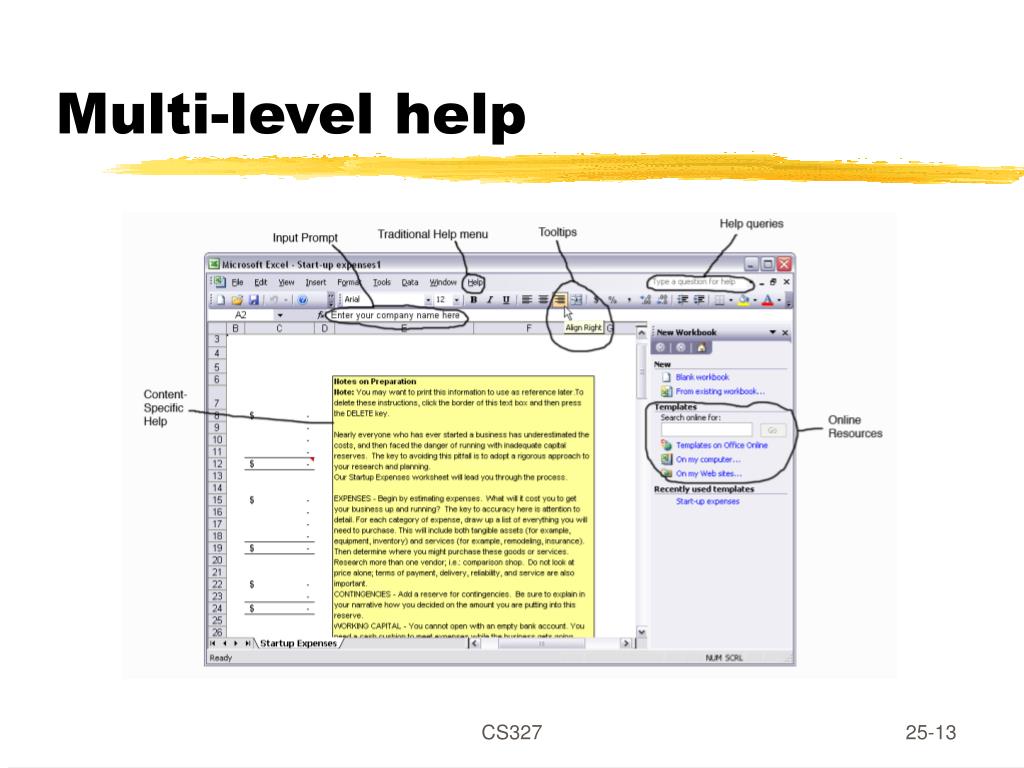

  13. Multi-level help CS327

  14. Visual Flow • Make important info be “focal points” • Create focal points with color, font, chunking • Indicate relationships by visual grouping CS327

  15. Visual Framework CS327

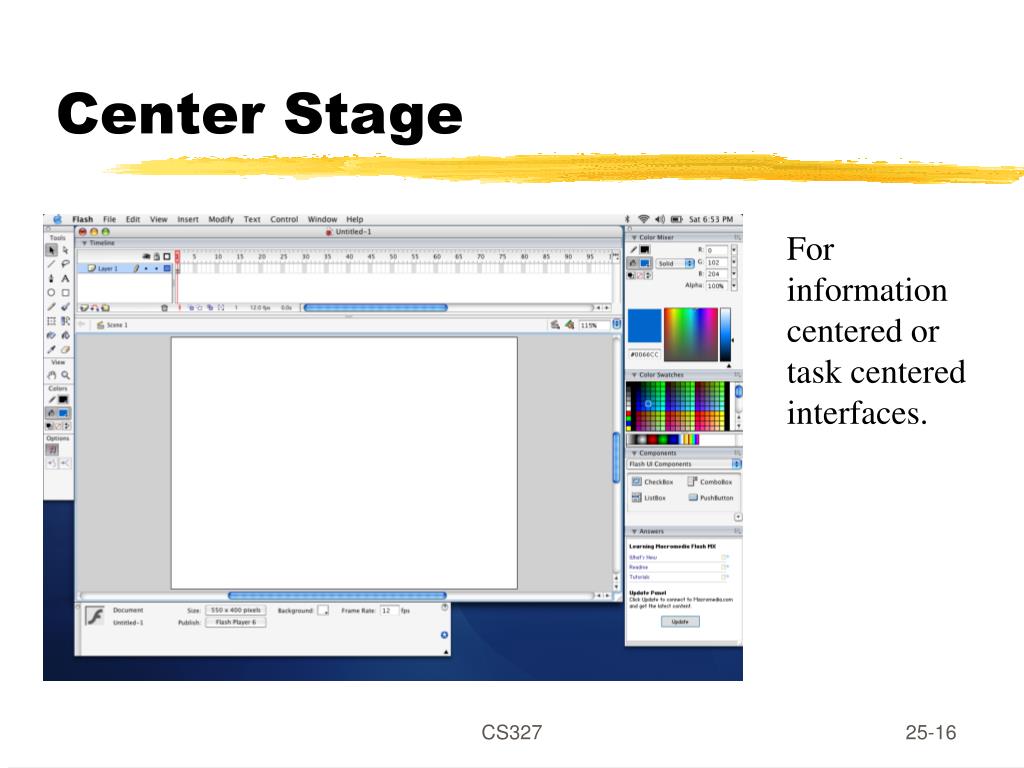

  16. Center Stage For information centered or task centered interfaces. CS327

  17. Titled sections Use when there is more than a handful of controls or text fragments on the page. CS327

  18. Card Stack CS327

  19. Closable panels CS327

  20. Movable panels CS327

  21. Right-left alignment CS327

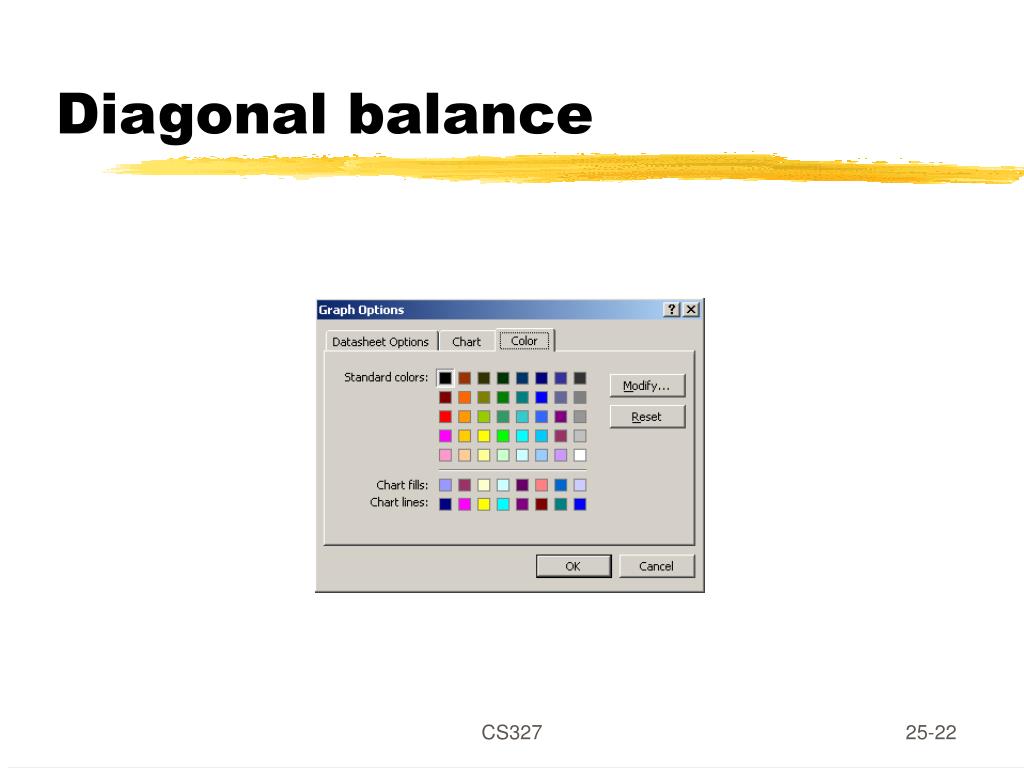

  22. Diagonal balance CS327

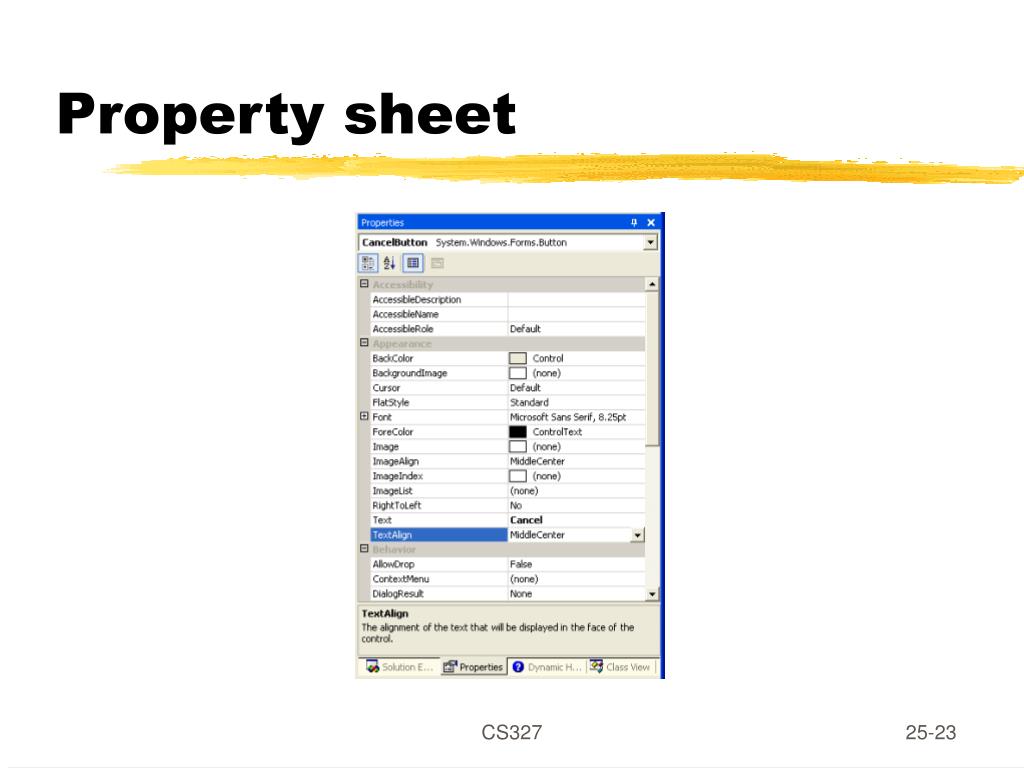

  23. Property sheet CS327

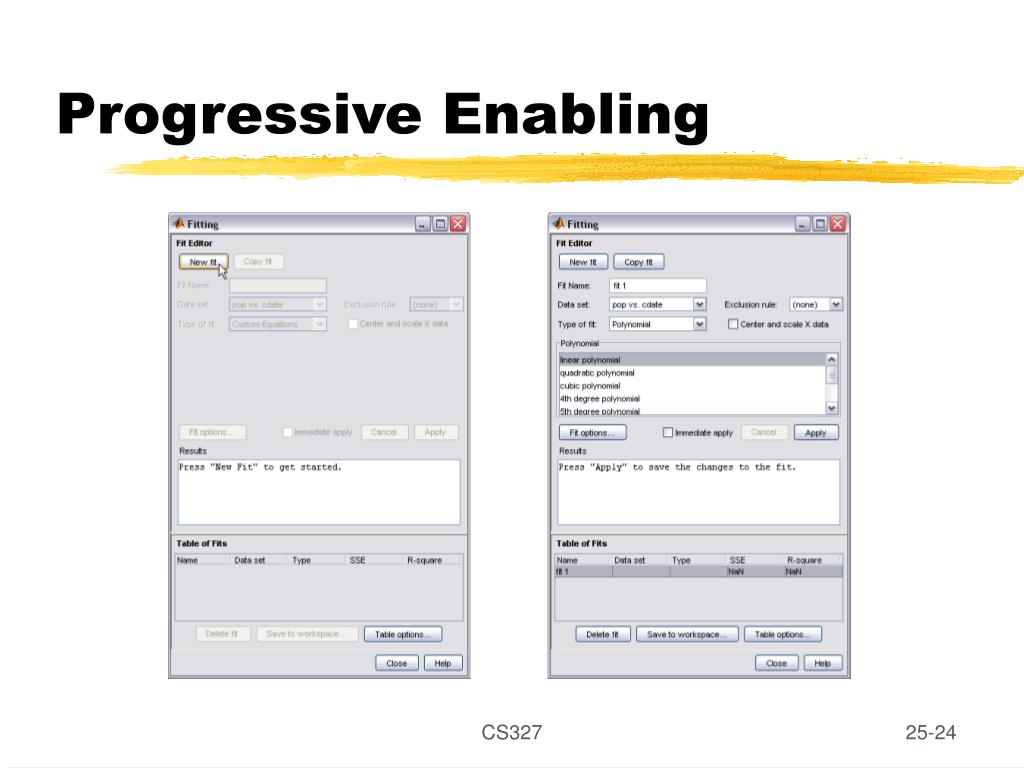

  24. Progressive Enabling CS327

  25. UI patterns • Traditionally learned from experience • Good to have standard names • Good to have catalog to jog memory • Still takes practice CS327

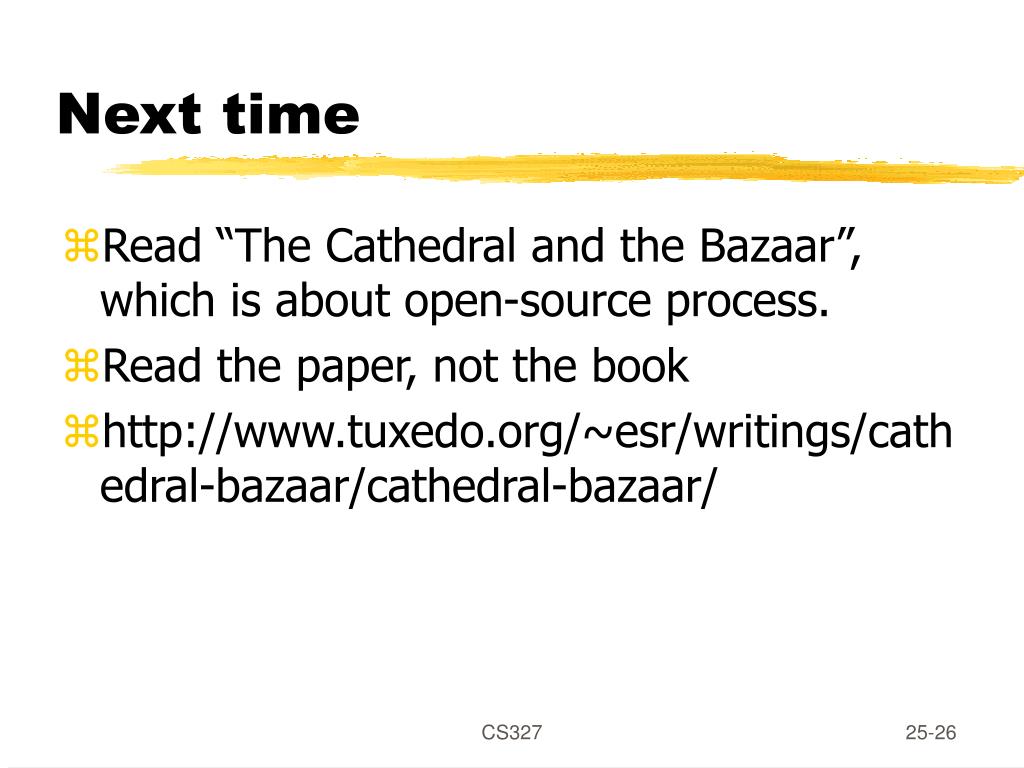

  26. Next time • Read “The Cathedral and the Bazaar”, which is about open-source process. • Read the paper, not the book • http://www.tuxedo.org/~esr/writings/cathedral-bazaar/cathedral-bazaar/ CS327
