  1. SAFETY MEETING Camera Systems

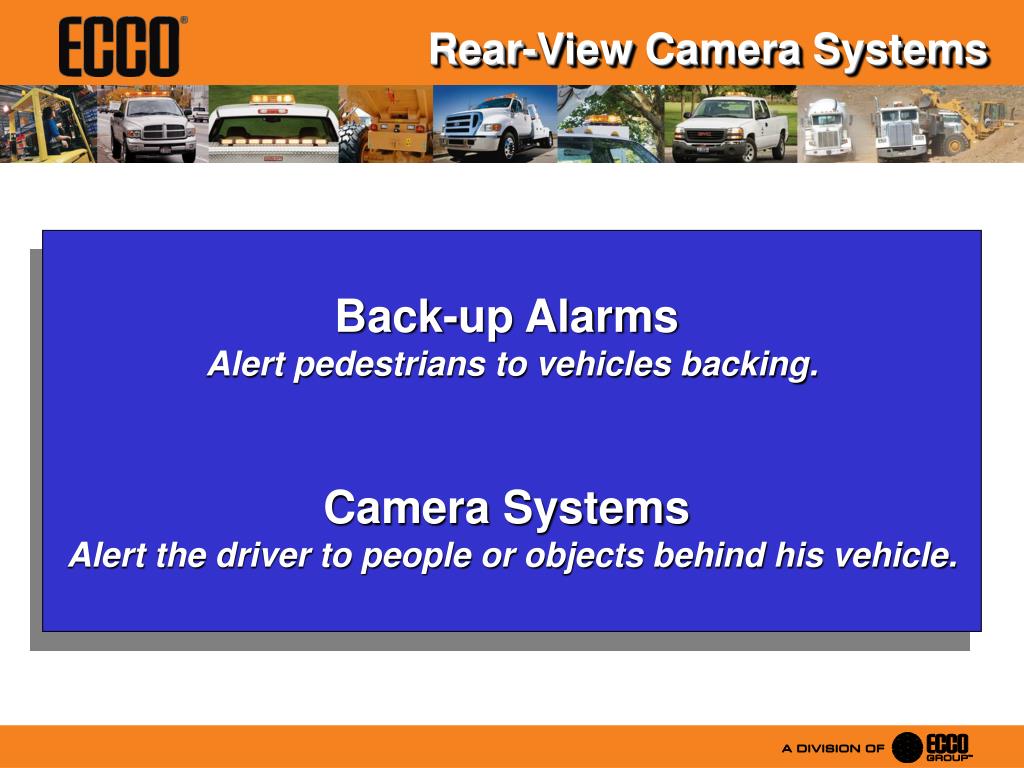

  2. Rear-View Camera Systems Back-up Alarms Alert pedestrians to vehicles backing. Camera Systems Alert the driver to people or objects behind his vehicle.

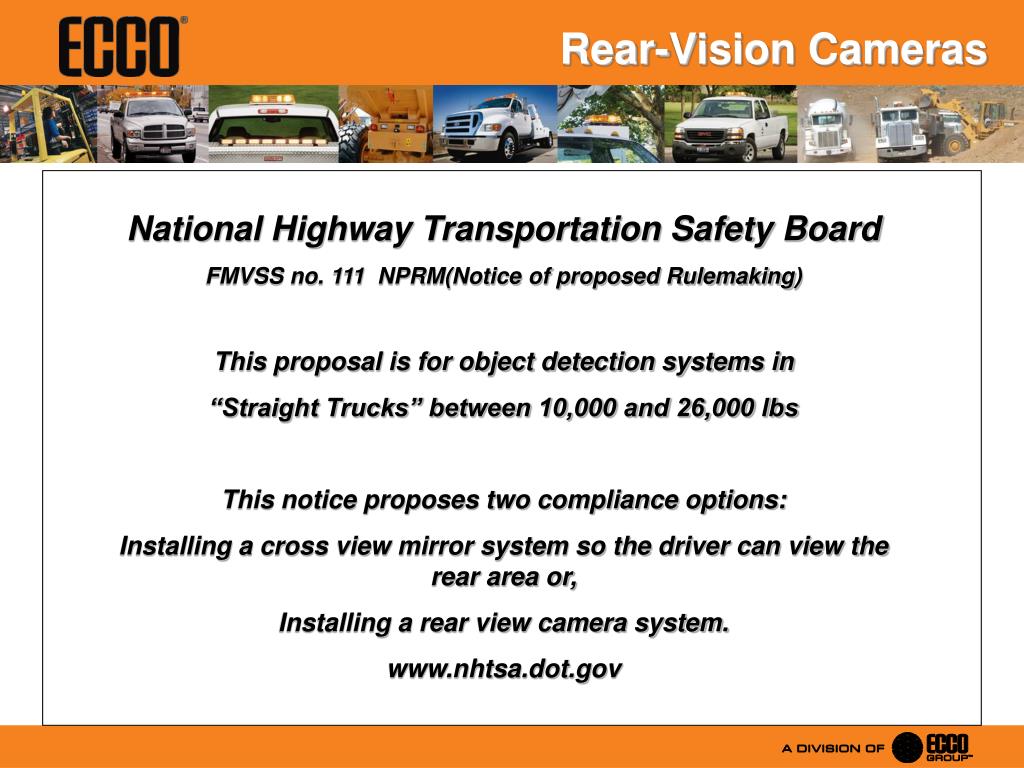

  3. Rear-Vision Cameras National Highway Transportation Safety Board FMVSS no. 111 NPRM(Notice of proposed Rulemaking) This proposal is for object detection systems in “Straight Trucks” between 10,000 and 26,000 lbs This notice proposes two compliance options: Installing a cross view mirror system so the driver can view the rear area or, Installing a rear view camera system. www.nhtsa.dot.gov

  4. ECCO Group Camera Program • 5.6” Color Camera Kit (EC5603-SVK) • 5.6” TFT LCD Monitor • 1/3” Sony CCD Camera • 20 Meter Transmission Cable • Full Color POP Kit Box • 7” Color Camera Kit (EC7003-SVK) • 7” TFT LCD Monitor • 1/3” Sony CCD Camera • 20 Meter Transmission Cable • Full Color POP Kit Box

  5. Added Features • Monitors: • Custom ECCO Group Design • 3 Camera Input • Backlit/Touch Screen Menu Control Buttons with Day/Night Auto Dim • ECCO Group Logo Displays When System is Powered Up • Two Mounting Bracket Options Provided with Kit • Remote Control Included • 8g Vibration Tested with Cradle Bracket • Full Color POP Kit Box

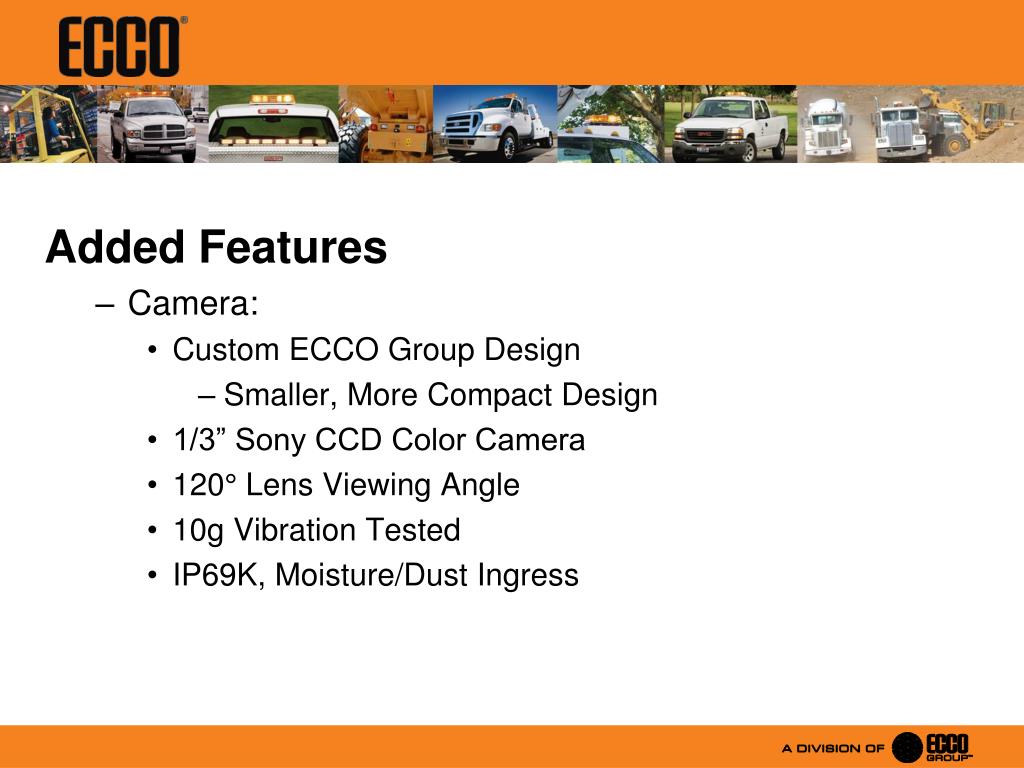

  6. Added Features • Camera: • Custom ECCO Group Design • Smaller, More Compact Design • 1/3” Sony CCD Color Camera • 120° Lens Viewing Angle • 10g Vibration Tested • IP69K, Moisture/Dust Ingress

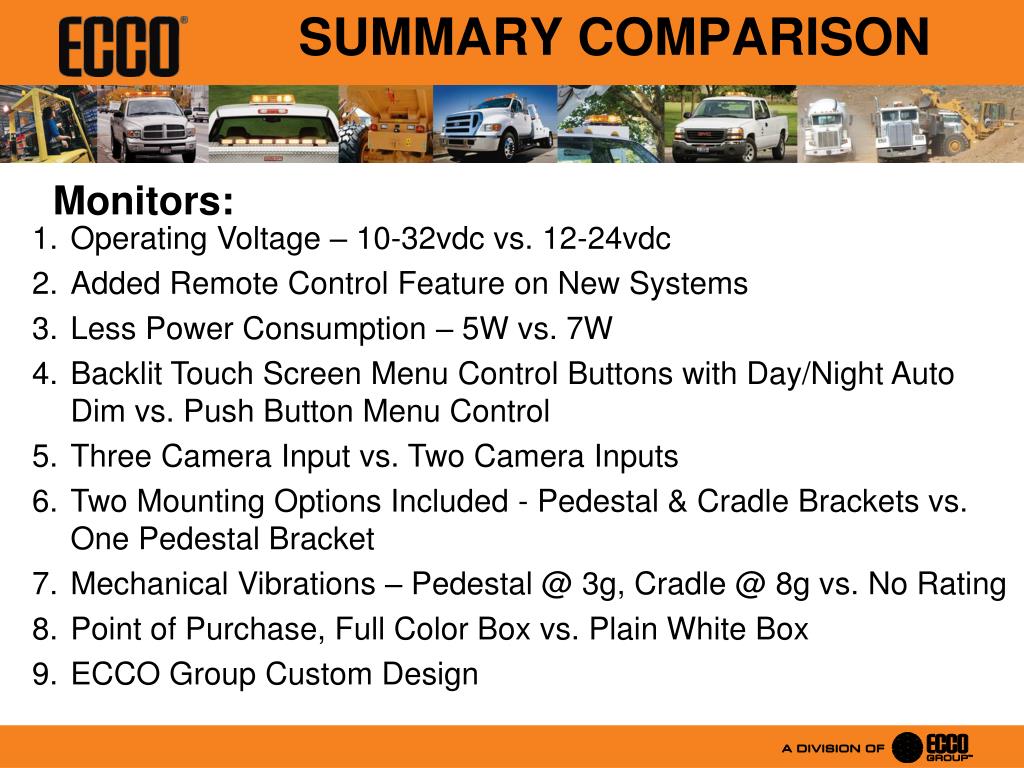

  7. SUMMARY COMPARISON Monitors: • Operating Voltage – 10-32vdc vs. 12-24vdc • Added Remote Control Feature on New Systems • Less Power Consumption – 5W vs. 7W • Backlit Touch Screen Menu Control Buttons with Day/Night Auto Dim vs. Push Button Menu Control • Three Camera Input vs. Two Camera Inputs • Two Mounting Options Included - Pedestal & Cradle Brackets vs. One Pedestal Bracket • Mechanical Vibrations – Pedestal @ 3g, Cradle @ 8g vs. No Rating • Point of Purchase, Full Color Box vs. Plain White Box • ECCO Group Custom Design

  8. SUMMARY COMPARISON Cameras: • 1/3” Sony CCD Color vs. 1/4” Sony CCD Color – Larger Image on Monitor • 120° Viewing Angle vs. 110° Angle – Wider Field of View • Mirror/Normal Image Control; Selection via Monitor Menu & Screw Select on Camera vs. Monitor Selection Only • Mechanical Vibration – 10g vs. 8g • Smaller Compact Size – More Mounting Options on the Vehicle • Dust & Moisture Ingress Rating – IP69K vs. IP68 • Emission Testing – ECE R10 Certification vs. none • ECCO Group Custom Design

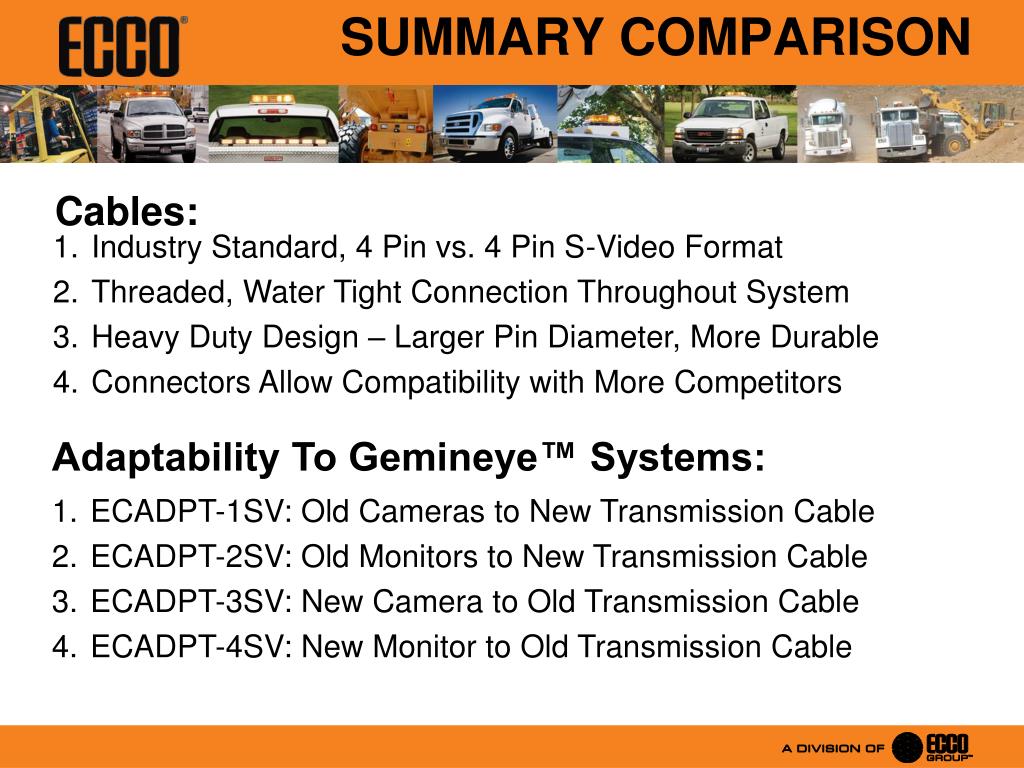

  9. SUMMARY COMPARISON Cables: • Industry Standard, 4 Pin vs. 4 Pin S-Video Format • Threaded, Water Tight Connection Throughout System • Heavy Duty Design – Larger Pin Diameter, More Durable • Connectors Allow Compatibility with More Competitors Adaptability To Gemineye™ Systems: • ECADPT-1SV: Old Cameras to New Transmission Cable • ECADPT-2SV: Old Monitors to New Transmission Cable • ECADPT-3SV: New Camera to Old Transmission Cable • ECADPT-4SV: New Monitor to Old Transmission Cable

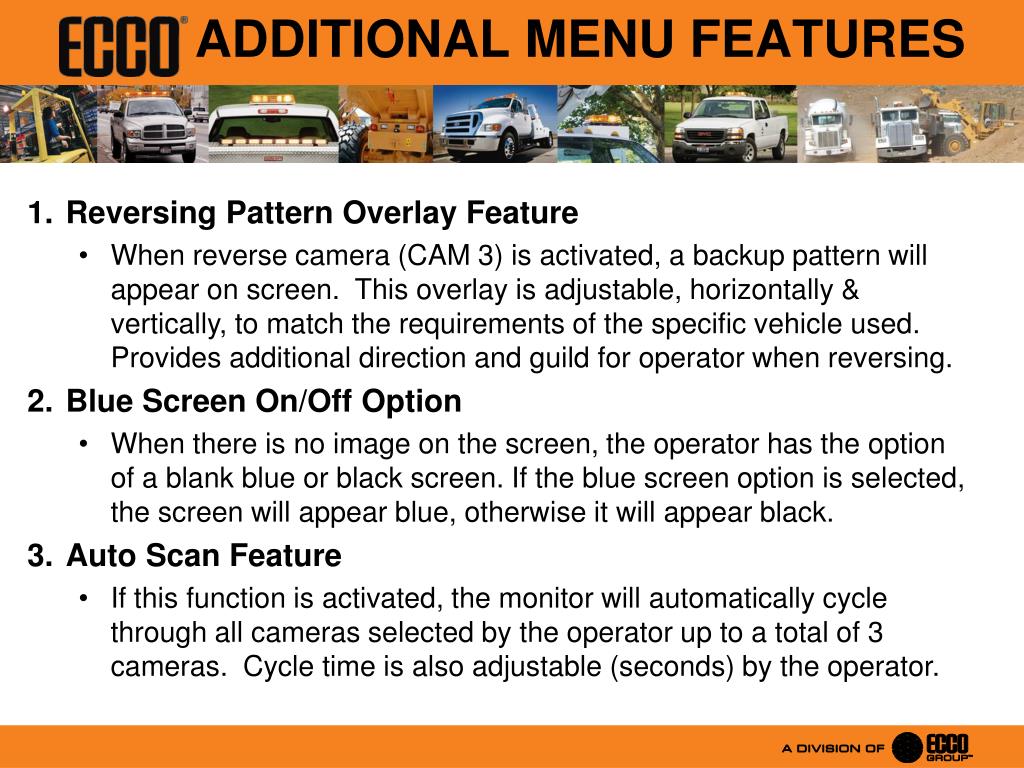

  10. ADDITIONAL MENU FEATURES • Reversing Pattern Overlay Feature • When reverse camera (CAM 3) is activated, a backup pattern will appear on screen. This overlay is adjustable, horizontally & vertically, to match the requirements of the specific vehicle used. Provides additional direction and guild for operator when reversing. • Blue Screen On/Off Option • When there is no image on the screen, the operator has the option of a blank blue or black screen. If the blue screen option is selected, the screen will appear blue, otherwise it will appear black. • Auto Scan Feature • If this function is activated, the monitor will automatically cycle through all cameras selected by the operator up to a total of 3 cameras. Cycle time is also adjustable (seconds) by the operator.

  11. Rear-View Camera System So, what’s behind you?

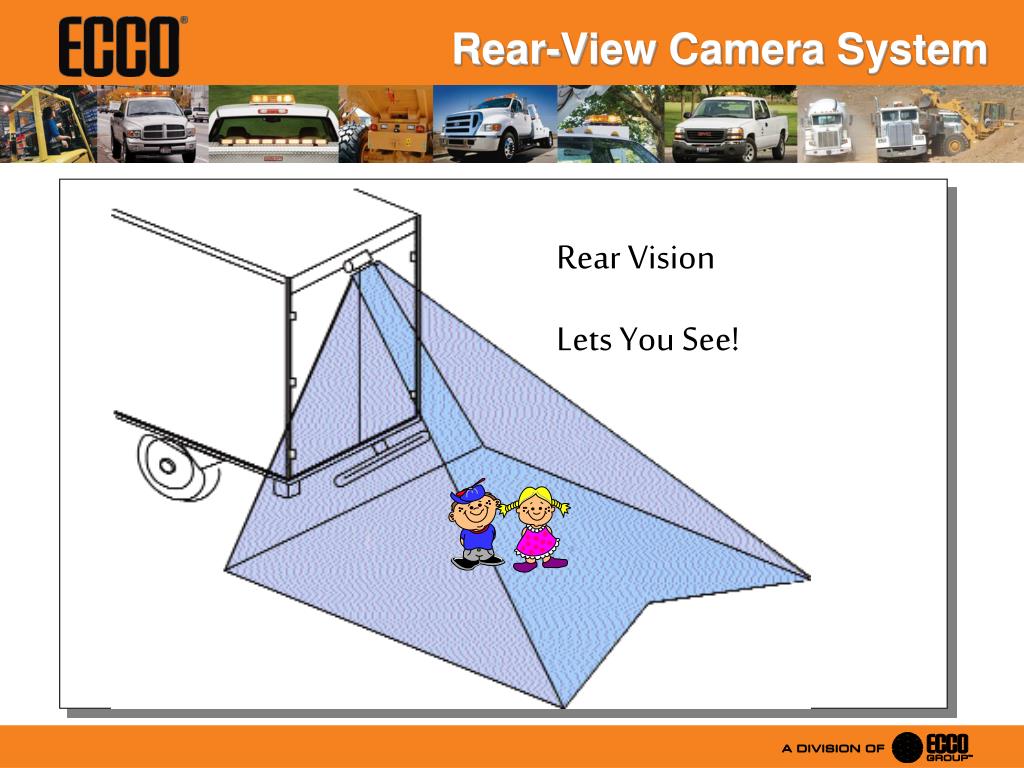

  12. Rear-View Camera System Rear Vision Lets You See!

  13. Questions On Rear-View Cameras
