Parsing into the Interlingua Using Phrase-Level Grammars and Trainable Classifiers

This study presents a robust and portable analyzer specifically designed for task-oriented human-to-human speech, focusing on parsing utterances into Interlingua representations. Initially relying on full semantic grammars, we now enhance portability to various domains using a hybrid approach that combines grammar-based parsing and machine learning. The system utilizes semantic dialog units (SDUs) to train classifiers for identifying domain actions. Evaluation results indicate effective classification accuracy and highlight the system's capability to adapt to medical assistance contexts.

colin-schwartz
Télécharger la présentation

Parsing into the Interlingua Using Phrase-Level Grammars and Trainable Classifiers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Parsing into the Interlingua Using Phrase-Level Grammars and Trainable Classifiers Alon Lavie, Chad Langley, Lori Levin, Dorcas Wallace,Donna Gates and Kay Peterson AFRL Visit, March 28, 2003

  2. Our Parsing and Analysis Approach • Goal: A portable and robust analyzer for task-oriented human-to-human speech, parsing utterances into interlingua representations • Our earlier systems used full semantic grammars to parse complete DAs • Useful for parsing spoken language in restricted domains • Difficult to port to new domains • Current focus is on improving portability to new domains (and new languages) • Approach: Continue to use semantic grammars to parse domain-independent phrase-level arguments and train classifiers to identify DAs AFRL Visit

  3. Interchange Format • Interchange Format (IF) is a shallow semantic interlingua for task-oriented domains • Utterances represented as sequences of semantic dialog units (SDUs) • IF representation consists of four parts • Speaker • Speech Act • Concepts • Arguments speaker : speech act +concept* +arguments* } Domain Action AFRL Visit

  4. Hybrid Analysis Approach Use a combination of grammar-based phrase-level parsing and machine learning to produce interlingua (IF) representations AFRL Visit

  5. Hybrid Analysis Approach Hello. I would like to take a vacation in Val di Fiemme. c:greeting (greeting=hello) c:give-information+disposition+trip (disposition=(who=i, desire), visit-spec=(identifiability=no, vacation), location=(place-name=val_di_fiemme)) AFRL Visit

  6. Argument Parsing • Parse utterances using phrase-level grammars • SOUP Parser (Gavaldà, 2000): Stochastic, chart-based, top-down robust parser designed for real-time analysis of spoken language • Separate grammars based on the type of phrases that the grammar is intended to cover AFRL Visit

  7. Domain Action Classification • Identify the DA for each SDU using trainable classifiers • Two TiMBL (k-NN) classifiers • Speech act • Concept sequence • Binary features indicate presence or absence of arguments and pseudo-arguments AFRL Visit

  8. Using the IF Specification • Use knowledge of the IF specification during DA classification • Ensure that only legal DAs are produced • Guarantee that the DA and arguments combine to form a valid IF representation • Strategy: Find the best DA that licenses the most arguments • Trust parser to reliably label arguments • Retaining detailed argument information is important for translation AFRL Visit

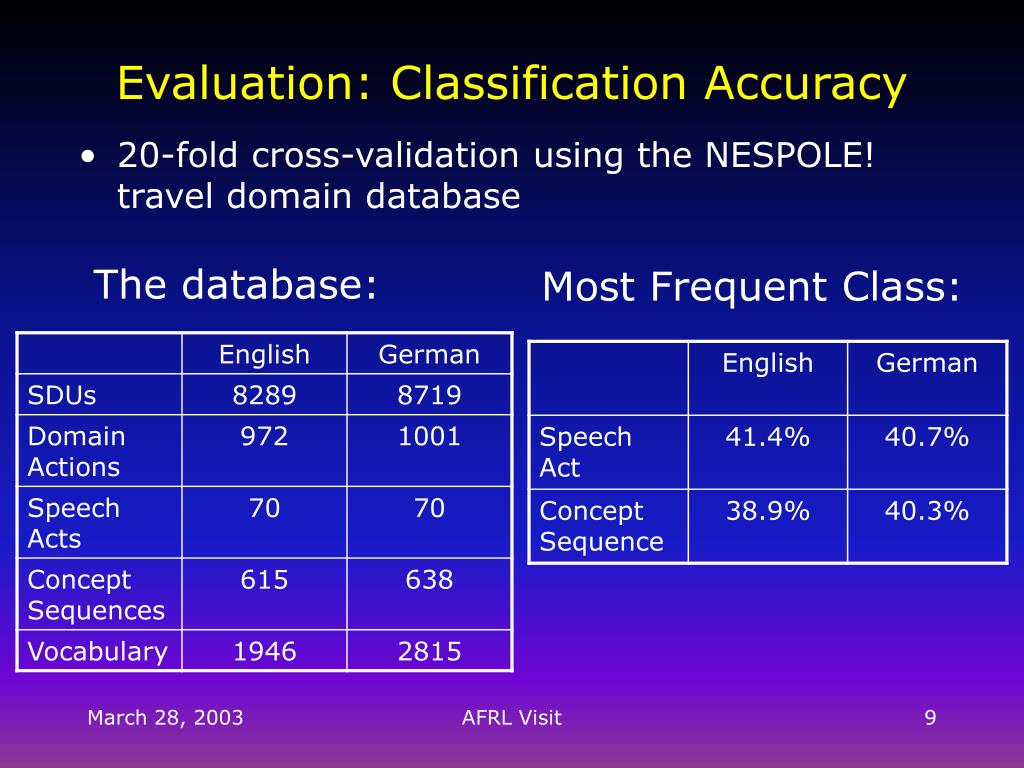

  9. Evaluation: Classification Accuracy • 20-fold cross-validation using the NESPOLE! travel domain database The database: Most Frequent Class: AFRL Visit

  10. Evaluation: Classification Accuracy Classification Performance Accuracy AFRL Visit

  11. Evaluation:End-to-End Translation • English-to-English and English-to-Italian • Training set: ~8000 SDUs from NESPOLE! • Test set: 2 dialogs, only client utterances • Uses IF specification fallback strategy • Three graders, bilingual English/Italian speakers • Each SDU graded as perfect, ok, bad, very bad • Acceptable translation = perfect+ok • Majority scores AFRL Visit

  12. Evaluation:End-to-End Translation AFRL Visit

  13. Evaluation:Data Ablation Experiment AFRL Visit

  14. Domain Portability • Experimented with porting to a medical assistance domain in NESPOLE! • Initial medical domain system up and running, with reasonable coverage of flu-like symptoms and chest pain • Porting the interlingua, grammars and modules for English, German and Italian required about 6 person months in total • Interlingua development: ~180 hours • Interlingua annotation: ~200 hours • Analysis grammars, training: ~250 hours • Generation development: ~250 hours AFRL Visit

  15. New Development Tools AFRL Visit

  16. Questions? AFRL Visit

  17. Grammars • Argument grammar • Identifies arguments defined in the IF s[arg:activity-spec=]  (*[object-ref=any] *[modifier=good] [biking]) • Covers "any good biking", "any biking", "good biking", "biking", plus synonyms for all 3 words • Pseudo-argument grammar • Groups common phrases with similar meanings into classes s[=arrival=]  (*is *usually arriving) • Covers "arriving", "is arriving", "usually arriving", "is usually arriving", plus synonyms AFRL Visit

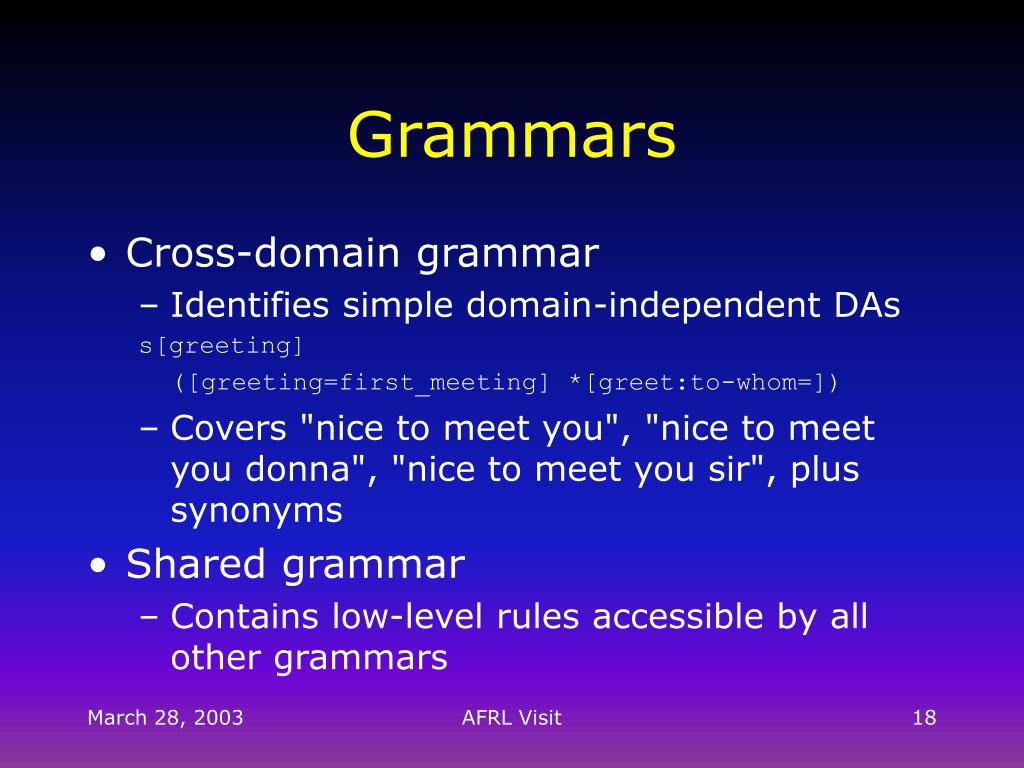

  18. Grammars • Cross-domain grammar • Identifies simple domain-independent DAs s[greeting] ([greeting=first_meeting] *[greet:to-whom=]) • Covers "nice to meet you", "nice to meet you donna", "nice to meet you sir", plus synonyms • Shared grammar • Contains low-level rules accessible by all other grammars AFRL Visit

  19. Segmentation • Identify SDU boundaries between argument parse trees • Insert a boundary if either parse tree is from cross-domain grammar • Otherwise, use a simple statistical model AFRL Visit

  20. Using the IF Specification • Check if the best speech act and concept sequence form a legal IF • If not, test alternative combinations of speech acts and concept sequences from ranked set of possibilities • Select the best combination that licenses the most arguments • Drop any arguments not licensed by the best DA AFRL Visit

  21. Grammar Development and Classifier Training • Four steps • Write argument grammars • Parse training data • Obtain segmentation counts • Train DA classifiers • Steps 2-4 are automated to simplify testing new grammars • Translation servers include a development mode for testing new grammars AFRL Visit

  22. Evaluation:IF Specification Fallback • 182 SDUs required classification • 4% had illegal DAs • 29% had illegal IFs • Mean arguments per SDU: 1.47 AFRL Visit

  23. Evaluation:Data Ablation Experiment • 16-fold cross validation setup • Test set size (# SDUs): 400 • Training set sizes (# SDUs): 500, 1000, 2000, 3000, 4000, 5000, 6009 (all data) • Data from previous C-STAR system • No use of IF specification AFRL Visit

  24. Future Work • Alternative segmentation models, feature sets, and classification methods • Multiple argument parses • Evaluate portability and robustness • Collect dialogues in a new domain • Create argument and full DA grammars for a small development set of dialogues • Assess portability by comparing grammar development times and examining grammar reusability • Assess robustness by comparing performance on unseen data AFRL Visit

  25. References • Cattoni, R., M. Federico, and A. Lavie. 2001. Robust Analysis of Spoken Input Combining Statistical and Knowledge-Based Information Sources. In Proceedings of the IEEE Automatic Speech Recognition and Understanding Workshop, Trento, Italy. • Daelemans, W., J. Zavrel, K. van der Sloot, and A. van den Bosch. 2000. TiMBL: Tilburg Memory Based Learner, version 3.0, Reference Guide. ILK Technical Report 00-01. http://ilk.kub.nl/~ilk/papers/ilk0001.ps.gz • Gavaldà, M. 2000. SOUP: A Parser for Real-World Spontaneous Speech. In Proceedings of the IWPT-2000, Trento, Italy. • Gotoh, Y. and S. Renals. Sentence Boundary Detection in Broadcast Speech Transcripts. 2000. In Proceedings on the International Speech Communication Association Workshop: Automatic Speech Recognition: Challenges for the New Millennium, Paris. • Lavie, A., F. Metze, F. Pianesi, et al. 2002. Enhancing the Usability and Performance of NESPOLE! – a Real-World Speech-to-Speech Translation System. In Proceedings of HLT-2002, San Diego, CA. AFRL Visit

  26. References • Lavie, A., C. Langley, A. Waibel, et al. 2001. Architecture and Design Considerations in NESPOLE!: a Speech Translation System for E-commerce Applications. In Proceedings of HLT-2001, San Diego, CA. • Lavie, A., D. Gates, N. Coccaro, and L. Levin. 1997. Input Segmentation of Spontaneous Speech in JANUS: a Speech-to-speech Translation System. In Dialogue Processing in Spoken Language Systems: Revised Papers from ECAI-96 Workshop, E. Maier, M. Mast, and S. Luperfoy (eds.), LNCS series, Springer Verlag. • Lavie, A. 1996. GLR*: A Robust Grammar-Focused Parser for Spontaneously Spoken Language. PhD dissertation, Technical Report CMU-CS-96-126, Carnegie Mellon University, Pittsburgh, PA. • Munk, M. 1999. Shallow Statistical Parsing for Machine Translation. Diploma Thesis, Karlsruhe University. • Stevenson, M. and R. Gaizauskas. Experiments on Sentence Boundary Detection. 2000. In Proceedings of ANLP and NAACL-2000, Seattle. • Woszczyna, M., M. Broadhead, D. Gates, et al. 1998. A Modular Approach to Spoken Language Translation for Large Domains. In Proceedings of AMTA-98, Langhorne, PA. AFRL Visit
