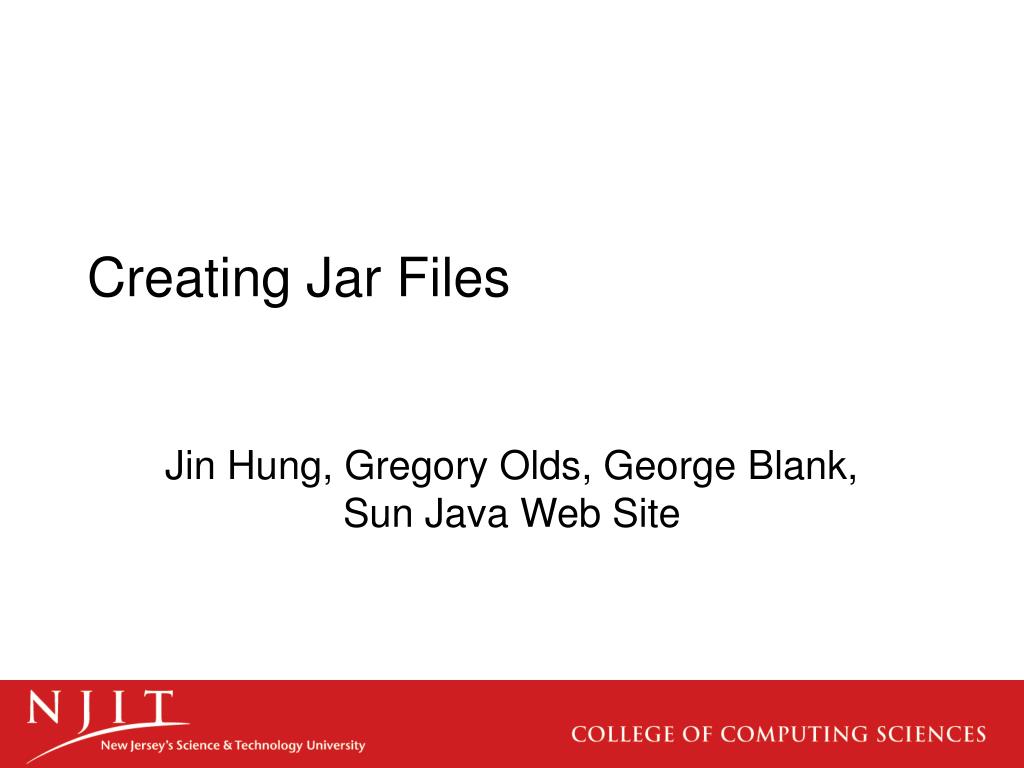

  1. Creating Jar Files Jin Hung, Gregory Olds, George Blank, Sun Java Web Site

  2. What is a Jar File? • Java archive (jar) files are compressed files that can store one or many files. • Jar files normally contain java or class files, but other files may also be included. • Jar files can be run on Windows by double clicking jar files if the JVM is installed.

  3. Why use a JAR File? • Compression:Jar files reduce the size of the original files. • Speed: The applet can be downloaded in one http transaction. • Security: Jar files can be signed digitally. Users who recognize the signature can optionally grant permission to run the file or refuse. • Package sealing: Sealing a package within the jar file means that all classes defined in that package are found in the same jar file.

  4. Flow Chart • Create a manifest.mf file • Create a jar file • Basic jar commands • JAR subdirectories • Execute the jar file • Common mistakes • Bibliography

  5. How to create a jar file:Simple Method • The jar command a utility that comes with the JDK. • The format of the basic format of the jar command is: Jar cf jar-file input-files

  6. How to create a jar file • Take as an example the Java application made from the files • Foo.class • Foobar.class • To make a jar file use the command Jar cvf Foo.jar Foo.class Foobar.class • Note that each file is separated by a space

  7. How to create a jar file • The execution of this command creates the file: • Foo.jar

  8. Executing Jar Application • Jar applications can be run with the following basic command: • java -jar jar-file • So to run our Foo.jar if it was an application use: • java -jar Foo.jar

  9. Executing Jar Application • Many Operating systems such as the Mac OS will allow the execution of jar applications by simply double clicking on them.

  10. Executing Jar Applets • Applets are invoked from applet tags in HTML code. • To execute an Applet simply add the name of the jar file into the applet tag is under the archive parameter.

  11. Executing Jar Applets • For example, using the applet tag for your Foo.jar archive, you would use the following: <applet code=TicTacToe.class archive=”Foo.jar" width=120 height=120> </applet>

  12. Creating Jar Files:Advanced method • The more formal and complete way to create a jar file is described in the following slides. • Note that the more complex your process, the more difficulty a beginning Java user is going to have with it.

  13. Create manifest.mf • Create a new notepad file named manifest.mf. This file contains a signal line that points out the main class. Here is the signal line. Main-Class:<Space>name of main class <blank line> • Blank line must be included because some Windows OS versions need it. For example: myClass is my main Class. So manifest.mf is following. Main-Class: myClass <blank line is here>

  14. Jar file and Jar Commands • Next, create a jar file using the “jar” command in java. Here is the command. jar cvmf <the jar file name>.jar manifest.mf A.class B.class…….. There are spaces between each file and class name. • Here are the basic jar commands Create Jar file => jar cf jar-file input-file View Jar file => jar tf jar-file Extract Jar file => jar xf jar-file

  15. JAR Subdirectories • The JAR format also support storing files in a directory structure. Consider the following structure. • Note: CS 602 students have had a lot of difficulty getting files to work in sub-directories. If you have trouble, put all your files in your default Web directory.

  16. JAR Subdirectories

  17. JAR Subdirectories • If we want to keep the same structure, we can compress files by typing: jar cmf Sample.mf Sample.jar Sample.class Turtle.class Sample.java Turtle.java images

  18. JAR Subdirectories • The contents listing appears as: META-INF/ META-INF/MANIFEST.MF Sample.class Turtle.class Sample.java Turtle.java images/ images/image1.gif images/image2.gif images/image3.gif

  19. Executing the Jar File • There are two ways to execute jar files. • 1. If an OS can read *.jar as javaw.exe or java.exe, users can double click jar files on the window. Otherwise: • 2. In a command window, type in java –jar jar-file

  20. Common Mistakes • Forgetting to leave a blank line after the main class declaration in the manifest.mf. OS may return “Fail to load Main-Class manifest attribute” error in Windows machines. • Failing to compress all your files. You have to type in all the files you want to compress. Separate these files with a space.

  21. Bibliography • Xiaoping Jia, Object-Oriented Software Development Using Java, Addison Wesley, 2nd Edition, 2003. • Packaging Programs in JAR Files, and Running JAR-Packaged Softwarehttp://java.sun.com/docs/books/tutorial/deployment/jar/index.html
