Advanced Control Strategies for Hydraulic and Electronic Fuel Injection Systems

This document explores the intricate functionalities of hydraulic and electronic systems in fuel injection applications. It details the operational phases such as Logic Pulse Drive, Valve Control, and Injector Closing Dynamics, ensuring an optimized fuel injection process. Key elements covered include operational angles, lift mechanisms, and the integration of delays for improved control. Special attention is given to the parameters influencing optimal performance, including current adjustments, spill valve dynamics, and pressure settings during the injection process.

conan-keith
Télécharger la présentation

Advanced Control Strategies for Hydraulic and Electronic Fuel Injection Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

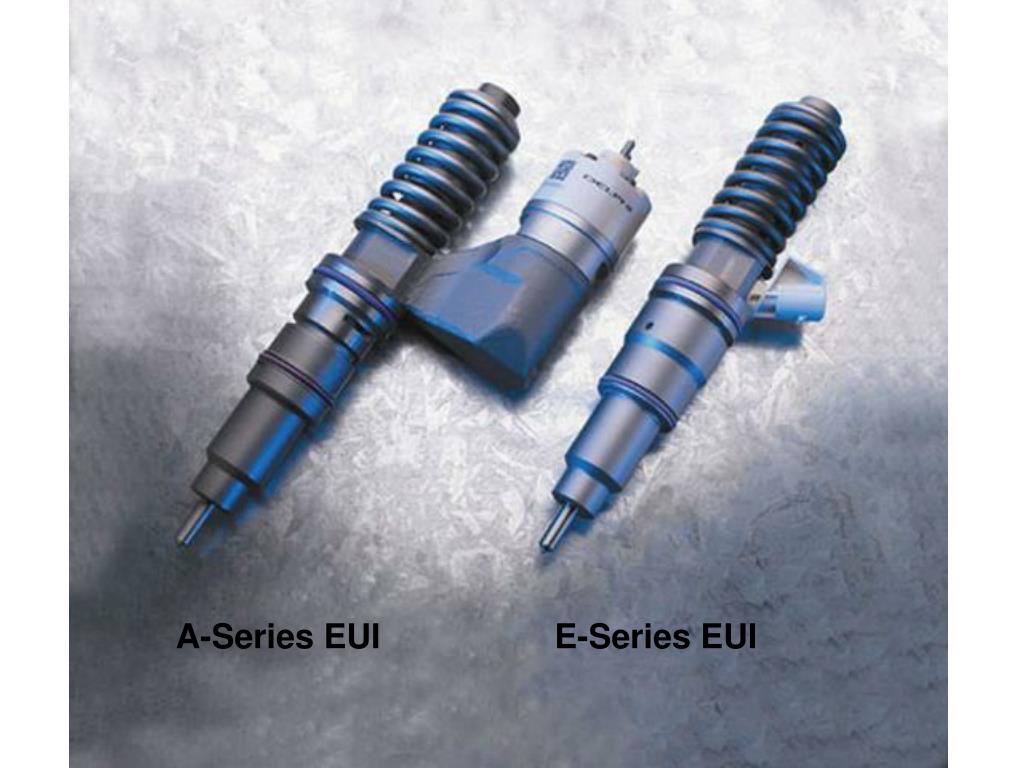

  1. A-Series EUI E-Series EUI

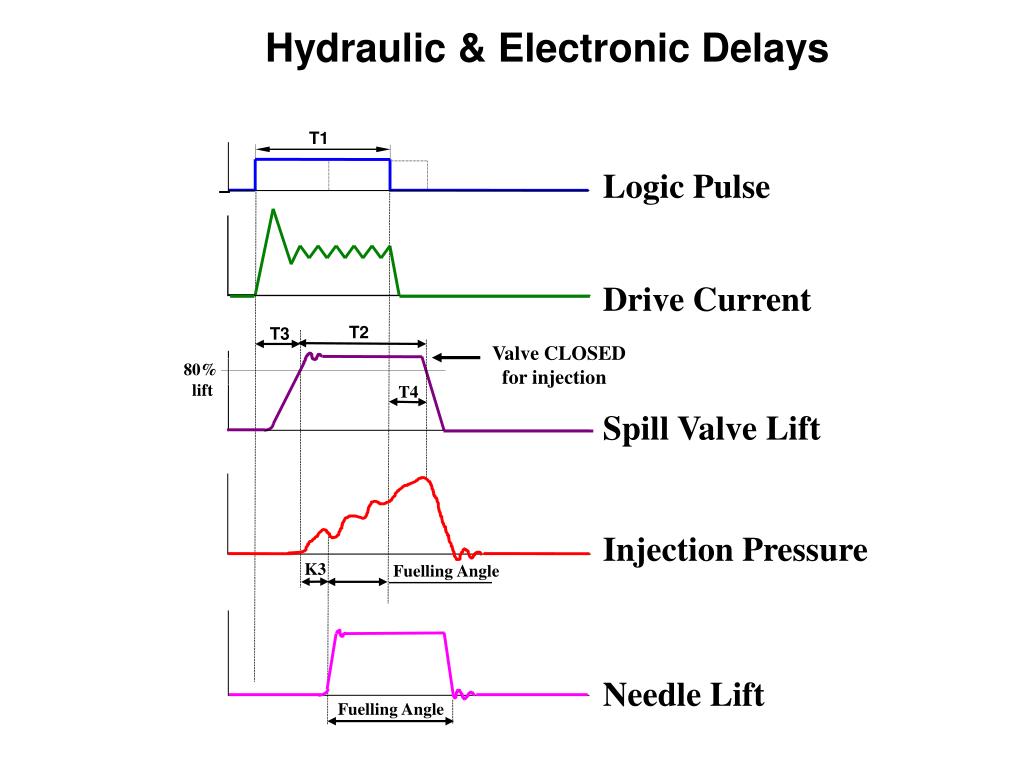

  2. T1 Logic Pulse Drive Current T2 T3 Valve CLOSED for injection 80% lift T4 Spill Valve Lift Injection Pressure K3 Fuelling Angle Needle Lift Fuelling Angle Hydraulic & Electronic Delays
