  1. Cooperative regenerating codes for distributed storage systems Kenneth Shum (Joint work with YuchongHu) 22nd July 2011

  2. Multiple node failures • Large-scale storage system • Google data center, example from Kannan’s talk. • 800000 servers, fail rate = 4% per year • Repair in 2 days • Mean number of failed servers in 2 days = 175. • The lazy-repair policy in TotalRecall • A repair process is triggered only after the number of failed nodes has reached a certain threshold. kshum

  3. Jointly repair multiple failures Storage nodes Newcomers Data exchange Can we further reduce therepair-bandwidth? Hu et al. (JSAC, Feb 2010) kshum

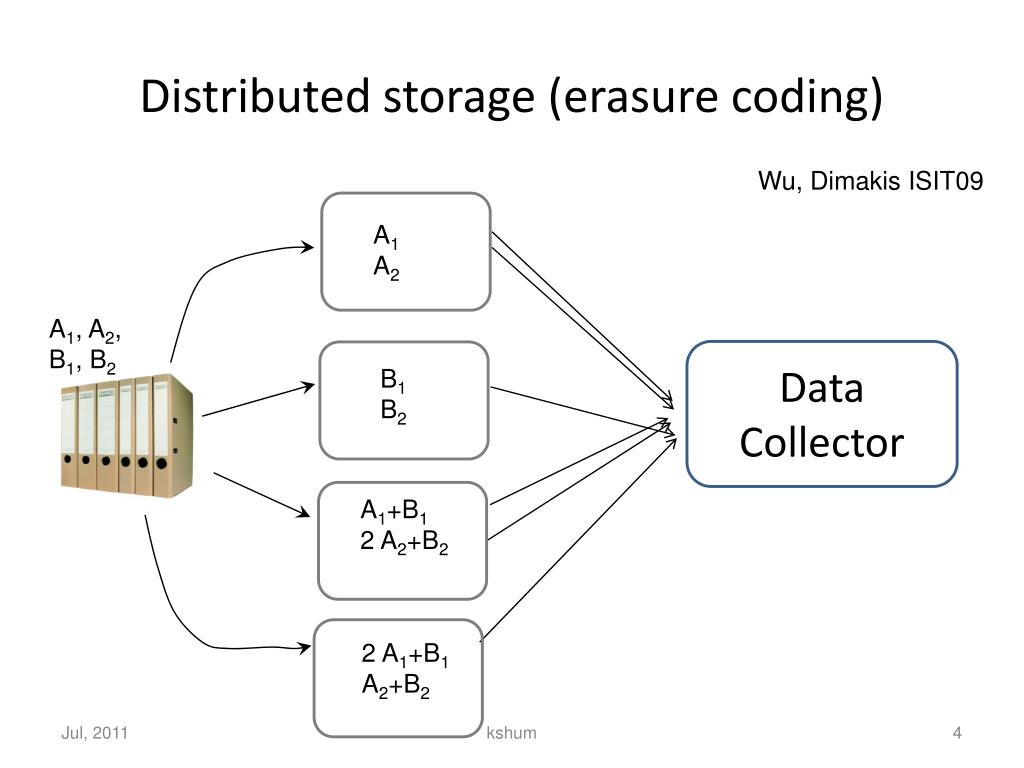

  4. Distributed storage (erasure coding) Wu, Dimakis ISIT09 A1 A2 A1, A2, B1, B2 Data Collector B1 B2 A1+B1 2 A2+B2 2 A1+B1 A2+B2 kshum

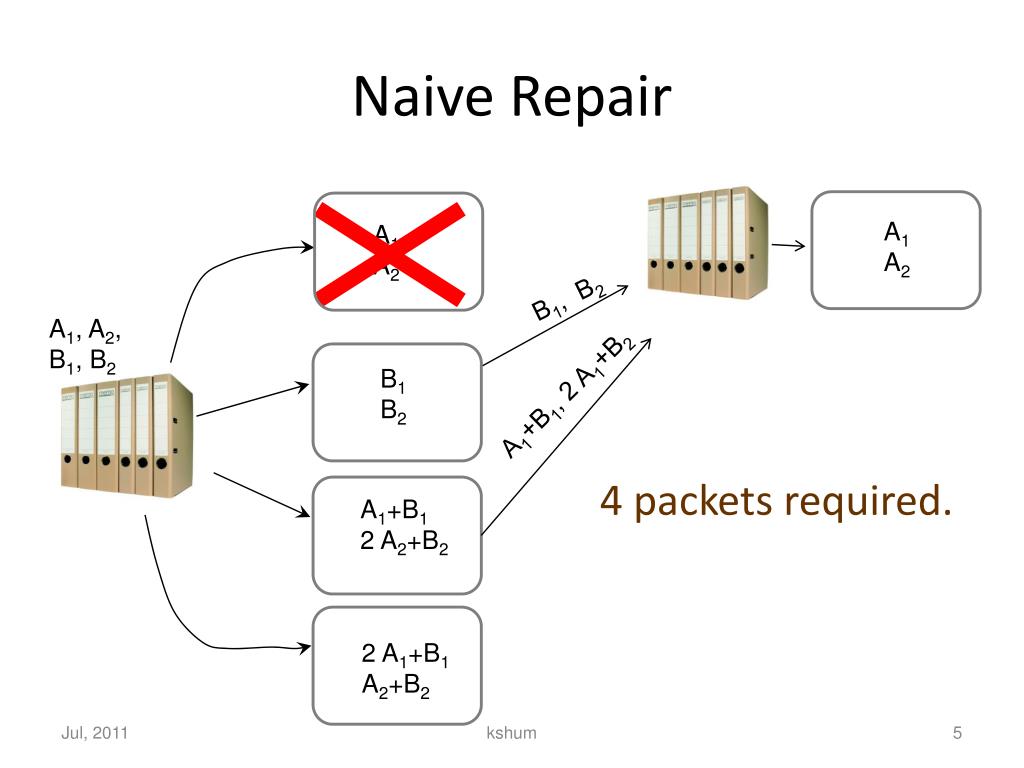

  5. Naive Repair A1 A2 A1 A2 B1, B2 A1, A2, B1, B2 B1 B2 A1+B1, 2 A1+B2 4 packets required. A1+B1 2 A2+B2 2 A1+B1 A2+B2 kshum

  6. Repair with ``code alignment’’ A1 A2 A1 A2 B1+ B2 A1, A2, B1, B2 B1 B2 A1+2 A2+B1+ B2 2 A1+ A2+B1+ B2 3 packets required. A1+B1 2 A2+B2 Solve: P1 = A1+2 A2 P2 = 2 A1+ A2 2 A1+B1 A2+B2 kshum

  7. 2 packets B1 B2 2 packets 2 packets 2 A1+B1 A2+B2 2 packets Multiple failures, separate repair 8 packets in total 4 packets per newcomer A1 A2 A1, A2, B1, B2 B1 B2 A1+B1 2 A2+B2 2 A1+B1 A2+B2 kshum

  8. Multiple failures, cooperative repair (I) 6 packets in total 3 packets per newcomer A1 A2 2 A1+B1 A2+B2 A1, A2, B1, B2 B1 B2 B1 B2 A1, A2 A1+B1 2 A2+B2 B1,B2 2A2+B2A1+B1 2 A1+B1 A2+B2 kshum

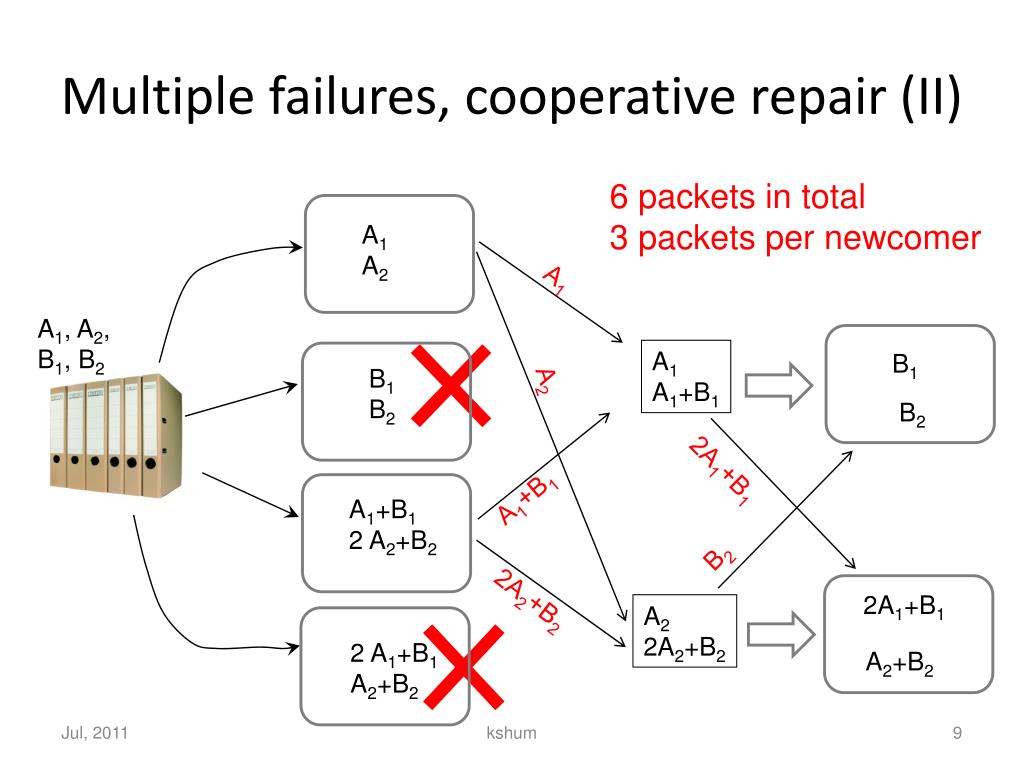

  9. A1 A1 A1+B1 A2 A1+B1 2A2+B2 A2 2A2+B2 Multiple failures, cooperative repair (II) 6 packets in total 3 packets per newcomer A1 A2 A1, A2, B1, B2 B1 B1 B2 B2 2A1+B1 A1+B1 2 A2+B2 B2 2A1+B1 2 A1+B1 A2+B2 A2+B2 kshum

  10. Outline of the talk • Is it optimal in terms of repair-bandwidth? • What is the tradeoff between storage and repair-bandwidth for cooperative repair? • Can we achieve the Pareto-optimal operating points on the tradeoff curve by linear network coding? • Exact repair • Functional repair kshum

  11. Information flow graph    In1 Out1 Out6 In6 Mid6 2   In2 Out2 1 2   Out7 In7 Mid7 1   1  S In3 Out3 1  DataCollector   1 In4 Out4  1   In5 Out5 kshum

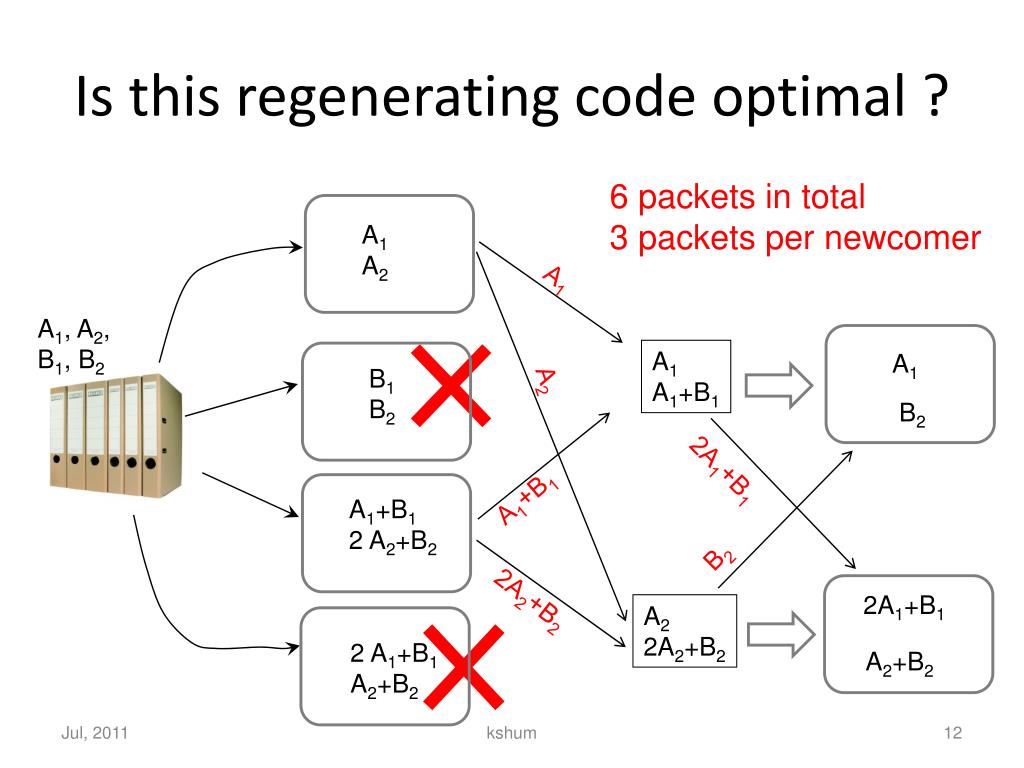

  12. A1 A1 A1+B1 A2 A1+B1 2A2+B2 A2 2A2+B2 Is this regenerating code optimal ? 6 packets in total 3 packets per newcomer A1 A2 A1, A2, B1, B2 A1 B1 B2 B2 2A1+B1 A1+B1 2 A2+B2 B2 2A1+B1 2 A1+B1 A2+B2 A2+B2 kshum

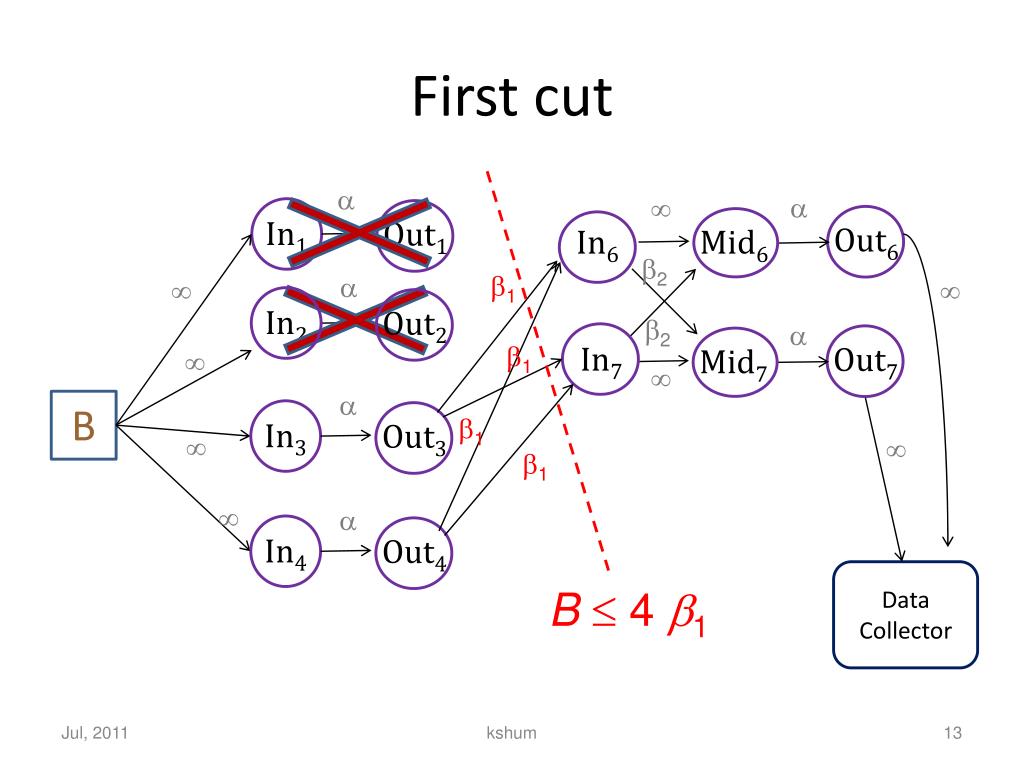

  13. First cut     In1 Out1 Out6 In6 Mid6 2 1   In2 Out2 2   In7 Out7 1 Mid7    B 1 In3 Out3  1 DataCollector   In4 Out4 B 4 1 kshum

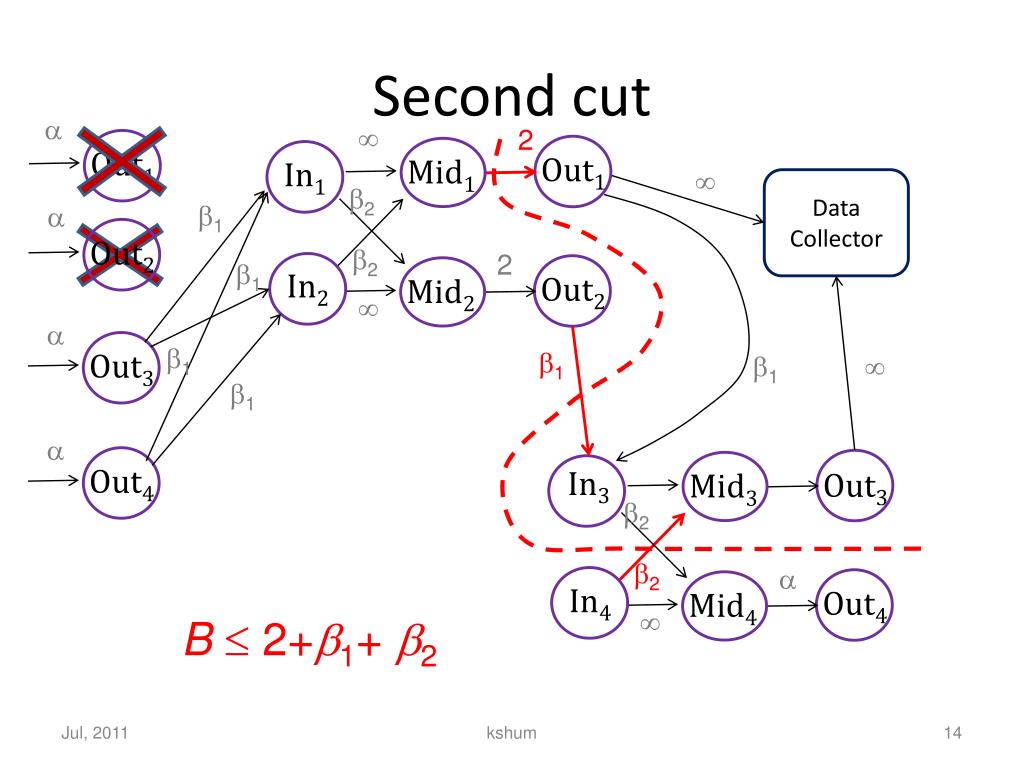

  14. Second cut   2 Out1 Out1 Mid1 In1  DataCollector 2 1  Out2 2 2 1 In2 Out2 Mid2   1 Out3 1 1  1  Out4 In3 Out3 Mid3 2 2  In4 Out4 Mid4  B 2+1+ 2 kshum

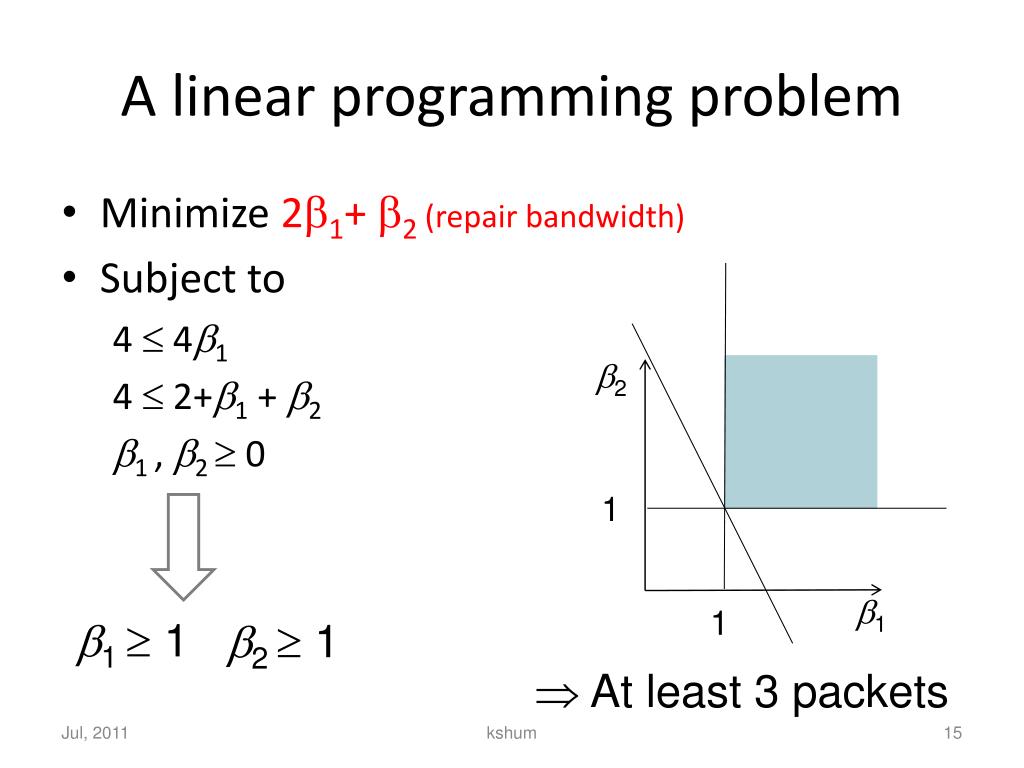

  15. A linear programming problem • Minimize 21+ 2 (repair bandwidth) • Subject to 4  41 4  2+1 + 2 1 , 2  0 2 1 1 1 1  1 2  1  At least 3 packets kshum

  16. Non-homogeneous download traffic     In1 Out1 Out6 In6 Mid6 2 a   In2 Out2 2   In7 Out7 b Mid7    B c In3 Out3  d DataCollector   In4 Out4 B a +b +c +d kshum

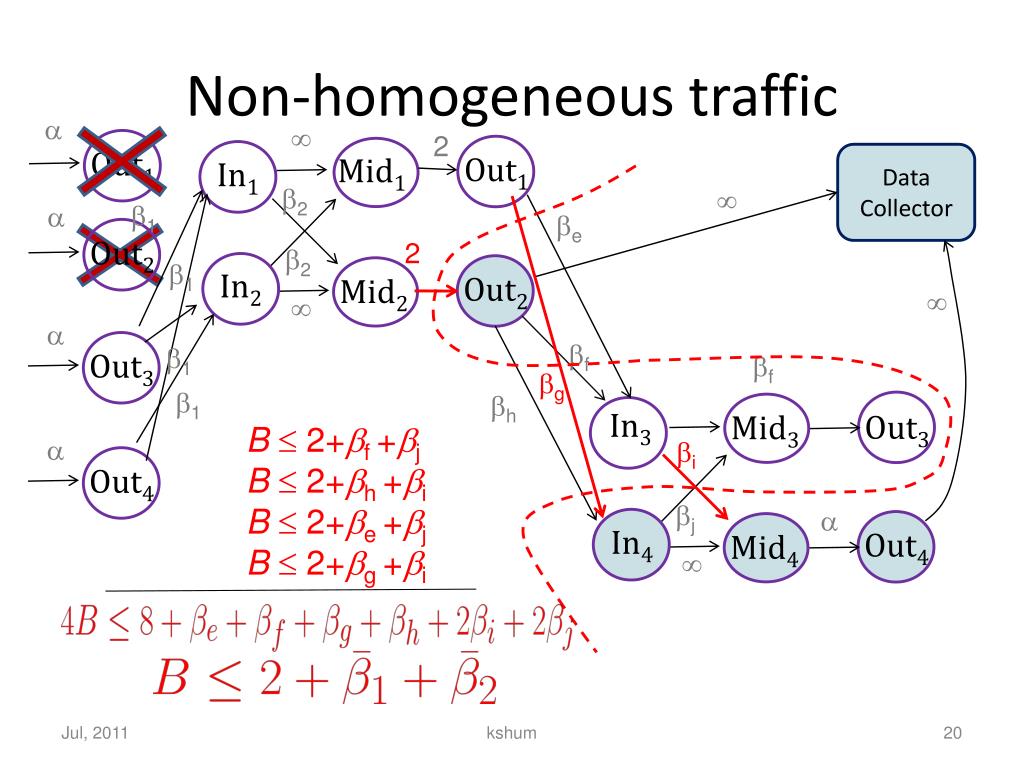

  17. Non-homogeneous traffic   2 Out1 Out1  Mid1 DataCollector In1 2 1  e Out2 2 2 1 In2 Out2 Mid2   f 1 Out3 f  g 1 h In3 Out3 Mid3 B 2+f +j  i Out4 j  In4 Out4 Mid4  kshum

  18. Non-homogeneous traffic   2 Out1  Out1 Mid1 DataCollector In1 2 1  e Out2 2 2 1 In2 Out2 Mid2    f 1 Out3 f g 1 h In3 Out3 Mid3 B 2+f +j B 2+h +i  i Out4 j  In4 Out4 Mid4  kshum

  19. Non-homogeneous traffic   2 Out1 Out1 Mid1 DataCollector In1  2 1  e Out2 2 2 1 In2 Out2 Mid2   f 1 Out3 f  g 1 h In3 Out3 Mid3 B 2+f +j B 2+h +iB 2+e +j  i Out4 j  In4 Out4 Mid4  kshum

  20. Non-homogeneous traffic   2 Out1 Out1 Mid1 DataCollector In1 2  1  e Out2 2 2 1 In2 Out2 Mid2    f 1 Out3 f g 1 h In3 Out3 Mid3 B 2+f +j B 2+h +iB 2+e +j B 2+g +i  i Out4 j  In4 Out4 Mid4  kshum

  21. The same LP problem • Minimize • Subject to 1 1  At least 3 packets kshum

  22. TRADEOFF BETWEENSTORAGE AND REPAIR-BANDWIDTH kshum

  23. Storage vs Repair-bandwidth (S., ICC 2011, Kermarrec, Le Scouamec and Straub, Netcod 2011.) File size = 420d = 8 k = 4 One-by-one repair Repairing 3 newcomers jointly d k  DC kshum

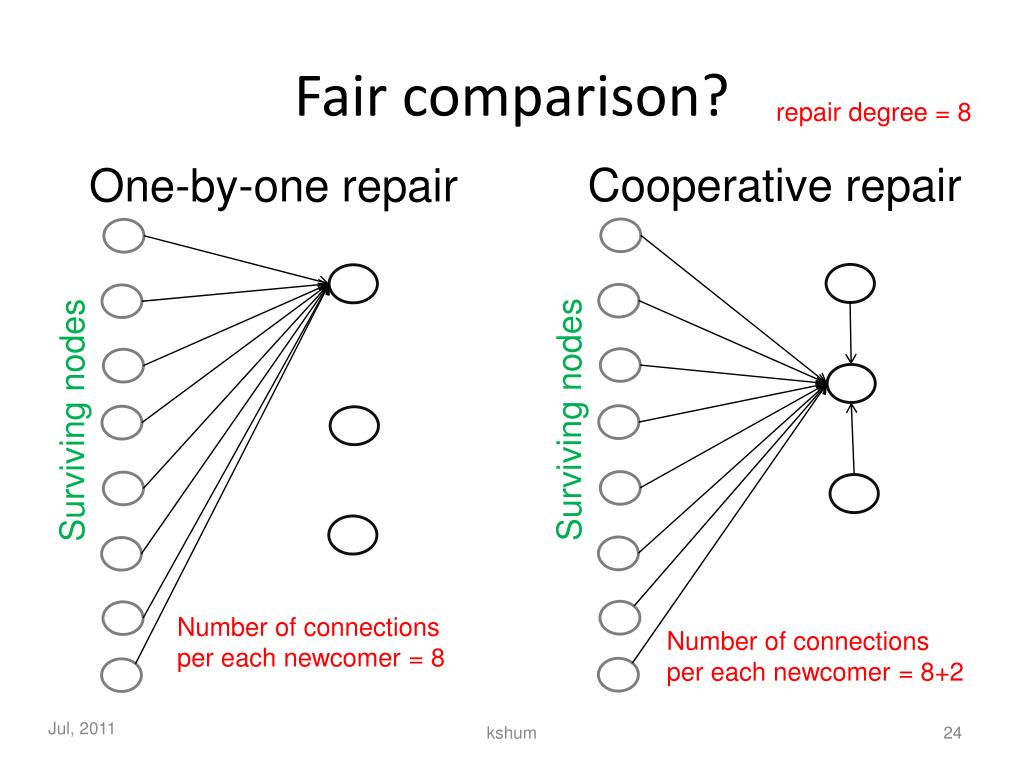

  24. Fair comparison? repair degree = 8 Cooperative repair One-by-one repair Surviving nodes Surviving nodes Number of connectionsper each newcomer = 8 Number of connectionsper each newcomer = 8+2 kshum

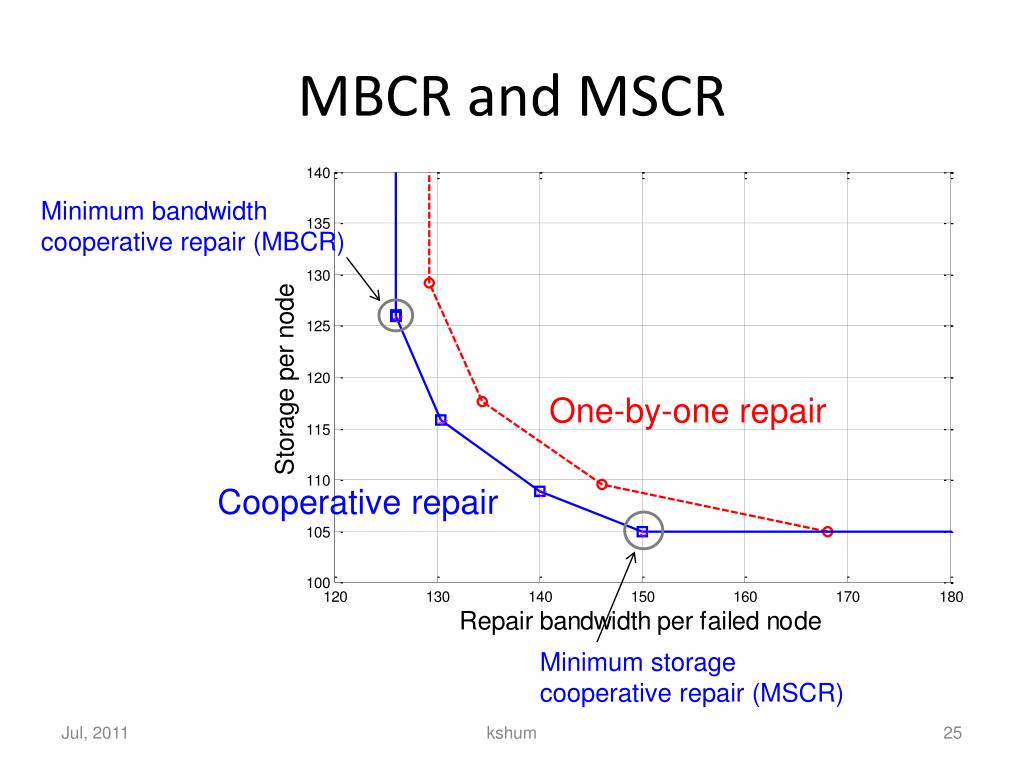

  25. MBCR and MSCR Minimum bandwidthcooperative repair (MBCR) One-by-one repair Cooperative repair Minimum storagecooperative repair (MSCR) kshum

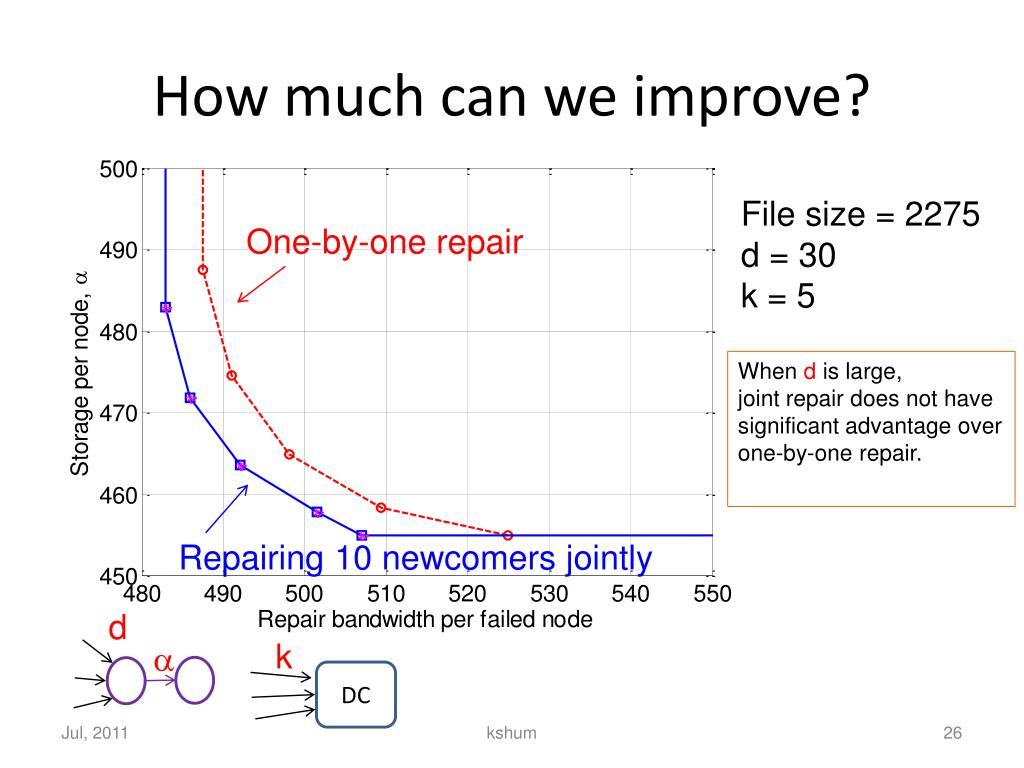

  26. How much can we improve? File size = 2275 d = 30 k = 5 One-by-one repair When d is large, joint repair does not have significant advantage over one-by-one repair. Repairing 10 newcomers jointly d k  DC kshum

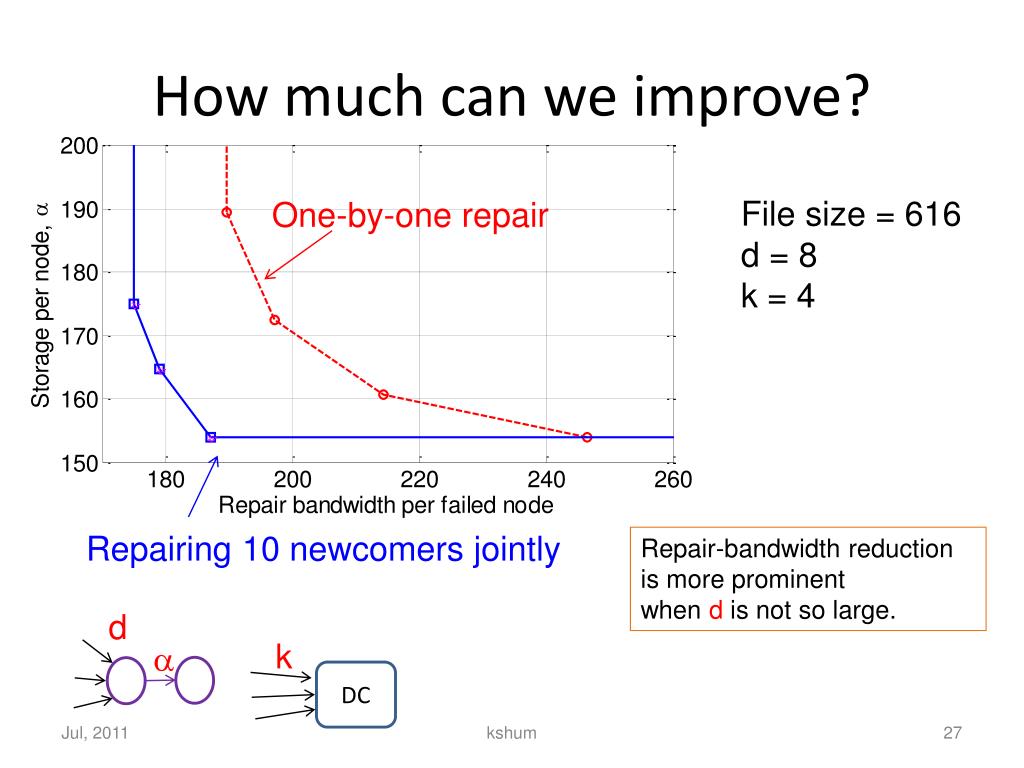

  27. How much can we improve? File size = 616 d = 8 k = 4 One-by-one repair Repairing 10 newcomers jointly Repair-bandwidth reductionis more prominent when d is not so large. d k  DC kshum

  28. AN EXPLICIT CONSTRUCTION FOR MINIMUM-BANDWIDTHCOOPERATIVE REPAIR kshum

  29. An explicit construction for MBCR (S., Hu, ISIT 2011.) Require d = k, r = n–d • B = 8 information packets • n = 4 nodes • Each node stores 5 packets. • Repair r = 2 failures simultaneously • No. of connections for each DC = k=2 • No. of helpers for each failed node =d=2 • Minimum repair-bandwidth • Storage per node kshum

  30. Min-Bandwidth point One-by-one repair Repairing 2 new nodes cooperatively kshum

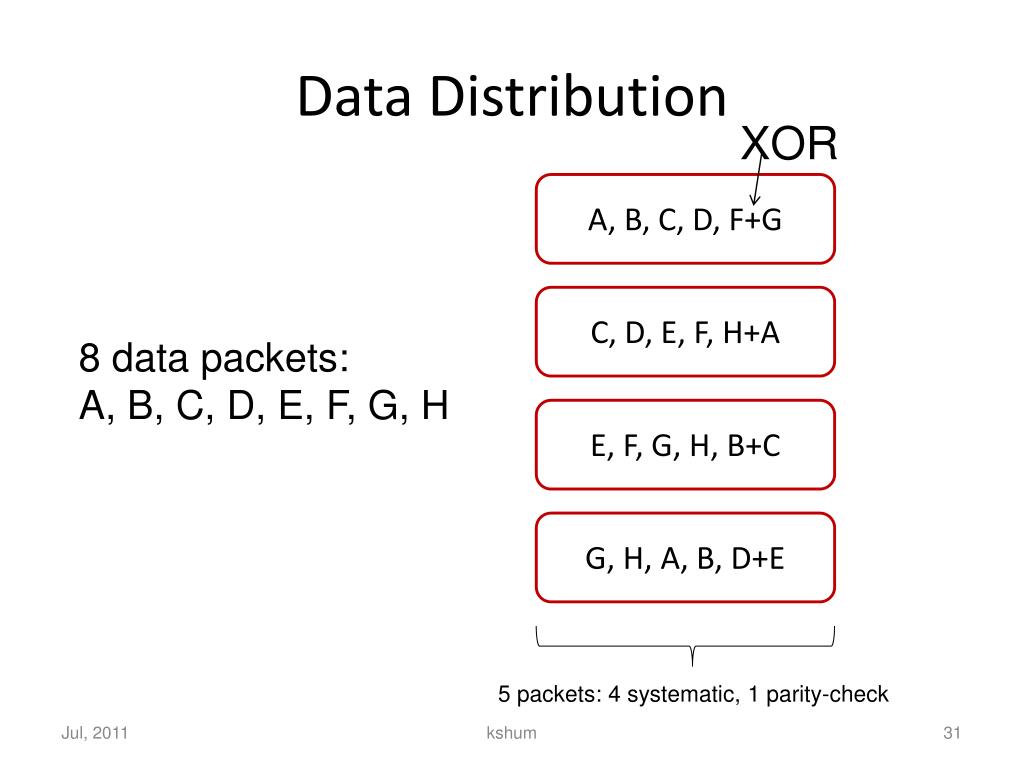

  31. Data Distribution XOR A, B, C, D, F+G C, D, E, F, H+A 8 data packets: A, B, C, D, E, F, G, H E, F, G, H, B+C G, H, A, B, D+E 5 packets: 4 systematic, 1 parity-check kshum

  32. Data collection A, B, C, D, F+G A, B, C, D C, D, E, F, H+A Data collector E, F, G, H, B+C E, F, G, H A,B,C,D,E,F,G,H G, H, A, B, D+E kshum

  33. Data collection Data collector A, B, C, D, F+G A, B, C, F+G C, D, E, F, H+A D, E, F, H+A A B C D E F G H A B E, F, G, H, B+C C D Triangular, Full-rank E G, H, A, B, D+E F F+G H+A kshum

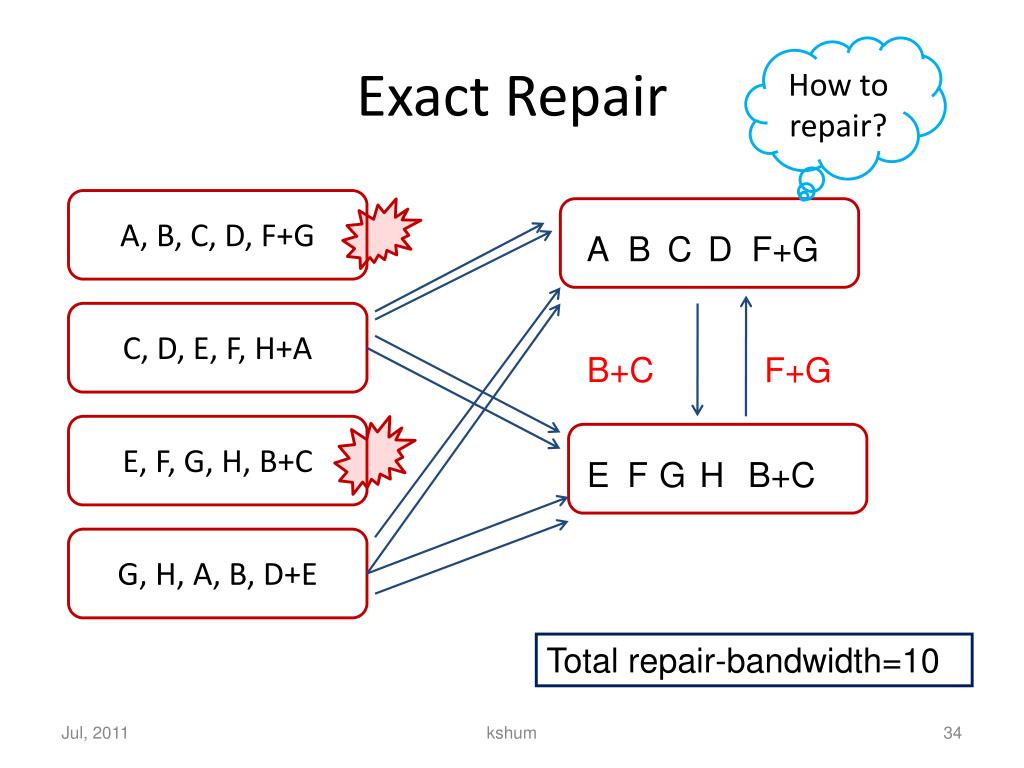

  34. Exact Repair How to repair? A, B, C, D, F+G A B C D F+G C, D, E, F, H+A B+C F+G E, F, G, H, B+C E F G H B+C G, H, A, B, D+E Total repair-bandwidth=10 kshum

  35. How to repair? Exact Repair A, B, C, D, F+G C, D, E, F, H+A C D E F H+A D+E E E F E, F, G, H, B+C F+G F G E F H B+C G, H, A, B, D+E Total repair-bandwidth=10 kshum

  36. Min-Bandwidth point One-by-one repair Repairing 2 new nodes cooperatively kshum

  37. AN EXPLICIT CONSTRUCTION FOR MINIMUM-STORAGE COOPERATIVE REPAIR kshum

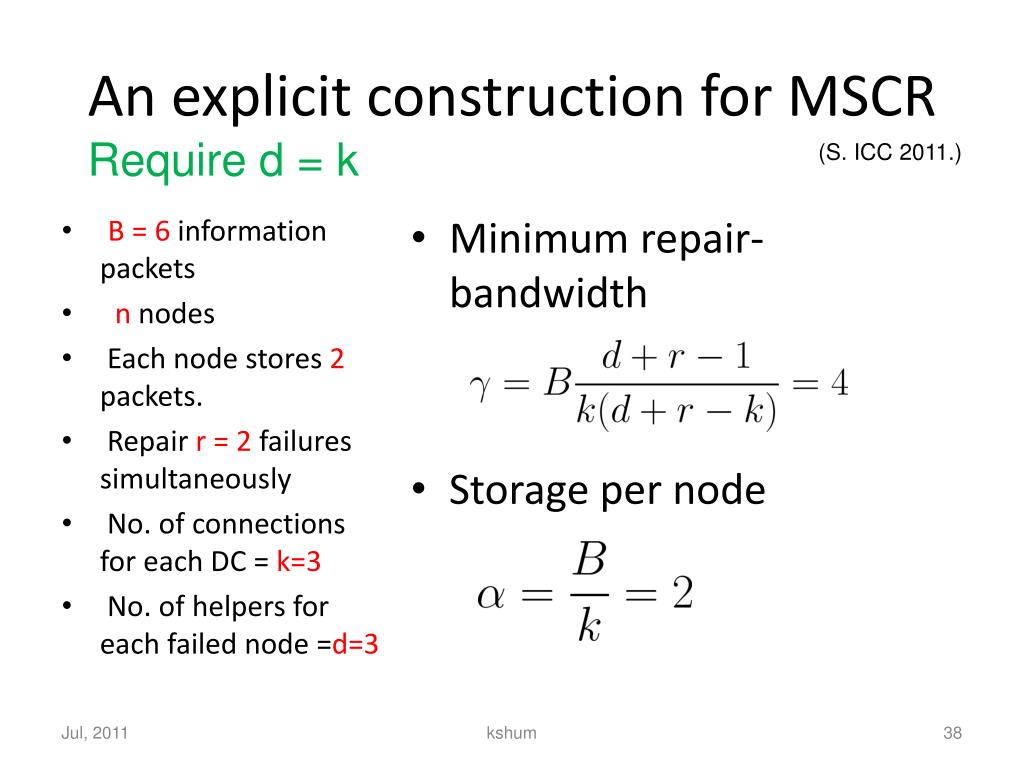

  38. An explicit construction for MSCR Require d = k (S. ICC 2011.) • Minimum repair-bandwidth • Storage per node • B = 6 information packets • n nodes • Each node stores 2 packets. • Repair r = 2 failures simultaneously • No. of connections for each DC = k=3 • No. of helpers for each failed node =d=3 kshum

  39. The min-storage point 3  3 DC Non-cooperative k=3,d=3, r =2,B=6 storage cost per node = 2repair bandwidth per node = 4 Cooperative kshum

  40. Data retrieval MDS code with dimension k=3 Source data codeword encode codeword =2 …… Storage nodes Data collector decode kshum

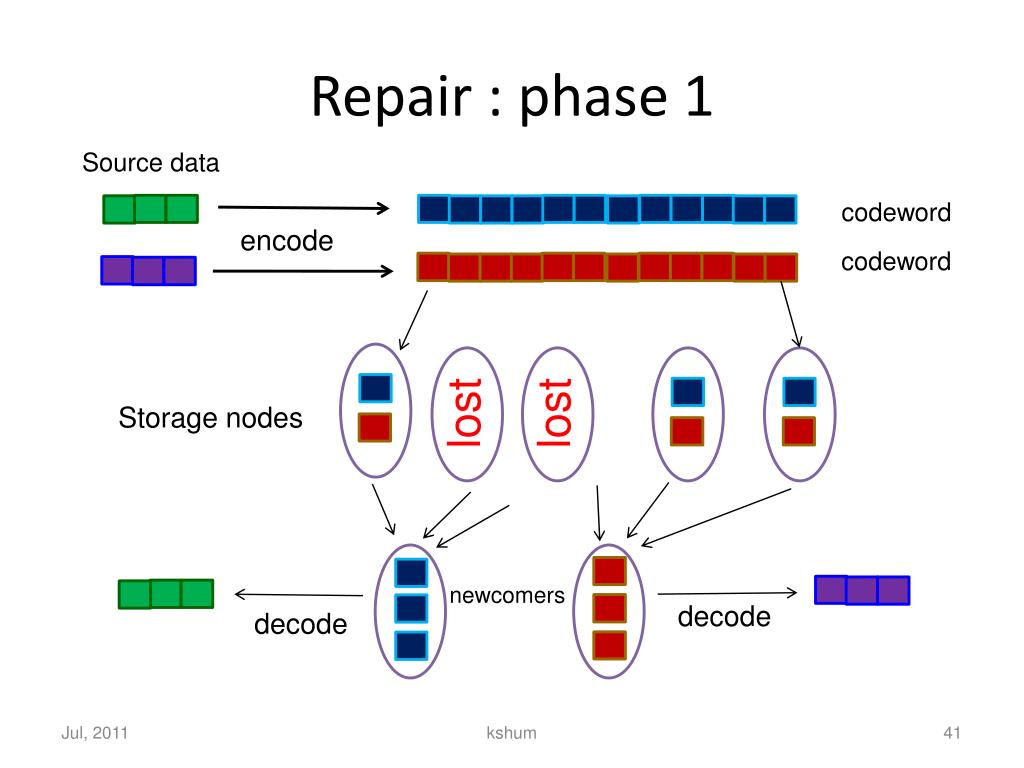

  41. Repair : phase 1 Source data codeword encode codeword lost lost Storage nodes newcomers decode decode kshum

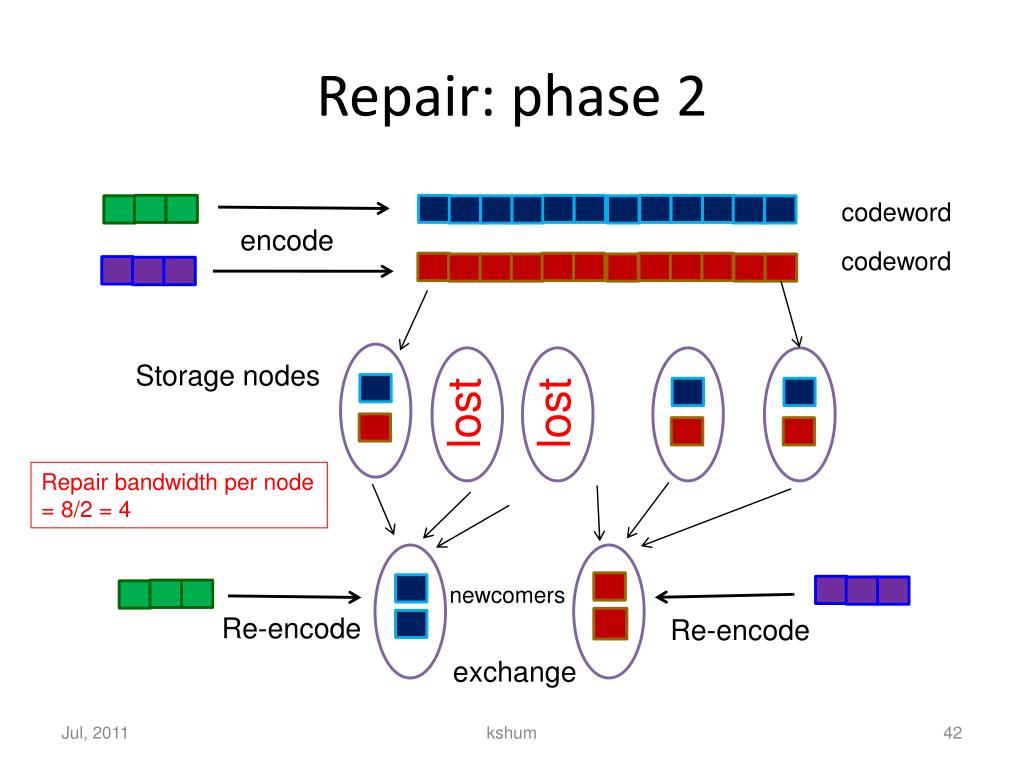

  42. Repair: phase 2 codeword encode codeword Storage nodes lost lost Repair bandwidth per node= 8/2 = 4 newcomers Re-encode Re-encode exchange kshum

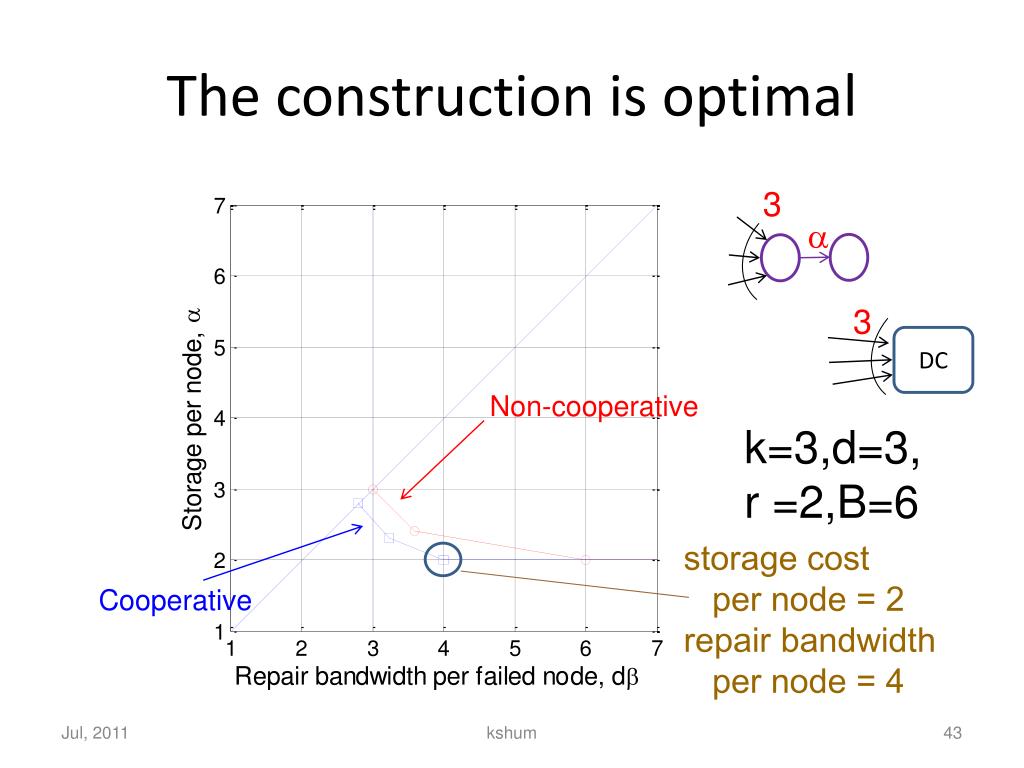

  43. The construction is optimal 3  3 DC Non-cooperative k=3,d=3, r =2,B=6 storage cost per node = 2repair bandwidth per node = 4 Cooperative kshum

  44. EXISTENCE OF COOPERATIVE REGENERATING CODES UNDER FUNCTIONAL REPAIR kshum

  45. Existence of optimal linear regenerating codes in general (S., Hu, Netcod 2011.) • Sustainable storage system • Will it work after arbitrarily many repairs? • Technical difficulty: The information flow graph is unbounded. • Can we work over a fixed finite field, for unlimited number of regenerations? • Yes if we can construct an exact regenerating code. • The answer is also “yes” for cooperative functional repair in general. kshum

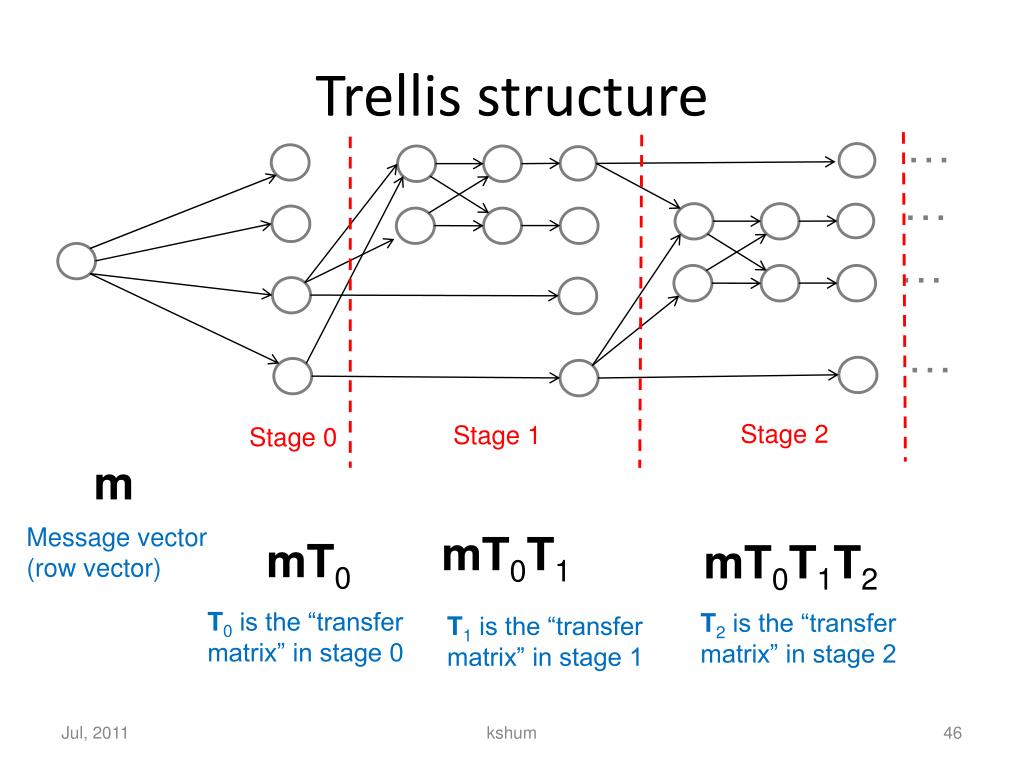

  46. Trellis structure … … … … Stage 2 Stage 1 Stage 0 mT0T1 mT0 T0 is the “transfer matrix” in stage 0 m T1 is the “transfer matrix” in stage 1 mT0T1T2 Message vector(row vector) T2 is the “transfer matrix” in stage 2 kshum

  47. Flow in information flow graph  4 5 5  In1 Mid1 Out1 DC Out1 0 1 5 2 2 1 1 1 2 3 5 0 5 2 In2 Out2 Mid2 Out2 S 4   2 2 4 5 2 3 2 2 4 2  5 In3 Out3 Mid3 Out3 Out3 2 1 1 0 5 4 2 2 1 1 The cut-set bound says that the cut capacity is at least 8. Can we constructa flow with value 8? 5 In4 Out4 Mid4 Out4 Out4  kshum

  48. Cross-sectional flow pattern  5 4 0 5 4 In1 Mid1 Out1 DC Out1 0 1 5 2 2 1 1 1 2 4 3 5 0 0 5 2 3 In2 Out2 Mid2 Out2 S 4   2 2 4 5 3 2 2 2 4 2  0 4 0 In1 Out3 Mid1 Out1 Out3 2 1 1 0 5 4 2 2 1 1 0 4 0 5 In2 Out4 Mid2 Out2 Out4  kshum

  49. A recursive construction of flow Stage s Stage s+1 Identify a set of cross-section flow pattern, say H. For any cross-section flow pattern (h1, h2, h3, h4) in H stage s+1, we can find a flow in this segment of graph, such that (g1, g2, g3, g4) is also in H. Each pattern corresponds to a submatrix of the transfer matrix. By Schwartz-Zippel lemma, we can find the local encoding vectors so that all such determinants are non-zero, if the finite field is sufficiently large. g1 h1 In1 Mid1 Out1 g2 h2 In2 Mid2 Out2 h3 g3 Out3 Out3 h4 g4 Out4 Out4 kshum

  50. Summary • Multiple node failures in medium-scale to large-scale storage system • Formulation as a linear program • Functional repair: Linear regenerating code over fixed finite field which matches the cut-set bound on repair-bandwidth exists. • Exact repair: two families of explicit code constructions • Minimum-bandwidth point: d=k, r = n – d • Minimum-storage point: d=k, r arbitrary kshum
