Presentation Transcript

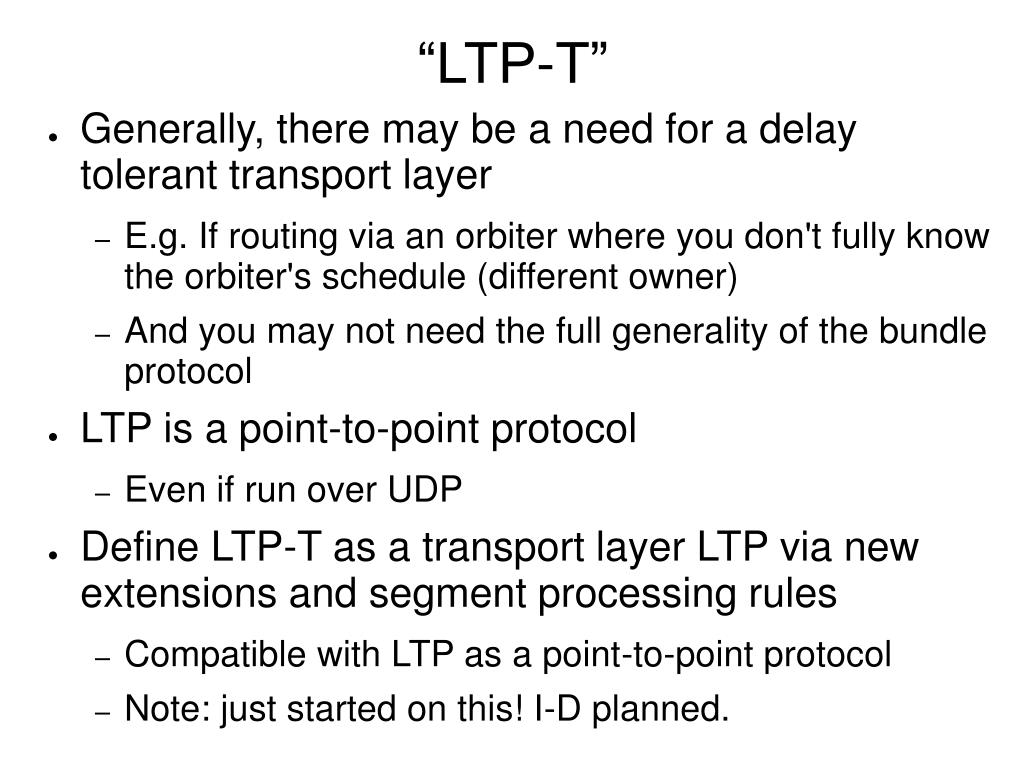

  1. “LTP-T” • Generally, there may be a need for a delay tolerant transport layer • E.g. If routing via an orbiter where you don't fully know the orbiter's schedule (different owner) • And you may not need the full generality of the bundle protocol • LTP is a point-to-point protocol • Even if run over UDP • Define LTP-T as a transport layer LTP via new extensions and segment processing rules • Compatible with LTP as a point-to-point protocol • Note: just started on this! I-D planned.

  2. New LTP-T extensions • Source address • Not needed in 1st hop • Destination address • Destination Port • Hop count • Estimated block size • Via • End-to-end authentication • Maybe later: end-to-end confidentiality • Congestion notification

  3. LTP-T changes cont'd • Reports/Errors • EORP/EOB handled hop-by-hop with each intermediary effectively taking custody of each red part • Some efficiency gains may be possible for some cases, e.g. where intermediary gets RS from next hop before contact opens with previous hop • Not sure if worthwhile, but will examine • Fragmentation (really re-segmenting) • May be needed if small MTU link • Only constraint is not to shorten red part • Can make it longer! • So: routing has to be per-block not per-segment

  4. LTP-T naming • Probably just use IP addresses for now • Others? • Bundle tuples, single-byte integers... • Not entirely sure destination port is worthwhile • If it is, why not source port? • No negotiation?

  5. LTP-T congestion control • Storage congestion can happen • But not bandwidth congestion, at least in deep space and over-provisioned terrestrial DTNs • Or... I hope so anyway! • Hop count and est. block size for this • If congested cancel inbound sessions • Start congestion (punctuated) timer on 1st outbound segment • Expiry: dump entire block • Never reset – better send block before expiry!

  6. LTP-T congestion control • Congestion notifications • Sequence of { host, remaining seconds congestion } • Scheme is to piggy back this information on other segments • No ECN for now! • Only useful information to be included • Nothing if no data expected to be routed that way • Can't know for certain but in many cases will • Nothing if notifier->recipient->congested LTT is more than expected congestion remaining

  7. LTP-T other stuff • Via extension • List of host/time • Done per-segment, not per-block • Modulo fragmentation • End-to-end authentication • Same syntax as hop-by-hop • Input bytes: • Source address, destination address, [port,] [est. block size,] data bytes • Initial segments of session must include new extensions • Have to work out failure modes if segment(s) lost

  8. Bundling Overlay network Lots of possibilities Could have sockets API (may yet??) Crypto auth Anti-DoS?? URI scheme based addressing LTP-T vs Bundling LTP-T • Transport layer • Fairly limited configs. • Sockets API • Crypto auth • Anti-DoS features • IP addressing OK

  9. LTP-T status • Haven't coded it up yet • Planned for next few months • Will write an I-D in parallel • RG may or may not adopt this as an “official” draft at that point
