  1. PDP Physics Nuclearfusion and Radioactivity Image: http://en.wikipedia.org/wiki/Exoplanet

  2. Generating electricity

  3. Electricity generation • wind • hydroelectric • coal • oil • natural gas • biofuel • solar power • geothermal • (nuclear)

  4. Electricity generation presentation • in a group of 2 or 3 • on google drive or prezi • about 3-4 minutes • Your presentation should answer the following: • How does it work? • What energy conversions are involved? • How efficient is it? • How much power does a typical plant produce? • How much power is generated in total in Sweden? • Where do the resources originate? • What are the benefits of this method of generating electricity? • What are the problems? How significant are they? • What is the future potential?

  5. Electricity bill in kWh http://www.dolceta.eu/sverige/Mod6/Elrakningen.html

  6. kiloWatthours are units of energy 1kWh = 1kW used for 1 hour Energy = power × time 1kWh ≈ 4MJ

  7. Comparing different energy uses Fluctuations  kWh per day kWh/d is a unit of power power = energy/time

  8. Energy density of a fuel energy density = energy released mass of fuel energy density in MJ/kg Uranium 79 500 000MJ/kg Coal 24MJ/kg

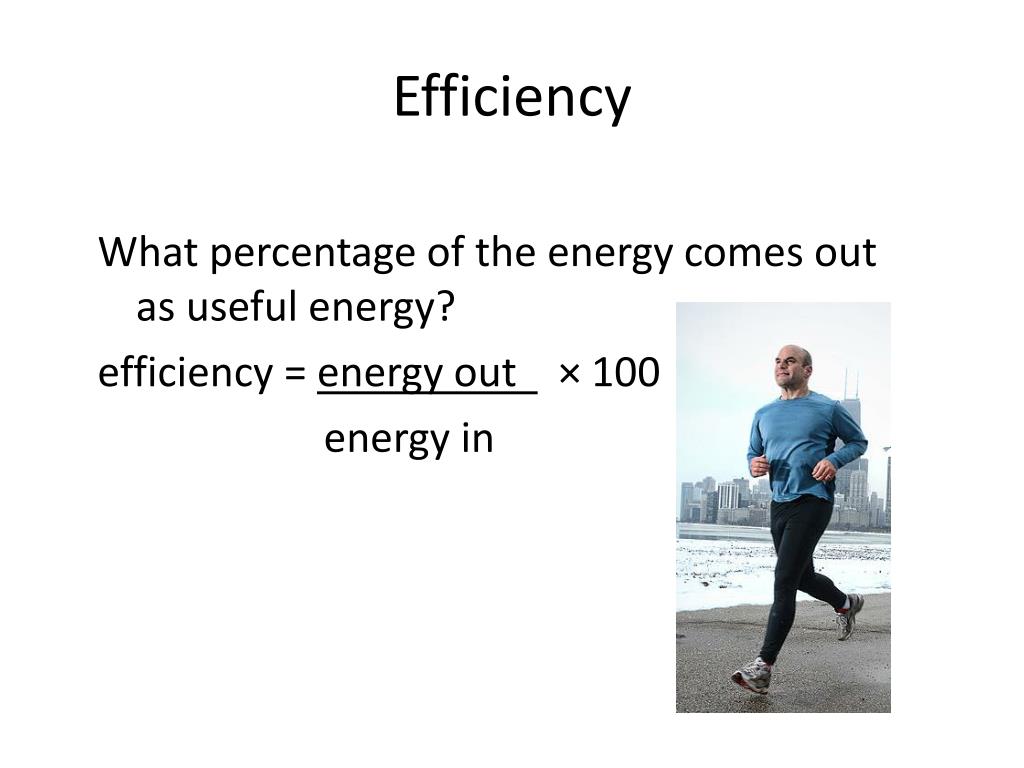

  9. Efficiency What percentage of the energy comes out as useful energy? efficiency = energy out × 100 energy in

  10. What is nuclear fusion?

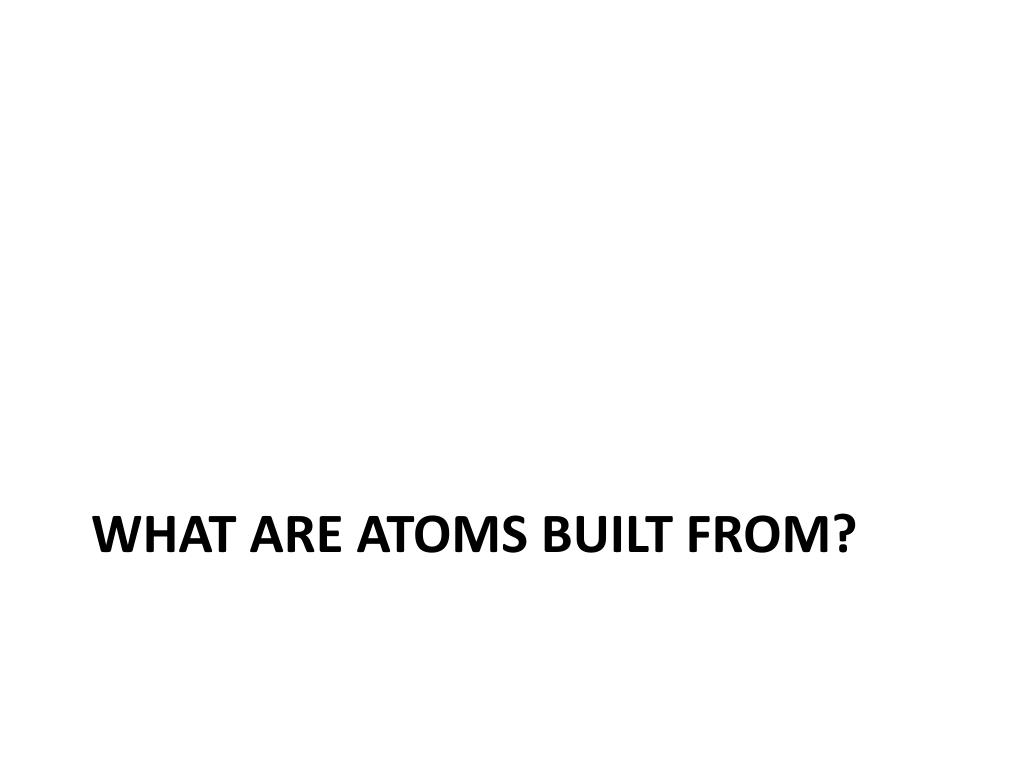

  11. What are atoms built from?

  12. Atoms • atomic number • mass number • relative atomic mass • electron shell • isotope • atomic mass unit, u • elementary charge, e • electronVolt, eV

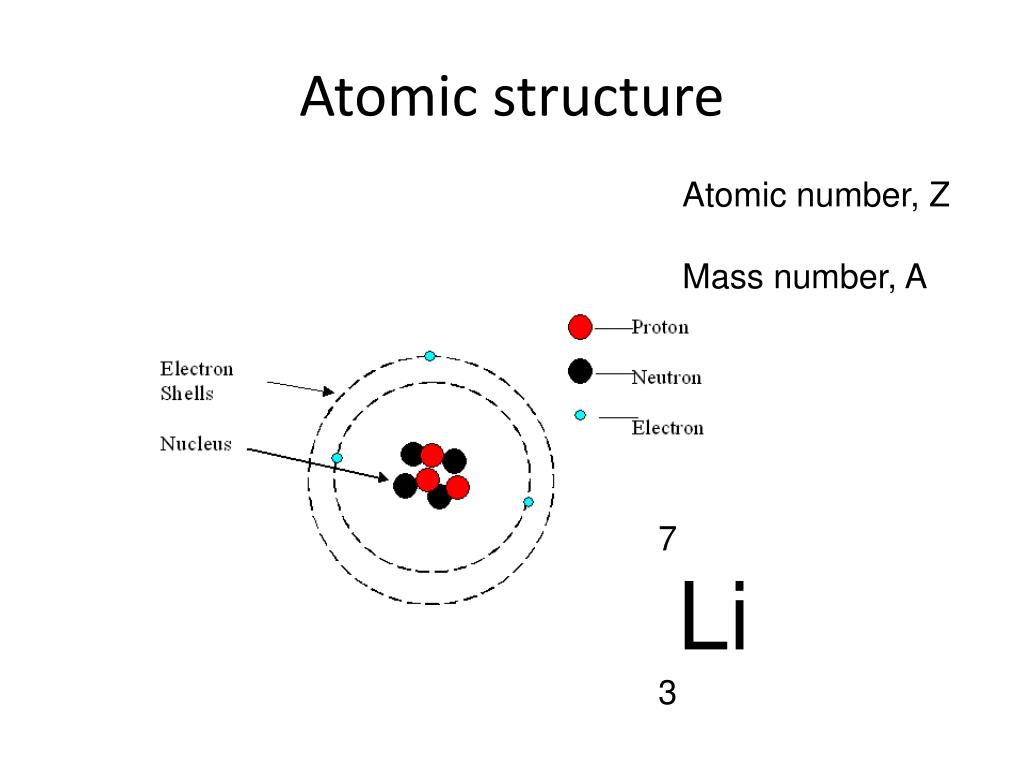

  13. Atomic structure Atomic number, Z Mass number, A 7 Li 3

  14. Atomic nucleus Strong nuclear force (protons and neutrons) Electrostatic force (protons and electrons)

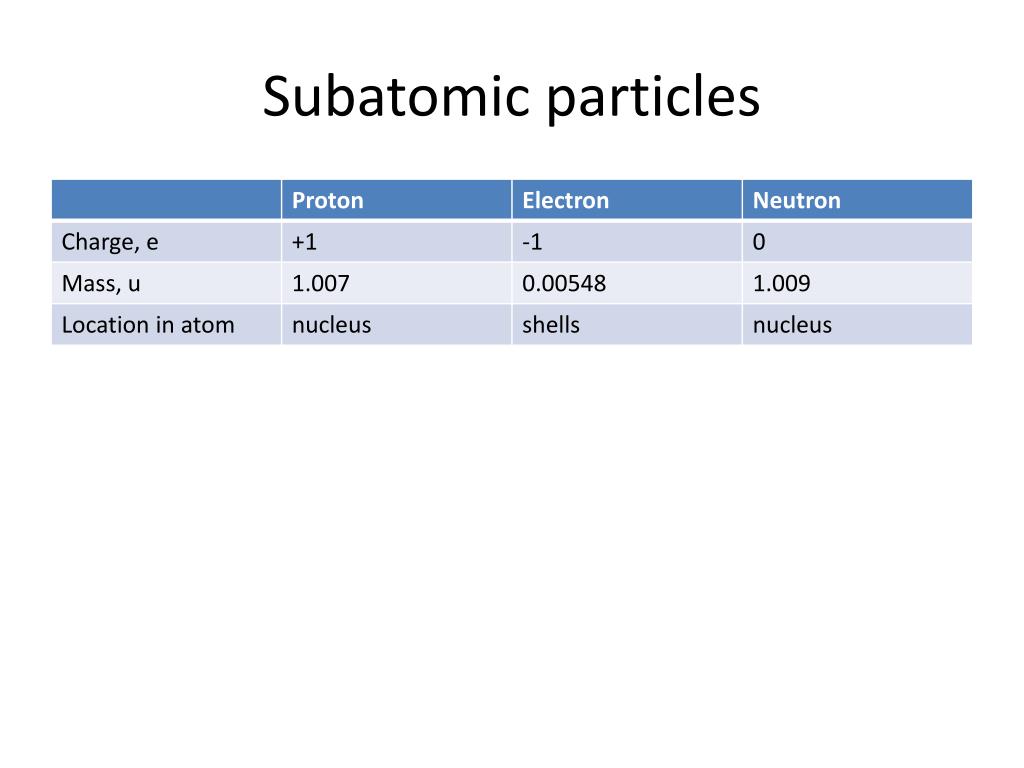

  15. Subatomic particles

  16. Elementary particles

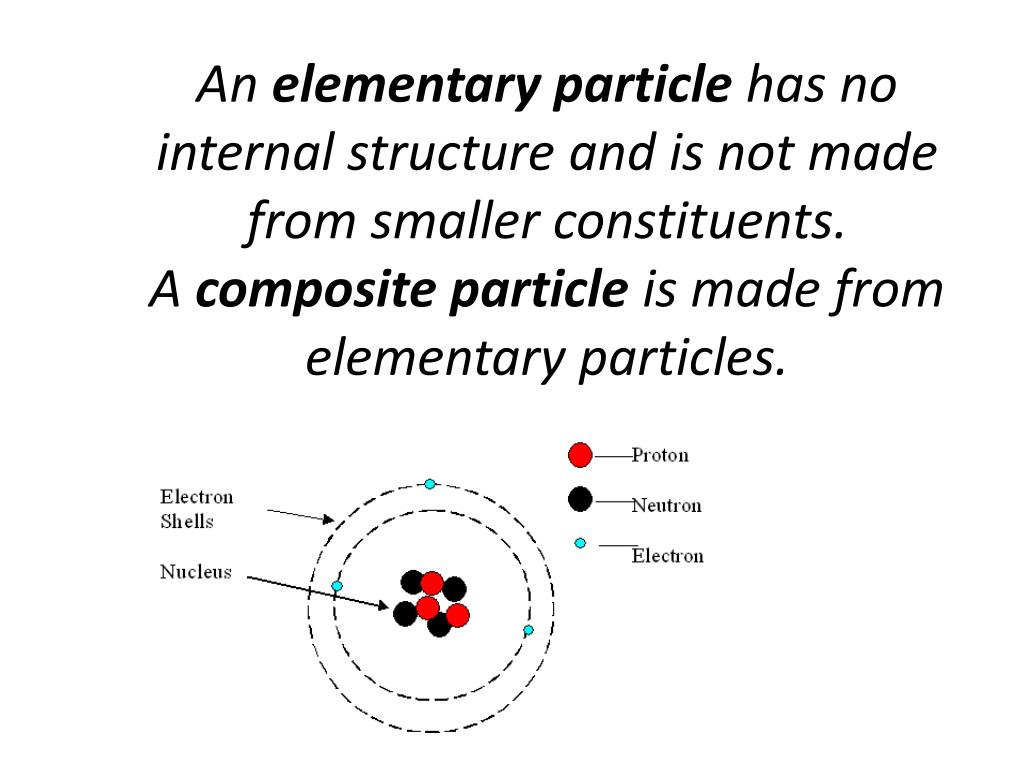

  17. An elementary particle has no internal structure and is not made from smaller constituents.A composite particle is made from elementary particles.

  18. Particles are made of particles A proton is built from 3 quarks

  19. composite: atom proton neutronelementary: electron quark neutrinocomposite: atom proton neutronelementary: electron quark neutrino proton

  20. Radioactivity

  21. Ionizing radiation

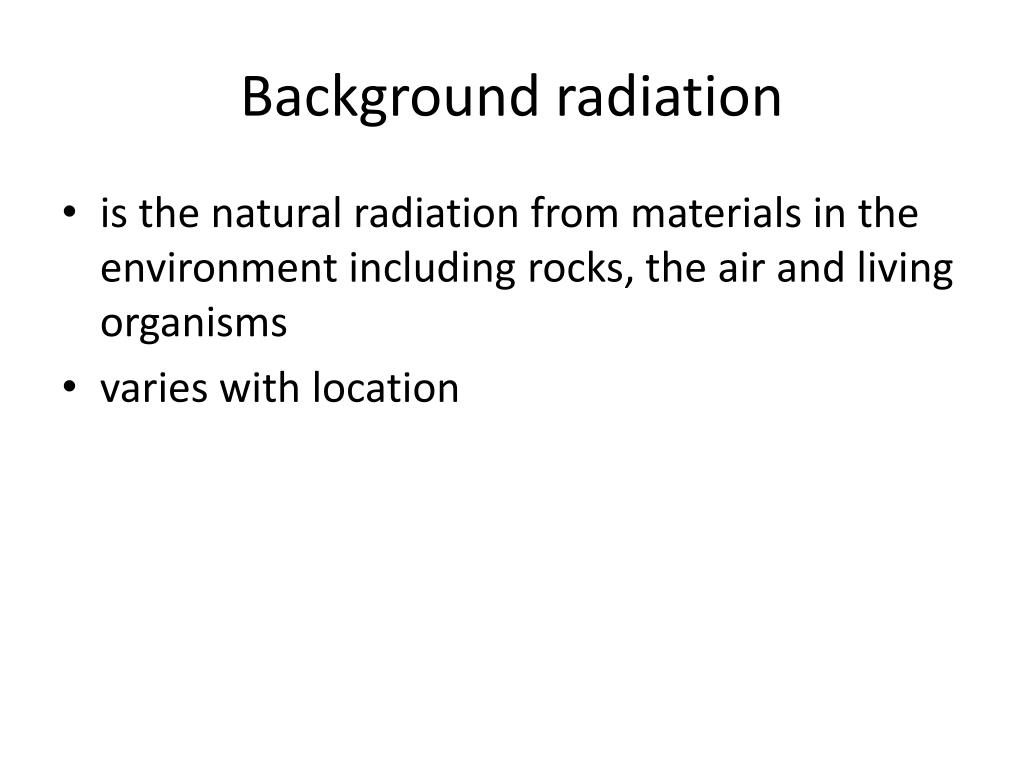

  22. Background radiation • is the natural radiation from materials in the environment including rocks, the air and living organisms • varies with location

  23. What is the relationship between Z and N? • Research the stable isotopes of as many atoms as possible and plot a graph of N against Z • Plot a trendline and write down the gradient. Explain what the gradient means for this graph. • Explain why this pattern occurs using ideas about the strong nuclear force and the electrostatic force.

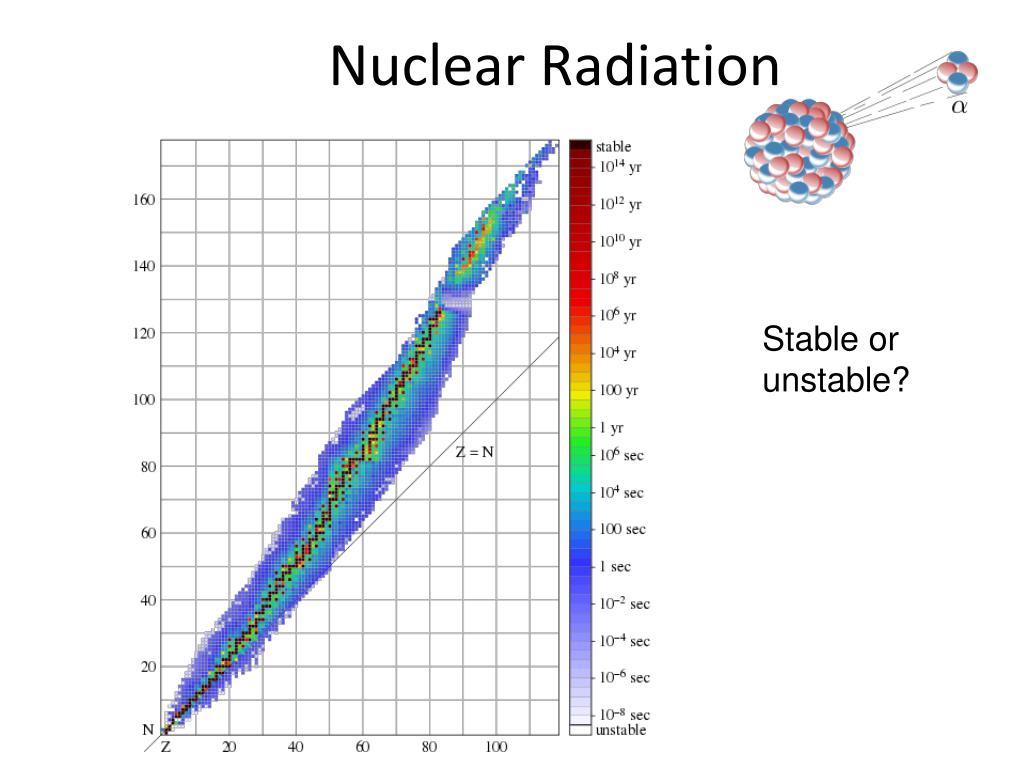

  24. Nuclear Radiation Stable or unstable?

  25. Geiger-Müller tube (GM tube) Image: http://en.wikipedia.org/wiki/Geiger_counter

  26. Nuclear symbols The nucleus of an atom can be represented as: AZX • A is the atomic mass (number of protons + neutrons) • Z is the atomic number (number of protons- see Periodic Table) • X is chemical symbol (see Periodic Table)

  27. Alpha decay 21986Rn  21584Po + 42α Z decreases by 2 A decreases by 4

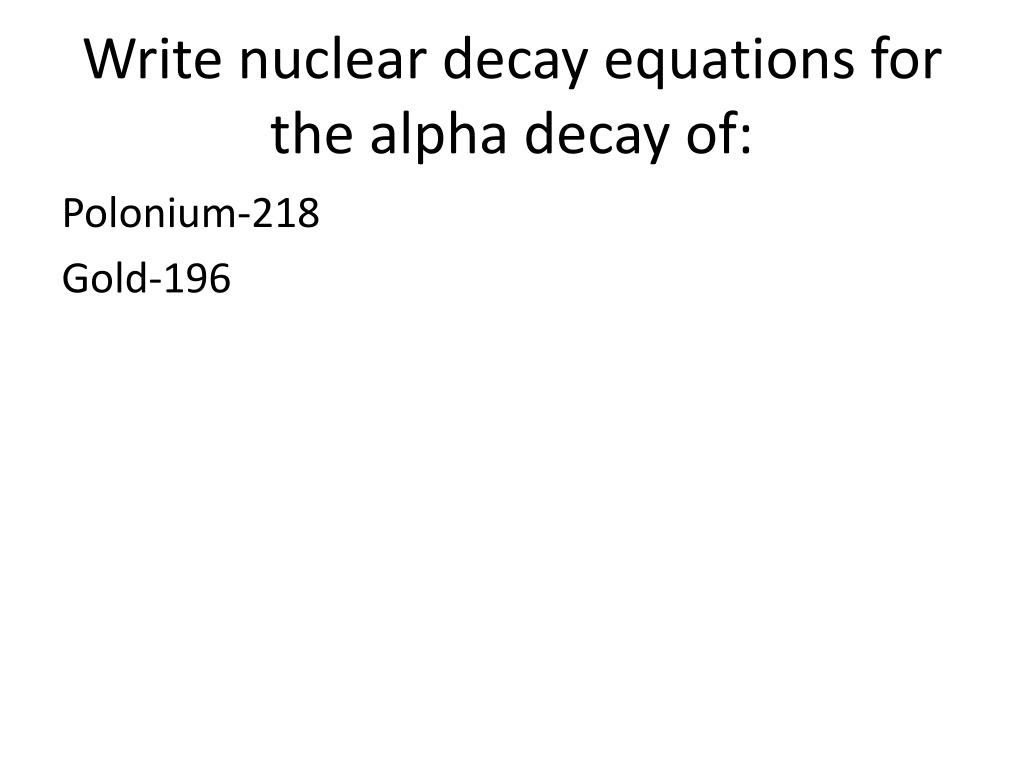

  28. Write nuclear decay equations for the alpha decay of: Polonium-218 Gold-196

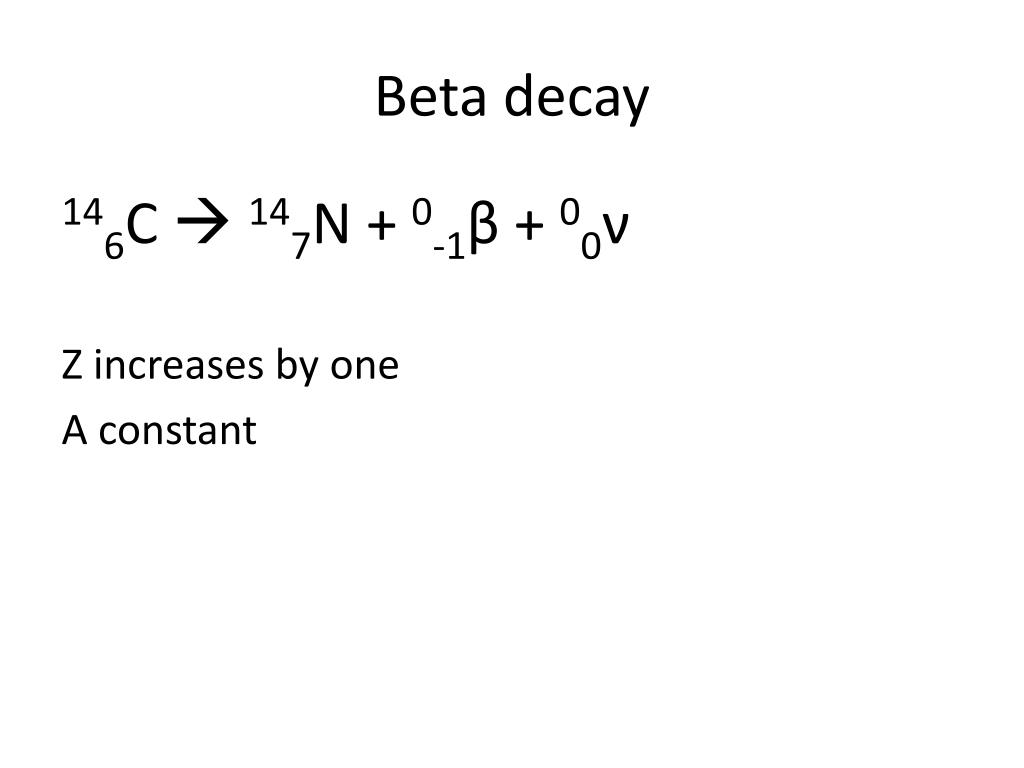

  29. Beta decay 146C  147N + 0-1β + 00ν Z increases by one A constant

  30. Write nuclear decay equations for the beta decay of: Phosphorous-32 Iodine-131

  31. Radioactivity α-decay β-decay γ decay

  32. Decay series

  33. How long does it take an unstable atom to decay?

  34. Half life The time it takes for the number of nuclei of the isotope in a sample to halve or The time it takes for the count rate from a sample containing the isotope to fall to half its starting level Images: http://www.bbc.co.uk/schools/gcsebitesize/science/add_aqa/atoms_radiation/nuclearradiationrev7.shtml

  35. Half life

  36. Activity • The activity of a sample, A, is the number of decays in one second. • The decay constant, λ, is the probability that a single nucleus will decay in one second. • N is the total number of unstable nuclei

  37. Radioactive decay law

  38. Artificial transmutation

  39. Artificial transmutations • a nucleus can ‘capture’ another particle • this is the only way to speed up radioactive decay

  40. Nuclear binding energy

  41. Bang! Trinity test • plutonium fission • 84 TeraJoules = 20 kton TNT

  42. Bang! first H bomb test in 1952 • hydrogen fusion • 44 PetaJoules = 10 Mtons of TNT

  43. Nuclear fission

  44. Nuclear fusion

  45. unified atomic mass unit 1u is 1/12 of the mass of a carbon-12 atom mp = 1.007276u mn = 1.008665u me = 0.0005486u

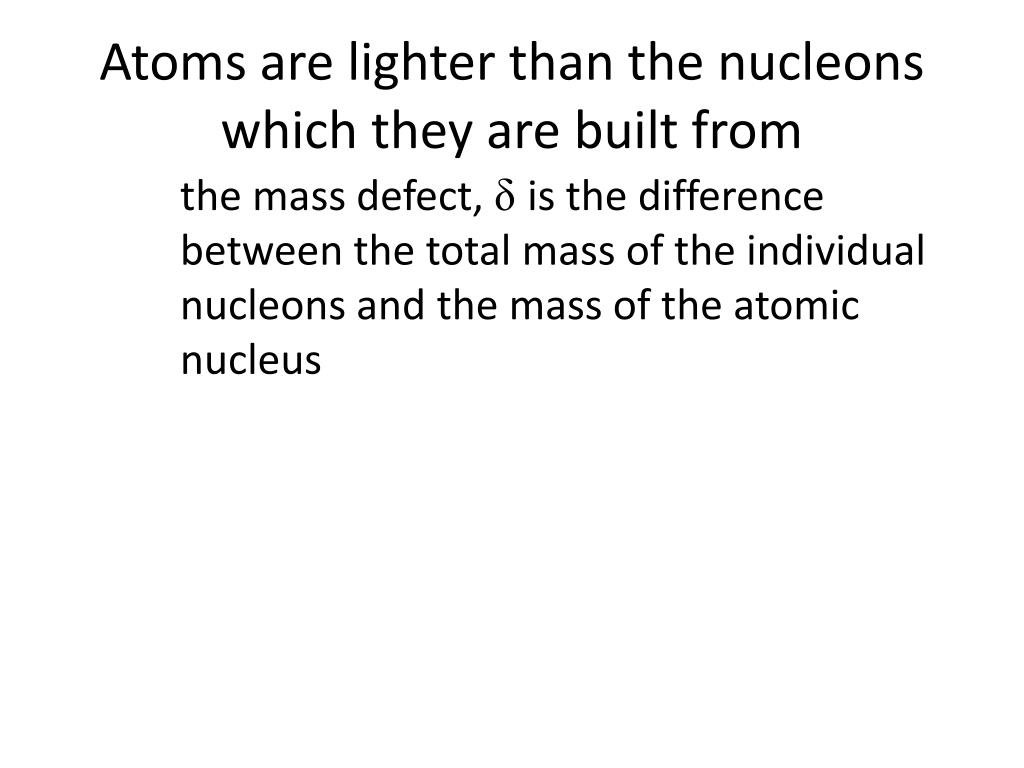

  46. Atoms are lighter than the nucleons which they are built from the mass defect, δis the difference between the total mass of the individual nucleons and the mass of the atomic nucleus mass defect of Helium mHe = 4.0026u

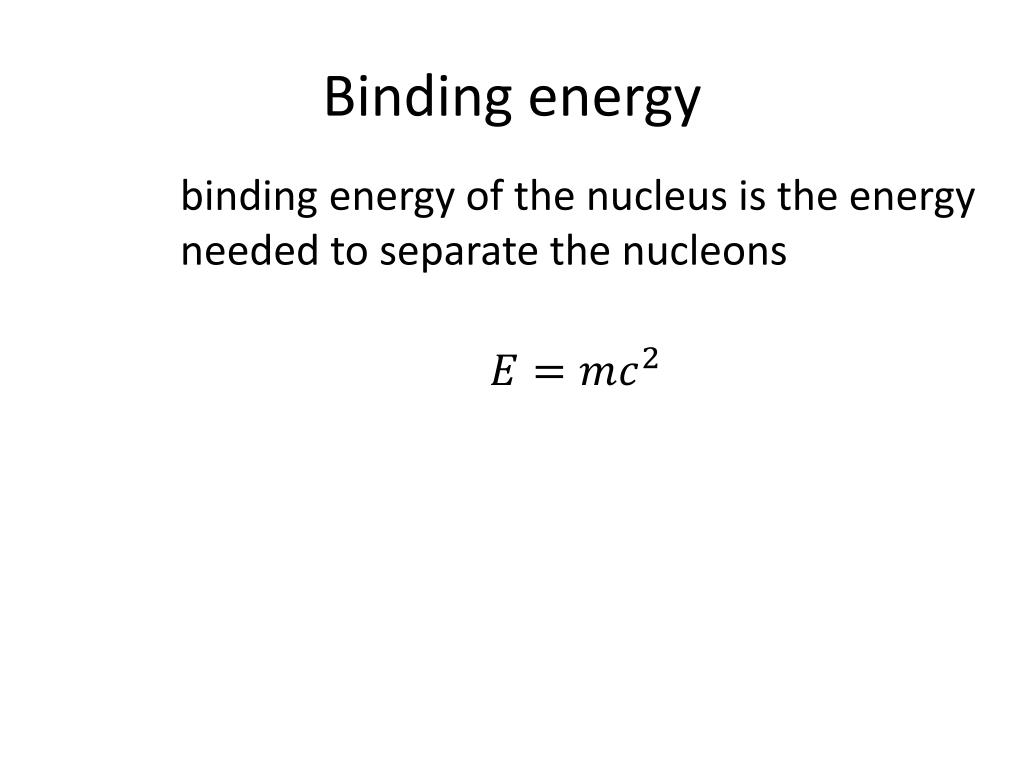

  47. Binding energy binding energy of the nucleus is the energy needed to separate the nucleons

  48. How much energy is released when a helium nucleus is formed? • mp = 1.00728u • mn = 1.00866 • mass of 42He nucleus = 4.00153u • 1u = 1.66054 x 10-27kg = 931.494MeVc-2

  49. Atoms are lighter than the nucleons which they are built from the mass defect, δ mass from n and p  energy released as nucleus is made Tsokos p.387qn1

  50. binding energy per nucleon
