Ch. 6 Pointers and Data Structures

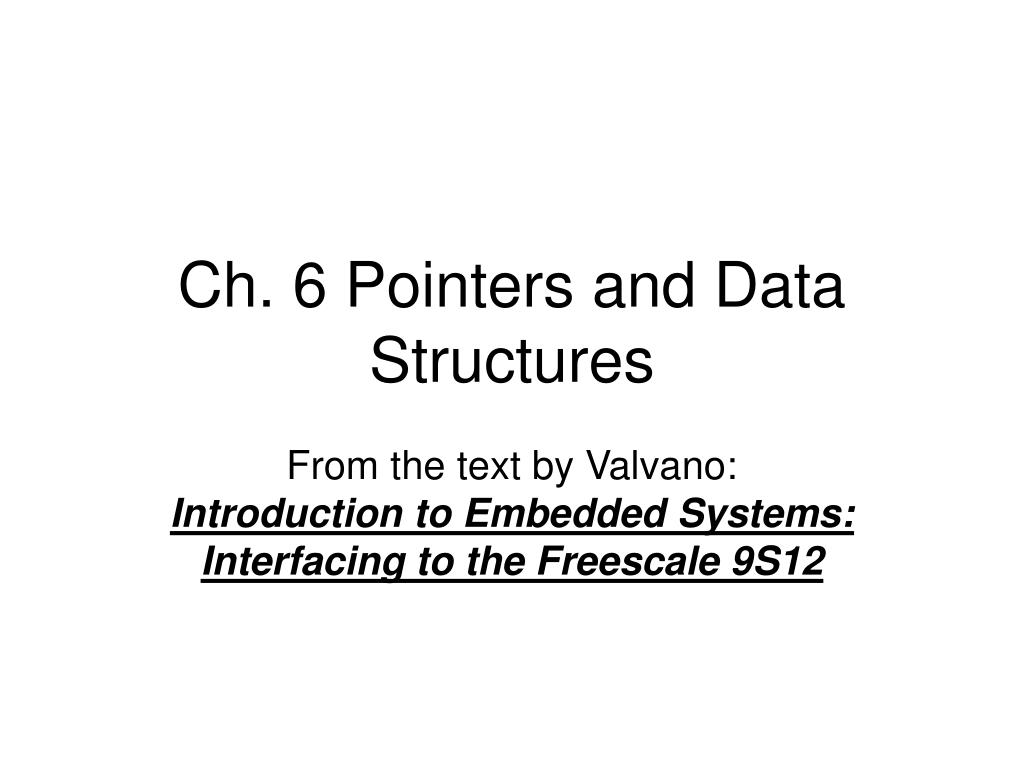

1. Ch. 6 Pointers and Data Structures From the text by Valvano: Introduction to Embedded Systems: Interfacing to the Freescale 9S12

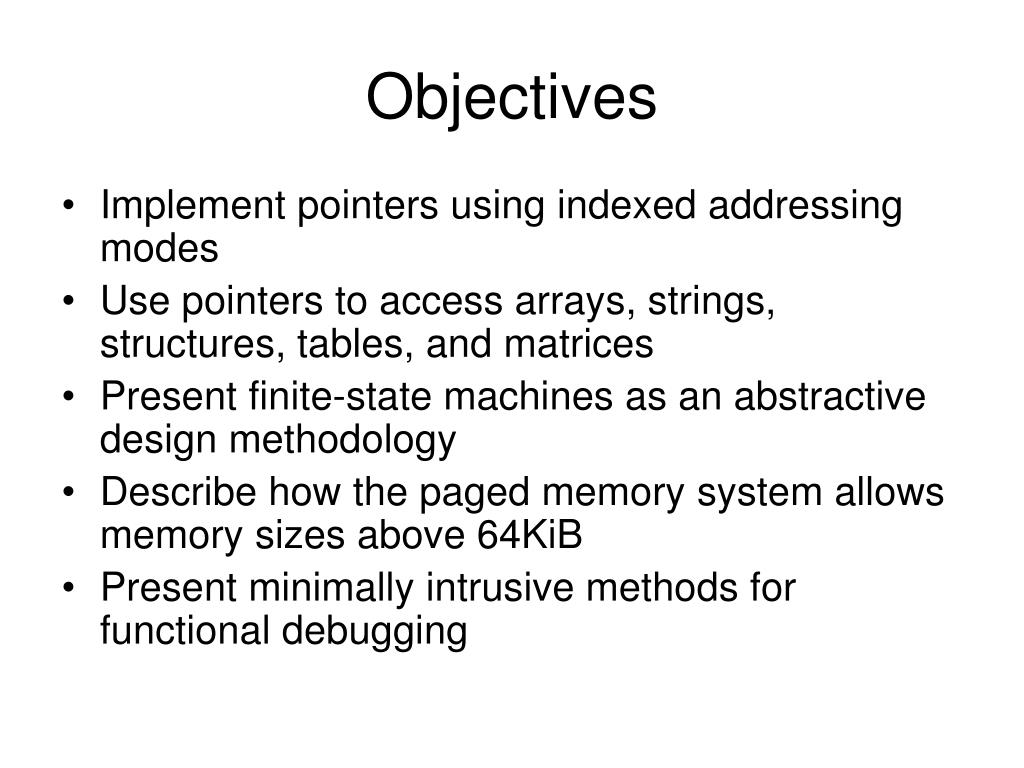

2. Objectives • Implement pointers using indexed addressing modes • Use pointers to access arrays, strings, structures, tables, and matrices • Present finite-state machines as an abstractive design methodology • Describe how the paged memory system allows memory sizes above 64KiB • Present minimally intrusive methods for functional debugging

3. 6.1 Indexed Addressing Modes Used to Implement Pointers • 9S12 has 15 addressing modes. • 9 are related to pointers. • Assembly—pointers are implemented using indexed addressing. • The address is placed into RegisterX or RegisterY, then the data is accessed using indexed addressing mode.

4. Figure 6.2, page 193 • Pointers—PT, SP, GetPt, PutPt • Arrows show the memory location to which they point. • Shaded regions represent data. • Array or string —simple structure with multiple, equal-sized elements—the pointer points to the first element then the indexed addressing mode is used to access the rest of the structure.

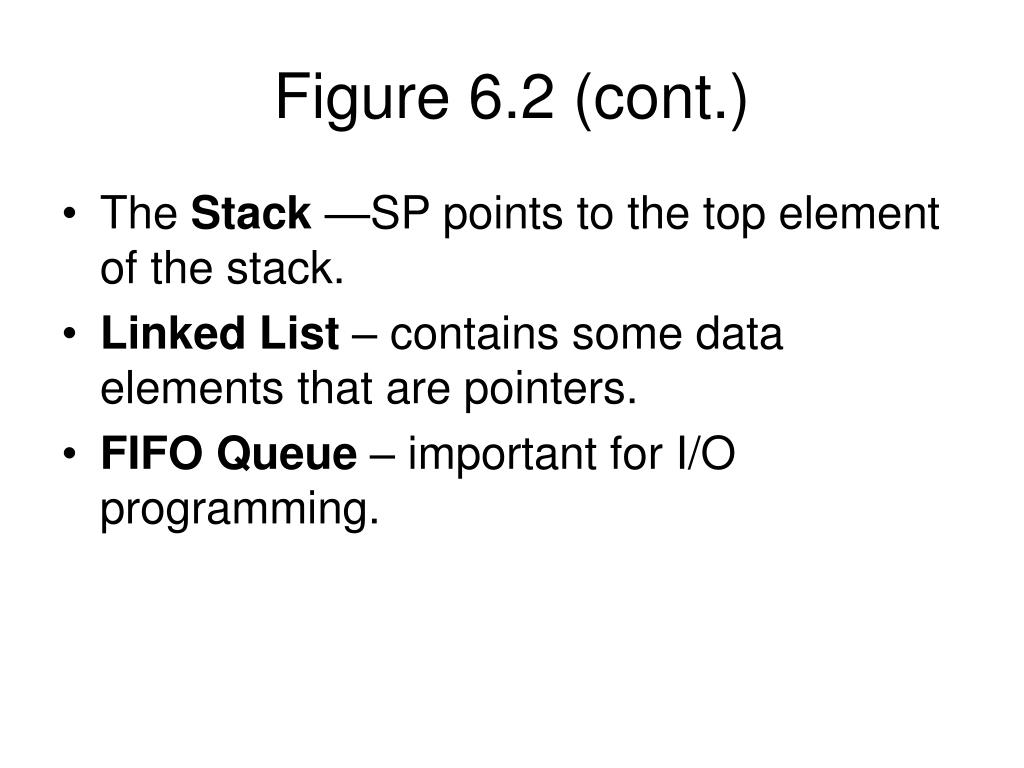

5. Figure 6.2 (cont.) • The Stack —SP points to the top element of the stack. • Linked List – contains some data elements that are pointers. • FIFO Queue – important for I/O programming.

6. 6.1.1 Indexed Addressing Mode • Uses a fixed offset with the 16-bit registers (X, Y, SP, and PC). • The offsets that are possible include: • 5-bits (-16 to +15) • 9-bits (-256 to + 127) • 16- bits • Example of 5 bit indexing: (5C is index mode operand—1 byte) • $6A5C staa -4,Y ; [Y-4] = Reg A • Assume RegA is $56, RegY is $0823 • $0823 -4 = $081F • See Figure 6.3

7. More Examples of Indexed Addressing Mode • Example of 9-bit indexed mode requires 2 bytes to encode the operand: • $6AE840 staa $40,Y ; [Y+$40] = Reg A • See Figure 6.4 (note: $40 + $8023 = $8063) • Example of 16-bit indexed mode requires 3 bytes to encode the operand: • $6AEA2000 staa $200,Y ; [Y + $200] =RegA • See Figure 6.5 (note: $200 + $0823=$0A23)

8. 6.1.2 Auto Pre/Post Decrement/Increment Indexed Addressing Mode • The 16-bit pointers are used (X, Y, SP). • These pointers are modified either before (PRE) or after (POST) the access of the memory. • Used for accessing memory sequentially. • Example: Post-increment addressing. • Staa 1,Y+ ; Store a copy of value in Reg A at 2345, then Reg Y = 2346. • More examples on the bottom of page 195.

9. Other Addressing Modes • 6.1.3 Accumulator-Offset Indexed Addressing mode—Accumulator A,B, or D are used with registers X, Y, SP, and PC. • Example: staa B,Y • Efficient for accessing arrays. • 6.1.4 Indexed-Indirect Addressing Mode • A fixed offset of 16 bits is used (X, Y, SP or PC). • A second address is fetched; the load or store is operated on the second address. • Useful when data structures include pointers (pg. 196).

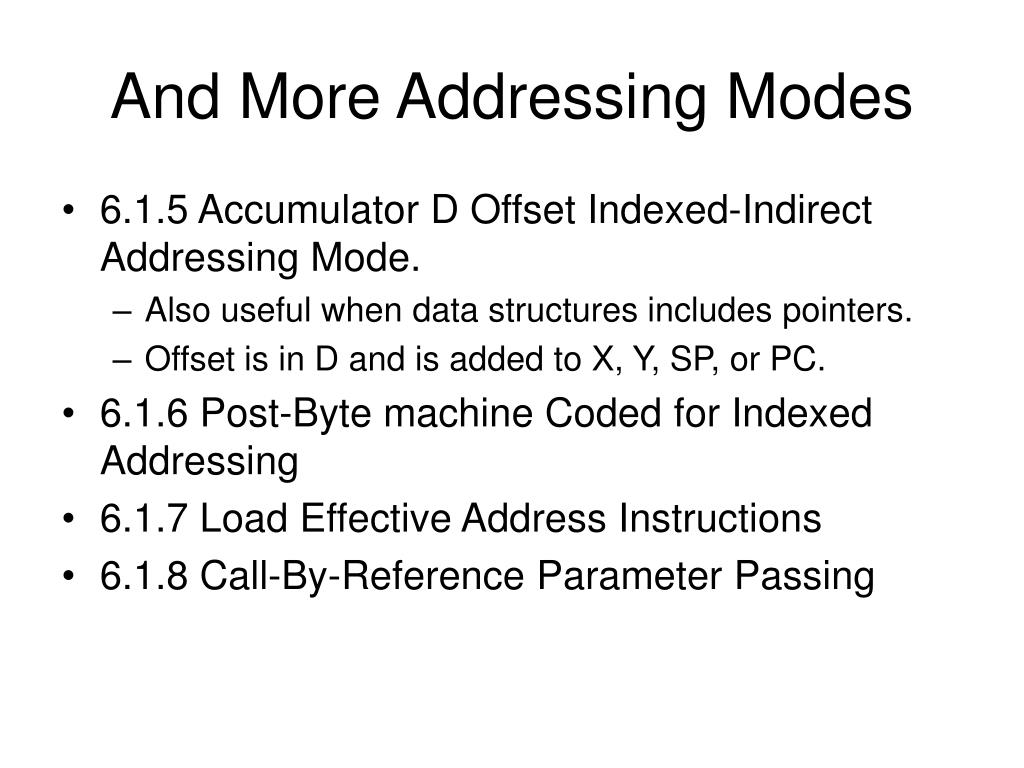

10. And More Addressing Modes • 6.1.5 Accumulator D Offset Indexed-Indirect Addressing Mode. • Also useful when data structures includes pointers. • Offset is in D and is added to X, Y, SP, or PC. • 6.1.6 Post-Byte machine Coded for Indexed Addressing • 6.1.7 Load Effective Address Instructions • 6.1.8 Call-By-Reference Parameter Passing

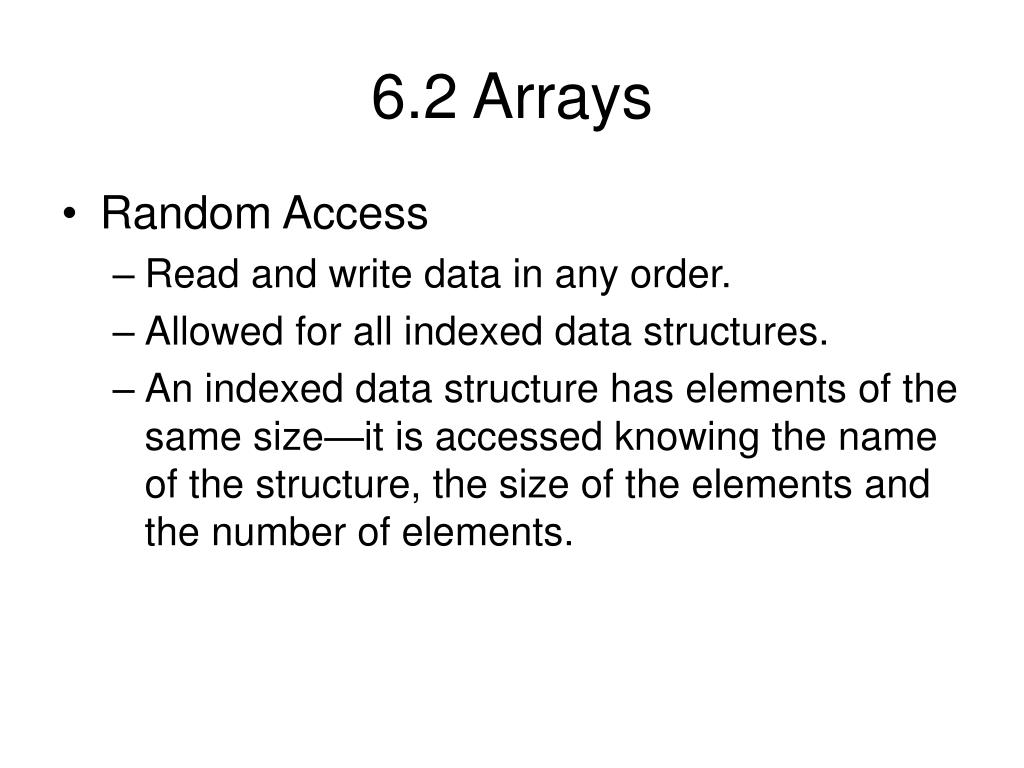

11. 6.2 Arrays • Random Access • Read and write data in any order. • Allowed for all indexed data structures. • An indexed data structure has elements of the same size—it is accessed knowing the name of the structure, the size of the elements and the number of elements.

12. 6.2 (cont.) • Sequential access • The elements are read and written in order. • Examples: strings, linked lists, stacks, queues, and trees. • Arrays • Made of elements of equal precision and allows random access. • Length is the number of elements. • Origin is the index of the first element.

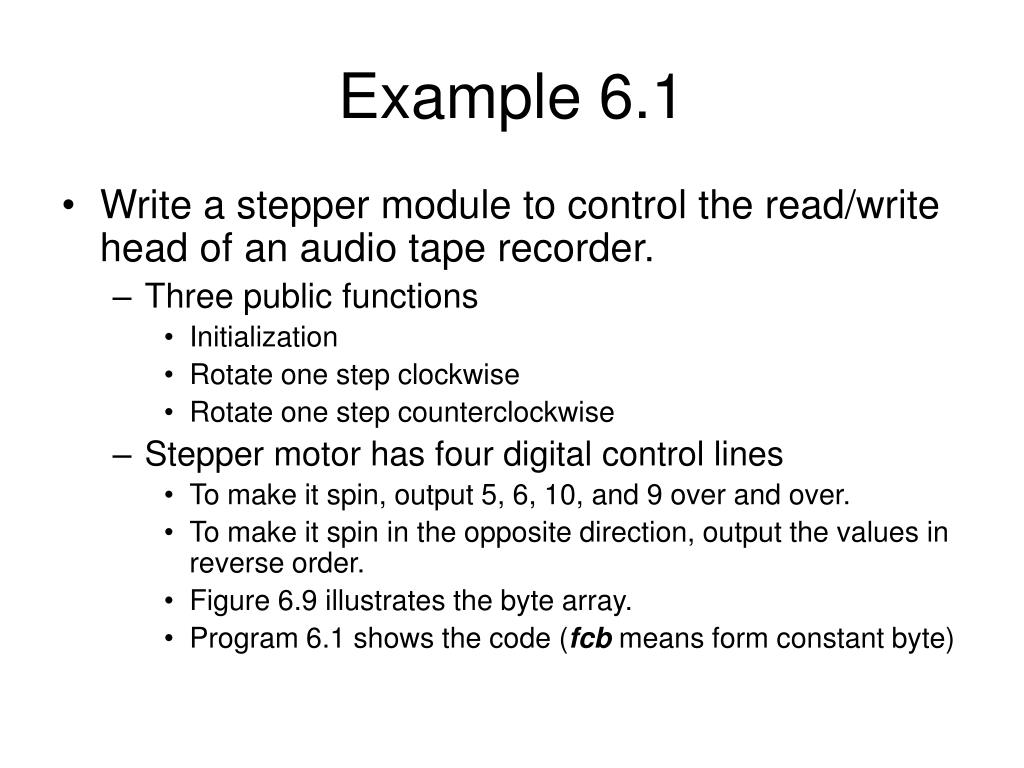

13. Example 6.1 • Write a stepper module to control the read/write head of an audio tape recorder. • Three public functions • Initialization • Rotate one step clockwise • Rotate one step counterclockwise • Stepper motor has four digital control lines • To make it spin, output 5, 6, 10, and 9 over and over. • To make it spin in the opposite direction, output the values in reverse order. • Figure 6.9 illustrates the byte array. • Program 6.1 shows the code (fcb means form constant byte)

14. Example 6.2 • Design an exponential function y=10x, with a 16-bit output. • X is an input from 0 to 4. • Figure 6.10 illustrates a word array • Program 6.2 (page 201) illustrates the use of the array (fdb means form double byte and is used to define word constants.)

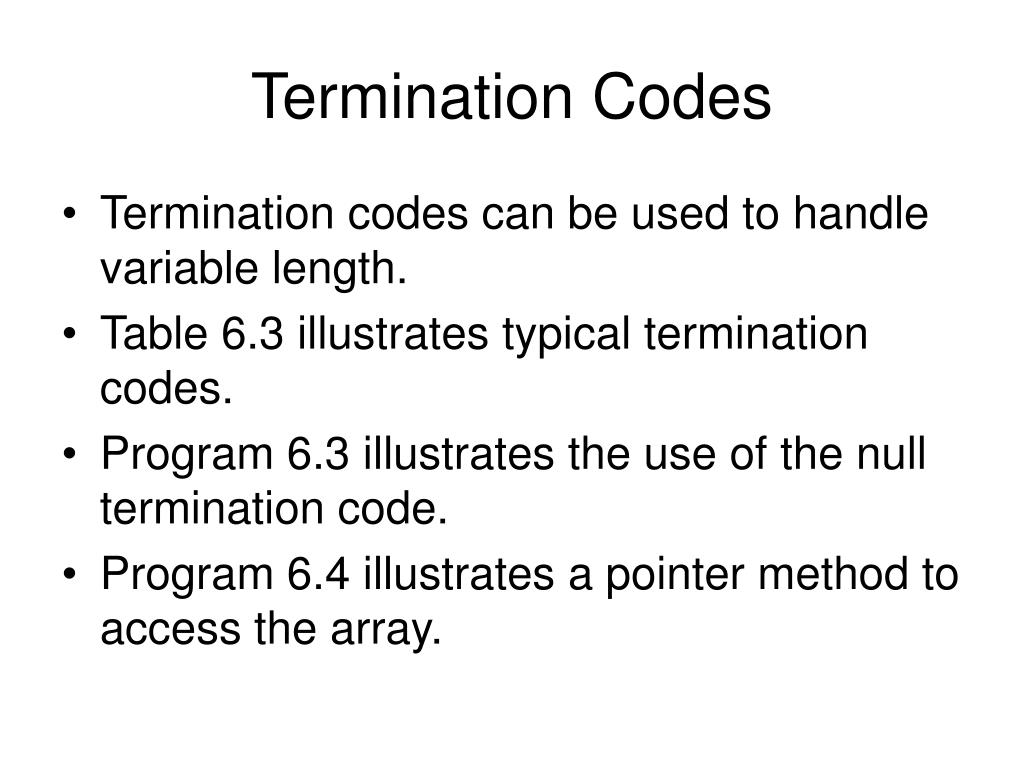

15. Termination Codes • Termination codes can be used to handle variable length. • Table 6.3 illustrates typical termination codes. • Program 6.3 illustrates the use of the null termination code. • Program 6.4 illustrates a pointer method to access the array.

16. 6.3 Strings • A data structure with equal-sized elements that are only accessed sequentially. • The length of the string is stored in the first position, when data can take on any value; thus termination codes are not needed.

17. Example 6.3 • Example 6.3 (page 203) • Write software to output a sequence of values to a digital to analog converter. • The length is stored in the first byte: • Data1 fcb 4 ;length • fcb 0,50,100,50 ;data • Data2 fcb 8 • fcb 0,25,50,75,100,75,50,25

18. Example 6.3 (cont.) • The DAC is connected to Port T. • The function (subroutine) DAC outputs the string data to the digital to analog converter. • DAC ldab 0,x ;length • loop inx ;next element • ldaa 0,x ;data • staa PTT ;out to the dig/analog conv • decb • bne loop • rts

19. Example 6.3 (cont.) • main lds #$4000 • movb #$FF, DDRT • mloop ldx #Data1 ;first string • bsr DAC • ldx #Data2 ;second string • bra mloop

20. Example 6.4 • Write software to output a ASCII string to the serial port. • Call by reference parameter passing is used—a pointer to the string will be passed. • See Program 6.6, page 204.

21. 6.4 Matrices • Two dimensional data structure accessed by rows and columns. • Figure 6.11 illustrates “row major” and “column major”. • Program 6.8 illustrates a function to access a two by three column-major matrix. (page 205)

22. Example 6.5 • Develop a set of driver functions to manipulate a 32 by 12 graphics display. • Bit arrays are used to store pixel values. • 0 represents a blank, 1 turns on a pixel. • Program 6.11, 6.12 and 6.13 illustrate the access, modification, and reading of the bit matrix.

23. Structures • A structure has elements with different types and/or precisions. • Program 6.14 is an assembly language example of a structure.

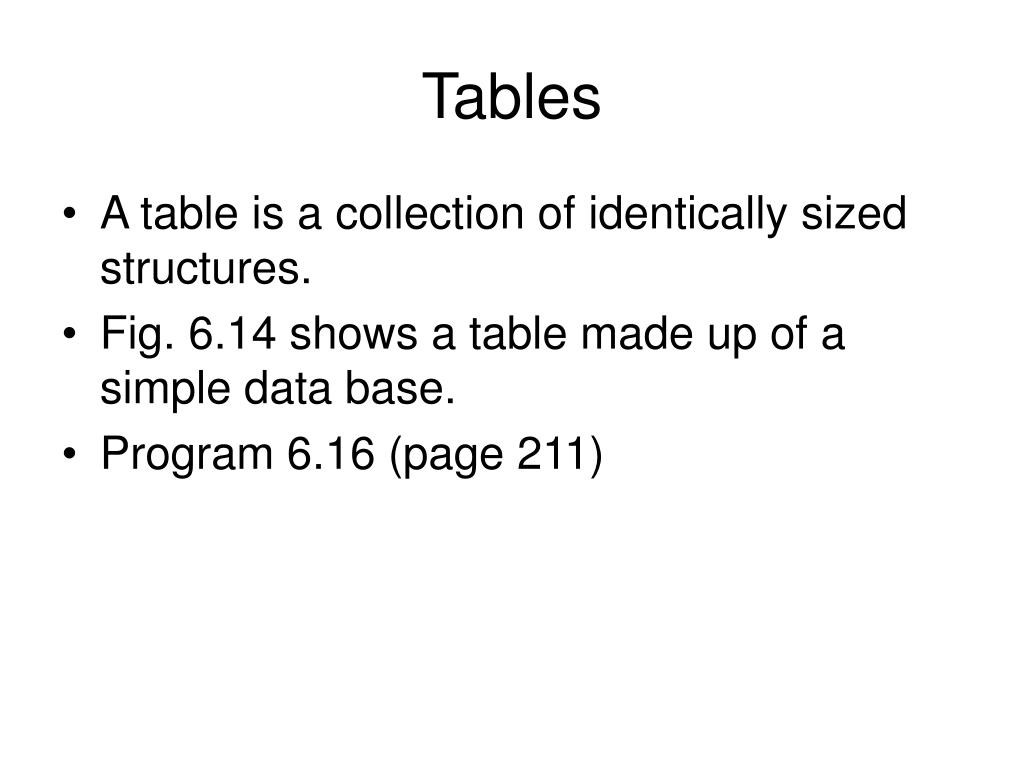

24. Tables • A table is a collection of identically sized structures. • Fig. 6.14 shows a table made up of a simple data base. • Program 6.16 (page 211)

25. Trees • A graph is a general linked structure without limitations.

26. 6.8 Finite-State Machines with Statically Allocated Linked Structures • 6.8.1 Abstraction • Allows the definition of complex problems using basic abstract building blocks. • Finite-State-Machine is a basic abstraction.

27. Finite State Machines • Execution of a Moore FSM • 1. Perform output, which depends on the current state. • 2. Wait a prescribed amount of time (optional) • 3. Input • 4. Go to next state, which depends on the input and the current state.

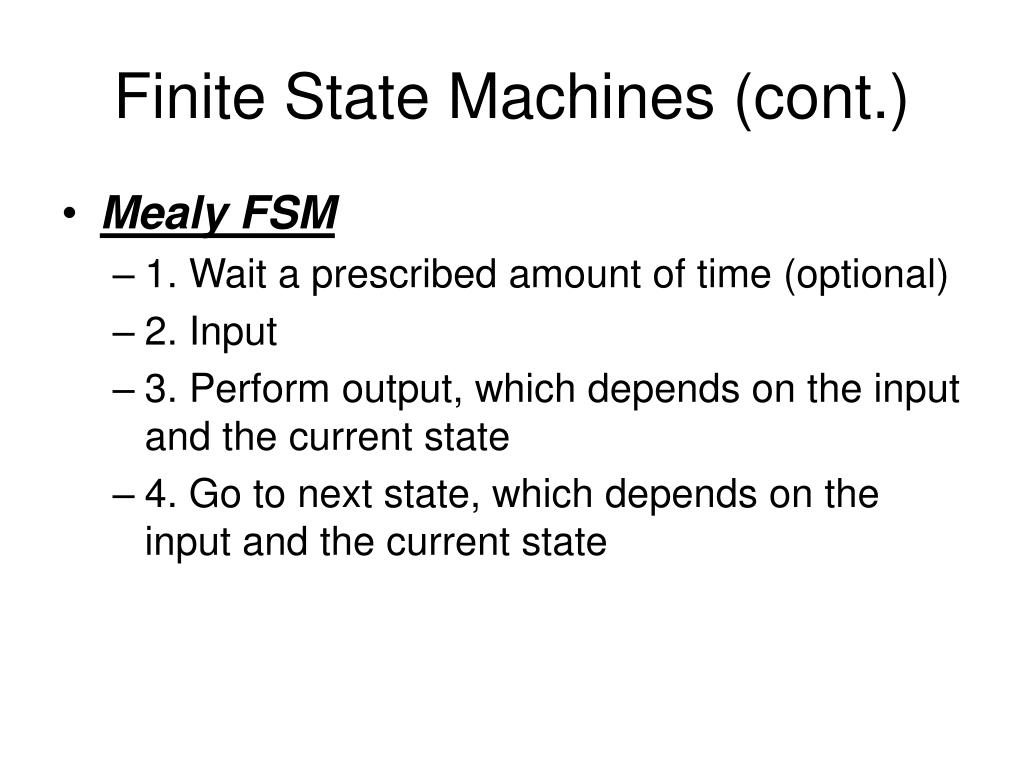

28. Finite State Machines (cont.) • Mealy FSM • 1. Wait a prescribed amount of time (optional) • 2. Input • 3. Perform output, which depends on the input and the current state • 4. Go to next state, which depends on the input and the current state

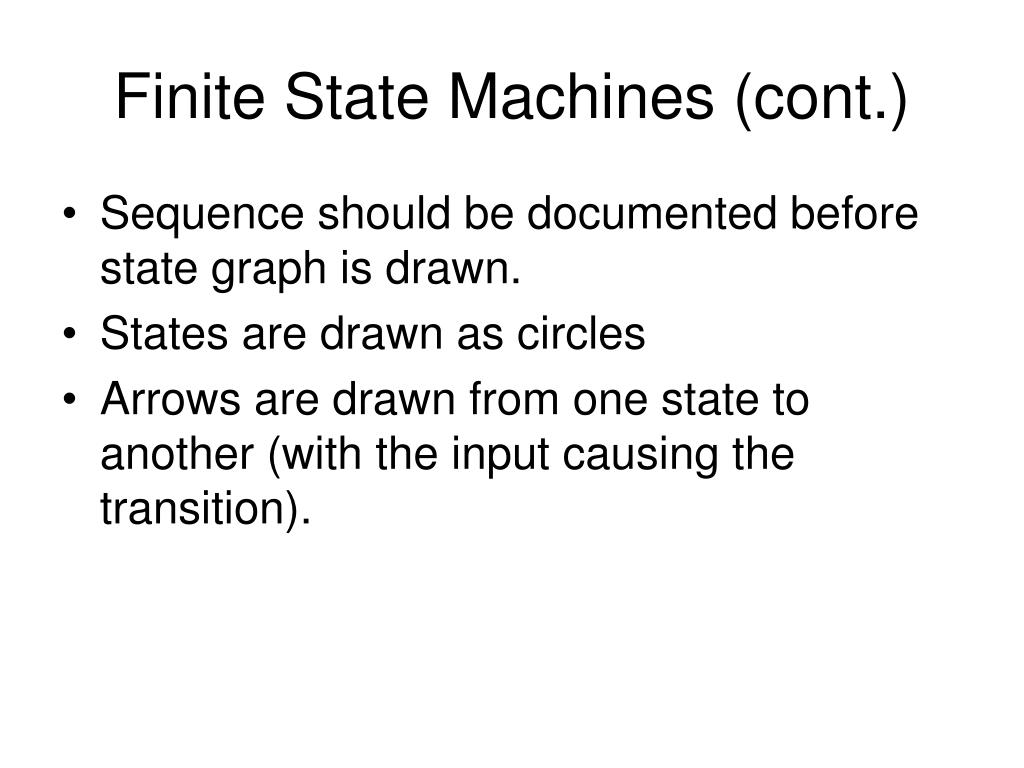

29. Finite State Machines (cont.) • Sequence should be documented before state graph is drawn. • States are drawn as circles • Arrows are drawn from one state to another (with the input causing the transition).

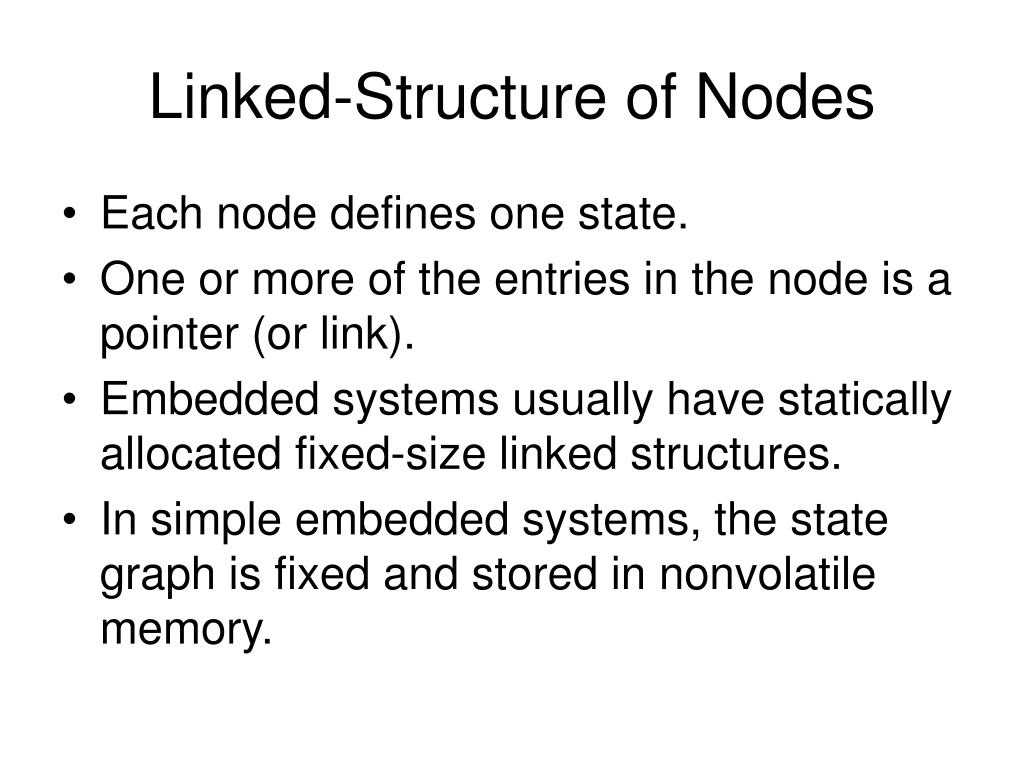

30. Linked-Structure of Nodes • Each node defines one state. • One or more of the entries in the node is a pointer (or link). • Embedded systems usually have statically allocated fixed-size linked structures. • In simple embedded systems, the state graph is fixed and stored in nonvolatile memory.

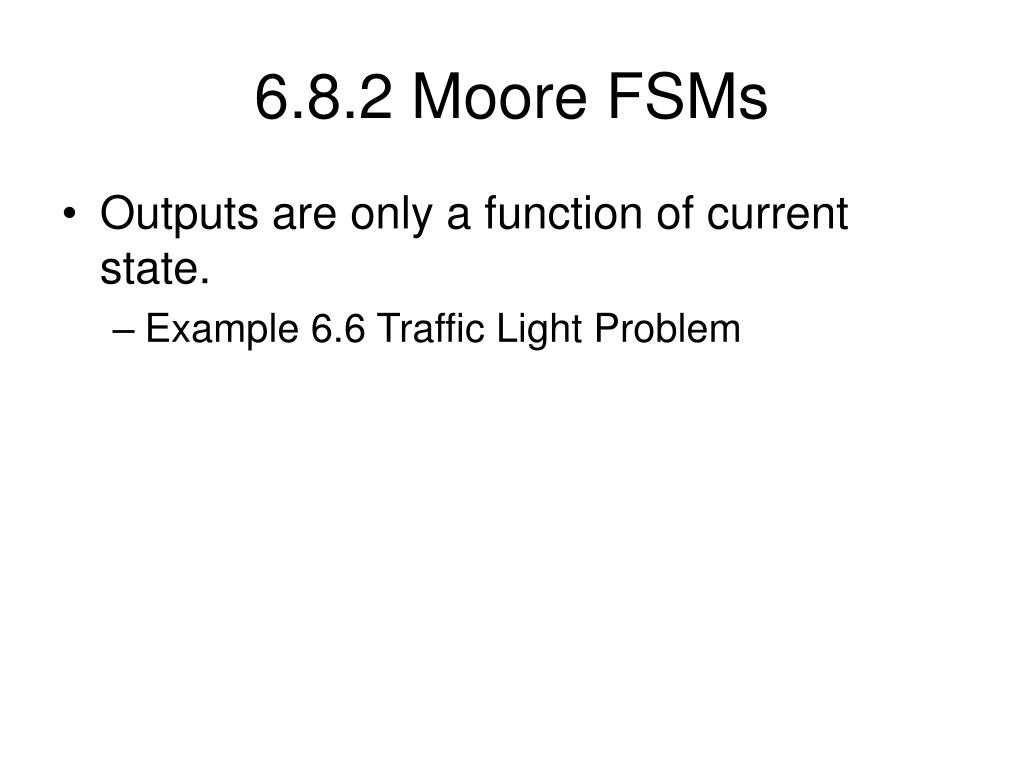

31. 6.8.2 Moore FSMs • Outputs are only a function of current state. • Example 6.6 Traffic Light Problem

33. 6.8.3 Mealy Finite-State Machines • Outputs depend on both the input and the current state. • Arrows specify both output and next state. • Used when the output is needed to cause the state to change. • Example 6.7 Four-Legged Trotting Robot.

34. 6.8.4 Functional Abstraction Within FSMs • Input is obtained by calling a function. • Output process involves calling a function. • Function calls adds a layer of abstraction between the FSM and the I/O at the ports. • Example 6.8—Vending Machine • Example 6.9—Robot that Sits, stands, and lies down.

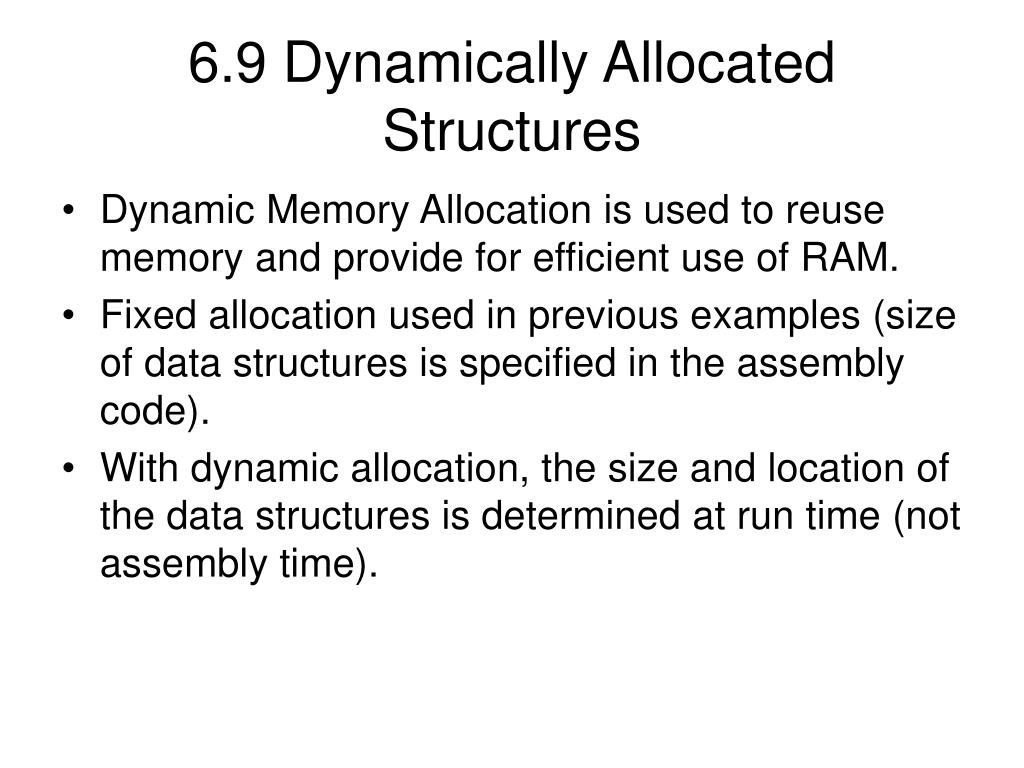

35. 6.9 Dynamically Allocated Structures • Dynamic Memory Allocation is used to reuse memory and provide for efficient use of RAM. • Fixed allocation used in previous examples (size of data structures is specified in the assembly code). • With dynamic allocation, the size and location of the data structures is determined at run time (not assembly time).

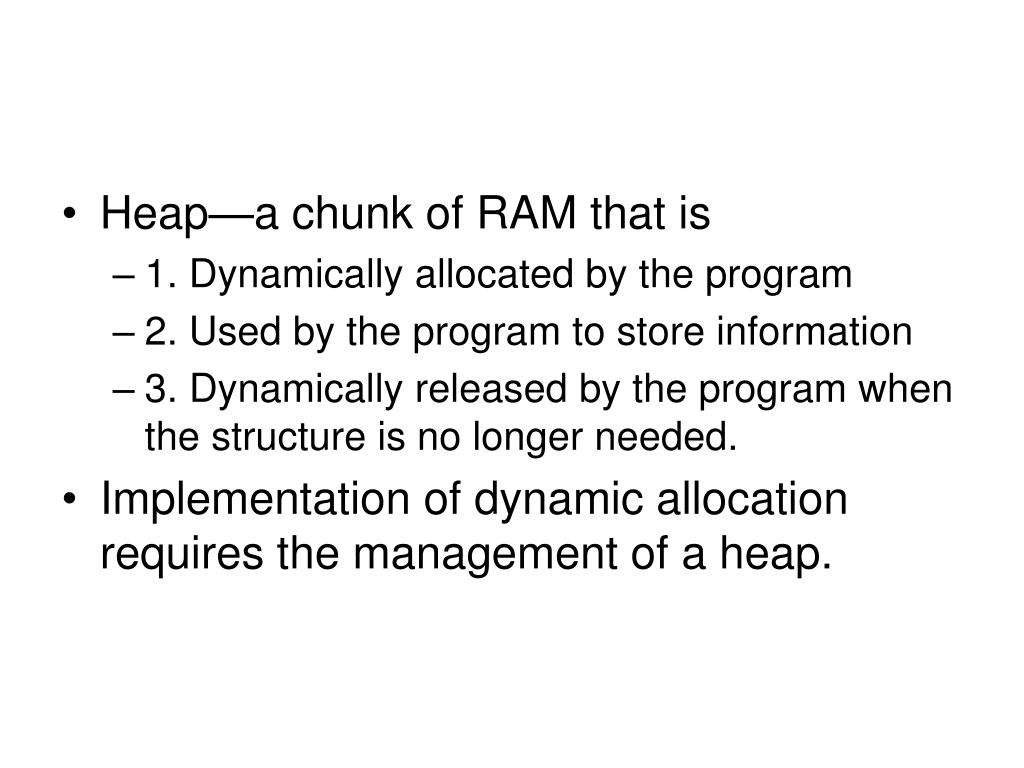

36. Heap—a chunk of RAM that is • 1. Dynamically allocated by the program • 2. Used by the program to store information • 3. Dynamically released by the program when the structure is no longer needed. • Implementation of dynamic allocation requires the management of a heap.

37. 6.9.1 Fixed-Block Memory Manager • Figure 6.27 • Initial state of the heap has all of the free blocks linked in a list. • Program 6.28 • Shows the global structures for the heap, defined in RAM. • SIZE—number of 8-bit bytes in each block. • NUM—number of blocks to be managed. • FreePt--points to the first free block. • Program 6.29 • Software that that partitions the heap into blocks and links them together.
