1. CS 214 Programming Languages Spring 2010

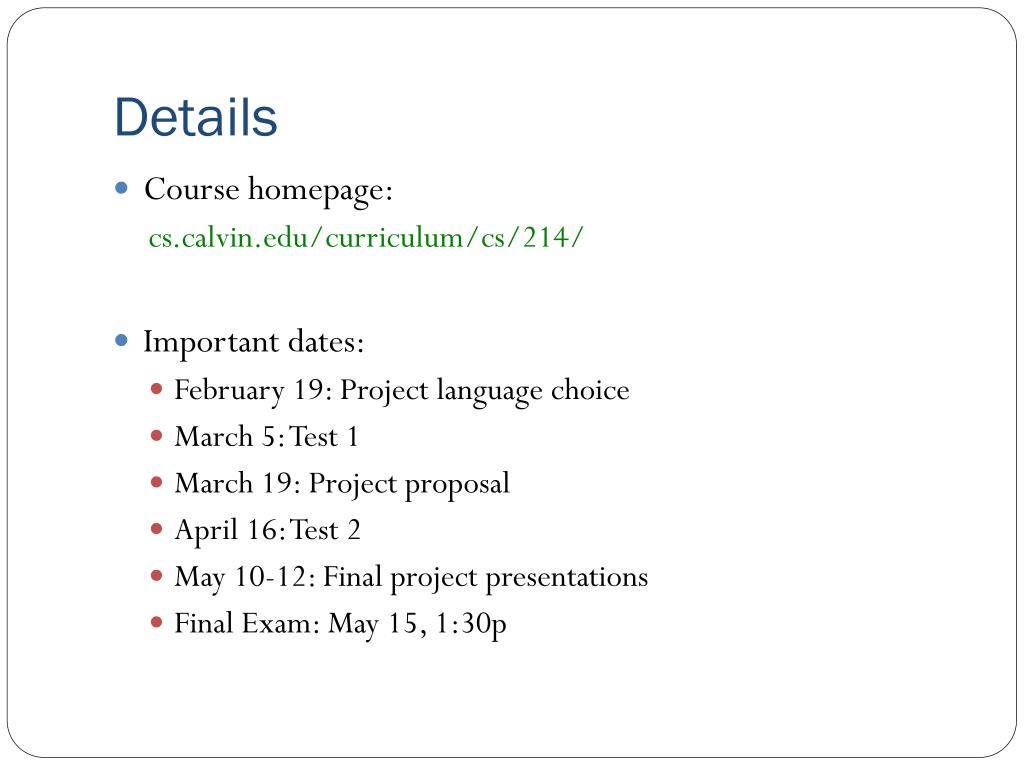

2. Details • Course homepage: cs.calvin.edu/curriculum/cs/214/ • Important dates: • February 19: Project language choice • March 5: Test 1 • March 19: Project proposal • April 16: Test 2 • May 10-12: Final project presentations • Final Exam: May 15, 1:30p

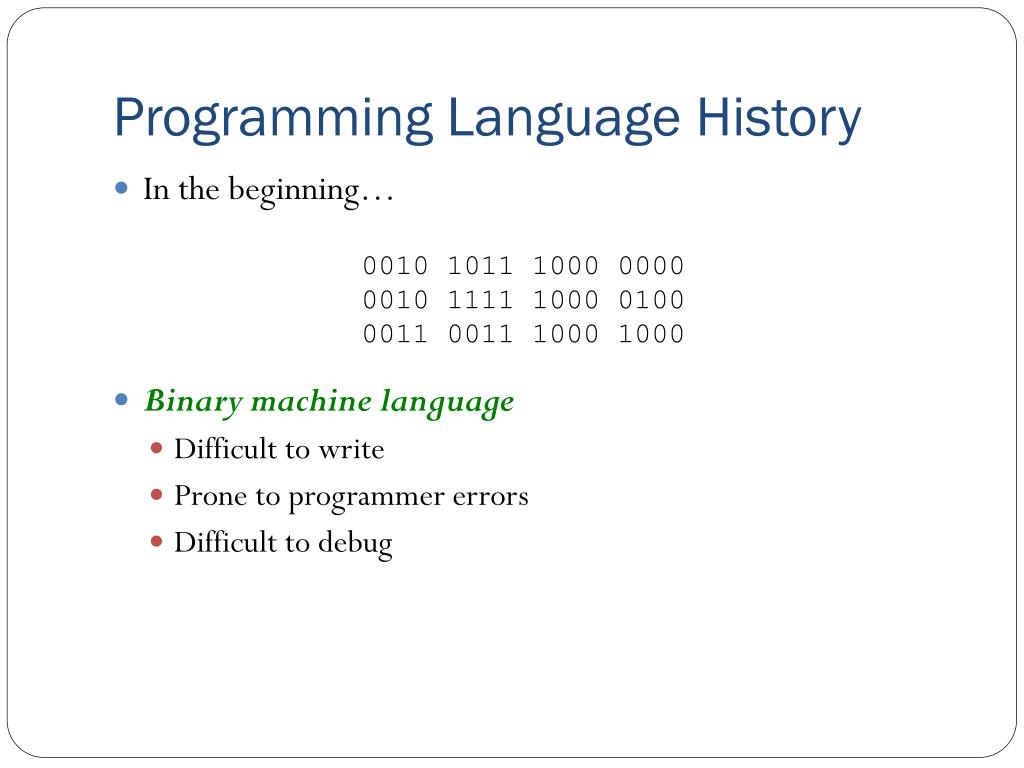

3. Programming Language History • In the beginning… • Binary machine language • Difficult to write • Prone to programmer errors • Difficult to debug 0010 1011 1000 0000 0010 1111 1000 0100 0011 0011 1000 1000

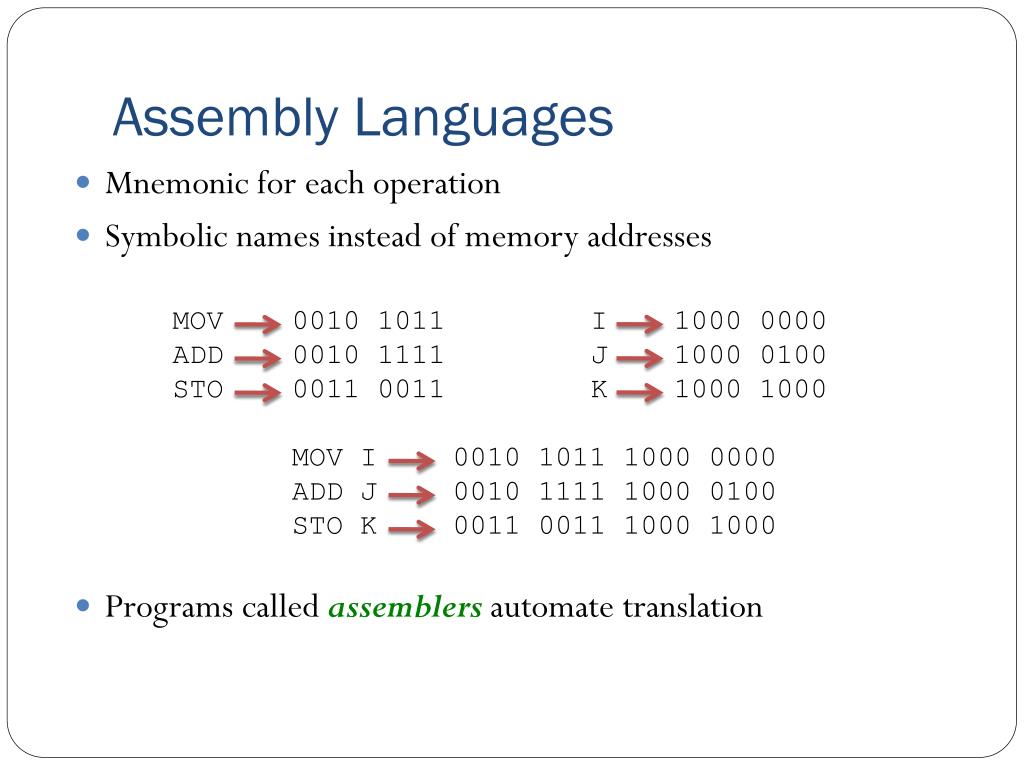

4. Assembly Languages • Mnemonic for each operation • Symbolic names instead of memory addresses • Programs called assemblers automate translation MOV ADD STO 0010 1011 0010 1111 0011 0011 I J K 1000 0000 1000 0100 1000 1000 MOV I ADD J STO K 0010 1011 1000 0000 0010 1111 1000 0100 0011 0011 1000 1000

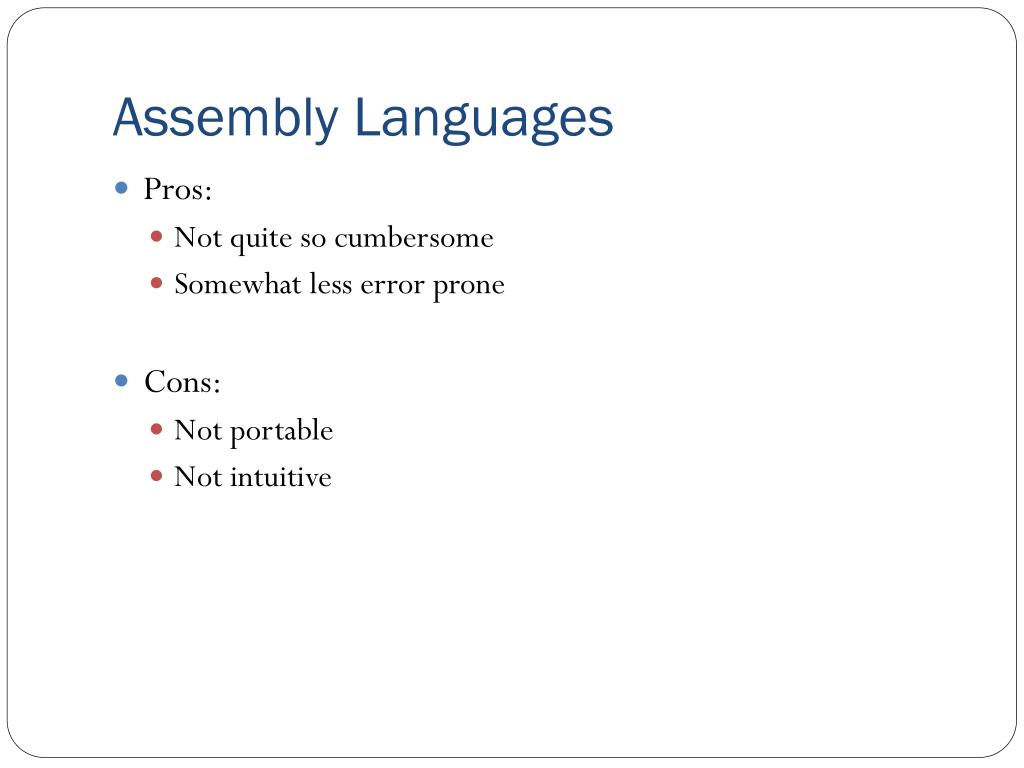

5. Assembly Languages • Pros: • Not quite so cumbersome • Somewhat less error prone • Cons: • Not portable • Not intuitive

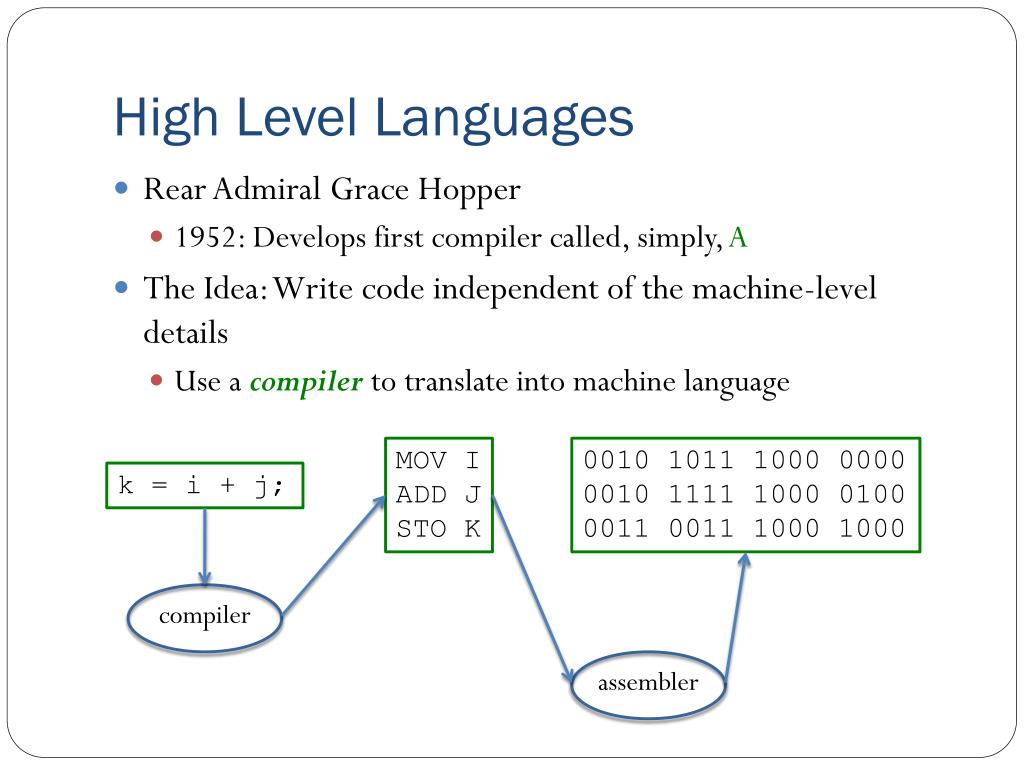

6. High Level Languages • Rear Admiral Grace Hopper • 1952: Develops first compiler called, simply, A • The Idea: Write code independent of the machine-level details • Use a compilerto translate into machine language MOV I ADD J STO K 0010 1011 1000 0000 0010 1111 1000 0100 0011 0011 1000 1000 k = i + j; compiler assembler

7. EdsgerDijkstra Quotes • The use of COBOL cripples the mind; its teaching should, therefore, be regarded as a criminal offense. • It is practically impossible to teach good programming to students who have had prior exposure to BASIC: as potential programmers they are mentally mutilated beyond hope of regeneration. • APL is a mistake, carried through to perfection. It is the language of the future for the programming techniques of the past: it creates a new generation of coding bums.

8. High Level Languages 1950s • 1957: Backus et al design FORTRAN • FORmulaTRANslation; for scientific users • Subsequent versions in ‘58, ‘62, ‘77, ‘90, ‘95 • 1959: Hopper et al design COBOL • Emphasized readability; for business users • Introduced If-Then-Else statement • 1959: McCarthy designs LISP • LIStProcessing; introduced the linked list as primitive type • First functional programming language (every op is a function) • Also introduced dynamic scope, garbage collection

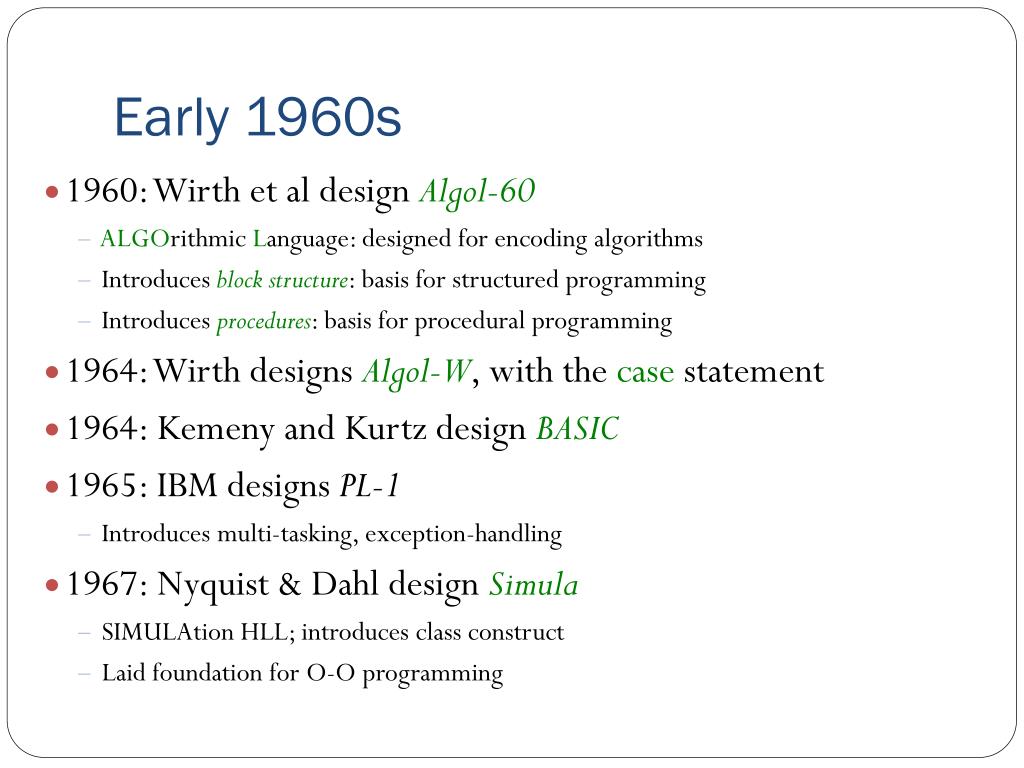

9. Early 1960s • 1960: Wirth et al design Algol-60 • ALGOrithmicLanguage: designed for encoding algorithms • Introduces block structure: basis for structured programming • Introduces procedures: basis for procedural programming • 1964: Wirth designs Algol-W, with thecasestatement • 1964: Kemeny and Kurtz design BASIC • 1965: IBM designs PL-1 • Introduces multi-tasking, exception-handling • 1967: Nyquist & Dahl design Simula • SIMULAtion HLL; introduces class construct • Laid foundation for O-O programming

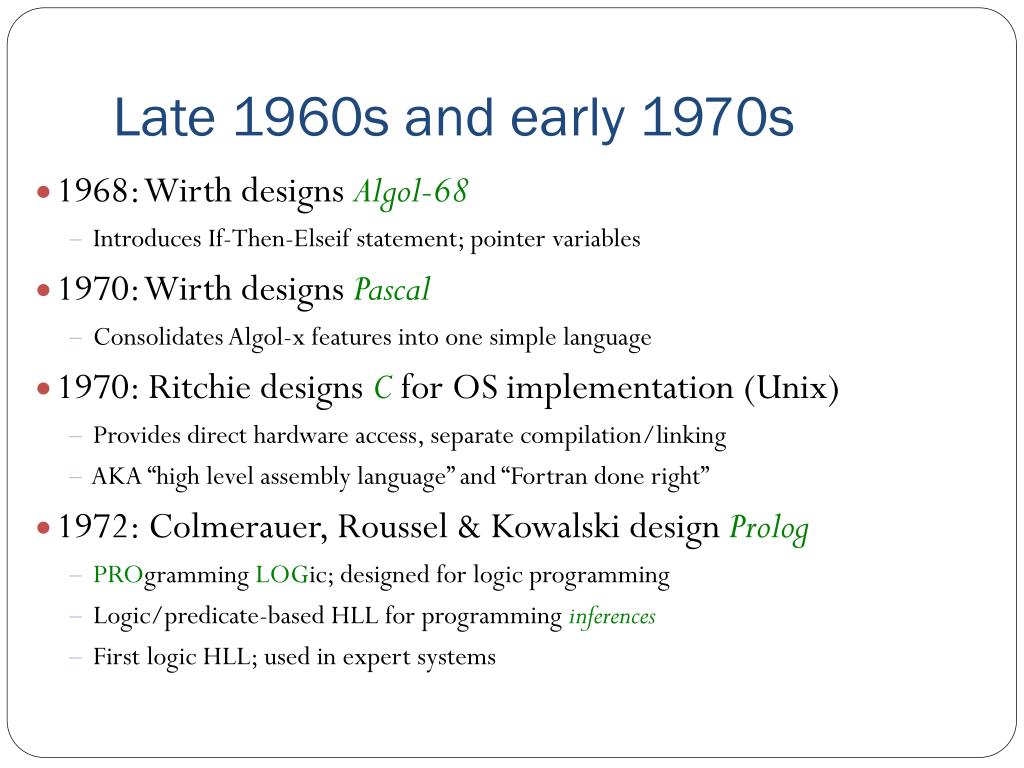

10. Late 1960s and early 1970s • 1968: Wirth designs Algol-68 • Introduces If-Then-Elseif statement; pointer variables • 1970: Wirth designs Pascal • Consolidates Algol-x features into one simple language • 1970: Ritchie designs Cfor OS implementation (Unix) • Provides direct hardware access, separate compilation/linking • AKA “high level assembly language” and “Fortran done right” • 1972: Colmerauer, Roussel & Kowalski design Prolog • PROgrammingLOGic; designed for logic programming • Logic/predicate-based HLL for programming inferences • First logic HLL; used in expert systems

11. 1970s continued • 1977: Gordon & Milner design ML (MetaLanguage) • Hybrid HLL: functional, with inference rules (Prolog) • Allows linked ADTs to be defined without pointers (recursively) • AKA a “higher level language” • 1979: Hoare designs CSP • Introduces support for concurrent programming • 1980: Xerox PARC team designs Smalltalk • First pure object-oriented language (inheritance, polymorphism) • Program statements translated to byte code, not machine code • Introduces virtual machine to execute byte code • Functions replaced by methods, calls by messages

12. Early 1980s • 1980: Wirth designs Modula-2 • Introduces the module - a container for types and operations • 1981: DOD designs Ada • Algol-family HLL • Introduces generic types, task synchronization (rendezvous) • 1983: May designs Occam • Concurrent HLL based on CSP • 1983: LLNL designs SISAL • Concurrent HLL for array-processing on supercomputers • 1984: Sussman & Abelson design Scheme • Simplified easier-to-use Lisp, with static scope

13. Later 1980s • 1984: Jordan designs The Force • First HLL for programming SIMD multiprocessors • 1986: Stroustrup designs C++ • Hybrid language: (procedural) C with object-oriented features • Parameterized types via macro-substitution (templates) • 1987: Wall designs Perl • Interpreted procedural language; features of C, sh, awk, sed, Lisp • 1988: Wirth designs Oberon • Algol-family with features for OO and systems programming • 1988: Mehrotra & van Rosendale design Kali • First language for programming MIMD multiprocessors

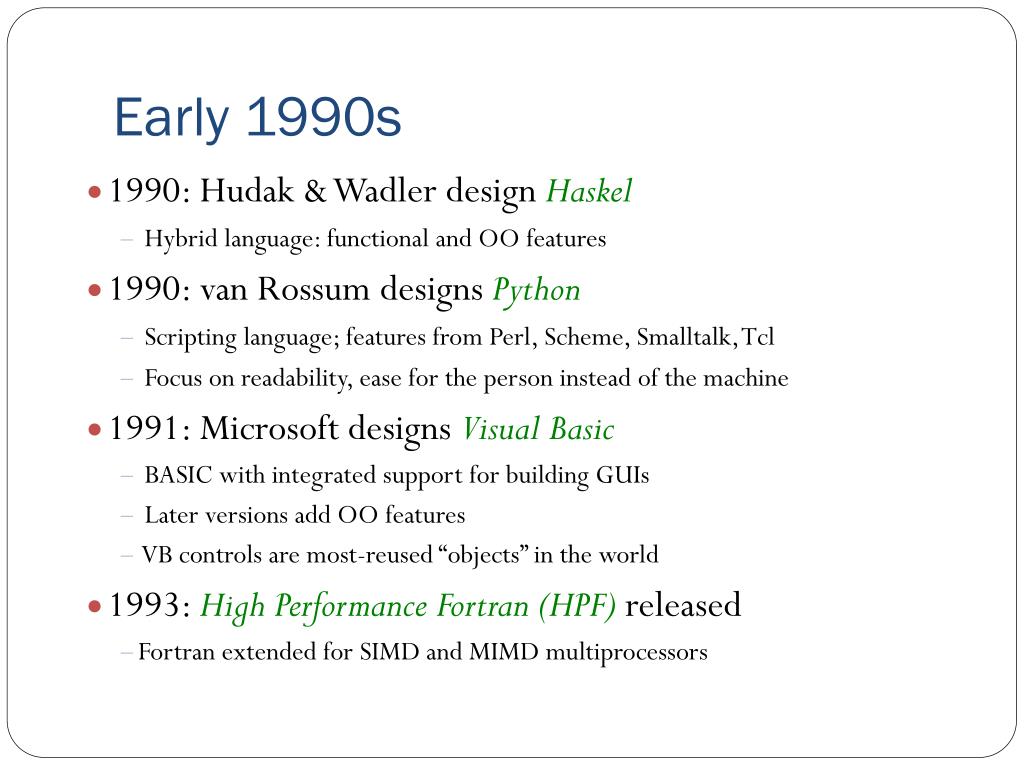

14. Early 1990s • 1990: Hudak & Wadler design Haskel • Hybrid language: functional and OO features • 1990: van Rossum designs Python • Scripting language; features from Perl, Scheme, Smalltalk, Tcl • Focus on readability, ease for the person instead of the machine • 1991: Microsoft designs Visual Basic • BASIC with integrated support for building GUIs • Later versions add OO features • VB controls are most-reused “objects” in the world • 1993: High Performance Fortran (HPF)released • Fortran extended for SIMD and MIMD multiprocessors

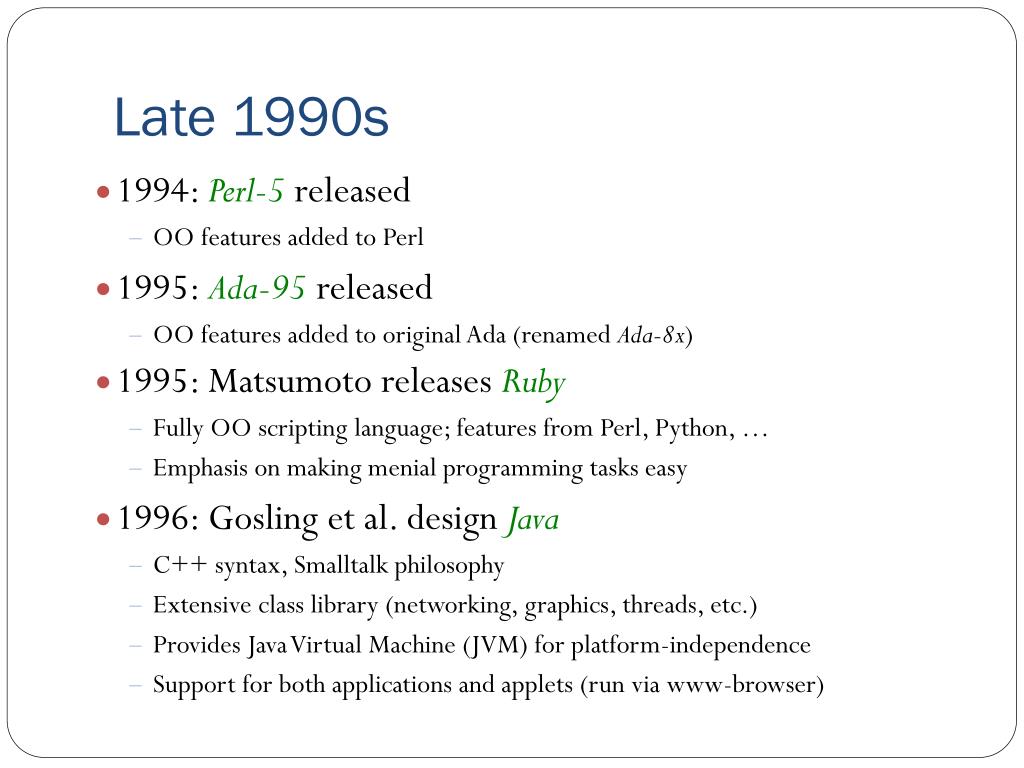

15. Late 1990s • 1994: Perl-5 released • OO features added to Perl • 1995: Ada-95released • OO features added to original Ada (renamed Ada-8x) • 1995: Matsumoto releases Ruby • Fully OO scripting language; features from Perl, Python, … • Emphasis on making menial programming tasks easy • 1996: Gosling et al. design Java • C++ syntax, Smalltalk philosophy • Extensive class library (networking, graphics, threads, etc.) • Provides Java Virtual Machine (JVM) for platform-independence • Support for both applications and applets (run via www-browser)

16. Development continues • PHP (1995) • UML (1996) • C# (2000) • Scriptol (2001) • Scala (2004) • … • Not to mention hundreds of other languages developed along the way!

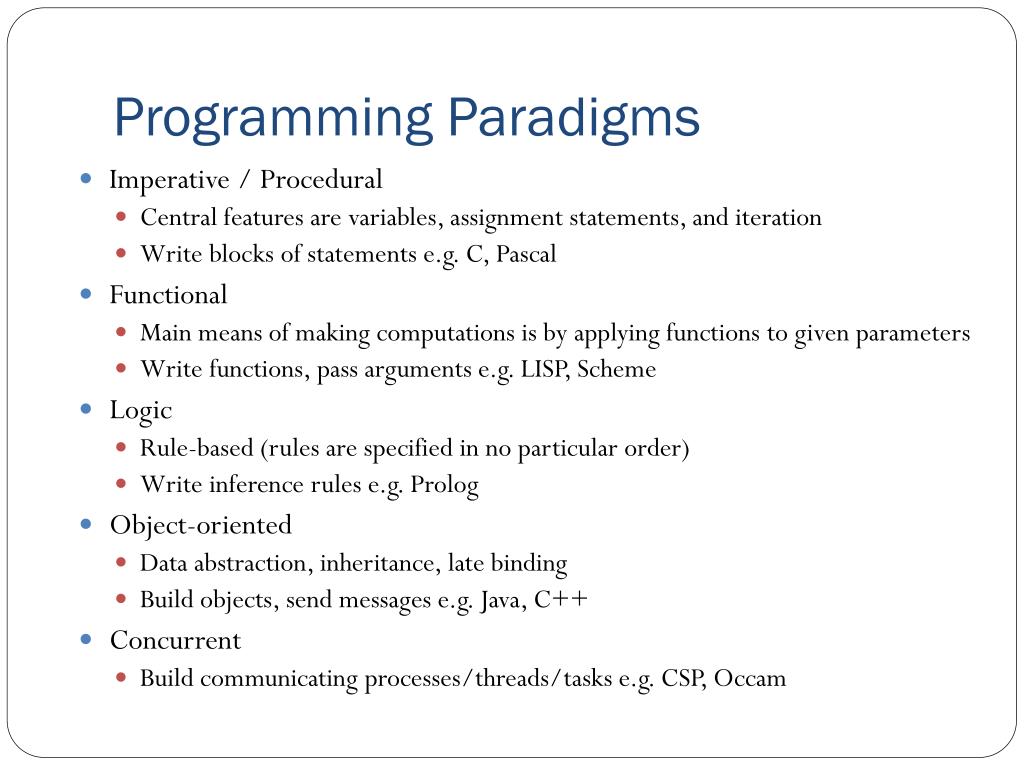

17. Programming Paradigms • Imperative / Procedural • Central features are variables, assignment statements, and iteration • Write blocks of statements e.g. C, Pascal • Functional • Main means of making computations is by applying functions to given parameters • Write functions, pass arguments e.g. LISP, Scheme • Logic • Rule-based (rules are specified in no particular order) • Write inference rules e.g. Prolog • Object-oriented • Data abstraction, inheritance, late binding • Build objects, send messages e.g. Java, C++ • Concurrent • Build communicating processes/threads/tasks e.g. CSP, Occam

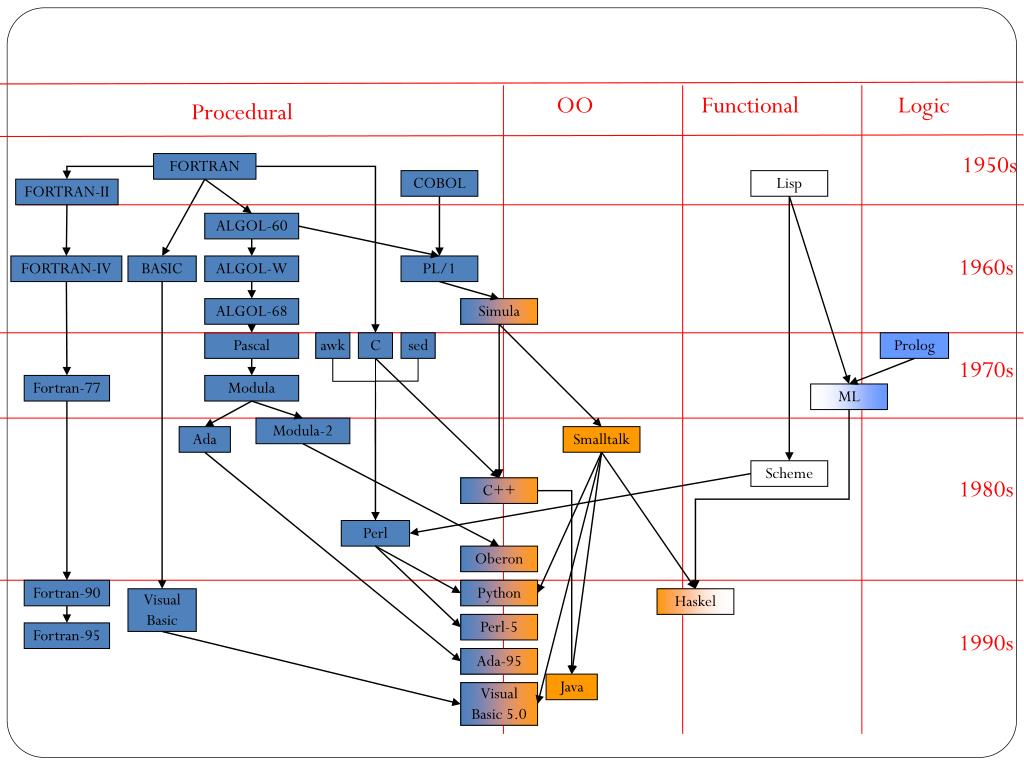

18. OO Functional Logic Procedural 1950s FORTRAN COBOL Lisp FORTRAN-II ALGOL-60 1960s FORTRAN-IV BASIC ALGOL-W PL/1 ALGOL-68 Simula Pascal awk C sed Prolog 1970s Fortran-77 Modula ML Modula-2 Ada Smalltalk Scheme 1980s C++ Perl Oberon Fortran-90 Python Visual Basic Haskel Perl-5 Fortran-95 1990s Ada-95 Java Visual Basic 5.0

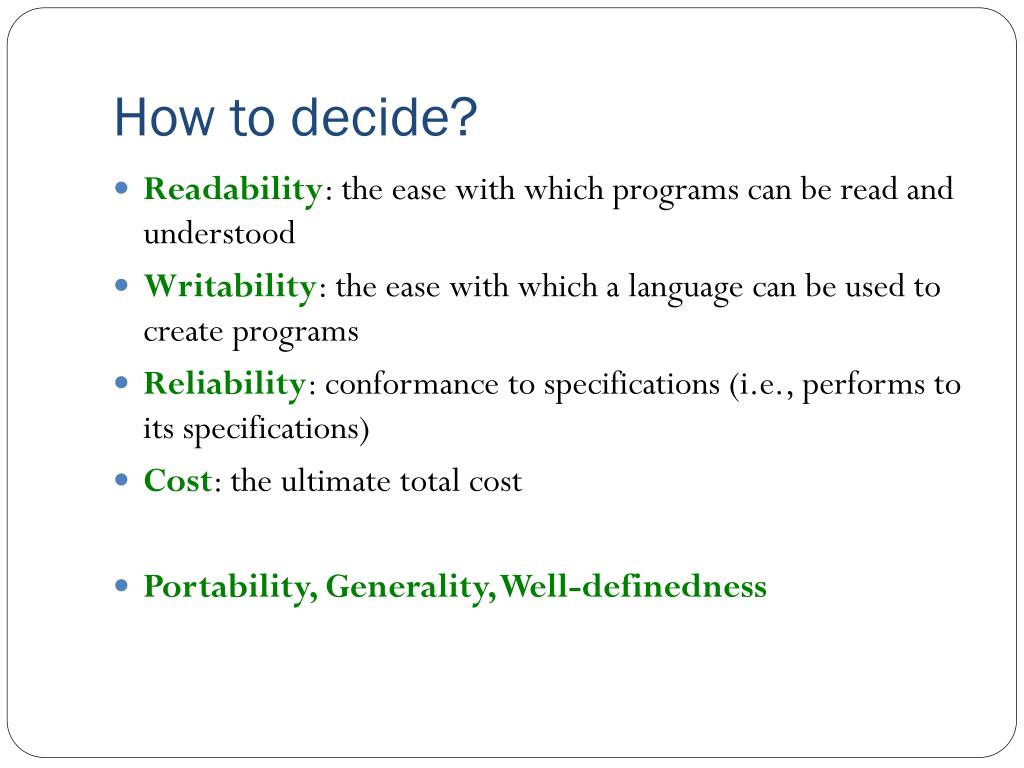

19. How to decide? • Readability: the ease with which programs can be read and understood • Writability: the ease with which a language can be used to create programs • Reliability: conformance to specifications (i.e., performs to its specifications) • Cost: the ultimate total cost • Portability, Generality, Well-definedness

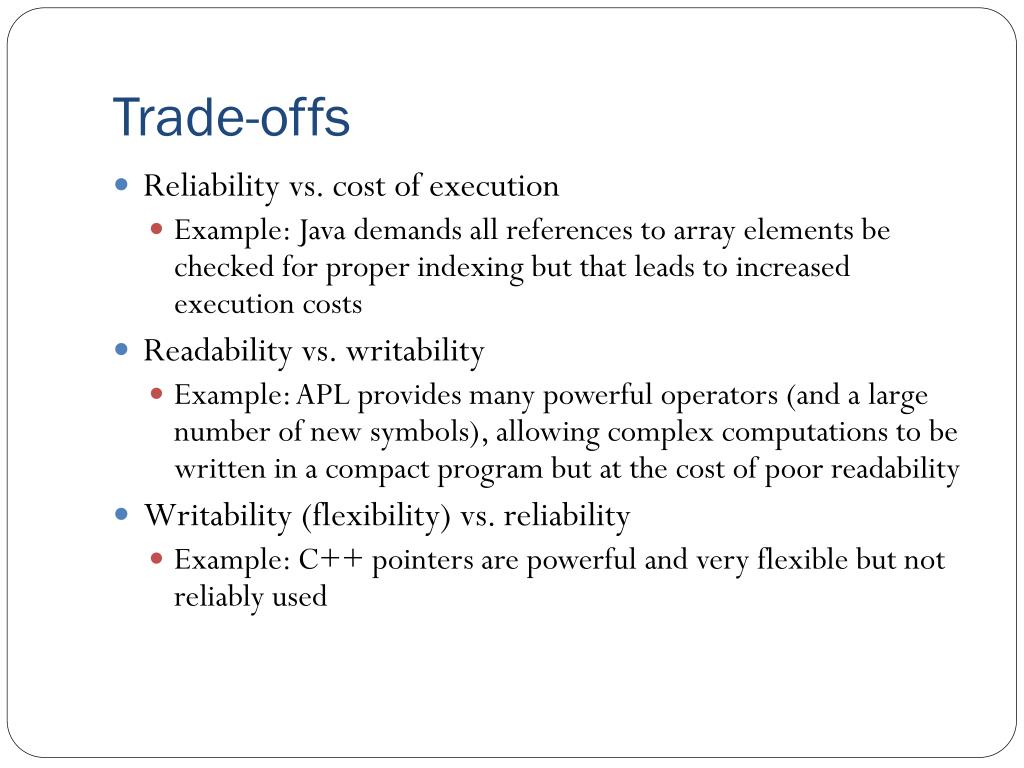

20. Trade-offs • Reliability vs. cost of execution • Example: Java demands all references to array elements be checked for proper indexing but that leads to increased execution costs • Readability vs. writability • Example: APL provides many powerful operators (and a large number of new symbols), allowing complex computations to be written in a compact program but at the cost of poor readability • Writability (flexibility) vs. reliability • Example: C++ pointers are powerful and very flexible but not reliably used

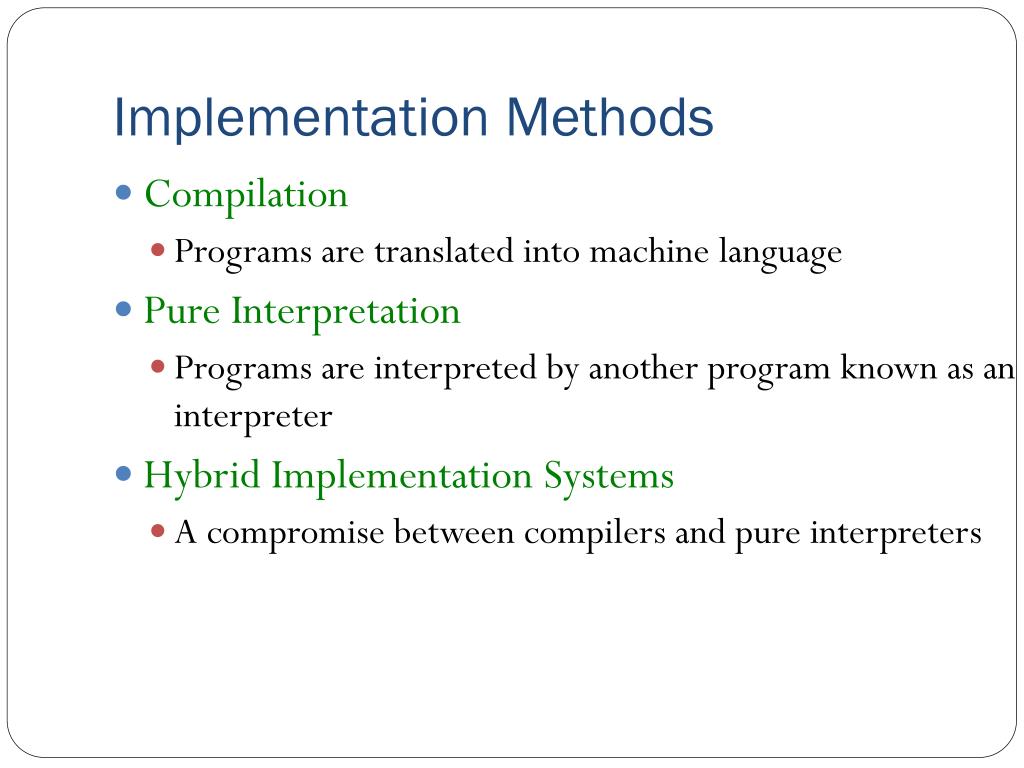

21. Implementation Methods • Compilation • Programs are translated into machine language • Pure Interpretation • Programs are interpreted by another program known as an interpreter • Hybrid Implementation Systems • A compromise between compilers and pure interpreters
