Load balancer

WebSphere: Examples … Load balance and workload management.

constance-browning
Télécharger la présentation

Load balancer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

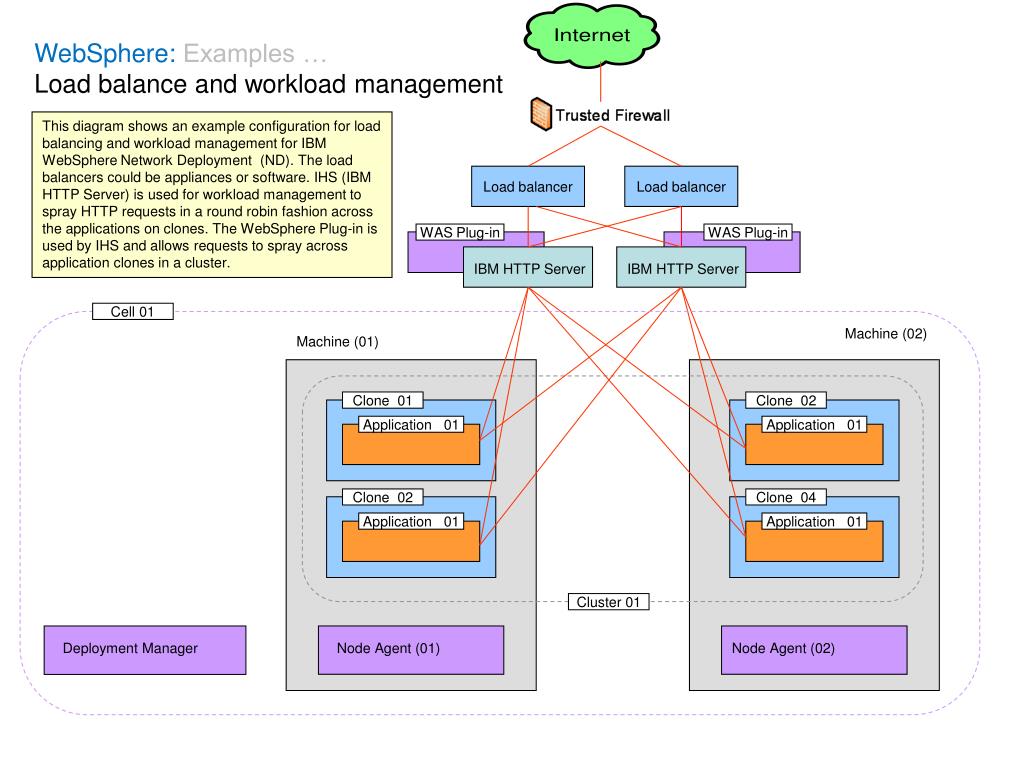

  1. WebSphere: Examples … Load balance and workload management This diagram shows an example configuration for load balancing and workload management for IBM WebSphere Network Deployment (ND). The load balancers could be appliances or software. IHS (IBM HTTP Server) is used for workload management to spray HTTP requests in a round robin fashion across the applications on clones. The WebSphere Plug-in is used by IHS and allows requests to spray across application clones in a cluster. Load balancer Load balancer WAS Plug-in WAS Plug-in IBM HTTP Server IBM HTTP Server Cell 01 Machine (02) Machine (01) Clone 01 Clone 02 Application 01 Application 01 Clone 02 Clone 04 Application 01 Application 01 Cluster 01 Deployment Manager Node Agent (01) Node Agent (02)
