  1. Welcome to Systems Software • The purpose of this course is to provide background in fundamental types of system software, particularly assemblers, loaders, macro processors, and linkage editors. • The course uses a simplified instructional computer (SIC and SIC/XE) to illustrate machine level system software requirements.

  2. Welcome to Systems Software • A major objective of the course will be for students to design and implement a working (cross) assembler for SIC and part of SIC/XE.

  3. Concerned • Application programs • Machine independent • Solves a specific problem • Systems programs • Machine dependent • Support computers operation • Compiler • Assembler • Linker • Loader • OS

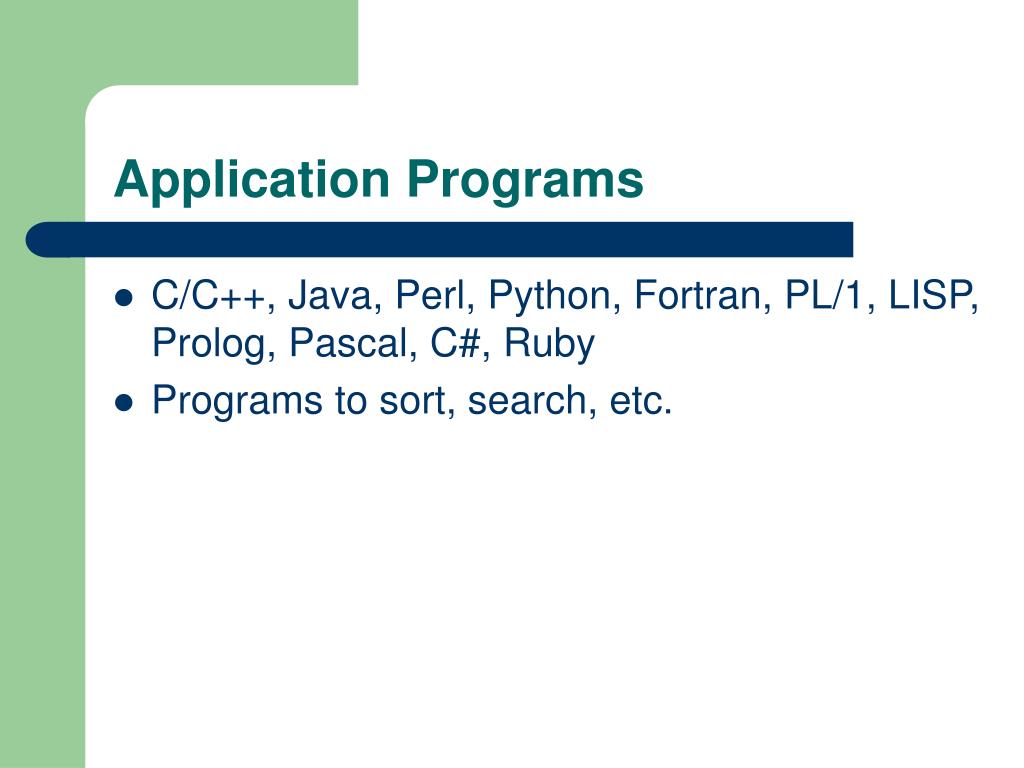

  4. Application Programs • C/C++, Java, Perl, Python, Fortran, PL/1, LISP, Prolog, Pascal, C#, Ruby • Programs to sort, search, etc.

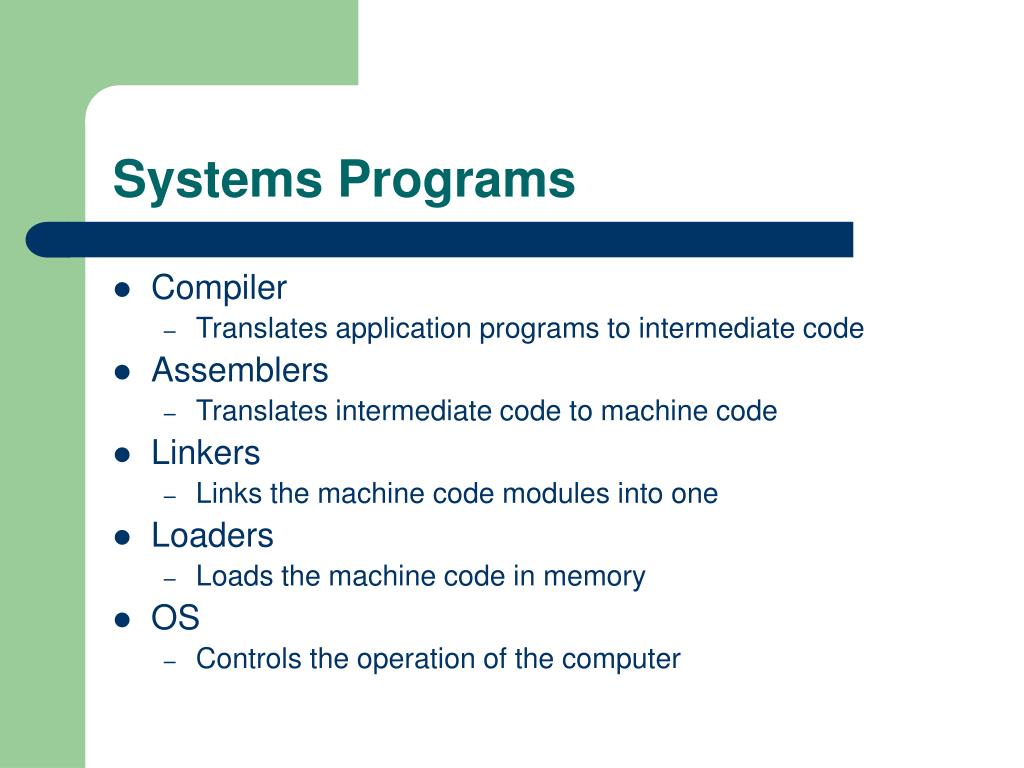

  5. Systems Programs • Compiler • Translates application programs to intermediate code • Assemblers • Translates intermediate code to machine code • Linkers • Links the machine code modules into one • Loaders • Loads the machine code in memory • OS • Controls the operation of the computer

  6. Assembler Program - SIC (Intermediate Code) LDA FIVE Load 5 into A STA ALPHA Store in ALPHA LDCH CHARZ Load character ‘Z’ into A STCH C1 Store in C1 . . ALPHA RESW 1 one word variable FIVE WORD 5 one word constant CHARZ BYTE C’Z’ one byte constant C1 RESB 1 one byte variable

  7. Assembler Program – SIC/XE (Intermediate Code) LDA #5 Load 5 into A STA ALPHA Store in ALPHA LDCH #90 Load character ‘Z’ into A STCH C1 Store in C1 . . ALPHA RESW 1 one word variable C1 RESB 1 one byte variable

  8. SIC / SICXE • Simple Instruction Computer • Simple Instruction Computer Extended • Designed to be similar to real computers • Designed to avoid unnecessary detail

  9. CHARACTERISTICS OF SIC

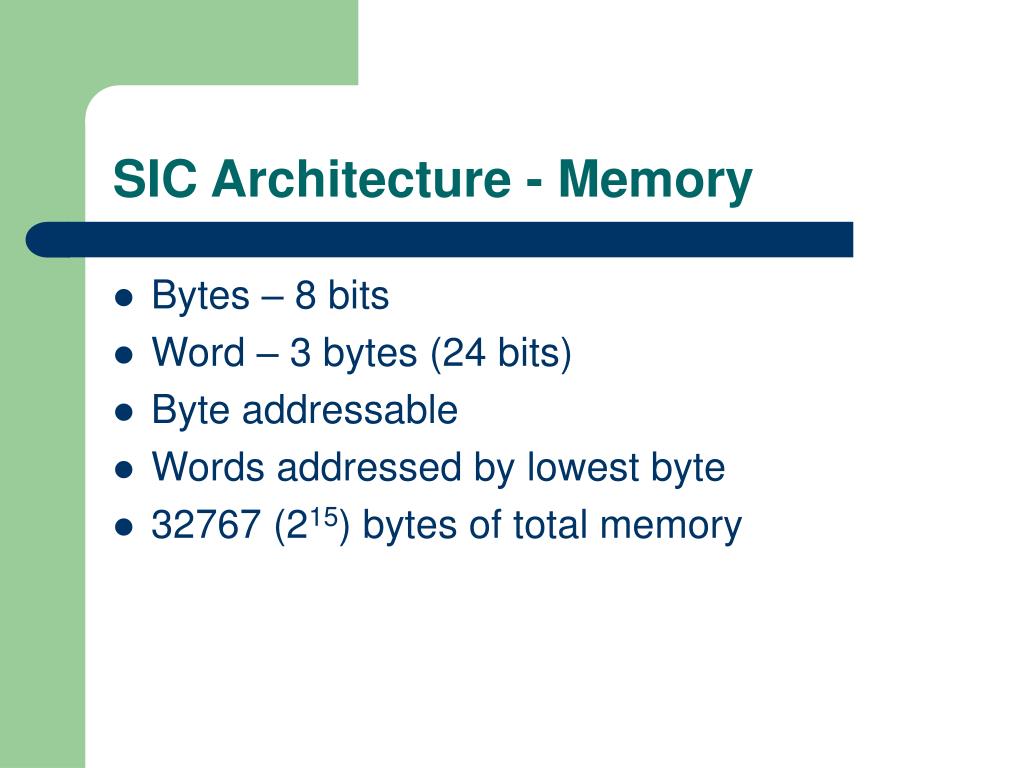

  10. SIC Architecture - Memory • Bytes – 8 bits • Word – 3 bytes (24 bits) • Byte addressable • Words addressed by lowest byte • 32767 (215) bytes of total memory

  11. SIC Architecture - Registers • 5 registers • Each a full word • Each special purpose

  12. Register Names and Usage - SIC • A 0 Accumulator; used for arithmetic • X 1 Index register; used for addressing • L 2 Linkage resister; used for return address • PC 8 Program counter; address of next inst. • SW 9 Status word; variety of information including a condition code (CC)

  13. Data Formats - SIC • Integers – 24 bit binary 2’s complement • Characters – 8 bit ASCII • No floating point

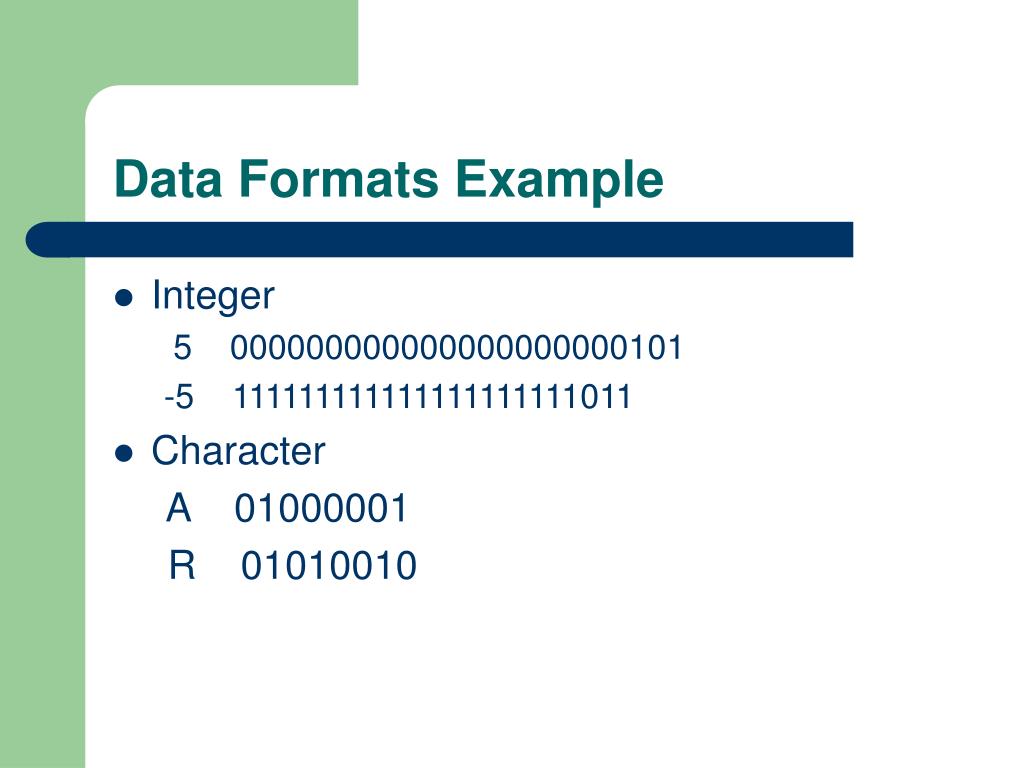

  14. Data Formats Example • Integer 5 000000000000000000000101 -5 111111111111111111111011 • Character A 01000001 R 01010010

  15. Instruction Formats - SIC • 24 bit 8 bit opcode 1 bit addressing mode 15 bit address

  16. Addressing Modes - SIC • Direct x = 0 Target address = address • Indexed x = 1 Target address + (X) (X) is the contents of register X

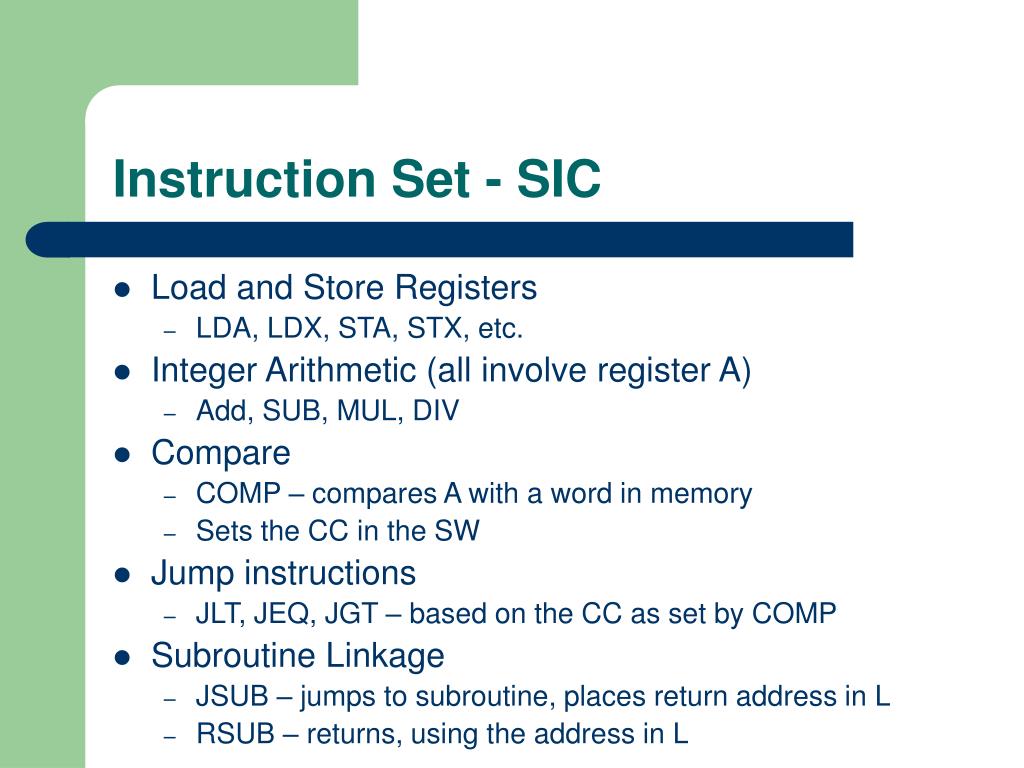

  17. Instruction Set - SIC • Load and Store Registers • LDA, LDX, STA, STX, etc. • Integer Arithmetic (all involve register A) • Add, SUB, MUL, DIV • Compare • COMP – compares A with a word in memory • Sets the CC in the SW • Jump instructions • JLT, JEQ, JGT – based on the CC as set by COMP • Subroutine Linkage • JSUB – jumps to subroutine, places return address in L • RSUB – returns, using the address in L

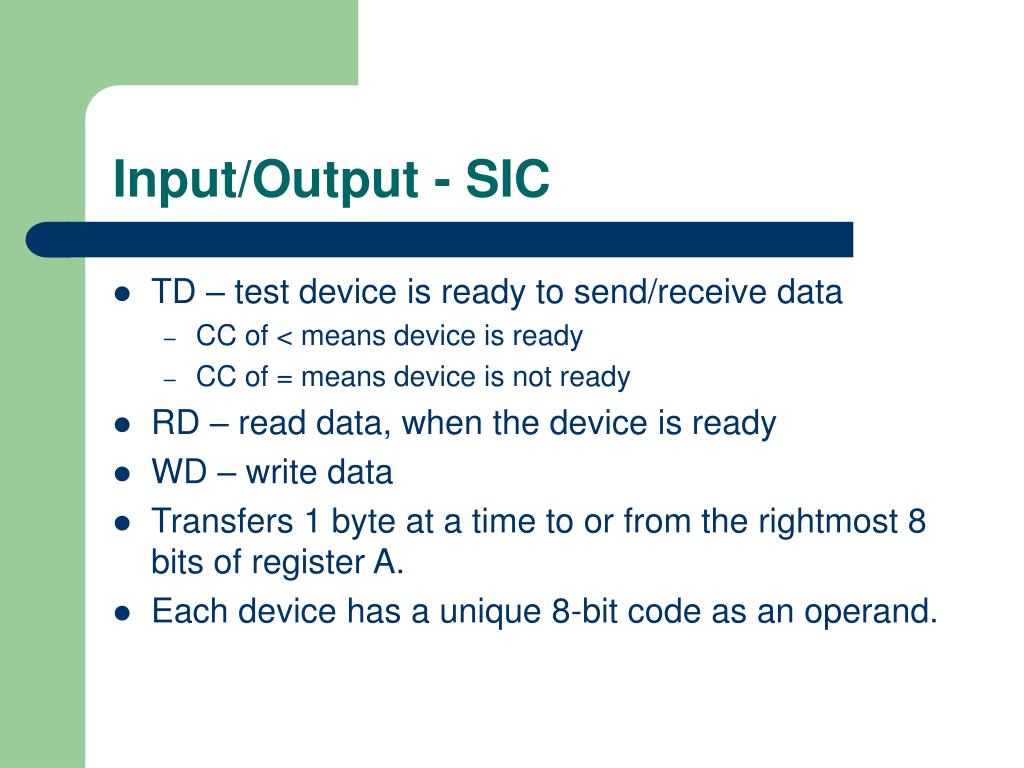

  18. Input/Output - SIC • TD – test device is ready to send/receive data • CC of < means device is ready • CC of = means device is not ready • RD – read data, when the device is ready • WD – write data • Transfers 1 byte at a time to or from the rightmost 8 bits of register A. • Each device has a unique 8-bit code as an operand.

  19. CHARACTERISTICS OF SIC/XE

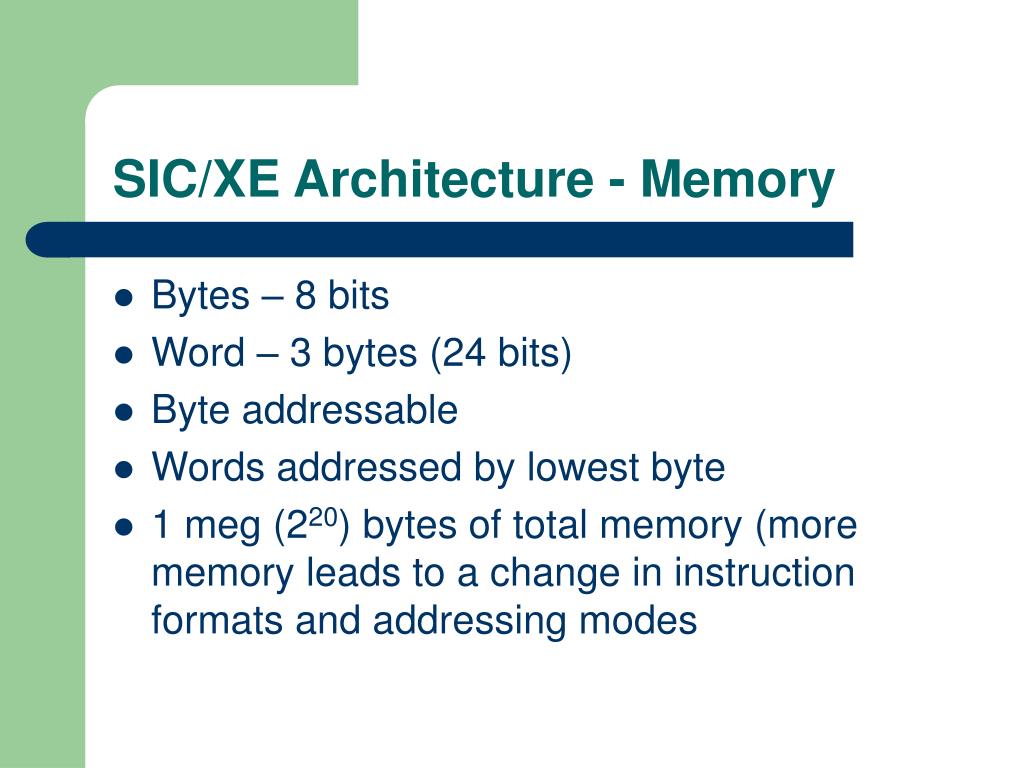

  20. SIC/XE Architecture - Memory • Bytes – 8 bits • Word – 3 bytes (24 bits) • Byte addressable • Words addressed by lowest byte • 1 meg (220) bytes of total memory (more memory leads to a change in instruction formats and addressing modes

  21. SIC/XE Architecture - Registers • 5 registers of SIC + 4 additional • Each a full word • Each special purpose

  22. Register Names and Usage – SIC and SIC/XE • A 0 Accumulator; used for arithmetic • X 1 Index register; used for addressing • L 2 Linkage resister; used for return address • PC 8 Program counter; address of next inst. • SW 9 Status word; variety of information including a condition code (CC)

  23. FOUR Additional Registers and their Usage SIC/XE • B 3 Base register, used for addressing • S 4 General register – no special use • T 5 General register – no special use • F 6 Floating-point accumulator (48 bits)

  24. Data Formats – SIC/XE • Integers – 24 bit binary 2’s complement • Characters – 8 bit ASCII • Floating point – 48 bit floating point

  25. Data Formats – SIC/XE • 24 bit integer • 48 bit floating point 1 bit sign 11 bit exponent 36 bit fraction

  26. Floating Point Format SIC/XE • Fraction is a value between 0 and 1 • The binary point is immediately before the high order bit which must be 1 • The exponent is an unsigned binary number between 0 and 2047

  27. Floating Point (cont) SIC/XE • Suppose the exponent is e and the fraction is f • The number is f * 2 (e+1024) • 0 sign is positive • 1 is negative • 0 is all bits including sign are 0

  28. Data Formats Example • Integer 5 = 000000000000000000000101 -5 = 111111111111111111111011 • Character A 01000001

  29. Data Formats Example • Float 4.89 = .1001110001111010111000010100011110 10111000010100 * 23 (1027) =0 10000000011 100111000111101011 100001010001111010

  30. Data Formats Example • Float -.000489 = 100000000011000000 111100000001111110 * 2-10 (1014) =1 01111110110 100000000011000000 111100000001111110

  31. Instruction Formats – SIC/XE • Format 1 - 8 bit (1 byte) • Format 2 – 16 bit (2 bytes) 8 bit opcode 8 bit opcode 4 bit R1 reg 4 bit R2 reg

  32. Instruction Formats – SIC/XE • Format 3 - 24 bit (3 byte) • Format 4 – 32 bit (4 bytes) 6 bit opcode n i x b p e 12 bit displacemnt 6 bit opcode n i x b p e 20 bit address

  33. Addressing Modes – SIC/XEFormat 3/4 Instruction • Base relative b=1,p=0 TA = (B)+disp 0  disp  4095 disp is a n unsigned integer • PC relative b=0,p=1 TA = (PC)+disp -2048  disp  2047 disp is a 2’s complement integer • (?) is the contents of register ? • if b=0, p=0 then disp is an absolute address

  34. Addressing Modes – SIC/XEFormat 3/4 Instruction (cont) • Any addressing mode can be combined with indexed addressing. i.e. if bit x is a 1 then (X) is added in the target address calculation.

  35. Addressing Modes – SIC/XEFormat 3/4 Instruction the disp (cont) • Immediate addressing i = 1, n = 0 the address itself is the operand, no memory reference • Indirect addressing i = 0, n = 1 the word at the location is fetched as the address for the instruction • Simple addressing i = n = 0 the target address is taken as the operand • e = 0 implies format 3, e = 1 implies format 4

  36. Instruction Set – SIC/XE • Load and Store Registers • LDA, LDX, STA, STX, LDB, STB, RMO • Integer Arithmetic (all involve register A) • Add, SUB, MUL, DIV, ADDF, SUBF, MULF, DIVF, ADDR, SUBR, MULR, DIVR • Compare • COMP – compares A with a word in memory • Sets the CC in the SW • Jump instructions • JLT, JEQ, JGT – based on the CC as set by COMP • Subroutine Linkage • JSUB – jumps to subroutine, places return address in L • RSUB – returns, using the address in L

  37. Input/Output – SIC/XE • TD – test device is ready to send/receive data • CC of < means device is ready • CC of = means device is not ready • RD – read data, when the device is ready • WD – write data • Transfers 1 byte at a time to or from the rightmost 8 bits of register A. • Each device has a unique 8-bit code as an operand. • I/0 channels – SIO, TIO, HIO

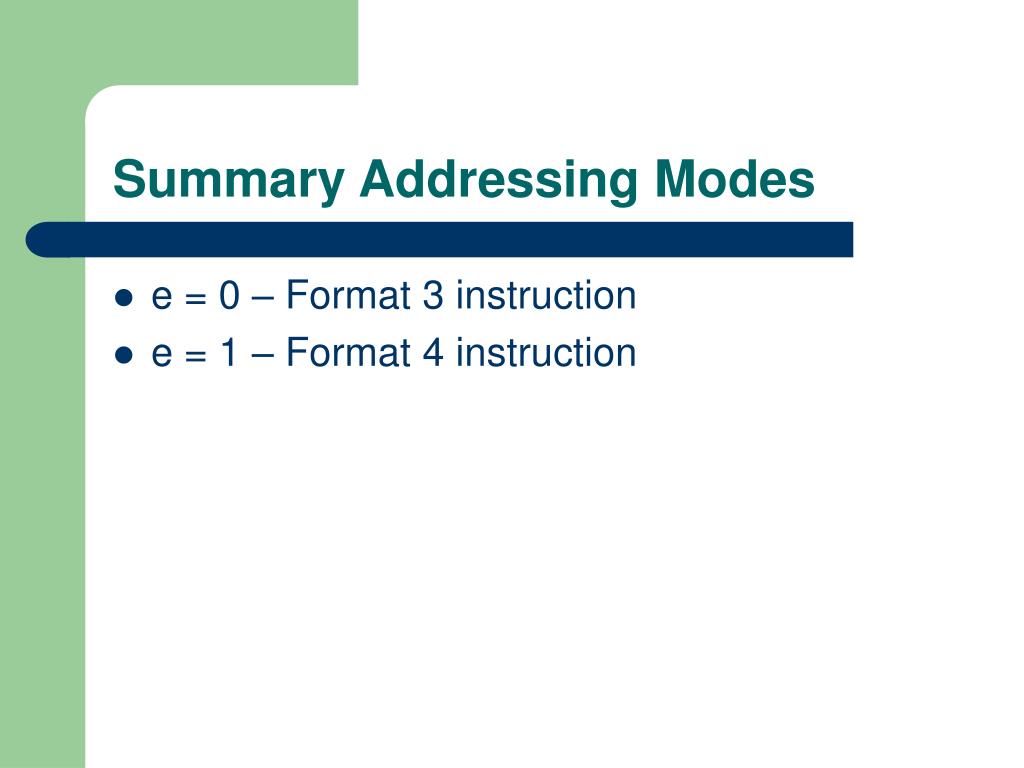

  38. Summary Addressing Modes • e = 0 – Format 3 instruction • e = 1 – Format 4 instruction

  39. Summary Addressing Modes • Direct Addressing – b = p = 0 • TA = disp • Relative Addressing – • b = 1, p = 0 • TA = (B) + disp • b = 0, p = 1 • TA = (PC) + disp

  40. Summary Addressing Modes • Immediate • i = 1, n = 0 • Target address itself is used as the operand value • Indirect • i = 0, n = 1 • Value contained in the word is the address

  41. Summary Addressing Modes • Simple • i = n = 0 • TA is the location of the operand • SIC/XE instruction • i = n = 1 • TA is determined by other bits
