First Beam Usage Plans and RPC Synchronization for CRAFT Studies

This document outlines the plans for utilizing the first beams with RPC triggers during the CRAFT operations. It includes a detailed HR test of the RPC readout system, a summary of synchronization strategies, and known issues related to the first beam interactions. Notably, it discusses the implications of beam shots on collimators, the limited utility of halo muons with RPC, and the synchronization challenges during initial beam collisions. The document also describes a procedure for correcting initial synchronization parameters using histograms generated from readout data.

cora
Télécharger la présentation

First Beam Usage Plans and RPC Synchronization for CRAFT Studies

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

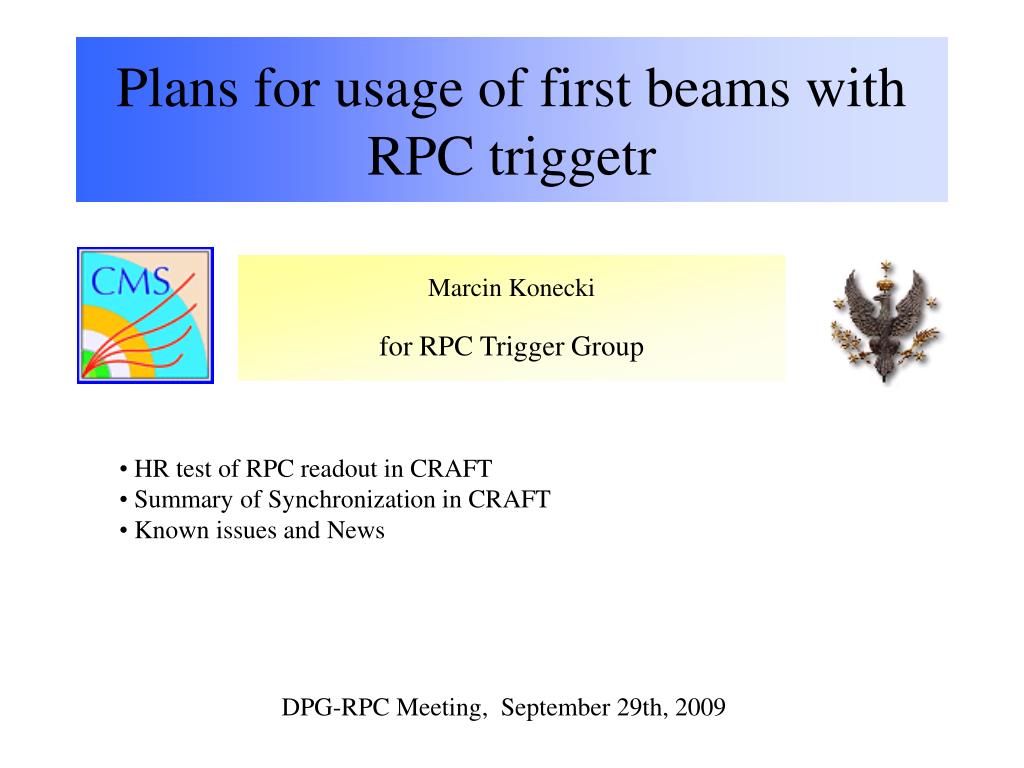

  1. Plans for usage of first beams with RPC triggetr • HR test of RPC readout in CRAFT • Summary of Synchronization in CRAFT • Known issues and News

  2. Tasks with first beams • Beam shots on collimators: not useful for calibration, can be used to check how many data we can transmit. • Halo muons: - very little with RPC. • First beam collisions (450GeV, 3.5TeV) – useful for synchronisation studies. Especially in case of collisions in only a few known, fixed BXes. RPC synchronisation does not relay on DT or CSC. Needed: RPC readout only (+GMT).

  3. Synchronisation with LHC beams We consider two options: • Start-up with cosmic synchronisation. • Modify current cosmic synchronisation with correction from muon delay (correction from geometry). To correct initial synchronisation parameters (for both cases) we make histograms for each LinkBoard. LB is a base unit keeping synchronisation parameters. The histogram can be made only from readout data (we have -3,+3BX which is enough). Than shift wrt expected trigger BX is computed and updated parameters are loaded to DB. Procedure exists and is well tested (used for cosmic case). In order to provide a trigger we can extend a hit signal to a few consecutive BX. Then hits can be attached to known BX of LHC pp collision (or to that given by barrel, TC9, where cosmic and LHC timing is similar). We do not need a trigger in THE pp BX. That with cosmic synchronisation parameters should be fine. We can compute histogram average from <10 events, 1500 LBs, 5 hits/mu. Assuming flat distribution in eta (which is not a case due to different penetration length) we need <1e4 muons which know the BX to which data should be associated .
