Types of Angle

1. 3. 2. Types of Angle. Acute angles. Acute angles are angles less than 90 o. 90 o on a protractor. Vertical. Horizontal. Horizontal. Horizontal. 1. 2. 3. Vertical. Vertical. Vertical. Horizontal. Types of Angle. Right angles.

coral
Télécharger la présentation

Types of Angle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 1 3 2 Types of Angle Acute angles Acute angles are angles less than 90o

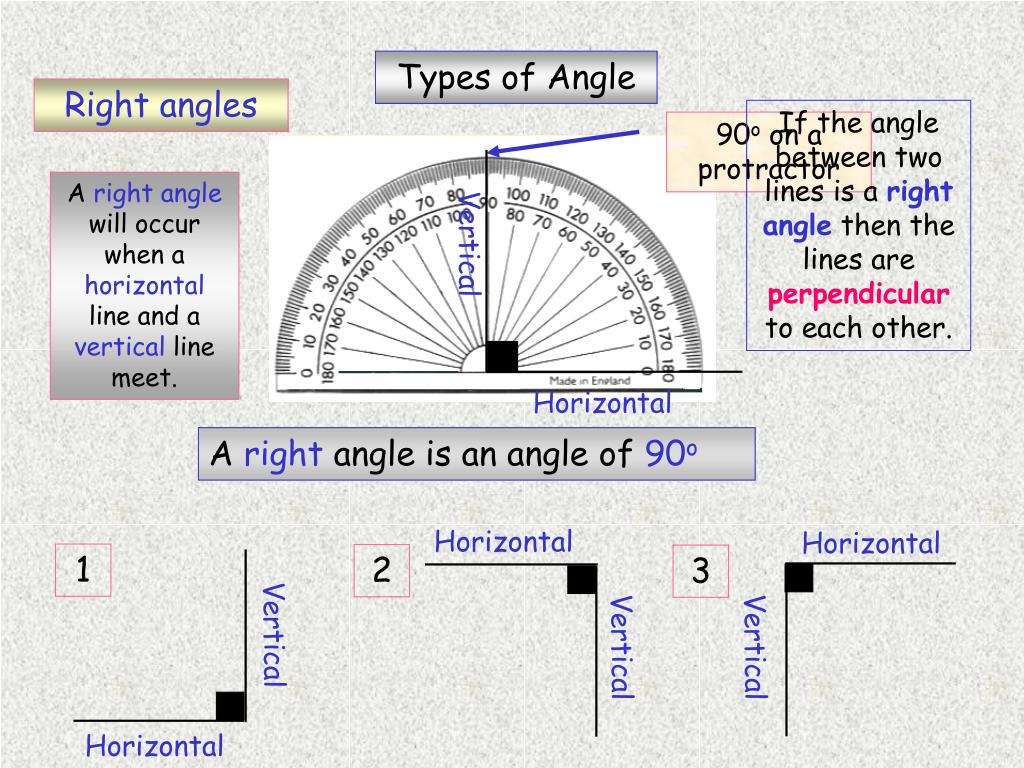

  2. 90o on a protractor Vertical Horizontal Horizontal Horizontal 1 2 3 Vertical Vertical Vertical Horizontal Types of Angle Right angles If the angle between two lines is a right angle then the lines are perpendicular to each other. A right angle will occur when a horizontal line and a vertical line meet. A right angle is an angle of 90o

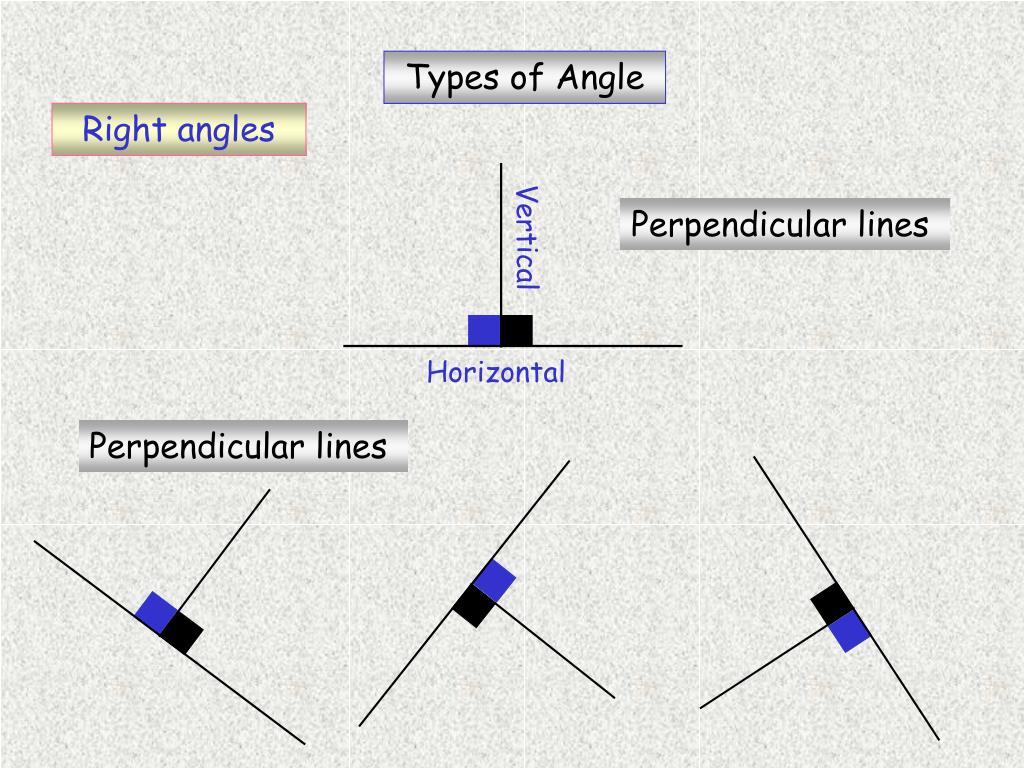

  3. Right angles Vertical Perpendicular lines Horizontal Perpendicular lines Types of Angle

  4. Which simple shapes contain right-angles?

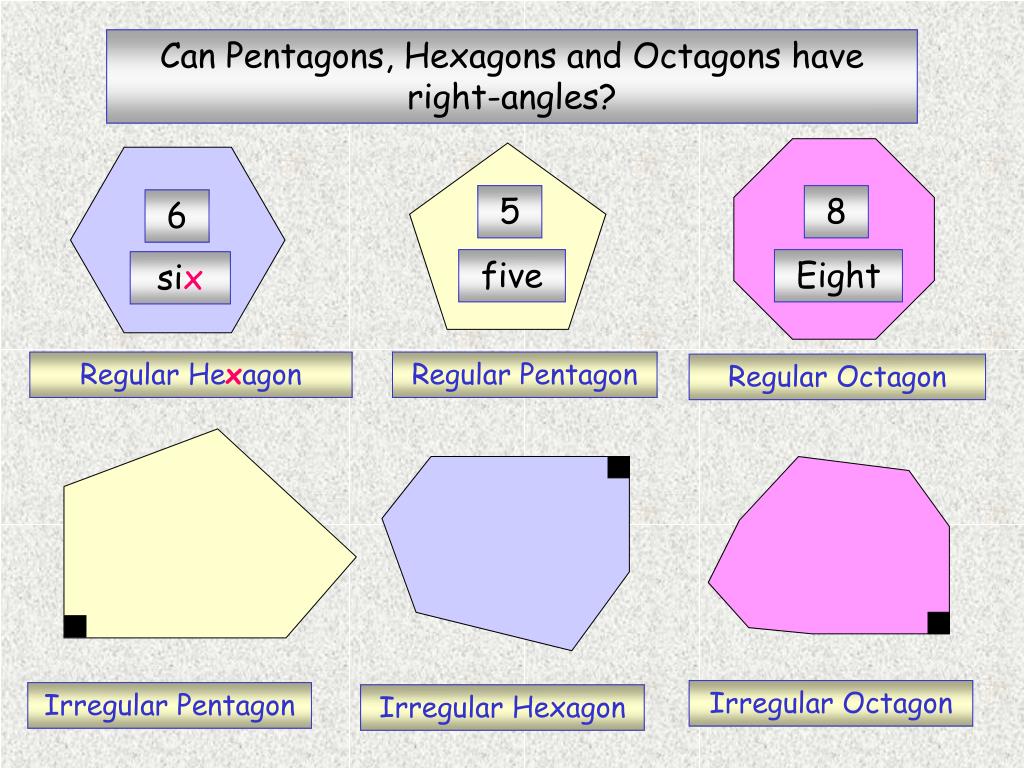

  5. 5 8 6 five Eight six Can Pentagons, Hexagons and Octagons have right-angles? Regular Hexagon Regular Pentagon Regular Octagon Irregular Octagon Irregular Pentagon Irregular Hexagon

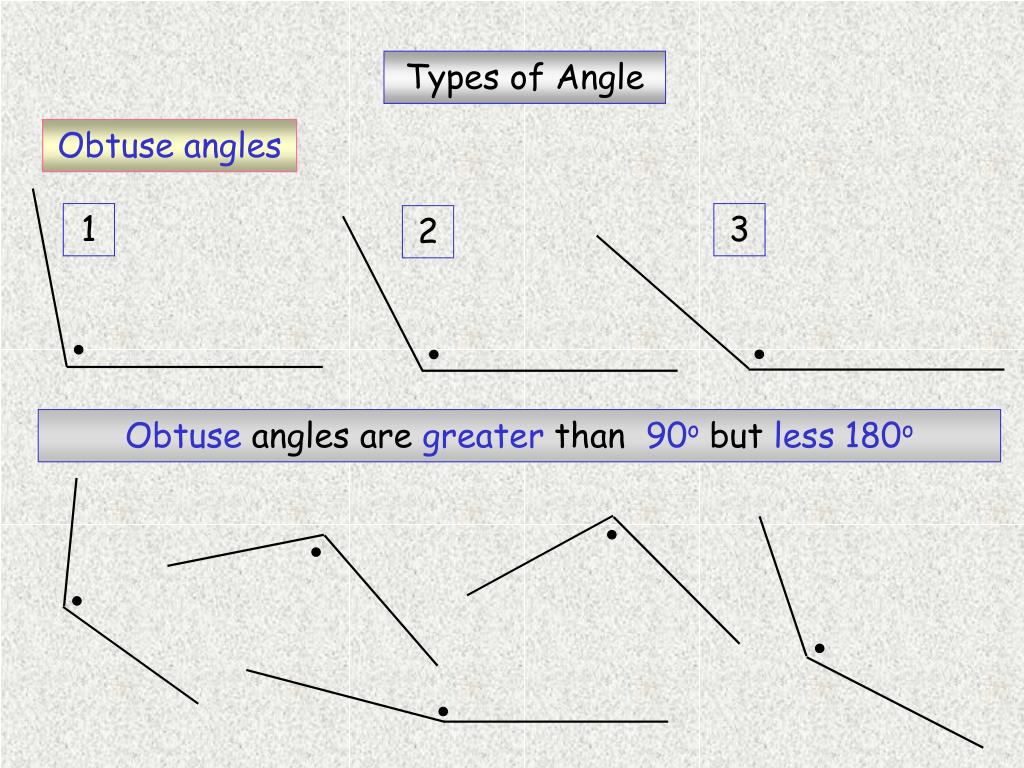

  6. 1 3 2 Types of Angle Obtuse angles Obtuse angles are greater than 90obut less 180o

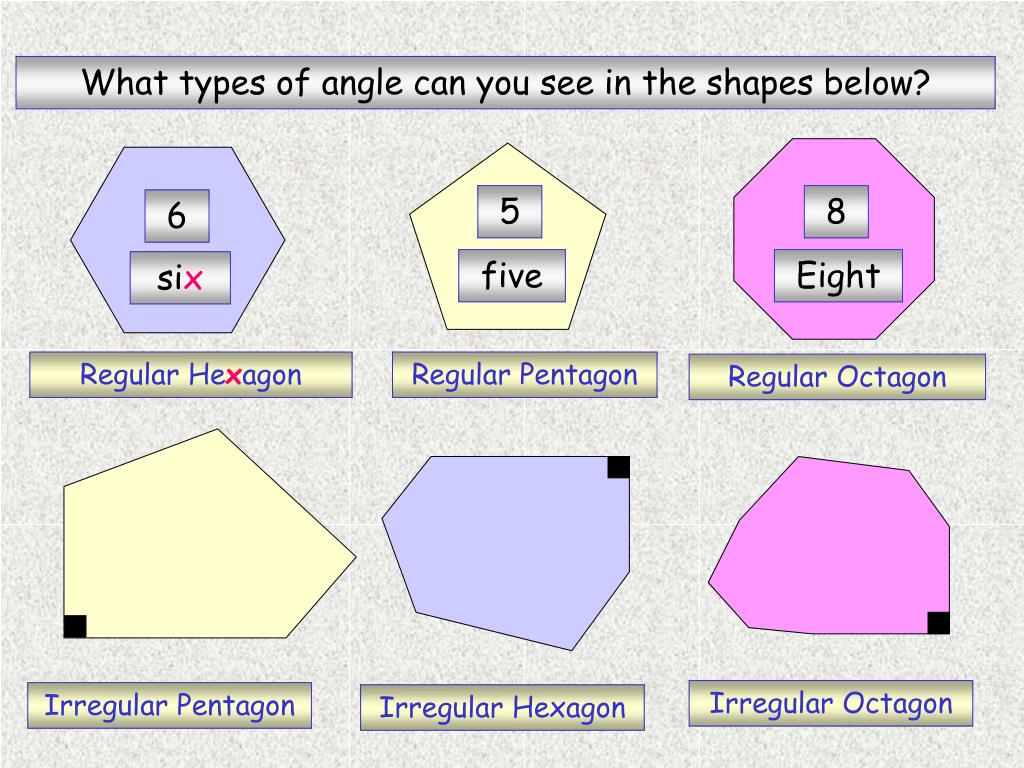

  7. What types of angle can you see in the shapes below? 5 8 6 five Eight six Regular Hexagon Regular Pentagon Regular Octagon Irregular Octagon Irregular Pentagon Irregular Hexagon

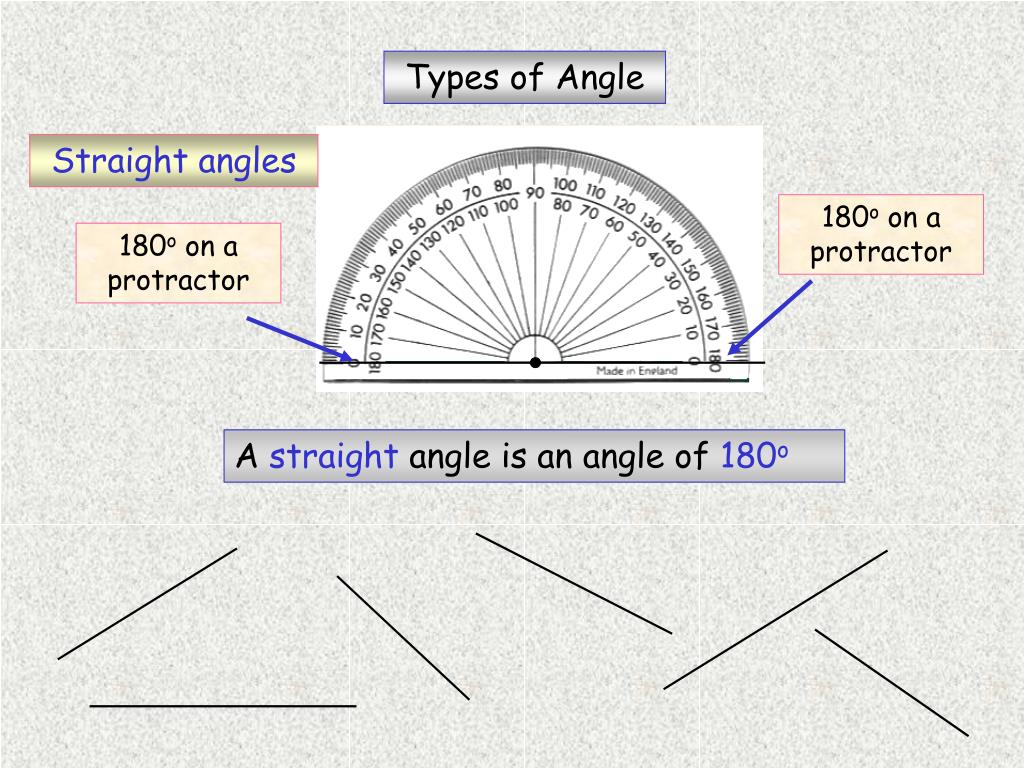

  8. 180o on a protractor 180o on a protractor Types of Angle Straight angles A straight angle is an angle of 180o

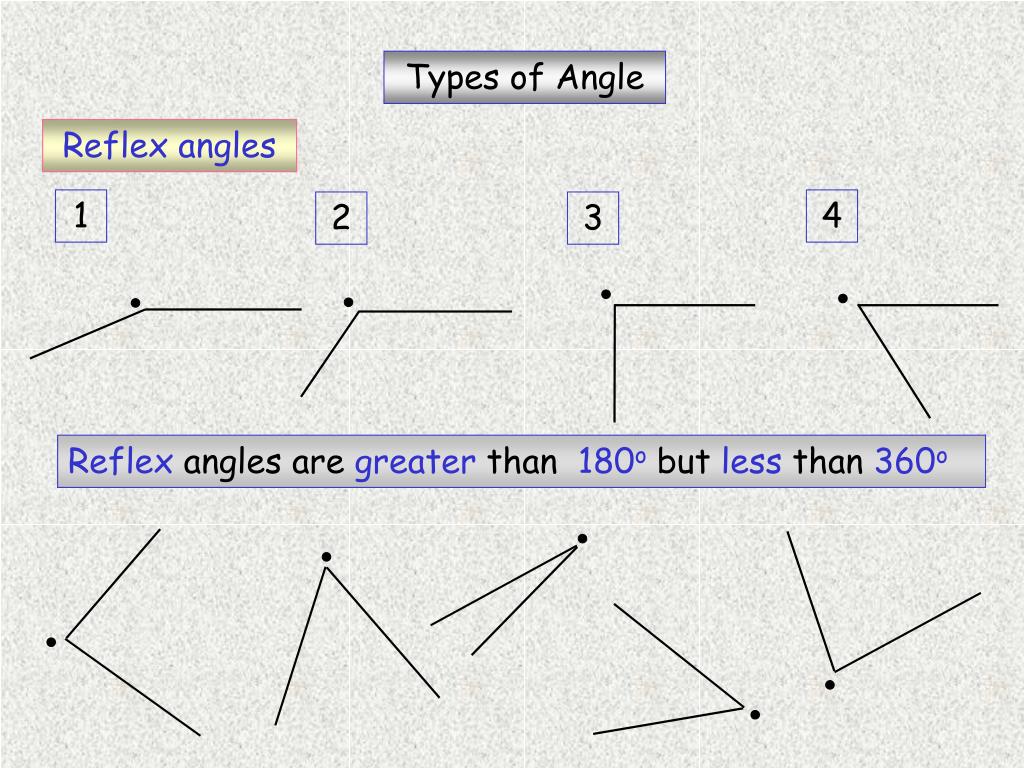

  9. 1 4 2 3 Types of Angle Reflex angles Reflex angles are greater than 180obut less than 360o

  10. 1 3 2 4 5 6 7 9 8 Acute Acute Obtuse Right Obtuse Reflex Obtuse Acute Reflex

  11. Inside scale from 0o to 180o going in an anti-clockwise direction. Outside scale from 0o to 180o going in a clockwise direction. A 180o Protractor

  12. You need to be able to measure an angle to the nearest degree. To help you do this you should always: 1. Look directly down onto the cross point to improve accuracy. 2. Always use the protractor in a horizontal manner as shown below. 

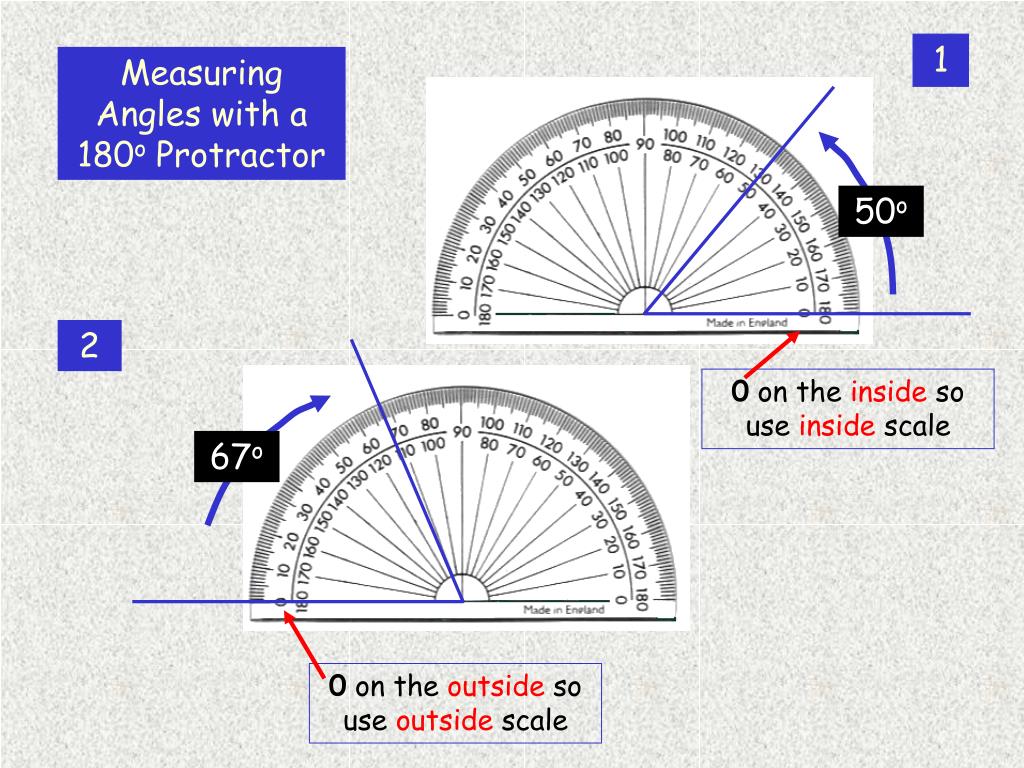

  13. 1 0 on the inside so use inside scale 2 0 on the outside so use outside scale Measuring Angles with a 180o Protractor 50o 67o

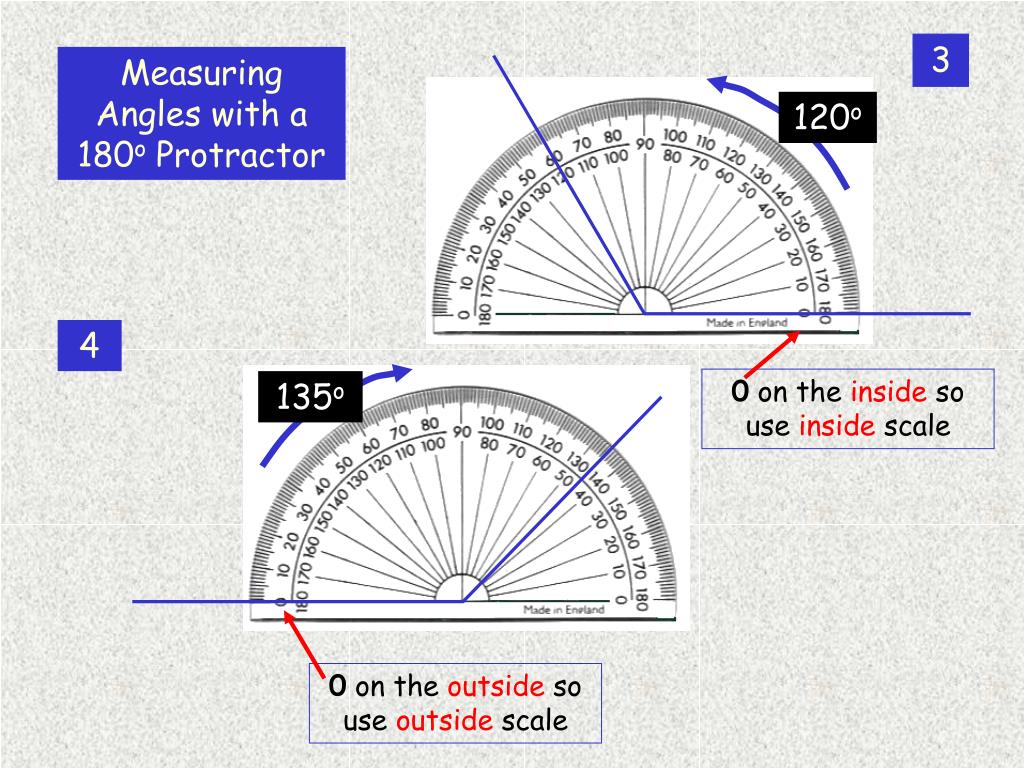

  14. 3 4 0 on the inside so use inside scale 0 on the outside so use outside scale Measuring Angles with a 180o Protractor 120o 135o

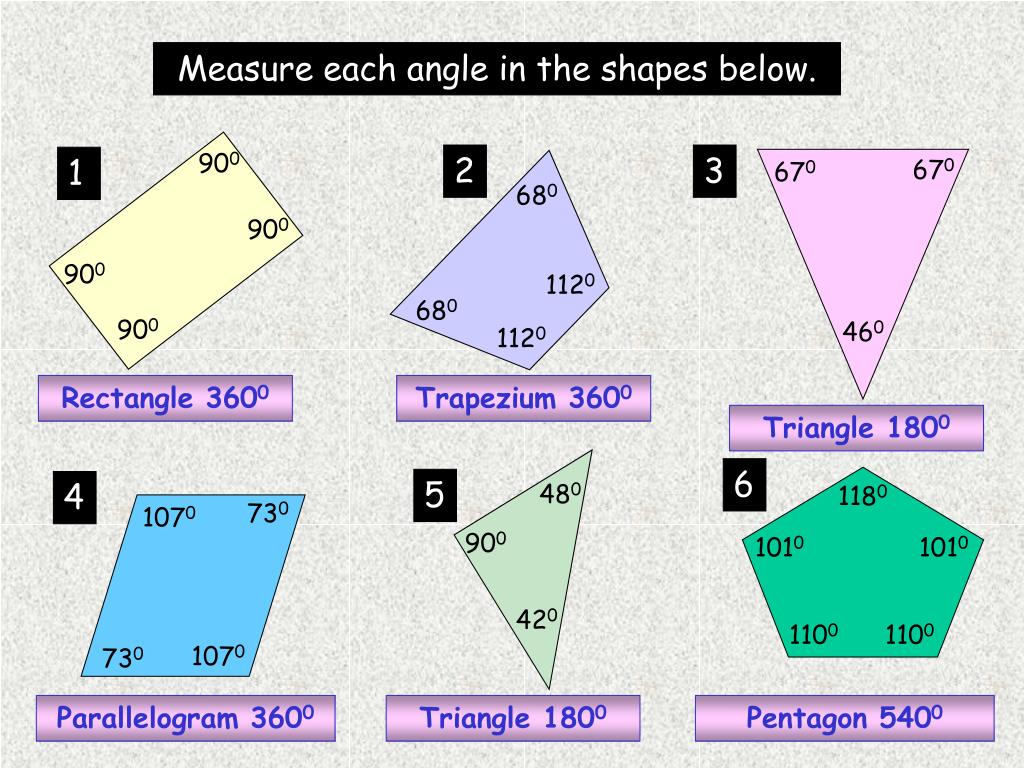

  15. Measure each angle in the shapes below. 900 2 3 1 670 670 680 900 900 1120 680 900 460 1120 6 5 4 480 1180 730 1070 900 1010 1010 420 1100 1100 1070 730 Rectangle 3600 Trapezium 3600 Triangle 1800 Parallelogram 3600 Triangle 1800 Pentagon 5400

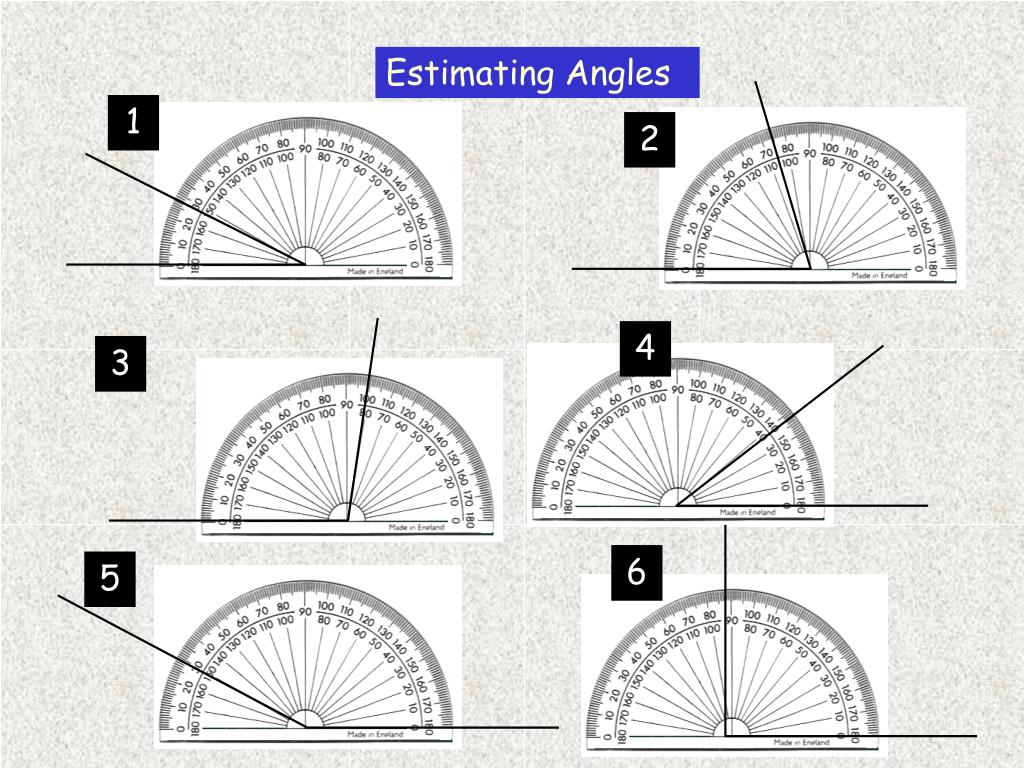

  16. 1 2 4 3 6 5 Estimating Angles

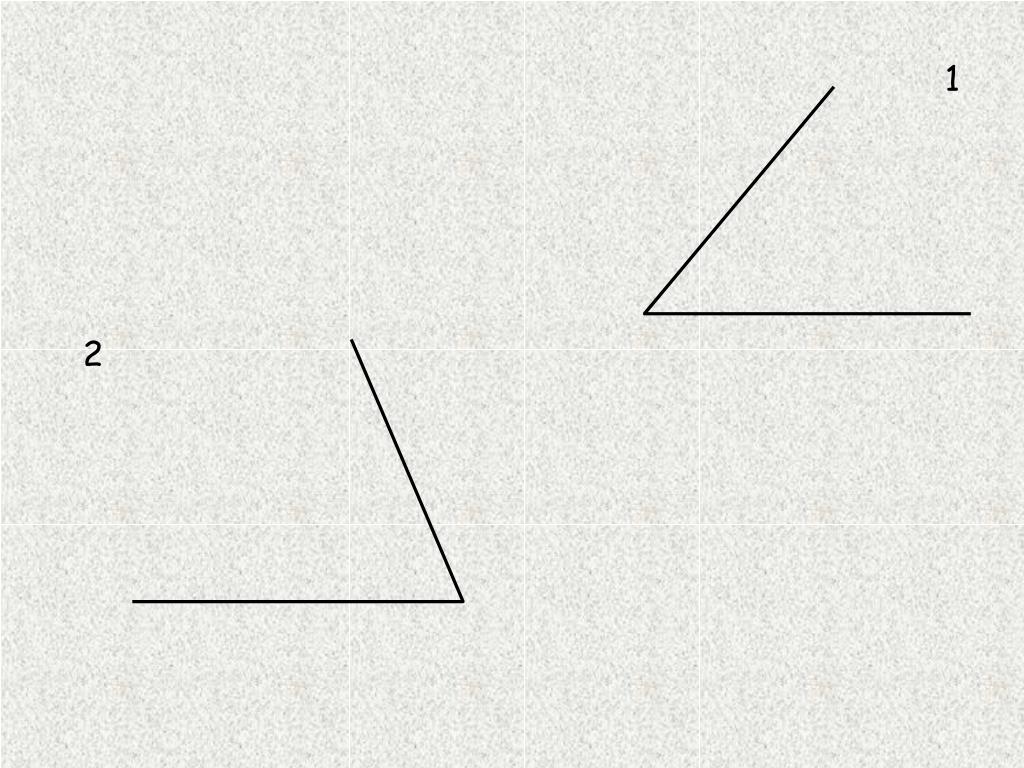

  17. 1 2

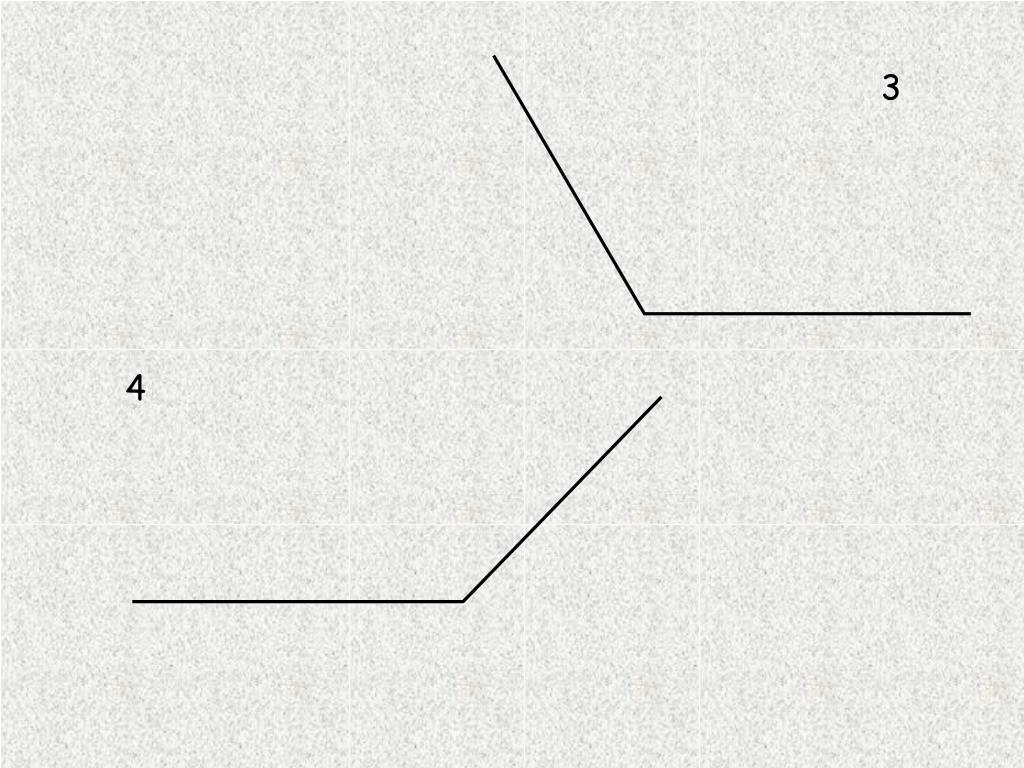

  18. 3 4

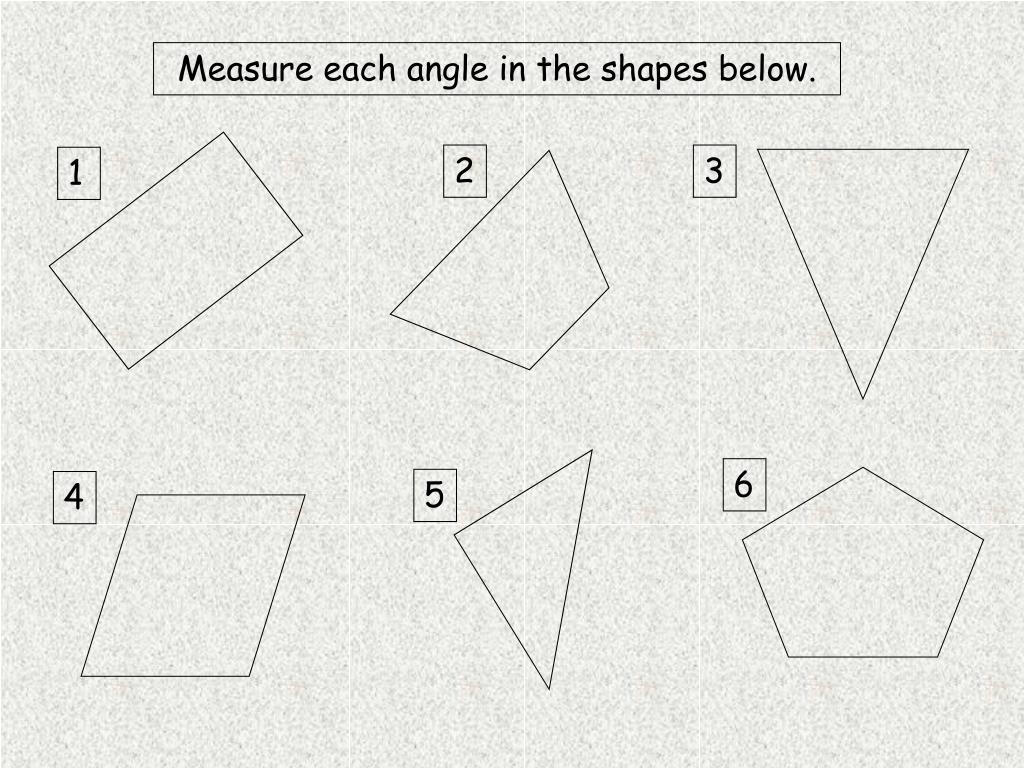

  19. Measure each angle in the shapes below. 2 3 1 6 5 4

  20. When a vertical line and a horizontal line meet the angle between them is 90o, a right angle. This angle is also a right angle. 90o, a right angle 90 90 Angles on a Line Vertical line Horizontal line This explains why the angles on a straight line add to 180o. The lines are said to be perpendicular to each other.

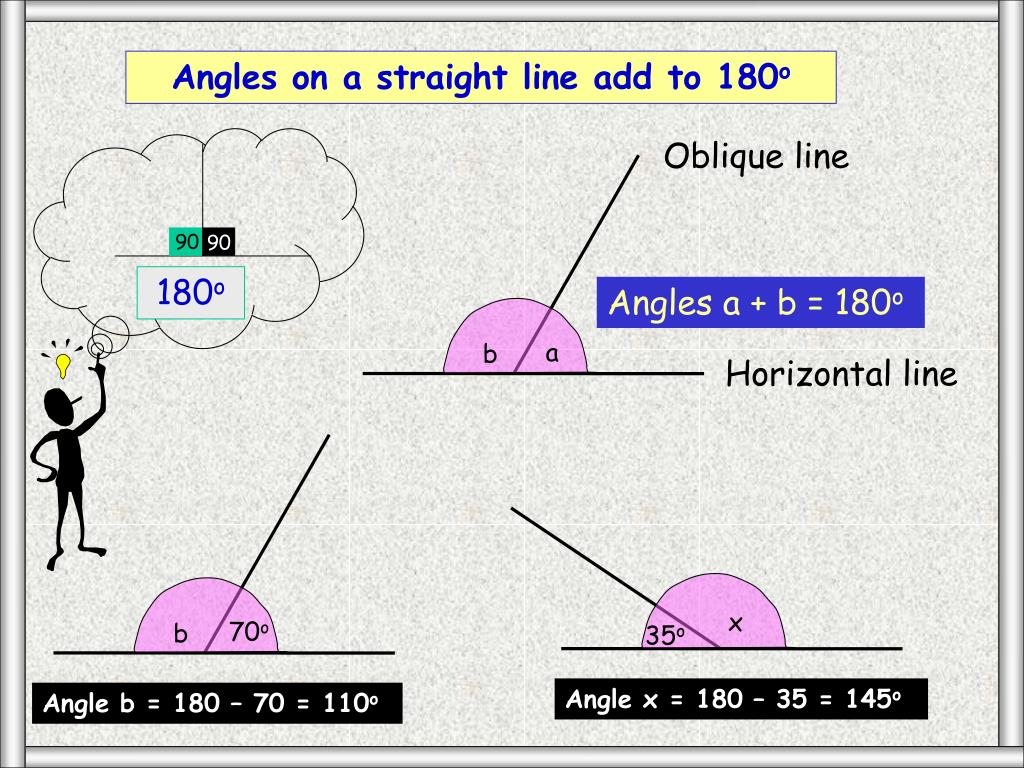

  21. Angles on a straight line add to 180o 90 90 Angles a + b = 180o 180o a b Horizontal line x 70o b 35o Oblique line Angle x = 180 – 35 = 145o Angle b = 180 – 70 = 110o

  22. Find the unknown angles 1 2 y 114o 47o x 3 4 82o b a 76o Angle y = 180 – 114 = 66o Angle x = 180 – 47 = 133o Angle b = 180 – 82 = 98o Angle a = 180 – 76 = 104o

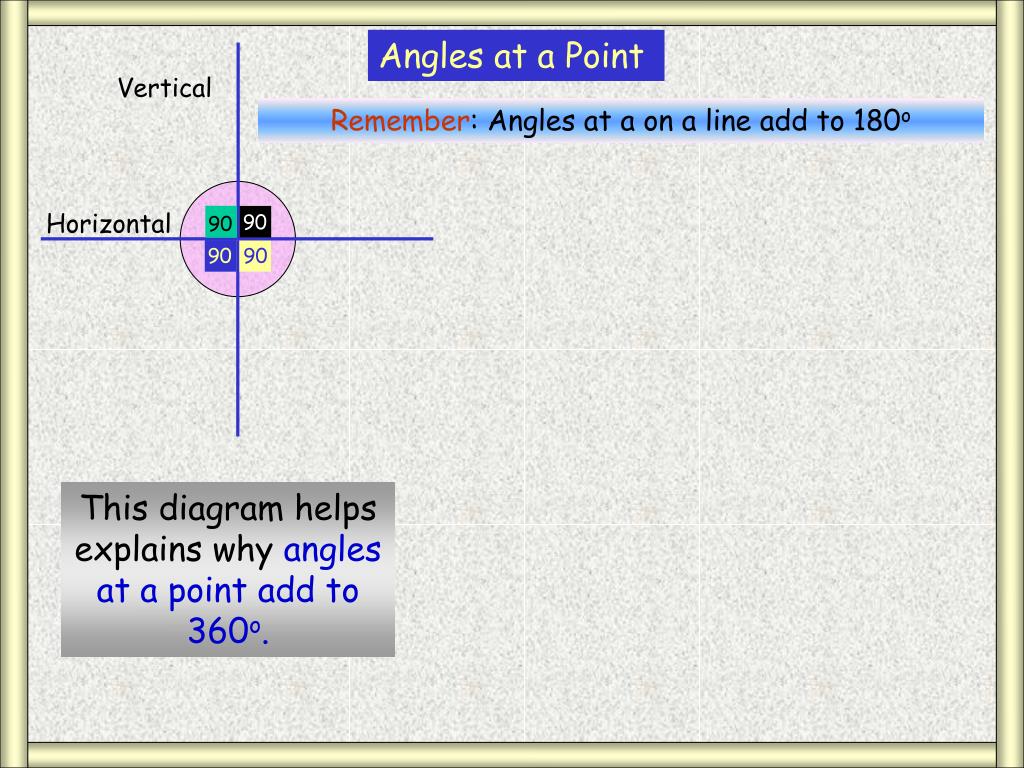

  23. Vertical Remember: Angles at a on a line add to 180o Horizontal 90 90 Angles at a Point 90 90 This diagram helps explains why angles at a point add to 360o.

  24. Vertical 2 1 Horizontal 90 90 90 90 4 3 Angles at a Point 360o 360o 360o This explains why angles at a point add to 360o. 360o 360o

  25. Angles at a Point d a c b Angles at a point add to 360o Angle a + b + c + d = 3600

  26. Angles at a Point Example 1: Find angle a. 90 90 90 90 a 75o 85o 360o 80o 85 75 + 80 240 Angle a = 360 - (85 + 75 + 80) = 360 - 240 = 120o

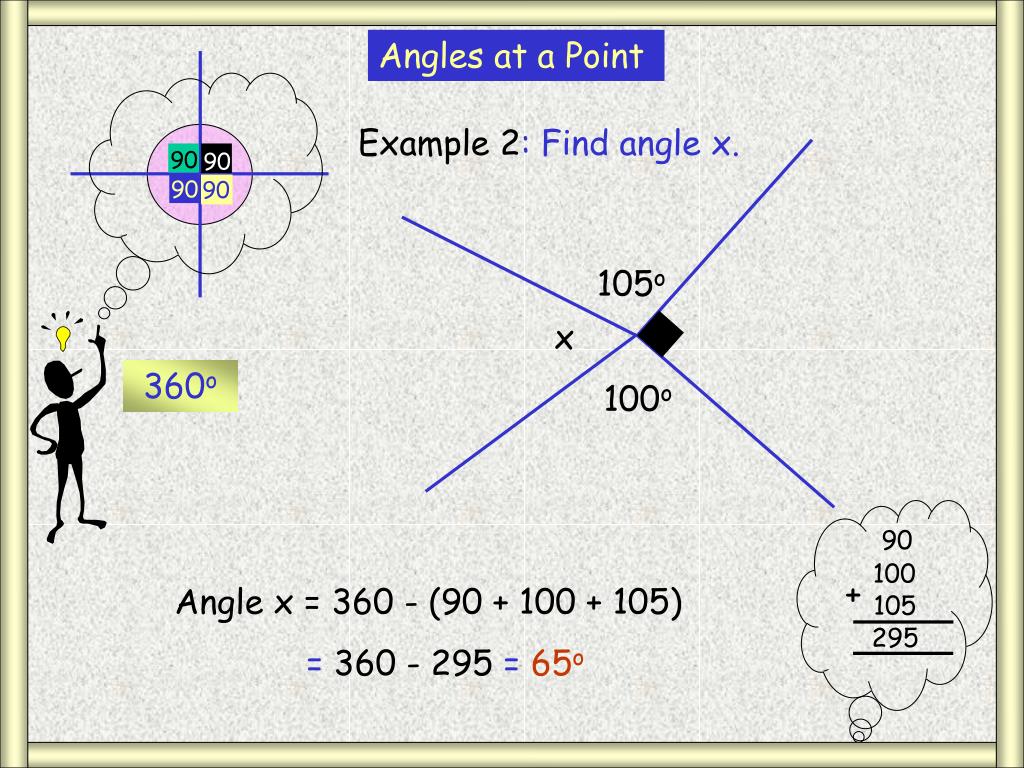

  27. Angles at a Point Example 2: Find angle x. 90 90 90 90 105o x 360o 100o 90 100 + 105 295 Angle x = 360 - (90 + 100 + 105) = 360 - 295 = 65o

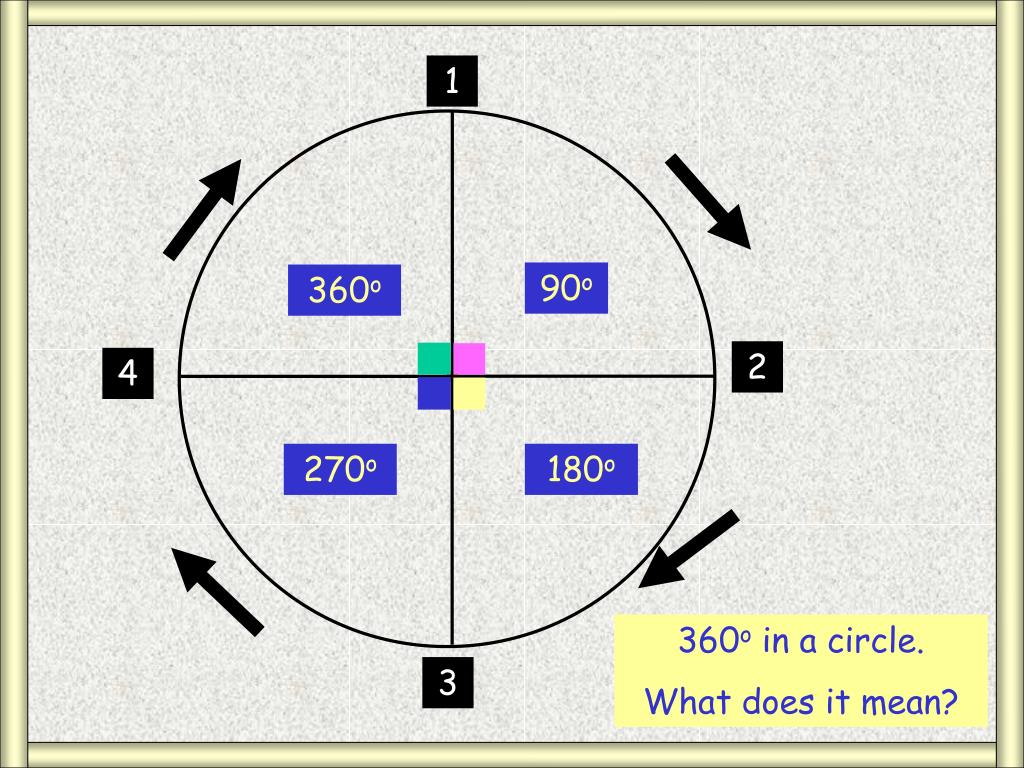

  28. 1 90o 360o 2 4 270o 180o 360o in a circle. What does it mean? 3

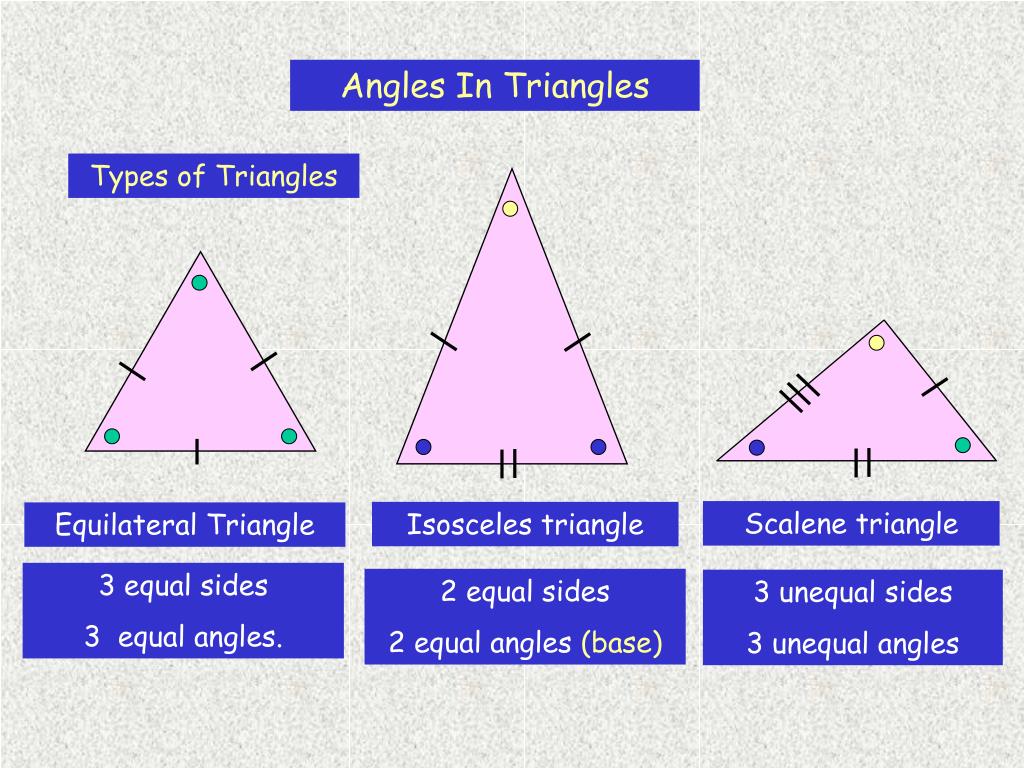

  29. Types of Triangles Scalene triangle Isosceles triangle Equilateral Triangle 3 equal sides 3 equal angles. 2 equal sides 2 equal angles (base) 3 unequal sides 3 unequal angles Angles In Triangles

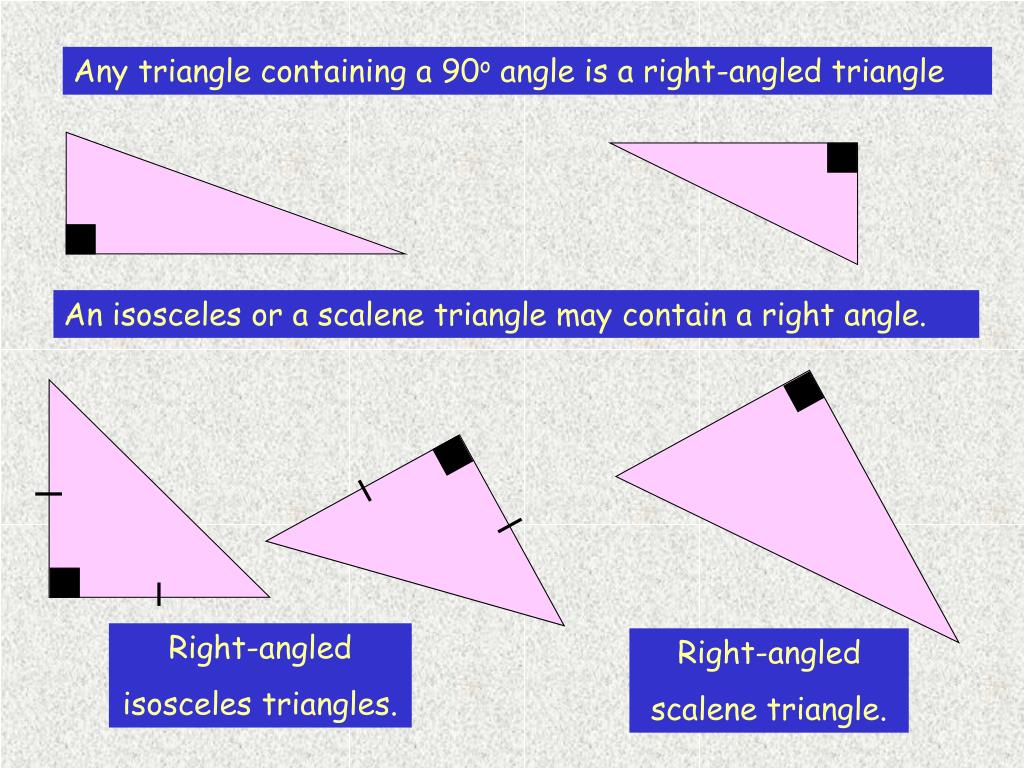

  30. Any triangle containing a 90o angle is a right-angled triangle An isosceles or a scalene triangle may contain a right angle. Right-angled isosceles triangles. Right-angled scalene triangle.

  31. To determine the angle sum of any Triangle 3 1 2 Angles on a straight line add to 180o How can we use this to help us? Take 3 identical copies of this triangle like so: These are the same angles as in the triangle! The angle sum of a triangle = 1800

  32. Example 1 65o Calculate angle a. a Example 2 b Calculate angles a, b and c a c Calculating unknown Angles Angle a = 180 – (90 + 65) = 180 – 155 = 25o Since the triangle is equilateral, angles a, b and c are all 60o (180/3)

  33. Example 3 b Calculate angle a. a 65o Example 4 130o y Calculate angles x and y x Calculating unknown Angles Angle a = 65o (base angles of an isosceles triangle are equal). Angle b = 180 –(65 + 65) = 180 – 130 = 50o

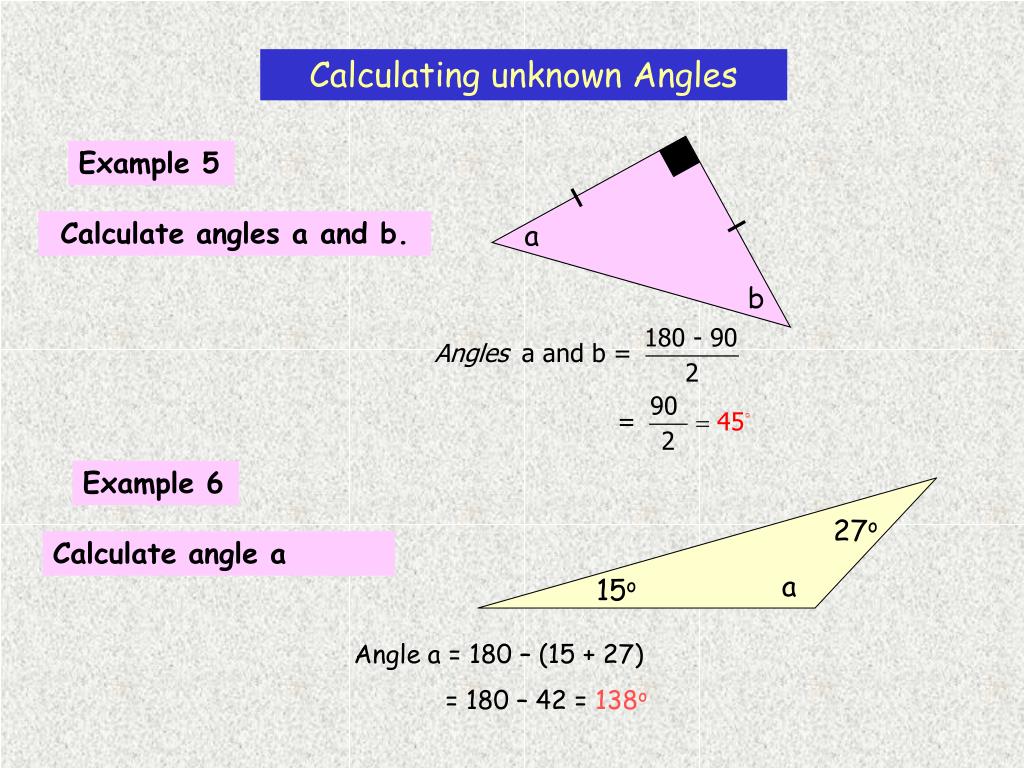

  34. Example 5 Calculate angles a and b. a b Example 6 27o Calculate angle a a 15o Calculating unknown Angles Angle a = 180 – (15 + 27) = 180 – 42 = 138o
