Common Sub-expression Elim

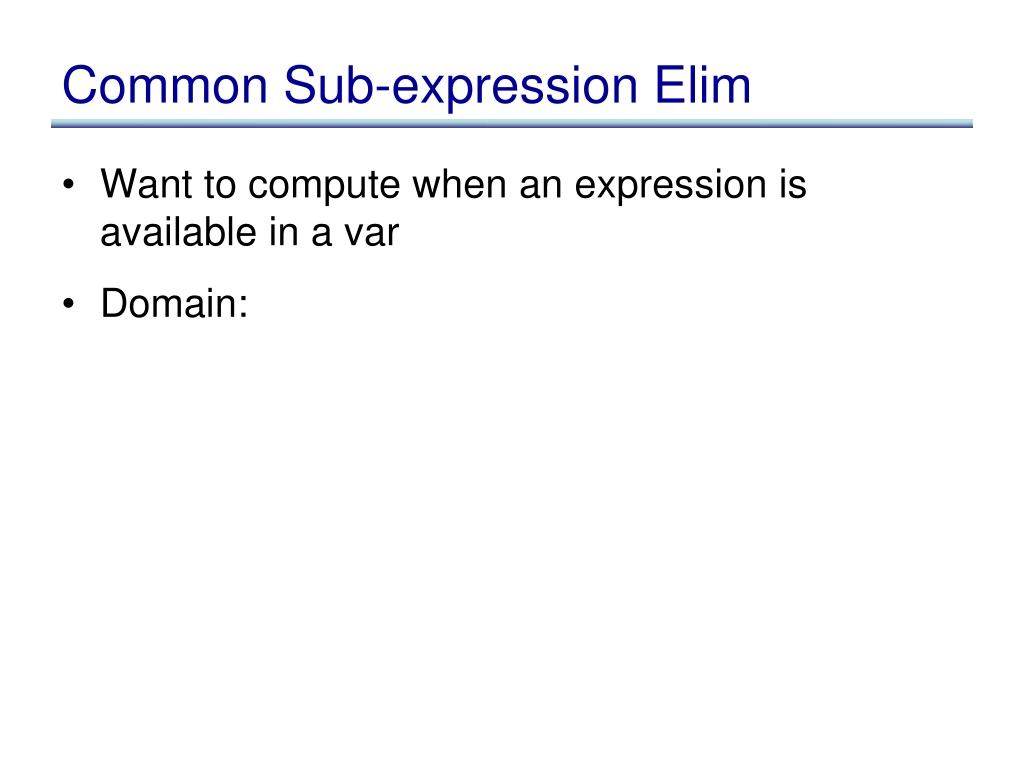

Common Sub-expression Elim • Want to compute when an expression is available in a var • Domain:

Flow functions in FX := Y op Z(in) = X := Y op Z out in FX := Y(in) = X := Y out

Flow functions in FX := Y op Z(in) = in – { X ! * } – { * ! ... X ... } [ { X ! Y op Z | X  Y Æ X  Z} X := Y op Z out in FX := Y(in) = in – { X ! * } – { * ! ... X ... } [ { X ! E | Y ! E 2 in } X := Y out

Example x := read() v := a + b w := x + 1 a = w v = a + b x := x + 1 w := x + 1 z := x + 1 t = a + b

Direction of analysis • Although constraints are not directional, flow functions are • All flow functions we have seen so far are in the forward direction • In some cases, the constraints are of the form in = F(out) • These are called backward problems. • Example: live variables • compute the set of variables that may be live

Example: live variables • Set D = • Lattice: (D, v, ?, >, t, u) =

Example: live variables • Set D = 2 Vars • Lattice: (D, v, ?, >, t, u) = (2Vars, µ, ; ,Vars, [, Å) in Fx := y op z(out) = x := y op z out

Example: live variables • Set D = 2 Vars • Lattice: (D, v, ?, >, t, u) = (2Vars, µ, ; ,Vars, [, Å) in Fx := y op z(out) = out – { x } [ { y, z} x := y op z out

Example: live variables x := 5 y := x + 2 y := x + 10 x := x + 1 ... y ...

Example: live variables x := 5 y := x + 2 y := x + 10 x := x + 1 ... y ... How can we remove the x := x + 1 stmt?

Revisiting assignment in Fx := y op z(out) = out – { x } [ { y, z} x := y op z out

Theory of backward analyses • Can formalize backward analyses in two ways • Option 1: reverse flow graph, and then run forward problem • Option 2: re-develop the theory, but in the backward direction

Precision • Going back to constant prop, in what cases would we lose precision?

Precision • Going back to constant prop, in what cases would we lose precision? if (...) { x := -1; } else x := 1; } y := x * x; ... y ... if (p) { x := 5; } else x := 4; } ... if (p) { y := x + 1 } else { y := x + 2 } ... y ... x := 5 if (<expr>) { x := 6 } ... x ... where <expr> is equiv to false

Precision • The first problem: Unreachable code • solution: run unreachable code removal before • the unreachable code removal analysis will do its best, but may not remove all unreachable code • The other two problems are path-sensitivity issues • Branch correlations: some paths are infeasible • Path merging: can lead to loss of precision

MOP: meet over all paths • Information computed at a given point is the meet of the information computed by each path to the program point if (...) { x := -1; } else x := 1; } y := x * x; ... y ...

MOP • For a path p, which is a sequence of statements [s1, ..., sn] , define: Fp(in) = Fsn( ...Fs1(in) ... ) • In other words: Fp = • Given an edge e, let paths-to(e) be the (possibly infinite) set of paths that lead to e • Given an edge e, MOP(e) = • For us, should be called JOP (ie: join, not meet)

MOP vs. dataflow • MOP is the “best” possible answer, given a fixed set of flow functions • This means that MOP v dataflow at edge in the CFG • In general, MOP is not computable (because there can be infinitely many paths) • vs dataflow which is generally computable (if flow fns are monotonic and height of lattice is finite) • And we saw in our example, in general,MOP  dataflow

MOP vs. dataflow • However, it would be great if by imposing some restrictions on the flow functions, we could guarantee that dataflow is the same as MOP. What would this restriction be? Dataflow MOP x := -1; y := x * x; ... y ... x := 1; y := x * x; ... y ... x := -1; x := 1; Merge y := x * x; ... y ... Merge

MOP vs. dataflow • However, it would be great if by imposing some restrictions on the flow functions, we could guarantee that dataflow is the same as MOP. What would this restriction be? • Distributive problems. A problem is distributive if: 8 a, b . F(a t b) = F(a) t F(b) • If flow function is distributive, then MOP = dataflow

Summary of precision • Dataflow is the basic algorithm • To basic dataflow, we can add path-separation • Get MOP, which is same as dataflow for distributive problems • Variety of research efforts to get closer to MOP for non-distributive problems • To basic dataflow, we can add path-pruning • Get branch correlation • To basic dataflow, can add both: • meet over all feasible paths

Program Representations

Representing programs • Goals

Representing programs • Primary goals • analysis is easy and effective • just a few cases to handle • directly link related things • transformations are easy to perform • general, across input languages and target machines • Additional goals • compact in memory • easy to translate to and from • tracks info from source through to binary, for source-level debugging, profilling, typed binaries • extensible (new opts, targets, language features) • displayable

Option 1: high-level syntax based IR • Represent source-level structures and expressions directly • Example: Abstract Syntax Tree

Translate input programs into low-level primitive chunks, often close to the target machine Examples: assembly code, virtual machine code (e.g. stack machines), three-address code, register-transfer language (RTL) Standard RTL instrs: Option 2: low-level IR

Option 2: low-level IR

Comparison

Comparison • Advantages of high-level rep • analysis can exploit high-level knowledge of constructs • easy to map to source code (debugging, profiling) • Advantages of low-level rep • can do low-level, machine specific reasoning • can be language-independent • Can mix multiple reps in the same compiler

Components of representation • Control dependencies: sequencing of operations • evaluation of if & then • side-effects of statements occur in right order • Data dependencies: flow of definitions from defs to uses • operands computed before operations • Ideal: represent just those dependencies that matter • dependencies constrain transformations • fewest dependences ) flexibility in implementation

Control dependencies • Option 1: high-level representation • control implicit in semantics of AST nodes • Option 2: control flow graph (CFG) • nodes are individual instructions • edges represent control flow between instructions • Options 2b: CFG with basic blocks • basic block: sequence of instructions that don’t have any branches, and that have a single entry point • BB can make analysis more efficient: compute flow functions for an entire BB before start of analysis

Control dependencies • CFG does not capture loops very well • Some fancier options include: • the Control Dependence Graph • the Program Dependence Graph • More on this later. Let’s first look at data dependencies

Data dependencies • Simplest way to represent data dependencies: def/use chains

Def/use chains • Directly captures dataflow • works well for things like constant prop • But... • Ignores control flow • misses some opt opportunities since conservatively considers all paths • not executable by itself (for example, need to keep CFG around) • not appropriate for code motion transformations • Must update after each transformation • Space consuming

SSA • Static Single Assignment • invariant: each use of a variable has only one def

SSA • Create a new variable for each def • Insert  pseudo-assignments at merge points • Adjust uses to refer to appropriate new names • Question: how can one figure out where to insert  nodes using a liveness analysis and a reaching defns analysis.

Converting back from SSA • Semantics of x3 := (x1, x2) • set x3 to xi if execution came from ith predecessor • How to implement  nodes?

Converting back from SSA • Semantics of x3 := (x1, x2) • set x3 to xi if execution came from ith predecessor • How to implement  nodes? • Insert assignment x3 := x1 along 1st predecessor • Insert assignment x3 := x2 along 2nd predecessor • If register allocator assigns x1, x2 and x3 to the same register, these moves can be removed • x1 .. xn usually have non-overlapping lifetimes, so this kind of register assignment is legal
