  1. On Delivery Guarantees of Face and Combined Greedy-Face Routing in Ad Hoc and Sensor Networks Hannes Frey, Ivan Stojmenovic MobiCom 2006

  2. Face Recovery Details • When to change current face traversal? • How to decide the next face locally?

  3. Example 1 Greedy Perimeter Stateless Routing GPSR [Karp, Kung, 2000]

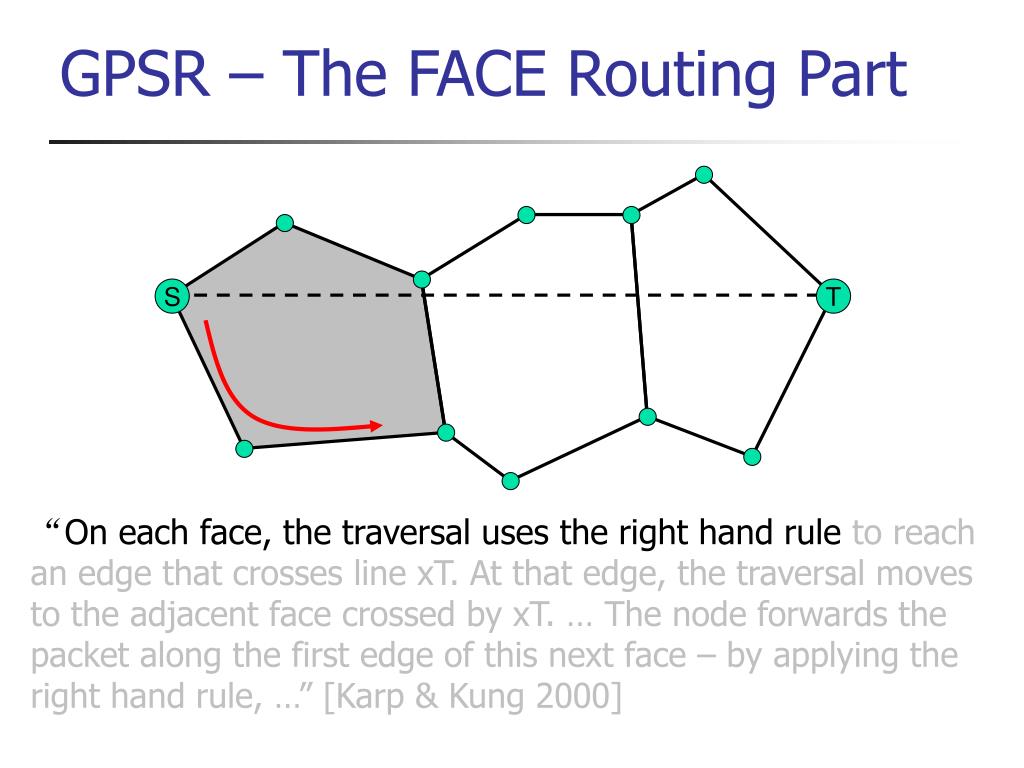

  4. GPSR – The FACE Routing Part S T “On each face, the traversal uses the right hand rule to reach an edge that crosses line xT. At that edge, the traversal moves to the adjacent face crossed by xT. … The node forwards the packet along the first edge of this next face – by applying the right hand rule, …” [Karp & Kung 2000]

  5. x GPSR – The FACE Routing Part S T V “On each face, the traversal uses the right hand rule to reach an edge that crosses line xT. At that edge, the traversal moves to the adjacent face crossed by xT. … The node forwards the packet along the first edge of this next face – by applying the right hand rule, …” [Karp & Kung 2000]

  6. x GPSR – The FACE Routing Part S T F1 F2 V “On each face, the traversal uses the right hand ruleto reach an edge that crosses line xT. At that edge, the traversal moves to the adjacent face crossed by xT. … The node forwards the packet along the first edge of this next face – by applying the right hand rule, …” [Karp & Kung 2000]

  7. x GPSR – The FACE Routing Part S T V “On each face, the traversal uses the right hand rule to reach an edge that crosses line xT. At that edge, the traversal moves to the adjacent face crossed by xT. … The node forwards the packet along the first edge of this next face – by applying the right hand rule, …” [Karp & Kung 2000]

  8. x GPSR – The FACE Routing Part S T V “On each face, the traversal uses the right hand rule to reach an edge that crosses line xT. At that edge, the traversal moves to the adjacent face crossed by xT. … The node forwards the packet along the first edge of this next face – by applying the right hand rule, …” [Karp & Kung 2000]

  9. x GPSR – The FACE Routing Part S T “On each face, the traversal uses the right hand rule to reach an edge that crosses line xT. At that edge, the traversal moves to the adjacent face crossed by xT. … The node forwards the packet along the first edge of this next face – by applying the right hand rule, …” [Karp & Kung 2000]

  10. What about Delivery Guarantees? A B S T D C E

  11. What about Delivery Guarantees? A B S T D C E Outer Face

  12. What about Delivery Guarantees? A B S T D C E Outer Face

  13. What about Delivery Guarantees? A B S T D C E

  14. What about Delivery Guarantees? A x B S T D C E GPSR Forwarding Loop for GG, RNG, and LDT

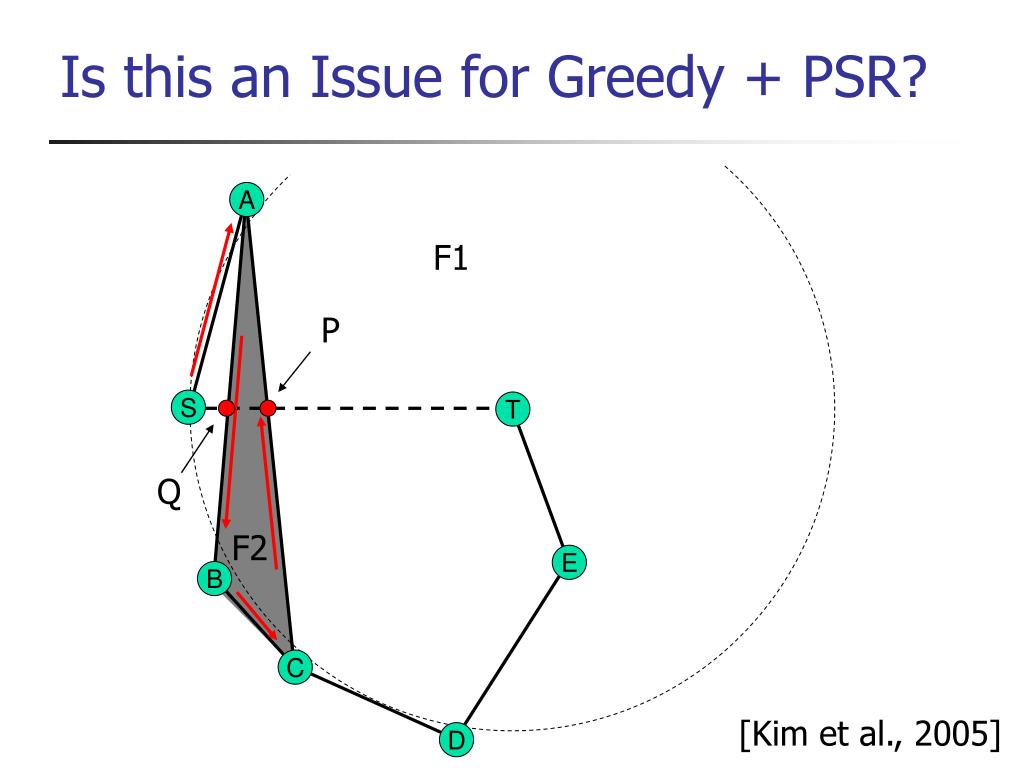

  15. Is this an Issue for Greedy + PSR? A F1 P S T Q F2 E B C [Kim et al., 2005] D

  16. Example 2 Greedy-Face-Greedy GFG, [Bose et al., 1999]

  17. GFG – The face routing part P  S repeat Let F be the face with P on boundary and intersecting PT Traverse* F until reaching an edge that intersects PT at some point Q≠P P  Q until P=T *counterclockwise if inner, clockwise if outer face P S T F

  18. GFG – The face routing part P  S repeat Let F be the face with P on boundary and intersecting PT Traverse* F until reaching an edge that intersects PT at some point Q≠P P  Q until P=T *counterclockwise if inner, clockwise if outer face Q P S T F

  19. GFG – The face routing part P  S repeat Let F be the face with P on boundary and intersecting PT Traverse* F until reaching an edge that intersects PT at some point Q≠P P  Q until P=T *counterclockwise if inner, clockwise if outer face P S T F

  20. GFG – The face routing part P P  S repeat Let F be the face with P on boundary and intersecting PT Traverse* F until reaching an edge that intersects PT at some point Q≠P P  Q until P=T *counterclockwise if inner, clockwise if outer face S T F

  21. What about the GPSR Loop? A B S T D C E Outer Face

  22. What about the GPSR Loop? A B S T D C E Outer Face

  23. What about the GPSR Loop? Select face with P on boundary and intersecting PT A B S T D C E P Outer Face

  24. What about the GPSR Loop? A B S T D C E Outer Face

  25. Example 3 Greedy Path Vector Face Routing (GPVFR) [Leong, Mitra, Liskov, 2005]

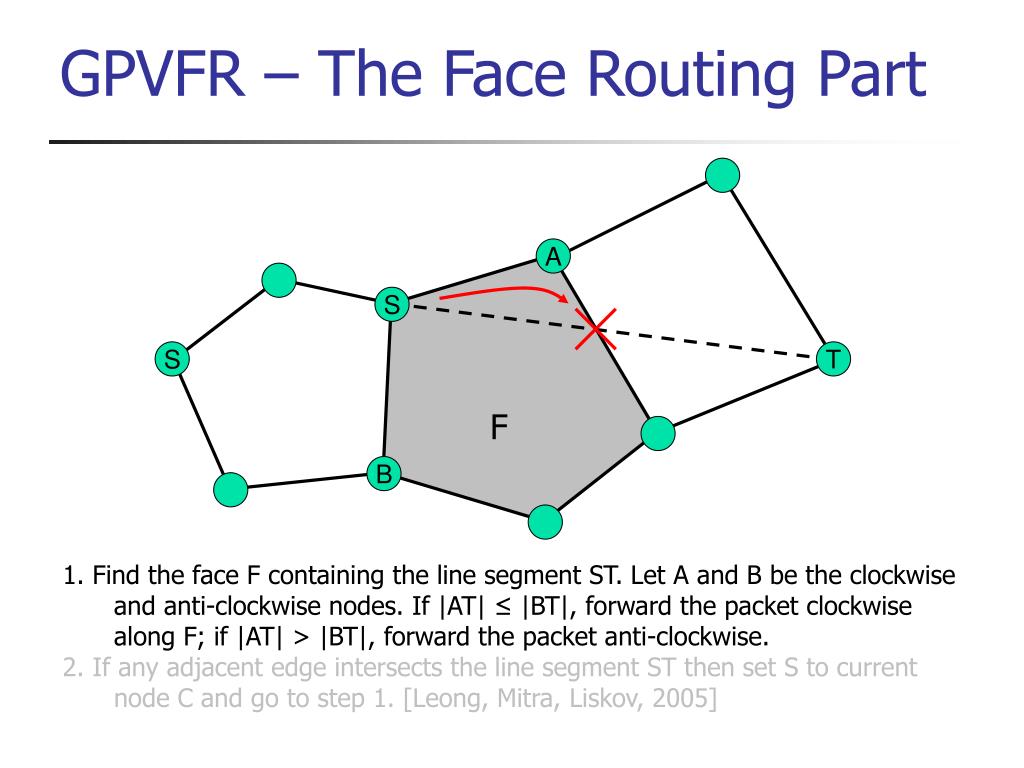

  26. GPVFR – The Face Routing Part A S T F B 1. Find the face F containing the line segment ST. Let A and B be the clockwise and anti-clockwise nodes. If |AT| ≤ |BT|, forward the packet clockwise along F; if |AT| > |BT|, forward the packet anti-clockwise. 2. If any adjacent edge intersects the line segment ST then set S to current node C and go to step 1. [Leong, Mitra, Liskov, 2005]

  27. GPVFR – The Face Routing Part A S T B 1. Find the face F containing the line segment ST. Let A and B be the clockwise and anti-clockwise nodes. If |AT| ≤ |BT|, forward the packet clockwise along F; if |AT| > |BT|, forward the packet anti-clockwise. 2. If any adjacent edge intersects the line segment ST then set S to current node C and go to step 1. [Leong, Mitra, Liskov, 2005]

  28. GPVFR – The Face Routing Part S := C A C S T B 1. Find the face F containing the line segment ST. Let A and B be the clockwise and anti-clockwise nodes. If |AT| ≤ |BT|, forward the packet clockwise along F; if |AT| > |BT|, forward the packet anti-clockwise. 2. If any adjacent edge intersects the line segment STthen set S to current node C and go to step 1. [Leong, Mitra, Liskov, 2005]

  29. GPVFR – The Face Routing Part A S S T F B 1. Find the face F containing the line segment ST. Let A and B be the clockwise and anti-clockwise nodes. If |AT| ≤ |BT|, forward the packet clockwise along F; if |AT| > |BT|, forward the packet anti-clockwise. 2. If any adjacent edge intersects the line segment ST then set S to current node C and go to step 1. [Leong, Mitra, Liskov, 2005]

  30. GPVFR – The Face Routing Part A F S S T B 1. Find the face F containing the line segment ST. Let A and B be the clockwise and anti-clockwise nodes. If |AT| ≤ |BT|, forward the packet clockwise along F; if |AT| > |BT|, forward the packet anti-clockwise. 2. If any adjacent edge intersects the line segment ST then set S to current node C and go to step 1. [Leong, Mitra, Liskov, 2005]

  31. What about Delivery Guarantees? S T

  32. What about Delivery Guarantees? S A F T B

  33. What about Delivery Guarantees? S A T B C

  34. What about Delivery Guarantees? C B F T A S

  35. What about Delivery Guarantees? C B F T A B S

  36. What about Delivery Guarantees? T F S

  37. What about Delivery Guarantees? S GPVFR forwarding loop in arbitrary graphs F T

  38. Is this an Issue for Greedy + PVFR? B  Start here. S  F T A

  39. Example 4 • Greedy Other Adaptive Face Routing GOAFR, [Kuhn et al., 2003]

  40. Face Routing Part of GOAFR P  S repeat Explore the complete boundary of face F containing the line PT Advance to Q on F’s boundary which is closest to T and set P  Q until reaching T P S T F

  41. Face Routing Part of GOAFR P  S repeat Explore the complete boundary of face F containing the line PT Advance to Q on F’s boundary which is closest to T and set P  Q until reaching T P Q S T F

  42. Face Routing Part of GOAFR P  S repeat Explore the complete boundary of face F containing the line PT Advance to Q on F’s boundary which is closest to T and set P  Q until reaching T P Q S T F

  43. Face Routing Part of GOAFR P  S repeat Explore the complete boundary of face F containing the line PT Advance to Q on F’s boundary which is closest to T and set P  Q until reaching T F S T Q P

  44. What about the GPVFR Loop? S F T

  45. State of the Art • Counter examples for some well established mechanisms which are proved to be correct • Proofs do not consider the details of localized face selection • General question: Does face and combined greedy-face routing provide delivery guarantees???

  46. General Face Start Mechanism • Assumption • Planar graph • S and T are connected • Mechanism Select first edge SA in cw direction from ST; traverse by right hand rule Or select first edge SB in ccw direction from ST; traverse by left hand rule • Invariant: Always detects an ST-intersection P≠S S A B V U P T

  47. General Face Change Mechanism • Precondition • Planar Graph • S and T are connected • S and U are connected • UV intersects ST • Mechanism If UT right of UV then traverse by left hand rule else traverse by right hand rule • Invariant: Always detects a PT-intersection Q≠P (a) V left right T S cw<180° ccw≤180° U (b) V T Q S P U

  48. RNG and GG are Good Natured • Face change is not an issue in GG and RNG • Intersection Property of GG • RNG  GG applies to RNG as well U T WLOG: |UT| < |ST| S V

  49. Summary • Success of face routing applied on its own

  50. Summary • Success of combined greedy-face routing
