Tower Builder Module

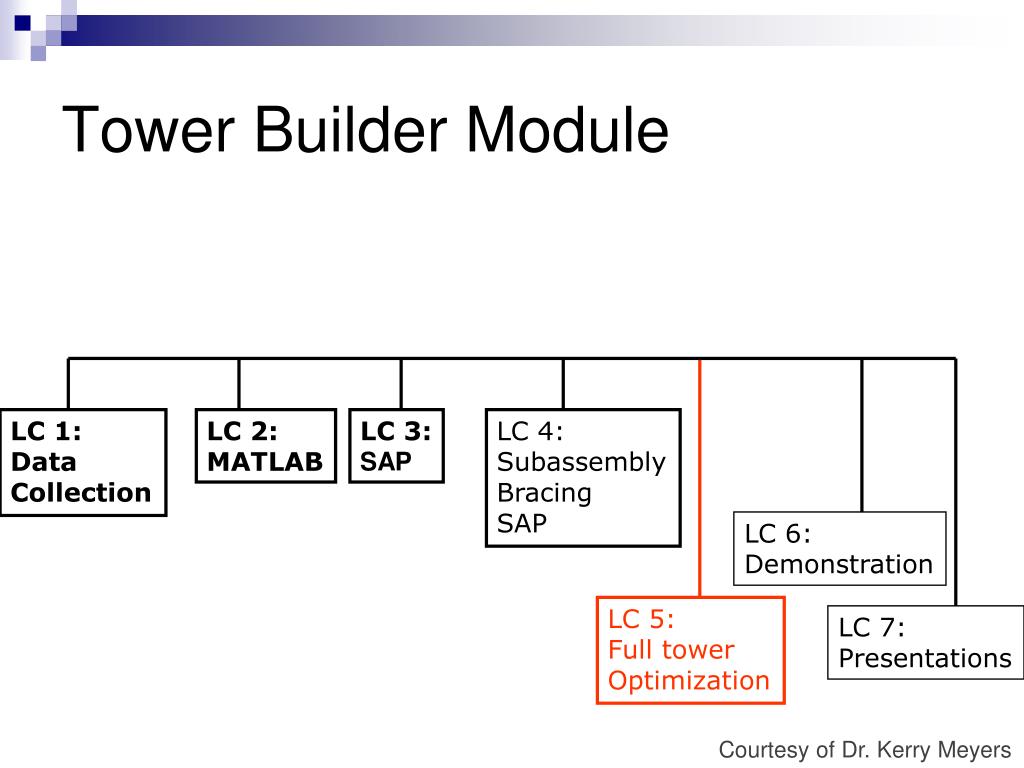

Tower Builder Module. LC 1: Data Collection. LC 2: MATLAB. LC 3: SAP. LC 4: Subassembly Bracing SAP. LC 6: Demonstration. LC 5: Full tower Optimization. LC 7: Presentations. Courtesy of Dr. Kerry Meyers. Today…. Practice Optimization

cosmo
Télécharger la présentation

Tower Builder Module

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Tower Builder Module LC 1: Data Collection LC 2: MATLAB LC 3: SAP LC 4: Subassembly Bracing SAP LC 6: Demonstration LC 5: Full tower Optimization LC 7: Presentations Courtesy of Dr. Kerry Meyers

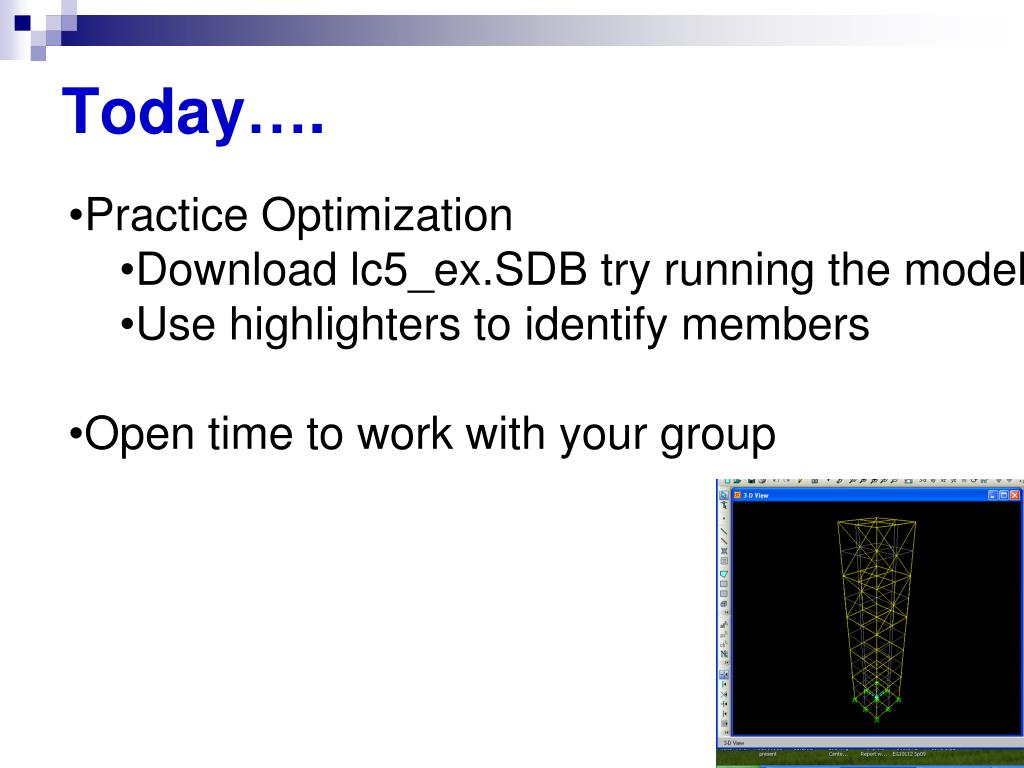

  2. Today…. • Practice Optimization • Download lc5_ex.SDB try running the model • Use highlighters to identify members • Open time to work with your group

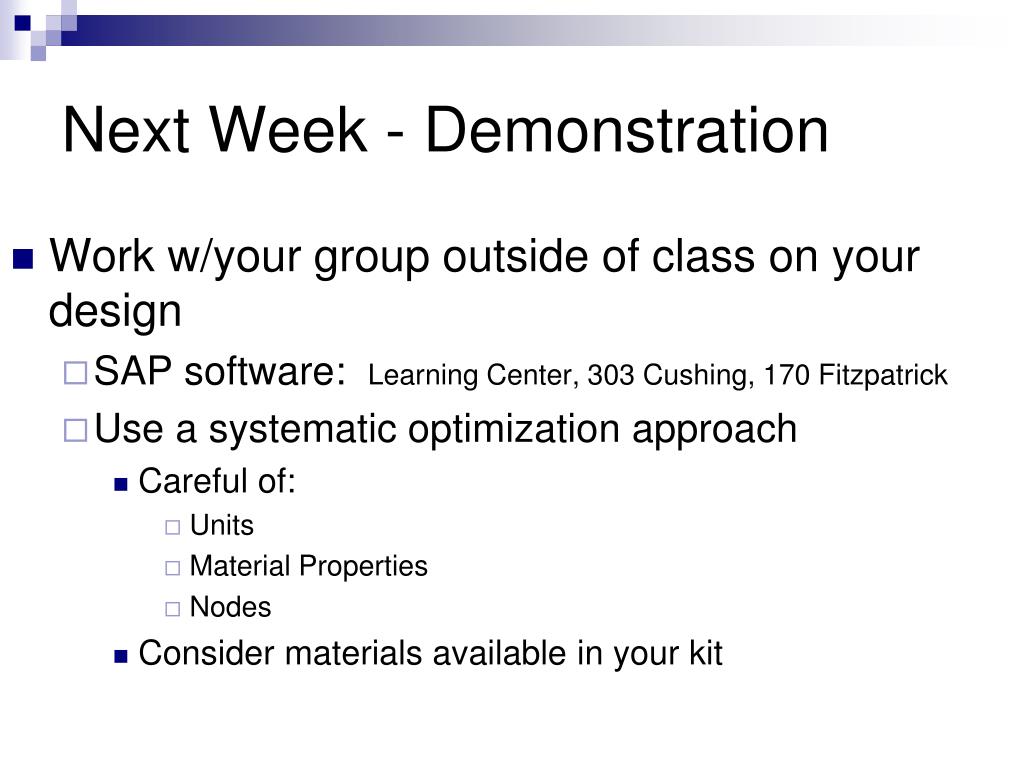

  3. Next Week - Demonstration • Work w/your group outside of class on your design • SAP software: Learning Center, 303 Cushing, 170 Fitzpatrick • Use a systematic optimization approach • Careful of: • Units • Material Properties • Nodes • Consider materials available in your kit

  4. Next Week – Demonstration Equipment • No Physical Testing • Ask if you want to see the set up to recall how the equipment works we can pull it out • Bring your tower pre-built to save time • 30 Minutes to run 3 trials • Feel free to bring in music • 20 Minutes to analyze results • Practice before hand • 20 Minutes to inventory your K’NEX kits

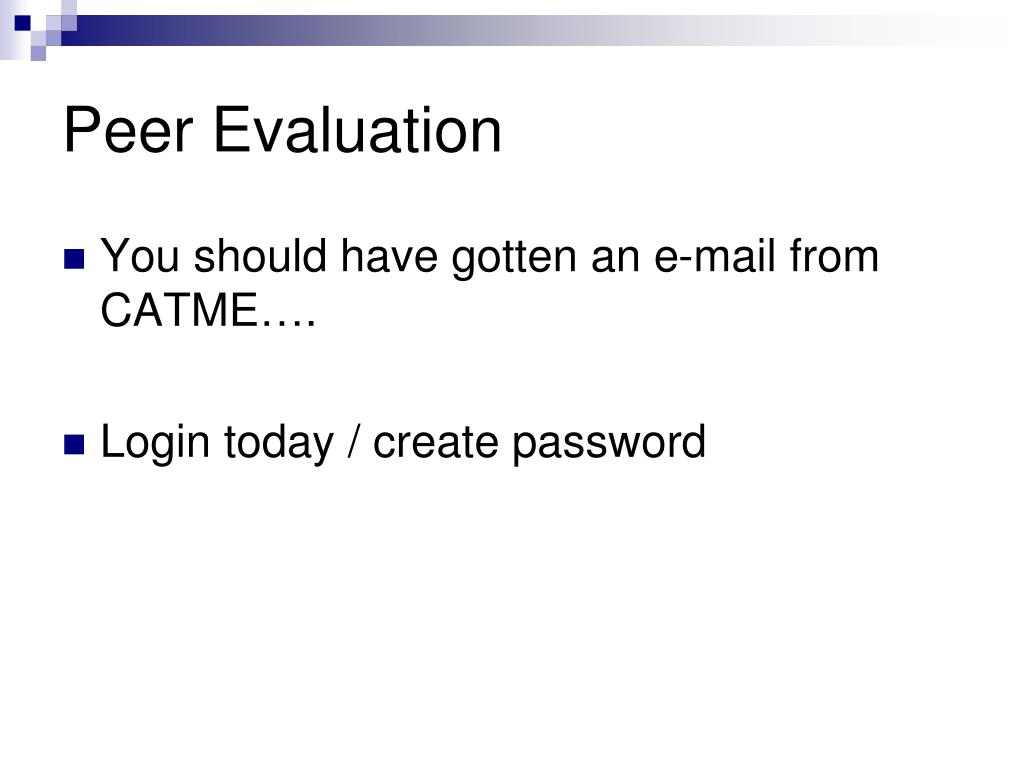

  5. Peer Evaluation • You should have gotten an e-mail from CATME…. • Login today / create password

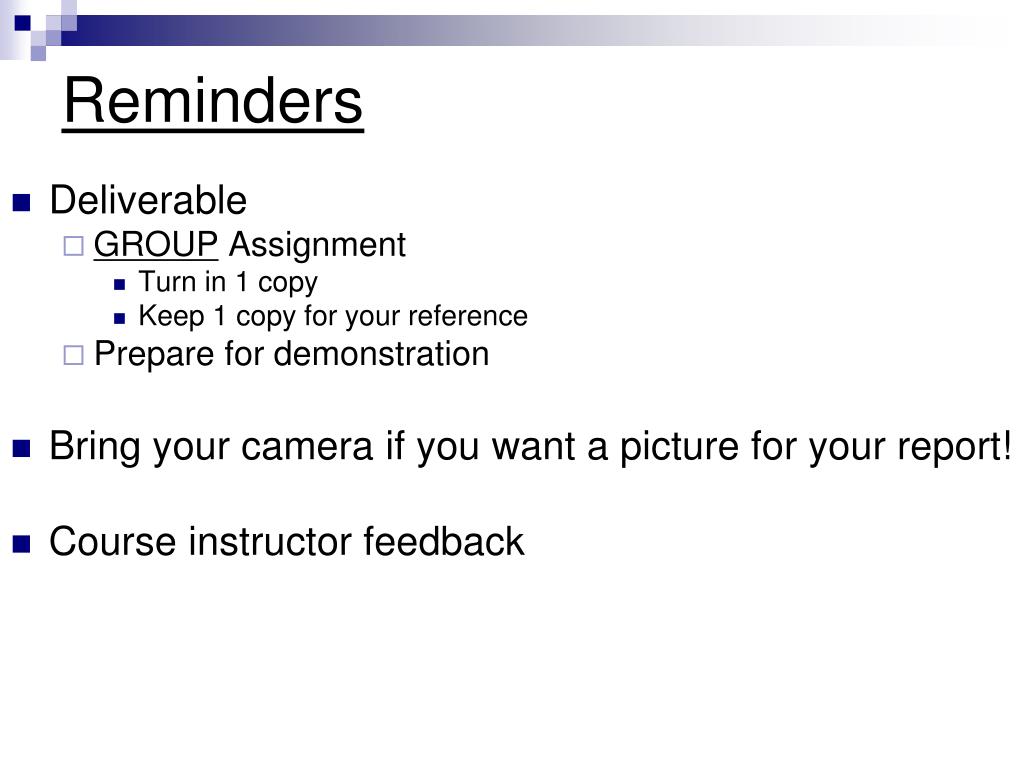

  6. Reminders • Deliverable • GROUP Assignment • Turn in 1 copy • Keep 1 copy for your reference • Prepare for demonstration • Bring your camera if you want a picture for your report! • Course instructor feedback

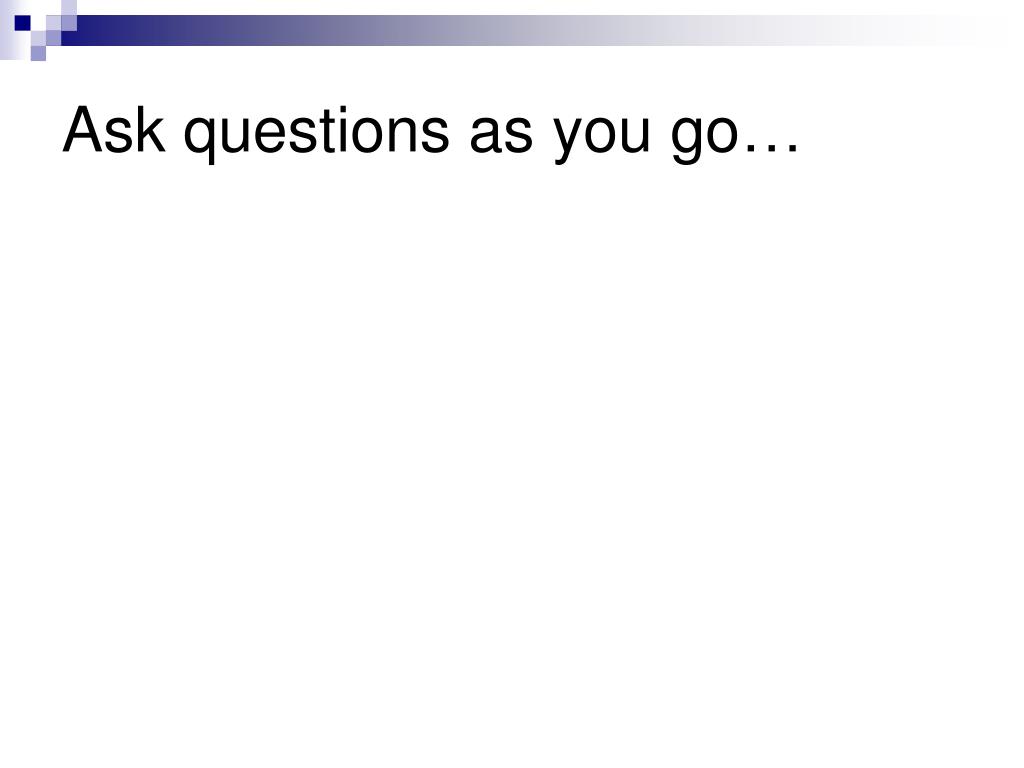

  7. Ask questions as you go…

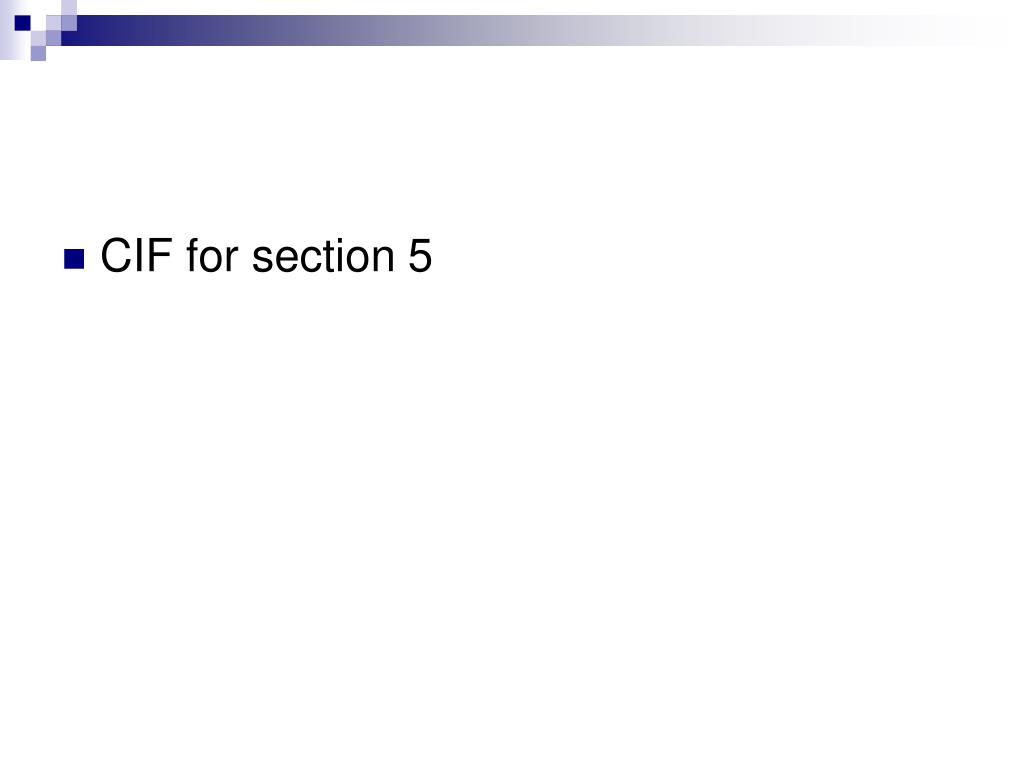

  8. CIF for section 5
