  1. Future experiment specific needs for LHCb OpenFabrics/Infiniband Workshop at CERNMonday June 26 Sai Suman Cherukuwadaand Niko NeufeldCERN/PH

  2. Readout network LHCb Trigger-DAQ system: Today • LHC crossing-rate: 40MHz • Visible events: 10MHz • Two stage trigger system • Level-0: synchronous in hardware; 40 MHz  1 MHz • High Level Trigger (HLT): software on CPU-farm; 1 MHz  2 kHz • Front-end Electronics (FE): interface to Readout Network • Readout network • Gigabit Ethernet LAN • Full readout at 1MHz • Event filter farm • ~ 1800 to 2200 1 U servers FE FE FE L0 trigger Timing and Fast Control CPU CPU CPU CPU CPU permanent storage Niko Neufeld CERN, PH

  3. LHCb DAQ system: features • On average every 1 us new data become available at each of ~ 300 sources (= custom electronics boards, “TELL1”) • Data from several 1 us cycles (=“triggers”) are concatenated into 1 IP packet  reduces message / packet-rate • IP packets are pushed over 1000 BaseT links  short distances allow using 1000 BaseT throughout • Destination IP-address is synchronously assigned via a custom optical network (TTC) to all TELL1s • For each trigger a PC-server must receive IP packets from all TELL1 boards (“event-building”). Niko Neufeld CERN, PH

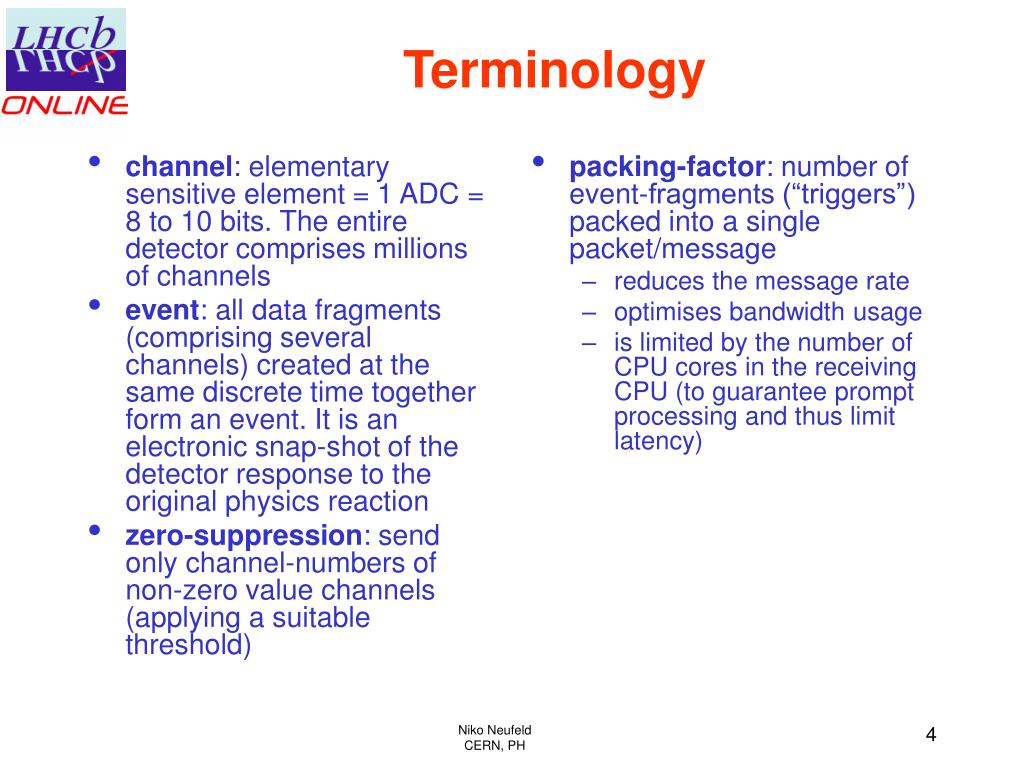

  4. channel: elementary sensitive element = 1 ADC = 8 to 10 bits. The entire detector comprises millions of channels event: all data fragments (comprising several channels) created at the same discrete time together form an event. It is an electronic snap-shot of the detector response to the original physics reaction zero-suppression: send only channel-numbers of non-zero value channels (applying a suitable threshold) packing-factor: number of event-fragments (“triggers”) packed into a single packet/message reduces the message rate optimises bandwidth usage is limited by the number of CPU cores in the receiving CPU (to guarantee prompt processing and thus limit latency) Terminology Niko Neufeld CERN, PH

  5. Readout Network PC #876 PC PC PC PC PC Following the data-flow VELO TT IT OT CALO RICH MUON L0 Front-end Electronics TELL1 TELL1 TELL1 TELL1 TELL1 TELL1 UKL1 UKL1 TELL1 TELL1 TELL1 RICH#2 #2#1VELO MEP TO PC #876 VELO#2 #2#1RICH MEP PC #876 VELO#1 RICH#1 TFCSystem L0 Yes L0 Yes MEP DestinationPC #876 400 Links 35 GByte/s Event FilterFarm StorageSystem Switch Switch Switch Switch Switch HLT Process RICH#2 RICH#1 VELO#2 VELO#1 MEP PC PC PC B ΦΚs MEP RequestPC #876 PC PC PC 50 Subfarms PC PC PC Niko Neufeld CERN, PH

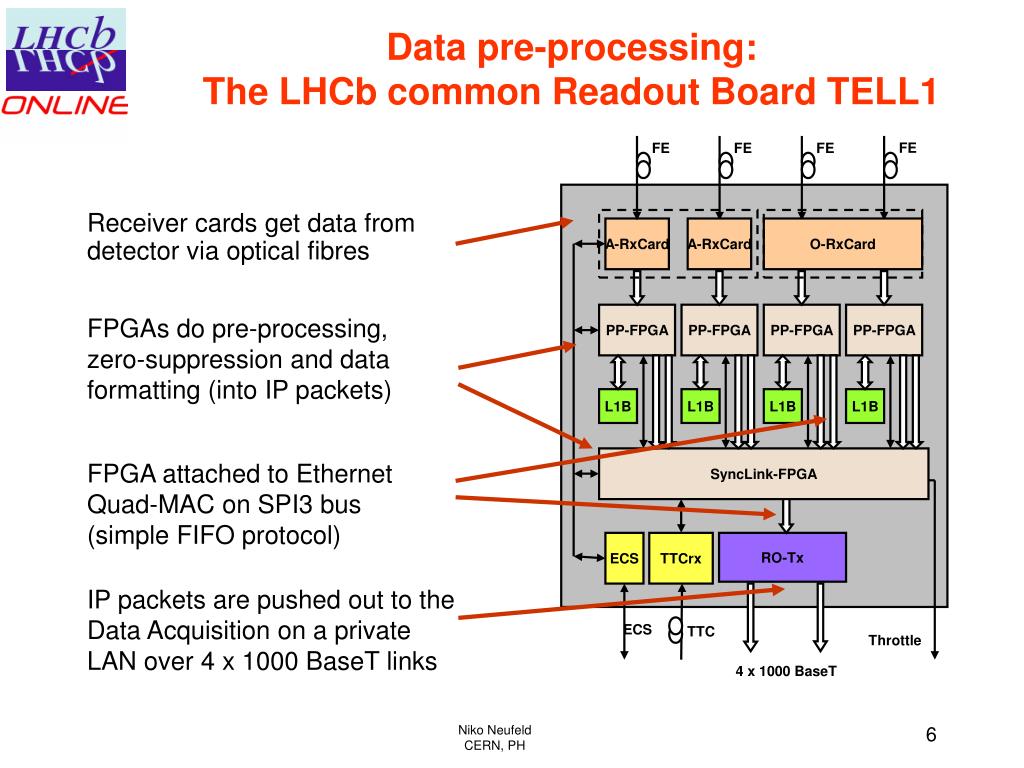

  6. Data pre-processing: The LHCb common Readout Board TELL1 FE FE FE FE Receiver cards get data from detector via optical fibres A-RxCard A-RxCard O-RxCard PP-FPGA PP-FPGA PP-FPGA PP-FPGA FPGAs do pre-processing, zero-suppression and data formatting (into IP packets) L1B L1B L1B L1B SyncLink-FPGA FPGA attached to Ethernet Quad-MAC on SPI3 bus (simple FIFO protocol) ECS TTCrx RO-Tx IP packets are pushed out to the Data Acquisition on a private LAN over 4 x 1000 BaseT links ECS TTC Throttle 4 x 1000 BaseT Niko Neufeld CERN, PH

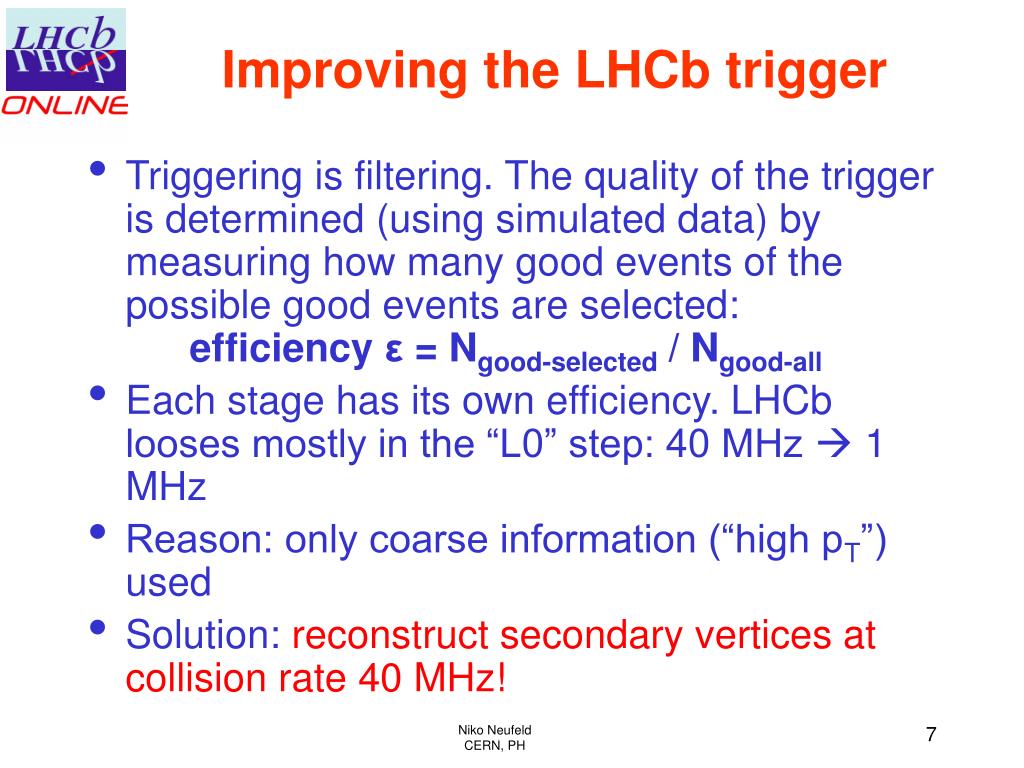

  7. Improving the LHCb trigger • Triggering is filtering. The quality of the trigger is determined (using simulated data) by measuring how many good events of the possible good events are selected:efficiency ε = Ngood-selected / Ngood-all • Each stage has its own efficiency. LHCb looses mostly in the “L0” step: 40 MHz  1 MHz • Reason: only coarse information (“high pT”)used • Solution: reconstruct secondary vertices at collision rate 40 MHz! Niko Neufeld CERN, PH

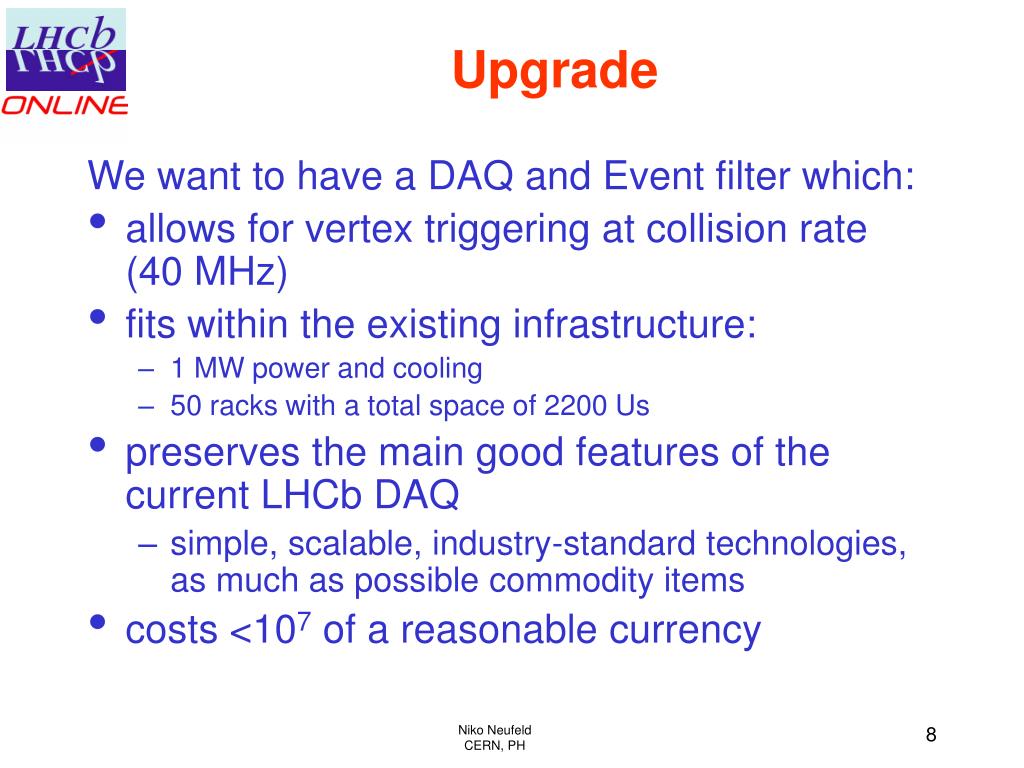

  8. Upgrade We want to have a DAQ and Event filter which: • allows for vertex triggering at collision rate (40 MHz) • fits within the existing infrastructure: • 1 MW power and cooling • 50 racks with a total space of 2200 Us • preserves the main good features of the current LHCb DAQ • simple, scalable, industry-standard technologies, as much as possible commodity items • costs <107 of a reasonable currency Niko Neufeld CERN, PH

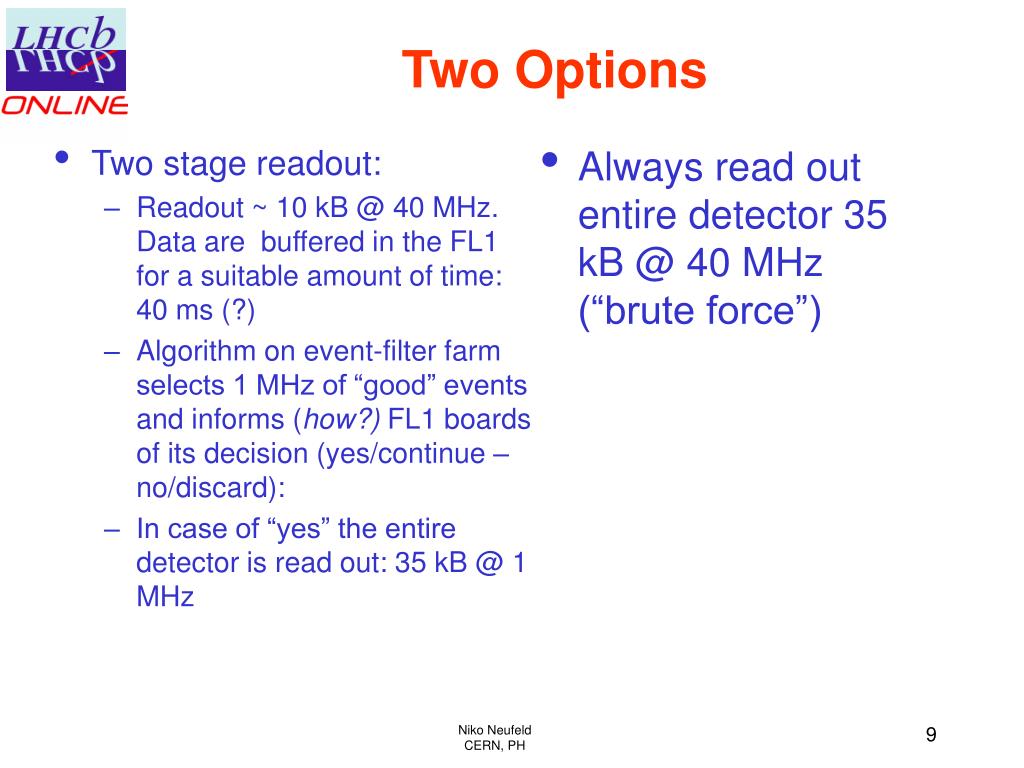

  9. Two stage readout: Readout ~ 10 kB @ 40 MHz. Data are buffered in the FL1 for a suitable amount of time: 40 ms (?) Algorithm on event-filter farm selects 1 MHz of “good” events and informs (how?) FL1 boards of its decision (yes/continue – no/discard): In case of “yes” the entire detector is read out: 35 kB @ 1 MHz Always read out entire detector 35 kB @ 40 MHz (“brute force”) Two Options Niko Neufeld CERN, PH

  10. Full read-out at 40 MHz • At a collision rate of 40 MHz, the data rate for a full readout is ~ 1400 GB/s, or ~ 12 Tb/s • network with ~ 2 x 1200 x 10 Gigabit ports • Need several switches as building blocks  optimised topology highly desirable (non-Banyan) • Advantages: • No latency constraints • Less memory requirements on the FL1 • Disadvantages: • Huge, expensive • Almost all of the data shipped will never be looked at (physics  algorithms do not change much) • Requires zero-suppression and FPGA pre-processing for all detector data 40 MHz (not obvious) Niko Neufeld CERN, PH

  11. Parameters / Assumptions • Vertex reconstruction requires only a subset of the total event of roughly 10 kB @ 40 MHz (essentially the VertexLocator of the future + some successor of TT) • FE with full 40 MHz readout capability • We dispose of the successor of the TELL1, FL1* , which has several 10 Gigabit output links and can do pre-processing / zero-suppression at the required rate • Several triggers are packed into a MTP. This reduces the message rate from each board. In this presentation we assume 8 triggers per message == RTX-message = 5 MHz (per FL1) (*) FL1 for Future L1 or Fast L1 or FormuLa 1 Niko Neufeld CERN, PH

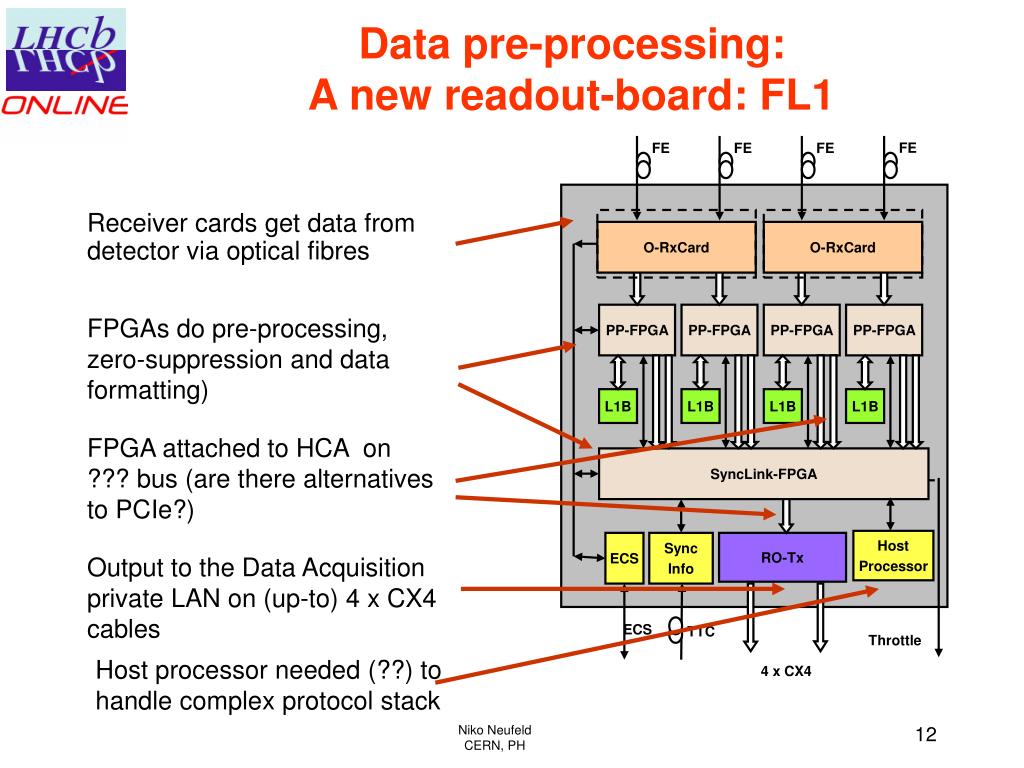

  12. Data pre-processing: A new readout-board: FL1 FE FE FE FE Receiver cards get data from detector via optical fibres O-RxCard O-RxCard PP-FPGA PP-FPGA PP-FPGA PP-FPGA FPGAs do pre-processing, zero-suppression and data formatting) L1B L1B L1B L1B FPGA attached to HCA on ??? bus (are there alternatives to PCIe?) SyncLink-FPGA Host Processor ECS Sync Info RO-Tx Output to the Data Acquisition private LAN on (up-to) 4 x CX4 cables ECS TTC Throttle Host processor needed (??) to handle complex protocol stack 4 x CX4 Niko Neufeld CERN, PH

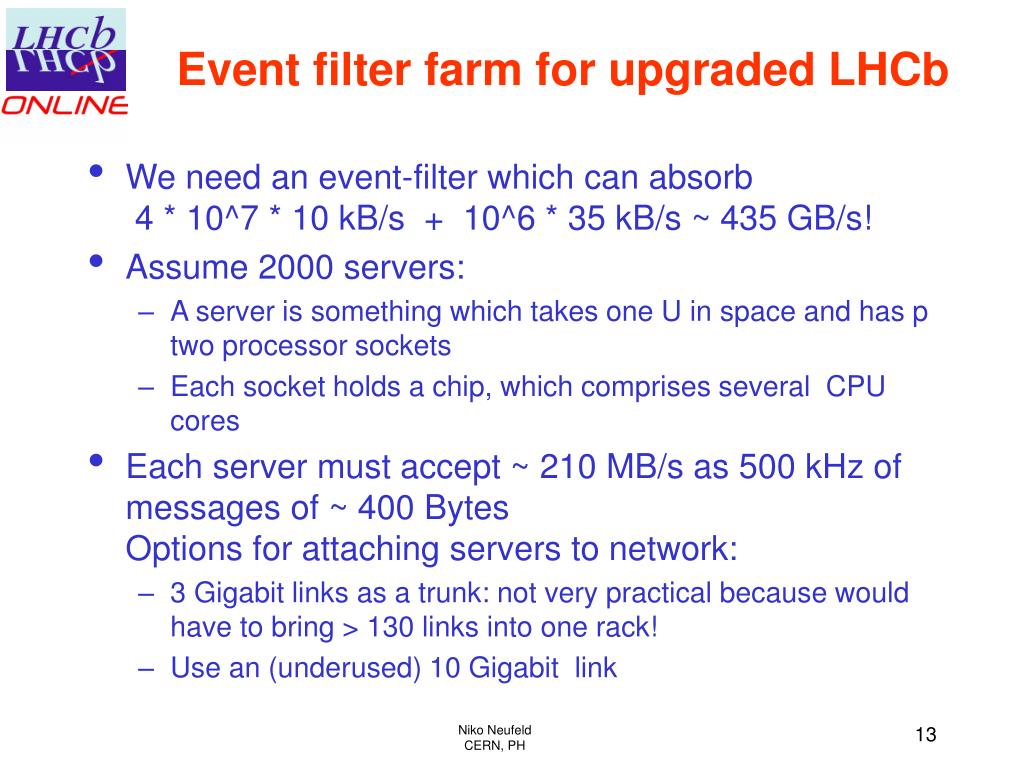

  13. Event filter farm for upgraded LHCb • We need an event-filter which can absorb 4 * 10^7 * 10 kB/s + 10^6 * 35 kB/s ~ 435 GB/s! • Assume 2000 servers: • A server is something which takes one U in space and has p two processor sockets • Each socket holds a chip, which comprises several CPU cores • Each server must accept ~ 210 MB/s as 500 kHz of messages of ~ 400 BytesOptions for attaching servers to network: • 3 Gigabit links as a trunk: not very practical because would have to bring > 130 links into one rack! • Use an (underused) 10 Gigabit link Niko Neufeld CERN, PH

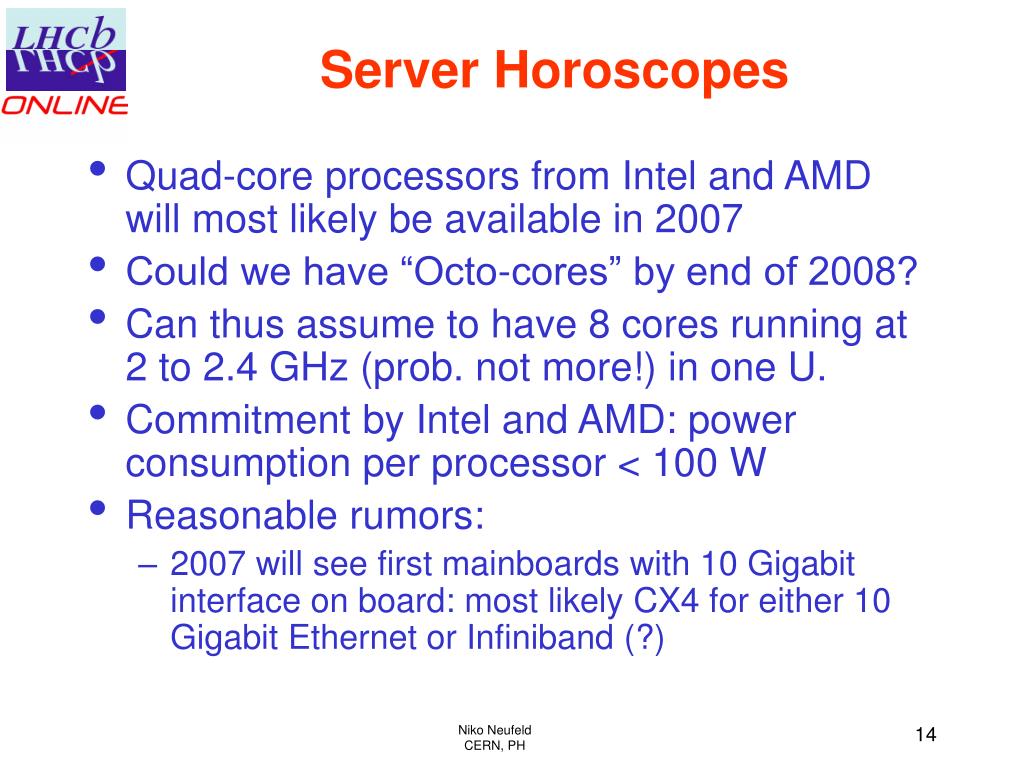

  14. Server Horoscopes • Quad-core processors from Intel and AMD will most likely be available in 2007 • Could we have “Octo-cores” by end of 2008? • Can thus assume to have 8 cores running at 2 to 2.4 GHz (prob. not more!) in one U. • Commitment by Intel and AMD: power consumption per processor < 100 W • Reasonable rumors: • 2007 will see first mainboards with 10 Gigabit interface on board: most likely CX4 for either 10 Gigabit Ethernet or Infiniband (?) Niko Neufeld CERN, PH

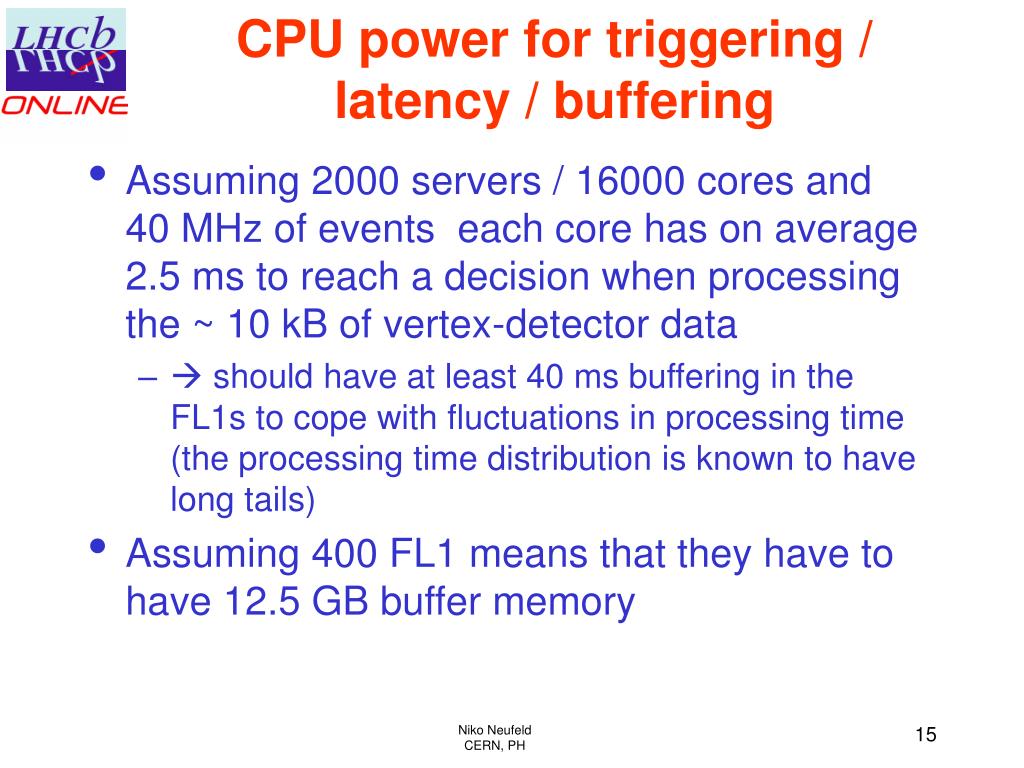

  15. CPU power for triggering / latency / buffering • Assuming 2000 servers / 16000 cores and40 MHz of events each core has on average 2.5 ms to reach a decision when processing the ~ 10 kB of vertex-detector data •  should have at least 40 ms buffering in the FL1s to cope with fluctuations in processing time (the processing time distribution is known to have long tails) • Assuming 400 FL1 means that they have to have 12.5 GB buffer memory Niko Neufeld CERN, PH

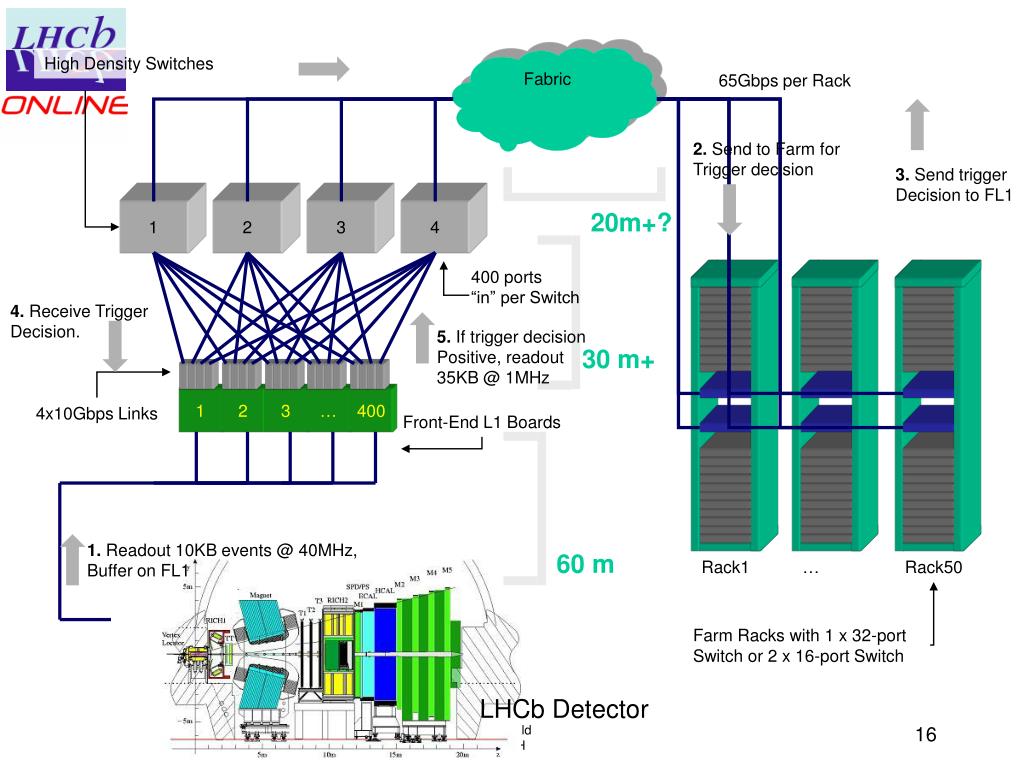

  16. High Density Switches Fabric 65Gbps per Rack 2. Send to Farm for Trigger decision 3. Send trigger Decision to FL1 1 2 3 4 20m+? 400 ports “in” per Switch 4. Receive Trigger Decision. 5. If trigger decision Positive, readout 35KB @ 1MHz 30 m+ 1 2 3 … 400 4x10Gbps Links Front-End L1 Boards 1. Readout 10KB events @ 40MHz, Buffer on FL1 60 m Rack1 … Rack50 Farm Racks with 1 x 32-port Switch or 2 x 16-port Switch LHCb Detector Niko Neufeld CERN, PH

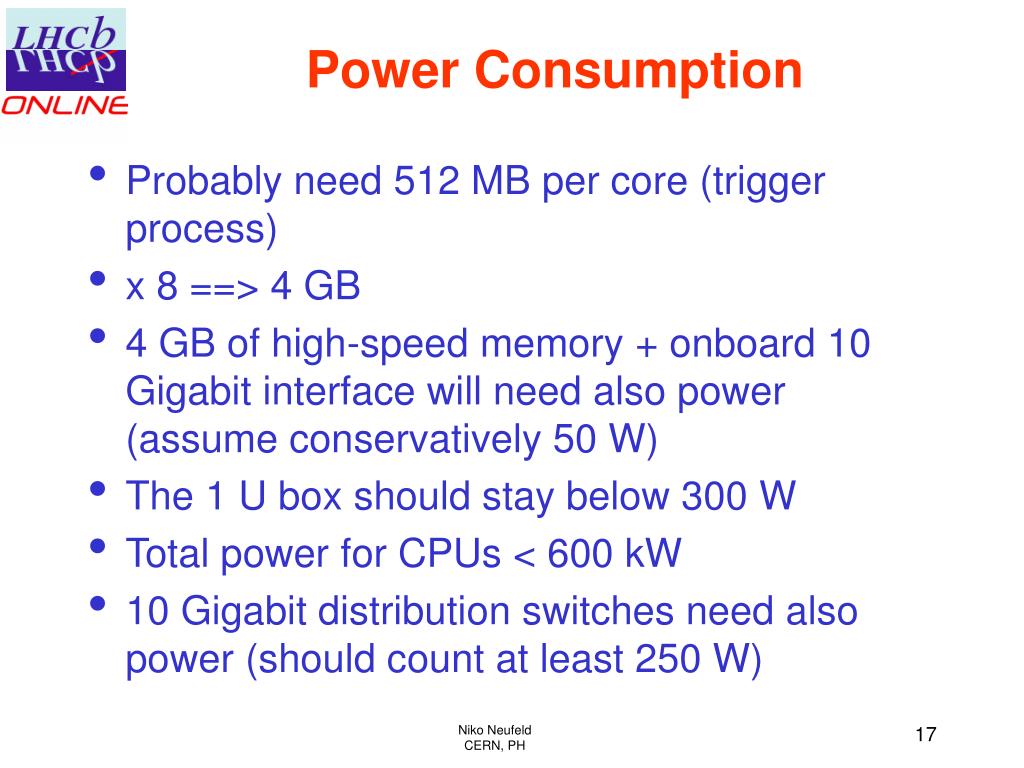

  17. Power Consumption • Probably need 512 MB per core (trigger process) • x 8 ==> 4 GB • 4 GB of high-speed memory + onboard 10 Gigabit interface will need also power (assume conservatively 50 W) • The 1 U box should stay below 300 W • Total power for CPUs < 600 kW • 10 Gigabit distribution switches need also power (should count at least 250 W) Niko Neufeld CERN, PH

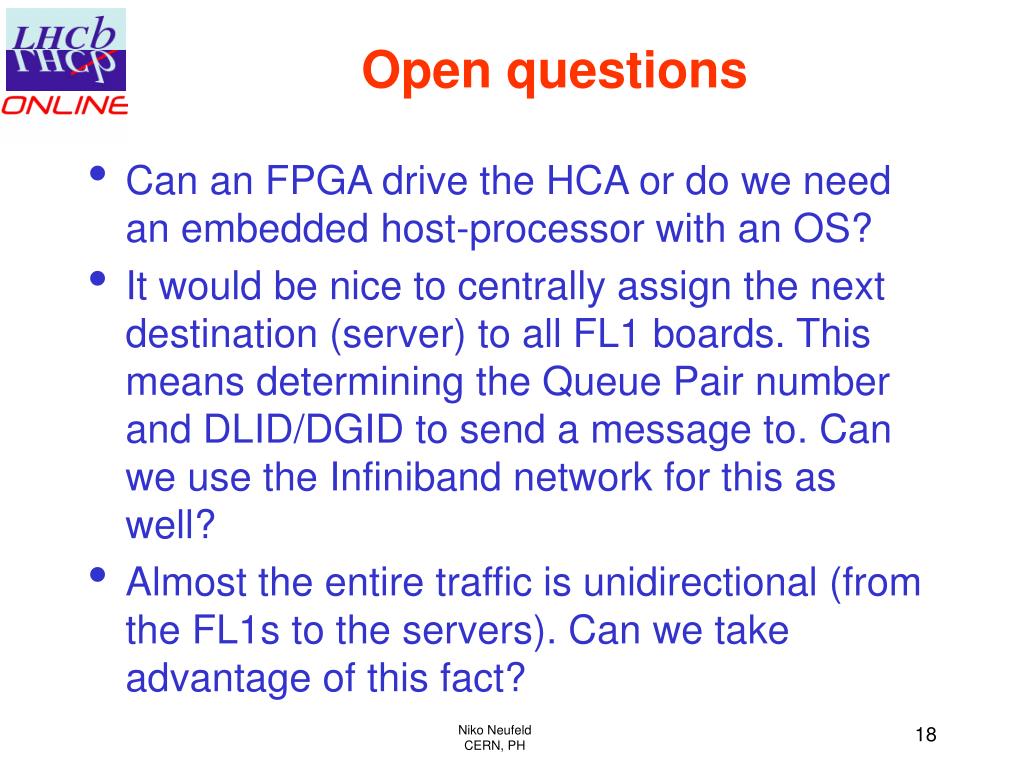

  18. Open questions • Can an FPGA drive the HCA or do we need an embedded host-processor with an OS? • It would be nice to centrally assign the next destination (server) to all FL1 boards. This means determining the Queue Pair number and DLID/DGID to send a message to. Can we use the Infiniband network for this as well? • Almost the entire traffic is unidirectional (from the FL1s to the servers). Can we take advantage of this fact? Niko Neufeld CERN, PH
