  1. 简介 Presentation 中国泰坦能源技术集团有限公司 CHINA TITANS ENERGY TECHNOLOGY GROUP CO.,LTD. 港股HK-STOCK: 2188 泰 坦 使 命 : 让 电 能 变 得 更 有 价 值

  2. 1.1 Company Profile Established in 1992, China Titans Energy Technology Group Co., Limited（listed in Hong Kong Stock Exchange, Stock Code: 2188）is a high-tech enterprise, integrated with research, production and marketing. It is focused in power electronics, and on the basis of the demand of all kinds of customers from power generation, power transmission and power consumption, by applying the technology of power electronics and automation to provide solutions of power transformation, monitor, control, optimization as well as new energy utilization for the customers. TITANS’ customers cover the field of power, railways, telecommunications, petrochemical, metallurgy, aerospace, etc. The total asset of TITANS is reached RMB 1 billion. There are 510employees, of which 60% are technical and professional, among them, 7 with doctor degrees, 36 with master degrees.

  3. Products • AC/DC Power Supply System • EV Charging Systems & Solutions • Battery Formation & Grading • Power Quality Monitor & Management • Micro-Grid Energy Storage • DISC

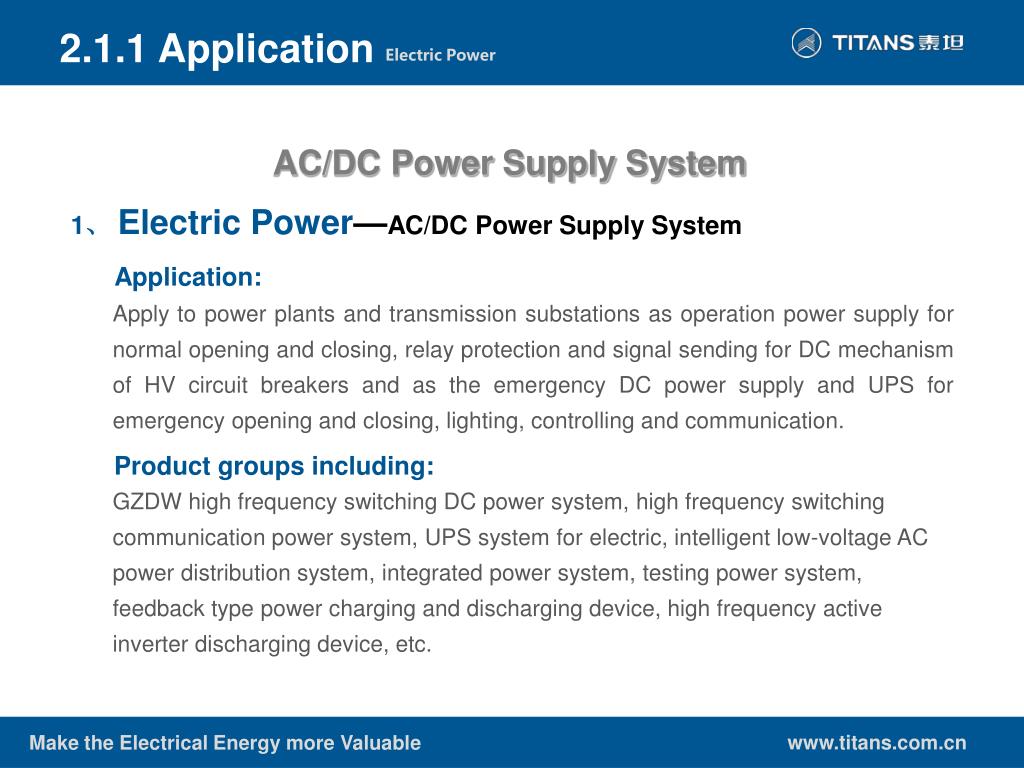

  4. 2.1.1 Application Electric Power AC/DC Power Supply System 1、Electric Power—AC/DCPower Supply System Application: Apply to power plants and transmission substations as operation power supply for normal opening and closing, relay protection and signal sending for DC mechanism of HV circuit breakers and as the emergency DC power supply and UPS for emergency opening and closing, lighting, controlling and communication. Product groups including: GZDW high frequency switching DC power system, high frequency switching communication power system, UPS system for electric, intelligent low-voltage AC power distribution system, integrated power system, testing power system, feedback type power charging and discharging device, high frequency active inverter discharging device, etc.

  5. 2.1.2 Products Electric Power Intelligent Forced Air Cooling Series Module Integrated Power System Natural Cooling Series Module TUPS/TINVModule Intelligent Low-voltage Distribution AC System TEP-I Microcomputer Monitoring Device TEP-G Microcomputer-based Distributed Insulation Monitoring Device GMCU-C Acquisition Unit TEP-N Series Active Invertion Discharging Device

  6. East Lanzhou 750 KV SubstationIs located in Yuzhong city, east Lanzhou, Gansu province,it was the first 750KV substation in transmission lines in China. Qinghai-Tibet Railway The highest altitude is above 5500m, totally 44 substations in the whole line. Harbin-Dalian high speed railway is one of the key construction projects of China's “11th Five-Year Plan“, Titans supplied power supply products for all 10 substations in this line. 2.1.3 Key Customers Electric Power

  7. 2.1.3 Key Customers Electric Power ★ Three Gorges Project, South to North Water Diversion Project ,etc. ★ Jiuquan Satellite Launching Center、Shenzhen Metro, etc. ★10KV—750KV Substations and 300MW—1000MW Power Plants, etc. ★ Power plants, hydropower stations and transmission line project in Indonesia, the Philippines, Uzbekistan and the U.A.E. and other countries. Titans products have been applied in more than 10,000 substations with different voltage levels

  8. 2.1.4 Application HVDC 2、HVDC—Power Supply System for Communication High Voltage DC power supply system (HVDC) applied in communication industry, is a new type UPS for IT equipment in IDC, currently two voltage levels are available, including DC 240V and DC 336V. Compared with AC UPS, its advantages, such as, safe, stable, efficient, reliable, energy - saving, and less investment, etc. have get the high recognition from the communication industry. It is becoming the development trend of power supply for this industry. Application: Large scale cloud computation data centers, IDC data centers, Data centers of Banks or Securities Institutions or E-Commerce enterprises or website enterprises, Engine rooms of mobile communication or Broadcasting network or Communication terminals, Communication base stations, etc.

  9. 2.1.5 Products HVDC HVDC rectifier Module HVDC Monitoring Module DC/AC220VInverter DC/DC48V（12V）Converter Combined System HVDC Power Supply (rectifier + AC/DC distribution cabinet )

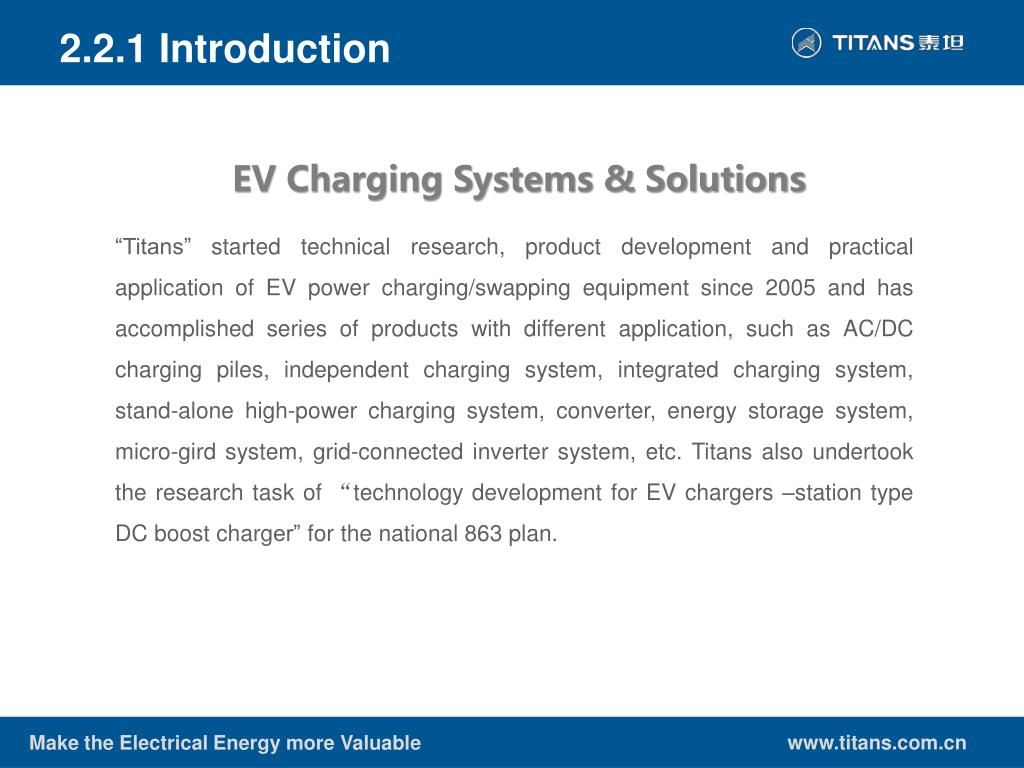

  10. 2.2.1 Introduction EV Charging Systems & Solutions “Titans” started technical research, product development and practical application of EV power charging/swapping equipment since 2005 and has accomplished series of products with different application, such as AC/DC charging piles, independent charging system, integrated charging system, stand-alone high-power charging system, converter, energy storage system, micro-gird system, grid-connected inverter system, etc. Titans also undertook the research taskof“technologydevelopment for EV chargers –station type DC boost charger”for the national 863 plan.

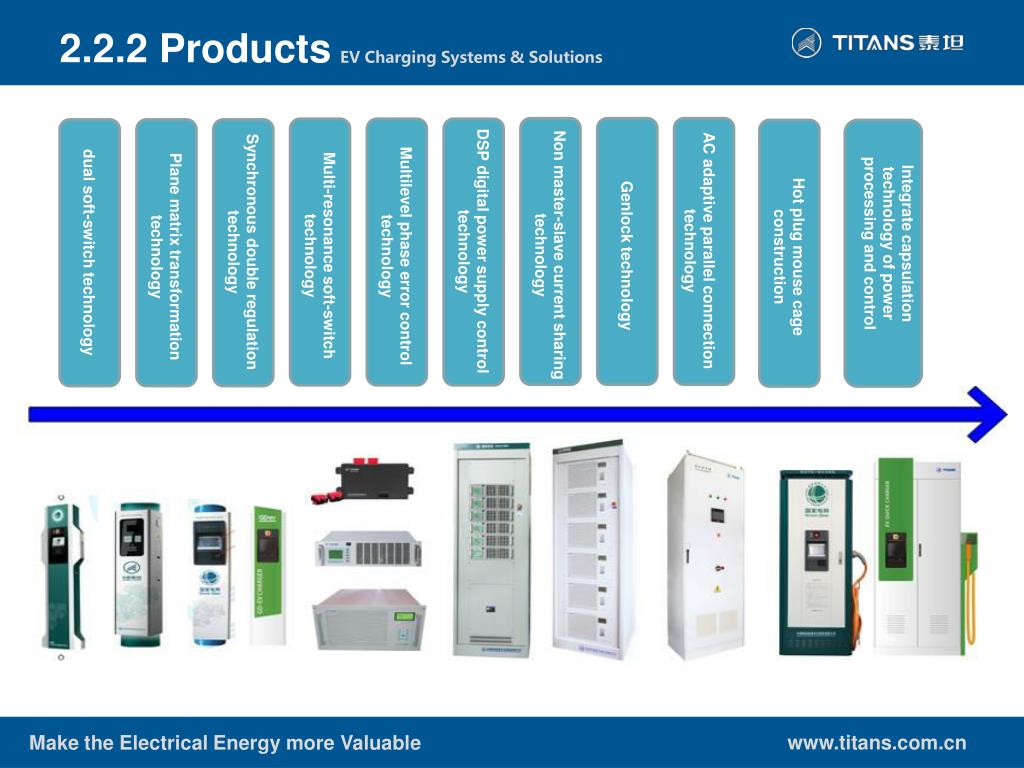

  11. 2.2.2 Products EV Charging Systems & Solutions Integrate capsulation technology of power processing and control AC adaptive parallel connection technology DSP digital power supply control technology Synchronous double regulation technology Non master-slave current sharing technology Multi-resonance soft-switch technology Multilevel phase error control technology Plane matrix transformation technology Hot plug mouse cage construction Genlock technology dual soft-switch technology

  12. 2.2.3 Key Customers EV Charging Systems & Solutions By the end of January 2012, Titans group has been involved in hosting and building all key project or large project of EV charging stations in China, including the demonstration stations for 2008 Beijing Olympic Games, the demonstration stations for 2009 Shanghai World Expo, the demonstration stations for 2010 Guangzhou Asian Games, and other more than 50 project in Shandong, Beijing, Ningxia, Jiangsu, Sichuan, Guangxi, Hong Kong and some other provinces and cities. Titans EV charger is geographically covering from Northeast, Northwest, Central, East to south, Southwest, most part of China.

  13. 2.2.3 Key Customers EV Charging Systems & Solutions Beijing Gao An Tun EV charging/swapping station EV charging station for Beijing Olympic Game Shandong Qingdao Xue Jia Dao EV charging/swapping station Henan Xuchang EV charging station

  14. 2.3.1 Application Battery Formation & Grading This technology is applied for the formation, grading and test for power Lithium ion battery and NI-HM battery. It is also used to perform the battery cycle life test and various function test. It’s the most advanced equipment for power battery automatic production line, and can realize intelligent energy feedback, auto grading and auto sorting .

  15. 2.3.2 Products Battery Formation & Grading Energy feedback-type formation and grading system Energy feedback-type auto formation and grading production line

  16. 2.3.3 Key Customers Battery Formation & Grading

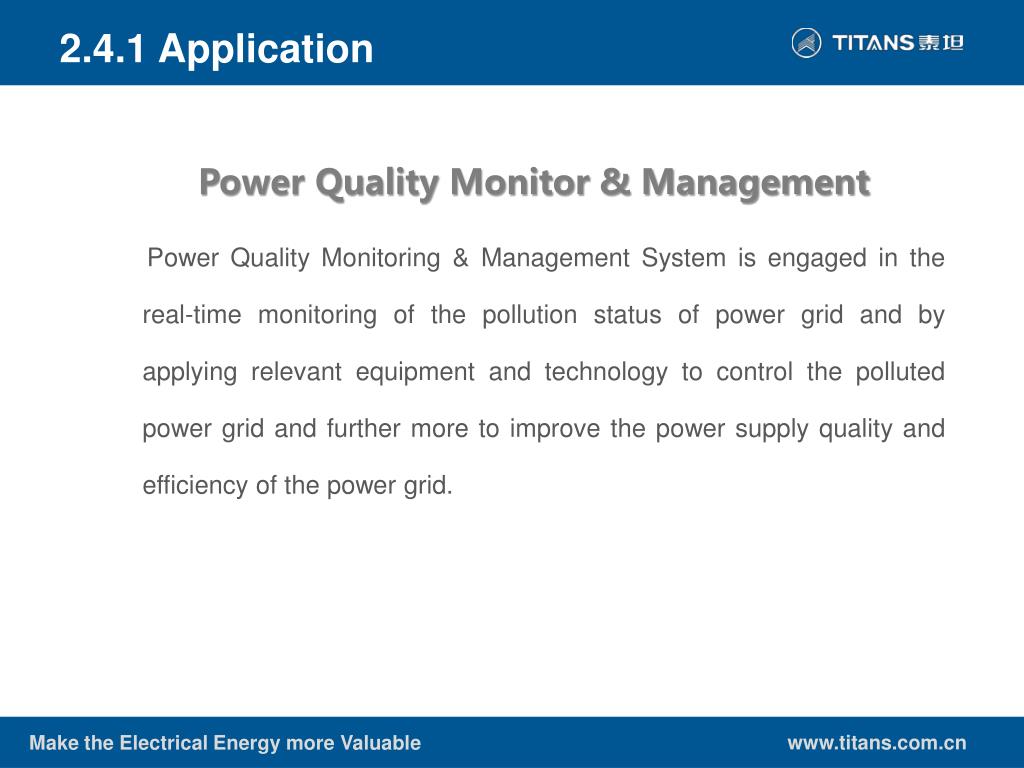

  17. 2.4.1 Application Power Quality Monitor & Management Power Quality Monitoring & Management System is engaged in the real-time monitoring of the pollution status of power grid and by applying relevant equipment and technology to control the polluted power grid and further more to improve the power supply quality and efficiency of the power grid.

  18. 2.4.2 Products Power Quality Monitor & Management TTPQ-100 Power Quality On-line Monitoring Unit Harmonic Control Equipment TTPQ-BXPortable Power Quality Analyzer TTPQ-200 Power Quality On-line Monitoring Unit System Cabinet Chart

  19. 2.4.3 Key Customers Power Quality Monitor & Management Henan Electric Power CompanyShandong Electric Power Corporation Sichuan Electric Power Company Henan Electric Railway

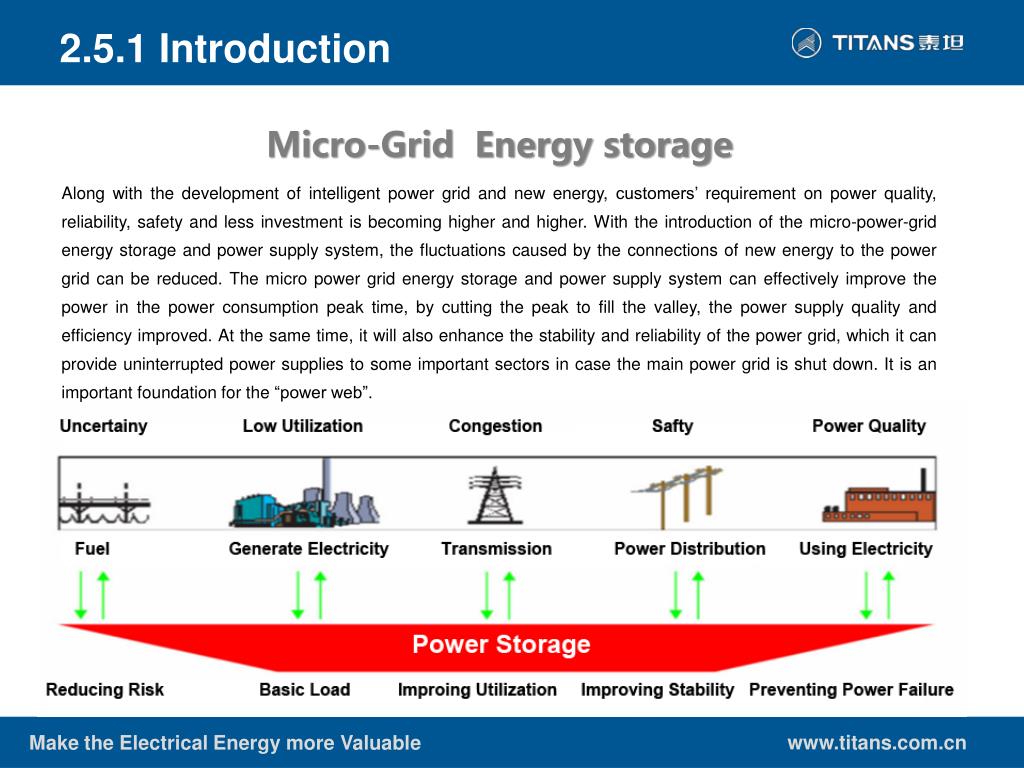

  20. 2.5.1 Introduction Micro-Grid Energy storage Along with the development of intelligent power grid and new energy, customers’ requirement on power quality, reliability, safety and less investment is becoming higher and higher.With the introduction of the micro-power-grid energy storage and power supply system, the fluctuations caused by the connections of new energy to the power grid can be reduced. The micro power grid energy storage and power supply system can effectively improve the power in the power consumption peak time, by cutting the peak to fill the valley, the power supply quality and efficiency improved. At the same time, it will also enhance the stability and reliability of the power grid, which it can provide uninterrupted power supplies to some important sectors in case the main power grid is shut down. It is an important foundation for the “power web”.

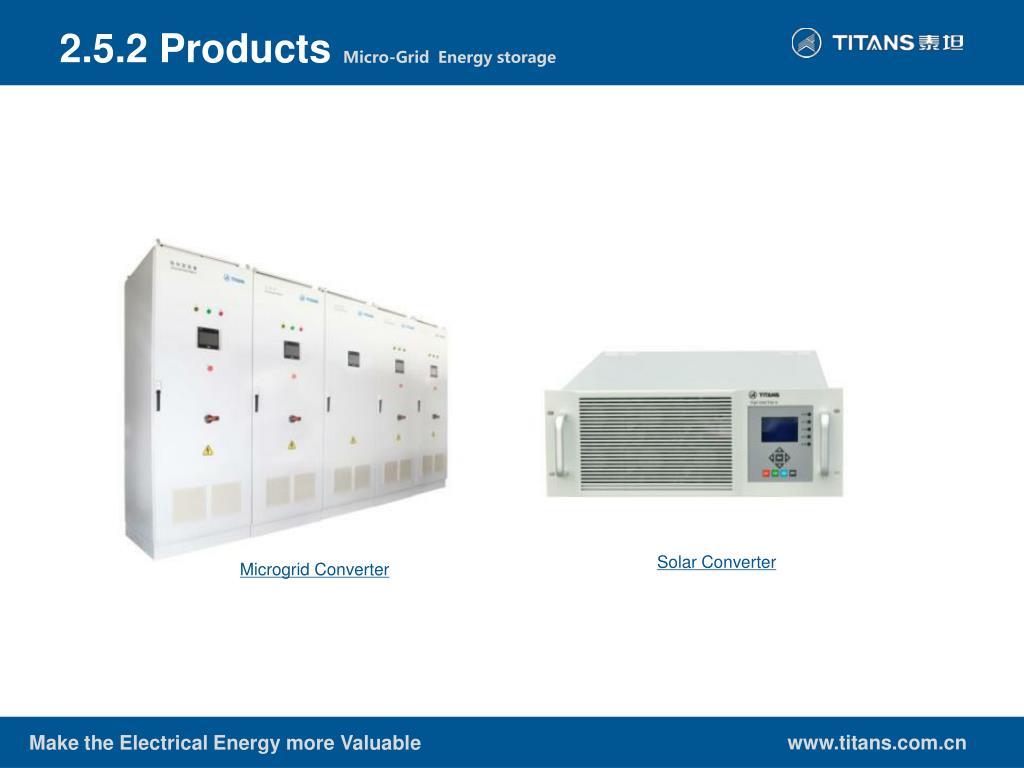

  21. 2.5.2 Products Micro-Grid Energy storage Solar Converter Microgrid Converter

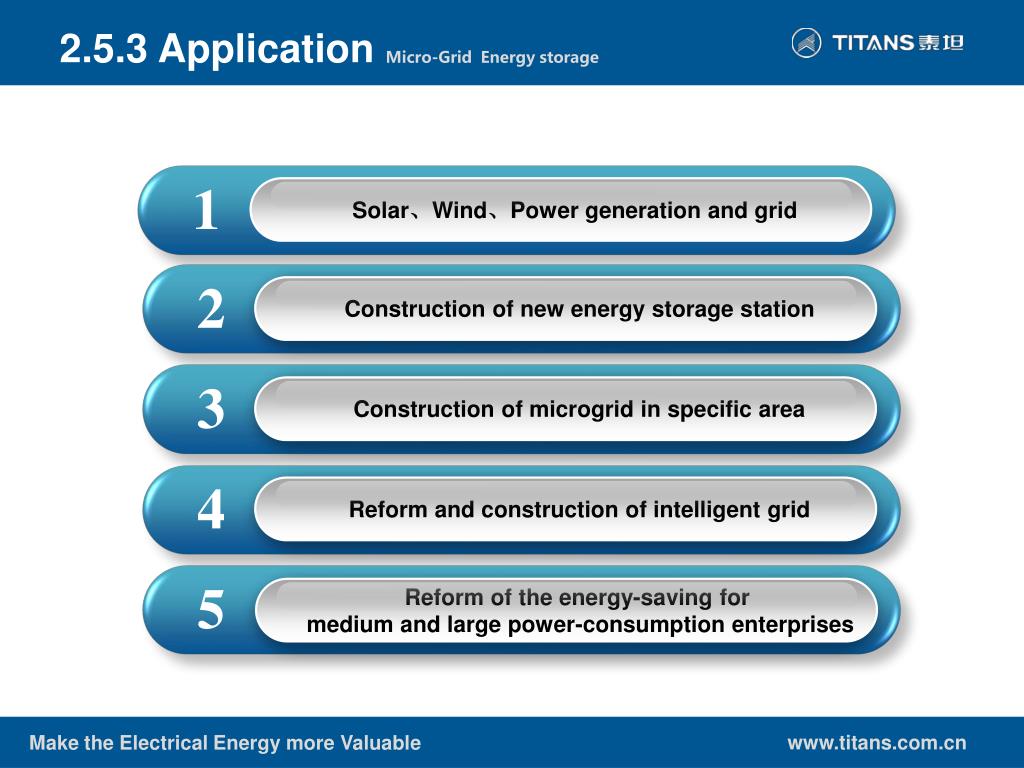

  22. Construction of new energy storage station Reform and construction of intelligent grid Reform of the energy-saving for medium and large power-consumption enterprises 2.5.3 Application Micro-Grid Energy storage 1 Solar、Wind、Power generation and grid 2 3 Construction of microgrid in specific area 4 5

  23. 2.5.4 Integrated Design Micro-Grid Energy storage Capacity optimization design for storage system Integrated design method • Capacity of multi-scene and multi-objective optimization design method • Structure of multi-objective optimization design method Integration Verification design software for Large-capacity energy storage system Structure optimization design for storage system Comprehensive evaluation and target system • Suitability • Economy • Technical • Reliability • …… 集成 Comprehensive evaluation and target system

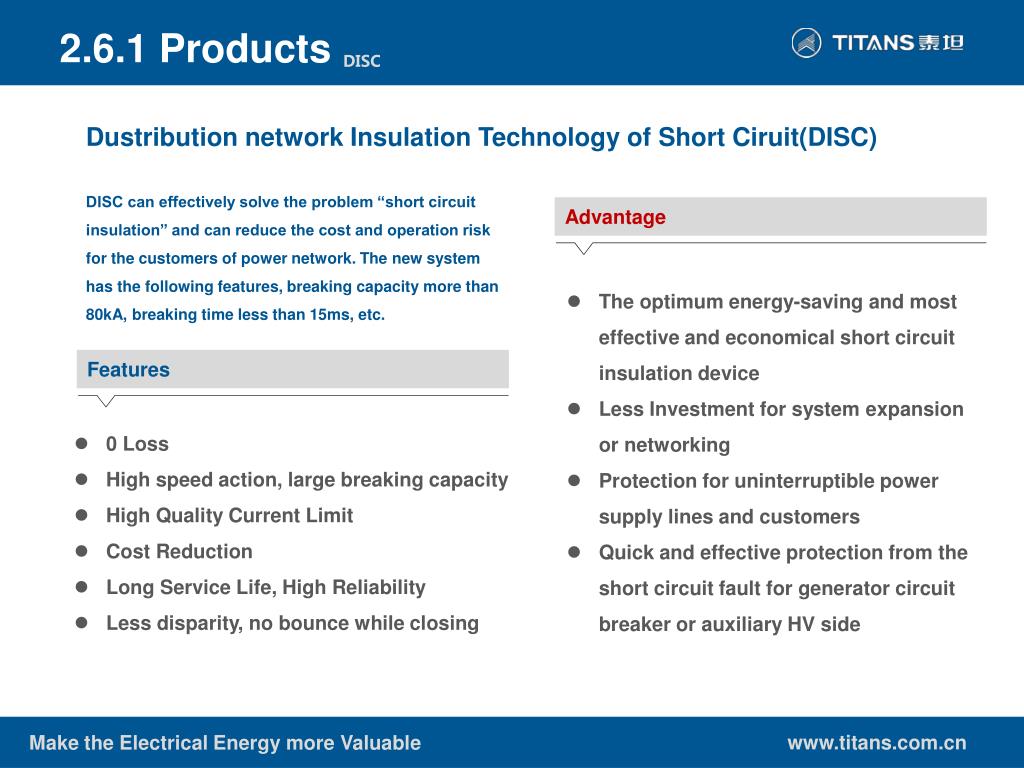

  24. 2.6.1 Products DISC Dustribution network Insulation Technology of Short Ciruit(DISC) DISC can effectively solve the problem “short circuit insulation” and can reduce the cost and operation risk for the customers of power network. The new system has the following features, breaking capacity more than 80kA, breaking time less than 15ms, etc. Advantage • The optimum energy-saving and most effective and economical short circuit insulation device • Less Investment for system expansion or networking • Protection for uninterruptible power supply lines and customers • Quick and effective protection from the short circuit fault for generator circuit breaker or auxiliary HV side Features • 0 Loss • High speed action, large breaking capacity • High Quality Current Limit • Cost Reduction • Long Service Life, High Reliability • Less disparity, no bounce while closing

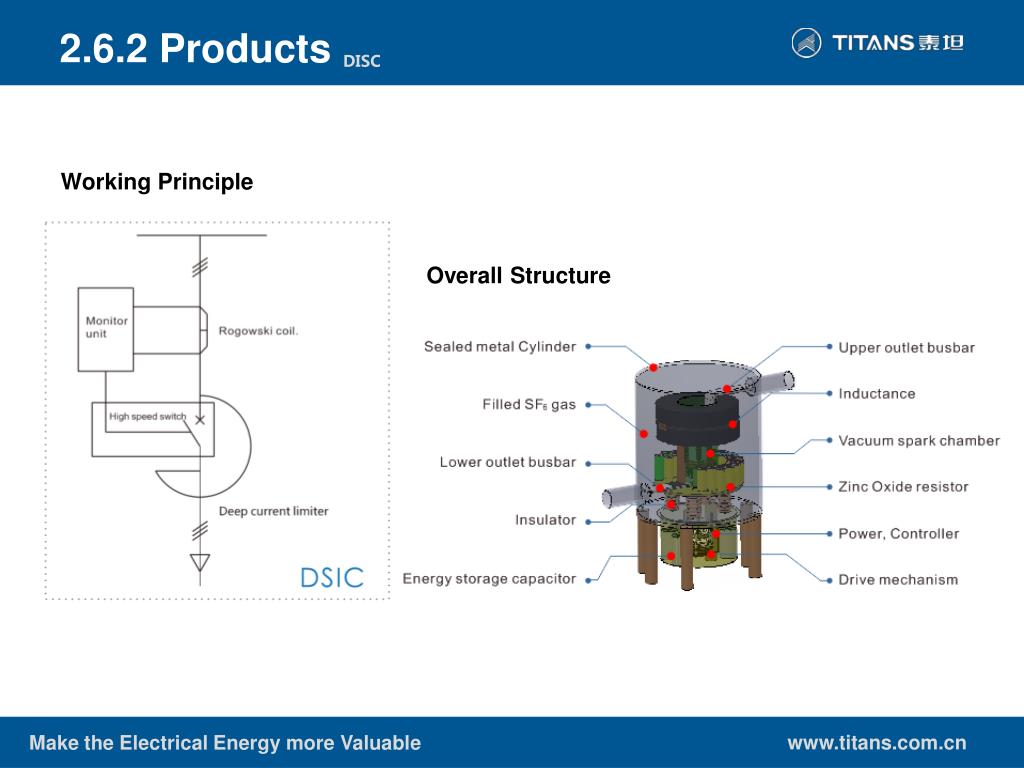

  25. 2.6.2 Products DISC Working Principle Overall Structure
