  1. CS‑INSTRUMENTS DEW POINT METERS & SENSORS OVERVIEW OF DEW POINT MONITORING EQUIPMENT FOR COMPRESSED AIR AND GAS SYSTEMS www.cs-instruments.com/za

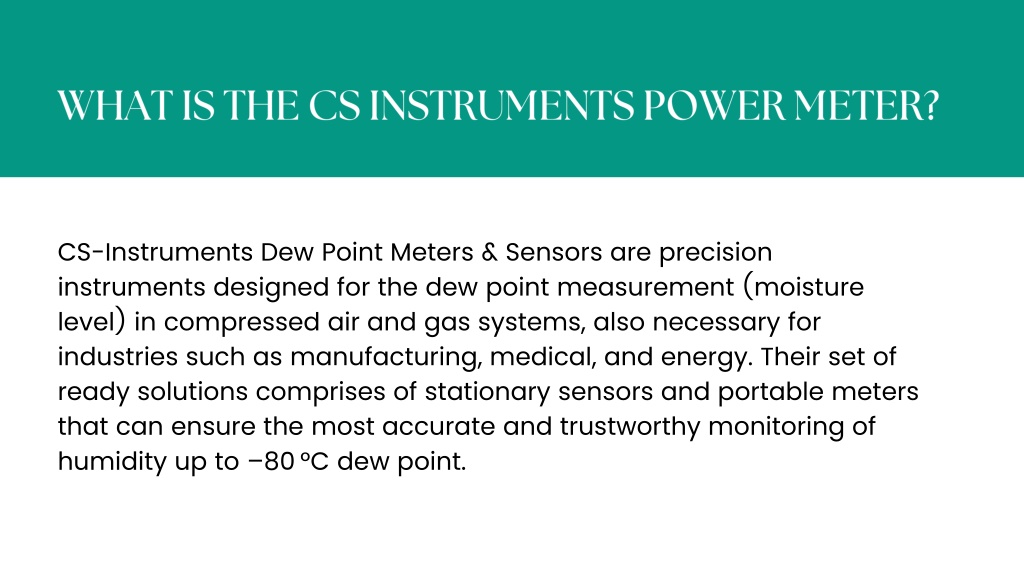

  2. WHAT IS THE CS INSTRUMENTS POWER METER? CS‑Instruments Dew Point Meters & Sensors are precision instruments designed for the dew point measurement (moisture level) in compressed air and gas systems, also necessary for industries such as manufacturing, medical, and energy. Their set of ready solutions comprises of stationary sensors and portable meters that can ensure the most accurate and trustworthy monitoring of humidity up to –80 °C dew point.

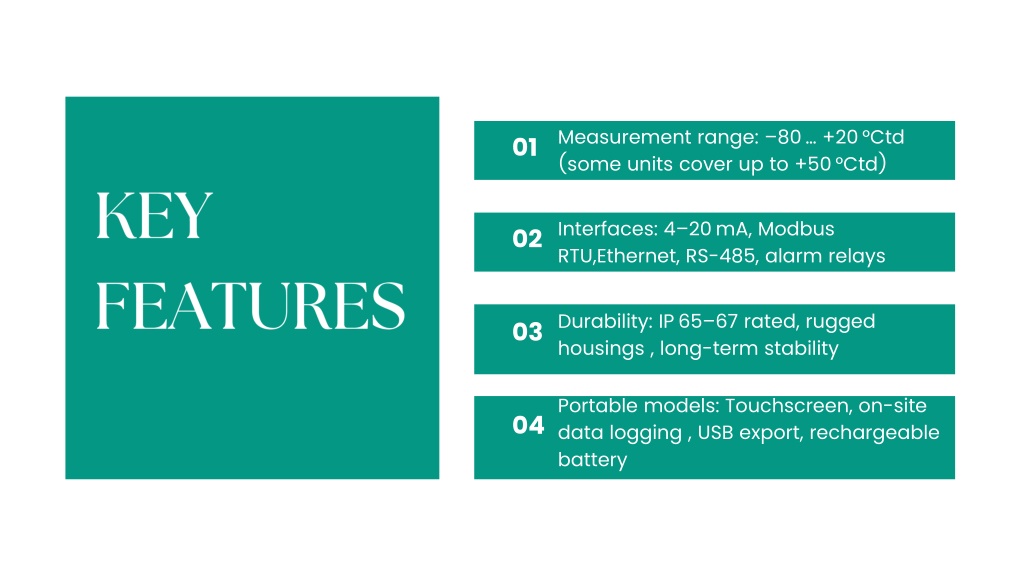

  3. Measurement range: –80 … +20 °Ctd (some units cover up to +50 °Ctd) 01 KEY FEATURES Interfaces: 4–20 mA, Modbus RTU,Ethernet, RS‑485, alarm relays 02 Durability: IP 65–67 rated, rugged housings , long‑term stability 03 Portable models: Touchscreen, on‑site data logging , USB export, rechargeable battery 04

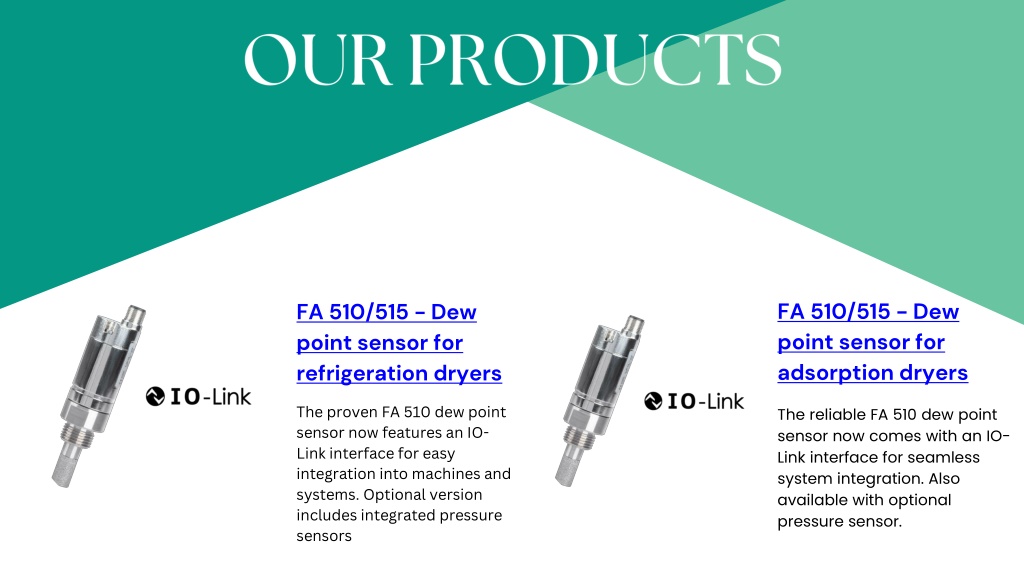

  4. OUR PRODUCTS FA 510/515 - Dew point sensor for adsorption dryers FA 510/515 - Dew point sensor for refrigeration dryers The proven FA 510 dew point sensor now features an IO-Link interface for easy integration into machines and systems. Optional version includes integrated pressure sensors The reliable FA 510 dew point sensor now comes with an IO-Link interface for seamless system integration. Also available with optional pressure sensor.

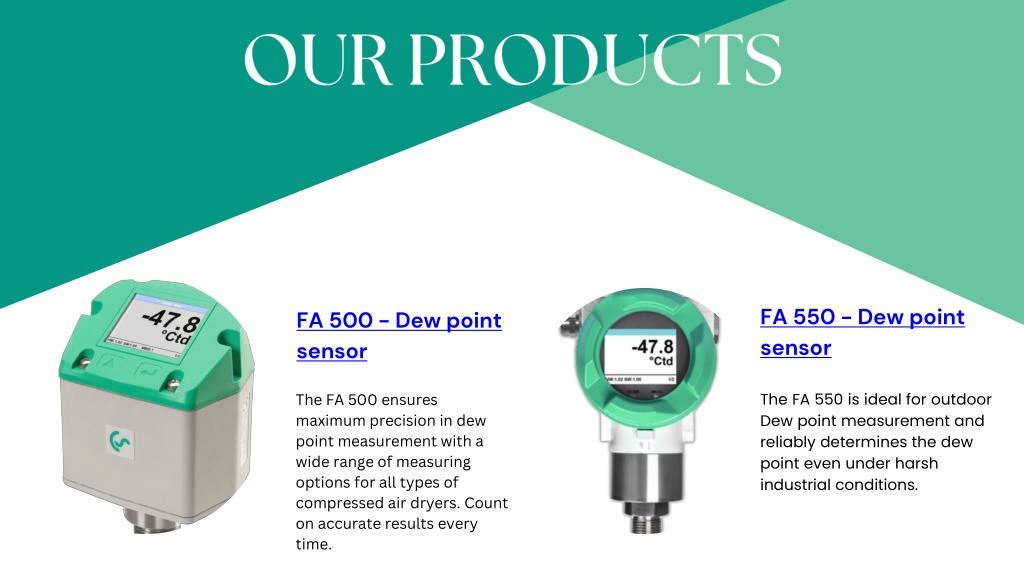

  5. OUR PRODUCTS FA 550 - Dew point sensor FA 500 - Dew point sensor The FA 550 is ideal for outdoor Dew point measurement and reliably determines the dew point even under harsh industrial conditions. The FA 500 ensures maximum precision in dew point measurement with a wide range of measuring options for all types of compressed air dryers. Count on accurate results every time.

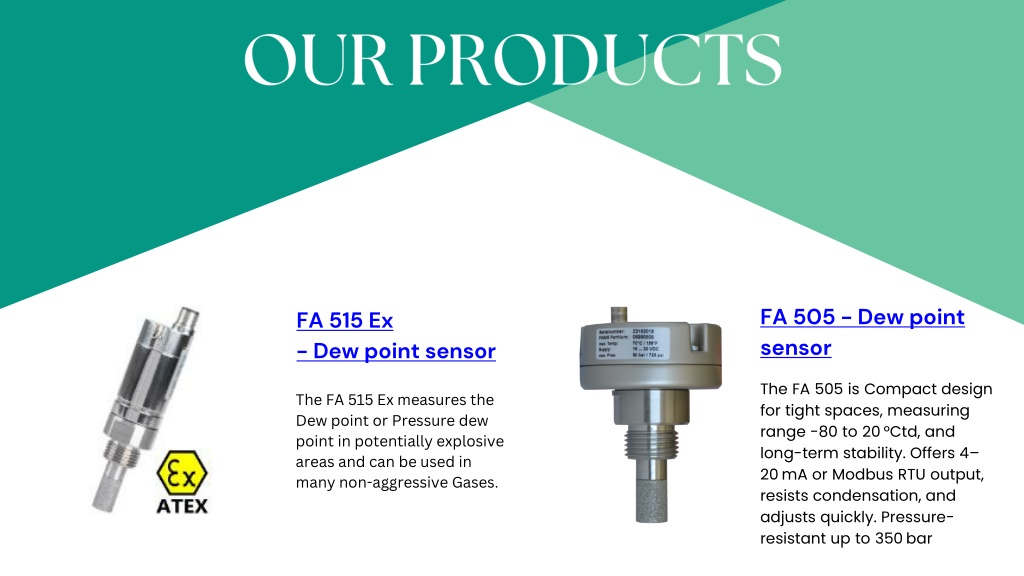

  6. OUR PRODUCTS FA 505 - Dew point sensor FA 515 Ex - Dew point sensor The FA 505 is Compact design for tight spaces, measuring range -80 to 20 °Ctd, and long-term stability. Offers 4–20 mA or Modbus RTU output, resists condensation, and adjusts quickly. Pressure-resistant up to 350 bar The FA 515 Ex measures the Dew point or Pressure dew point in potentially explosive areas and can be used in many non-aggressive Gases.

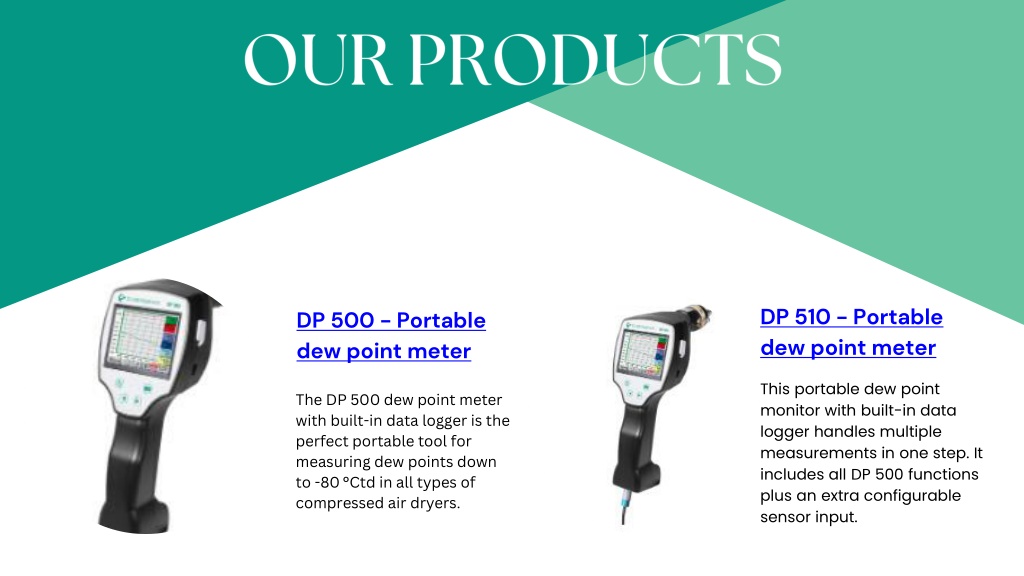

  7. OUR PRODUCTS DP 510 - Portable dew point meter DP 500 - Portable dew point meter This portable dew point monitor with built-in data logger handles multiple measurements in one step. It includes all DP 500 functions plus an extra configurable sensor input. The DP 500 dew point meter with built-in data logger is the perfect portable tool for measuring dew points down to -80 °Ctd in all types of compressed air dryers.

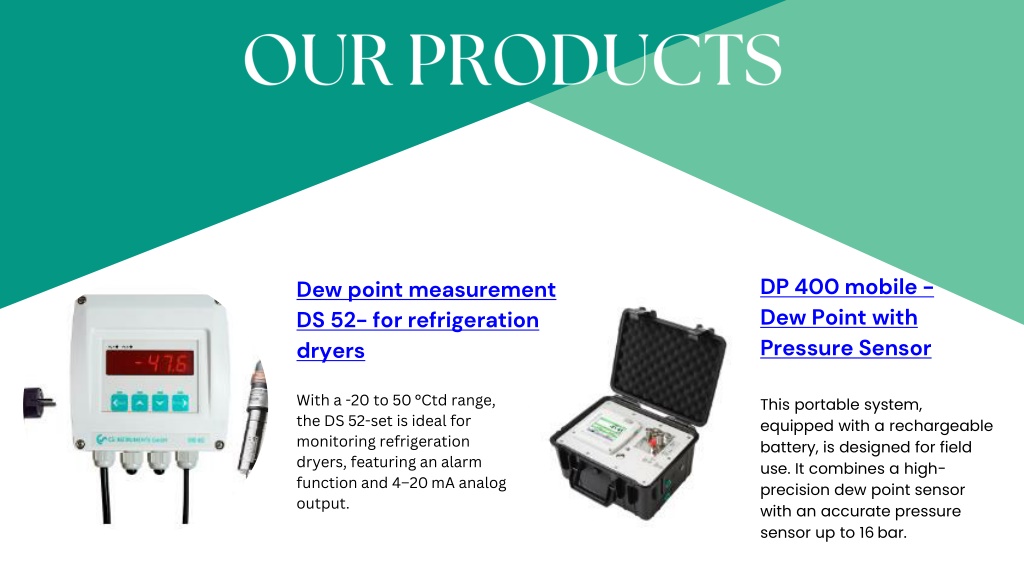

  8. OUR PRODUCTS DP 400 mobile - Dew Point with Pressure Sensor Dew point measurement DS 52- for refrigeration dryers With a -20 to 50 °Ctd range, the DS 52-set is ideal for monitoring refrigeration dryers, featuring an alarm function and 4–20 mA analog output. This portable system, equipped with a rechargeable battery, is designed for field use. It combines a high-precision dew point sensor with an accurate pressure sensor up to 16 bar.

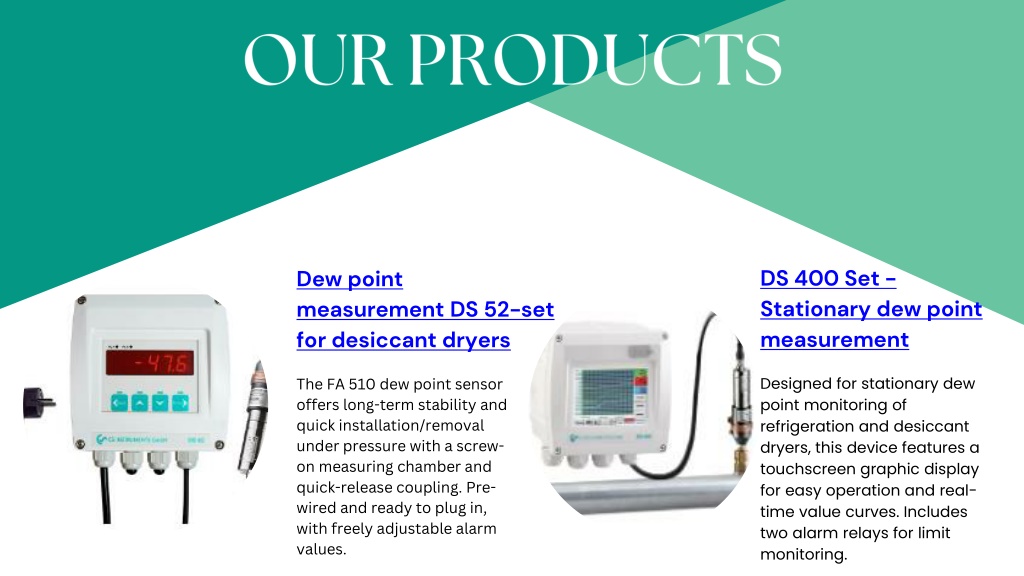

  9. OUR PRODUCTS DS 400 Set - Stationary dew point measurement Dew point measurement DS 52-set for desiccant dryers Designed for stationary dew point monitoring of refrigeration and desiccant dryers, this device features a touchscreen graphic display for easy operation and real-time value curves. Includes two alarm relays for limit monitoring. The FA 510 dew point sensor offers long-term stability and quick installation/removal under pressure with a screw-on measuring chamber and quick-release coupling. Pre-wired and ready to plug in, with freely adjustable alarm values.

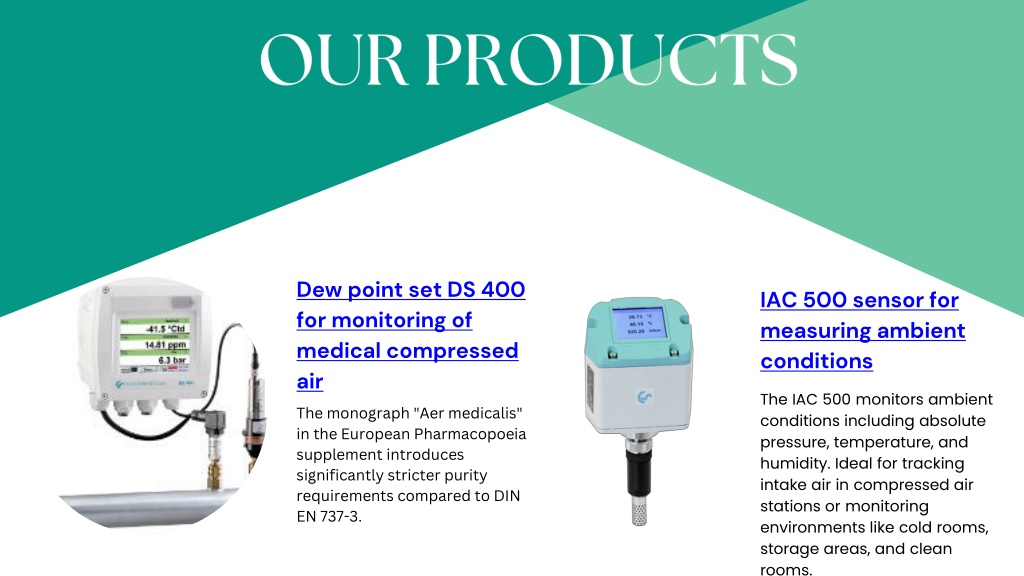

  10. OUR PRODUCTS Dew point set DS 400 for monitoring of medical compressed air IAC 500 sensor for measuring ambient conditions The IAC 500 monitors ambient conditions including absolute pressure, temperature, and humidity. Ideal for tracking intake air in compressed air stations or monitoring environments like cold rooms, storage areas, and clean rooms. The monograph "Aer medicalis" in the European Pharmacopoeia supplement introduces significantly stricter purity requirements compared to DIN EN 737-3.

  11. CONTACT US +27 (0)21 557 5618 www.cs-instruments.com/za Cape Town Headoffice 142 Briza Road Table View Cape Town, 7441 South Africa
