VA 570 Thermal Mass Flow Meter | CS Instruments

The VA 570 features Clever Annealing Technology from CS Instruments. This cutting-edge flow measurement tool helps you monitor and optimize your air and gas consumption. The VA 570 is especially convenient for industrial applications, significantly reducing energy costs, detecting leaks, and enhancing the performance of your system. We have used a stainless-steel body and rugged aluminum housing to guarantee durability and long-term reliability with very little maintenance offered by the VA 570.

csinstruments
Télécharger la présentation

VA 570 Thermal Mass Flow Meter | CS Instruments

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. VA 570 – THERMAL MASS FLOW METER FOR CONSUMPTION MEASUREMENT ABOUT VA 570 The VA 570 Thermal Mass Flow Meter from CS Instruments is engineered to record and reduce your energy costs while promoting sustainability. It enables continuous monitoring of air and gas consumption, helping you analyze leakages and optimize efficiency — all with exceptional accuracy and reliability.

  2. KEY BENEFITS Precise compressed air & gas measurement Direct mass flow output without pressure/temperature sensors Leak detection & energy analysis Easy installation and maintenance Robust aluminum housing for industrial & outdoor use Supports sustainability and cost-saving goals

  3. TECHNICAL SPECIFICATIONS Parameter Details Flow Range Up to 224 Nm/s Pressure Up to 16 bar (40 bar PN40 version) Temperature Range Up to 180°C (ATEX version: 120°C) Pipe Sizes DN15 – DN80 ±1.5% or ±1% of measured value + ±0.3% final value Accuracy 4–20 mA, Pulse, Modbus RTU (RS485), Modbus TCP, PoE, M-Bus Output Signals Protection Class IP67 (ATEX version: IP64) Stainless steel (wetted parts) & Aluminum housing Material ATEX, DVGW – suitable for natural gas, hydrogen, and biogas Certifications

  4. APPLICATIONS & ADVANTAGES Ideal Applications: Compressed air systems Gas distribution networks Industrial energy monitoring Departmental billing and consumption tracking Leakage detection and sustainability programs Main Advantages: Highly accurate and stable measurements Low operating costs due to minimal maintenance Easy sensor removal for calibration Suitable for harsh industrial and outdoor environments Enhances energy transparency and efficiency.

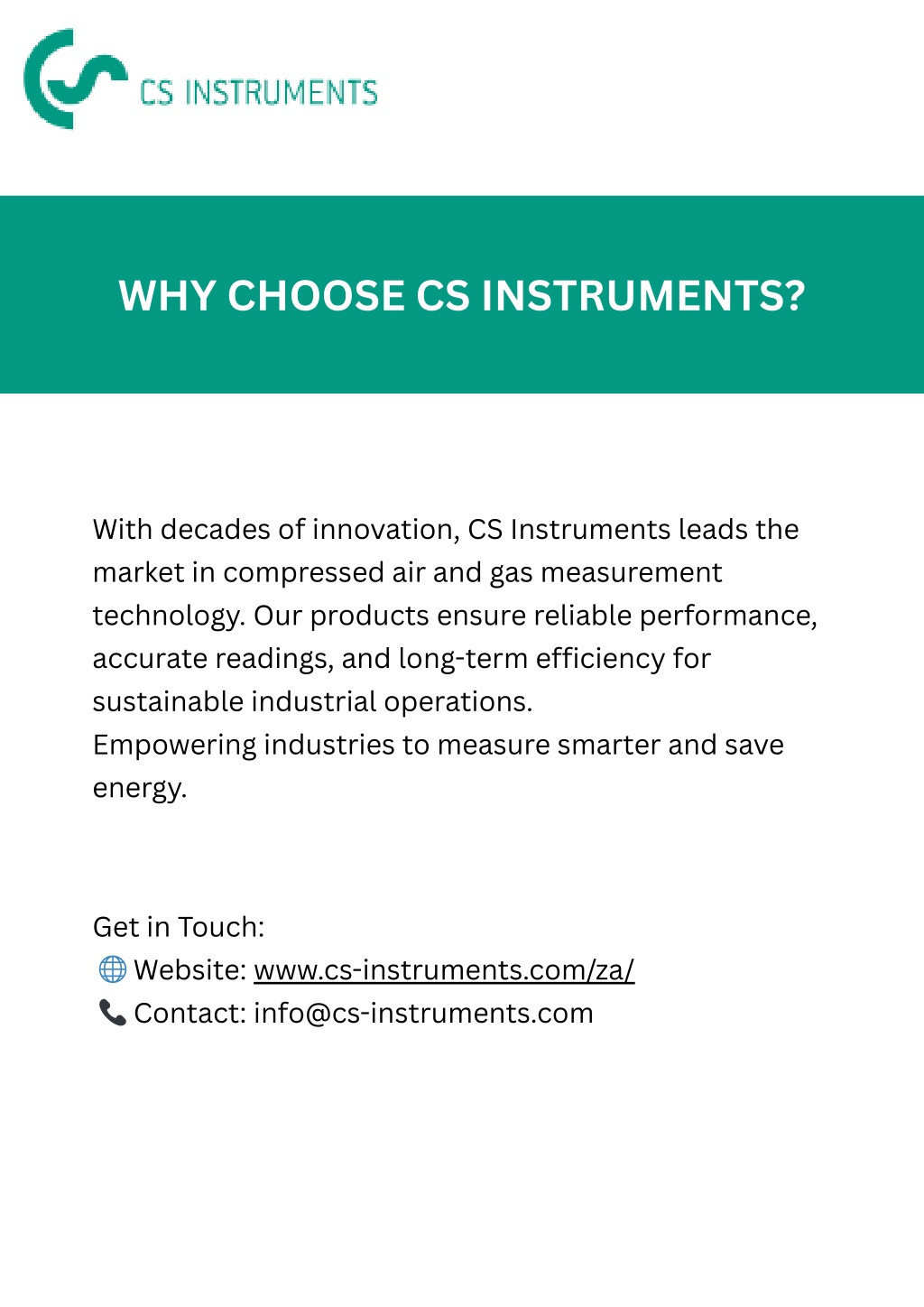

  5. WHY CHOOSE CS INSTRUMENTS? With decades of innovation, CS Instruments leads the market in compressed air and gas measurement technology. Our products ensure reliable performance, accurate readings, and long-term efficiency for sustainable industrial operations. Empowering industries to measure smarter and save energy. Get in Touch: ? Website: www.cs-instruments.com/za/ ? Contact: info@cs-instruments.com
