Using Perl on an AS/400 / iSeries

Presented by David Mount Owner of Texas400 Computer Consulting See www.texas400.com for more on Perl on the iSeries / AS400 . Using Perl on an AS/400 / iSeries. Reasons to Pay Attention.

dacey
Télécharger la présentation

Using Perl on an AS/400 / iSeries

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

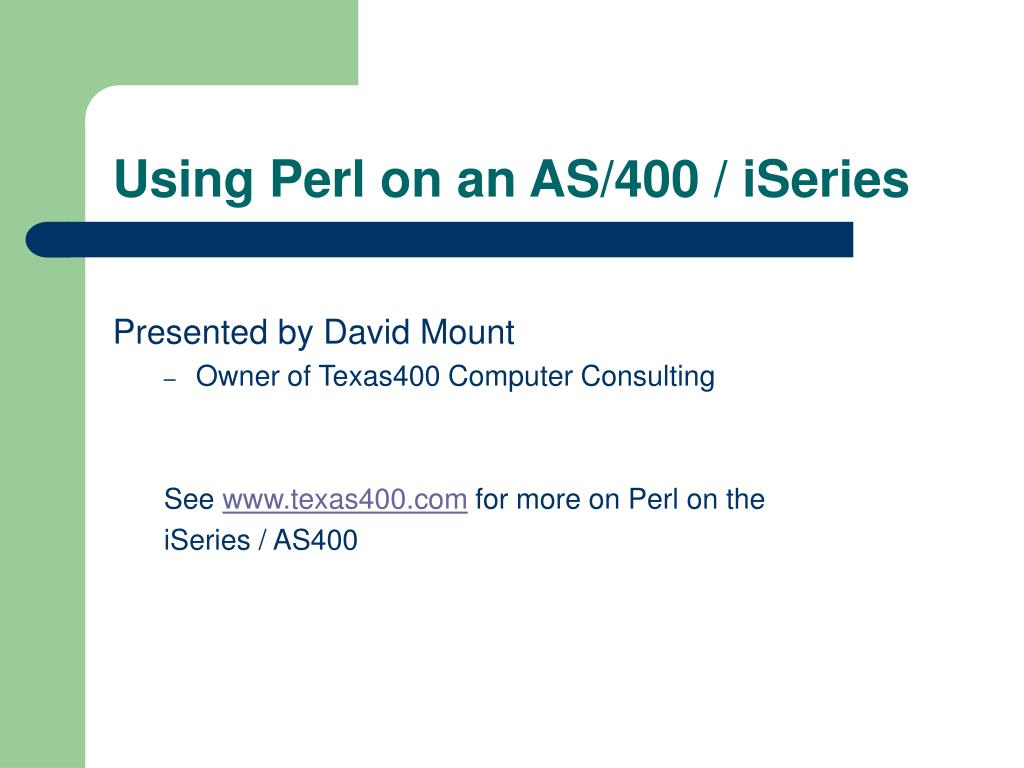

  1. Presented by David Mount Owner of Texas400 Computer Consulting See www.texas400.com for more on Perl on the iSeries / AS400 Using Perl on an AS/400 / iSeries

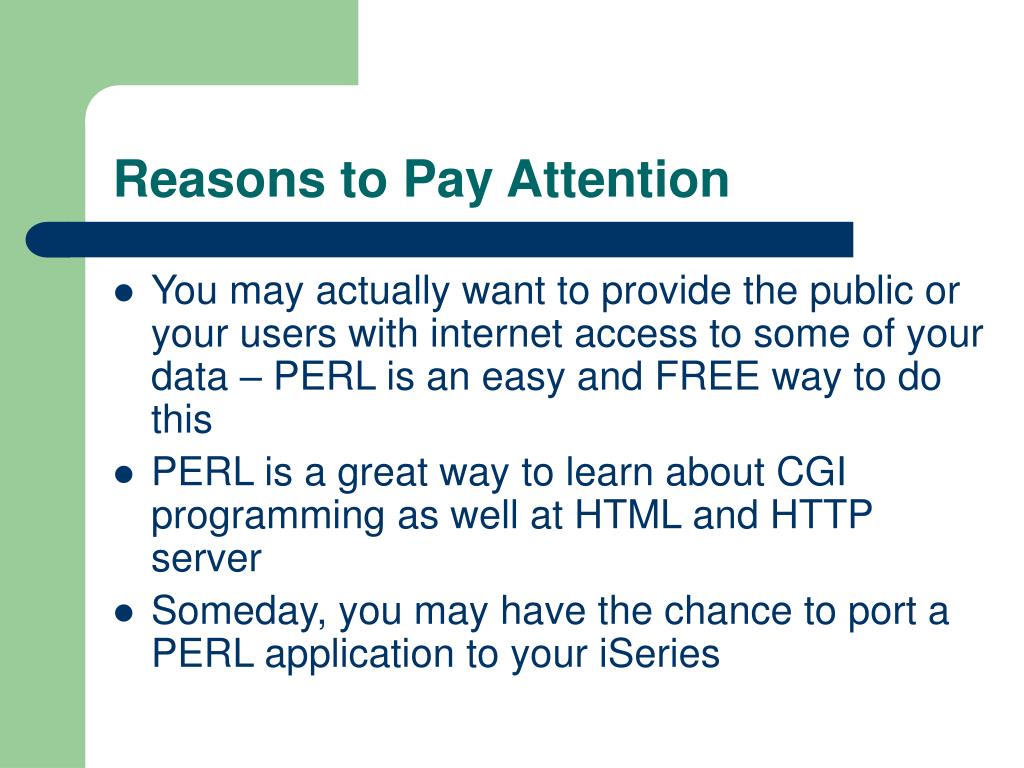

  2. Reasons to Pay Attention • You may actually want to provide the public or your users with internet access to some of your data – PERL is an easy and FREE way to do this • PERL is a great way to learn about CGI programming as well at HTML and HTTP server • Someday, you may have the chance to port a PERL application to your iSeries

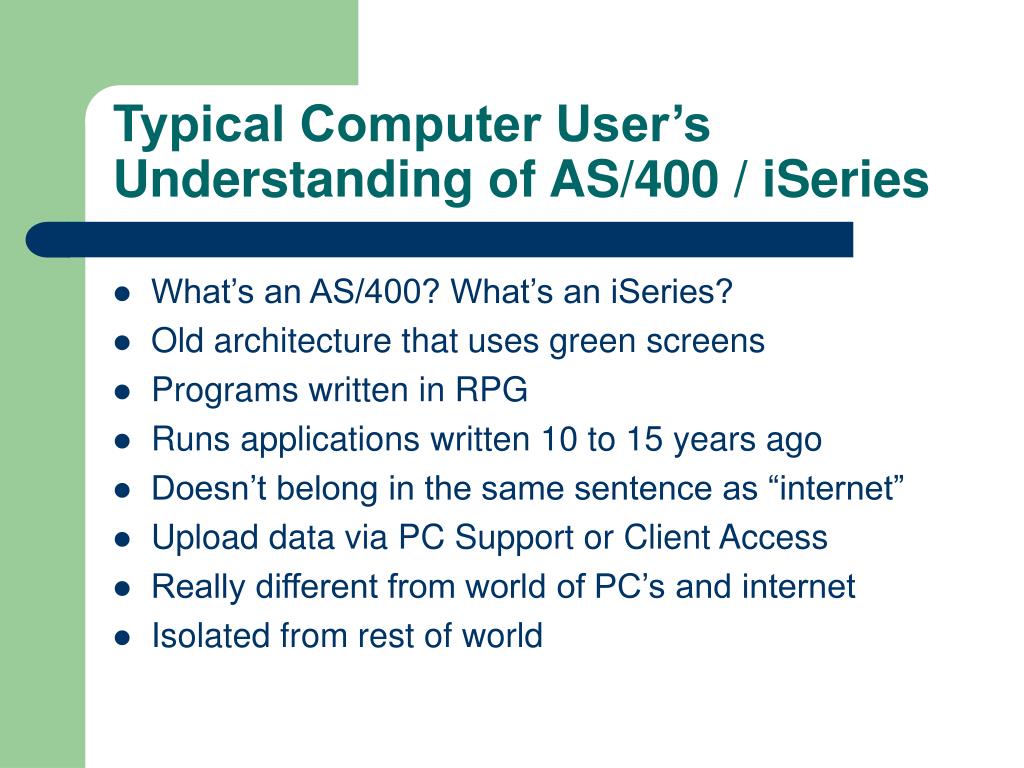

  3. Typical Computer User’s Understanding of AS/400 / iSeries • What’s an AS/400? What’s an iSeries? • Old architecture that uses green screens • Programs written in RPG • Runs applications written 10 to 15 years ago • Doesn’t belong in the same sentence as “internet” • Upload data via PC Support or Client Access • Really different from world of PC’s and internet • Isolated from rest of world

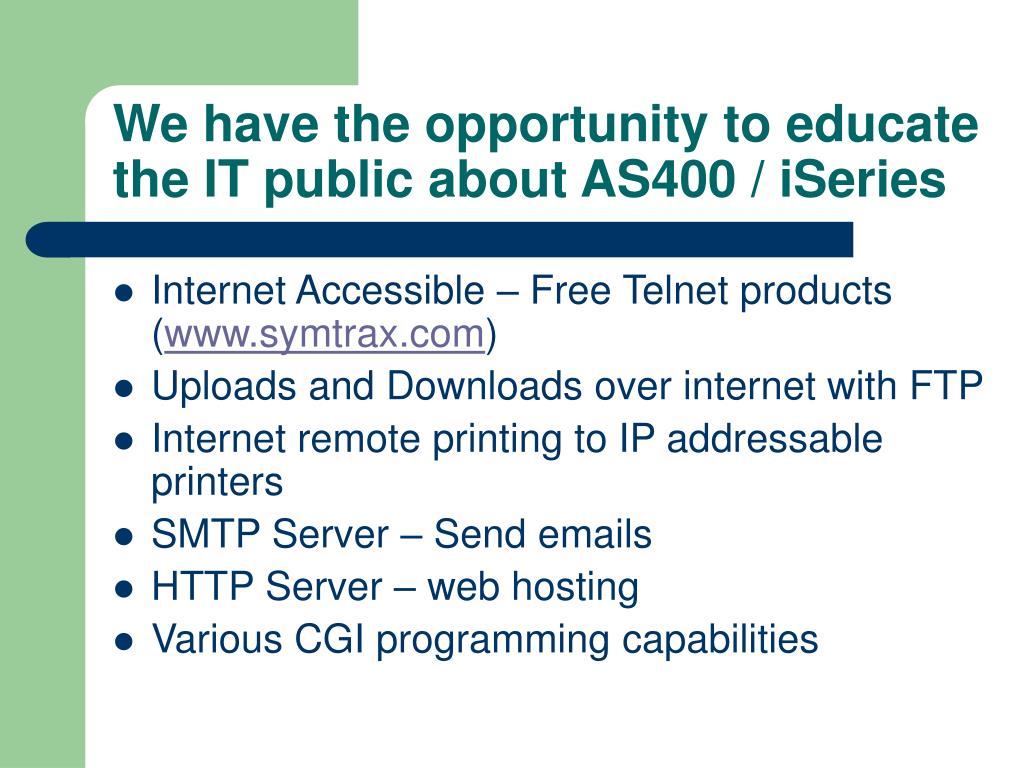

  4. We have the opportunity to educate the IT public about AS400 / iSeries • Internet Accessible – Free Telnet products (www.symtrax.com) • Uploads and Downloads over internet with FTP • Internet remote printing to IP addressable printers • SMTP Server – Send emails • HTTP Server – web hosting • Various CGI programming capabilities

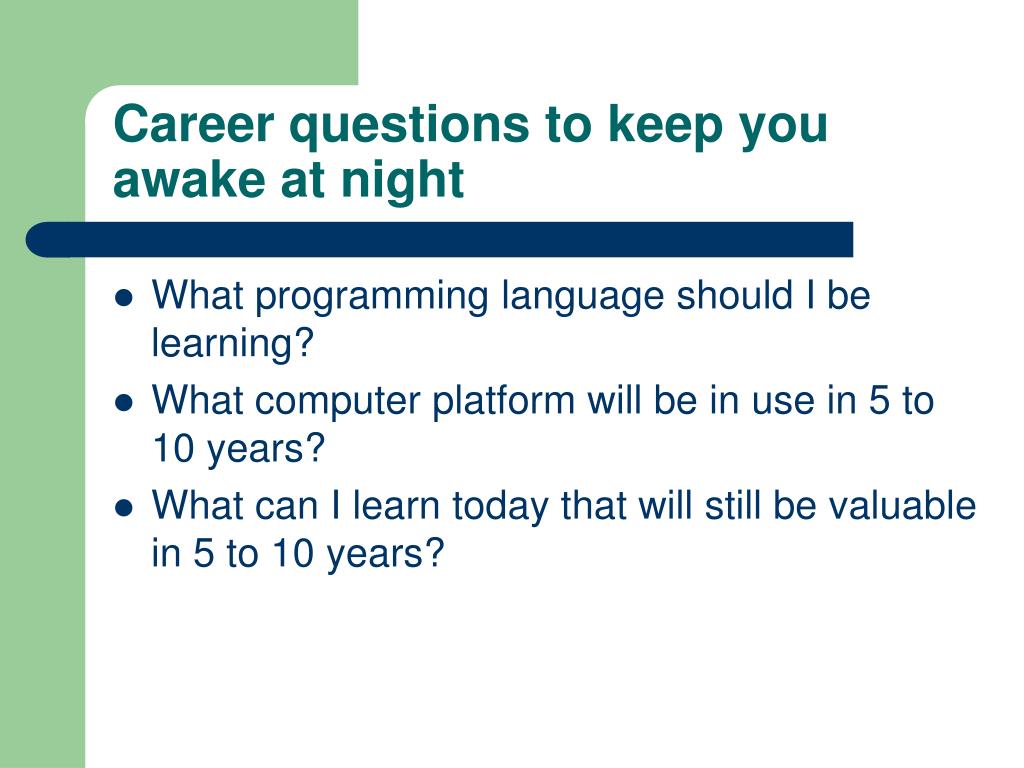

  5. Career questions to keep you awake at night • What programming language should I be learning? • What computer platform will be in use in 5 to 10 years? • What can I learn today that will still be valuable in 5 to 10 years?

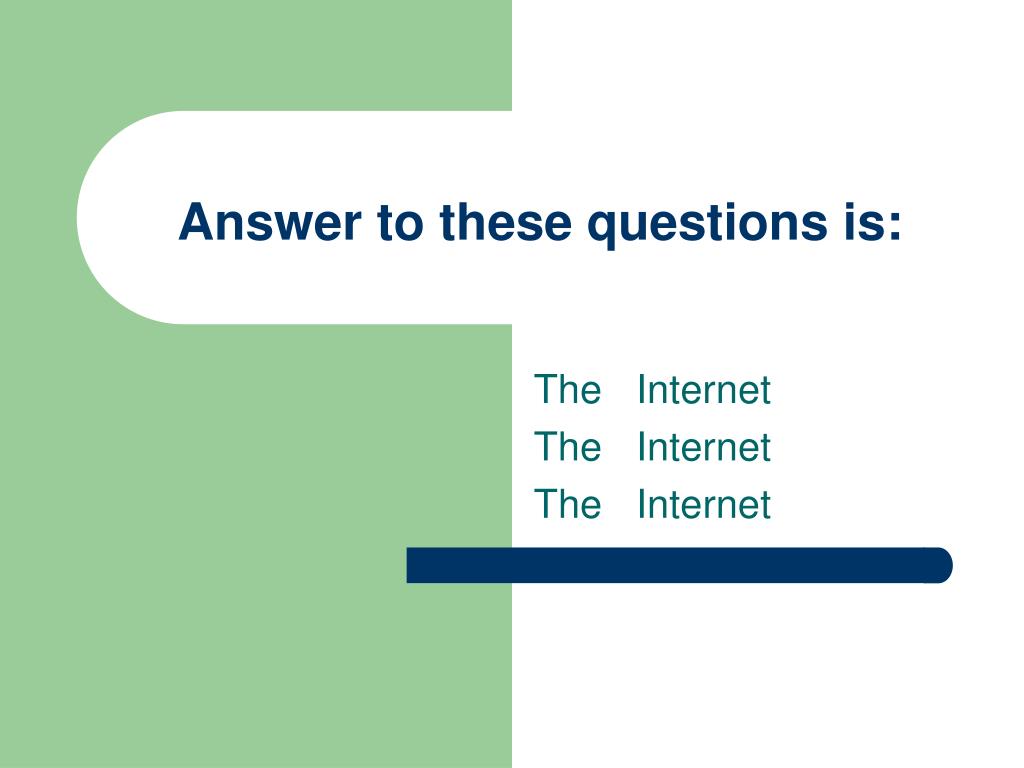

  6. Answer to these questions is: The Internet The Internet The Internet

  7. TCP-IP issues are the same regardless of the platform • Once you configure FTP Server on AS/400, you already know how to do it on Windows • The FTP client on OS/400 is operationally very similar to the FTP on windows and Linux • Getting the SMTP server working involves learning about DNS, mail forwarding, third party relay

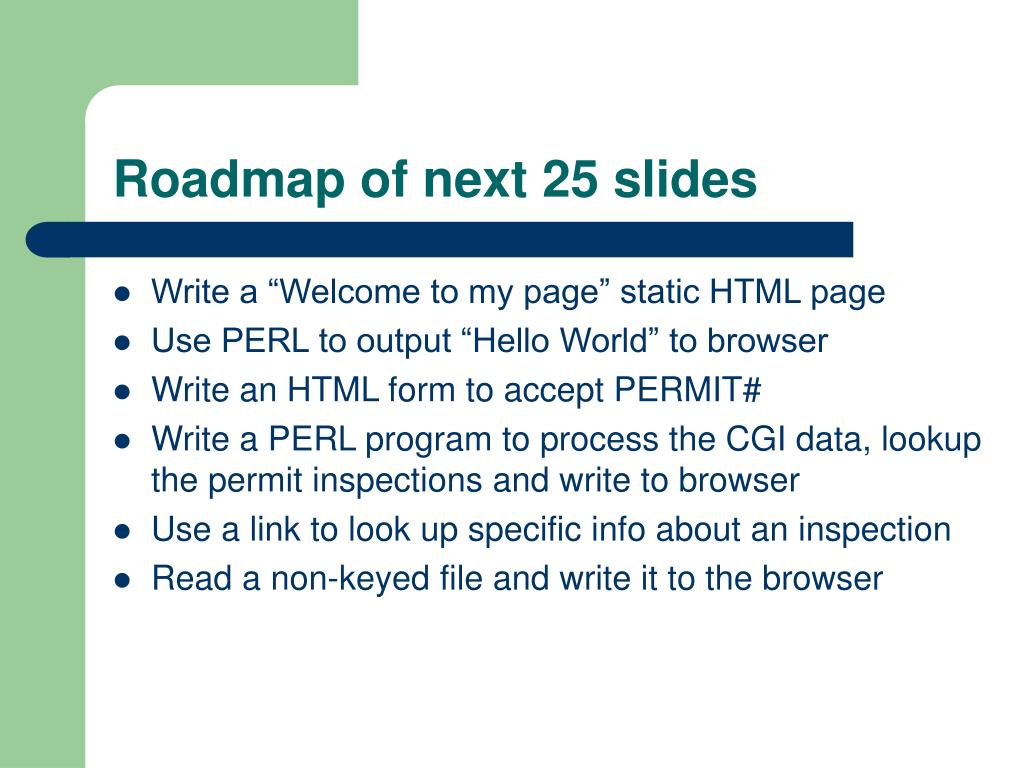

  8. Roadmap of next 25 slides • Write a “Welcome to my page” static HTML page • Use PERL to output “Hello World” to browser • Write an HTML form to accept PERMIT# • Write a PERL program to process the CGI data, lookup the permit inspections and write to browser • Use a link to look up specific info about an inspection • Read a non-keyed file and write it to the browser

  9. Non platform specific things to know for web site programming • HTML formatting • Static HTML • Forms with fields • Links with Query Strings • How to FTP HTML to web server • Web server configuration Default folder, CGI-BIN directory

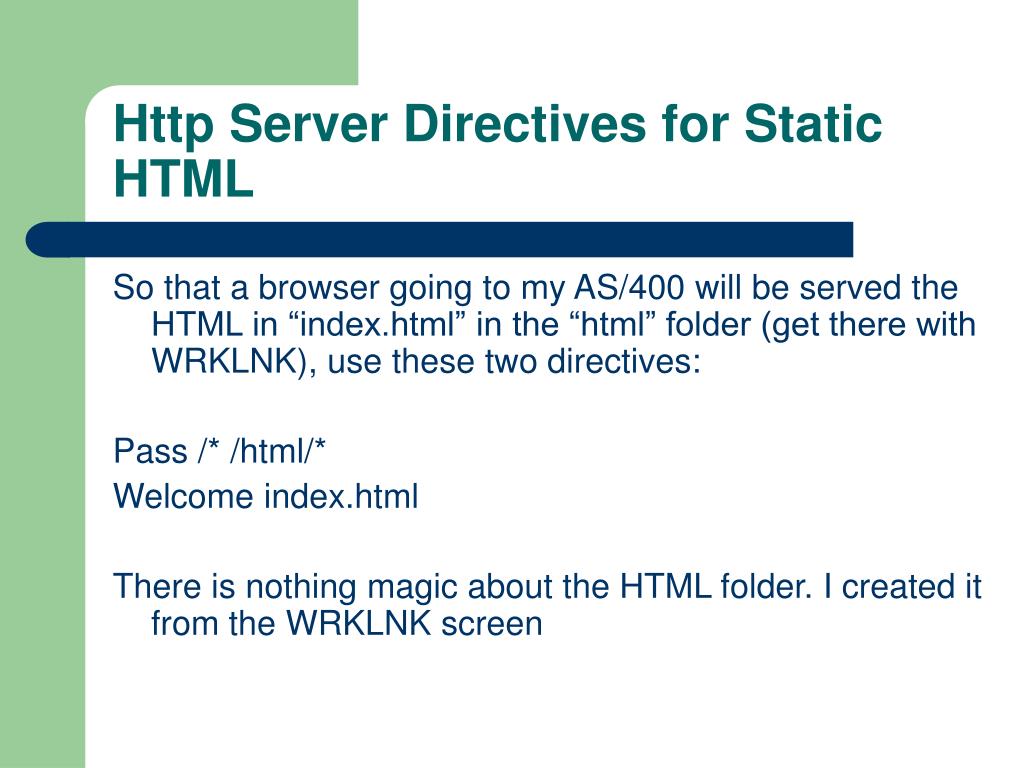

  10. Http Server Directives for Static HTML So that a browser going to my AS/400 will be served the HTML in “index.html” in the “html” folder (get there with WRKLNK), use these two directives: Pass /* /html/* Welcome index.html There is nothing magic about the HTML folder. I created it from the WRKLNK screen

  11. To make a “Welcome” page • Use a PC to create a document named “index.html” with the following: • <html><body>Welcome to my home page</body></html> • Use FTP to put that document in the HTML folder • Specifically, connect to 66.12.223.253 with remote directory of /html • Use a browser to go to 66.12.223.253 and you should see the Welcome page

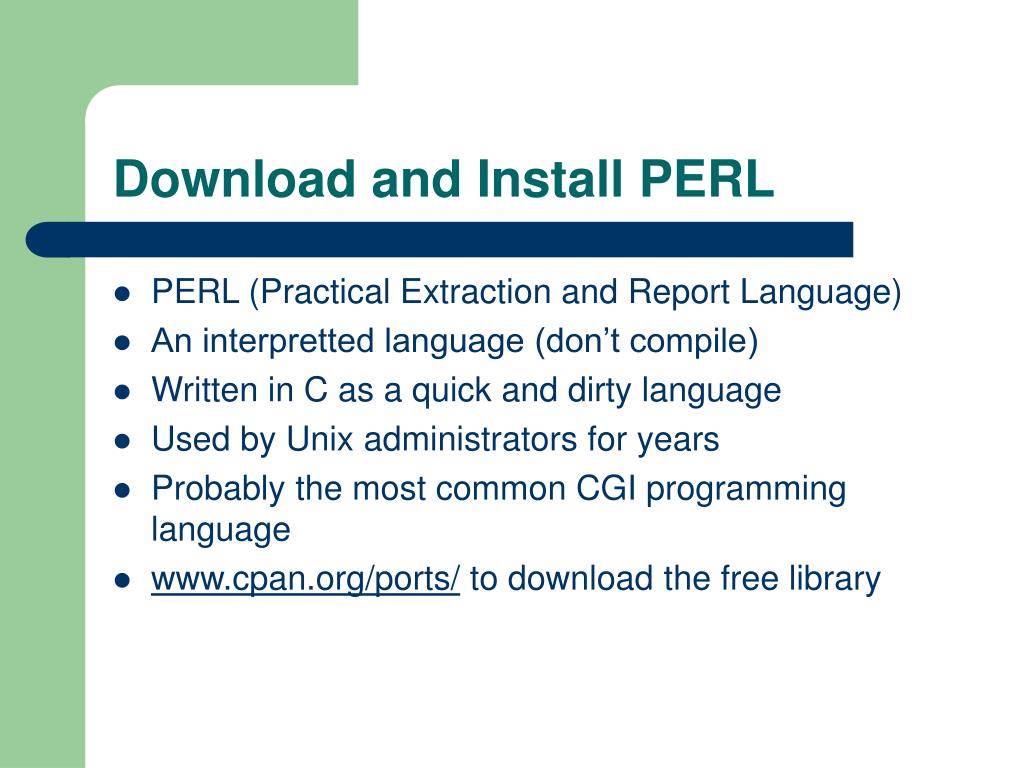

  12. Download and Install PERL • PERL (Practical Extraction and Report Language) • An interpretted language (don’t compile) • Written in C as a quick and dirty language • Used by Unix administrators for years • Probably the most common CGI programming language • www.cpan.org/ports/ to download the free library

  13. PERL Resources • Vast supplies of sample code on the internet • Many Perl and CGI / PERL books • “Writing CGI Applications with PERL” by Kevin Meltzer and Brent Michalski

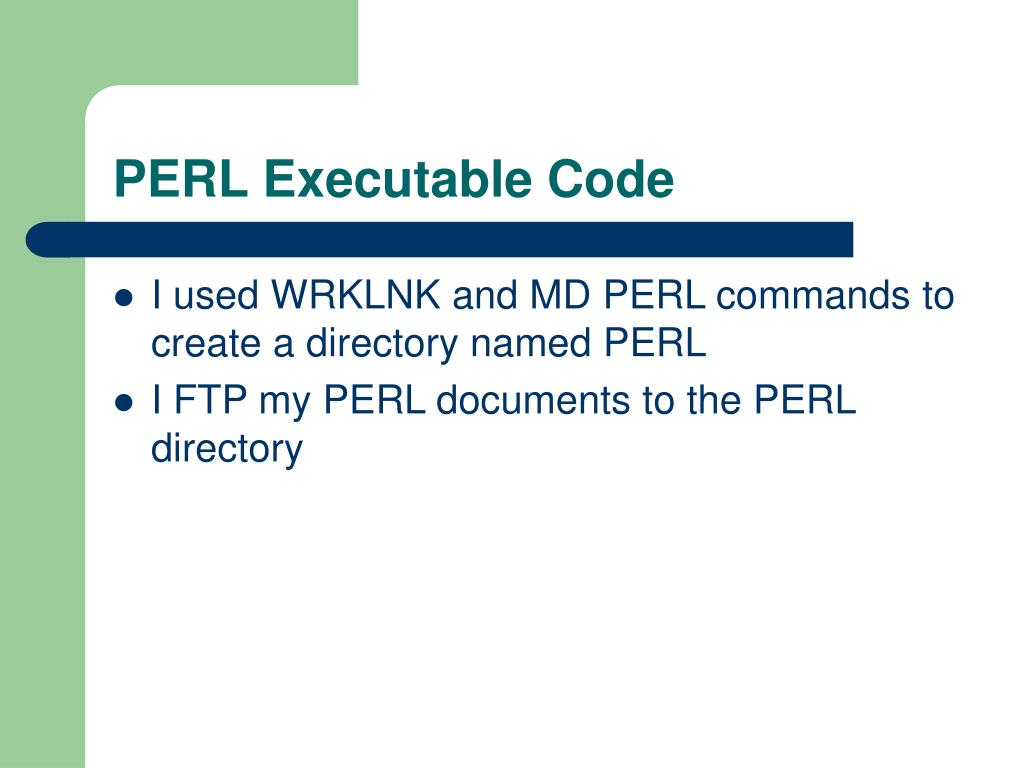

  14. PERL Executable Code • I used WRKLNK and MD PERL commands to create a directory named PERL • I FTP my PERL documents to the PERL directory

  15. Hello World Program • Use notepad to create a document named Hello.PL • #!/usr/bin/perl use CGI qw/:standard/; print header; print '<html><body>'; print 'Hello World'; print '</body></html>'; • FTP document to AS/400

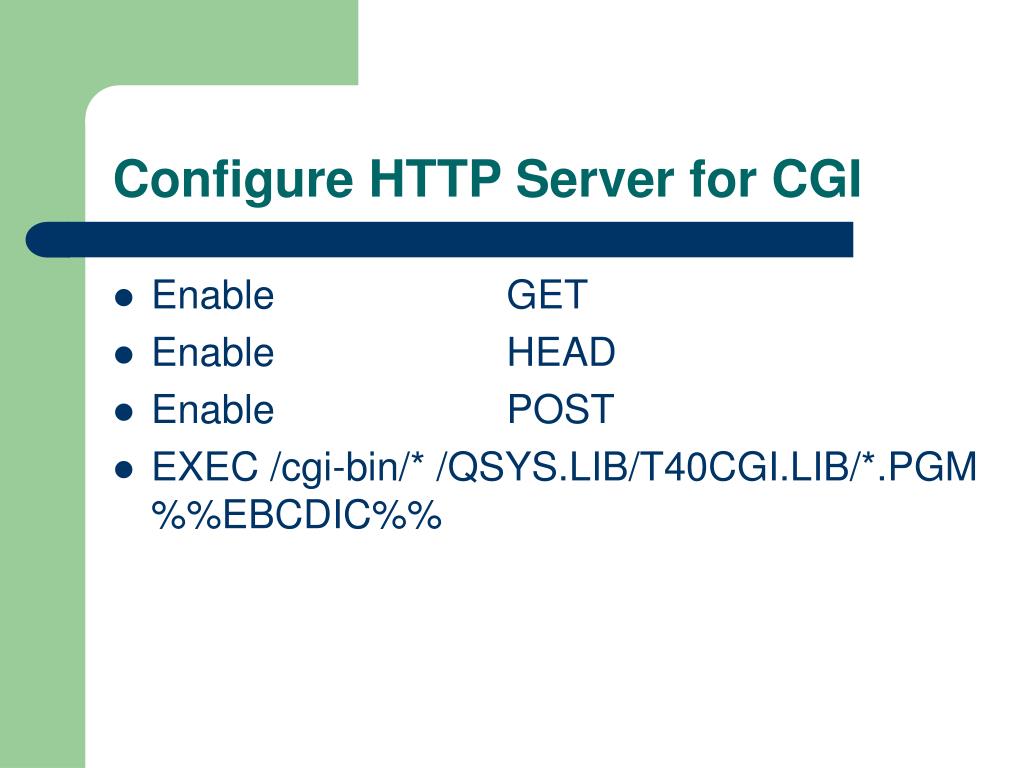

  16. Configure HTTP Server for CGI • Enable GET • Enable HEAD • Enable POST • EXEC /cgi-bin/* /QSYS.LIB/T40CGI.LIB/*.PGM %%EBCDIC%%

  17. CL Program • Compile a CL program named HELLO CALL PGM(PERLDIST/PERL) + PARM('/PERL/HELLO.PL') Program must be where you told the HTTP server that CGI-BIN programs are. In my case, the library T40CGI Make sure QTMHHTTP and QTMHHTP1 have authority to everything

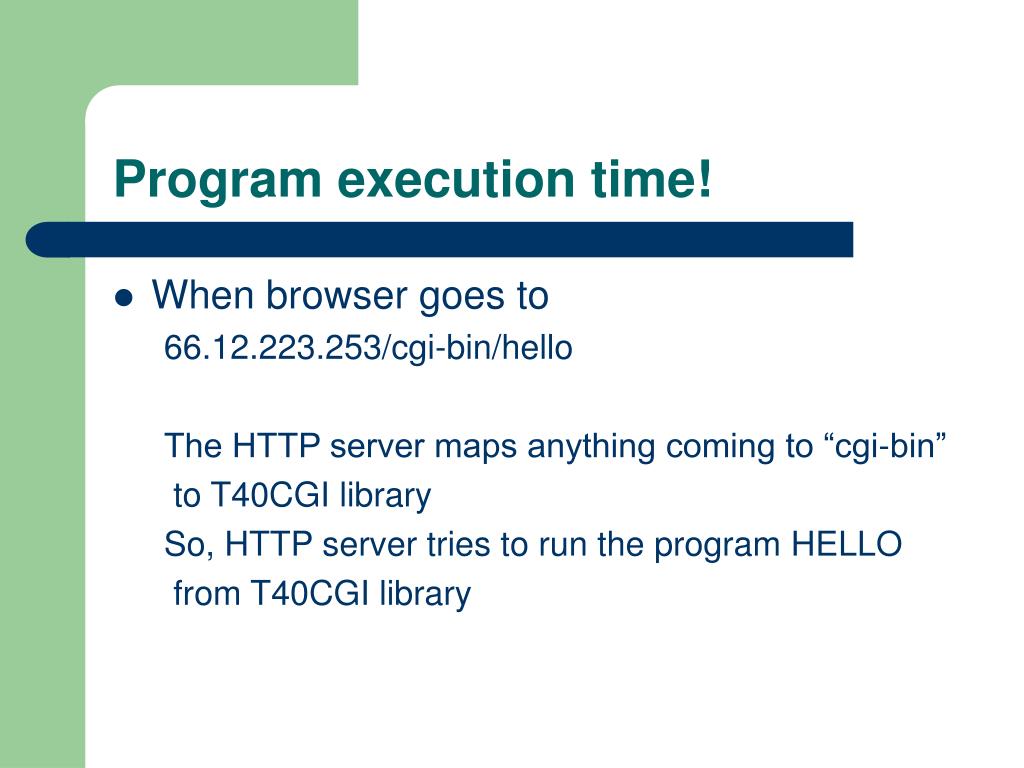

  18. Program execution time! • When browser goes to 66.12.223.253/cgi-bin/hello The HTTP server maps anything coming to “cgi-bin” to T40CGI library So, HTTP server tries to run the program HELLO from T40CGI library

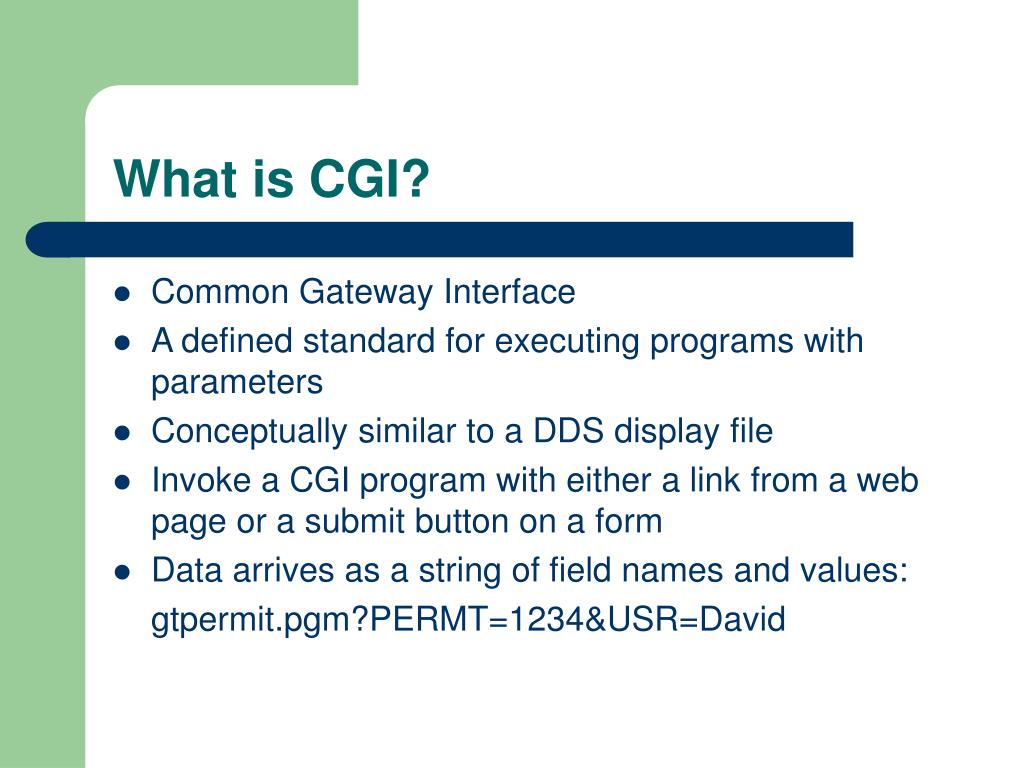

  19. What is CGI? • Common Gateway Interface • A defined standard for executing programs with parameters • Conceptually similar to a DDS display file • Invoke a CGI program with either a link from a web page or a submit button on a form • Data arrives as a string of field names and values: gtpermit.pgm?PERMT=1234&USR=David

  20. Different ways to process CGI • RPG ILE program using IBM supplied API’s (see Brad Stones’s eRPG book) • IBM’s Easy400 tool (see www-922.ibm.com) • 3rd Party Products like ProGen WebSmart • PERL

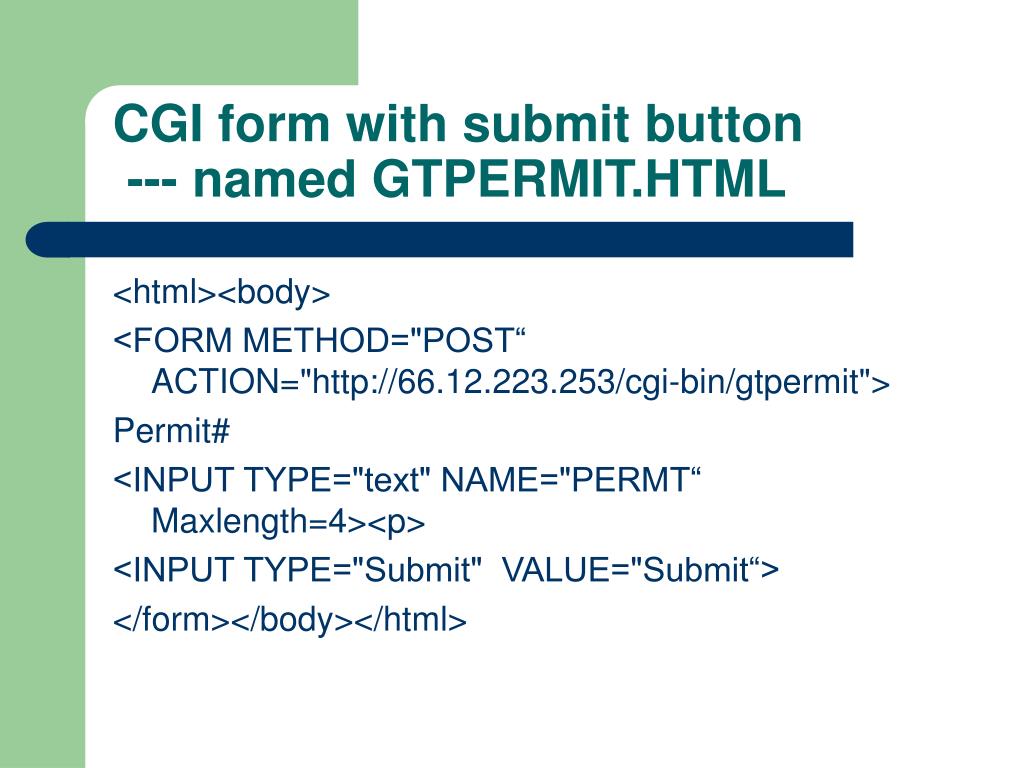

  21. CGI form with submit button --- named GTPERMIT.HTML <html><body> <FORM METHOD="POST“ ACTION="http://66.12.223.253/cgi-bin/gtpermit"> Permit# <INPUT TYPE="text" NAME="PERMT“ Maxlength=4><p> <INPUT TYPE="Submit" VALUE="Submit“> </form></body></html>

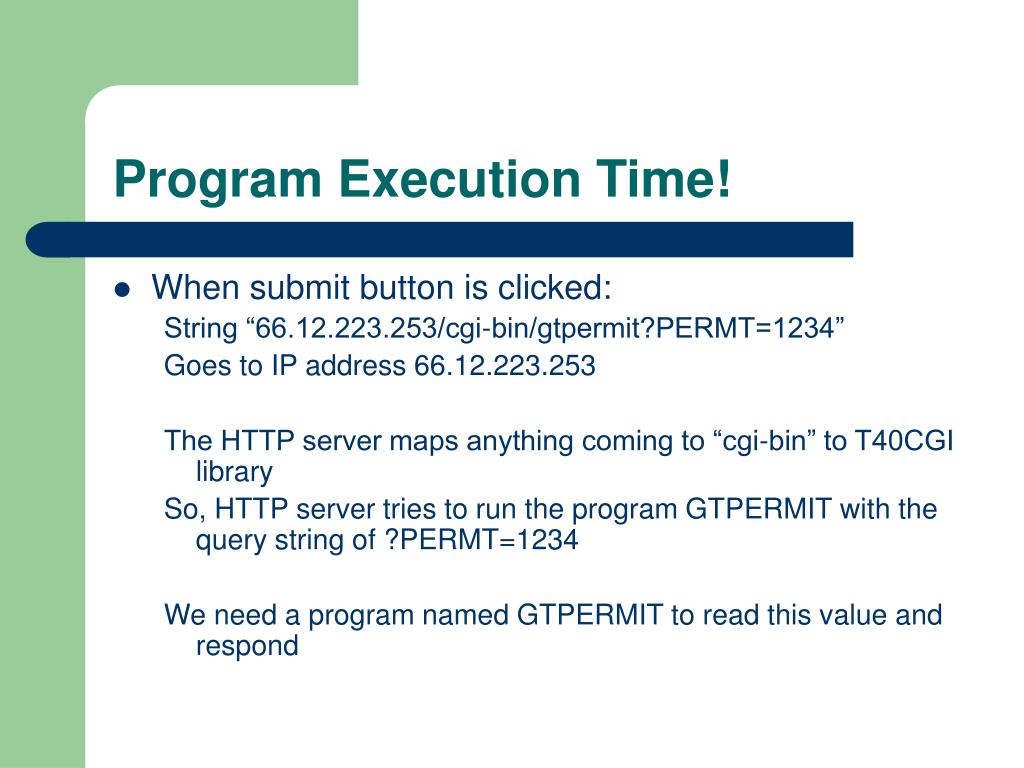

  22. Program Execution Time! • When submit button is clicked: String “66.12.223.253/cgi-bin/gtpermit?PERMT=1234” Goes to IP address 66.12.223.253 The HTTP server maps anything coming to “cgi-bin” to T40CGI library So, HTTP server tries to run the program GTPERMIT with the query string of ?PERMT=1234 We need a program named GTPERMIT to read this value and respond

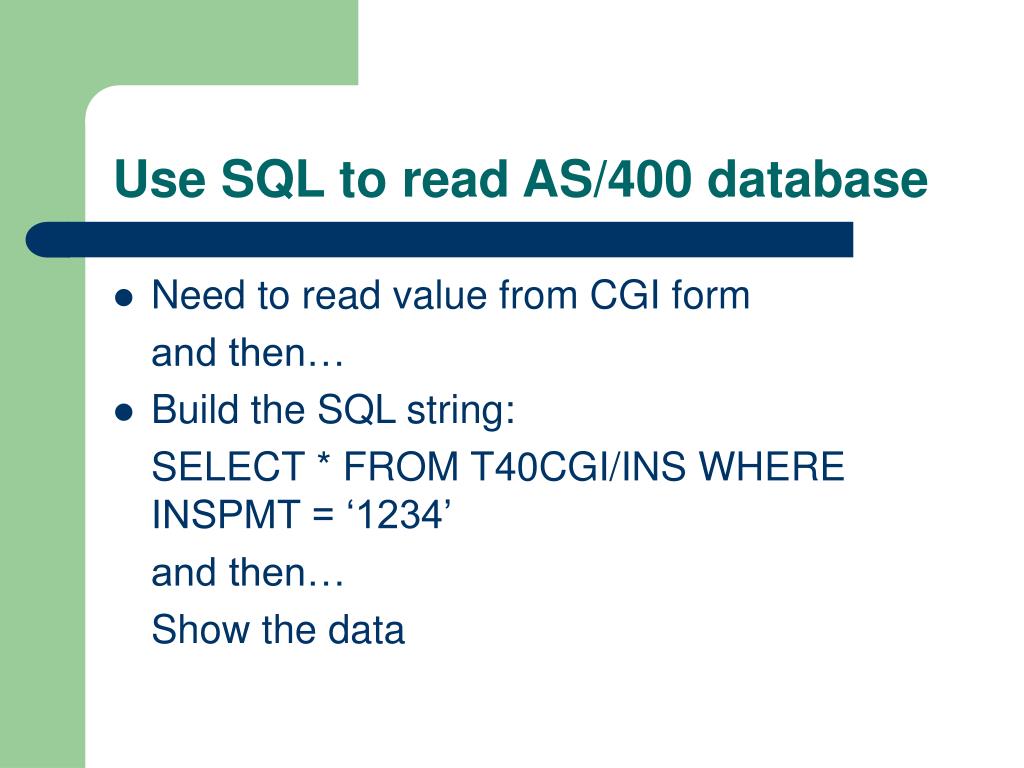

  23. Use SQL to read AS/400 database • Need to read value from CGI form and then… • Build the SQL string: SELECT * FROM T40CGI/INS WHERE INSPMT = ‘1234’ and then… Show the data

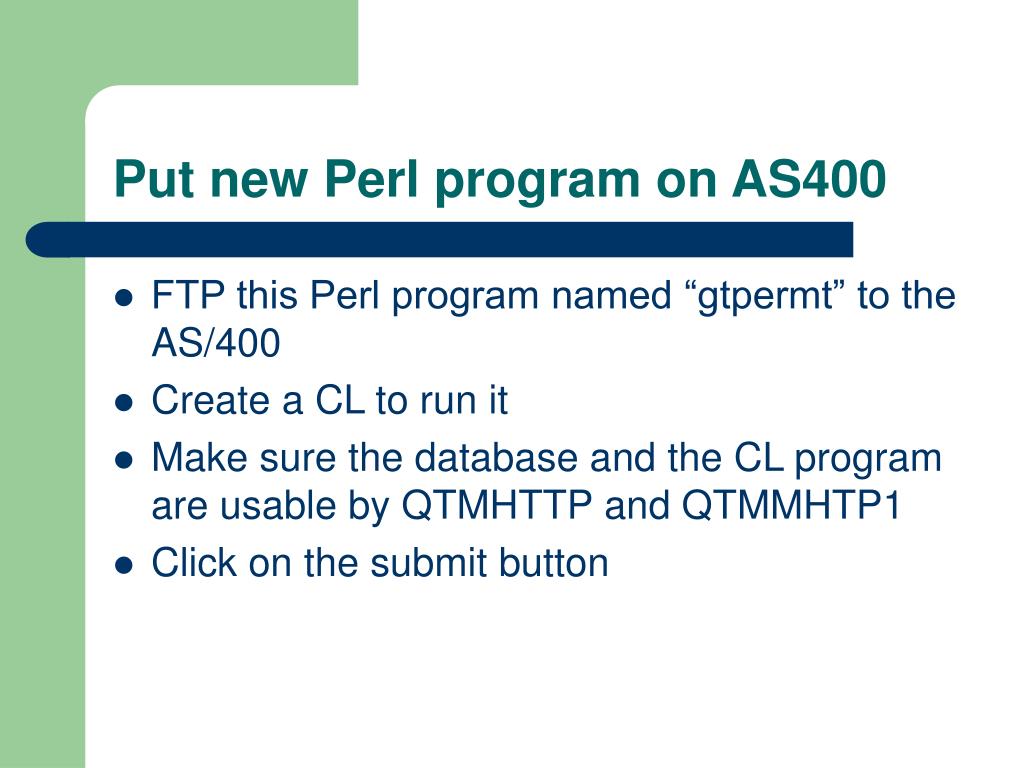

  24. Put new Perl program on AS400 • FTP this Perl program named “gtpermt” to the AS/400 • Create a CL to run it • Make sure the database and the CL program are usable by QTMHTTP and QTMMHTP1 • Click on the submit button

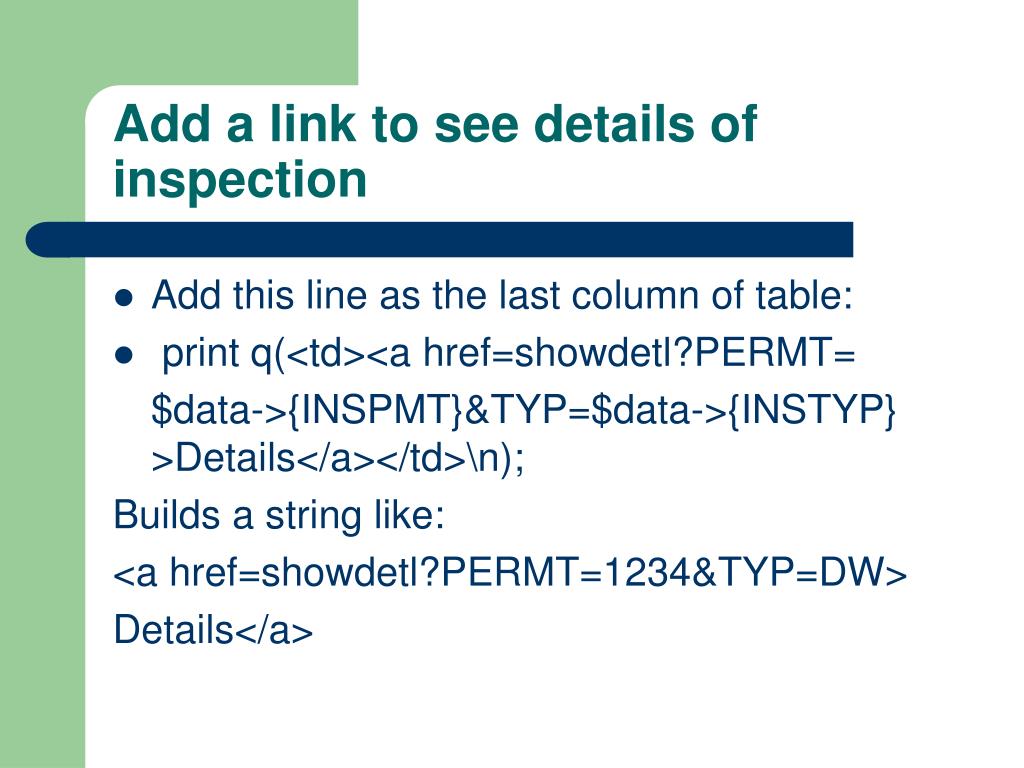

  25. Add a link to see details of inspection • Add this line as the last column of table: • print q(<td><a href=showdetl?PERMT= $data->{INSPMT}&TYP=$data->{INSTYP} >Details</a></td>\n); Builds a string like: <a href=showdetl?PERMT=1234&TYP=DW> Details</a>

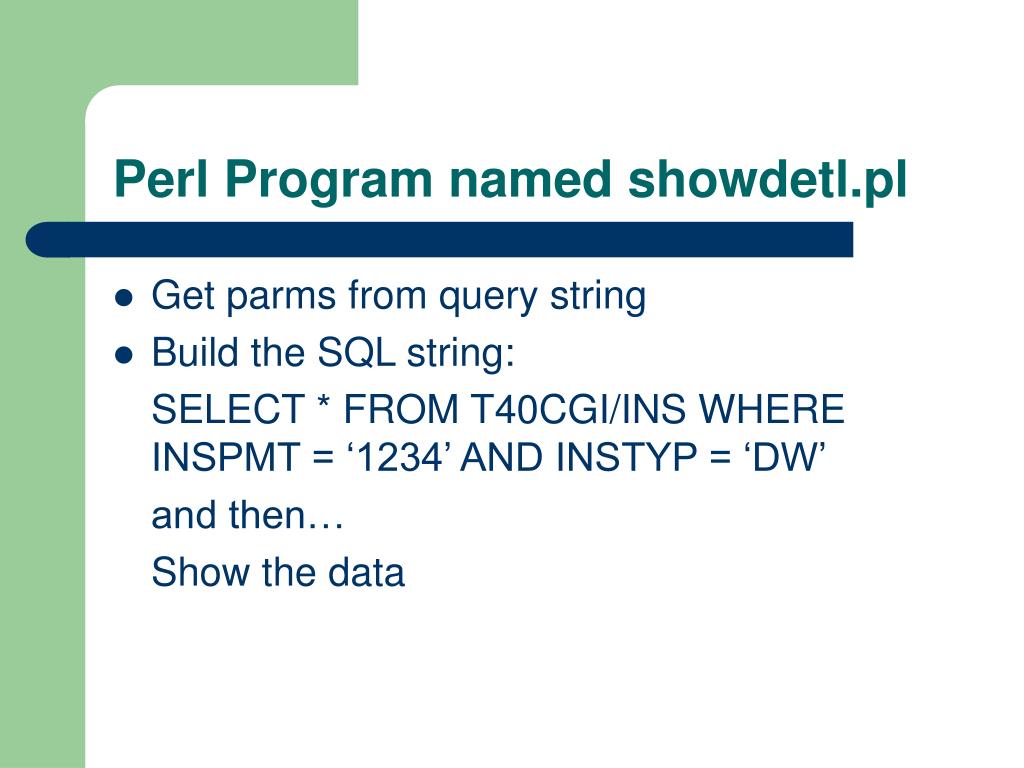

  26. Perl Program named showdetl.pl • Get parms from query string • Build the SQL string: SELECT * FROM T40CGI/INS WHERE INSPMT = ‘1234’ AND INSTYP = ‘DW’ and then… Show the data

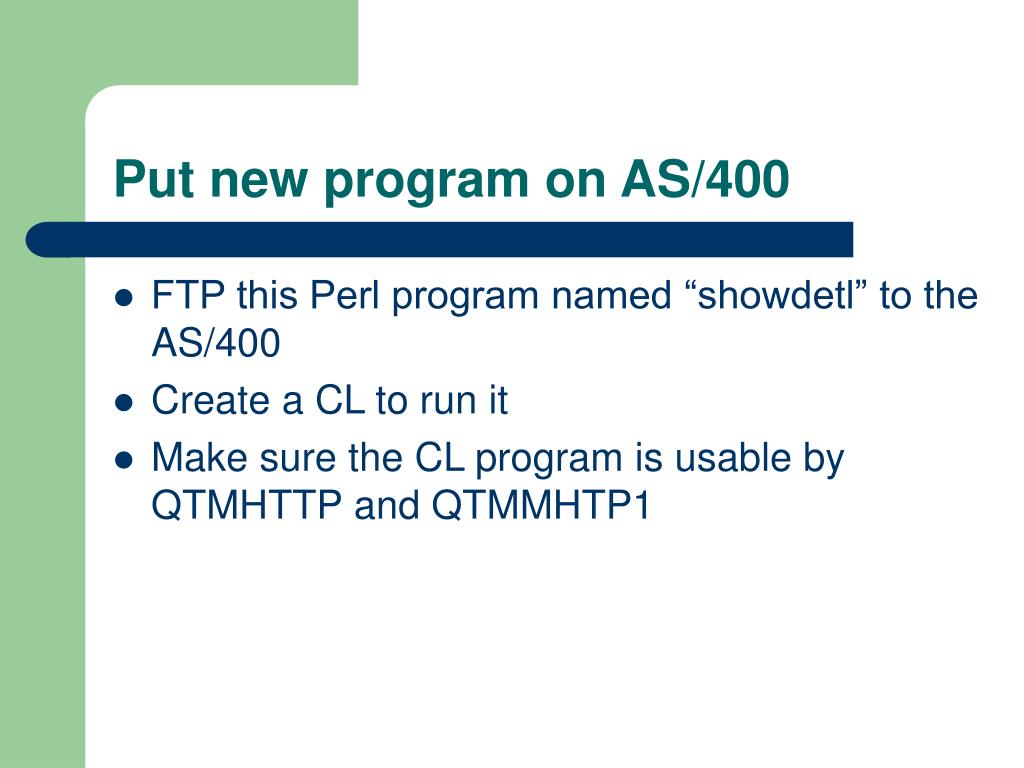

  27. Put new program on AS/400 • FTP this Perl program named “showdetl” to the AS/400 • Create a CL to run it • Make sure the CL program is usable by QTMHTTP and QTMMHTP1

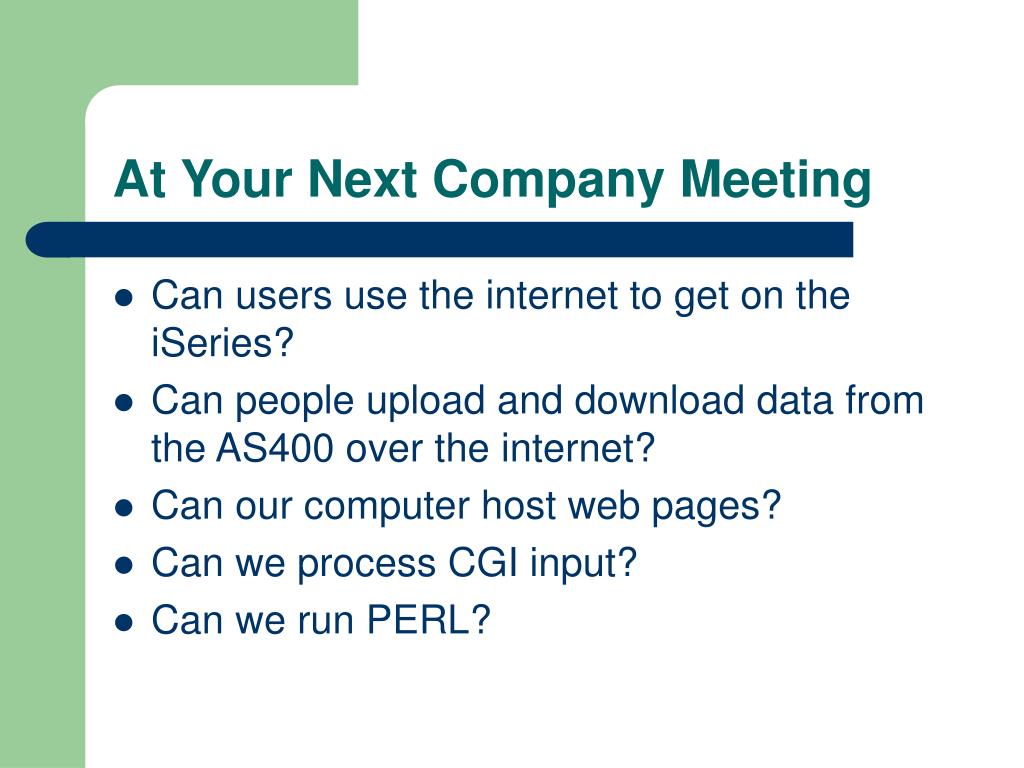

  28. At Your Next Company Meeting • Can users use the internet to get on the iSeries? • Can people upload and download data from the AS400 over the internet? • Can our computer host web pages? • Can we process CGI input? • Can we run PERL?

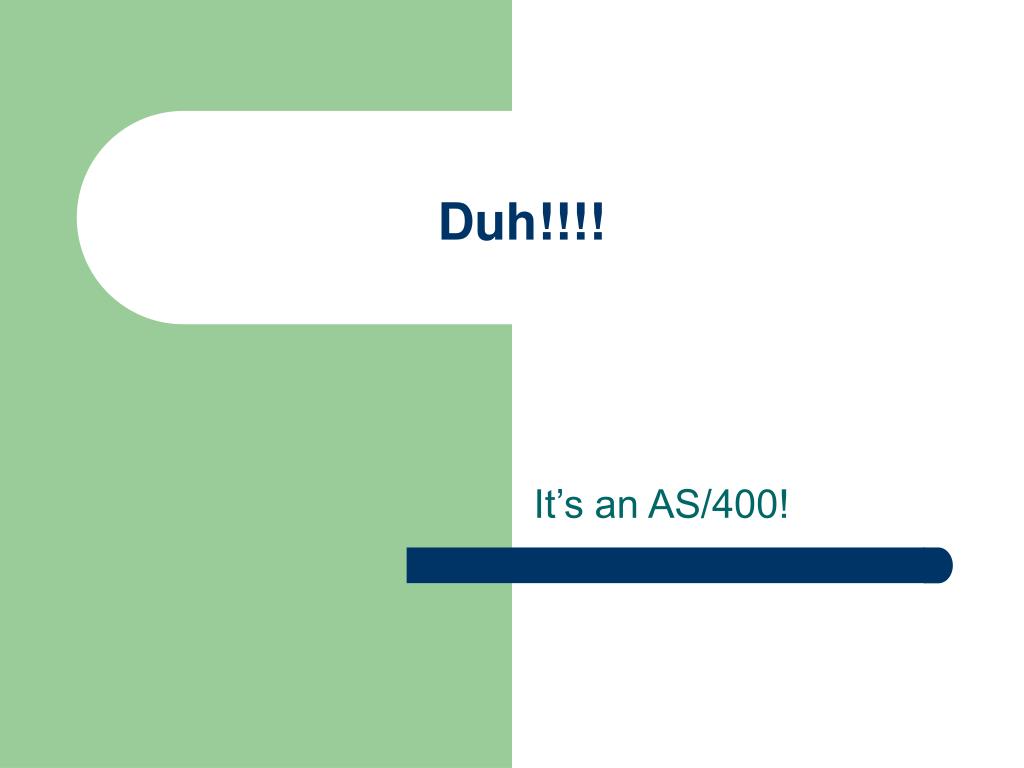

  29. Duh!!!! It’s an AS/400!
