Triangle Congruence

Triangle Congruence. Geometry Honors. Exploration. Postulate. Side-Side-Side (SSS) Postulate – If three sides of one triangle are congruent to three sides of another triangle, then the two triangles are congruent. . R. RAT  PEN. P. A. E. T. N. Postulate.

dacian
Télécharger la présentation

Triangle Congruence

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Triangle Congruence Geometry Honors

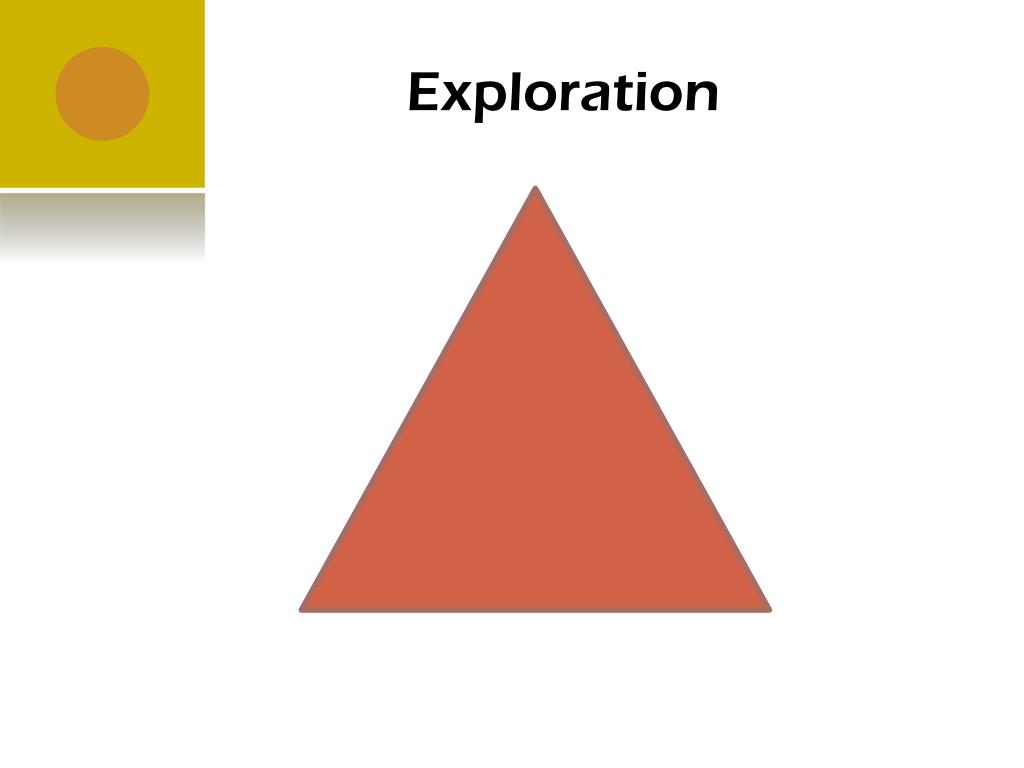

  2. Exploration

  3. Postulate Side-Side-Side (SSS) Postulate – If three sides of one triangle are congruent to three sides of another triangle, then the two triangles are congruent. R RAT  PEN P A E T N

  4. Postulate Side-Angle-Side (SAS) Postulate – If two sides and the included angle of one triangle are congruent to two sides and the included angle of another triangle, then the two triangles are congruent. D DOG  CAT C G T O A

  5. Starting a Proof Which postulate, if any, could you use to prove that the two triangles are congruent? Q SSS Write a valid congruence statement. P Z ZQPZWP W

  6. Starting a Proof Which postulate, if any, could you use to prove that the two triangles are congruent? R K U T C Not congruent

  7. Starting a Proof Which postulate, if any, could you use to prove that the two triangles are congruent? P SAS Write a valid congruence statement. N L A PANAPL

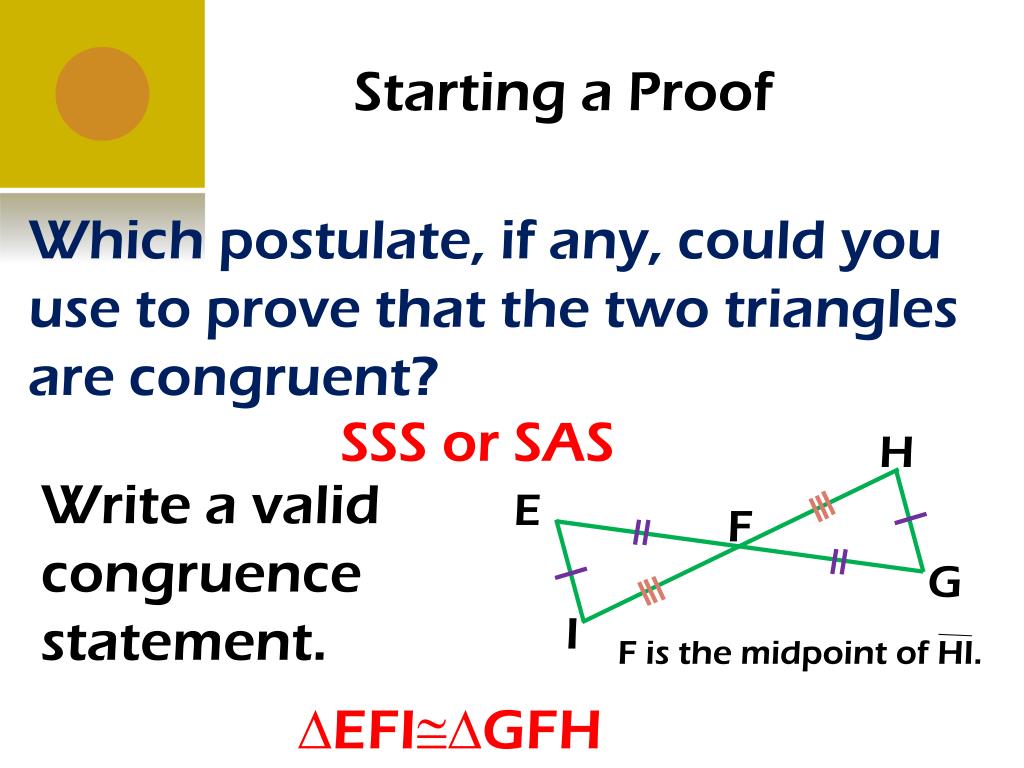

  8. Starting a Proof Which postulate, if any, could you use to prove that the two triangles are congruent? SSS or SAS H Write a valid congruence statement. E F G I F is the midpoint of HI. EFIGFH

  9. Starting a Proof What other information, if any, do you need to prove the 2 triangles are congruent by SSS or SAS? D A B E C

  10. Starting a Proof What other information, if any, do you need to prove the 2 triangles are congruent by SSS or SAS? M D L N E F

  11. Starting a Proof What other information, if any, do you need to prove the 2 triangles are congruent by SSS or SAS? A N M P T U

  12. A Given: X is the midpoint of AG and of NR. R X N Prove: ANX  GRX G 1. Vertical Angle Theorem 1. AXN GXR 2. Given 2. X is the midpoint of AG 3. AX  XG 3. Def. of midpoint 4. Given 4. X is the midpoint of NR 5. Def. of midpoint 5. NX  XR 6. SAS Postulate 6. ANX GRX

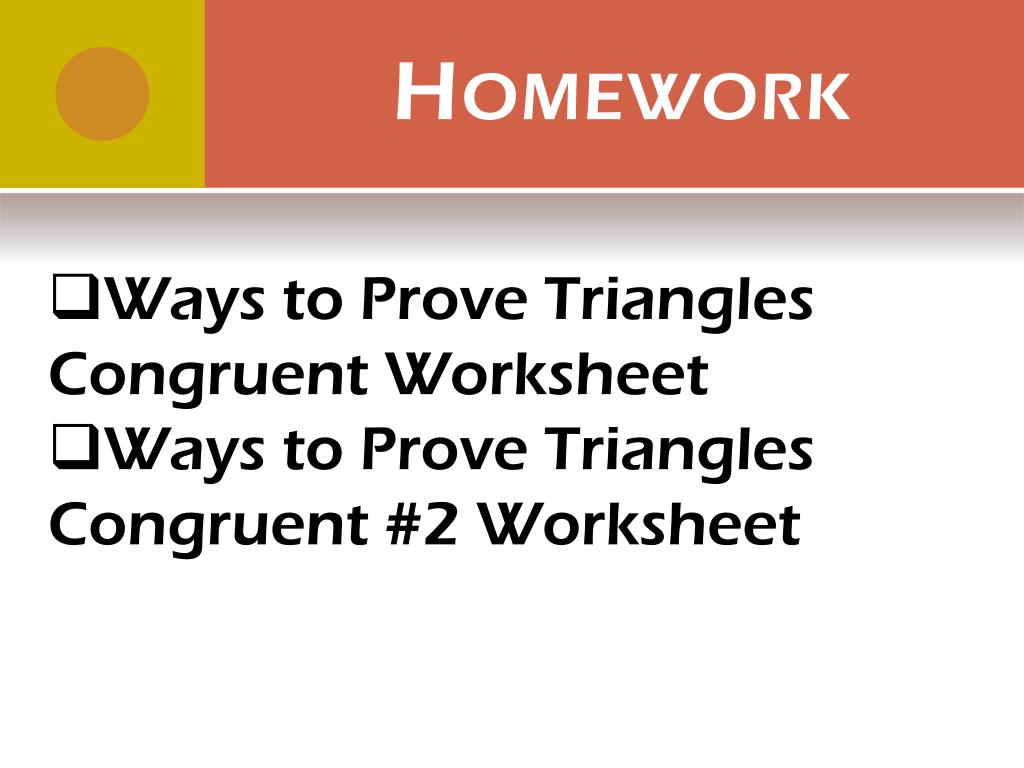

  13. Homework • Ways to Prove Triangles Congruent Worksheet • Ways to Prove Triangles Congruent #2 Worksheet

  14. Exploration

  15. Postulate Angle–Side-Angle (ASA) Postulate – If two angles and the included side of one triangle are congruent to two angles and the included side of another triangle, then the two triangles are congruent. B A BIG  ART I R T G

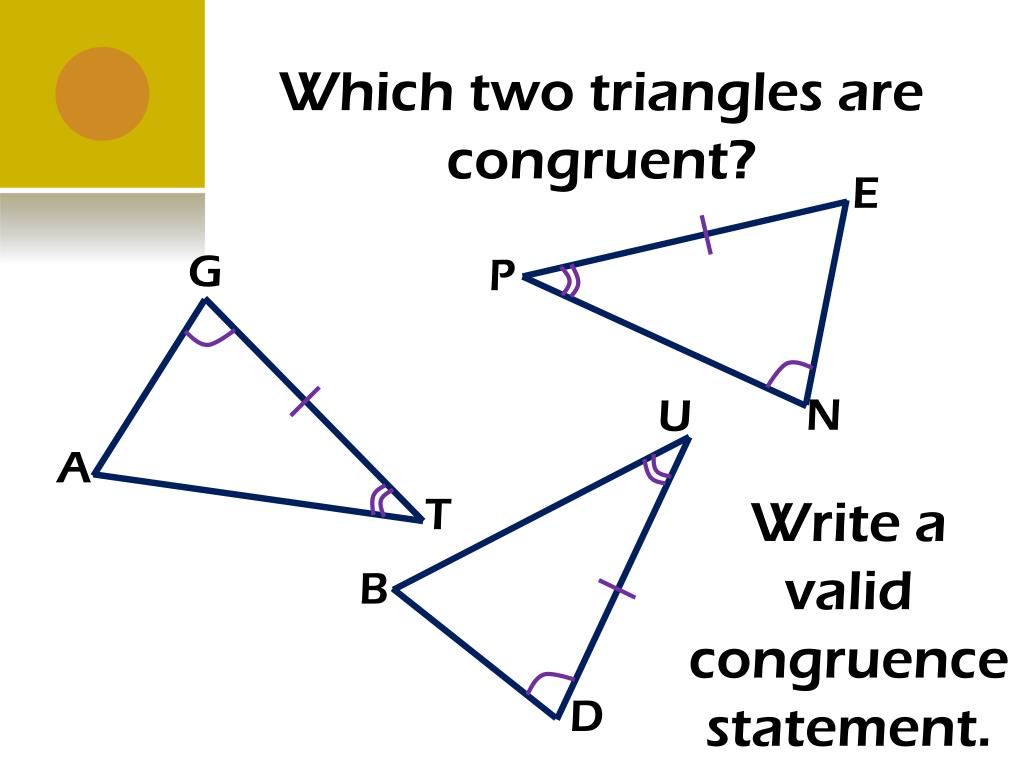

  16. Which two triangles are congruent? E G P N U A T Write a valid congruence statement. B D

  17. Theorem Angle-Angle-Side (AAS) Theorem – If two angles and a non-included side of one triangle are congruent to two angles and a non-included side of another triangle, then the two triangles are congruent. M B A BOY  MAD O D Y

  18. Q Given: XQ TR, XR bisects QT X M R Prove: XMQ  RMT T 1. Given 1. XQ TR 2. Alt. Int. ’s Theorem 2. X  R 3. XMQ  RMT 3. Vertical Angle Theorem 4. Given 4. XR bisects QT 5. Def. of bisect 5. QM  TM 6. AAS Theorem 6. XMQ RMT

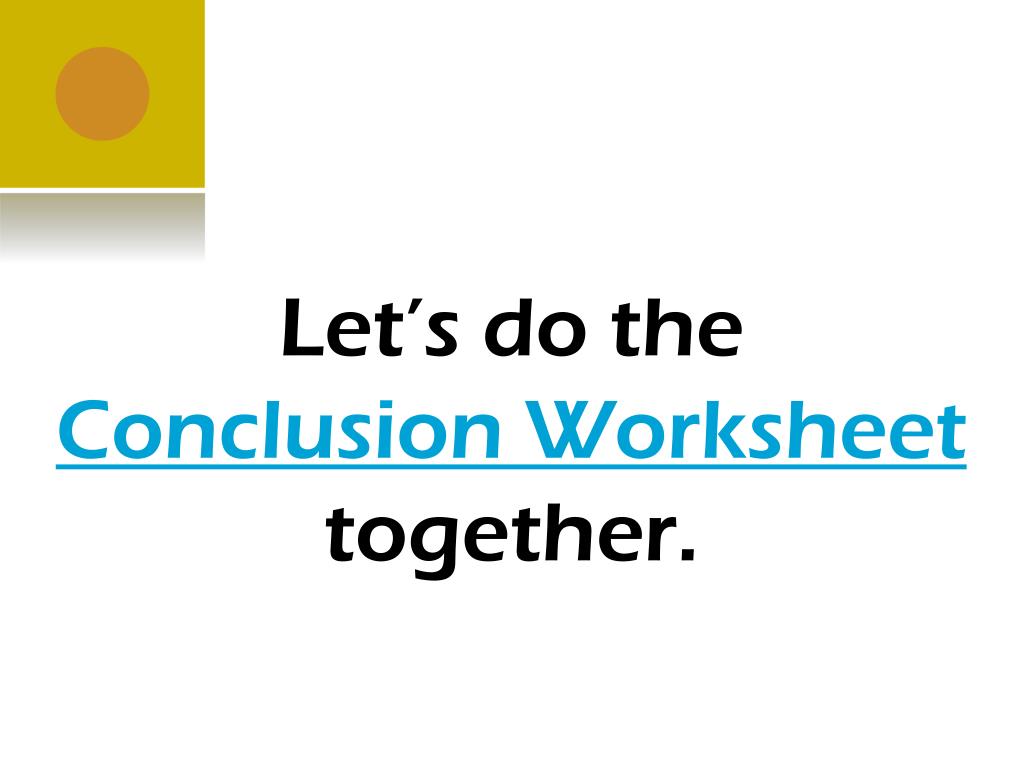

  19. Let’s do the Conclusion Worksheet together.

  20. Homework • Conclusions Worksheet #2
