  1. DESIGN OF LEASED LINE NETWORK USING VMUX Presented by:- XHITESH KUMAR THAKUR ROSHAN LAL SAHU BRAJENDRA KUMAR SINGH HARSHIT BORWANKAR SHREEKAR WAGHELA

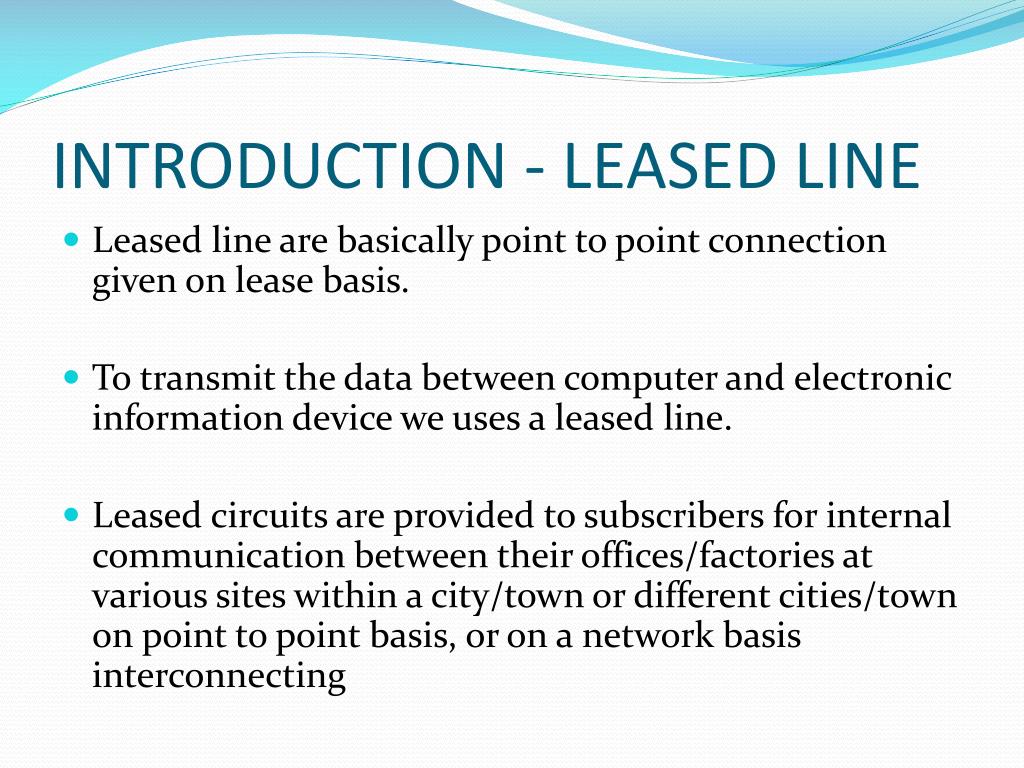

  2. INTRODUCTION - LEASED LINE • Leased line are basically point to point connection given on lease basis. • To transmit the data between computer and electronic information device we uses a leased line. • Leased circuits are provided to subscribers for internal communication between their offices/factories at various sites within a city/town or different cities/town on point to point basis, or on a network basis interconnecting

  3. LEASED LINE • Leased lines • Limited to point-to-point communication • Limits who you can talk to • Carriers offer leased lines at an attractive price per bit sent to keep high-volume customers Leased Line

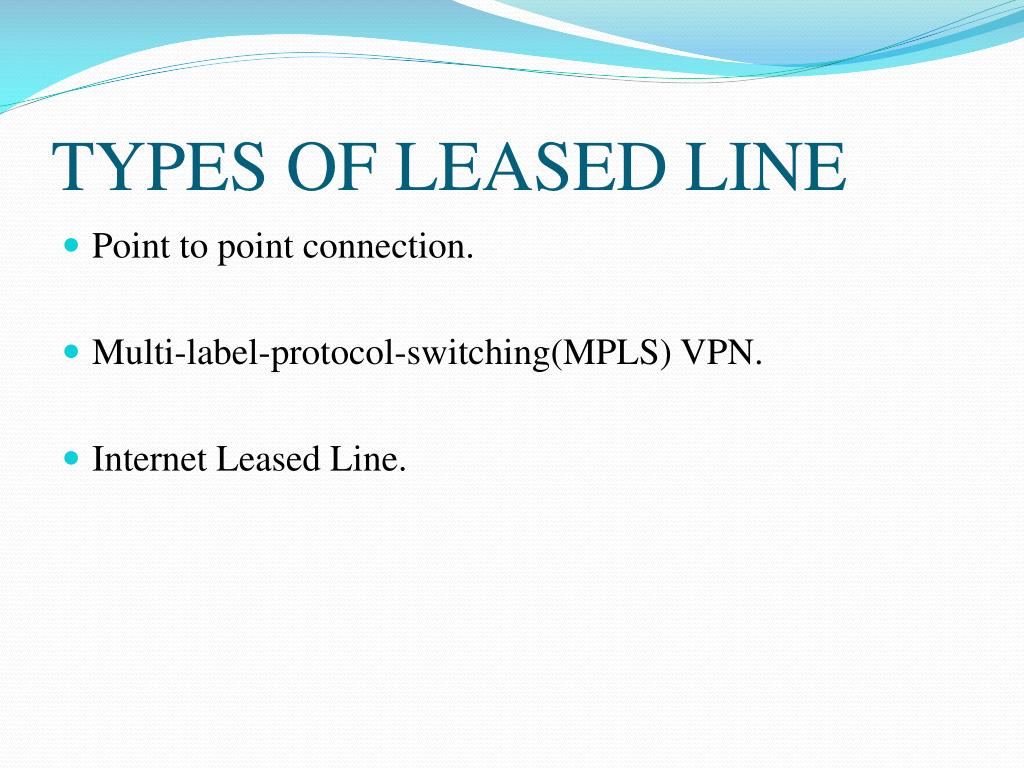

  4. TYPES OF LEASED LINE • Point to point connection. • Multi-label-protocol-switching(MPLS)VPN. • Internet Leased Line.

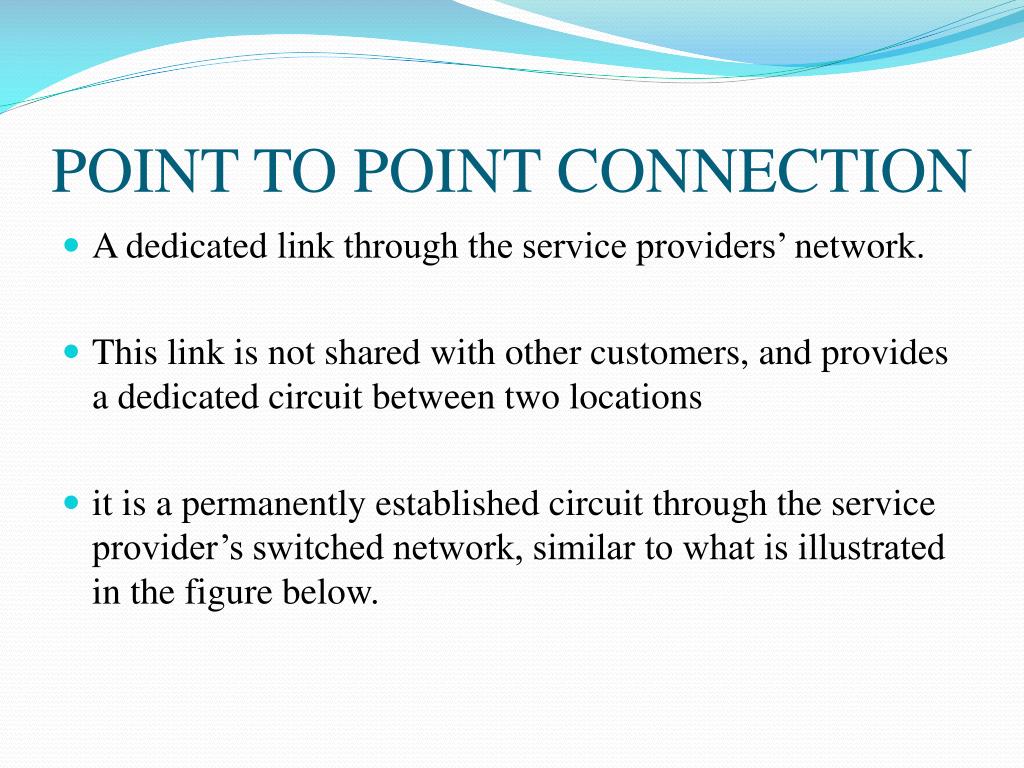

  5. POINT TO POINT CONNECTION • A dedicated link through the service providers’ network. • This link is not shared with other customers, and provides a dedicated circuit between two locations • it is a permanently established circuit through the service provider’s switched network, similar to what is illustrated in the figure below.

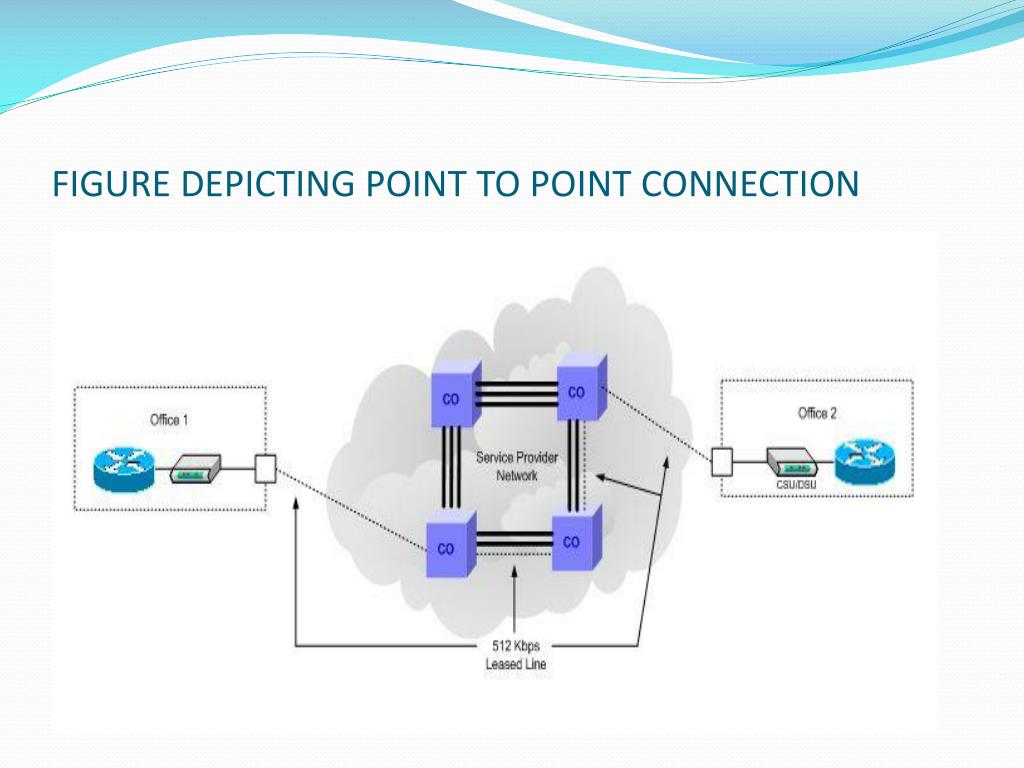

  6. FIGURE DEPICTING POINT TO POINT CONNECTION

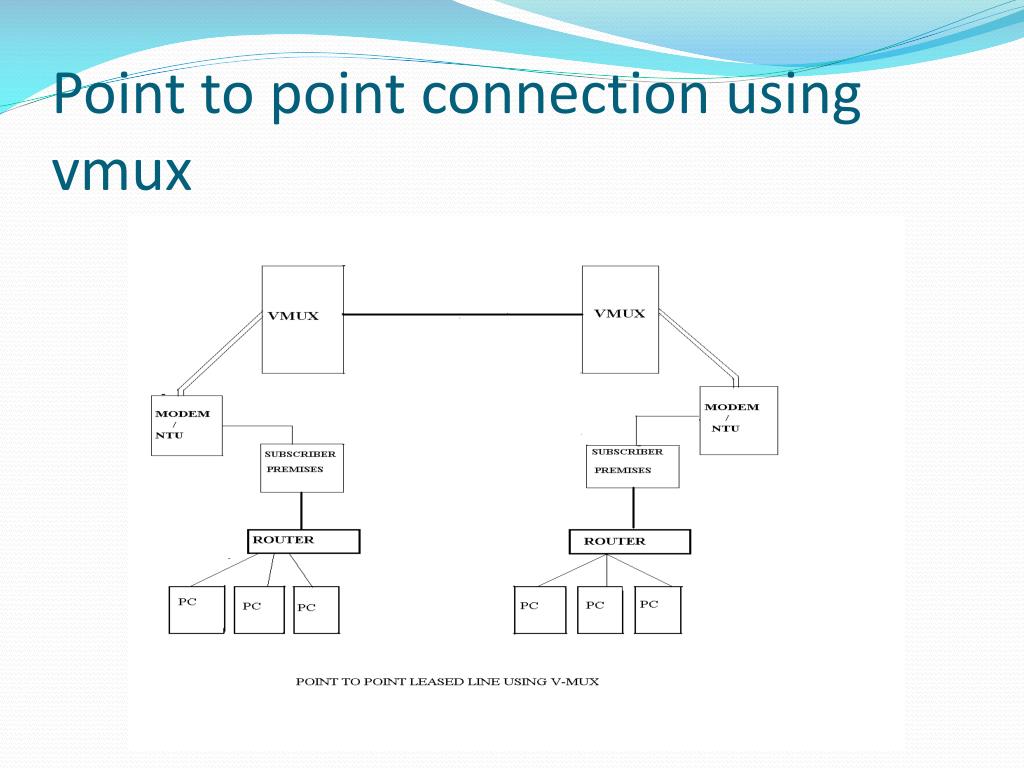

  7. Point to point connection using vmux

  8. MPLS VPN • MPLS VPN stands for MULTIPROTOCOL LABEL SWITCHINGVIRTUAL PRIVATE NETWORK. • An MPLS Network is formed by connecting each location with a single link to a service provider MPLS network.

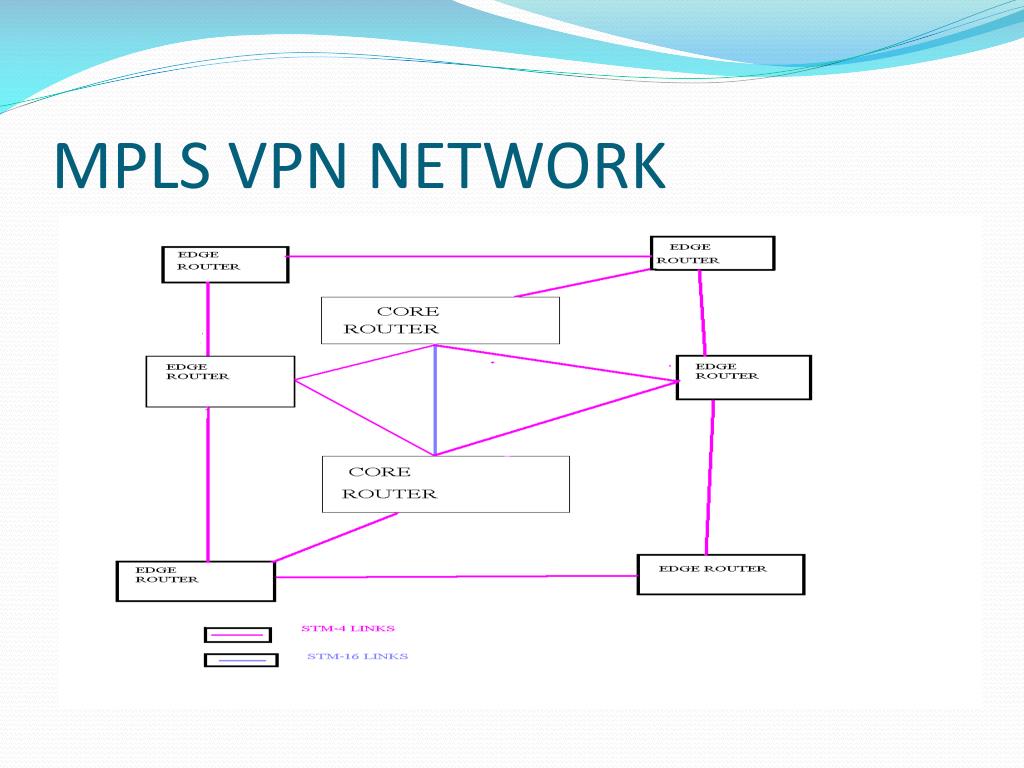

  9. MPLS VPN NETWORK

  10. BSNL – VPN Core Network Lucknow Delhi Ahmedabad Kolkatta Mumbai Pune Bangalore Chennai M40e Router STM1 Links Ernakulam Hyderabad

  11. STM-1 Link Gigabit Ethernet E3 Link BSNL – MPLS VPN Network POP Layout Core Router (M40e) Gigabit Ethernet Switch Edge Router (M40e/M20)

  12. MPLS Benefits • The performance characteristics of layer 2 networks • The connectivity and network services of layer 3 networks • Improves the price/performance of network layer routing • Improved scalability

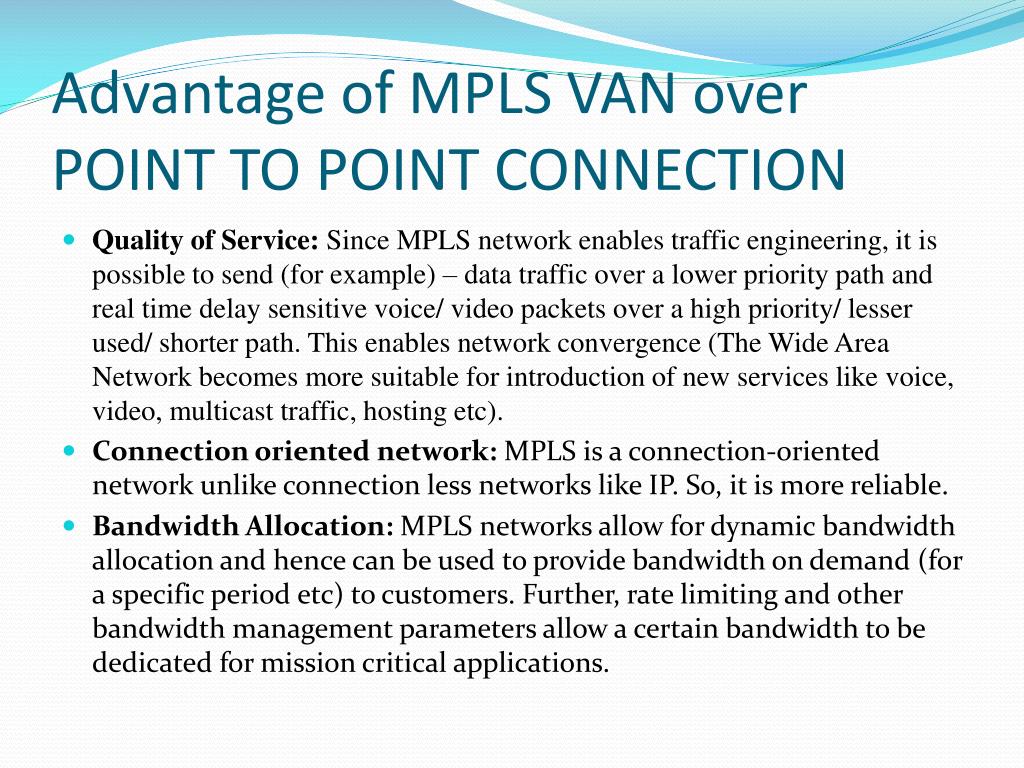

  13. Advantage of MPLS VAN over POINT TO POINT CONNECTION • Quality of Service: Since MPLS network enables traffic engineering, it is possible to send (for example) – data traffic over a lower priority path and real time delay sensitive voice/ video packets over a high priority/ lesser used/ shorter path. This enables network convergence (The Wide Area Network becomes more suitable for introduction of new services like voice, video, multicast traffic, hosting etc). • Connection oriented network: MPLS is a connection-oriented network unlike connection less networks like IP. So, it is more reliable. • Bandwidth Allocation: MPLS networks allow for dynamic bandwidth allocation and hence can be used to provide bandwidth on demand (for a specific period etc) to customers. Further, rate limiting and other bandwidth management parameters allow a certain bandwidth to be dedicated for mission critical applications.

  14. DISADVANATAGE • MPLS port and loop rates were higher than expected. Had the network been more geographically diverse, this factor would have been less noticeable, but for sites that were all close together and yet some distance from the closest POP, the pricing was out of line. • MPLS requires greater IT overhead to manage all of the routers at each site. The customer was looking to decrease the IT burden, not increase it.

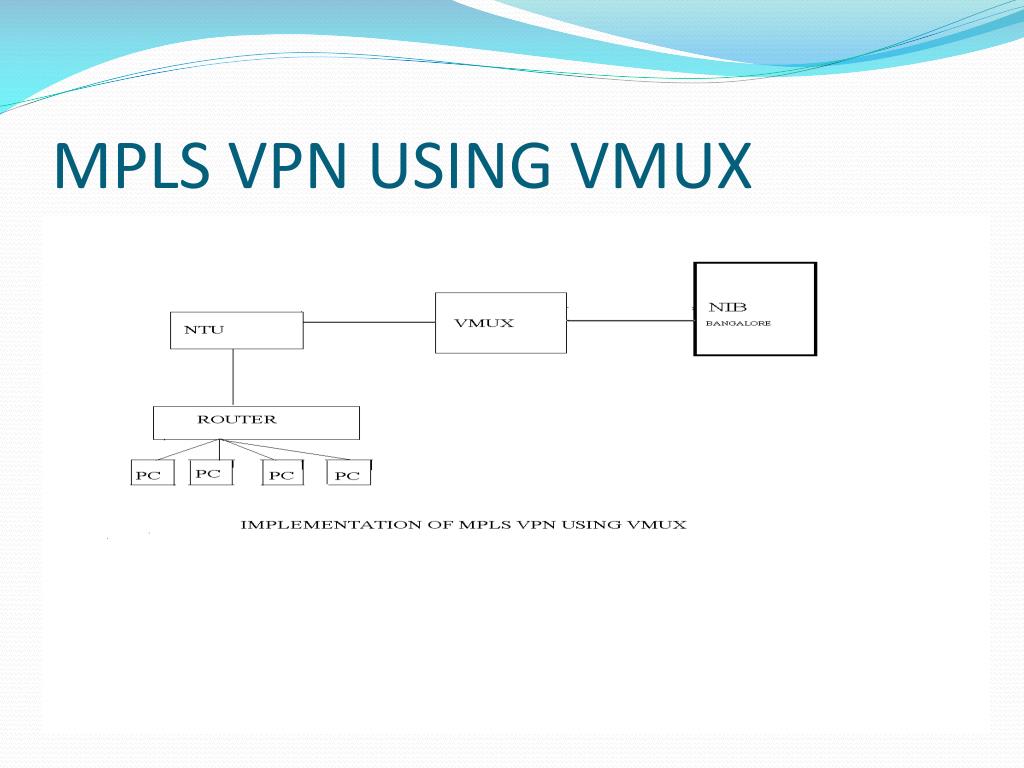

  15. MPLS VPN USING VMUX

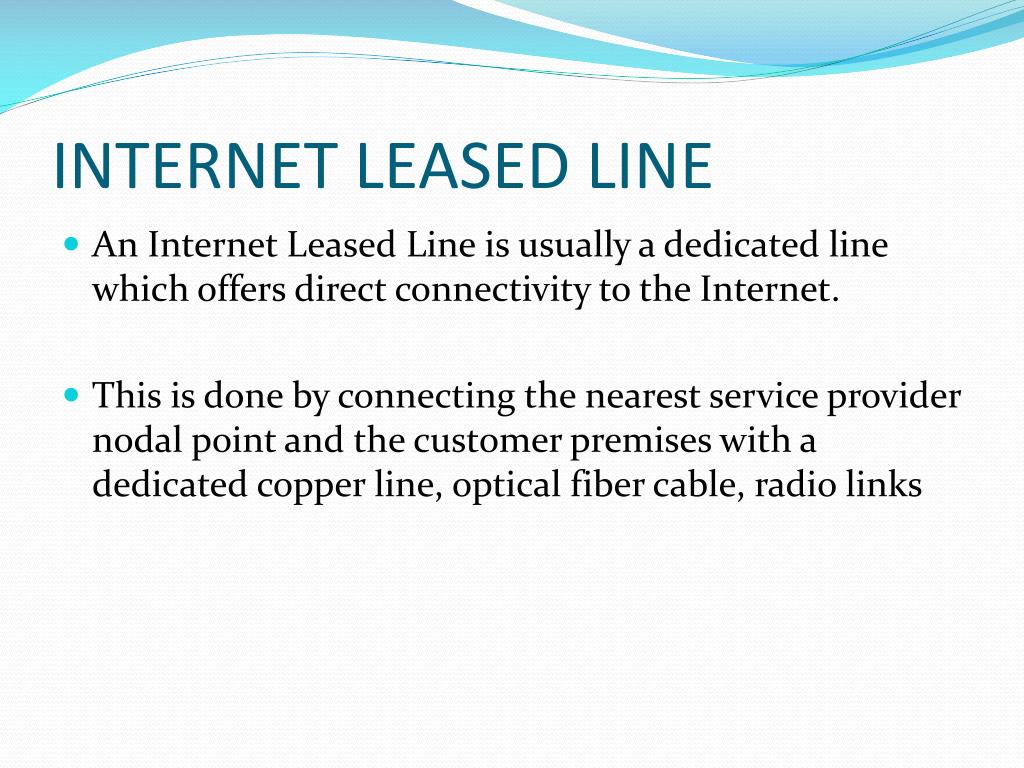

  16. INTERNET LEASED LINE • An Internet Leased Line is usually a dedicated line which offers direct connectivity to the Internet. • This is done by connecting the nearest service provider nodal point and the customer premises with a dedicated copper line, optical fiber cable, radio links

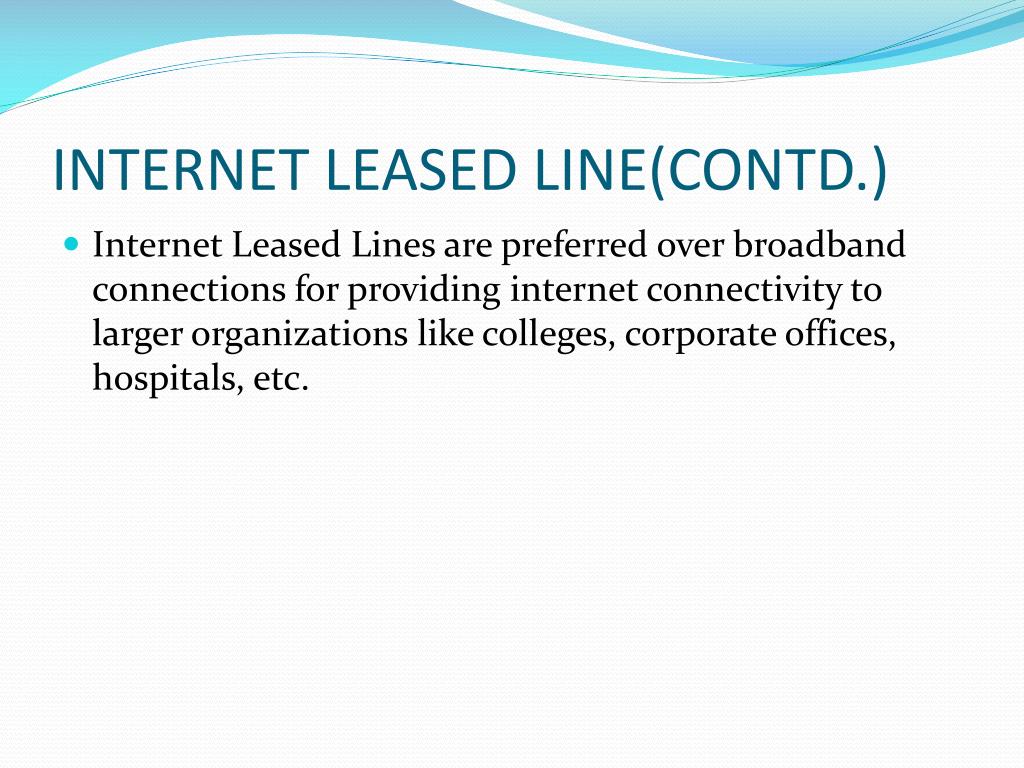

  17. INTERNET LEASED LINE(CONTD.) • Internet Leased Lines are preferred over broadband connections for providing internet connectivity to larger organizations like colleges, corporate offices, hospitals, etc.

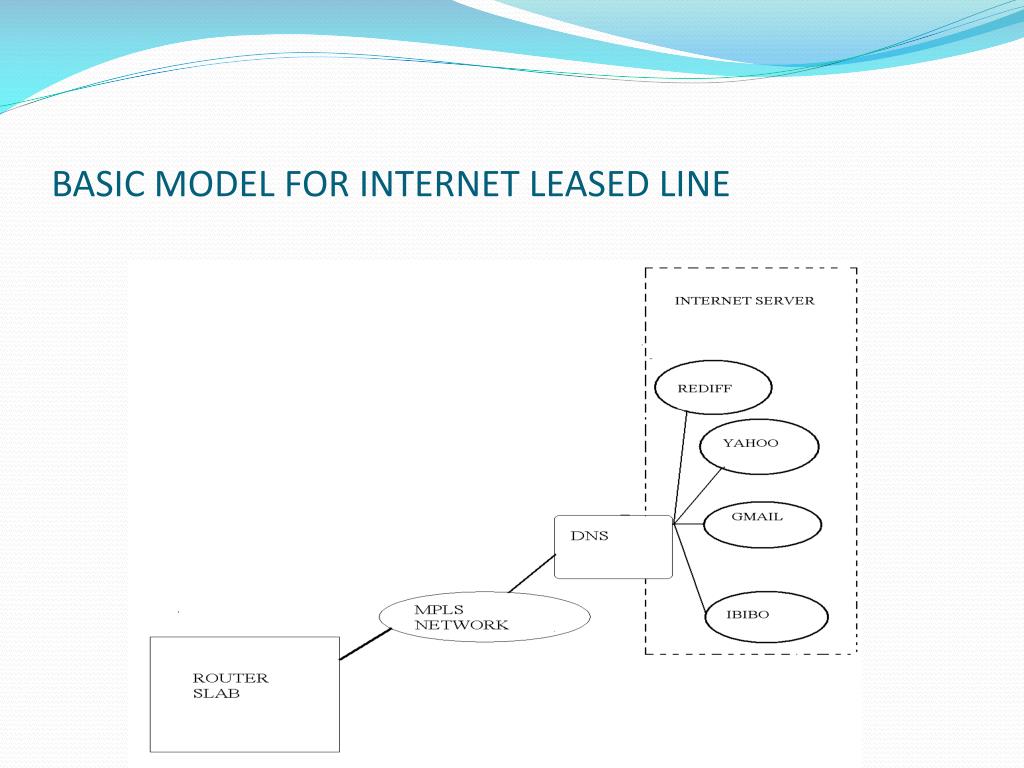

  18. BASIC MODEL FOR INTERNET LEASED LINE

  19. ADVANTAGE • Internet Leased Lines offer same speed for both uploads and downloads (symmetric connectivity), while in broadband (through DSL technology) the speeds are always optimized for downloads and the upload speeds are much lesser. etc. all of which are used by medium and large businesses regularly. • Generally, broadband connectivity is shared with multiple users in a locality. Broadband plans generally denote the best bandwidth that can be attained and not the assured bandwidth levels. But a 2 Mbps Internet Leased Line should give 2 Mbps of performance as it is a dedicated connection without any sharing.

  20. ADVANTAGE(CONTD.) • There is a wider choice of bandwidth selection (64 Kbps, 128 Kbps,… 2 Mbps,… 155 Mbps etc) with Internet Leased Lines. With broadband, the selection is more restricted. • Internet Leased lines are provided through multiple media – Copper, Fiber, Radio links or a combination of the above. Optical media communication is more reliable and offers better fault tolerance/ performance/ monitoring abilities, especially for higher bandwidths. • Internet Leased Lines offer a pool of permanent IP addresses which enables organizations to run their own mail servers, web servers and other applications.

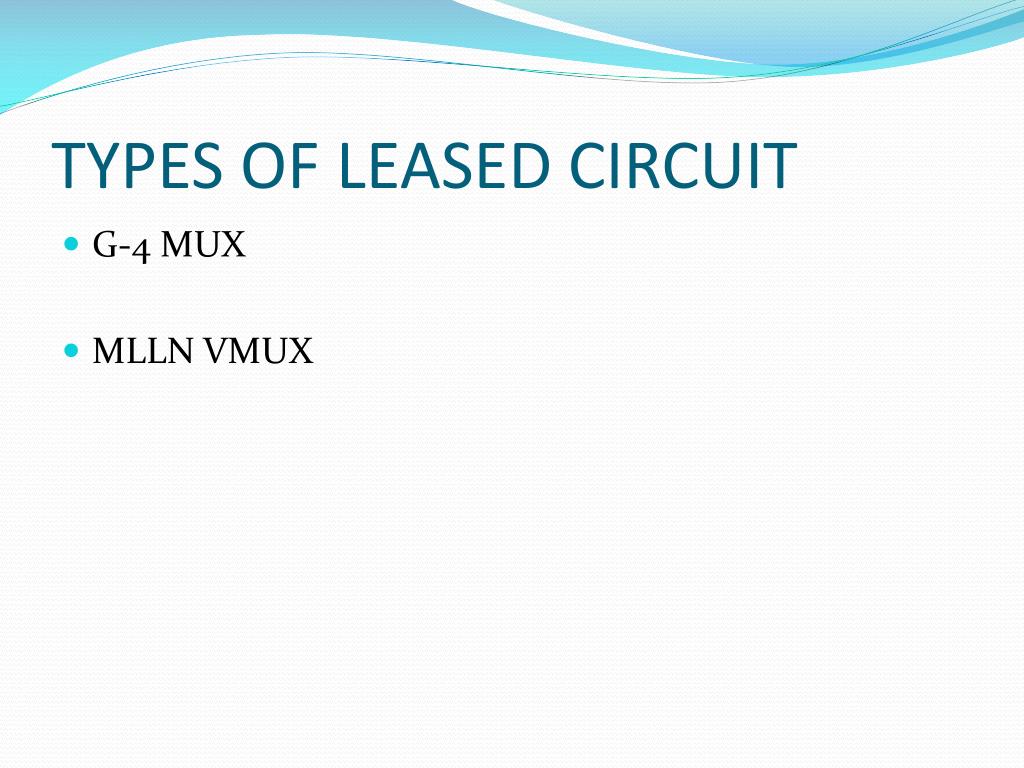

  21. TYPES OF LEASED CIRCUIT • G-4 MUX • MLLN VMUX

  22. G-4 MUX

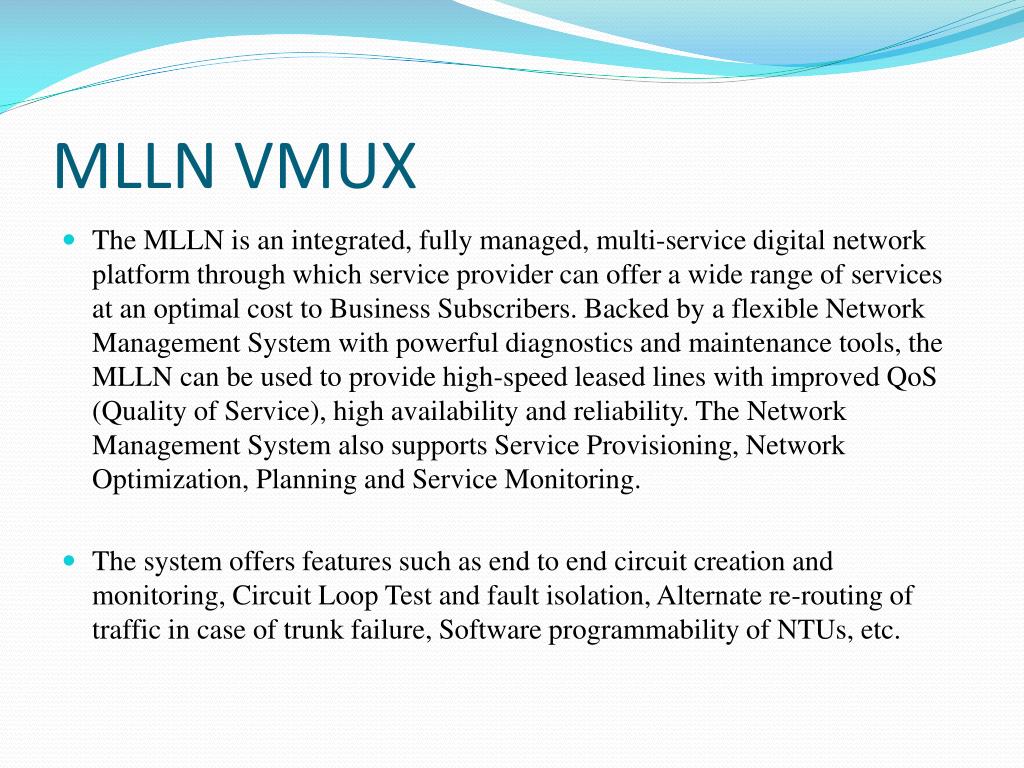

  23. MLLN VMUX • The MLLN is an integrated, fully managed, multi-service digital network platform through which service provider can offer a wide range of services at an optimal cost to Business Subscribers. Backed by a flexible Network Management System with powerful diagnostics and maintenance tools, the MLLN can be used to provide high-speed leased lines with improved QoS (Quality of Service), high availability and reliability. The Network Management System also supports Service Provisioning, Network Optimization, Planning and Service Monitoring. • The system offers features such as end to end circuit creation and monitoring, Circuit Loop Test and fault isolation, Alternate re-routing of traffic in case of trunk failure, Software programmability of NTUs, etc.

  24. MLLN USING VMUX

  25. ADVANTAGE • Circuit fault reports generated proactively. • On demand the bandwidth can be increased. •  Protection against the failure of the circuit. •  Centrally managed from Network Management System. • Easy re-routing and configuration

  26. . THANK YOU
