  1. Mitas - tyres for agriculture and industry

  2. Mitas • Fit for your job – in agriculture and industry Mitas - the tyre brand ... ... owned by Mitas a.s., one of Europe's leading manufacturers of agricultural and industrial tyres ... with a tradition that combines innovative processes and longstanding experience in the field of tyres ... with a wide product range offering a solution for every application ... with an excellent price/performance ratio Mitas - the modern alternative.

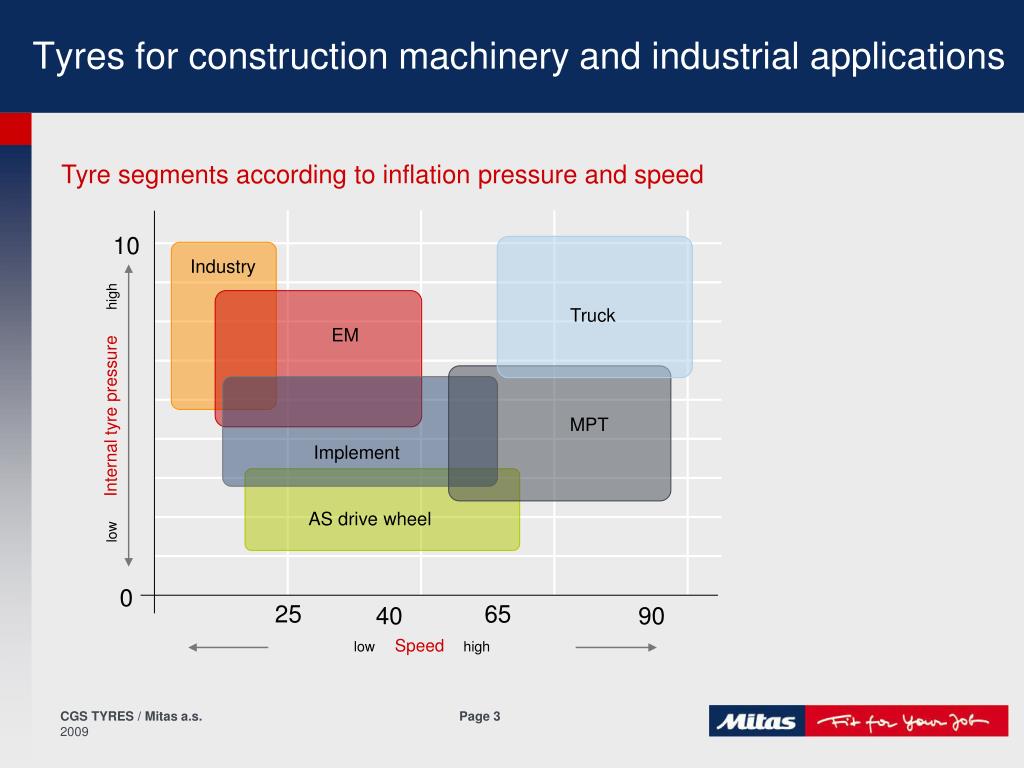

  3. Tyres for construction machinery and industrial applications low Speed high Tyre segments according to inflation pressure and speed 10 Industry Truck EM low Internal tyre pressurehigh MPT Implement AS drive wheel 0 25 65 40 90

  4. Mitas agricultural tyres

  5. Drive wheel radial tyres RD-03 The new 65 Series wide tyre for tractors with up to 200 hp • Radial tyre, approved for speeds of up to 65 km/h (40 mph) • Larger ground contact for high yields per hectare • Up to 40% higher tractive force compared with standard tyres • Uniform ground pressure, thanks to even tread contour • Reduced fuel consumption Fast and effective, with gentle ground handling: The RD-03 is suitable for speeds up to a maximum of 65 km/h (40 mph)and thanks to its excellent performance characteristics, this tyre constitutes a new alternative for agricultural applications. Compared with standard tyres, the Mitas RD-03 offers outstanding traction at minimum slip (up to 40% higher tractive force in comparative tests), resulting in substantially reduced fuel consumption when working the ground. A 17% larger ground contact patchmeans gentler ground handling and higher yields per hectare.

  6. Drive wheel radial tyres RD-03 Sizes available: 480/65 R 24* 133D 600/65 R 34* 151D 480/65 R 28 136D 600/65 R 38 153D 540/65 R 28 142D 650/65 R 38 157D 600/65 R 28 147D 710/70 R 38 166D 540/65 R 30 150D 650/65 R 42 165D * in preparation

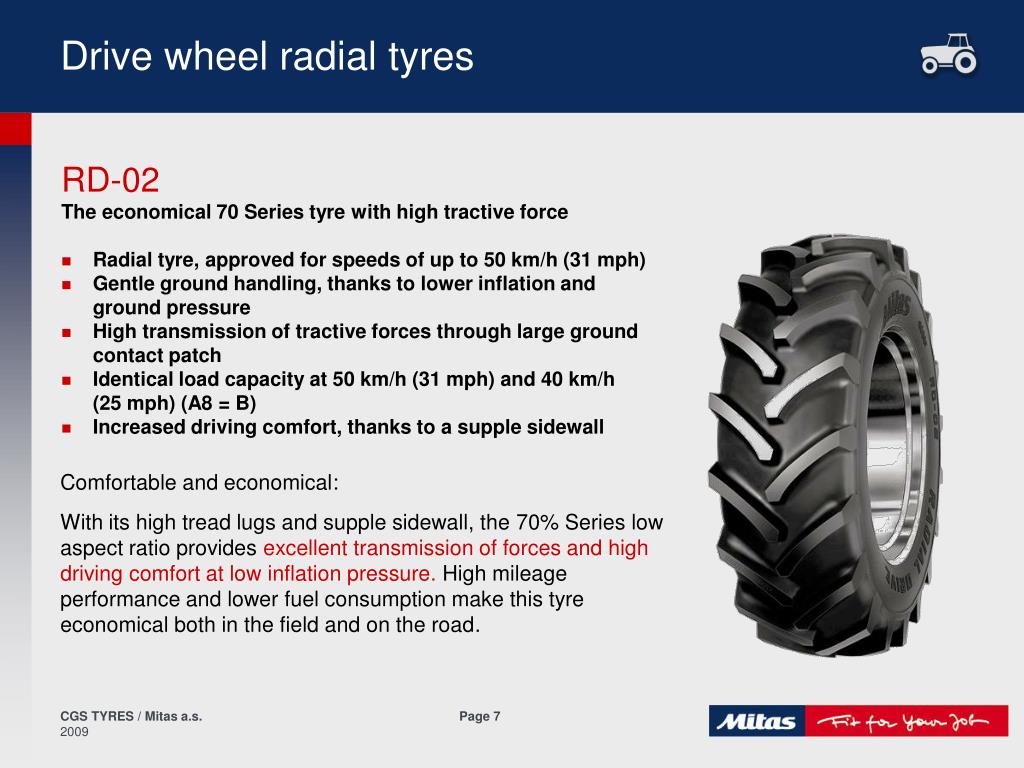

  7. Drive wheel radial tyres RD-02 The economical 70 Series tyre with high tractive force • Radial tyre, approved for speeds of up to 50 km/h (31 mph) • Gentle ground handling, thanks to lower inflation and ground pressure • High transmission of tractive forces through large ground contact patch • Identical load capacity at 50 km/h (31 mph) and 40 km/h (25 mph) (A8 = B) • Increased driving comfort, thanks to a supple sidewall Comfortable and economical: With its high tread lugs and supple sidewall, the 70% Series low aspect ratio provides excellent transmission of forces and high driving comfort at low inflation pressure.High mileage performance and lower fuel consumption make this tyre economical both in the field and on the road.

  8. Drive wheel radial tyres RD-02 Sizes available: 320/70 R 24* 116B 480/70 R 30 141B 380/70 R 24 125B 480/70 R 34 143B 420/70 R 24* 130B 480/70 R 38 145B 380/70 R 28 127B 520/70 R 38 150B 420/70 R 28 133B 580/70 R 38* 155B 480/70 R 28 140B * Tread pattern version RD-70

  9. Drive wheel radial tyres RD-01 The new generation 85 Series standard tyre • Radial tyre, approved for speeds of up to 50 km/h (31 mph) • High traction with low slip • Gentle ground handling, thanks to low inflation pressure • Optimum driving comfort through circumferentially-orientated tread lugs • Reduced fuel consumption, thanks to low rolling resistance Powerful and compact: Even where fitting space is limited, the high efficiency of this radial tyre makes it an attractive option.It offers 8% higher load capacity than conventional standard radials, but at the same inflation pressure and with reduced rolling resistance. That makes it an economical option for on the road use. Out in the field, the tyre pressure can be reduced by 0.2 bar, whilst maintaining the same load capacity.

  10. Drive wheel radial tyres RD-01 Sizes available: 280/85 R 24 112B 420/85 R 28 136B 420/85 R 38 141B 320/85 R 24 119B 380/85 R 30* 135B 460/85 R 38 146B 340/85 R 24 122B 420/85 R 30 137B 520/85 R 38 152B 380/85 R 24 128B 460/85 R 30 142B 520/85 R 42 162B 420/85 R 24* 137B 320/85 R 32* 142B 280/85 R 28 115B 420/85 R 34 139B 320/85 R 28 121B 460/85 R 34 144B 340/85 R 28 124B 340/85 R 36 129B 380/85 R 28 130B 340/85 R 38* 133B * in preparation

  11. Drive wheel radial tyres Standard radial tyres in TL version RD-20 RD-30 Sizes available: 16.9 R 34 139A8 18.4 R 34 144A8 18.4 R 38 146A8 20.8 R 38 153A8 20.8 R 42 156A8 Sizes available: 16.9 R 24 134A8 12.4 R 28 121A8 14.9 R 30 129A8 12.4 R 32 130A8 13.6 R 38 128A8

  12. Flotation tyres AR-01 Radial tyres for trailers used in agriculture and with utility vehicles • Approved for speeds of up to 80 km/h (50 mph) • All-steel design for high durability • High mileage performance • Reduced fuel consumption, thanks to low rolling resistance Sizes available: 385/65 R 22.5 (15 R 22.5) 161F 445/65 R 22.5 (18 R 22.5) 169F

  13. Flotation tyres AR-02 Radial flotation tyre with attractive tread pattern design • Approved for speeds of up to 65 km/h (40 mph) • Good traction and self-cleaning • Reduced fuel consumption, thanks to low rolling resistance Size available: 560/60 R 22.5 161D

  14. Flotation tyres AGRITERRA The advanced Trailer Tire Solution

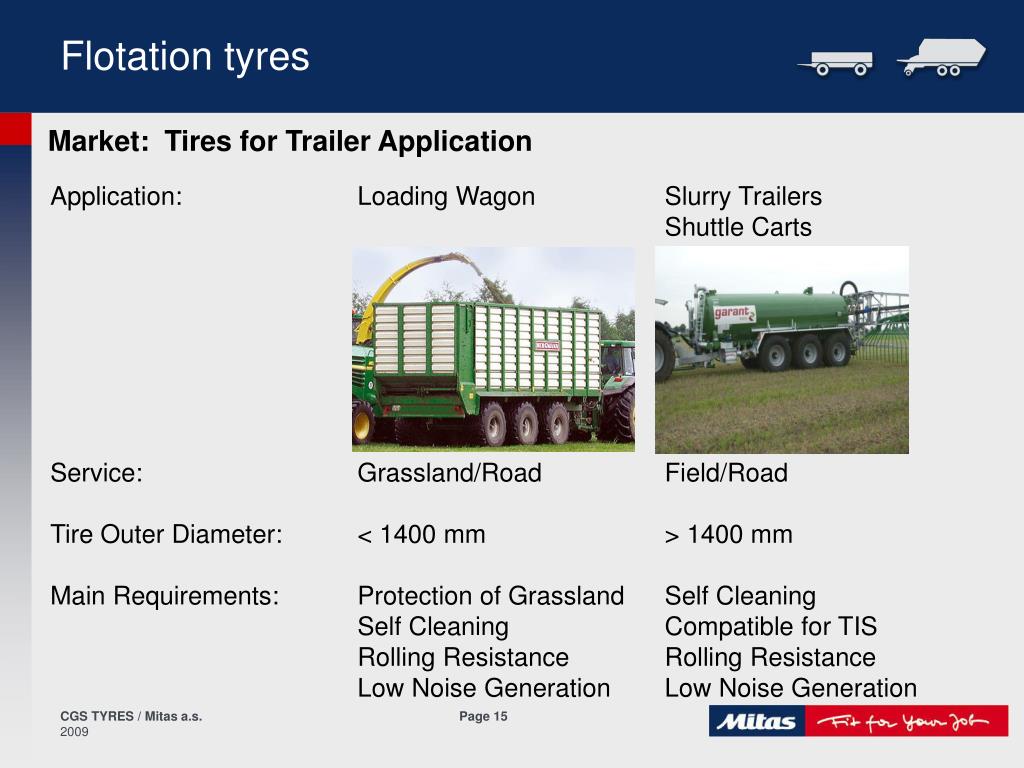

  15. Flotation tyres Market: Tires for Trailer Application Application: Loading Wagon Slurry Trailers Shuttle Carts Service: Grassland/Road Field/Road TireOuter Diameter: < 1400 mm > 1400 mm Main Requirements: ProtectionofGrasslandSelfCleaning SelfCleaningCompatiblefor TIS Rolling Resistance Rolling Resistance Low Noise Generation Low Noise Generation

  16. Flotation tyres Product Concept AGRITERRA • AGRITERRA-03 • Good Selfcleaning • Higher negative Share • Higher Skid Depth • Distinctive Shoulder • AGRITERRA-02 • Gentle to Grassland • High Positive Share • Lower Skid Depth • Round Shoulder

  17. Flotation tyres AGRITERRA 02 Importance of Pattern Features Tire Performance

  18. Flotation tyres AGRITERRA 02 Importance of Design Features on Tire Performance

  19. Flotation tyres Higher radial Deflection supports the High Flotation Effect

  20. Flotation tyres AGRITERRA 02 1. Size: 600/55 R 26.5 Test Tyres: Mar 2010 Serial Prod.: 2nd Quarter of 2010 2. Size: 710/50 R 26.5 Test Tyres: 3rd Quarter 2010 Serial Prod.: 4th Quarter 2010 3. Size: to be defined

  21. Crossply tractor tyres (FA) 8.3-24 14.9-28 9.5-24 16.9-28 11.2-24 18.4-30 12.4-24 16.9-34 14.9-24 18.4-34 16.9-24 13.6-38 11.2-28 18.4-38 12.4-28 16.9-308PR 16.9-24 12.4-36 16.9-28 3.6-36 16.9-30 13.6-38 18.4-30 16.9-38 9.5-32 12.4-32 16.9-30 12PR 16.9-34 10PR 23.1-26 14PR 11.2-24 8/10PR 12.4-24 8/12PR 14.9-24 8PR 18.4-26 12PR 12.4-28 8/10PR 14.9-28 8PR 18.4-34 10/12PR 18.4-38 8PR Crossply tyres for tractors and self-propelled equipment TD-01 TD-02 TD-03 TD-13 TD-17 TD-19 TD-05 Sizes available: 14.9-38 6PR 15.9-38 8PR

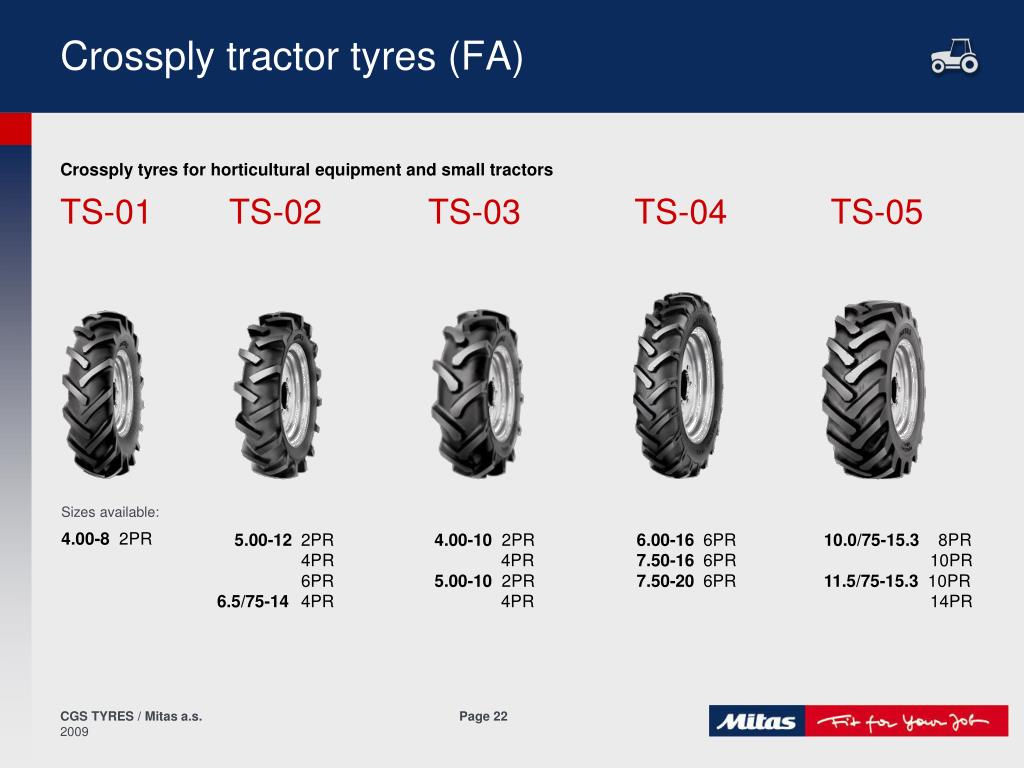

  22. Crossply tractor tyres (FA) Sizes available: 5.00-122PR 4PR 6PR 6.5/75-14 4PR 4.00-10 2PR 4PR 5.00-10 2PR 4PR 6.00-16 6PR 7.50-16 6PR 7.50-20 6PR 10.0/75-15.3 8PR 10PR 11.5/75-15.3 10PR 14PR 4.00-8 2PR TS-01 Crossply tyres for horticultural equipment and small tractors TS-02 TS-03 TS-04 TS-05

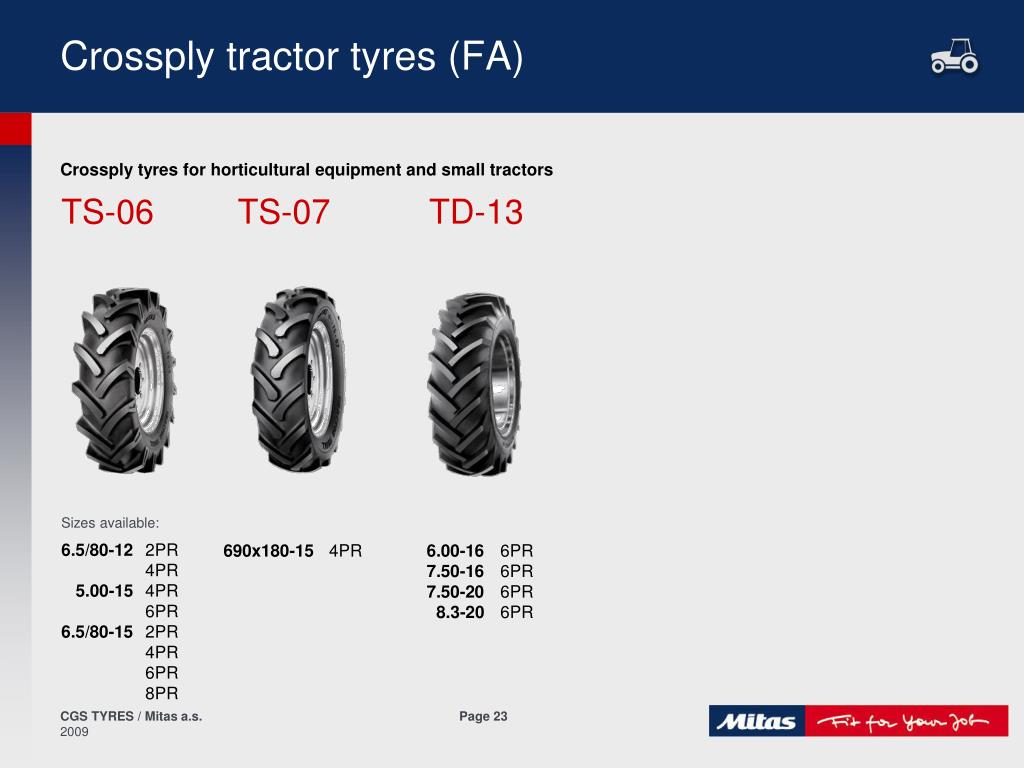

  23. Crossply tractor tyres (FA) TS-06 Crossply tyres for horticultural equipment and small tractors TS-07 TD-13 Sizes available: 6.5/80-12 2PR 4PR 5.00-15 4PR 6PR 6.5/80-15 2PR 4PR 6PR 8PR 690x180-15 4PR 6.00-16 6PR 7.50-16 6PR 7.50-20 6PR 8.3-20 6PR

  24. Crossply front wheel tyres TF-01 Crossply front wheel tyres for tractors TF-03 TF-04 TF-05 TF-06 Sizes available: 6.50-16 6PR 7.50-16 6PR 6.50-20 6PR 7.50-20 6PR 6.00-16 6PR 6.00-16 6PR 7.50-16 6PR 7.50-16 6PR 6.00-166PR 6.50-16 6PR 8PR 7.50-16 6PR 9.00-16 6PR 10.00-16 8PR 6.50-18 10PR 6.50-20 6PR 7.50-20 6PR 6.00-18 6PR 6.50-20 6PR

  25. Implement crossply traction tyres Sizes available: 15.0/55-17 10PR 12PR 400/70-20 14PR 15.5/80-24 12PR 14PR 16PR 163/151A8 10.0/75-15.3 8PR 10PR 11.5/80-15.3 10PR 14PR 12.0/75-18 12PR 10.0/75-15.38PR 10PR 14.0/80-1812PR 31x15.5-158PR 31x15.5-158PR Crossply tyres for forage wagons, cultivation equipment, and other agricultural implements and vehicles TR-01 TR-03 TR-04 TR-05 TR-06 TR-07

  26. Implement crossply traction tyres Crossply tyres for forage wagons, cultivation equipment, and other agricultural and industrial applications TR-08 TR-09 TR-10 TR-11 TR-12 Sizes available: 400/60-15.5 14PR 145/132A8 500/60-22.5 12PR 16PR 550/60/22.5 12PR 16PR 171/159A8 600/50-22.5 12PR 16PR 12.5/80-18 10PR 12PR 16.0/70-20 10PR 14PR 14-17.510PR 14PR 12.0/75-1812PR 500/60-22.5 152A8 600/40-22.5 12PR 16PR 169A8

  27. Implement crossply tyres Implement crossply tyres for trailers, cultivation equipment, tank trailers, etc. IM-01 IM-02 (TO-02) IM-03 IM-04 IM-05 (F3) Sizes available: 10.50-16 14PR 13.00-18 12PR (140K) 14.5/80-1812PR 10.0/80-12 8PR/10PR 10.0/75-15.3 8PR/10PR 12PR/14PR 18PR 11.5/80-15.3 10PR/12PR 14PR/16PR 15.0/55-17 10PR/12PR 14PR 19.0/45-17 14PR 12.5/80-18 14PR/16PR 13.0/65-18 16PR 11L-16 10PR

  28. Implement crossply tyres Sizes available: 4.00-10 4PR 400/60-15.5 14PR 145A8 500/50-17 14PR 18PR 10.0/80-128PR 500/60-22.5 16PR 550/60-22.5 12PR 16PR 200/60-14.5 10PR Implement crossply tyres for trailers, cultivation equipment, tank trailers, etc. IM-06 IM-07 IM-08 IM-09 IM-10

  29. Mitas multi-purpose tyres (MPT)

  30. MPT tyres MPT tyres are suitable for use on vehicles designed for high speeds on the road and good off-road traction. Characteristics- based on their design Radial: High mileage performance, even wear, very good ride comfort thanks to quieter running, high speeds possible, very good traction, improved off-road mobility, lower fuelconsumptionthrough reduced rolling resistance, increased puncture resistance Crossply:Resistance to sidewall damage, high lateral stability Potentially suitablevehicles- based on their design: Radial: Multi-purpose vehicles, implement carriers, wheeled loaders, gradersCrossply:Agricultural vehicles, telescopic forklifts, backhoe loaders, compact loaders

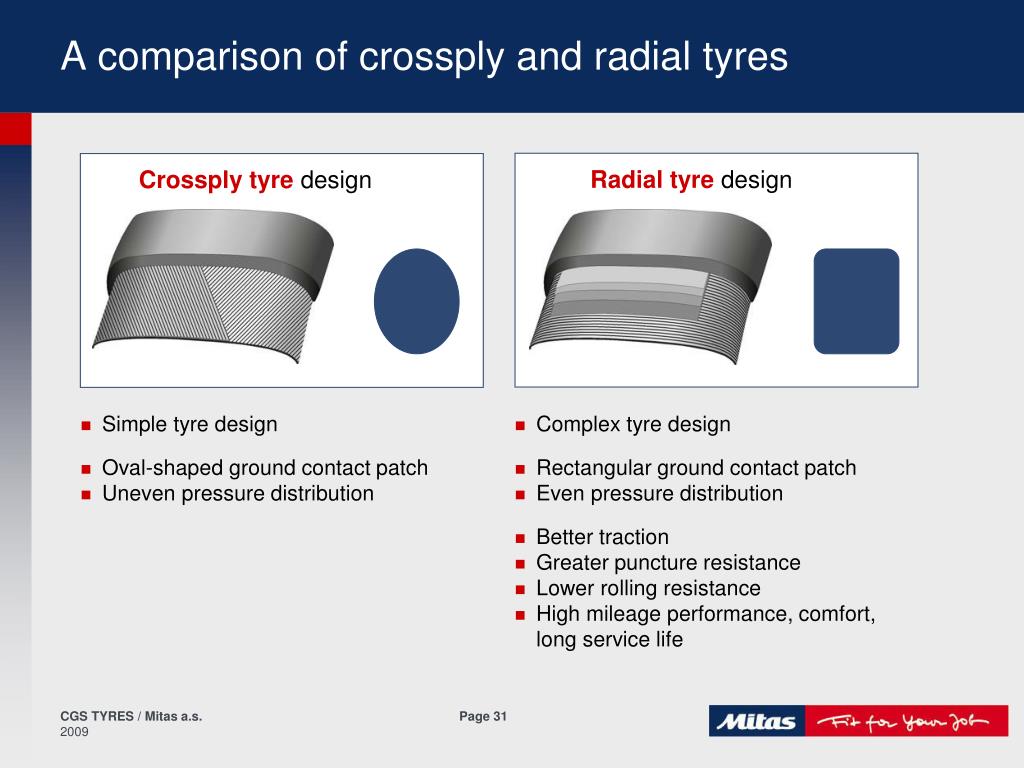

  31. A comparison of crossply and radial tyres Radial tyre design Crossply tyre design • Simple tyre design • Oval-shaped ground contact patch • Uneven pressure distribution • Complex tyre design • Rectangular ground contact patch • Even pressure distribution • Better traction • Greater puncture resistance • Lower rolling resistance • High mileage performance, comfort,long service life

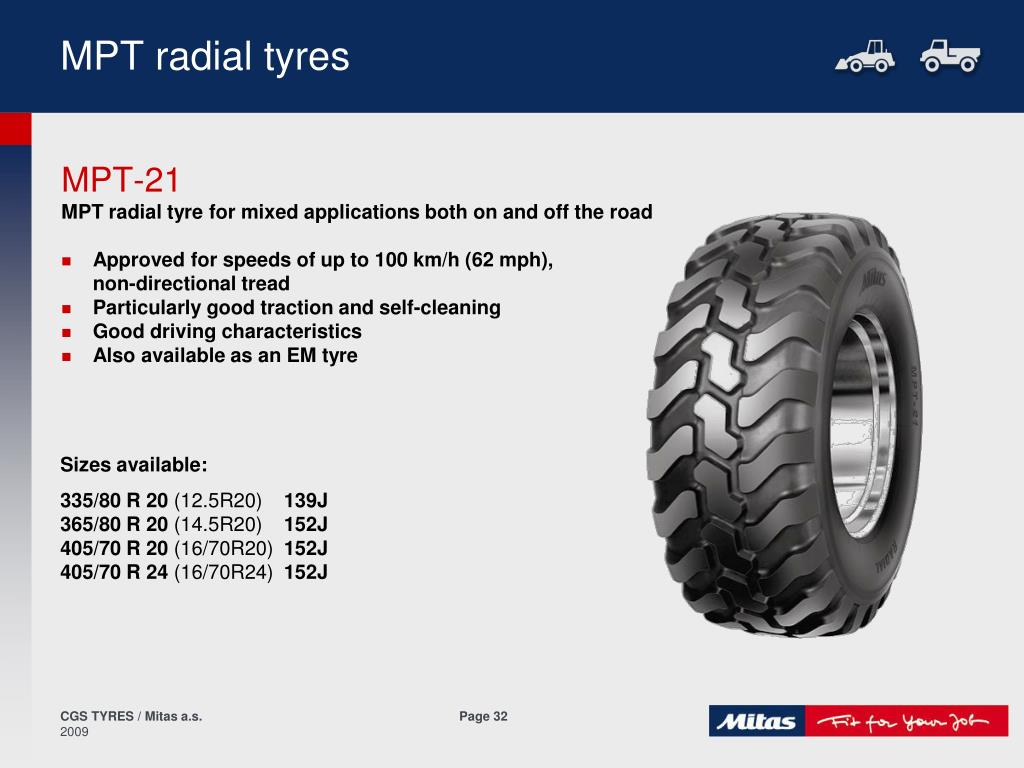

  32. MPT radial tyres MPT-21 MPT radial tyre for mixed applications both on and off the road • Approved for speeds of up to 100 km/h (62 mph), non-directional tread • Particularly good traction and self-cleaning • Good driving characteristics • Also available as an EM tyre Sizes available: 335/80 R 20 (12.5R20) 139J 365/80 R 20 (14.5R20) 152J 405/70 R 20 (16/70R20) 152J 405/70 R 24 (16/70R24) 152J

  33. MPT radial tyres MPT-20 Versatile MPT tyre, particularly suitable for use on utility vehicles • Approved for speeds of up to 110 km/h (68 mph), directionally orientated • Good traction, also in winter use • Outstanding driving comfort • Even wear Sizes available: 335/80 R 20 (12.5R20) 147K 365/80 R 20 (14.5R20)152K

  34. MPT radial tyres MPT-22 MPT radial tyre with tractor tread pattern, suitable for all-round applications • Approved for speeds of up to 90 km/h (56 mph) • Outstanding traction and self-cleaning • Comfortable on the road, thanks to steel belt • Highly economical through low wear tread compound Sizes available: 335/80 R 18 (12.5R18)132G 445/70 R 24 (17.5LR24)151G

  35. MPT crossply tyres Sizes available: 10.5-18 130B 12.5-18 132/135 B 12.5-20 133/136 B 405/70-20 (16/70-20)149/152 B 405/70-24 (16/70-24)152B 10.5-18 125/129 D 12.5-18 131D 16/70-20 (405/70-20) 148D 18-19.5 156B 12.5-18 128/131/136 G 12.5-20 132G 14.5-20 136G 405/70-20 (16/70-20)145G 18 - 19.5 156D 12.5-18 131/134/144 D 10.5-20 131D 12.5-20 132/135/145 D 14.5-20 139/142 D 16/70-20 (405/70-20)148D, 151D 405/70-24 (16/70-24)151D MPT crossply tyres for a range of specific tasks, including use on wheeled loaders, telescopic loaders, diggers and utility vehicles MPT-01 MPT-02 MPT-03 MPT-04

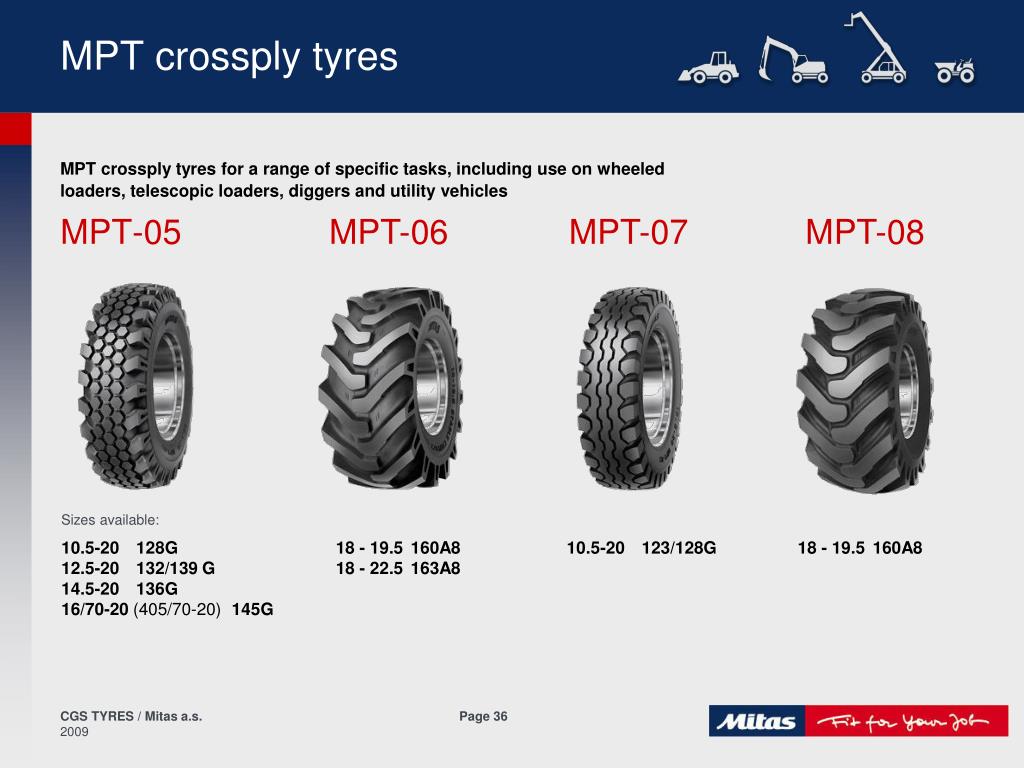

  36. MPT crossply tyres Sizes available: 10.5-20 128G 12.5-20 132/139 G 14.5-20 136G 16/70-20 (405/70-20)145G 18 - 19.5 160A8 18 - 22.5 163A8 10.5-20 123/128G 18 - 19.5 160A8 MPT crossply tyres for a range of specific tasks, including use on wheeled loaders, telescopic loaders, diggers and utility vehicles MPT-05 MPT-06 MPT-07 MPT-08

  37. Tyres for construction machinery and industrial applications

  38. Traction Industrial radial tyres TI-20 Specially designed traction tread pattern for all-round applications • Highly pronounced tread lugs with overlapping in the tread centre reduces wear • Good driving characteristics • High traction and self-cleaning • Low vibration on the road • High puncture resistance Sizes available: 480/80 R 26 160A8 440/80 R 28156A8

  39. Traction Industrial crossply tyres Industrial tyres for a range of applications, including use on backhoe loaders TI-02 TI-22 TI-04 TI-05 TI-09 TI-06 Sizes available: 17.5L-24 10PR 16.9-2412PR 19.5L-2410PR 12PR 400/80-24 162A8 460/70-24 159A8 500/70-24 164A8 18.4-2612PR 16.9-2810PR 12PR 16.9-3010PR 14PR 460/70 R 24 159 A8

  40. EM radial tyres EM-01 Radial tyre with versatile tread pattern suitable for a range of light earth-moving tasks • Non-directional off-road tread pattern,approved for speeds of up to 50 km/h (31 mph) • Even ground pressure distribution • Good traction and self-cleaning • Good driving characteristics on the road, with lateral stability • Also available as an MPT tyre Sizes available: 365/70 R 18 135B 405/70 R 18 (16/70R18) 141B & 156B 335/80 R 20 (12.5R20) 136B 365/80 R 20 (14.5R20) 141B 405/70 R 20 (16/70R20) 143B 405/70 R 24 (16/70R24) 147B

  41. EM radial tyres EM-02 EM radial tyre with tractor tread pattern, suitable for all-round applications • Approved for speeds of up to 50 km/h (31 mph) • Large ground contact patch for outstanding traction • Good self-cleaning • Good driving characteristics Sizes available: 335/80 R 18 (12.5R18)139B 445/70 R 24 (17.5LR24)147B

  42. EM radial tyres ERL-20/ERD-20 High-traction tyre for use on soft ground with wheeled loaders (ERL) and dumper trucks/scrapers (ERD) ERL-30/ERD-30 Rugged tyre for use on hard ground with wheeled loaders (ERL) and dumper trucks/scrapers (ERD) Sizes and versions in preparation: 17.5 R 25 *L2/G2 23.5 R 25 *L2/ **E2 17.5 R 25 *L3 23.5 R 25 *L3/ **E3 20.5 R 25 *L2/ **E2 26.5 R 25 *L3/ **E3 20.5 R 25 *L3/ **E3

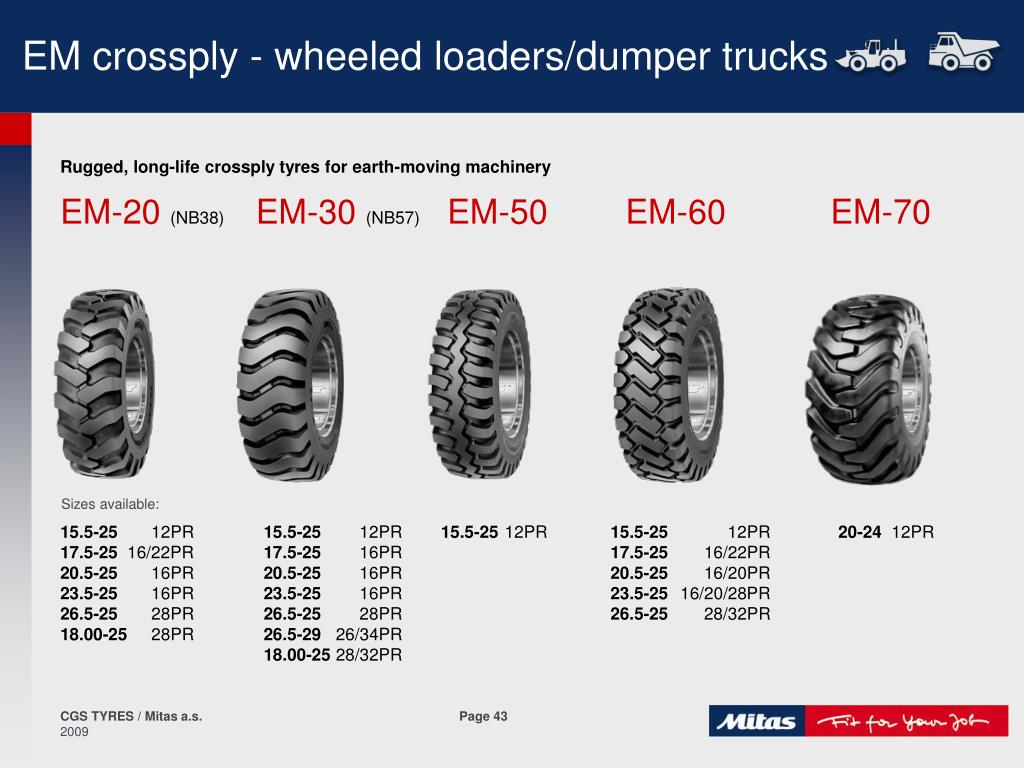

  43. EM crossply - wheeled loaders/dumper trucks Sizes available: 15.5-2512PR 17.5-2516/22PR 20.5-2516PR 23.5-2516PR 26.5-2528PR 18.00-2528PR 15.5-2512PR 17.5-2516PR 20.5-2516PR 23.5-2516PR 26.5-2528PR 26.5-29 26/34PR 18.00-2528/32PR 15.5-2512PR 15.5-2512PR 17.5-2516/22PR 20.5-2516/20PR 23.5-2516/20/28PR 26.5-2528/32PR 20-2412PR Rugged, long-life crossply tyres for earth-moving machinery EM-20 (NB38) EM-30 (NB57) EM-50 EM-60 EM-70

  44. EM crossply tyres - mobile excavators Extremely sturdy and resistant crossply tyres for mobile excavators NB 38 NB 38 Extra EM-22 EM-23 EM-40 NB 57 TR-12 Sizes available: 8.25-2014PR 9.00-2014PR NB 38 10.00-2016PR 11.00-2016PR NB 38 Extra 10.00-2014PR 8.25-2014PR 9.00-2014PR 10.00-2016PR 10.00-2016PR 9.00-2014PR 10.00-2016PR 11.00-2016PR 500/60-22.5 152A8 500/45-20 160A8 600/40-22.5 169A8

  45. EM tyres - rollers and graders Tyres for use in road construction, e.g. on rollers and graders Compactor TG-02 UK 5 Sizes available: 11.00-20 16/18PR 11.00 R 20 157A3 13/80 R 20 164A3 13.00-2412PR 14.00-2416PR 14.9-24 6/8PR 23.1-26 10/12PR

  46. Skid Steer tyres Skid Steer tyres with reinforced tread lugs and sidewall protection SK-01 SK-02 TR-10 Sizes available: 23x8.50 -126PR 10.0/75-15.38/10PR 23x8.50-1210PR 27x8.50-156PR 10-16.58PR 12-16.510PR 14-17.510PR 14PR

  47. Crossply forklift tyres Sizes available: 5.00-88PR 6.00-910/12PR 6.50-1010/12PR 7.00-1212/14PR 6.00-910/12PR 6.50-1010/12PR 7.00-1212/14PR 4.00-86PR 4.00.8 10PR 5.00-88PR 8.15-15 14PR Stable forklift tyres for demanding applications FL-01 FL-02 FL-03 FL-04

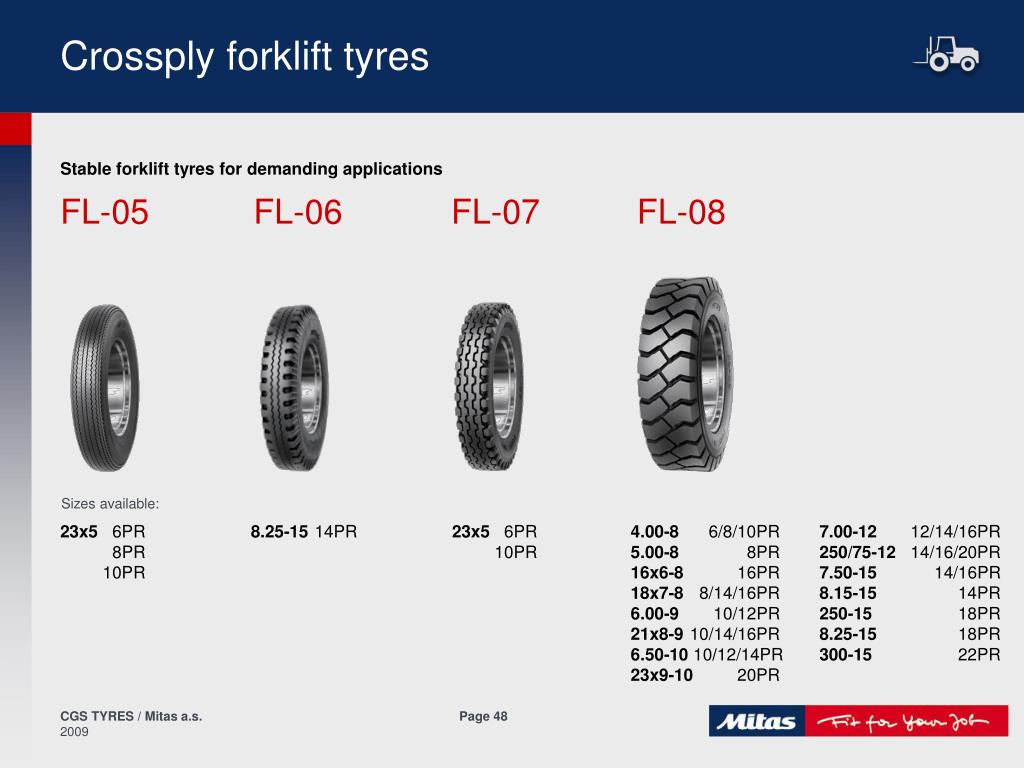

  48. Crossply forklift tyres Stable forklift tyres for demanding applications FL-05 FL-06 FL-07 FL-08 Sizes available: 23x56PR 8PR 10PR 8.25-1514PR 23x56PR 10PR 4.00-86/8/10PR 5.00-8 8PR 16x6-8 16PR 18x7-8 8/14/16PR 6.00-910/12PR 21x8-9 10/14/16PR 6.50-1010/12/14PR 23x9-1020PR 7.00-1212/14/16PR 250/75-12 14/16/20PR 7.50-1514/16PR 8.15-1514PR 250-15 18PR 8.25-1518PR 300-1522PR

  49. Tyres for trucks and light trucks

  50. Truck tyres Truck tyres for on-/off-road use with high mileage performance NB 41 NB 59 NB 60 Sizes available: 8.25-20 133J 9.00-20 140J 10.00-20 146J 11.00-20 149J 8.25-20 133J 9.00-20 140J 10.00-20 146J 11.00-20 149J 12.00-20 154J 8.25-20 133J 9.00-20 140J 11.00-20 149J 12.00-20 154J
