Additional Practice

Additional Practice. Feb. 12, 2014. Mixing Liquids at Different Temps. Two Equal Quantities (1 liter each) of Liquids are at different Temperatures One is at 20 °C the other is at 40 °C

dana-king
Télécharger la présentation

Additional Practice

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

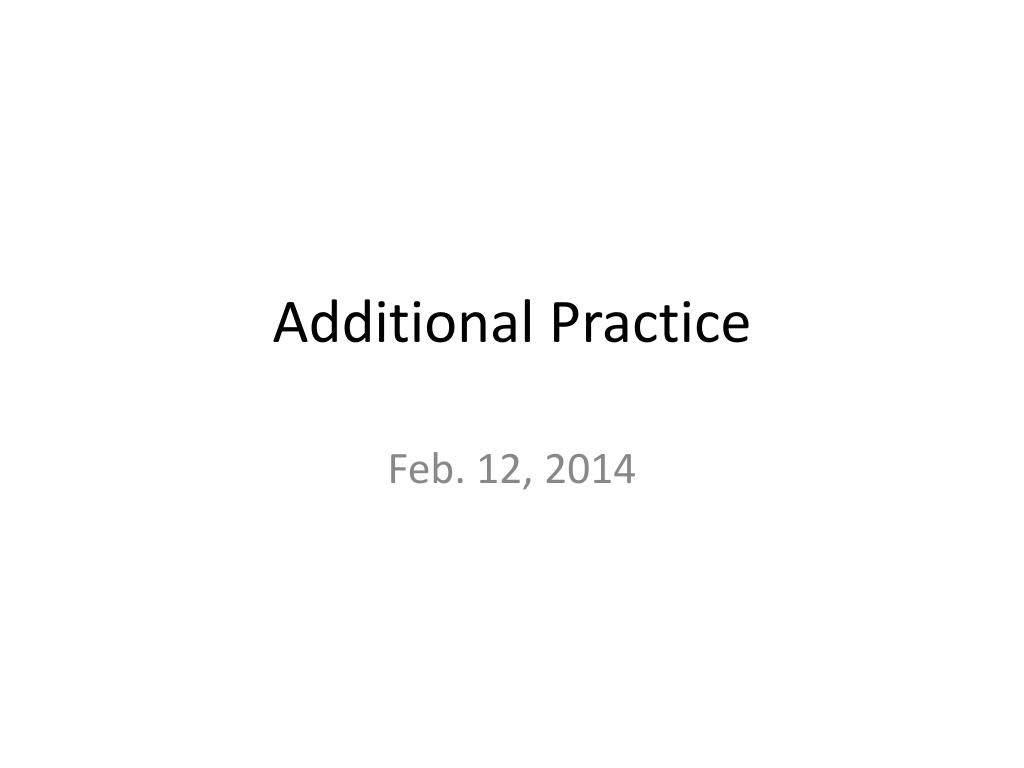

  1. Additional Practice Feb. 12, 2014

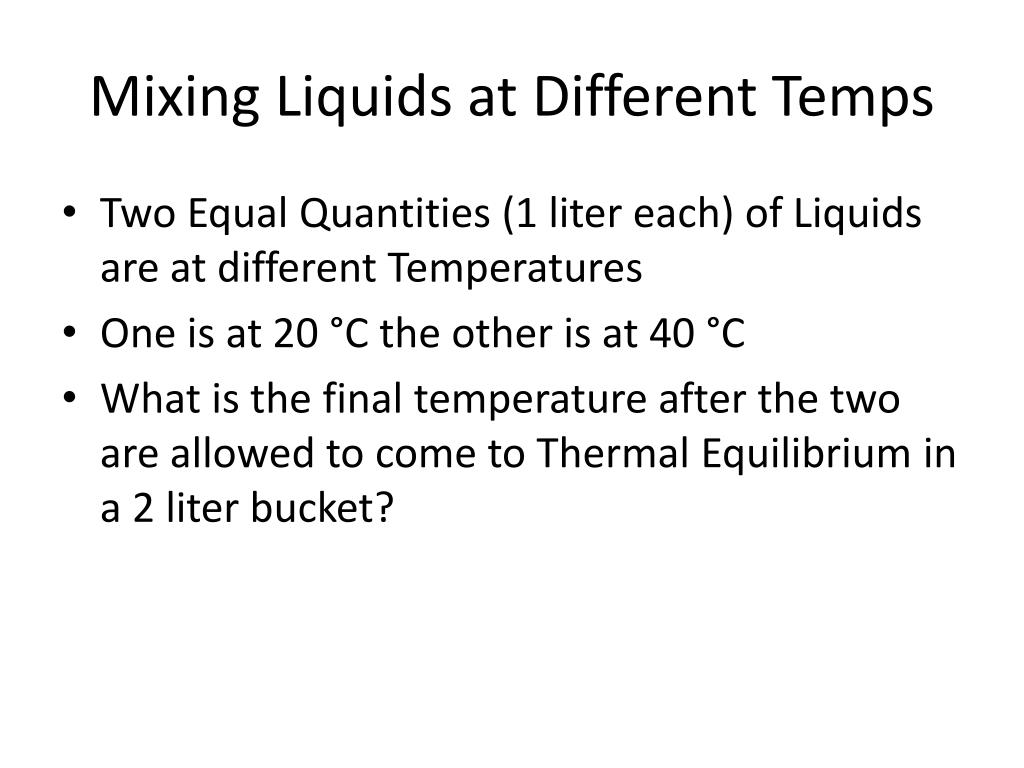

  2. Mixing Liquids at Different Temps • Two Equal Quantities (1 liter each) of Liquids are at different Temperatures • One is at 20 °C the other is at 40 °C • What is the final temperature after the two are allowed to come to Thermal Equilibrium in a 2 liter bucket?

  3. Solution #1 “Cheap Short Cut” • Since the two quantities are the same add the two temps and divide by 2 • 20 +40 =60/2 = 30 °C

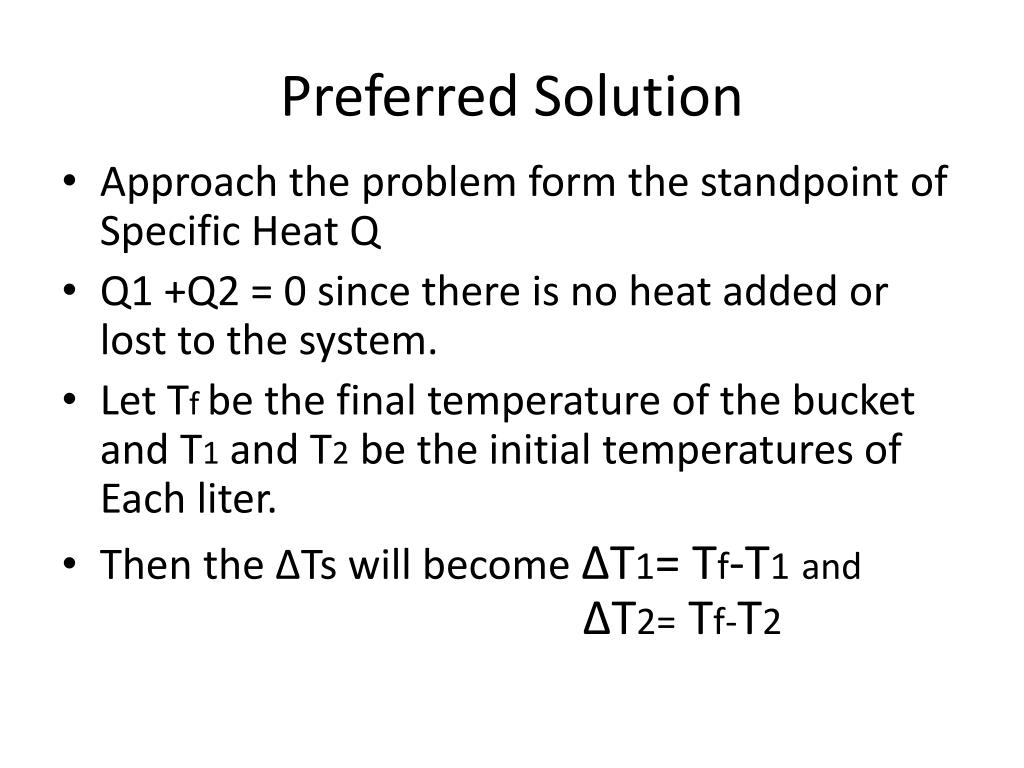

  4. Preferred Solution • Approach the problem form the standpoint of Specific Heat Q • Q1 +Q2 = 0 since there is no heat added or lost to the system. • Let Tfbe the final temperature of the bucket and T1 and T2 be the initial temperatures of Each liter. • Then the ΔTs will become ΔT1=Tf-T1and ΔT2= Tf-T2

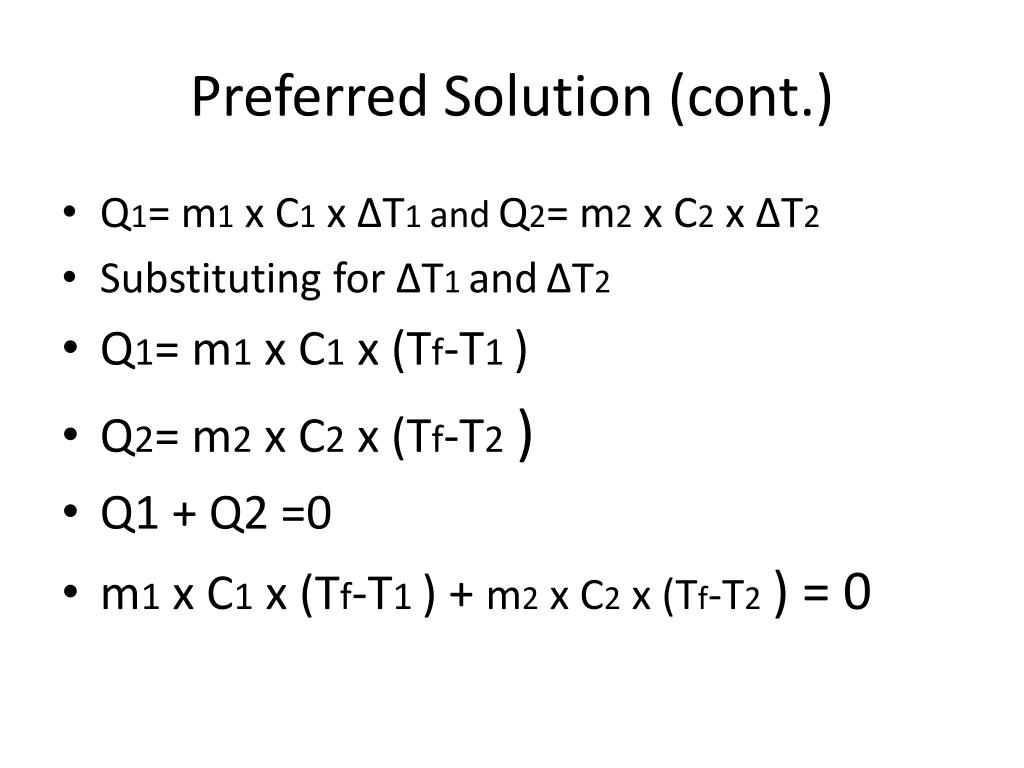

  5. Preferred Solution (cont.) • Q1= m1 x C1 x ΔT1 andQ2= m2x C2x ΔT2 • Substituting for ΔT1 andΔT2 • Q1= m1 x C1 x (Tf-T1 ) • Q2= m2 x C2x (Tf-T2) • Q1 + Q2 =0 • m1 x C1 x (Tf-T1 ) + m2 x C2 x (Tf-T2) = 0

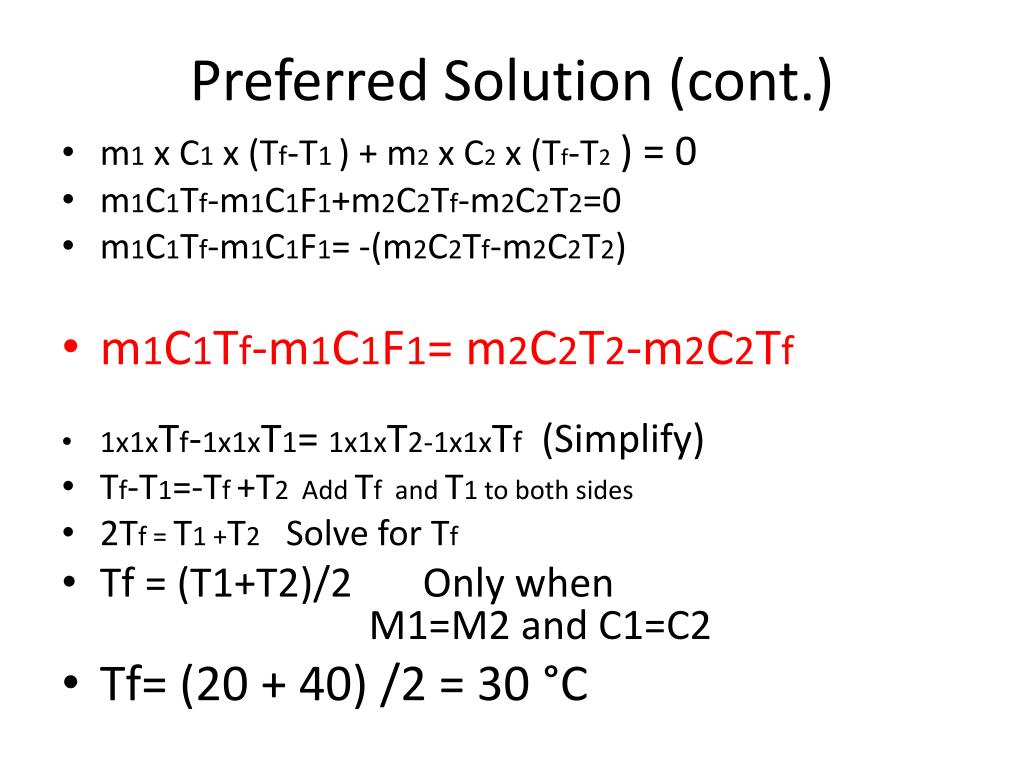

  6. Preferred Solution (cont.) • m1 x C1 x (Tf-T1 ) + m2 x C2 x (Tf-T2) = 0 • m1C1Tf-m1C1F1+m2C2Tf-m2C2T2=0 • m1C1Tf-m1C1F1= -(m2C2Tf-m2C2T2) • m1C1Tf-m1C1F1= m2C2T2-m2C2Tf • 1x1xTf-1x1xT1= 1x1xT2-1x1xTf (Simplify) • Tf-T1=-Tf+T2 Add Tf and T1 to both sides • 2Tf = T1 +T2 Solve for Tf • Tf = (T1+T2)/2 Only when M1=M2 and C1=C2 • Tf= (20 + 40) /2 = 30 °C
