Presentation Transcript


  1. ELECTRİC SOLUTIONS

  2. ELECTRIC SOLUTIONS • Generator Synchronization and Protection Systems • GroundingSystem • LightningRodSystem • Interior / ExteriorLightingSystem • CameraSystem • Fire ProtectionSystem • Cable Solutions • Phone Systems • PowerTransmissionLines • MediumVoltage (MV) Cubicles • Supply and Installation of LV-MV transformers • Transformer and Generator Neutral Grounding Resistors • LowVoltage (LV) Distribution Panels • CompensationPanels • MCC Panels • DC RectifierPanels

  3. POWER TRANSMISSION LINES • HV PowerTransmissionLines • MV - LV PowerLines • 154 kV-380 kVSubstations • Distribution Centers

  4. MEDİUM VOLTAGE (MV) CELLS • Metal Clad MV Cubicles • Metal Enclosed MV Cubicles • Metal Enclosed with Drawer MV Cubicles

  5. TRANSFORMERS • LV / MV Transformers • HermeticTypeTransformer • OilTypeTransformer • TransformerStations • TransformerStations

  6. NEUTRAL GROUNDİNG RESİSTOR • NeutralGroundingResistors • TransformerNeutralGroundingResistor • GeneratorNeutralGroundingResistor • Great ResistanceNeutralEarthing • Generator Neutral Grounding and the Input Cells

  7. LOW VOLTAGE (AG) CELLS • ExternalType, Built-in Type • Transfer panel • CouplingPanels • LV distributionPanels

  8. COMPENSATION PANELS • ExternalType, Built-in Type • ThyristorType • HarmonicFilterType • One to One, Groupand Center Compensation

  9. MCCPANELS • External Type IP66 • Built-in Type IP54 IP45 • Speed Control • Direct Control • Star-delta Control

  10. RECTIFIER DC PANEL BATTERY SOLUTIONS • Battery • Rectifier • DC Distribution Panels

  11. GROUNDING SYSTEMS • Operating Groundings • Basic Groundings • Projecting • Material Supply • Installation

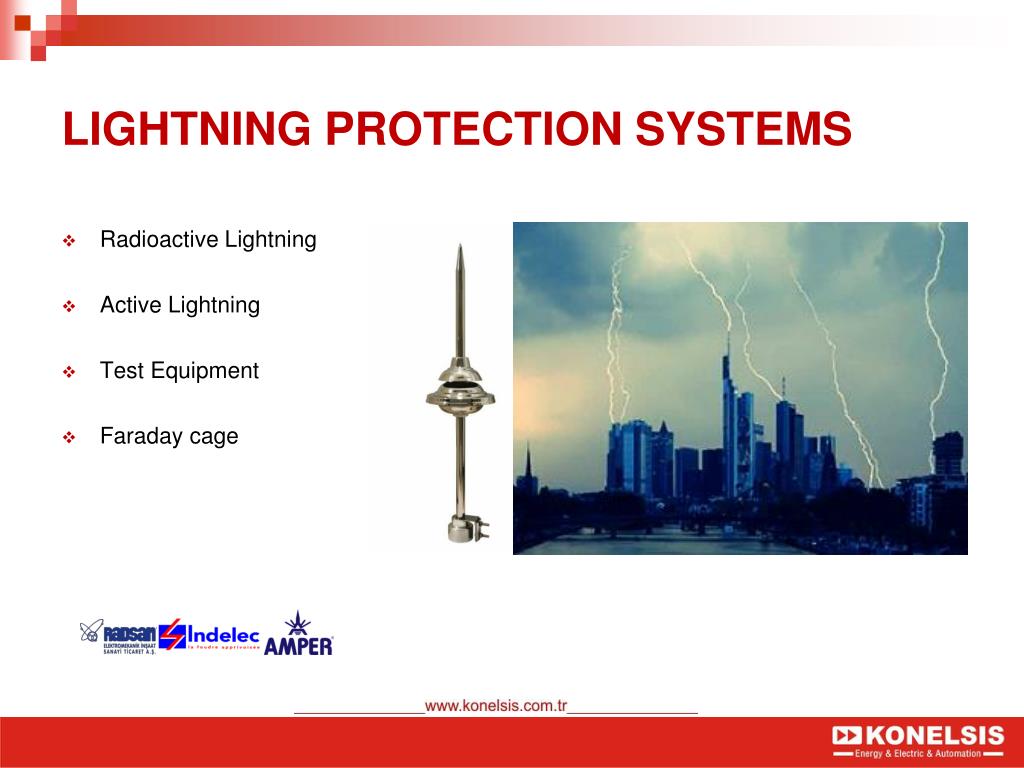

  12. LIGHTNING PROTECTION SYSTEMS • Radioactive Lightning • Active Lightning • Test Equipment • Faraday cage

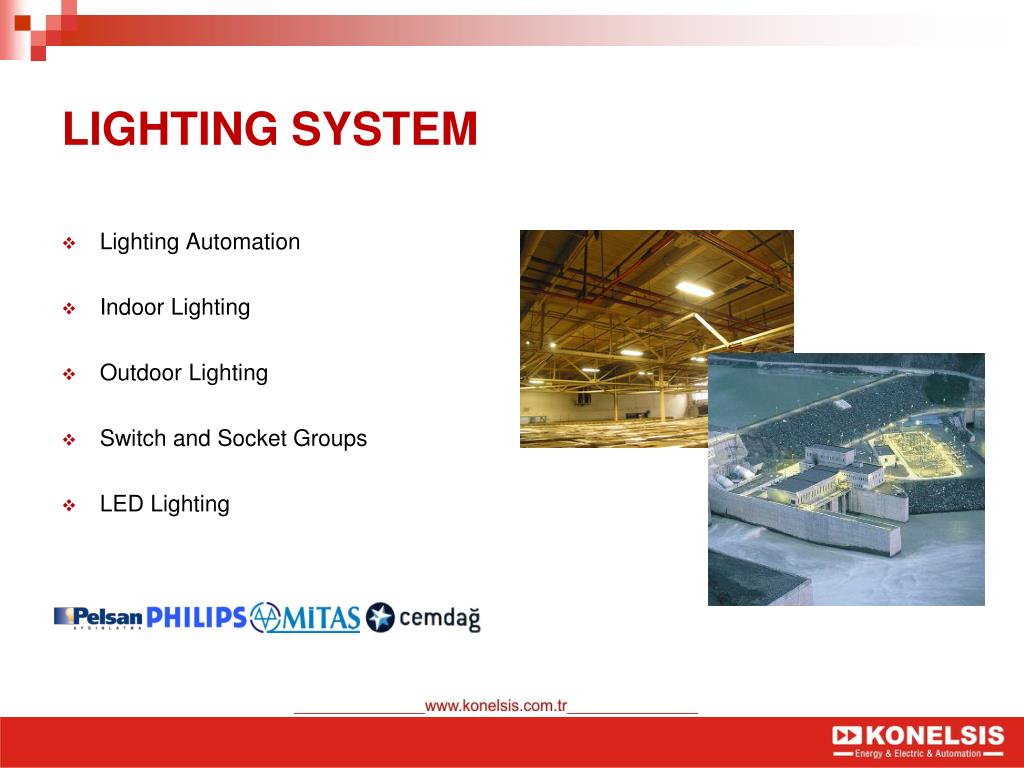

  13. LIGHTING SYSTEM • Lighting Automation • Indoor Lighting • Outdoor Lighting • Switch and Socket Groups • LED Lighting

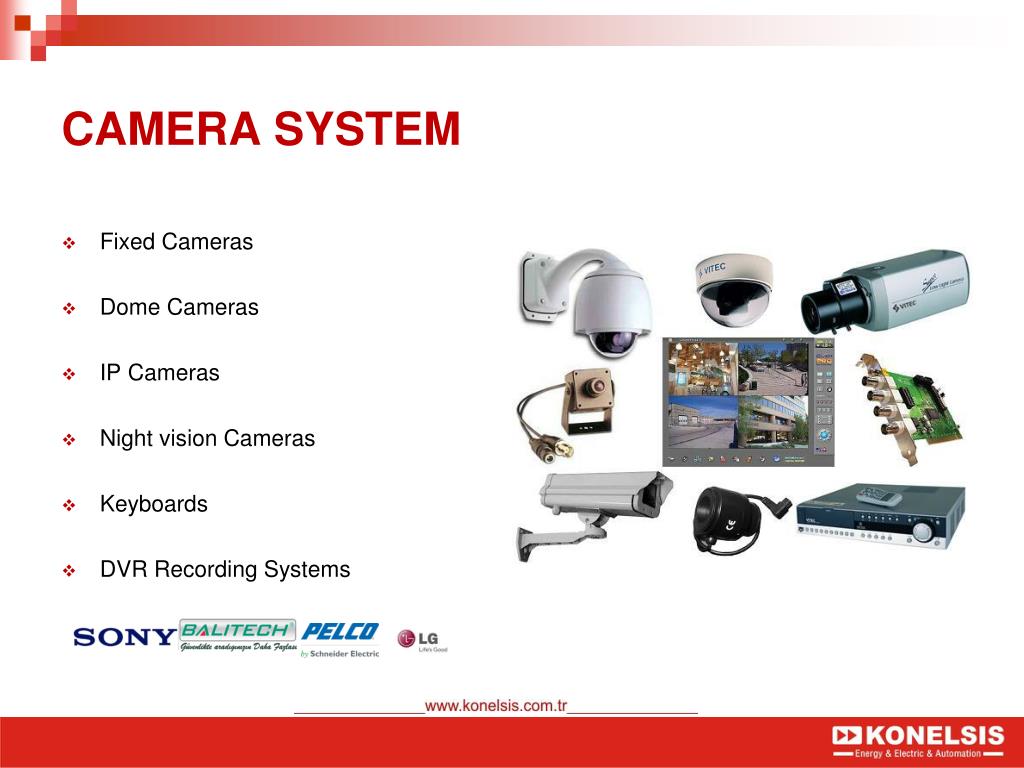

  14. CAMERA SYSTEM • Fixed Cameras • Dome Cameras • IP Cameras • Night vision Cameras • Keyboards • DVR Recording Systems

  15. FIRE ALARM SYSTEMS • Conventional Fire Detection Systems • Addressable Fire Detection Systems • Supply and İnstallation of All Kinds of Equipment

  16. MAIN REFERENCES • Erenköy HEPP - Artvin • Complete Electrical Automation System

  17. MAIN REFERENCES • Çukurçay HEPP - IspartaComplete • ElectricalAutomationSystem • Sancarlar HEPP – Malatya • Complete ElectricalAutomationSystem

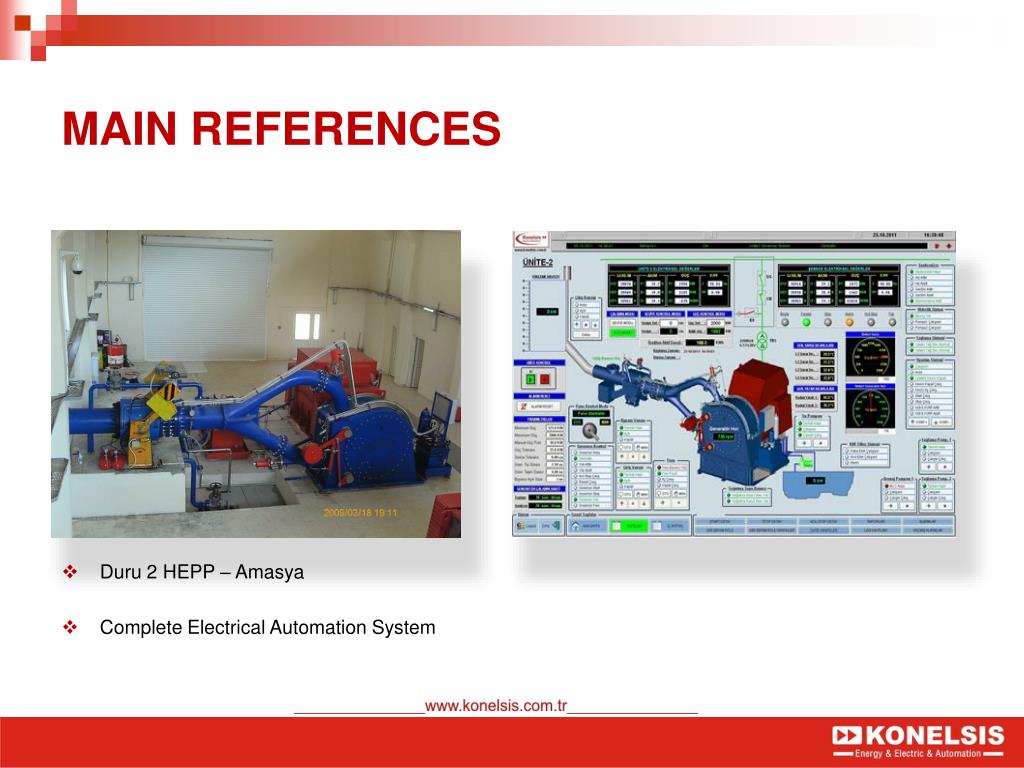

  18. MAIN REFERENCES • Duru 2 HEPP – Amasya • Complete ElectricalAutomationSystem

  19. MAIN REFERENCES • Sekiyaka 1-2 HEPP – Muğla • Complete ElectricalAutomationSystems • Teleme HEPP - Kahramanmaras • Complete Electrical Automation Systems

  20. MAIN REFERENCES • Yeşilvadi HEPP – Hatay • Complete Electrical Automation Systems

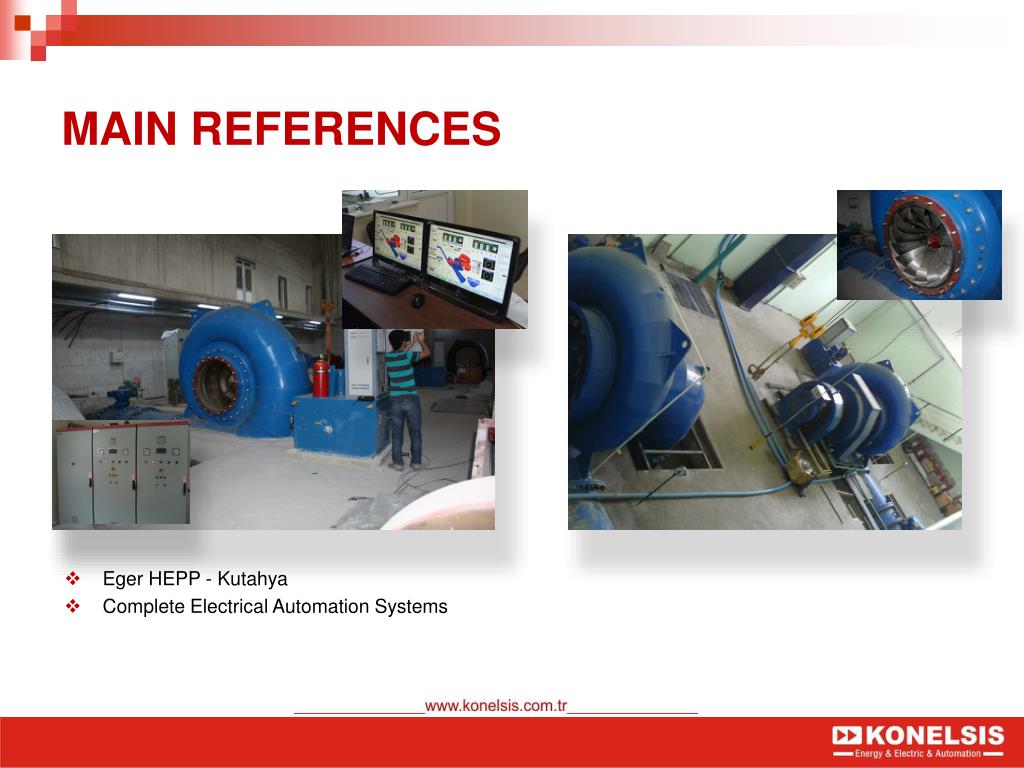

  21. MAIN REFERENCES • Eger HEPP - Kutahya • Complete Electrical Automation Systems

  22. MAIN REFERENCES • TelliHEPP – Giresun • Complete Electrical Automation Systems

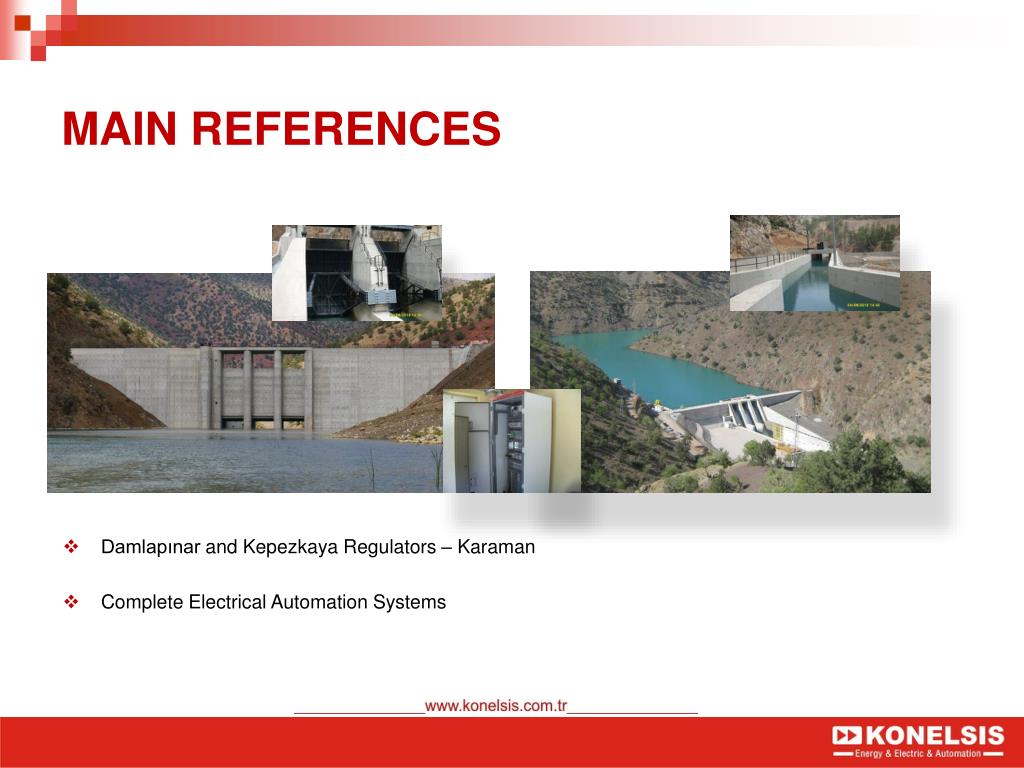

  23. MAIN REFERENCES • Damlapınar and Kepezkaya Regulators – Karaman • Complete Electrical Automation Systems

  24. OTHER REFERENCES • Ebru HEPP – Sinop / 2 x 17000kVA • Serap HEPP – Kars / 4 x 8,5MVA • Açma HEPP / 2X1600kVA • Çermikler HEPP / 2 x 12000 + 3000kVA • Çiğdem 1 HEPP – Sinop / 2x3.872 MVA • Çiğdem 2 HEPP – Sinop / 2x2.742 MVA • Çiğdem 3 HEPP – Sinop / 2x2.742 MVA • Kamer HEPP – Muş / 2 x1,9 + 1x0,85

  25. OTHER REFERENCES • Tokmadin HEPP – Giresun / 2x2000kVA • Piro HEPP – Ordu / 2x2500kVA • Kızılçam HEPP – Kastamonu / 2x900kVA • Tuana HEPP – Erzurum / 2x4500 kVA
