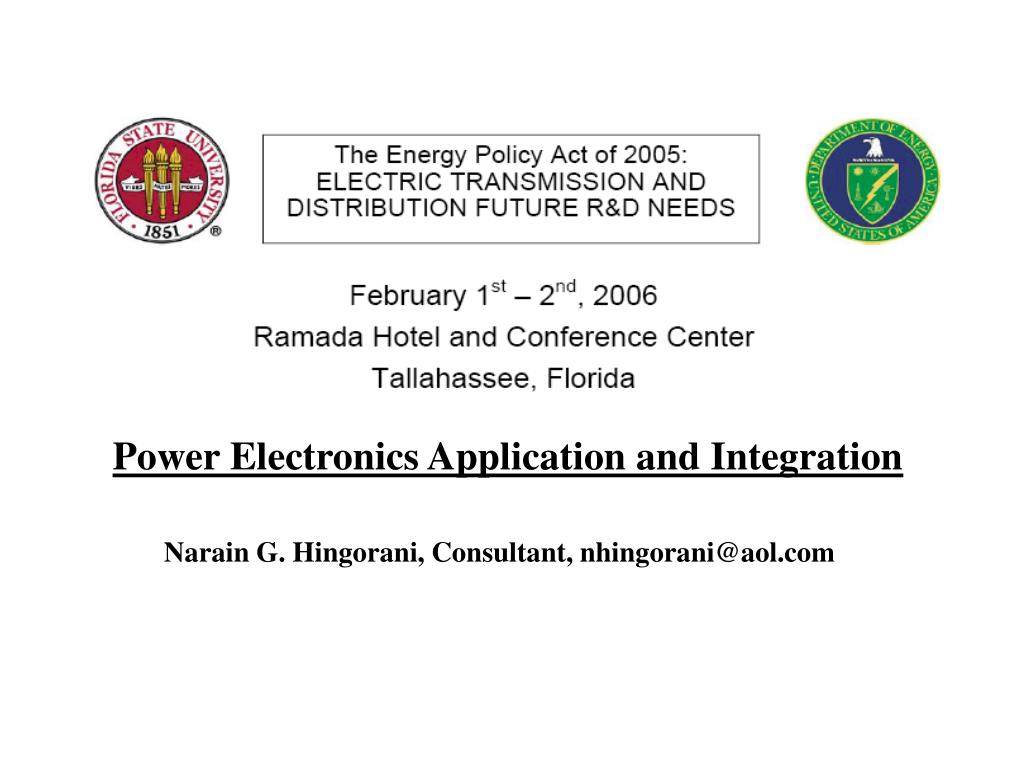

  1. Power Electronics Application and Integration Narain G. Hingorani, Consultant, nhingorani@aol.com

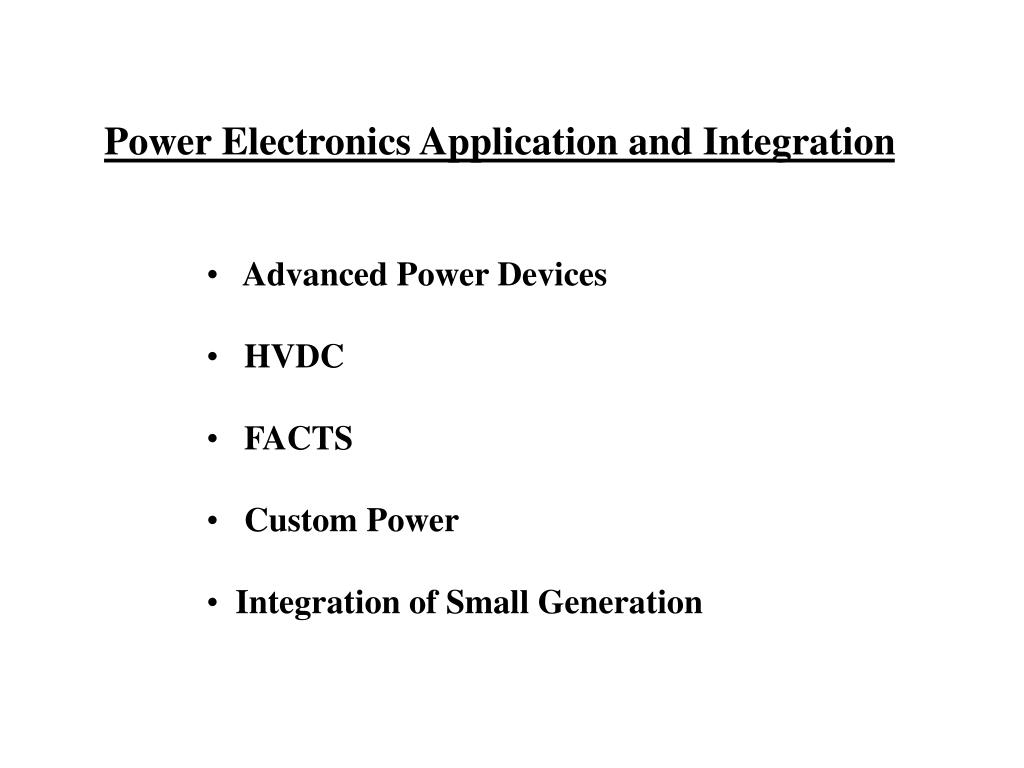

  2. Power Electronics Application and Integration • Advanced Power Devices • HVDC • FACTS • Custom Power • Integration of Small Generation

  3. A Perfect Power Electronics Switch • Turn on and off instantaneously on command • Zero switching losses • Zero conduction losses • Zero gate power requirements (accept digital signal for turn-on turn-off) • Reasonable voltage and current capability • Can be connected in series and parallel to achieve higher switch ratings • Light weight • Sustain reasonably high ambient temperatures • Programmable to serve multiple applications

  4. G S D Pd/Ag/Au Pd/Ag/Au Pd/Ag/Au AlGaN GaN AlN I - Advanced Power Devices Reduce Losses and Raise Switching Frequency • Advanced Silicon Devices Low Losses; Fast Switching; Low Thermal Resistance; Bidirectional; Integration of Passives • Wide Band Gap Devices Silicon Carbide; Gallium Nitrite; Diamond SiC

  5. High Voltage Direct Current Transmission (HVDC) • Integration of Wind Generation Farms in the Transmission Grid • 100MW to 500MW Farms • Obtaining Transmission ROW takes much longer than Building Wind Farms • Underground DC Transmission with Voltage Sourced Converters could have: Lower Cost Improved System Integration Much smaller Permit and Construction time Narain G. Hingorani

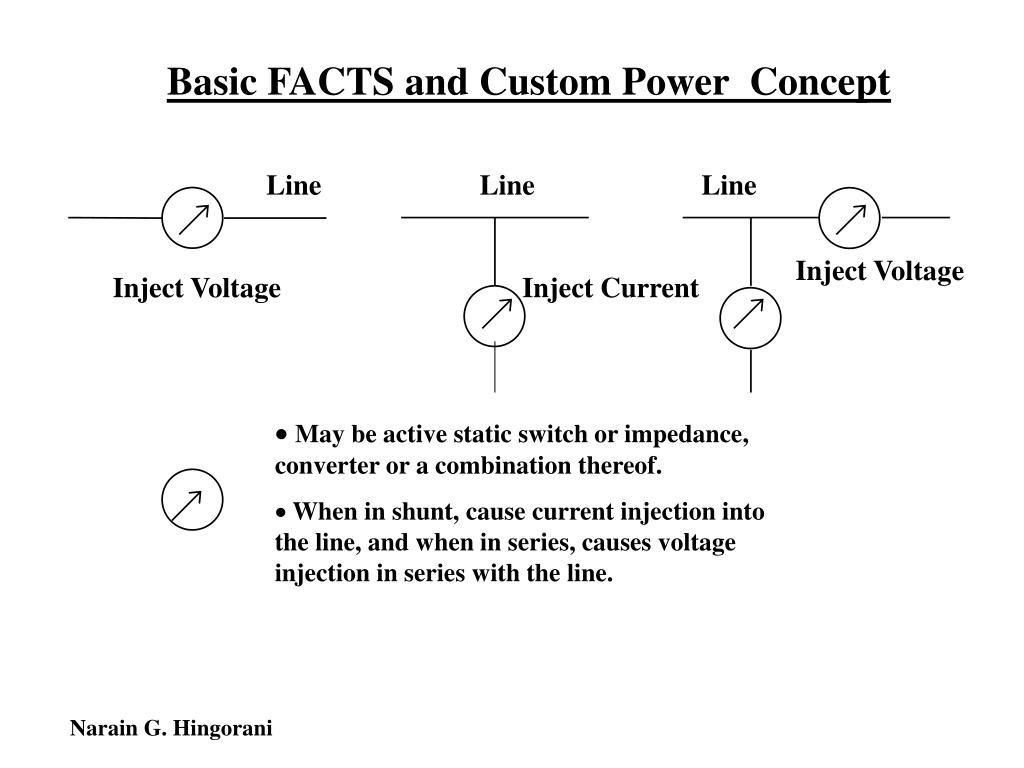

  6. Basic FACTS and Custom Power Concept Line Line Line Inject Voltage Inject Voltage Inject Current • May be active static switch or impedance, converter or a combination thereof. • When in shunt, cause current injection into the line, and when in series, causes voltage injection in series with the line. Narain G. Hingorani

  7. FACTS • GTO Controlled Series Capacitor (GCSC) Transmission Line ----------------------------------------------------------------------------------------------------- Feeder Load CUSTOM POWER • Transformer-less Load-Voltage Controller Converter --------------------------------------------------- Demonstration of 1MVA Intelligent Transformer Based Power Supply for Commercial Building Frank Goodman EPRI
