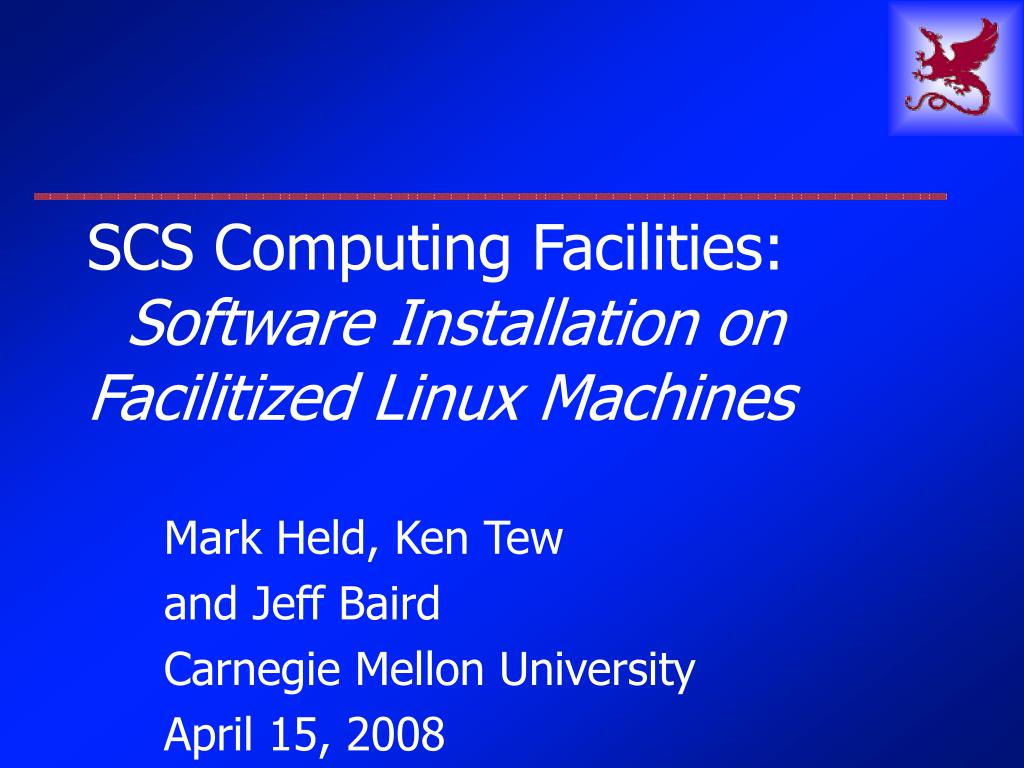

1. SCS Computing Facilities:Software Installation on Facilitized Linux Machines Mark Held, Ken Tew and Jeff Baird Carnegie Mellon University April 15, 2008

2. How Software Is Installed • These slides (and past SCS Admins Presentations) are available under http://www.cs.cmu.edu/~markh CMU / SCS Computing Facilities

3. How Software Is Installed • SUP (Software Update Program) • System files • Depot • Application Files (/usr/local) • Misc • Uses Depot for distribution • Details on how application software is prepared for distribution via Depot in the SCS Environment CMU / SCS Computing Facilities

4. SUP (Software Update Program) • SUP runs nightly • Starting at 2:00 AM • With random delays of between 0 and 5.5 hours • Delays spread out load on servers • SUP updates “system” files • Not /usr/local • Kernel, /usr/bin, /bin, /lib, /usr/lib, /etc CMU / SCS Computing Facilities

5. SUP (Software Update Program) • Uses timestamps to determine what needs to be updated on the target machine • Basically a single collection is updated • fac.<AFS_SYSTYPE> • fac.amd64_f7 For Example • What has been updated is recorded in /usr/adm/fac/sup/fac.<AFS_SYSTYPE>/last • /usr/adm/fac/sup/fac.<AFS_SYSTYPE>/when is a binary timestamp CMU / SCS Computing Facilities

6. SUP (Software Update Program) • Trigger mechanism can invoke a script when a particular file has been updated. • See /usr/adm/fac/log/sup.log for examples • Merge of local and global printcap files into /etc/printcap (and then restart cups) is an example • .global and .local conventions CMU / SCS Computing Facilities

7. SUP (Software Update Program) • .global Convention • Used by printcap, inetd.conf, services • See the “last” file for all examples • Modern applications may not require a merged file • Read all files in a directory, so merge unnecessary • Examples: Cron.d, Pam.d, Init.d, Xinetd.d CMU / SCS Computing Facilities

8. SUP (Software Update Program) • Only One SUP Server in use • Security Updates are SUP’ed out • RPMs downloaded, then run • SUP will NOT delete local additions • Even overwritten files are not touched if the timestamp is newer than the file in the repository. CMU / SCS Computing Facilities

9. SUP (Software Update Program) • To halt SUP (and Depot) updates • Touch /etc/disableupdates (as local root) • Dangerous, as you will not get security updates • Machine could get into a “bad” state from which it cannot recover without intervention CMU / SCS Computing Facilities

10. SUP (Software Update Program) • FC5 Versus F7 • The Fedora folks are including more packages with their OS distribution • The “C” means (meant) “Core” • Consequently some applications have migrated from /usr/local to /usr/bin and /bin CMU / SCS Computing Facilities

11. Depot • Depot maintains the /usr/local directory hierarchy • AFS-based repository of applications copied to local disks of all facilitized machines • 2nd part of the nightly ‘dosupdepot’ process CMU / SCS Computing Facilities

12. Depot • Depot can be used to integrate local software into the /usr/local hierarchy • Process is relatively easy CMU / SCS Computing Facilities

13. Depot – Integration into /usr/local • First, install your software into: • /usr0/local • Do not leave “cruft” in the /usr0/local directory structure • Make sure that all paths are relative or if absolute refer to /usr/local (and not /usr0/local) CMU / SCS Computing Facilities

14. Depot – Integration into /usr/local • Second, In your /usr/local/depot/depot.pref.local file add the following line:   path  mylocal  /usr0/local • This will tell depot to look in /usr0/local for a collection called 'mylocal' and link all of files found there into the /usr/local hierarchy.  CMU / SCS Computing Facilities

15. Depot – Integration into /usr/local • Note that you can install multiple packages into /usr0/local and depot will link all of them into your /usr/local environment. • The install directory does not have to be /usr0/local, and directory will do. • However, /usr0 is backed up. CMU / SCS Computing Facilities

16. Depot – Integration into /usr/local • Third, as root, run the “dosupdepot” command.  • Save the output somewhere, such as: dosupdepot >> /tmp/depot.log 2>&1 • Then “tail –f /tmp/depot.log” to see the output as it is written. • Nightly runs will store log output in the /var/adm/fac.log directory CMU / SCS Computing Facilities

17. Depot – Integration into /usr/local • Fourth, if there are ‘conflict’ errors in the log file and depot did not successfully complete, add the following to your depot.pref.local file: • In this example I am assuming that the 'java' collection is the one that is in conflict with your software install override  mylocal  java CMU / SCS Computing Facilities

18. Depot – Integration into /usr/local • Depot finds conflict errors one at a time. • Once a conflict is encountered, depot exits • So, you have to keep running depot, and adding “overrides” until depot runs without finding conflicts • So a depot.pref.local file with multiple overrides would look like: • override mylocal java,foo,bar CMU / SCS Computing Facilities

19. Depot – Integration into /usr/local • Installing directly in /usr/local • This can also be done, but you need to tell depot to ignore the new application • By default, depot will remove ANYTHING in /usr/local of which it is unaware CMU / SCS Computing Facilities

20. Depot – Integration into /usr/local • To protect files under /usr/local • You simply have to add a “specialfile” directive into the depot.pref.local file • The “specialfile” directive can protect hierarchies or individual files • specialfile lib/foo • specialfile lib/firefox-2.0.0.5/plugins/libflashplayer.s CMU / SCS Computing Facilities

21. Misc Applications • Misc Applications are ‘depot-ed’ out to all machines with each depot run. • Depot integrates Misc Applications into /usr/local on facilitized Linux Machines • Not “all” Misc Applications, some must be requested • Ex: httpd, or wwwserv • Most Misc collections are maintained by volunteer maintainers • When you complain about missing software you are given the opportunity to provide it to the User community CMU / SCS Computing Facilities

22. Misc Applications • Misc Maintainers receive • AFS Disk Space for Source and Binaries • Control over releases of their software • Alpha, Beta and Omega Environments • Ability to build and test new releases • Integration of their offering into the /usr/local hierarchy CMU / SCS Computing Facilities

23. Misc Applications • Misc Applications’ releases are defined by the coll.conf file • All Misc Applications have a “common” directory • Usually this is an AFS mountpoint to a “common” volume • /afs/cs/misc/<APPLICATION-NAME>/common/conf/coll.conf CMU / SCS Computing Facilities

24. Misc Applications – coll.conf • Coll.conf file tells depot where to find packages. • stored in: /afs/cs/misc/<collection/common/conf/coll.conf • template in: /afs/cs/misc/tools/src/samples/coll.conf CMU / SCS Computing Facilities

25. Misc Applications – coll.conf • Minimum information required: • sys_types  all the systems the collection is released for (any versions) • alpha, beta, omega and default definitions • these should be aliases CMU / SCS Computing Facilities

26. Misc Applications – coll.conf • Other information • named releases for each version • specific sys_type releases. CMU / SCS Computing Facilities

27. Misc Applications – coll.conf • Named releases: • contents <release-name> <relative path(s) to code> • Examples: • contents 4.2.4 @sys/4.2.4 common/4.2.4 • Note: release-name 4.2.4 does NOT have to be same as pathname 4.2.4 • contents 4.3.2 @sys/4.3.2 common/4.3.2 • contents empty common/empty CMU / SCS Computing Facilities

28. Misc Applications – coll.conf • Using aliases for named releases • alias alpha 4.3.2 • alias beta  4.2.4 • alias omega empty CMU / SCS Computing Facilities

29. Misc Applications – coll.conf • Platform specific overrides • Syntax: • on <sys_type> alias <alias-name> <release-name or other alias> • Example: • on amd64_fc3 alias omega 4.2.4 CMU / SCS Computing Facilities

30. Misc Applications – psmake • Building misc collections use “psmake” • Psmake is a tool developed to efficiently work in the SCS environment • psmake allows you to build on multiple platforms from a single afs source tree • Facilities provides machines of each sys_type for building misc collections: • <sys_type>.sp.cs.cmu.edu CMU / SCS Computing Facilities

31. Misc Applications – psmake • Building for each platform will simply require: • Logging into build machine of the desired sys_type • Moving to misc src area • Running: • psmake init all (initialize and build package) • psmake check (test build - if package provides) • psmake install (install to afs misc sys_type area) Building misc collections CMU / SCS Computing Facilities

32. Misc Applications – psmake • Details on using psmake • Requires PSMakefile • Sample file available from: /afs/cs.cmu.edu/misc/tools/src/samples/PSMakefile-autoconf CMU / SCS Computing Facilities

33. Misc Applications – psmake • For new misc collections: • Untar the source in the misc source area • Copy the sample PSMakefile to the root of the source area as PSMakefile CMU / SCS Computing Facilities

34. Misc Applications – psmake • Edit the following in the PSMakefile: 1) Comment out second line: ## This is a sample; you need to edit it for it to be useful. die "Read and edit the PSMakefile first!\n"; 2) Set the package (misc collection) name ## Set to the package name as it appears in directory names: $_package = 'sample'; CMU / SCS Computing Facilities

35. Misc Applications – psmake • Edit the following in the PSMakefile (Cont’d): 3). Set the version pattern: ## Uncomment one of the following two lines.  Convention says you should ## use the first variant unless there is more than one package in the same ## collection. # $ReleasePat =~ s/omega/$_version/; # $ReleasePat =~ s/omega/$_package-$_version/; You should always pick 1st pattern unless multiple software packages are under one misc collection – (ex. httpd) CMU / SCS Computing Facilities

36. Misc Applications – psmake • Edit the following in the PSMakefile (Cont’d): 4) If you need to add ./configure options for ALL sys_types add them here: ## Fill in any additional platform-independent configure options here. @configure_args = ( '--prefix=/usr/local' ); Or just below this section for system dependent arguments. CMU / SCS Computing Facilities

37. Misc Applications – psmake • Once the PSMake file is configured it can usually be re-used for newer releases. • Create a README.cmu file in the misc/<name>/src which includes:   - Where the code came from   - Any problems you encountered in building   - Any special configuration options needed   - Commands you ran to build and install the code CMU / SCS Computing Facilities

38. Misc Applications – psmake • What to do if code already installs under /usr/local • Depot will take the contents of the /afs/cs/misc/<name>/<sys_type>/<version> and put it under    /usr/local • The simplest solution is to create a /afs/cs/misc/<name>/<sys_type>/<version>/depot.conf with the   contents: usr/local/bin     bin usr/local/lib     lib usr/local/lib64   lib64 usr/local/man     man usr/local/share   share • And so on…. CMU / SCS Computing Facilities
