Quantitative Chemistry

Quantitative Chemistry. Topic 1 SL + HL. 1.1 Mole concept and Avogadro’s Constant. 1 mol = Avogadro’s Constant = N A = Number of atoms in 12 gram 12 C (def.) = 6.02*10 23 units Mole = n = Amount of substance, with the unit mol.

danil
Télécharger la présentation

Quantitative Chemistry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

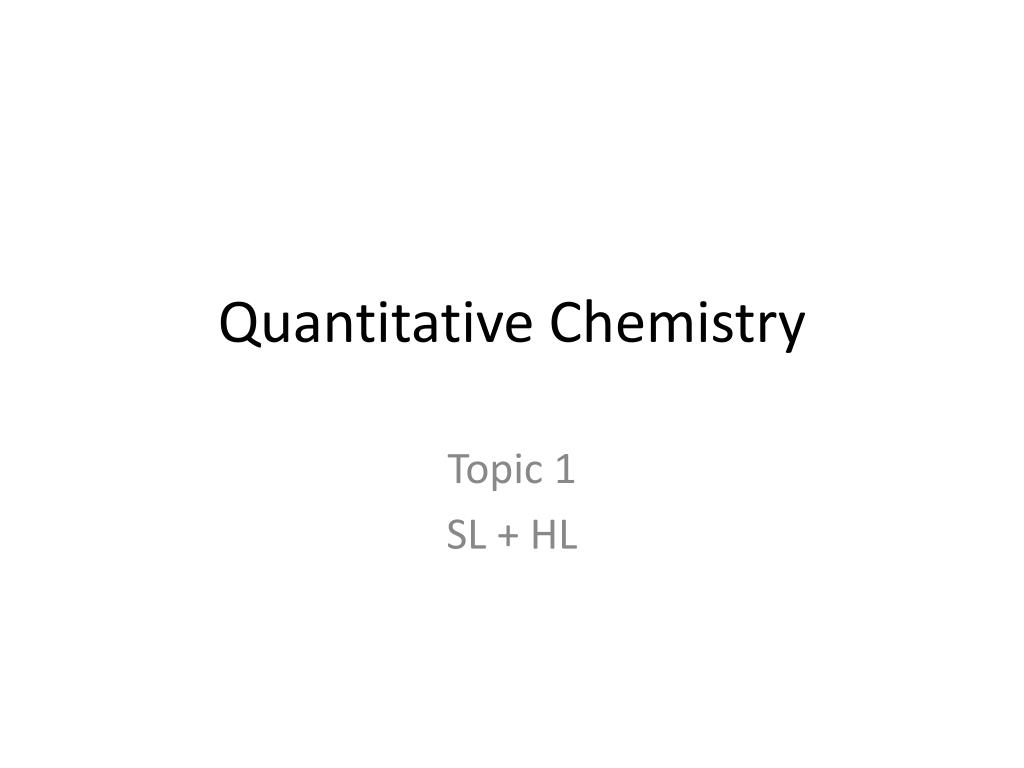

  1. Quantitative Chemistry Topic 1 SL + HL

  2. 1.1 Mole concept and Avogadro’s Constant • 1 mol = • Avogadro’s Constant = • NA = • Number of atoms in 12 gram 12C (def.) = • 6.02*1023 units • Mole = n = Amount of substance, with the unit mol

  3. 1 mol equals: • 6.02*1023 Hydrogen atoms, H • 6.02*1023 Hydrogen molecules, H2 • 6.02*1023 Water molecules, H20 • 6.02*1023 formulaunits of SodiumChloride, NaCl If you have 1 mol of something, then you have6.02*1023 units of that.

  4. In 1 mol of H2-molecules there is 2 mol Hydrogen atoms 1 = 2 • In 1 mol of H2O molecules there is 3 mol of atoms; 2 mol of H-atoms and 1 mol of O-atoms 1 = 3 =2 =1

  5. 1.2 Formulas A 12C-atom have by definition the mass =12 All other atoms or molecules masses relates to that mass. How much heavier or lighter they are. • Masses of single atoms and single molecules, single formula units are therefore called: • Relative atomic mass, Ar • Relative molecular mass, Mr • Relative formula mass, Mr Relative masses have no unit in IB (in other system the unit can be u or amu)

  6. Relative mass => Mass of 1 mol • Mass of 1 H-atom: Ar= 1.01 Mass of 1 molH-atoms = 1.01g Atomic mass • Mass of 1 H2-molecule: Ar= 2.016 Mass of 1 mol H2-molecule= 2.016 g Molecular mass • Mass of NaCl = Ar = 58.44 Mass of 1 mol NaCl = 58.44 g Formula mass Different masses, same figures

  7. Calculate the mass of one mole of a species from its formula. The term molar mass, M, will be used. Unit: g/mol If you know the formula of a compound, then you know the molar mass of the compound.

  8. You find the masses of the atoms in the Periodic table The Molar mass of water , H2O M = 2*1+16 = 18g/mol The Molarmassof (NH4)2SO4 M= (14+4*1)2 + 32 + 16*4 = 132 g/mol The Molar mass of CuSO4*5H2O M= 63.5 + 32 + 16*4 + 5(2*1 + 16) = 249.5 g/mol

  9. Relationship between the amount of substance in moles, mass and molar mass => The table QuantityUnit Mass, m g Molar mass, M g/mol (usually known) Mole, n mol Downwards: divide Upwards: multiply You can always do a unit analysis, to check your calculation

  10. Examples You have 34 g of Ammonia. How many mole is that? • Write the Formula of the compound. • Write the table • Fill in what you know and ? • Calculate

  11. 1. Write the Formula of the compound. NH3

  12. 2. Write the table NH3 m g M g/mol n mol

  13. 3. Fill in what you know and ? NH3 m 34 g M 17 g/mol (from periodic table) n ? mol

  14. 4. Calculate NH3 Downwards m 34 g => divide M 17 g/mol n 34/17= 2 mol Answer: 2 mol

  15. New example You have 0.50 mol of NaCl. How many gram is that?

  16. 1. Write formula2. Write table NaCl m g M g/mol n mol

  17. 3. Fill in know and ?4. Calculate NaCl m ? g M 58.5 g/mol (from periodic table) n 0.50 mol Upwards: multiply 0.5 * 58.5 = 29.25 g Answer: 29 g (significant figures)

  18. Percent Composition of Compounds Percent composition of a compound is usually the Masspercent of the elements in a compound, e.g. H2O M = 18 g/mol Mass% H = 2/18 = 0.111 = 11.1% Mass% O = 16/18 = 0.888 = 88.8% (Very seldom is the % composition referred to number of atoms; e.g. H2O have 3 atoms % H= 2/3 = 67% and %O = 1/3 = 33%)

  19. Empirical and Molecular formula • Molecular formula: Shows the actual number of each atom/element in a compound, e.g. Ethane C2H6 Glucose C6H12O6 • Empirical formula: Shows only the ratio of the elements in a compound, e.g. Ethane CH3 Glucose CH2O (Formulas of salts is empirical formulas)

  20. Determining the Empirical formula • You can determine the empirical formula fromthe percentage composition • Use the table • Assume that you have 100g of the compound • Calculate number of moles • Compare Mole-ration. The ratio give the formula

  21. Example A compound is found to consist of: 70.58 % C, 5.93 % H, 23.49 % O (=100%) What’s the formula for this compound? • Assume 100 g of the compound. • Calculate number of moles

  22. C H O Mass% 70.58 5.93 23.49 (=100%) m 70.58 5.93 23.49 g (=100g) M 12.01 1.01 16.00 g/mol n 5.88 5.87 1.47 mol Check the ratio (divide with the lowest)

  23. C H O 5.885.871.47 1.47 1.47 1.47 4 : 4 : 1 Empirical formula C4H4O

  24. Molecularformula If you know the Empirical formula, C4H4O, and you know the Molar mass of the compound, 136 g/mol then you can calculate the Molecular formula. C4H4O M = 68 g/mol To Low C8H8O2 M = 136 g/mol Correct C12H12O3 M = 204 g/mol To High

  25. 1.3 Chemical Equations • A chemical reaction describes what is going on in a chemical reaction. • Shows the Reactant(s) • Shows the Product(s) • Show the Ratio between the compounds (if correct balanced) • Can show in which state the compounds are: (s) solid, (l) liquid, (g) gas, (aq) water solution (the most common)

  26. Examples ReactantsProducts Propane + Oxygen  Carbon dioxide + water Word equation gives only the compounds. Equation must be balanced C3H8 + 5 O23 CO2 + 4 H2O Now we have a balanced equation = same number of all elements on both sides of the reaction arrow. The green numbers = subscripts; cannot be changed (a certain compound have a certain formula, if you change the formula you change the compound) The red numbers = coefficients; changes so that the reaction will be balanced (coefficients is valid only for a specific reaction)

  27. What does an equation tell us? C3H8(g) + 5 O2(g)  3 CO2(g) + 4 H2O(l) • The state of the compounds • That you need 5 Oxygen molecules/Propane • 1 Propane molecule will produce 3 Carbon dioxide molecules and 4 Water molecules • Etc • Or multiples thereof

  28. Calculate mass etc in a reactionExamples If you start with 15 g of propane: Which mass of oxygen do you need and which mass of carbon dioxide and water do you get? • Write the balanced reaction equation • Write the table • Fill in known and ?

  29. C3H8 + 5 O2 3 CO2 + 4 H2O m 15g ? ? ? M 44g/mol 32g/mol 44g/mol 18g/mol n • Calculate mol of propane (down =divide) • Go to next compound on the “mol level”. Check the Ration between the compounds.

  30. C3H8 + 5 O2 3 CO2 + 4 H2O m 15g ? ? ? M 44g/mol 32g/mol 44g/mol 18g/mol n 0.34mol 1:5 1.7mol 5:3 1.02mol 3:4 1.36mol 1. Go upwards = multiply to get the masses

  31. C3H8 + 5 O2 3 CO2 + 4 H2O m 15g 54.5g 44.9g 24.5g M 44g/mol 32g/mol 44g/mol 18g/mol n 0.34mol 1:5 1.7mol 5:3 1.02mol 3:4 1.36mol

  32. More examples Sodium reacts with chlorine and the product is sodium chloride. If you want to make 10 g of sodium chloride how many grams of sodium and chlorine do you need? • Write the balanced equation • Write the table • Fill in known and ?

  33. 2 Na + Cl2 2 NaCl m ? ? 10g M 58.5g/mol n Mol of NaCl? Down = divide Go on “mol level” to other compounds. Check Ratio

  34. 2 Na + Cl2 2 NaCl m ? ? 10g M 23g/mol 71g/mol 58.5g/mol n 0.17mol 2:1 0.08mol 1:2 0.17mol 1. Up = multiply 2 Na + Cl2 2 NaCl m 3.9g 6.1g 10g M 23g/mol 71g/mol 58.5g/mol n 0.17mol 2:1 0.08mol 1:2 0.17mol

  35. More examples Ammonia, NH3, can be made from Nitrogen and Hydrogen. What mass of ammonia can you get from 168 g of Nitrogen and 24 g of Hydrogen? • Write balanced equation • Write table • Fill in known and ? • Calculate mol

  36. N2 + 3 H2 2 NH3 m 168 g 24 g ? M 28 g/mol 2 g/mol 17 g/mol n 6 mol 12 mol Theoretical ratio between N2 and H2=> 1:3 Actual ratio between N2 and H2 => 1:2 We need 18mol of H2 if all N2 should react : Nitrogen is in excess. Hydrogen is limiting reactant, and decides amount of product that can be formed. N2 + 3 H2 2 NH3 m 168 g 24 g 136g M 28 g/mol 2 g/mol 17 g/mol n 12 mol 3:2 8mol

  37. 1.4 Theoretical and Percent yield The theoreticalyield in the example was 136g. In real life nothing is perfect. Some of the reactants may not react or they react and become something else etc. Lets say that you only end up with 105g product. Percentyield = 105/136 = 77%

  38. GAS A gas have under standard condition the mol volume: 22.4 dm3/mol

  39. Reacting gas volumes For a gas at a constant temperature and pressure, the volume is directlyproportional to the number of moles of gas. The mol ration  The volume ratio

  40. If you have 2 dm3 of Hydrogen gas, which volume of Oxygen do you need for complete reaction and which volume of water vapour will you get? (Constant: Pressure and Volume) 2 H2(g) + O2(g) 2 H2O(g) 2dm3 ? ? Mol Ratio 2 : 1 : 2 Volume Ratio => 2 H2(g) + O2(g) 2 H2O(g) 2dm31 dm3 2 dm3

  41. Under other conditions The ideal gas equation pV=nRT p = Pressure; Pa V = Volume; m3 OBS! Usually in chemistry dm3 n = Mole; mol T = Temperatur; K OBS! K = 273 +oC R = Gas constant; 8.314 J/mol*K

  42. Example 6.0 g Carbon burns in Oxygen. Give the volume of formed Carbon dioxide. Temperature = 400K Pressure = 1.0 kPa =100 000Pa • Balanced Equation • Table • Fill in known and ? • Calculate

  43. C + O2 CO2 m 6.0g M 12g/mol n 0.50 mol  1 : 1  0.50 mol Use the gas law: pV = nRT V = nRT/p = 0.50*8.314*400/100000 = 0.017m3 V= 17 dm3

  44. 1.5 Solutions Solute + SolventSolution = Substances = the liquid You often have to dissolve chemicals to make them react

  45. The composition of Solutions can be given in many ways, e.g. Mass percent = Mass of substance/Mass of solution Volume percent = volume of solute/ totaleVol Mol fraction = Xa = na/(na+nb) Molality= moles of solute/kg of solvent Gram/dm3(IB sullabus) Molarity = moles of solute/ dm3 of solution (IB sullabus) Concentration in mol/dm3 is often represented by square brackets around the substance under consideration, eg [HCl]

  46. Examples You dissolve 59.5 g of Potassium Bromide in water to 750 cm3. What’s the concentration/molarity? • Write compound formula • Write the table; add volume and concentration • Fill in known and ?

  47. KBr m 59,5 g M 119 g/mol n V 0.75 dm3 c ? OBS! Don’t mix up the V in solutions and the V in gas equation. Gas equations relation to the table is the number of moles; n

  48. KBr Down = divide m 59,5 g M 119 g/mol n 0.500 mol V 0.75 dm3 c 0.667 mol/dm3 [KBr] = 0.667 M (Capital M as a unit is often used instead of mol/dm3, don’t mix up with M for Molar mass) Square brackets = concentration of….

  49. More Examples How many grams of NaCl is it in 200 cm3of a solution with the concentration of 0.50 mol/dm3? • Write compound formula • Write the table; add volume and concentration • Fill in known and ?

  50. NaCl m ? Up = multiply M 58.5 g/mol n V0.200 dm3 C 0.50 mol/dm3 ___________________________________________________ NaCl m 5.9 g M 58.5 g/mol n 0.10 mol V 0.200 dm3 C 0.50 mol/dm3
