  1. How Web Services are introduced in a CLARIN Workflow WSDL and WADL files for Web Service description.

  2. What is needed basically? • In order to include a web service in a general workflow the following data is needed: • Protocol used for communication • Location of web service • List of operations offered by this web service • Description of the data types used in those operations

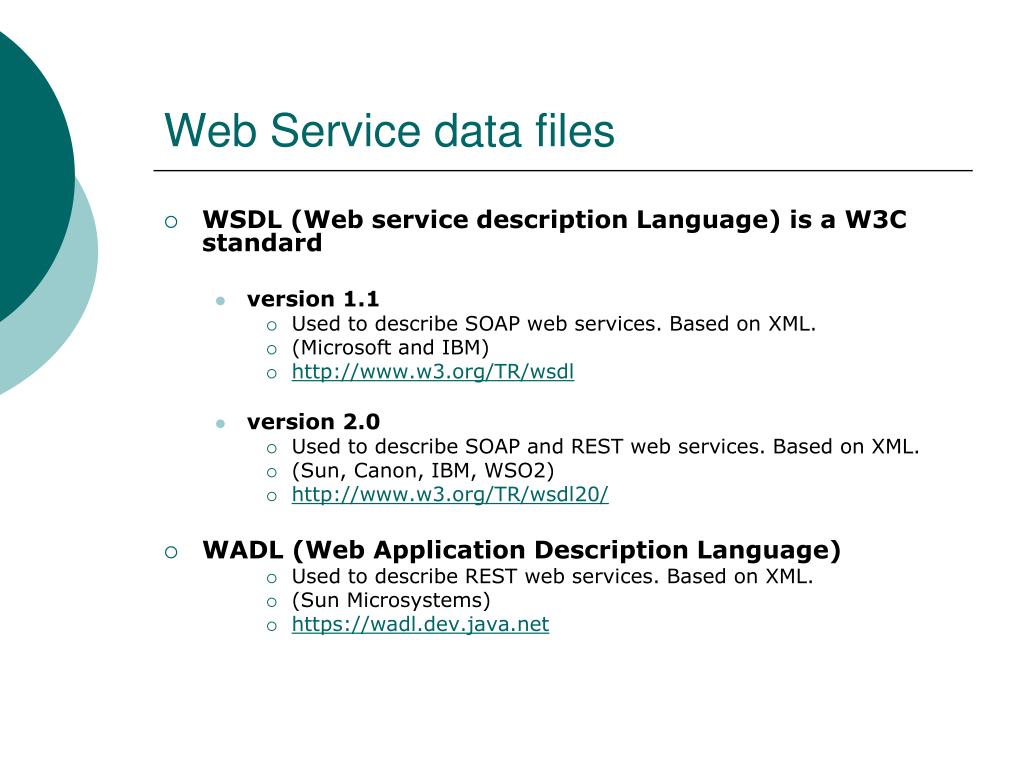

  3. Web Service data files • WSDL (Web service description Language) is a W3C standard • version 1.1 • Used to describe SOAP web services. Based on XML. • (Microsoft and IBM) • http://www.w3.org/TR/wsdl • version 2.0 • Used to describe SOAP and REST web services. Based on XML. • (Sun, Canon, IBM, WSO2) • http://www.w3.org/TR/wsdl20/ • WADL (Web Application Description Language) • Used to describe REST web services. Based on XML. • (Sun Microsystems) • https://wadl.dev.java.net

  4. SOAP cannot use WADL • REST Web Services can pack all description data in a WADL file or in a WSDL 2.0 file. • WADL and WSDL languages are essentially the same but WADL is more specific to REST. It is also easier to use. • WADL is not standard (neither is REST) but since WADL is easier to use (like REST) probably will be widely accepted (like REST).

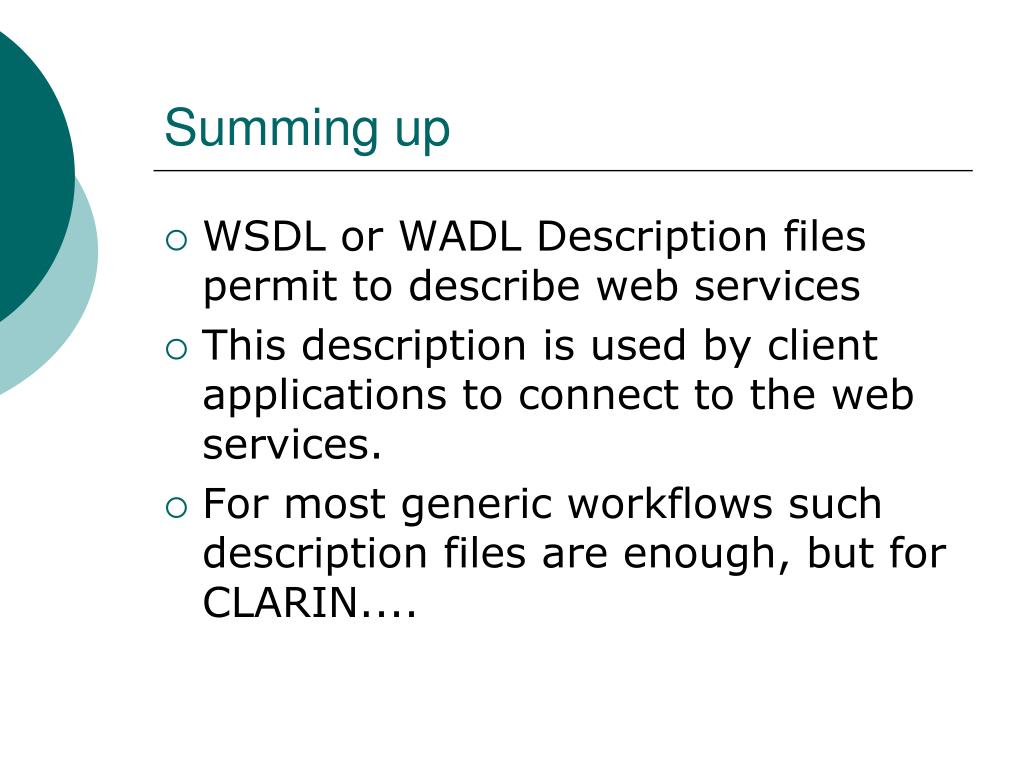

  5. Summing up • WSDL or WADL Description files permit to describe web services • This description is used by client applications to connect to the web services. • For most generic workflows such description files are enough, but for CLARIN....

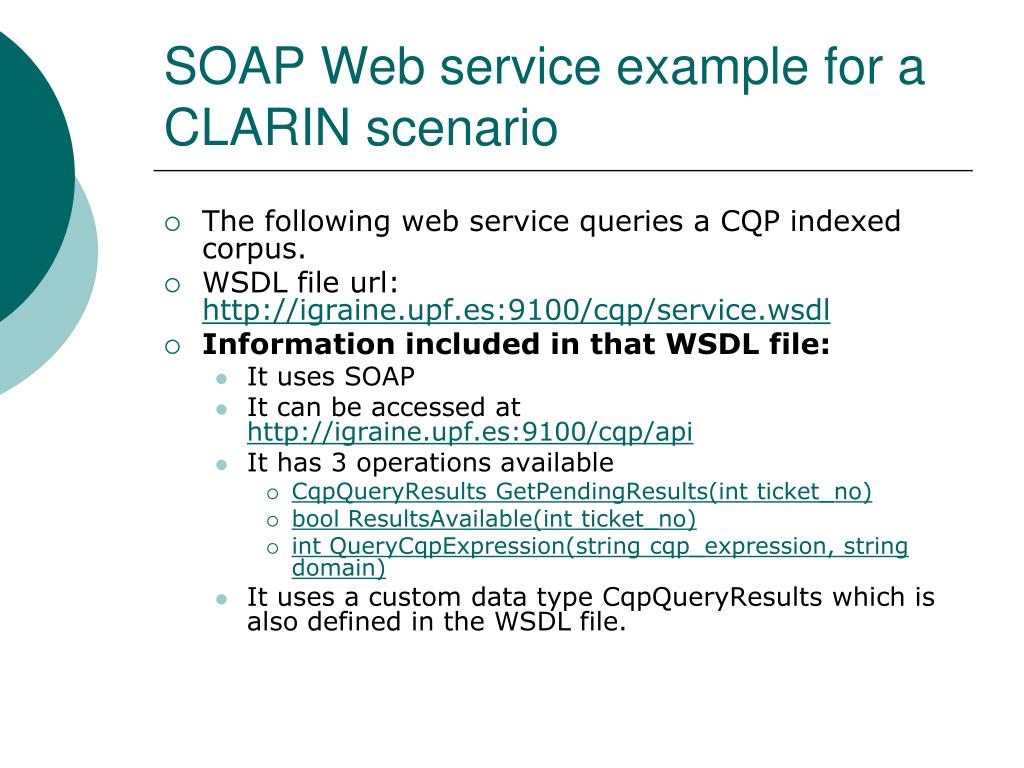

  6. SOAP Web service example for a CLARIN scenario • The following web service queries a CQP indexed corpus. • WSDL file url: http://igraine.upf.es:9100/cqp/service.wsdl • Information included in that WSDL file: • It uses SOAP • It can be accessed at http://igraine.upf.es:9100/cqp/api • It has 3 operations available • CqpQueryResults GetPendingResults(int ticket_no) • bool ResultsAvailable(int ticket_no) • int QueryCqpExpression(string cqp_expression, string domain) • It uses a custom data type CqpQueryResults which is also defined in the WSDL file.

  7. Using the web service: Binding process example with WSDL. Step 1: Get WS Location • Look for the ‘Service’ Tag <service name="CQPService"> <port name="CQPCqpPort" binding="typens:CQPCqpBinding"> <soap:address location="http://igraine.upf.es:9100/cqp/api"/> </port> </service>

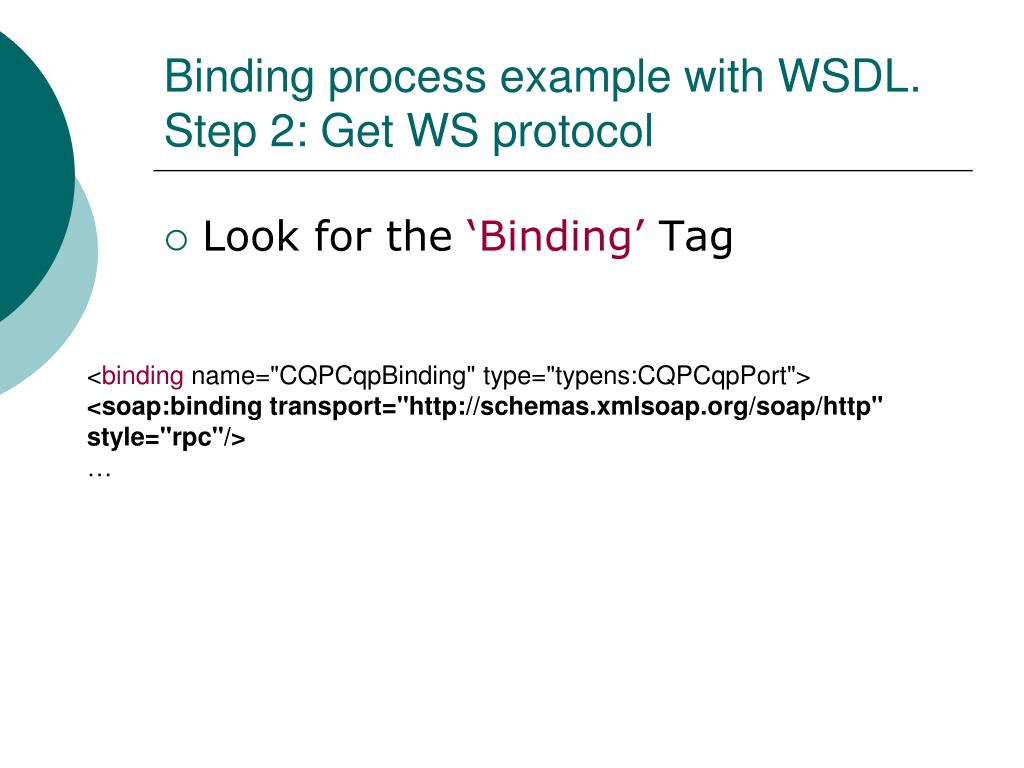

  8. Binding process example with WSDL. Step 2: Get WS protocol • Look for the ‘Binding’ Tag <binding name="CQPCqpBinding" type="typens:CQPCqpPort"> <soap:binding transport="http://schemas.xmlsoap.org/soap/http" style="rpc"/> …

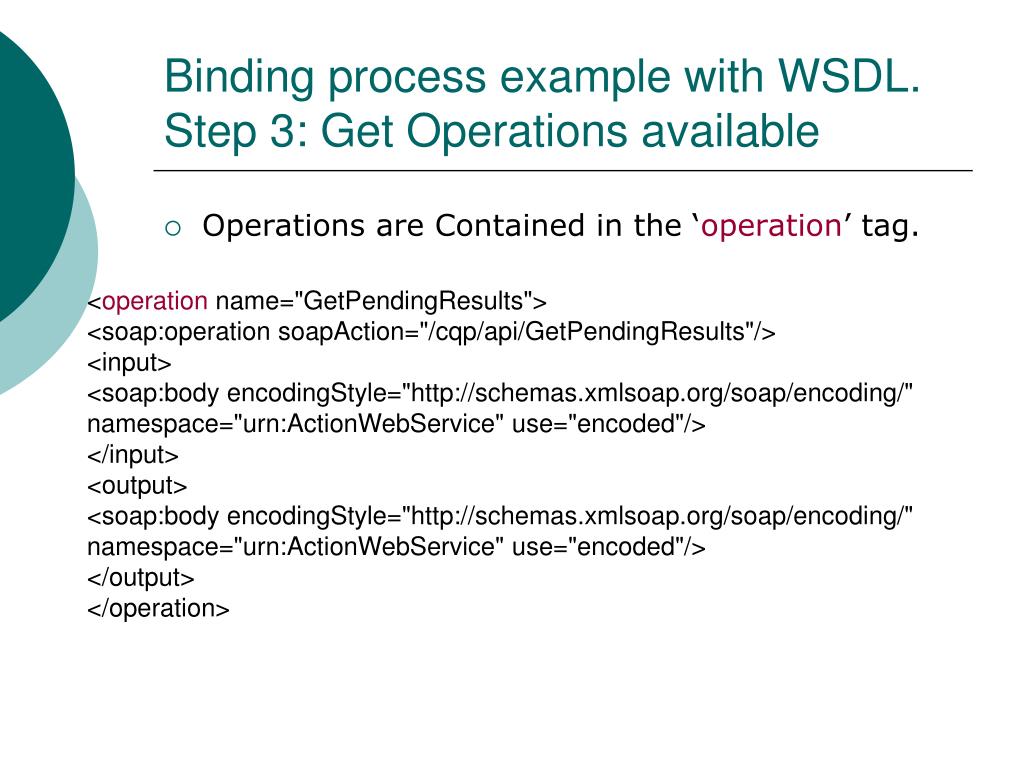

  9. Binding process example with WSDL. Step 3: Get Operations available • Operations are Contained in the ‘operation’ tag. <operation name="GetPendingResults"> <soap:operation soapAction="/cqp/api/GetPendingResults"/> <input> <soap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="urn:ActionWebService" use="encoded"/> </input> <output> <soap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="urn:ActionWebService" use="encoded"/> </output> </operation>

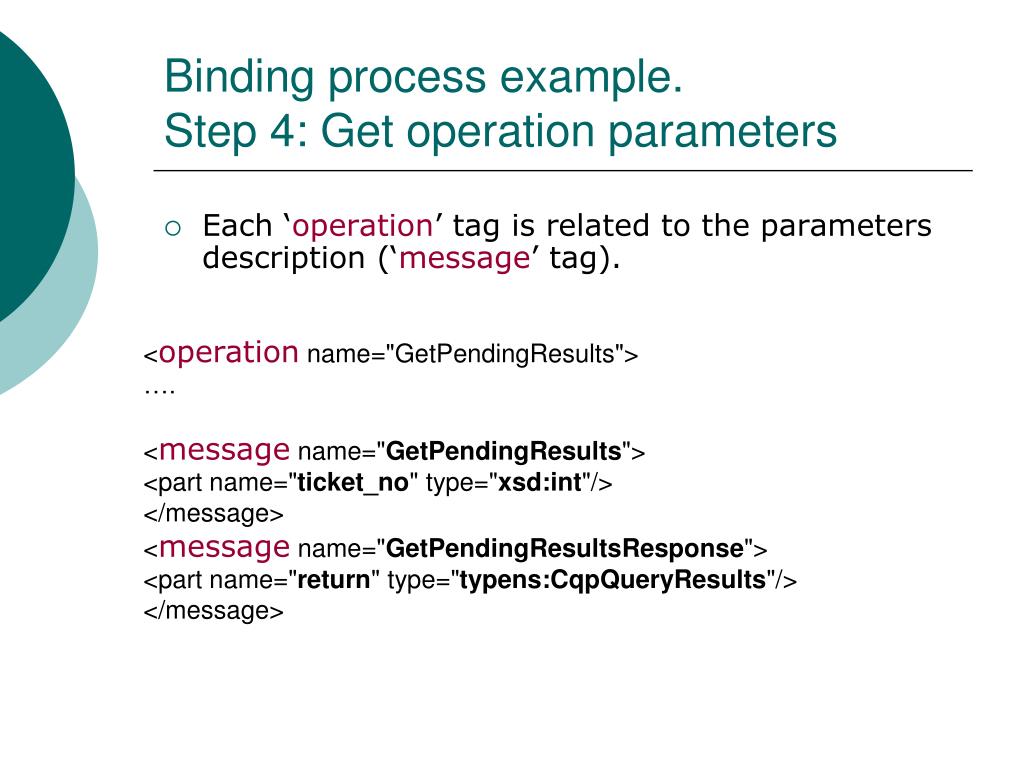

  10. Binding process example. Step 4: Get operation parameters • Each ‘operation’ tag is related to the parameters description (‘message’ tag). <operation name="GetPendingResults"> …. <message name="GetPendingResults"> <part name="ticket_no" type="xsd:int"/> </message> <message name="GetPendingResultsResponse"> <part name="return" type="typens:CqpQueryResults"/> </message>

  11. Binding process example with WSDL. Step 5: Get custom types definition • Operation parameters may have custom data types. Those are described in the ‘ComplexType’ tag and can be nested. <operation name="GetPendingResults"> …. <message name="GetPendingResultsResponse"> <part name="return" type="typens:CqpQueryResults"/> </message> … <xsd:complexType name="CqpQueryResults"> <xsd:all> <xsd:element name="error_msg" type="xsd:string"/> <xsd:element name="result" type="typens:CqpResultLineArray"/> <xsd:element name="error" type="xsd:boolean"/> </xsd:all> </xsd:complexType>

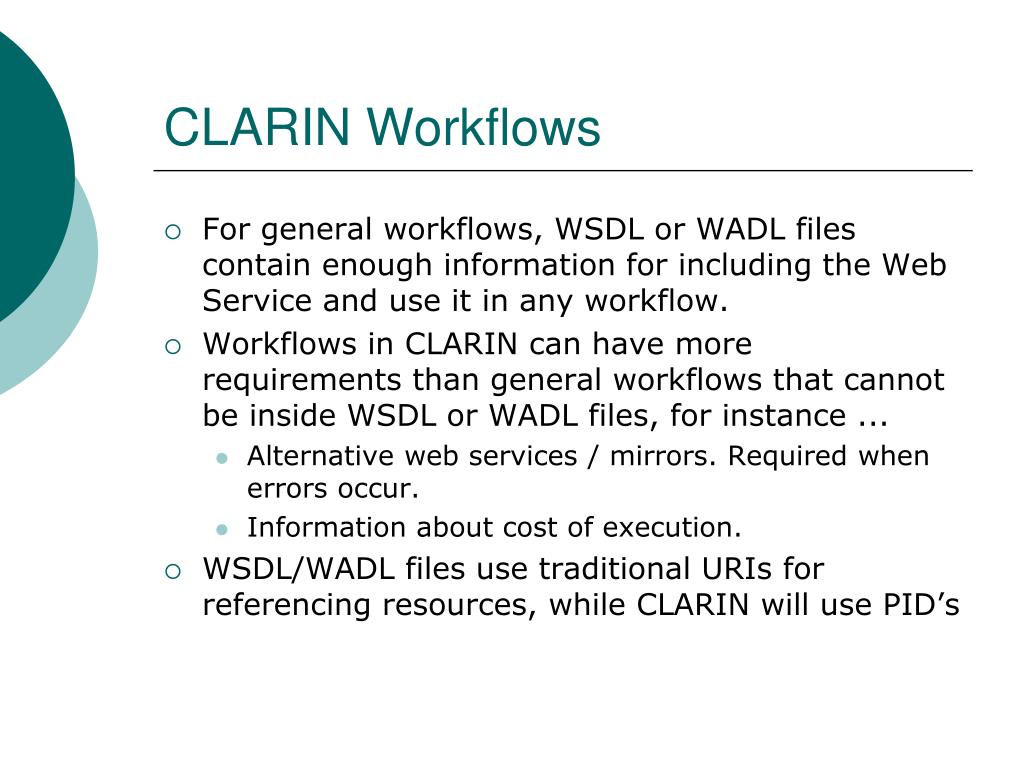

  12. CLARIN Workflows • For general workflows, WSDL or WADL files contain enough information for including the Web Service and use it in any workflow. • Workflows in CLARIN can have more requirements than general workflows that cannot be inside WSDL or WADL files, for instance ... • Alternative web services / mirrors. Required when errors occur. • Information about cost of execution. • WSDL/WADL files use traditional URIs for referencing resources, while CLARIN will use PID’s

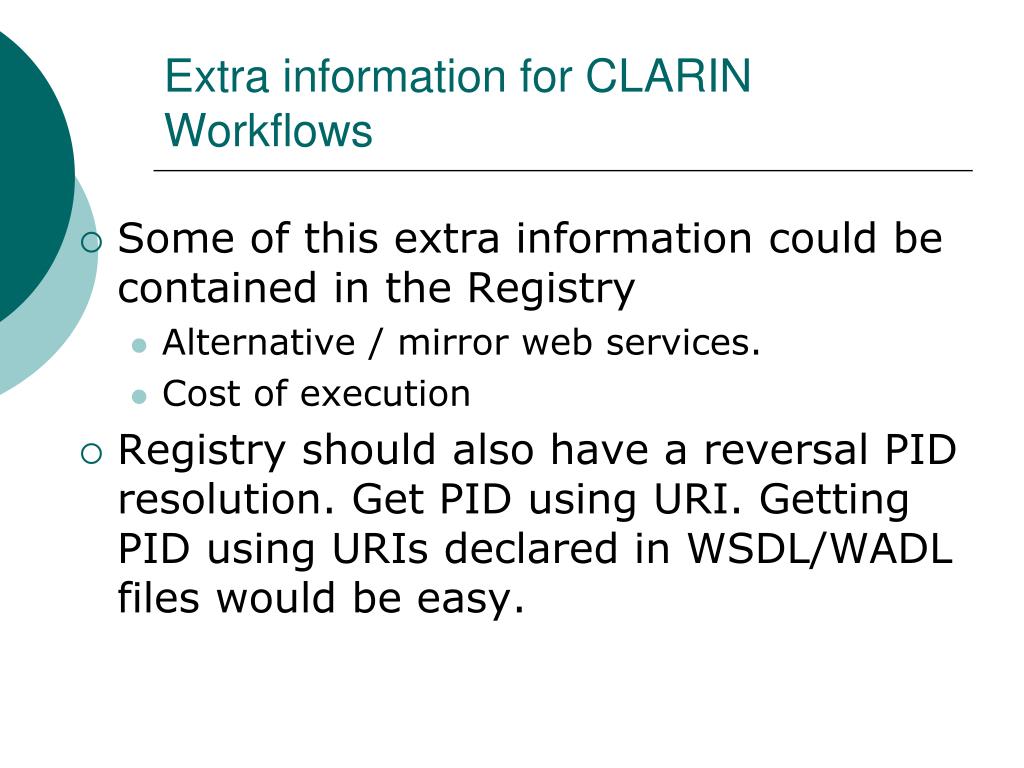

  13. Extra information for CLARIN Workflows • Some of this extra information could be contained in the Registry • Alternative / mirror web services. • Cost of execution • Registry should also have a reversal PID resolution. Get PID using URI. Getting PID using URIs declared in WSDL/WADL files would be easy.

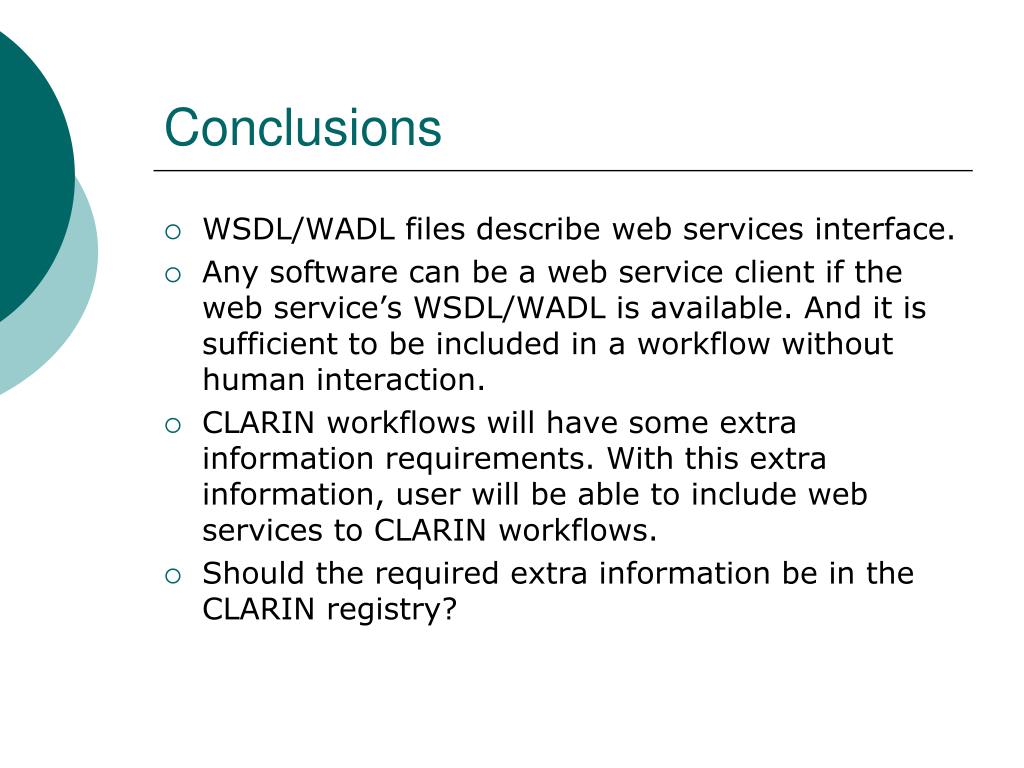

  14. Conclusions • WSDL/WADL files describe web services interface. • Any software can be a web service client if the web service’s WSDL/WADL is available. And it is sufficient to be included in a workflow without human interaction. • CLARIN workflows will have some extra information requirements. With this extra information, user will be able to include web services to CLARIN workflows. • Should the required extra information be in the CLARIN registry?
