  1. Informix User Forum 2006Auditing With IDS Jonathan Leffler STSM, IDS Security Architect jleffler@us.ibm.com

  2. Agenda • Overview of External Requirements • Payment Card Industry (PCI) standards • Sarbanes-Oxley (SOX) • Access Control • Encryption – Where and Why • Auditing • Features in IDS Meeting External Requirements • Auditing • Encrypted communications • Column-level Encryption • Non-IDS tools Informix User Forum 2006 | Auditing With IDS

  3. PCI – Payment Card Industry • CISP – Cardholder Information Security Program • PCI Data Security Standard • Version 1.1 (September 2006) • https://www.pcisecuritystandards.org/ • Version 1.0 (January 2005) • Not valid after 31st December 2006 for new validations Informix User Forum 2006 | Auditing With IDS

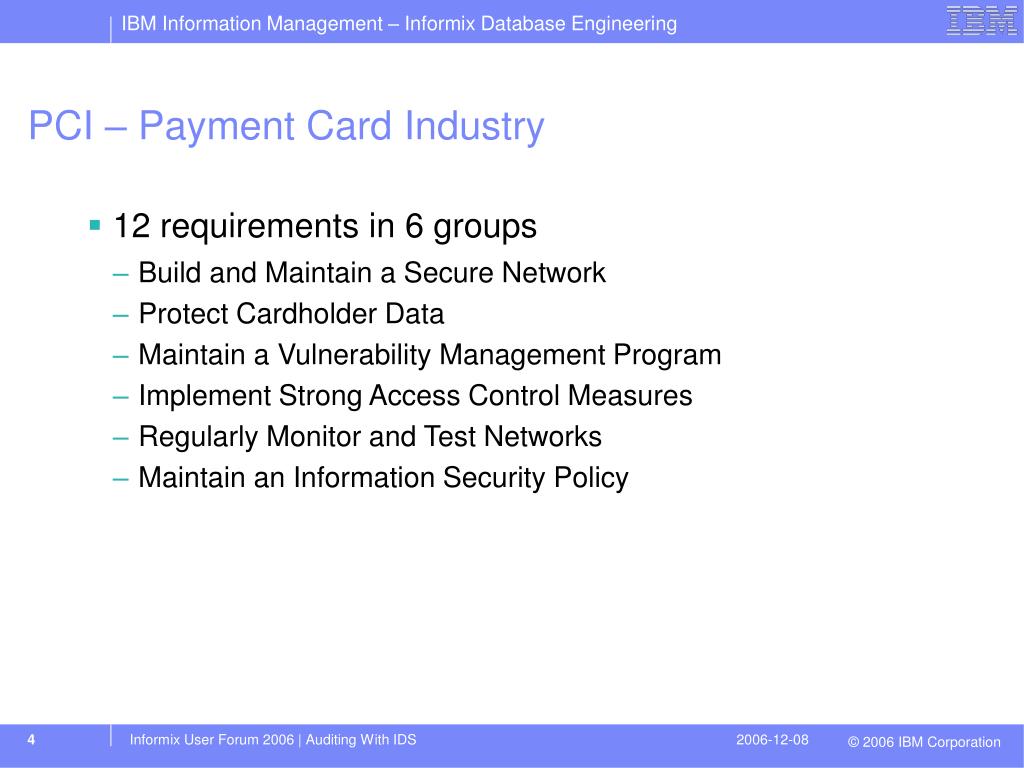

  4. PCI – Payment Card Industry • 12 requirements in 6 groups • Build and Maintain a Secure Network • Protect Cardholder Data • Maintain a Vulnerability Management Program • Implement Strong Access Control Measures • Regularly Monitor and Test Networks • Maintain an Information Security Policy Informix User Forum 2006 | Auditing With IDS

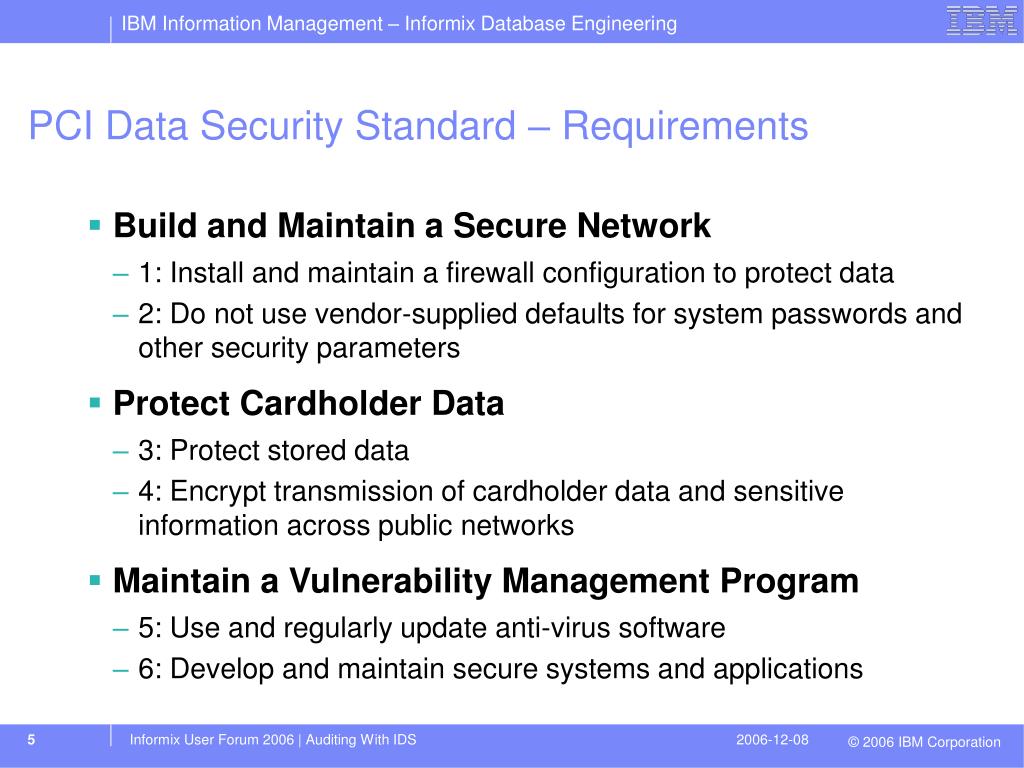

  5. PCI Data Security Standard – Requirements • Build and Maintain a Secure Network • 1: Install and maintain a firewall configuration to protect data • 2: Do not use vendor-supplied defaults for system passwords and other security parameters • Protect Cardholder Data • 3: Protect stored data • 4: Encrypt transmission of cardholder data and sensitive information across public networks • Maintain a Vulnerability Management Program • 5: Use and regularly update anti-virus software • 6: Develop and maintain secure systems and applications Informix User Forum 2006 | Auditing With IDS

  6. PCI Data Security Standard – Requirements • Implement Strong Access Control Measures • 7: Restrict access to data by business need-to-know • 8: Assign a unique ID to each person with computer access • 9: Restrict physical access to cardholder data • Regularly Monitor and Test Networks • 10: Track and monitor all access to network resources and cardholder data • 11: Regularly test security systems and processes. • Maintain an Information Security Policy • 12: Maintain a policy that addresses information security Informix User Forum 2006 | Auditing With IDS

  7. PCI Data Security Standard • Many more details for each of these 12 requirements • 17 page PDF document (with 2 appendices) • For example, requirement 3 has 6 sub-sections • And 16 sub-sub-sections • §3.1 Minimal information storage and retention • §3.2 Do not store sensitive information after authentication • §3.3 Mask account numbers when displayed • §3.4 Render sensitive data unreadable when stored • §3.5 Protect encryption keys against disclosure and misuse • §3.6 Fully document and implement key management procedures Informix User Forum 2006 | Auditing With IDS

  8. PCI – Payment Card Industry • Is your DBA a Spy? • http://tinyurl.com/y8bahy • User tricks, Security ‘Treats’ • http://tinyurl.com/sfdj5 Informix User Forum 2006 | Auditing With IDS

  9. Sarbanes-Oxley • Public Company Accounting Reform and Investor Protection Act of 2002 • Also known as Sarbanes-Oxley Act of 2002 • Commonly called SOX or SarBox • See (amongst many others) http://www.sarbanes-oxley.com/ • NB: I am not a lawyer! • The most critical sections for IT are: • 302: Control (internal controls) • 404: Evaluation (governance, measurement, records) • 409: Disclosure (reporting, certification) • Plus the corresponding SEC rules and regulations Informix User Forum 2006 | Auditing With IDS

  10. Sarbanes-Oxley • CEO, CFO must certify that they: • Are responsible for establishing and maintaining internal controls. • Have designed the internal controls so material information is made known to them by others in the organization. • Internal controls are accounting terms (SEC rules): • A process designed to provide reasonable assurance about the reliability of financial reporting. • Maintenance of records that accurately reflect transactions • Transactions are properly recorded and authorized to permit preparation of statements in line with the GAAP • Prevention or timely detection of unauthorized activity • That would materially affect the financial statements Informix User Forum 2006 | Auditing With IDS

  11. Sarbanes-Oxley • COSO (Treadway Commission) defines accounting rules • http://www.coso.org/ • Control Environment • Risk Assessment • Control Activities • Information and Communication • Monitoring • COBIT defines software rules related to: • Planning and Organization • Acquisition and Implementation • Delivery and Support • Monitoring and Evaluation Informix User Forum 2006 | Auditing With IDS

  12. Sarbanes-Oxley • Routine Re-evaluation of Internal Controls • CEO and CFO must evaluate the effectiveness of controls • Within 90 days prior to any report • Present conclusions about the effectiveness of internal controls • In the report • The company must annually assess the effectiveness too • Disclosure of any material problems found • All significant deficiencies in design or operation of internal controls • Any fraud, whether or not material, that involves management or employees who have a role in running the internal controls Informix User Forum 2006 | Auditing With IDS

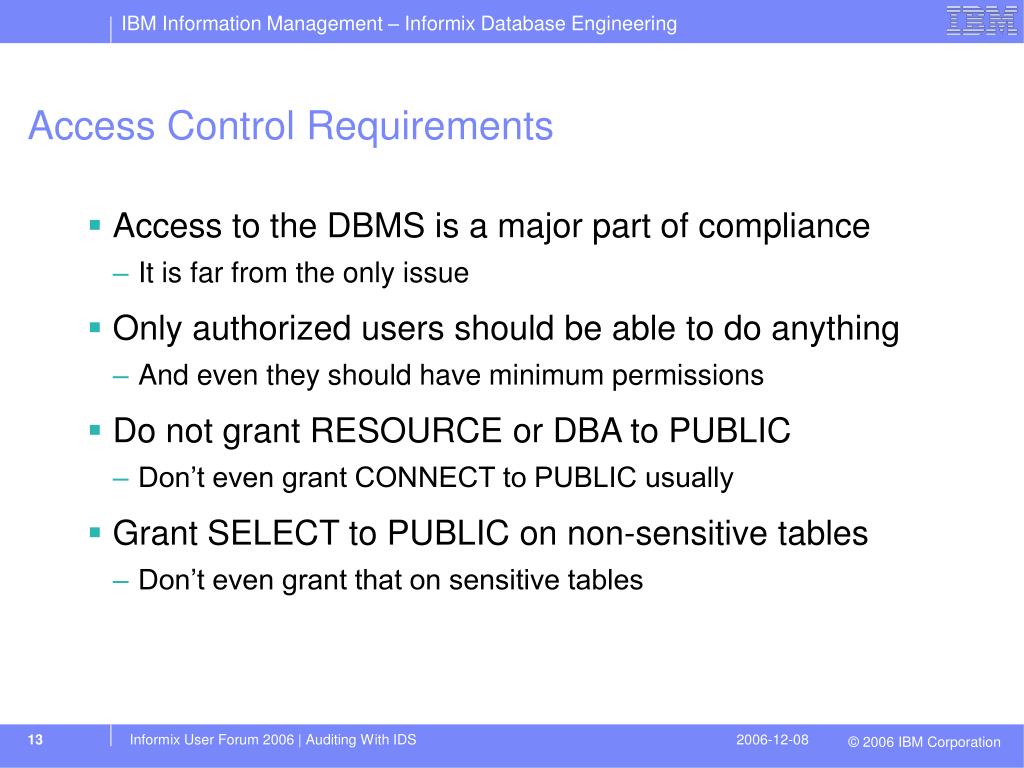

  13. Access Control Requirements • Access to the DBMS is a major part of compliance • It is far from the only issue • Only authorized users should be able to do anything • And even they should have minimum permissions • Do not grant RESOURCE or DBA to PUBLIC • Don’t even grant CONNECT to PUBLIC usually • Grant SELECT to PUBLIC on non-sensitive tables • Don’t even grant that on sensitive tables Informix User Forum 2006 | Auditing With IDS

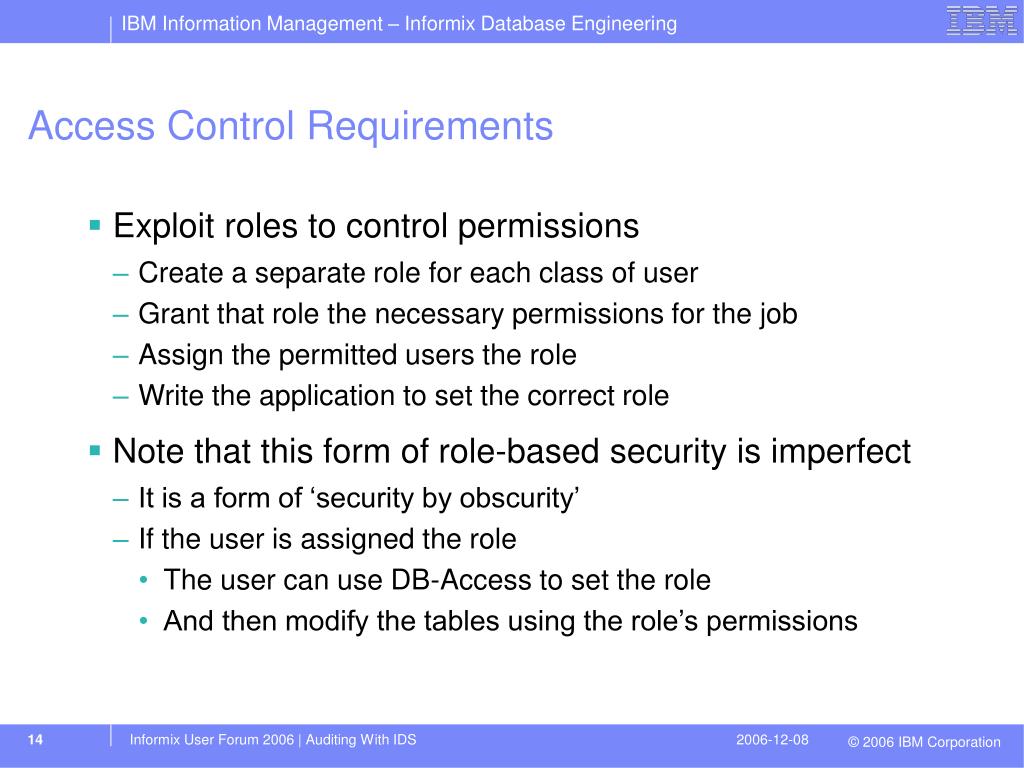

  14. Access Control Requirements • Exploit roles to control permissions • Create a separate role for each class of user • Grant that role the necessary permissions for the job • Assign the permitted users the role • Write the application to set the correct role • Note that this form of role-based security is imperfect • It is a form of ‘security by obscurity’ • If the user is assigned the role • The user can use DB-Access to set the role • And then modify the tables using the role’s permissions Informix User Forum 2006 | Auditing With IDS

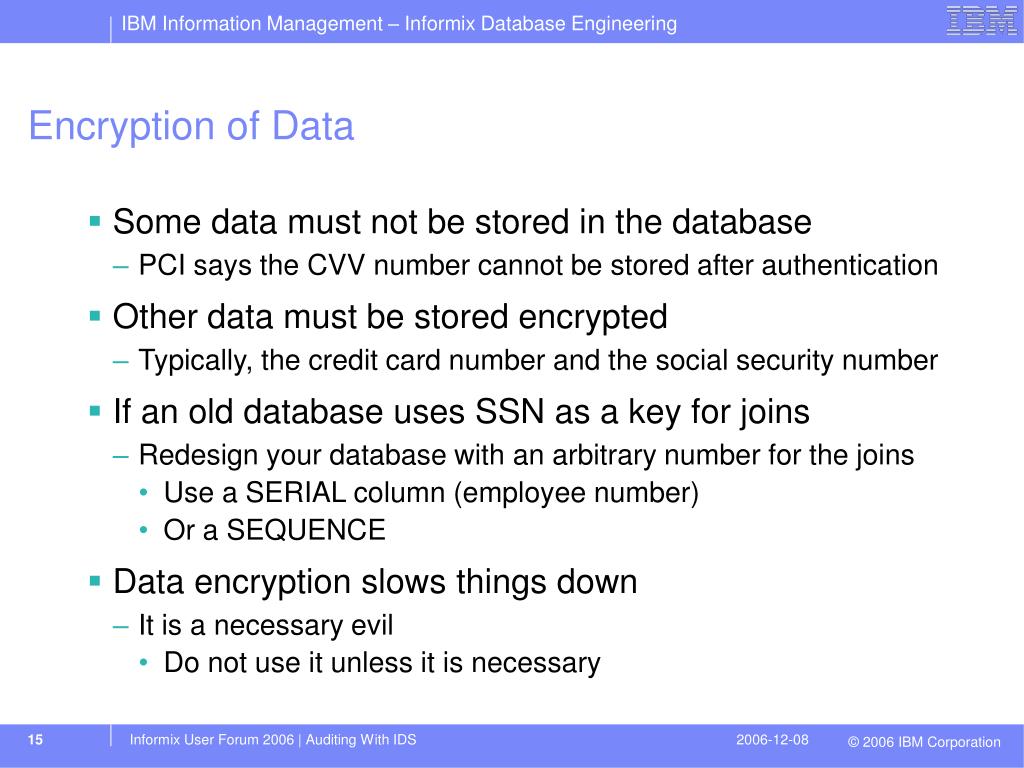

  15. Encryption of Data • Some data must not be stored in the database • PCI says the CVV number cannot be stored after authentication • Other data must be stored encrypted • Typically, the credit card number and the social security number • If an old database uses SSN as a key for joins • Redesign your database with an arbitrary number for the joins • Use a SERIAL column (employee number) • Or a SEQUENCE • Data encryption slows things down • It is a necessary evil • Do not use it unless it is necessary Informix User Forum 2006 | Auditing With IDS

  16. Auditing Requirements • You need to be confident that you can track changes • Who changed what structurally • Only a very few staff can make schema changes • Sometimes you need to track who sees data • Identity theft takes a copy of information • It does not alter the information • Database auditing can track DBAs too • Database auditing is not sufficient • You need controls over backups etc Informix User Forum 2006 | Auditing With IDS

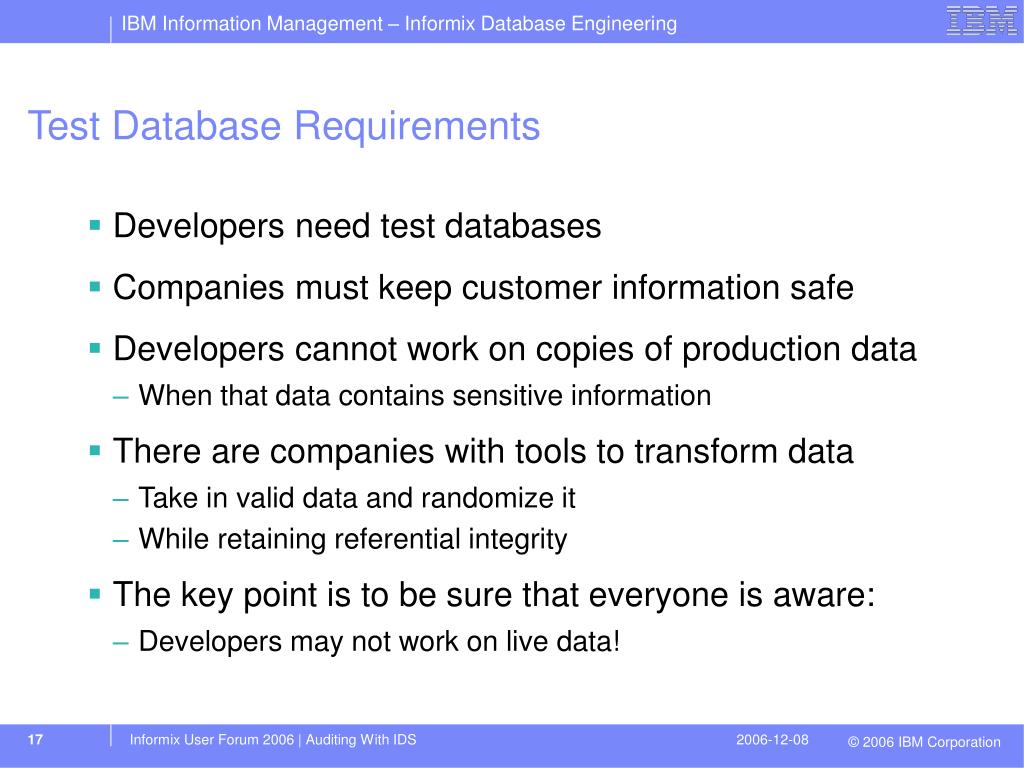

  17. Test Database Requirements • Developers need test databases • Companies must keep customer information safe • Developers cannot work on copies of production data • When that data contains sensitive information • There are companies with tools to transform data • Take in valid data and randomize it • While retaining referential integrity • The key point is to be sure that everyone is aware: • Developers may not work on live data! Informix User Forum 2006 | Auditing With IDS

  18. Features in IDS to Address External Requirements • IDS has features to help address these requirements: • Auditing • Encrypted Communications • Column-level Encryption • Other vendors can help • Vormetric • Protegrity • Future directions too • Fine-Grained Auditing • Label-Based Access Control Informix User Forum 2006 | Auditing With IDS

  19. Basic Auditing • IDS 7 and later has ON-Audit and ON-ShowAudit • ON-Audit controls what is audited • ON-Audit also controls how the audit results are recorded • ON-ShowAudit shows what auditable events occurred • Can be controlled by separate roles • DBSSO: Database Security Officer • Controls who is audited • Controls which events are audited • AAO: Audit Analysis Officer • Controls whether auditing is in use or not • Analyzes audit logs Informix User Forum 2006 | Auditing With IDS

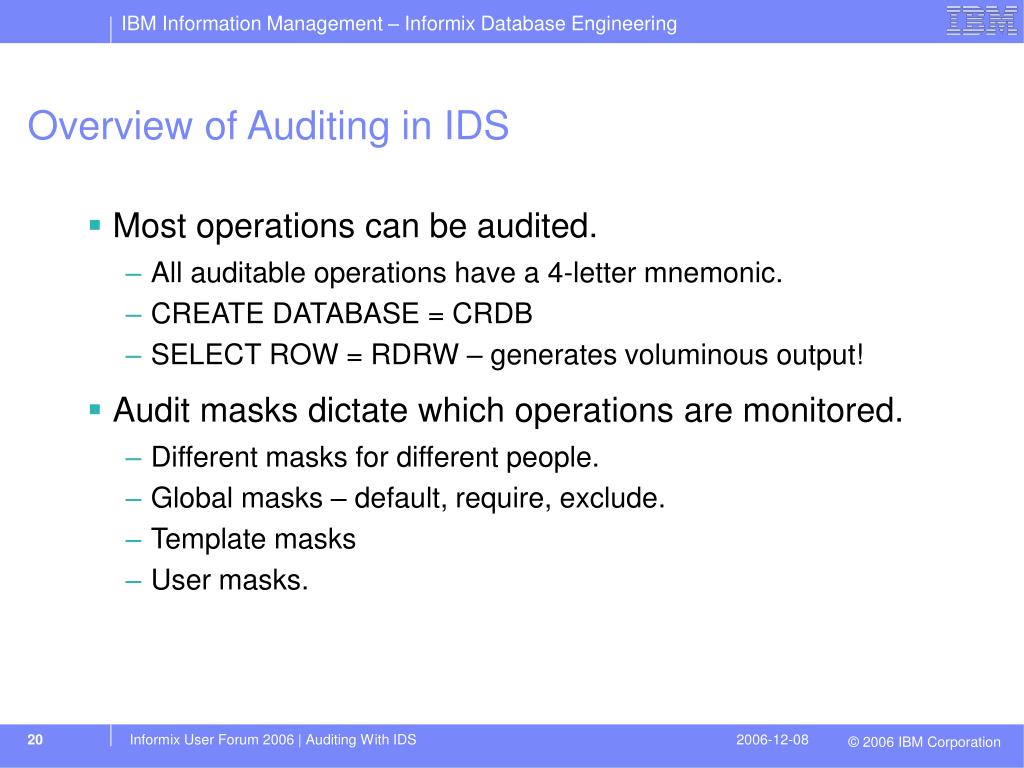

  20. Overview of Auditing in IDS • Most operations can be audited. • All auditable operations have a 4-letter mnemonic. • CREATE DATABASE = CRDB • SELECT ROW = RDRW – generates voluminous output! • Audit masks dictate which operations are monitored. • Different masks for different people. • Global masks – default, require, exclude. • Template masks • User masks. Informix User Forum 2006 | Auditing With IDS

  21. Overview of Auditing in IDS • Audit logging can use operating system audit facilities. • Only available on some Unix platforms. • Requires server running as root. • Audit logging can use Informix audit facilities. • Available on all platforms. • Available when running the server as informix. • Generally the better choice. Informix User Forum 2006 | Auditing With IDS

  22. Roles: DBSSO versus AAO • DBSSO controls what is audited. • Which users are audited. • Which operations are audited for each user. • Uses ON-Audit command. • Setting auditing masks. • AAO controls whether auditing is active or not. • Uses ON-Audit command. • AAO monitors the results of auditing. • Uses ON-ShowAudit command. • DBSA runs the server. • Should not subvert the auditing set up by DBSSO and AAO. Informix User Forum 2006 | Auditing With IDS

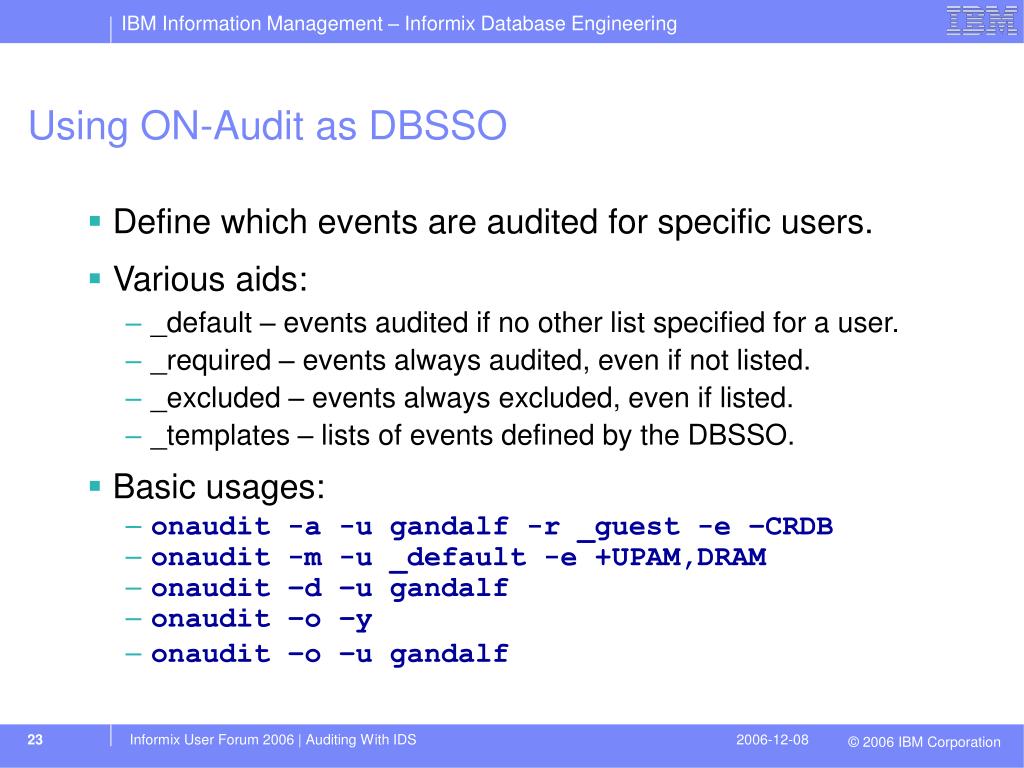

  23. Using ON-Audit as DBSSO • Define which events are audited for specific users. • Various aids: • _default – events audited if no other list specified for a user. • _required – events always audited, even if not listed. • _excluded – events always excluded, even if listed. • _templates – lists of events defined by the DBSSO. • Basic usages: • onaudit -a -u gandalf -r _guest -e –CRDB • onaudit -m -u _default -e +UPAM,DRAM • onaudit –d –u gandalf • onaudit –o –y • onaudit –o –u gandalf Informix User Forum 2006 | Auditing With IDS

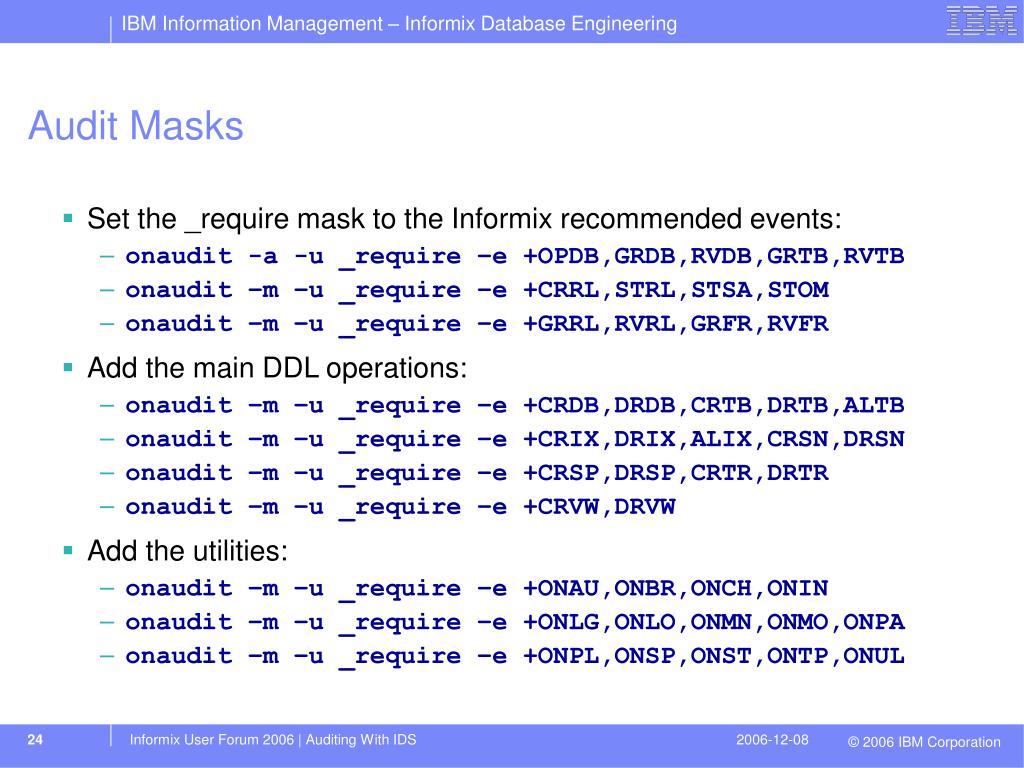

  24. Audit Masks • Set the _require mask to the Informix recommended events: • onaudit -a -u _require –e +OPDB,GRDB,RVDB,GRTB,RVTB • onaudit –m –u _require –e +CRRL,STRL,STSA,STOM • onaudit –m –u _require –e +GRRL,RVRL,GRFR,RVFR • Add the main DDL operations: • onaudit –m –u _require –e +CRDB,DRDB,CRTB,DRTB,ALTB • onaudit –m –u _require –e +CRIX,DRIX,ALIX,CRSN,DRSN • onaudit –m –u _require –e +CRSP,DRSP,CRTR,DRTR • onaudit –m –u _require –e +CRVW,DRVW • Add the utilities: • onaudit –m –u _require –e +ONAU,ONBR,ONCH,ONIN • onaudit –m –u _require –e +ONLG,ONLO,ONMN,ONMO,ONPA • onaudit –m –u _require –e +ONPL,ONSP,ONST,ONTP,ONUL Informix User Forum 2006 | Auditing With IDS

  25. Audit Masks • The high-intensity audit events are candidates for _exclude mask: • ACTB – Access table • INRW – Insert row • UPRW – Update row • DLRW – Delete row • RDRW – Read row Informix User Forum 2006 | Auditing With IDS

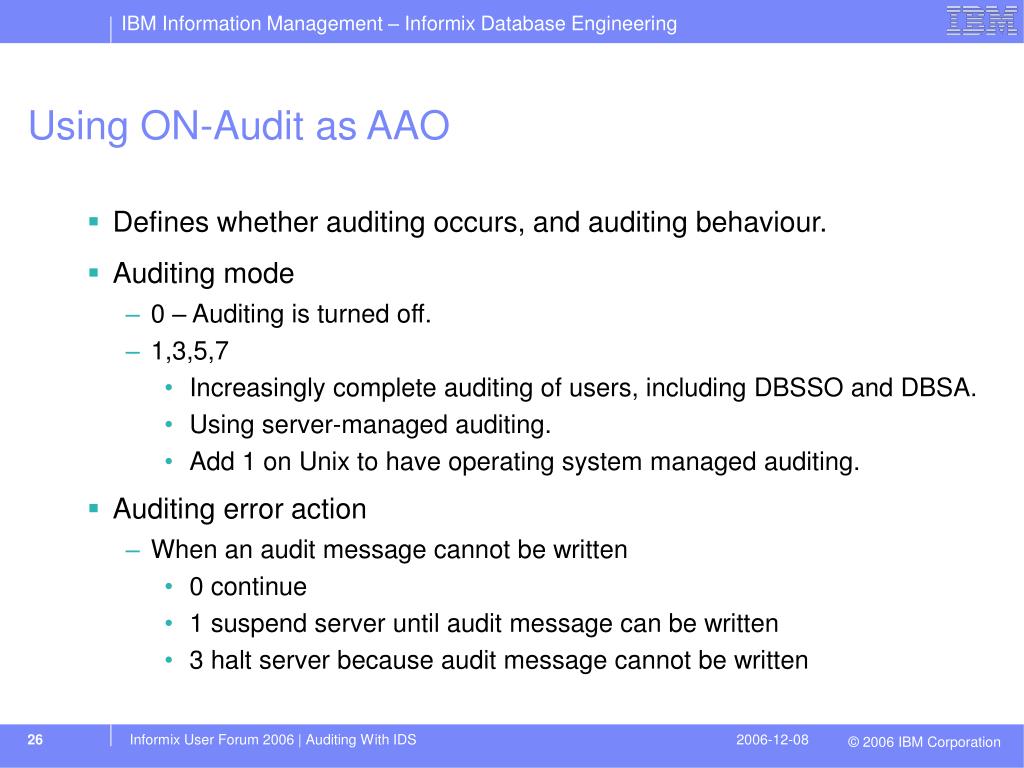

  26. Using ON-Audit as AAO • Defines whether auditing occurs, and auditing behaviour. • Auditing mode • 0 – Auditing is turned off. • 1,3,5,7 • Increasingly complete auditing of users, including DBSSO and DBSA. • Using server-managed auditing. • Add 1 on Unix to have operating system managed auditing. • Auditing error action • When an audit message cannot be written • 0 continue • 1 suspend server until audit message can be written • 3 halt server because audit message cannot be written Informix User Forum 2006 | Auditing With IDS

  27. Using ON-Audit as AAO • Auditing directory • Default is /tmp – which is awful and should never be used. • Make sure that the directory is: • Owned by user informix • Belongs to the AAO group • No public access (no write access) – 770 permissions. • Audit file size • How big audit files get before switching to a new one. • Basic usages: • onaudit –c • onaudit –l mode –e errmode –p path –s size • onaudit -n Informix User Forum 2006 | Auditing With IDS

  28. Audit Information Stored in SysMaster • The sysadtinfo table reflects the configuration in adtcfg. • One row of data. • Five columns. • The sysaudit table contains encoded audit masks. • Bit-encoded numeric values spread across two sets of four columns. • One set for failed operations. • One set for successful operations. • But there’s no documented way to set these differently. • Access to these tables is restricted. Informix User Forum 2006 | Auditing With IDS

  29. Contents of Audit Log Files • All audit records have a common structure: • 7 pipe-separated fields • Last field contains variable colon-separated fields • Common preamble is: • ONLN • To distinguish IDS (OnLine) records from other systems • Timestamp to milliseconds (USEOSTIME=1) • Host name • Session ID • IDS server name • User name • ONLN|2006-11-10 00:08:22.829|anubis|9556|anubis_17|jleffler Informix User Forum 2006 | Auditing With IDS

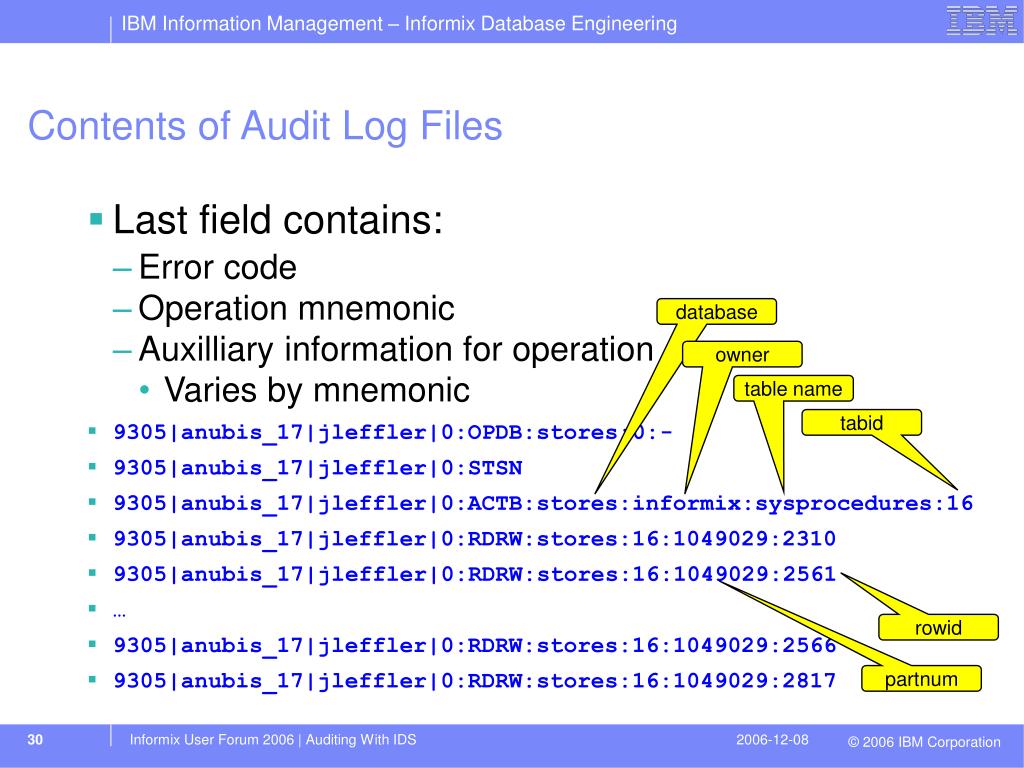

  30. Contents of Audit Log Files • Last field contains: • Error code • Operation mnemonic • Auxilliary information for operation • Varies by mnemonic • 9305|anubis_17|jleffler|0:OPDB:stores:0:- • 9305|anubis_17|jleffler|0:STSN • 9305|anubis_17|jleffler|0:ACTB:stores:informix:sysprocedures:16 • 9305|anubis_17|jleffler|0:RDRW:stores:16:1049029:2310 • 9305|anubis_17|jleffler|0:RDRW:stores:16:1049029:2561 • … • 9305|anubis_17|jleffler|0:RDRW:stores:16:1049029:2566 • 9305|anubis_17|jleffler|0:RDRW:stores:16:1049029:2817 database owner table name tabid rowid partnum Informix User Forum 2006 | Auditing With IDS

  31. Contents of Audit Log Files – Example Errors • -239:CRAM:_exclude • -26008:CRPT:stores:select decrypt_char(v, 'XXXXXXX') from t; • -8301:CRSQ:stores:0:jleffler:s9:0:- • -511:ALIX:stores:17:informix:procbody:1 • -212:CRIX:stores:1990:c1:jleffler:1:dbspace_16 • -19803:GRRL:stores:root :extend:jleffler • -218:DRSN:stores:0:-:dbd_ix_public01 • -9628:DRTY:stores: - :dbd_ix_distofi8 • -350:CRIX:new_stores:108:idxmsgs_frfr:jleffler:1:rootdbs • -1:ONSP:-c -d nfs_disk -p /nfs/anubis_17.nfs_disk.c0 -s 10240 -o 0 • -705:DRSP:stores:1237:-:^Ly☼~T • -661:EXSP:stores:1242 • -1:ONTP:-s -L 0 • -388:CRSP:stores:0:username:exitfail Fixed bug Informix User Forum 2006 | Auditing With IDS

  32. Example Trace • sqlcmd –d stores –e ‘update elements set atomic_number = atomic_number + 0’ • 0:OPDB:stores:0:- • 0:STSN • 0:ACTB:stores:jleffler:elements:101 • 0:RDRW:stores:101:1049066:257 • 0:UPRW:stores:101:1049066:257:1049066:257 • 0:RDRW:stores:101:1049066:258 • 0:UPRW:stores:101:1049066:258:1049066:258 • … • Even for small tables, output is voluminous • And tedious Informix User Forum 2006 | Auditing With IDS

  33. Audit Log File Management • Use a different audit log directory for each server • Based on server name or number • E.g. $INFORMIXDIR/tmp/anubis_17 • Backup and compress logs • Compression ratio 25:1 possible • Into sub-sub-directory: • $INFORMIXDIR/tmp/anubis_17/backup • $INFORMIXDIR/tmp/anubis_17/00000-00999 • $INFORMIXDIR/tmp/anubis_17/01000-01999 • Leave empty files to avoid reuse • Otherwise, IDS reuses log files when restarting Informix User Forum 2006 | Auditing With IDS

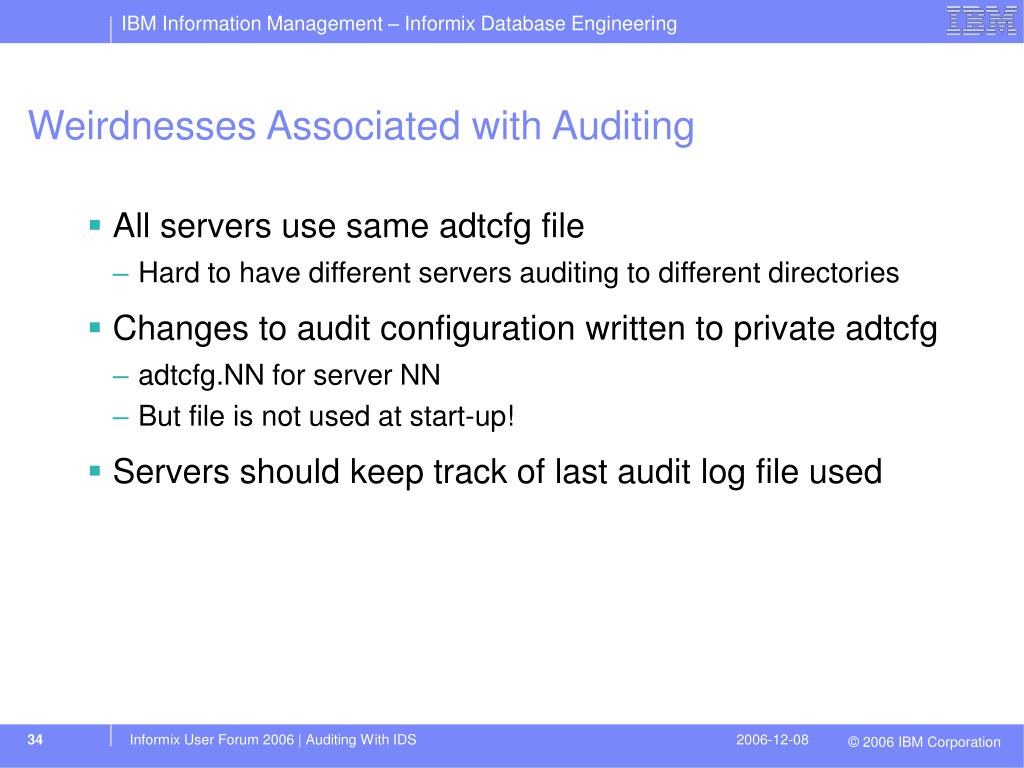

  34. Weirdnesses Associated with Auditing • All servers use same adtcfg file • Hard to have different servers auditing to different directories • Changes to audit configuration written to private adtcfg • adtcfg.NN for server NN • But file is not used at start-up! • Servers should keep track of last audit log file used Informix User Forum 2006 | Auditing With IDS

  35. Using ON-ShowAudit • ON-ShowAudit command selects data from audit logs. • On Unix, you specify where to pull the audit data from: • The operating system managed audit log, or • The database server managed audit log. • You can specify which user to select the information for: • Default – all users. • You can specify which database server to select the information for: • Default – all servers. • It shows you all the data for all users and all servers • Using the information indicated by the adtcfg file. Informix User Forum 2006 | Auditing With IDS

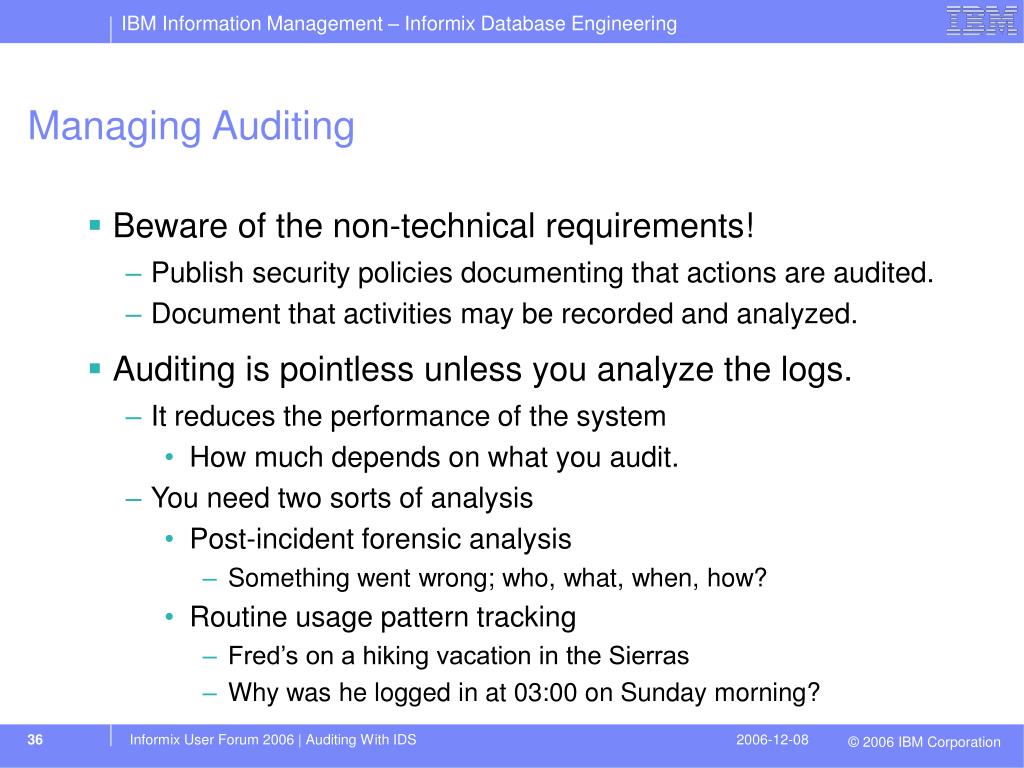

  36. Managing Auditing • Beware of the non-technical requirements! • Publish security policies documenting that actions are audited. • Document that activities may be recorded and analyzed. • Auditing is pointless unless you analyze the logs. • It reduces the performance of the system • How much depends on what you audit. • You need two sorts of analysis • Post-incident forensic analysis • Something went wrong; who, what, when, how? • Routine usage pattern tracking • Fred’s on a hiking vacation in the Sierras • Why was he logged in at 03:00 on Sunday morning? Informix User Forum 2006 | Auditing With IDS

  37. Forensic Auditing • More typically, audit logs are used forensically. • To analyze, after the event, who did it, and when. • Since it may be a while before stolen data is noticed, • It is important to keep (compressed) audit logs. • And to monitor all the relevant events. • Note that you can audit every row that is read. • But the volume of data will be enormous. • Although you may know the user ID that did it, • It is hard to prove that the bona fide owner of that user ID did it. Informix User Forum 2006 | Auditing With IDS

  38. Encrypted Communications for IDS • Available in IDS 9.40 and later • Encrypts communications between client and server • Using standard encryption techniques to establish session keys • Also used for distributed database access – I-Star • ER (Enterprise Replication) can be encrypted • Often replicating over WAN • With effect from Cheetah • HDR (Heterogeneous Data Replication) will support encryption • Previously assumed HDR only over LAN Informix User Forum 2006 | Auditing With IDS

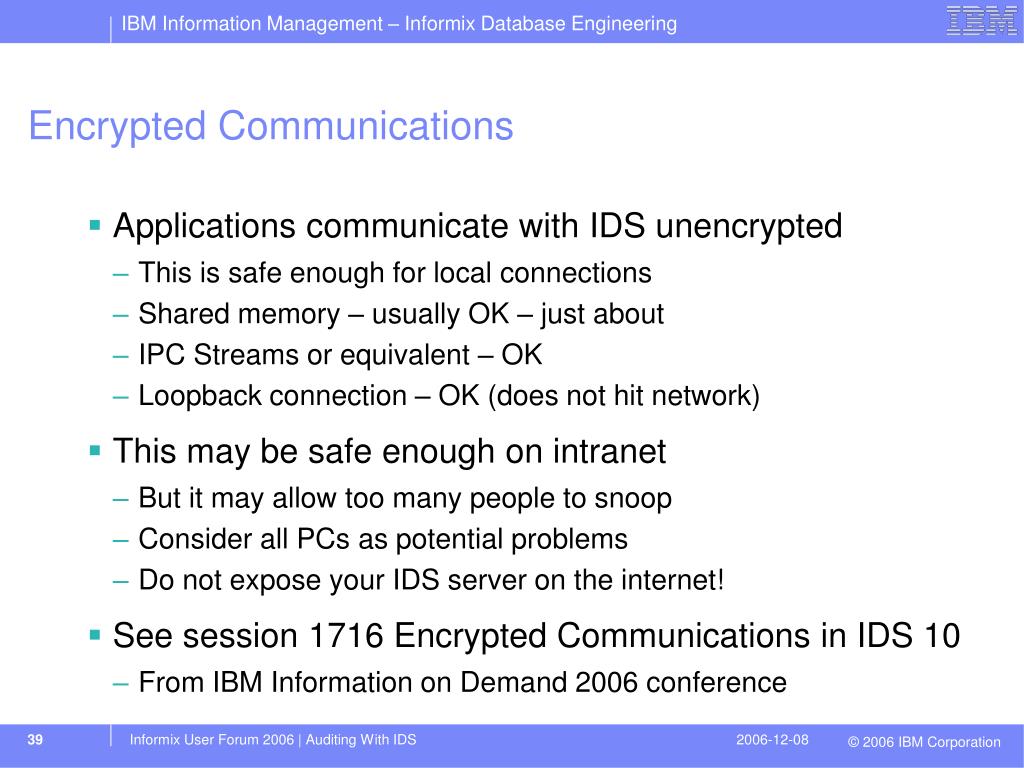

  39. Encrypted Communications • Applications communicate with IDS unencrypted • This is safe enough for local connections • Shared memory – usually OK – just about • IPC Streams or equivalent – OK • Loopback connection – OK (does not hit network) • This may be safe enough on intranet • But it may allow too many people to snoop • Consider all PCs as potential problems • Do not expose your IDS server on the internet! • See session 1716 Encrypted Communications in IDS 10 • From IBM Information on Demand 2006 conference Informix User Forum 2006 | Auditing With IDS

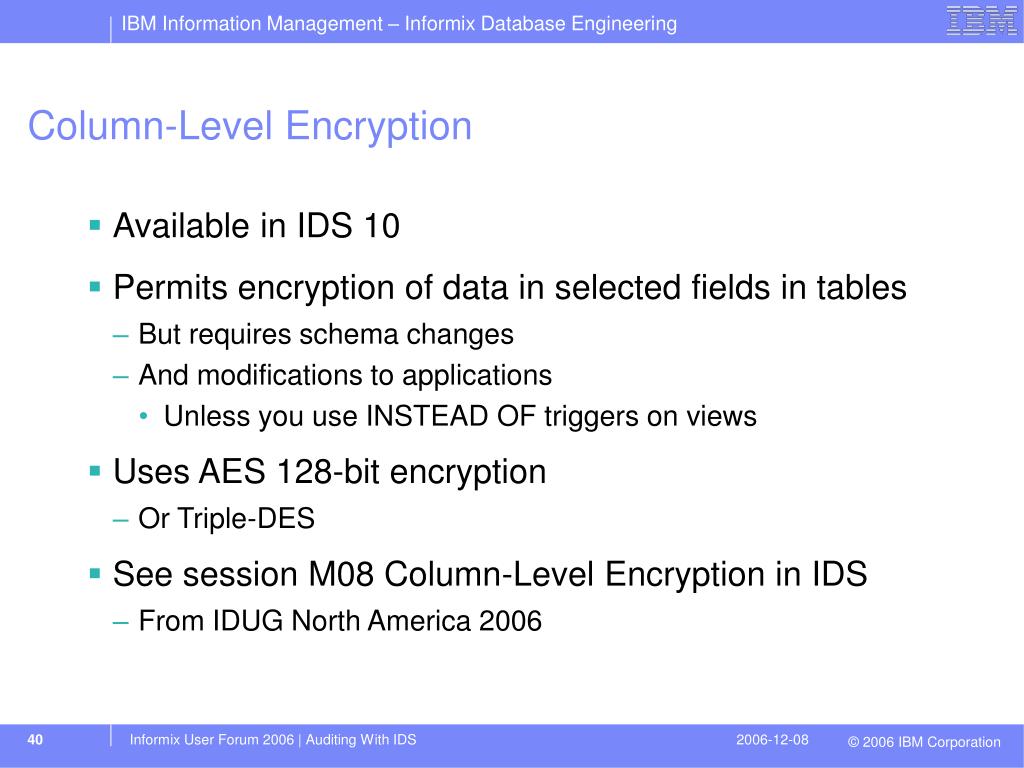

  40. Column-Level Encryption • Available in IDS 10 • Permits encryption of data in selected fields in tables • But requires schema changes • And modifications to applications • Unless you use INSTEAD OF triggers on views • Uses AES 128-bit encryption • Or Triple-DES • See session M08 Column-Level Encryption in IDS • From IDUG North America 2006 Informix User Forum 2006 | Auditing With IDS

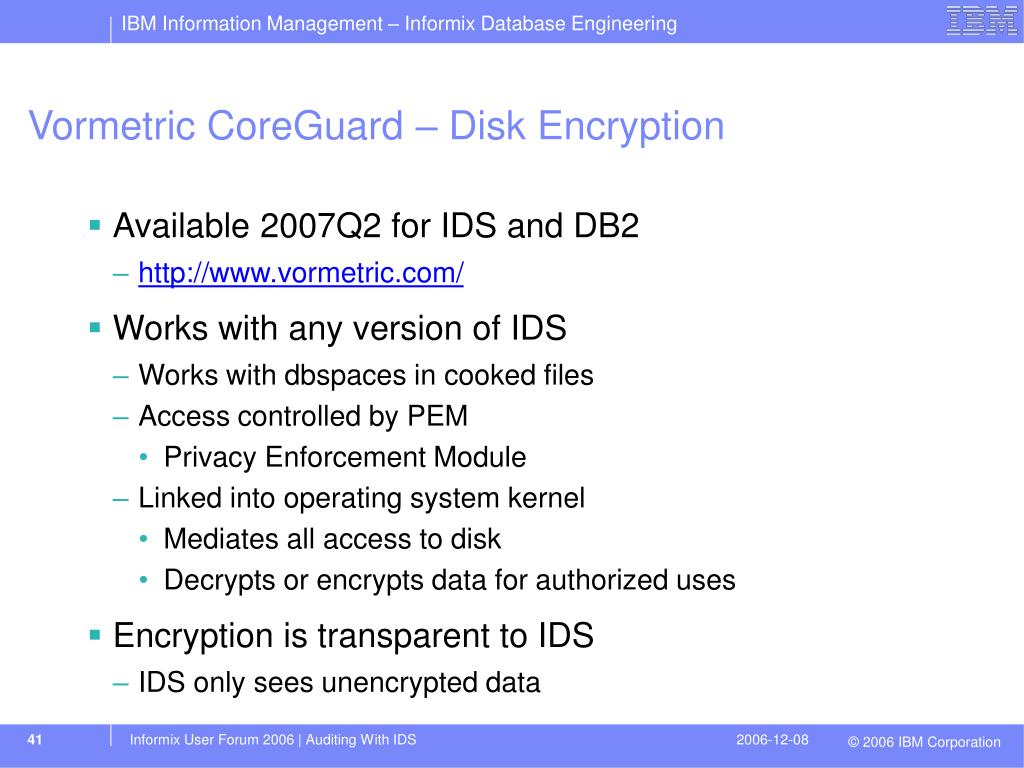

  41. Vormetric CoreGuard – Disk Encryption • Available 2007Q2 for IDS and DB2 • http://www.vormetric.com/ • Works with any version of IDS • Works with dbspaces in cooked files • Access controlled by PEM • Privacy Enforcement Module • Linked into operating system kernel • Mediates all access to disk • Decrypts or encrypts data for authorized uses • Encryption is transparent to IDS • IDS only sees unencrypted data Informix User Forum 2006 | Auditing With IDS

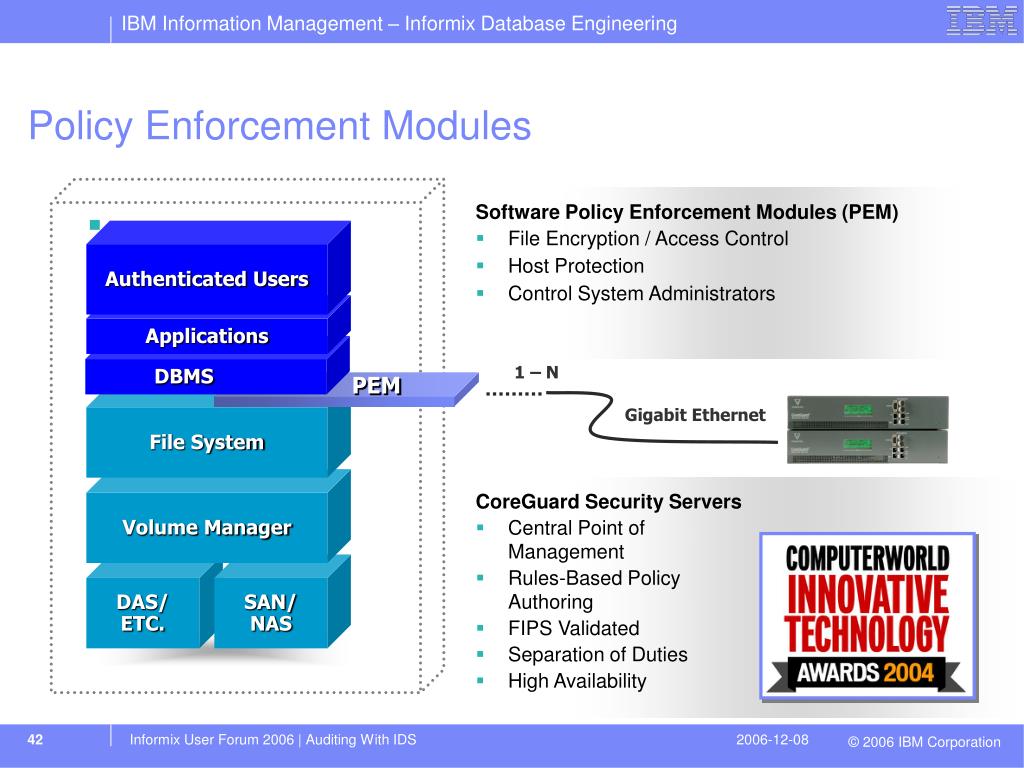

  42. Authenticated Users Software Policy Enforcement Modules (PEM) • File Encryption / Access Control • Host Protection • Control System Administrators Applications DBMS PEM File System 1 – N Gigabit Ethernet Volume Manager DAS/ ETC. SAN/ NAS Policy Enforcement Modules CoreGuard Security Servers • Central Point of Management • Rules-Based Policy Authoring • FIPS Validated • Separation of Duties • High Availability Informix User Forum 2006 | Auditing With IDS

  43. Label-Based Access Control • Major feature in Cheetah release • Parallel to, and based upon, DB2 Viper implementation • Complex structure • But achieves complex result • CREATE SECURITY LABEL COMPONENTS • Defines things like ‘top secret’, ‘secret’ etc. • CREATE SECURITY POLICY • Uses one or more security label components • CREATE SECURITY LABEL • Specifies one set of values for a security policy Informix User Forum 2006 | Auditing With IDS

  44. Label-Based Access Control • Users are granted certain labels for each policy • This controls which rows they can read and write • Other rows are simply not shown to the unprivileged user • Users can be granted exemptions to policy • But this should happen rarely • And under extreme supervision • New database role – DBSECADM • Responsible for LBAC administration • Creating security policies and assigning labels Informix User Forum 2006 | Auditing With IDS

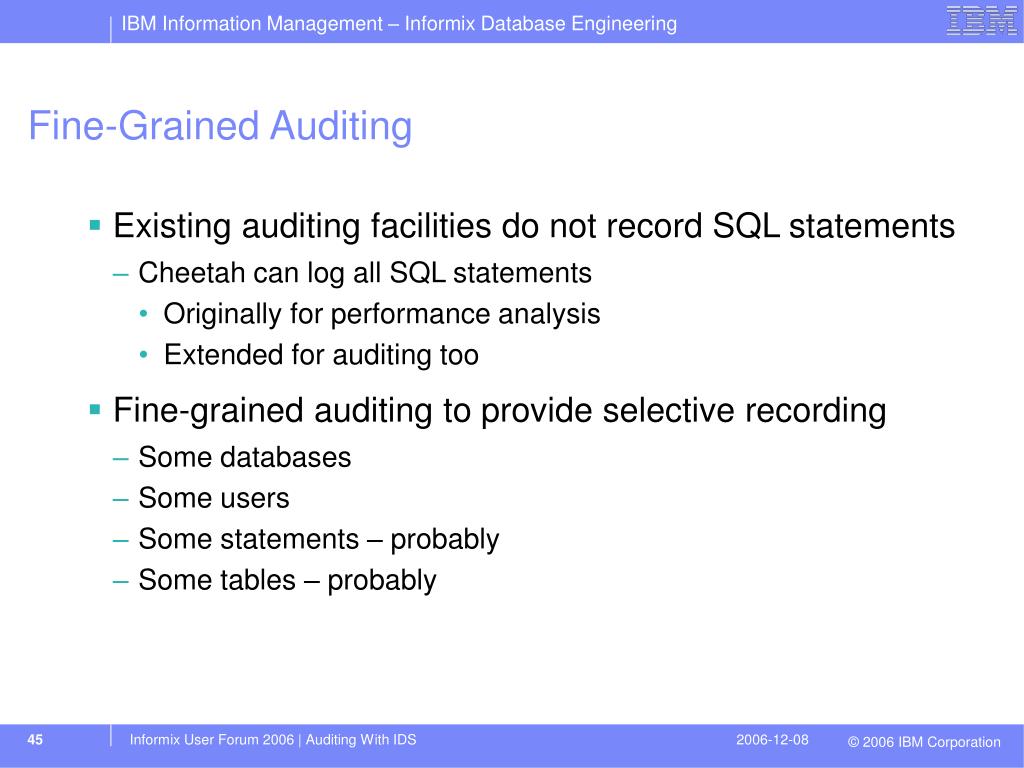

  45. Fine-Grained Auditing • Existing auditing facilities do not record SQL statements • Cheetah can log all SQL statements • Originally for performance analysis • Extended for auditing too • Fine-grained auditing to provide selective recording • Some databases • Some users • Some statements – probably • Some tables – probably Informix User Forum 2006 | Auditing With IDS

  46. External Auditing of IDS • Guardium • Monitors Informix SQL traffic on the network • Can be used to detect unauthorized activity • http://www.guardium.com/ • Princeton Softech • http://www.princetonsoftech.com/ • sudo + sudosh • Controls over who has access to user informix • Logs all activity • http://www.courtesan.com/sudo/ • http://sudosh.sourceforge.net/ Informix User Forum 2006 | Auditing With IDS

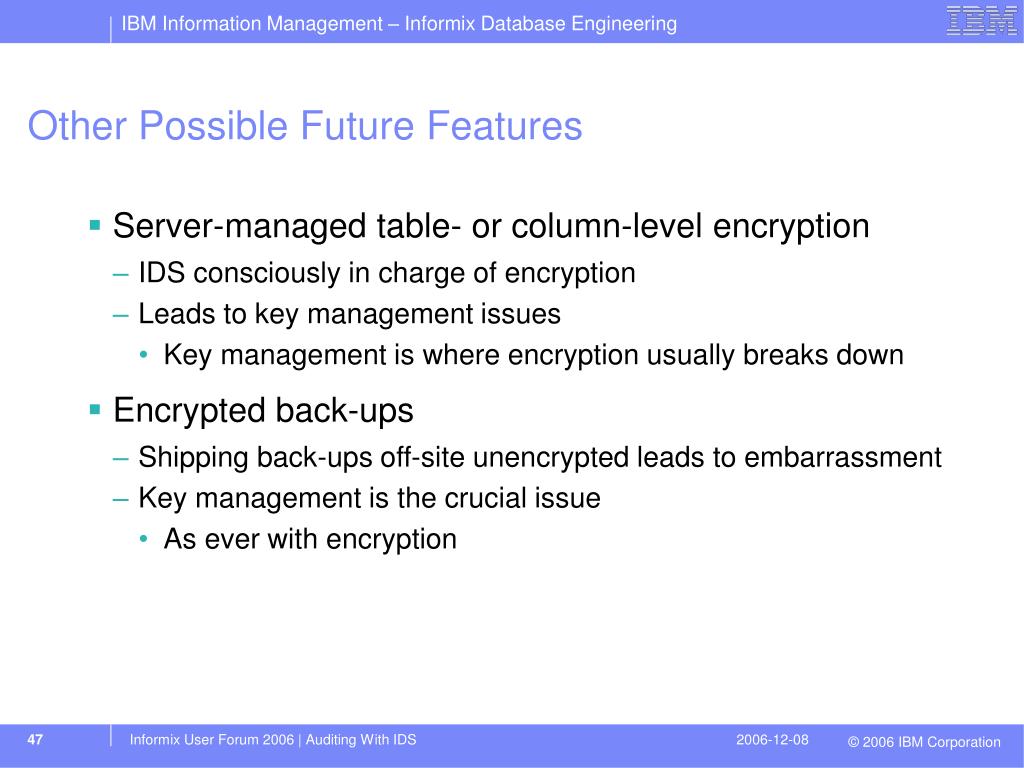

  47. Other Possible Future Features • Server-managed table- or column-level encryption • IDS consciously in charge of encryption • Leads to key management issues • Key management is where encryption usually breaks down • Encrypted back-ups • Shipping back-ups off-site unencrypted leads to embarrassment • Key management is the crucial issue • As ever with encryption Informix User Forum 2006 | Auditing With IDS

  48. http://www.ibm.com/software/data/informix http://www.iiug.org/ Informix User Forum 2006 | Auditing With IDS

  49. http://www.ibm.com/software/data/informix http://www.iiug.org/ Informix User Forum 2006 | Auditing With IDS
