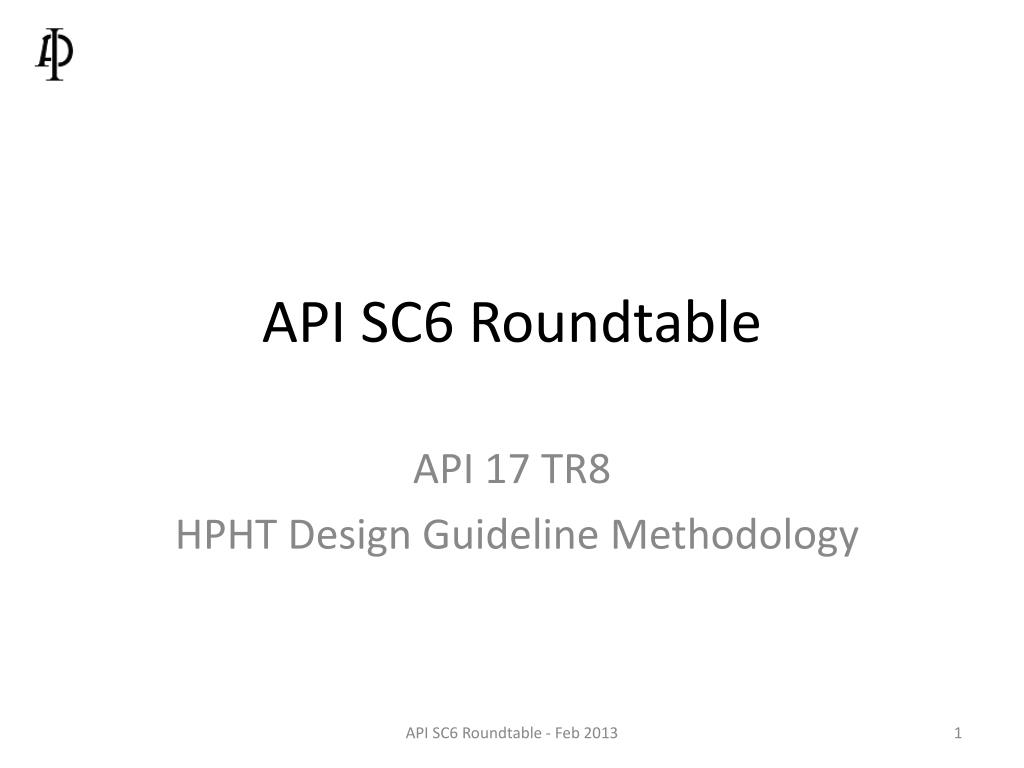

  1. API SC6 Roundtable API 17 TR8 HPHT Design Guideline Methodology API SC6 Roundtable - Feb 2013

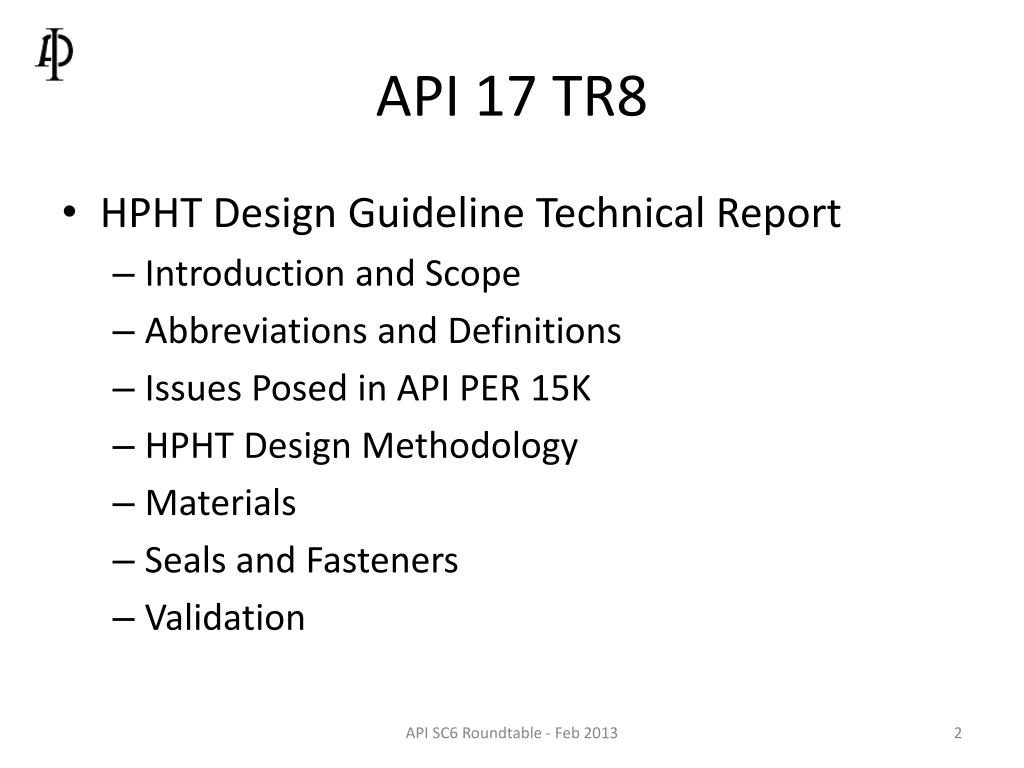

  2. API 17 TR8 • HPHT Design Guideline Technical Report • Introduction and Scope • Abbreviations and Definitions • Issues Posed in API PER 15K • HPHT Design Methodology • Materials • Seals and Fasteners • Validation API SC6 Roundtable - Feb 2013

  3. API SC6 Roundtable - Feb 2013

  4. > 15 ksi ? No Existing API Specifications Yes ASME Div 3 Design Factors ASME Div 2 Design Factors Elastic or E-P Global Analysis Elastic-Plastic Global Analysis Strain Limits Strain Limits Cyclic Loads ? Fatigue Threshold Criteria Ratcheting Analysis Yes Yes Fracture Mechanics Leak Before Burst No Yes S/N Fatigue Analysis Hydro Test 1.5RWP Hydro Test 1.5RWP No Fracture Mechanics Hydro Test 1.25ψRWP Validation Test PR3 Validation Test PR4 Validation Test PR4 API SC6 Roundtable - Feb 2013

  5. ASME Div 3 • Elastic-Plastic Stress Analysis • Global Criteria • Load and Resistance Factor Design (LRFD) • Service Criteria • Local Criteria • Triaxial Strain Limit • Ratcheting Analysis • Fatigue Analysis API SC6 Roundtable - Feb 2013

  6. Materials • Mechanical properties • Room and elevated temperature • Increased toughness • CharpyV-notch for production QC • Fracture toughness for design • Fracture fatigue properties • da/dN fatigue properties API SC6 Roundtable - Feb 2013
