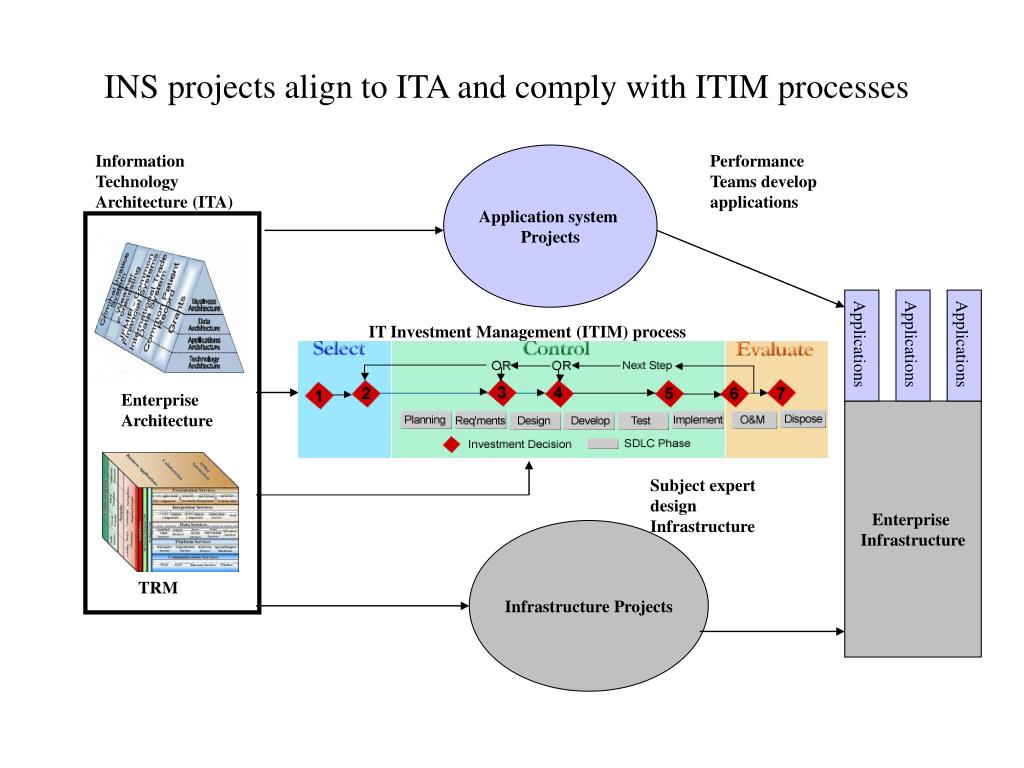

  1. INS projects align to ITA and comply with ITIM processes Information Technology Architecture (ITA) Application system Projects Performance Teams develop applications IT Investment Management (ITIM) process Applications Applications Applications Enterprise Architecture Enterprise Infrastructure Subject expert design Infrastructure Infrastructure Projects TRM

  2. INS Governance composed of Technology Architecture Compliance and Technology standards Maintenance Governance Technology Architecture Compliance Technology Standards Maintenance

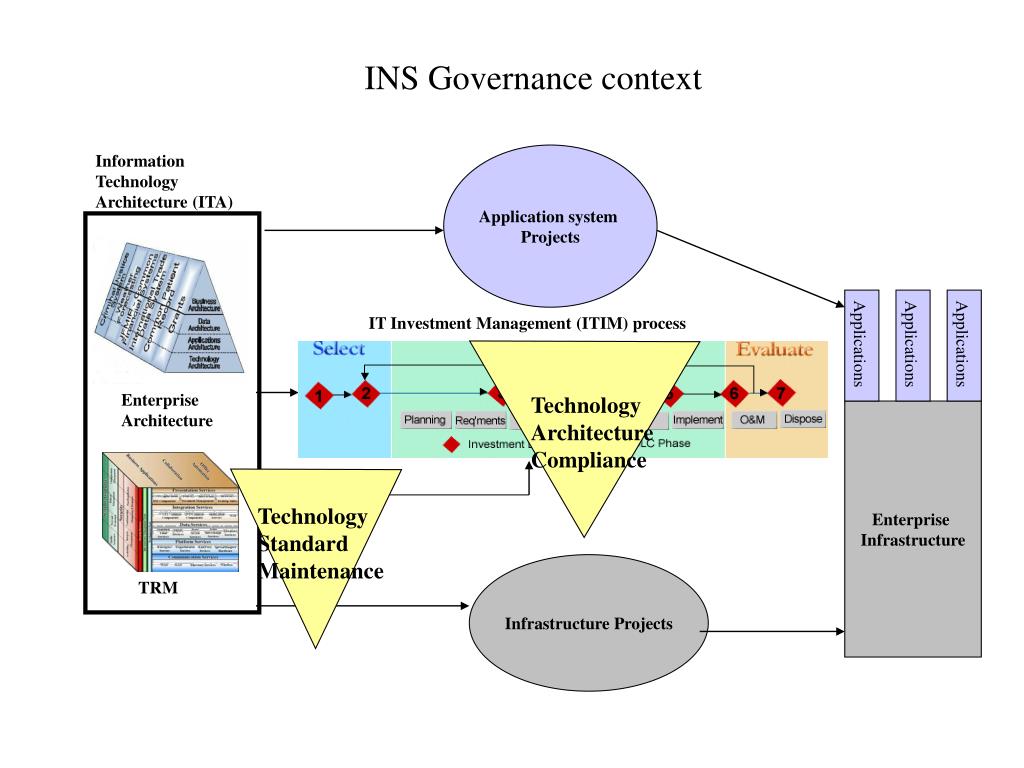

  3. INS Governance context Information Technology Architecture (ITA) Application system Projects IT Investment Management (ITIM) process Applications Applications Applications Technology Architecture Compliance Enterprise Architecture Enterprise Infrastructure Technology Standard Maintenance Infrastructure Projects TRM

  4. Governance Organization Structure Investment Approval Board ESC OIRM Portfolio Managers SITD Security System Assurance Review Branch INS IT Project Manager Architecture Team Integrated Project Team (IPT) Testing Development Project Manager Business Units Technology Architecture Branch Technology Domain Teams Requirement Data System

  5. Integrated Compliance Assessment Activities Governance IAB ESC Portfolio Manager IT Project Manager Business Unit (Owner) System Assurance IT Architects Security SITD ITIM Phases Approve Concept Assess Technology Architecture Alignment Concept Paper Concur Concept Paper Approve Business Case Select Concur Business Case Business Case Rank Project Planning SDP Review Approve Requirement Technology Architecture Compliance Review Review Requirement Approve Requirement Control Requirement FRR Review Approve Design PDR Review PDR Review Design Approve Design CDR Review CDR Security Compliance Review Test Readiness Approve Fielding Test Review Fielding Approve Fielding Implementation Release Readiness Approve O&M Approve O&M O&M Evaluate Approve Dispose Approve Dispose Disposition

  6. Integrated Compliance Assessment Activities Application Portfolio Manager Life Cycle Compliance Architecture Compliance

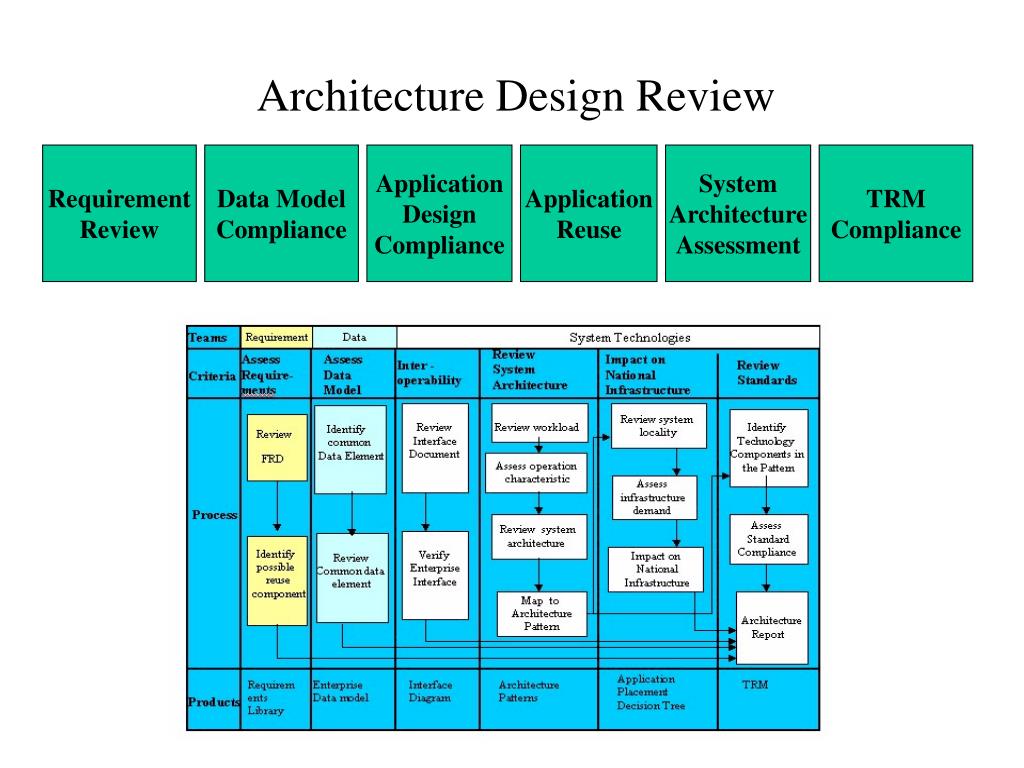

  7. Architecture Design Review Requirement Review Data Model Compliance Application Design Compliance Application Reuse System Architecture Assessment TRM Compliance

  8. Technology Architecture Compliance Review Procedure Teams Requirement Data System Technologies Review System Architecture Assess Require-ments Assess Data Model Impact on National Infrastructure Inter -operability Review Standards Criteria Review Interface Document Review workload Review system locality Identify common Data Element Identify Technology Components in the Pattern Review FRD Assess operation characteristic Assess infrastructure demand Process Review system architecture Assess Standard Compliance Verify Enterprise Interface Review Common data element Identify possible reuse component Impact on National Infrastructure Map to Architecture Pattern Architecture Report Application Placement Decision Tree Requirements Library Enterprise Data model Interface Diagram Architecture Patterns TRM Products

  9. Status Initiation Review Calendar

  10. Governance of Technology Standard Maintenance Technology Domain Team Architecture Core Team Architecture Team Project Manager Investment Management Depth Initiate One time Approve One time One Time Initiate Renew Evaluate Enterprise Impact Approve Renewal Renewal Initiate Insertion Evaluate Business need Insertion Approve Insertion Evaluate Enterprise Impact Focus Group Study Recommend Reengineering Approve Reengineering Reengineer Evaluate business need Evaluate Investment impact Evaluate technology impact
