Presentation Transcript

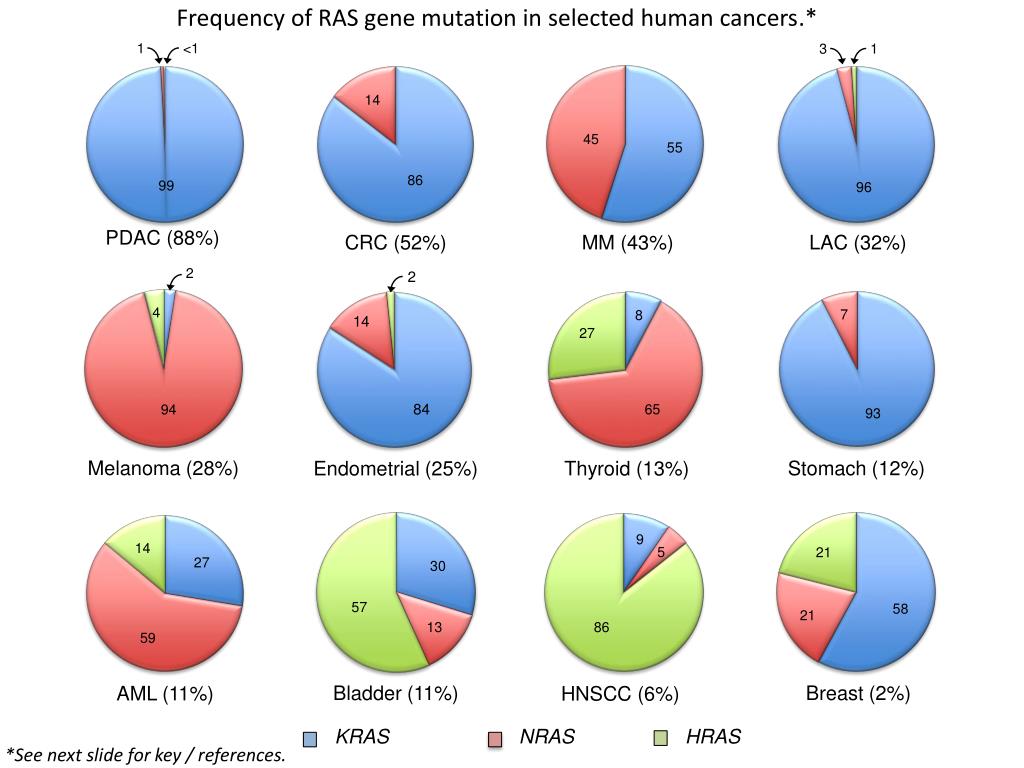

  1. Frequency of RAS gene mutation in selected human cancers.* 1 <1 3 1 14 45 55 99 98 86 96 PDAC (88%) MM (43%) LAC (32%) CRC (52%) 2 14 4 27 94 59 Melanoma (28%) Thyroid (13%) Endometrial (25%) Stomach (12%) AML (11%) 9 5 21 30 57 58 21 13 86 Breast (2%) HNSCC (6%) Bladder (11%) KRAS NRAS HRAS *See next slide for key / references.

  2. Figure 1. Frequency of RAS gene mutation in selected human cancers. The overall frequency of all RAS mutations found in each cancer subtype is indicated in parentheses (%), with specific percentage of each RAS gene mutation indicated with the pie charts. Data were compiled from Cancer Cell Line Encyclopedia (CCLE; http://www.broadinstitute.org/ccle), the International Cancer Genome Consortium (ICGC; http://icgc.org) and The Cancer Genome Atlas Data Portal (TCGA; https://tcga-data.nci.nih.gov/tcga/). Cancer subtypes indicated are uterine corpus endometrioid carcinoma, thyroid carcinoma, stomach adenocarcinoma, bladder urothelial carcinoma and breast carcinoma. Abbreviations used are: AML, acute myeologenous leukemia; CRC, colorectal cancer; HNSCC, head and neck squamous cell carcinoma; LAC, lung adenocarcinoma; MM, multiple myeloma; and PDAC, pancreatic ductal adenocarcinoma.
