Rotation, angular motion & angular momentom. Physics 100 Chapt 6. Rotation. Rotation. d 2. d 1. The ants moved different distances: d 1 is less than d 2. Rotation. q. q 2. q 1. Both ants moved the Same angle: q 1 = q 2 (= q ). Angle is a simpler quantity than distance

Télécharger la présentation
## Rotation, angular motion & angular momentom

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

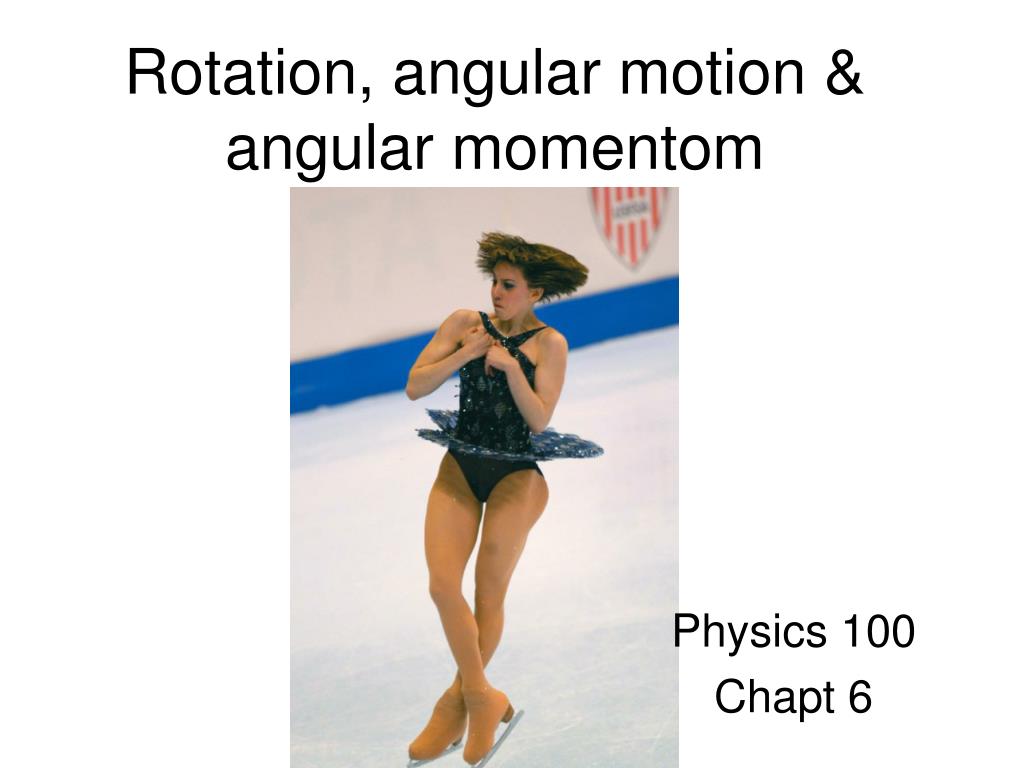

**Rotation, angular motion & angular momentom**Physics 100 Chapt 6**Rotation**d2 d1 The ants moved different distances: d1 is less thand2**Rotation**q q2 q1 Both ants moved the Same angle: q1 =q2 (=q) Angle is a simpler quantity than distance for describing rotational motion**Angular vs “linear” quantities**Linear quantity symb. Angular quantity symb. distance d angle q velocity v angular vel. w change in d elapsed time = change in q elapsed time =**Angular vs “linear” quantities**Linear quantity symb. Angular quantity symb. distance d angle q velocity v angular vel. w acceleration a angular accel. a change in w elapsed time change in v elapsed time = =**Angular vs “linear” quantities**Linear quantity symb. Angular quantity symb. distance d angle q velocity v angular vel. w acceleration a angular accel. a mass m Moment of Inertia I (= mr2) resistance to change in the state of (linear) motion resistance to change in the state of angular motion moment arm M Moment of inertia = mass x (moment-arm)2 x**Moment of inertial**M M x I Mr2 r r r = dist from axis of rotation I=small I=large (same M) easy to turn harder to turn**Angular vs “linear” quantities**Linear quantity symb. Angular quantity symb. distance d angle q velocity v angular vel. w acceleration a angular accel. a mass m moment of inertia I Force F (=ma) torque t (=I a) Same force; bigger torque Same force; even bigger torque torque = force x moment-arm**Teeter-Totter**His weight produces a larger torque F Forces are the same.. but Boy’s moment-arm is larger.. F**Angular vs “linear” quantities**Linear quantity symb. Angular quantity symb. distance d angle q velocity v angular vel. w acceleration a angular accel. a mass m moment of inertia I torque t (=I a) Force F (=ma) angular mom. L(=I w) momentum p (=mv) Iw = Iw Angular momentum is conserved: L=const**Conservation of angular momentum**Iw Iw Iw**High Diver**Iw Iw Iw**Angular momentum is a vector**Right-hand rule**Conservation of angular momentum**Girl spins: net vertical component of L still = 0 L has no vertical component No torques possible Around vertical axis vertical component of L= const**Turning bicycle**These compensate L L**Torque is also a vector**example: pivot point another right-hand rule F t is out of the screen Thumb in t direction wrist by pivot point F Fingers in F direction**Spinning wheel**t wheel precesses away from viewer F**Angular vs “linear” quantities**Linear quantity symb. Angular quantity symb. distance d angle q velocity v angular vel. w acceleration a angular accel. a mass m moment of inertia I torque t (=I a) Force F (=ma) momentum p (=mv) angular mom. L(=I w) kinetic energy ½mv2 rotational k.e. ½I w2 w I V KEtot = ½mV2 + ½Iw2**Hoop disk sphere race**I I I**Hoop disk sphere race**I KE = ½mv2 + ½Iw2 KE = ½mv2 + ½Iw2 I KE = ½mv2 + ½Iw2 I**Hoop disk sphere race**Every sphere beats every disk & every disk beats every hoop
