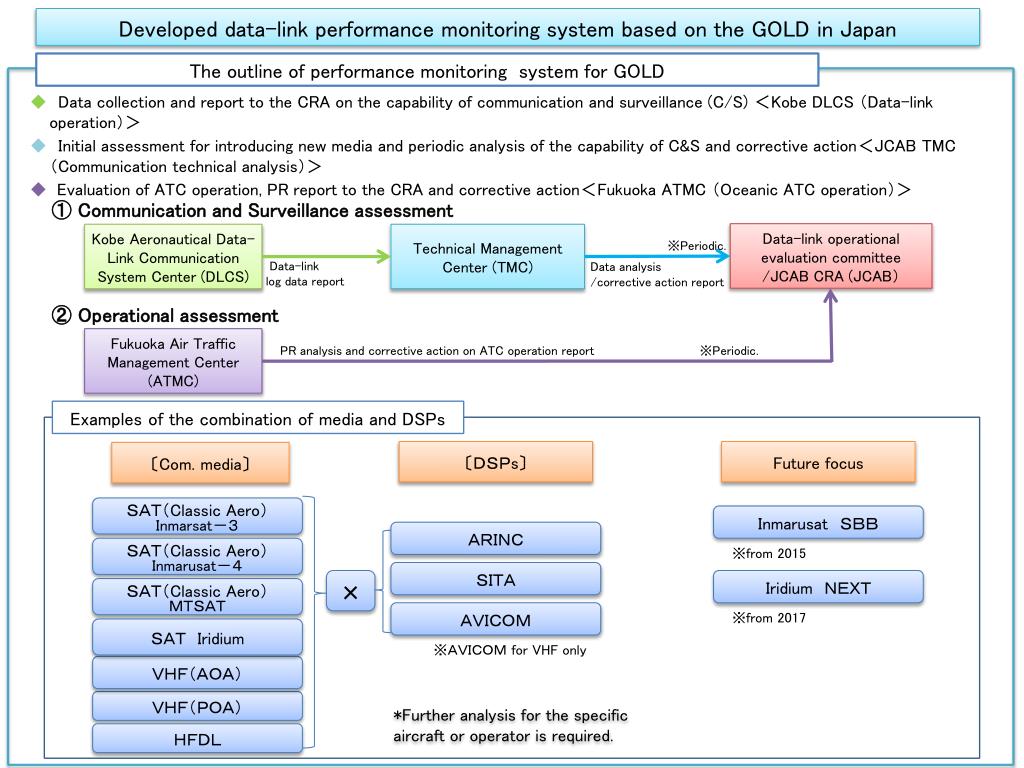

  1. Developed data-link performance monitoring system based on the GOLD in Japan The outline of performance monitoring system for GOLD ◆Data collection and report to the CRA on the capability of communication and surveillance (C/S) ＜Kobe DLCS （Data-link operation）＞ ◆Initial assessment for introducing new media and periodic analysis of the capability of C&S and corrective action＜JCAB TMC （Communication technical analysis）＞ ◆Evaluation of ATC operation, PR report to the CRA and corrective action＜Fukuoka ATMC （Oceanic ATC operation）＞ 　① Communication and Surveillance assessment Data-link operational evaluation committee /JCAB CRA (JCAB） Kobe Aeronautical Data-Link Communication System Center (DLCS) Technical Management Center (TMC) ※Periodic. Data-link log data report Data analysis /corrective action report 　②Operational assessment Fukuoka Air Traffic Management Center (ATMC) PR analysis and corrective action on ATC operation report ※Periodic. Examples of the combination of media and DSPs 〔ＤＳＰs〕 Future focus 〔Com. media〕 ＳＡＴ（Classic Aero） Inmarsat－３ Inmarusat　ＳＢＢ ＡＲＩＮＣ ＳＡＴ（Classic Aero） Inmarusat－４ ※from 2015 ＳＩＴＡ × Iridium　ＮＥＸＴ ＳＡＴ（Classic Aero） ＭＴＳＡＴ ＡＶＩＣＯＭ ※from 2017 ＳＡＴ　Iridium ※ＡＶＩＣＯＭ for VHF only ＶＨＦ（ＡＯＡ） ＶＨＦ（ＰＯＡ） *Further analysis for the specific aircraft or operatoris required. ＨＦＤＬ
